Product Description

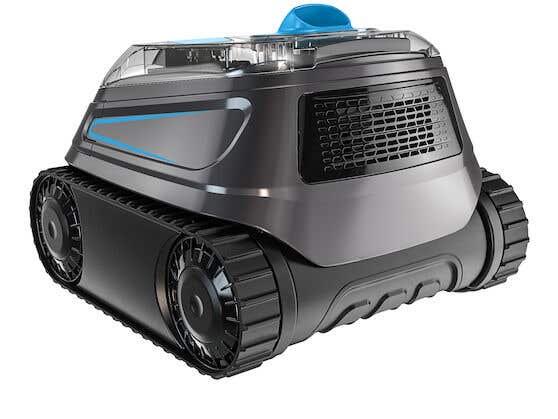

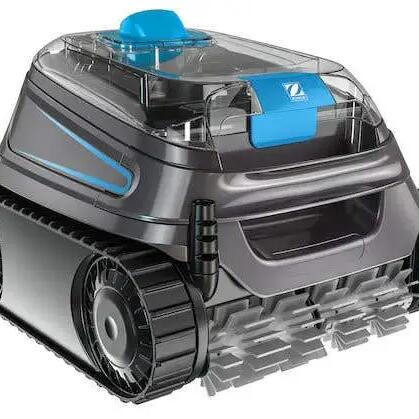

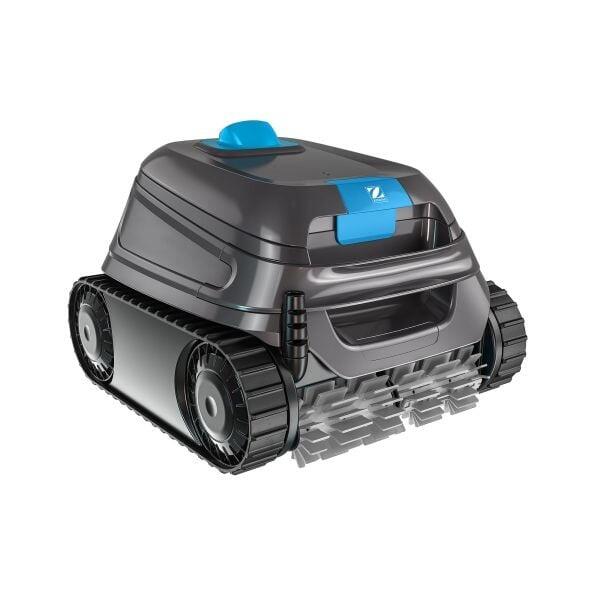

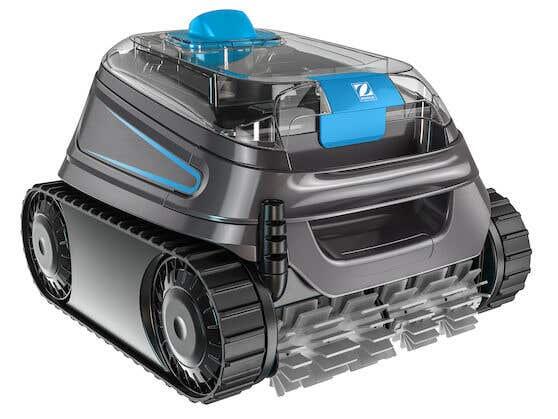

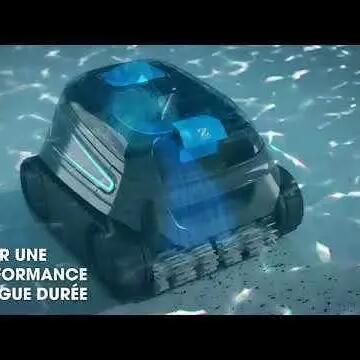

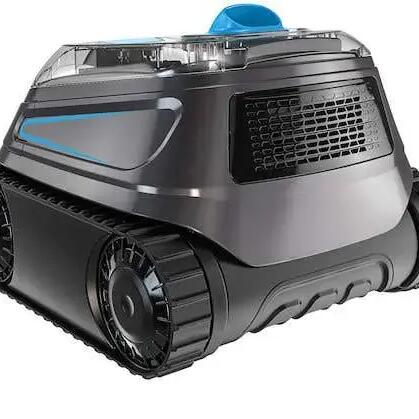

Electric and automatic pool vacuum cleaner Zodiac® CNX 10 Cleans Robot Funds
The CNX 10 robot ensures perfect, large -scale and high performance cleaning. Its patented cyclonic aspiration is potent and long lasting. Propeller brushes, wide aspiration nozzle, and 4L filter allow you to more effectively aspire to the largest. With CNX ™, your pool is impeccable all year round.

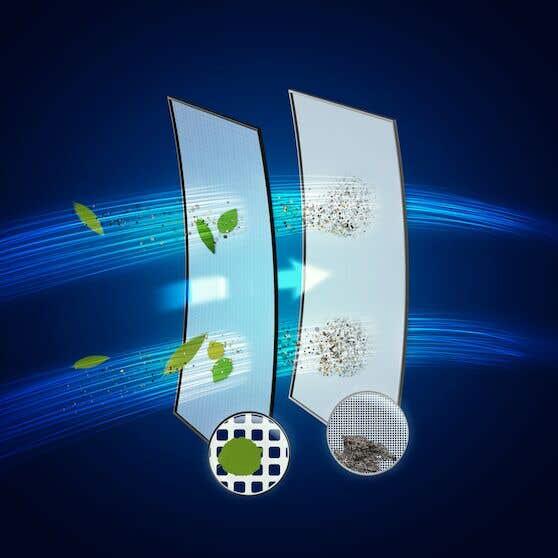

Cyclonic aspiration for greater cleaning
Zodiac® vacuum cleaners feature the Zodiac® patty system, evolved and of great strength and grip. This system can do pool residues not to glue on the filter by offering a vortex effect on the inside and thus loses centrifugal energy. Ideal for greater suspension when it is in operation.
Included helical combs patented by Zodiac® to achieve improved cleaning
The best movement in our pool
The Zodiac® CNX10 Robot has been designed with the best materials and combinations to achieve a simple range model, but with great filtering and cleaning capabilities. Included different CNX ™ unique movement intelligent sensors, which offers cleaning and agility that will surprise. Capable of cleaning the pool of any type of coating and maximum 9x4mts.

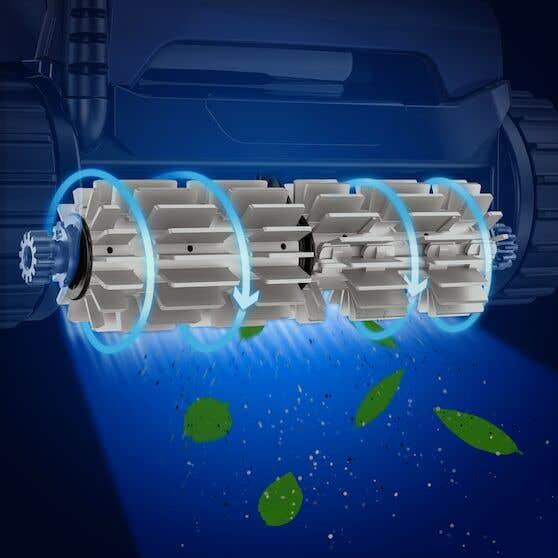

Propeller Brushes
Thanks to the propeller brushes, the CNX 10 aspiras the waste more effectively, without pushing them forward.
Wall detection
The acceleroter allows the walls to avoid slope at the bottom of the walls and the stirring of the debris.
Integrated agility
With your incorporated smart sensors and unique design, CNX ™ offers excellent pool coverage and boundless agility. This works ideally in all pool forms and all types of coating.
Comfort
The accessible filter on top and the transparent window offers a real comfort of daily use. Rapid expulsion from water allows a facilitated robot output.
Easy manipulation and release of water
The Zodiac® CNX10 is very light. With only 8kg it is easy to manipulate and transport from side to side of the pool. Access to the filter is also very fast, with a conformed position to open and remove the basket. Carry on the tab and will open perfectly so you can remove the filter. To clean it, use a hose. In the case of many leaks, it is recommended to change filter more regularly.
Datasheet
What kind of pools?
- Pool types: Private buried pools and high walls with rigid walls
- Pool forms: rectangular, oval, free shapes
- Tank funds: planes, smooth slope, compound slope, diamond tip
- Pool dimensions: up to 9 x 4 m
Description:
- Cleaning Zones: Background/ Wall/ Water Line
- Number/duration of cleaning cycles: Deep Clean Background: 1h30 and background/Water Line: 2h
- Energy source: autonomous, 230 V current connection to the amount of the transformer
- Travel: Pre-Programmed
- Traction system: caterpillars
- Transmission: gears
- Pressure Sensor: No
- Brushes: Front Brush
- Lift System: No
- Transparent window: Yes
- Full filter indicator: No
- Distance control: no
- Safety: beach system, safety out of water, electronic protection of engines
- Filter/Access System: Rigid filter with access at the top of the robot
Technical Characteristics
Pool dimension up to 10m
Background cleaning, walls and waterline
Cleaning cycles 1 background cleaning cycle, walls and water line in 2 hours

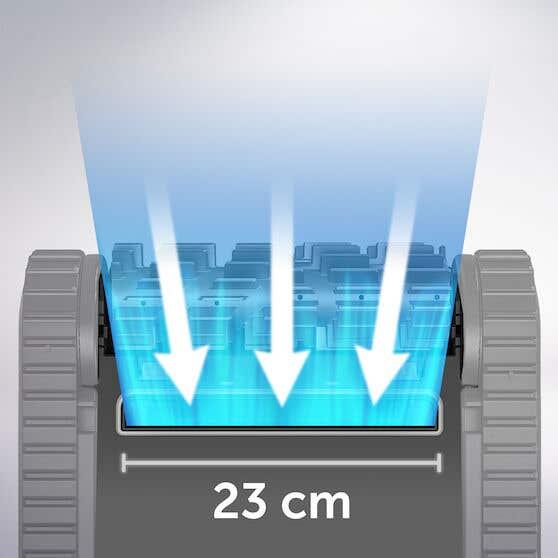

23cm cleaning width
Fine filtration filtration and access through the upper cover
Filter surface 100µ
526 cm²
4L Filter Capacity
Nº Motors 3
8 kg robot weight
Packed weight
14 kg
Dimension of Robot (C x L x A) 43 x 40 x 30 cm
Packaging Dimensions (C x L x A) 56 x 56 x 37 cm
Cable length 15 m
Lift system no
APP No
Car included not
Safety beach system, safety out of water, electronic engine protection
2 years warranty + 1 year
Accessories included in the package:
- Command Box
- Fine debris filter 60/150?
Optional accessories:
- 60 µ complementary filter for double filtering
- Waste filter for double filtration 100 µ
- Simple waste filter 200 µ
- Protection case
- Transport Car
