Product Description

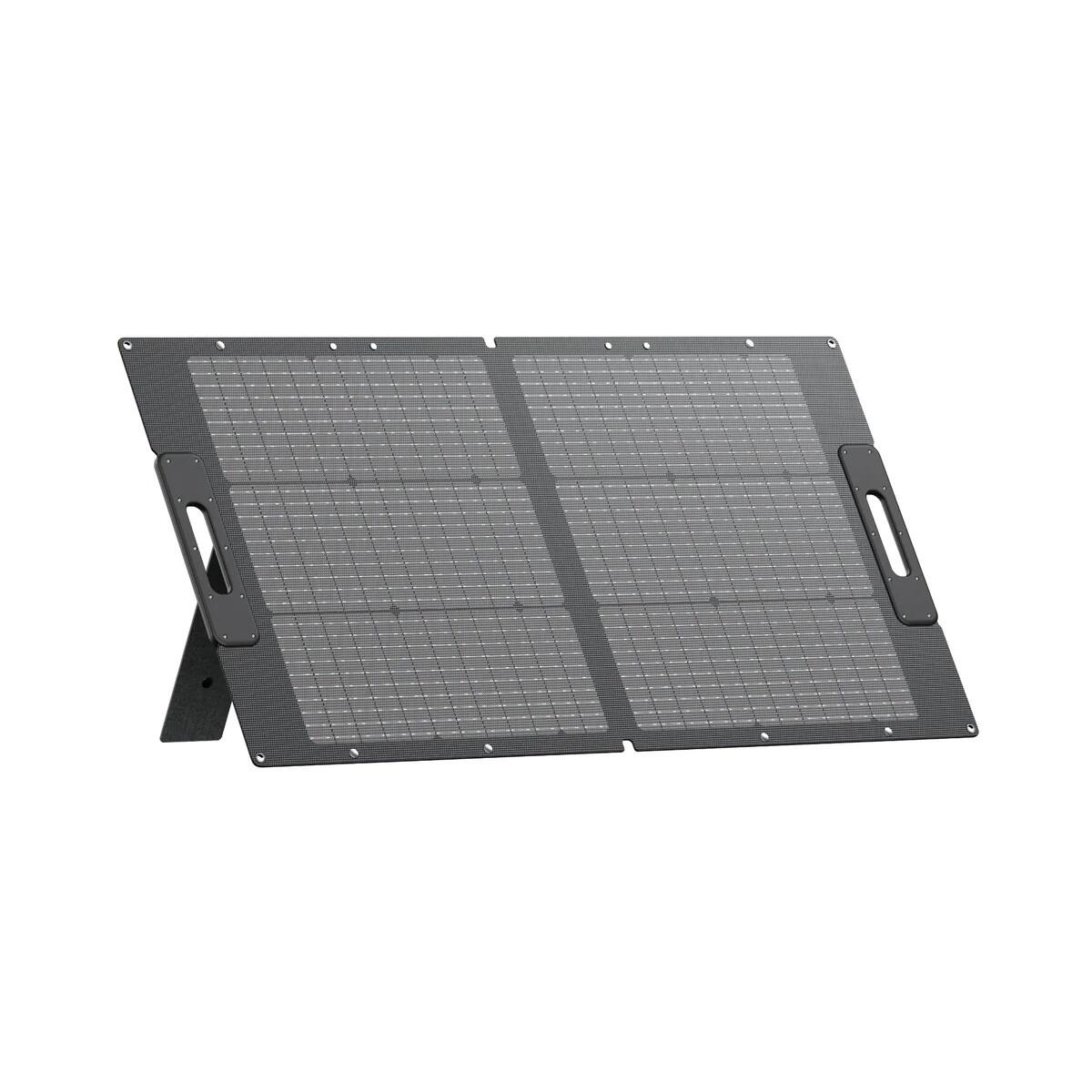

BLUETTI Solar Panel 100W, 100 Watt for Portable Power Station ELITE30V2,ELITE100V2,ELITE200V2, Foldable Solar Charger with Adjustable Kickstands for RV, Camping, Blackout Emergency
About this item
- [100W Solar Panel] - With solar connector, offers 100W solar power for solar generator like BLUETTI ELITE30V2,ELITE100V2,ELITE200V2 and others on the market.
- [High Cell Efficiency] - Built with monocrystalline solar cells, portable 100W solar panel can convert up to 23.4% of sunlight into usable electricity, giving you solar energy even in bad weather.
- [Long-lasting ETFE Coating] - The 100W solar panel is also designed to withstand any scratches and water splashes, perfect for camping, fishing, hiking, and much more.
- [Foldable & Portable] - With a folded size of 49.4× 47.1× 7.5 cm and a weight of 5.7 kg, you're able to take this solar panel anywhere you need solar power.
Sunshine-Powered Convenience
Wherever the sun shines, the PV100 is ready to power up! By working with a solar generator, it seamlessly collects, converts, and stores clean, renewable solar energy. Whether you're traveling, camping, or simply need a daily backup, the PV100D ensures solar energy is within reach around the clock.
Superior Durability and Efficiency
Crafted with innovative ETFE coating, the PV100 offers unparalleled durability and UV resistance, extending its lifespan and ensuring optimal performance in all environments.
The monocrystalline solar cells allow up to 23.4% conversion efficiency, surpassing the industry average of 20% and maximizing solar energy utilization.
Easy Setup With Kickstand
Unfold the PV100, snap the kickstands, adjust the angle to maximize the amount of sunlight, and you're ready to harness solar energy for your generators.
(The recharging time refers to 80% of power level being charged*)
Technical Specifications
Model: PV100
Power: 100W
Lamination: ETFE (Ethylene tetrafluoroethylene)
Cell Type: Monocrystalline Silicon
Cell Efficiency: Up to 23,4%
Voltage at Max Power (Vmp): 20,5V
Current at Max Power (Imp): 4,9A
Open Circuit Voltage (OCV): 24,6V
Short Circuit Current (Isc): 5,8A
Connector: Standard MC4 Connector
Weight: 10,8lbs (4,9kg)
Dimensions (Unfolded): 1135 × 600 × 4mm (44,6 × 23,4 × 0,8in)
Dimensions (Folded): 595 × 565 × 35mm (23,4 × 22,3 × 1,4in)
Operating Temperature: 14-149°F (-10°C to +65°C)
Best Working Temperature: 77°F (25°C)
Cable Length: 118in (3m)
Certifications: CE, ROHS, PSE, FCC, UKCA
FAQ
Q1: Is It Waterproof?
A:
Yes. IP67 is rated for junction box. Do not expose the solar panel to rain or snow.
Q2: What will affect the solar conversation rate?
A:
A. The sunlight intensity.
B. Ambient temperature.
C. The angle you place the solar panel to sunlight.
D. The length of the solar charging cable(for third-party cables).
Q3: Can I use BLUETTI Solar Panel to charge the third-party power station?
A:
Yes, as long as they
(1) have MC4 connectors;
(2) support the output specifications of BLUETTI solar panels.
