Product Description

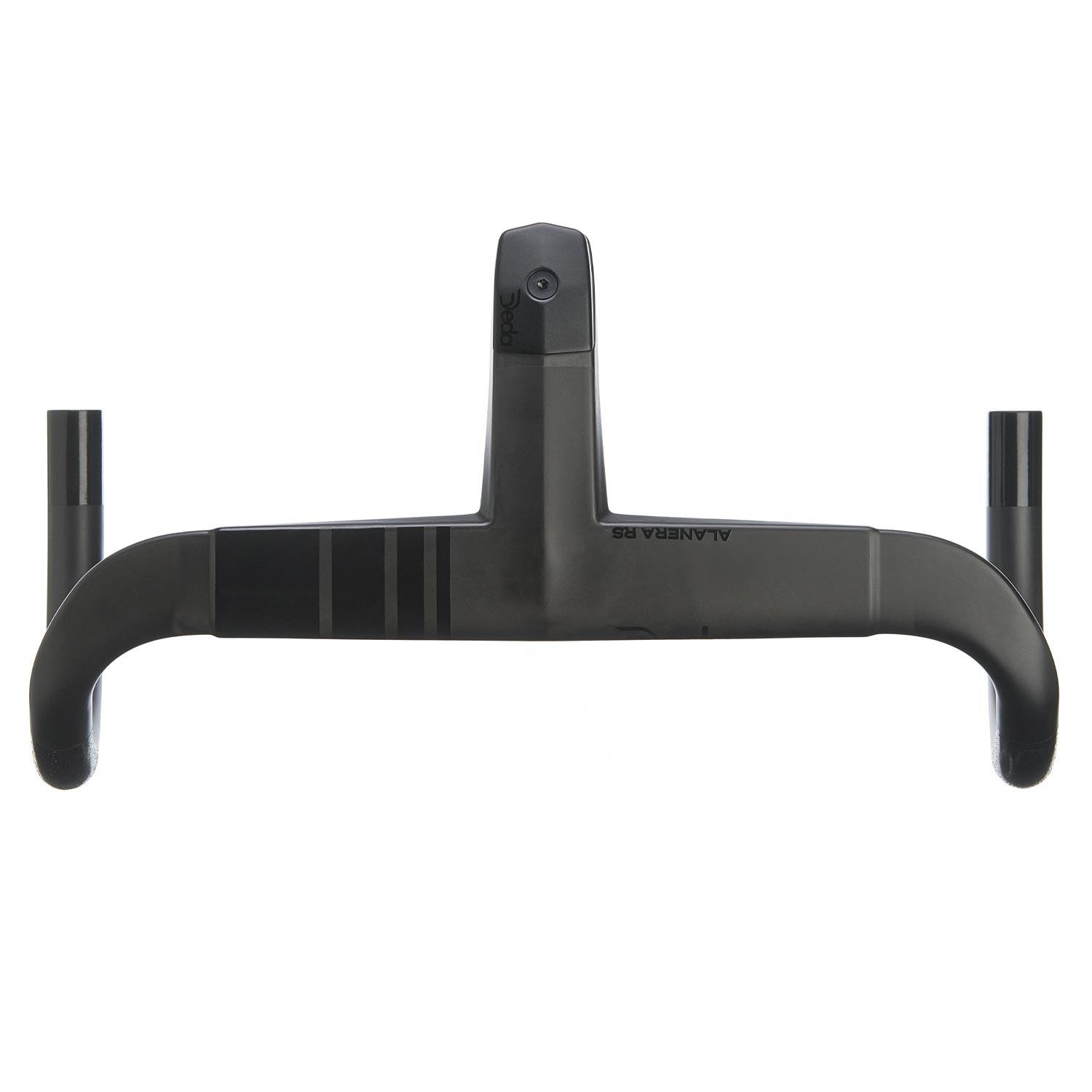

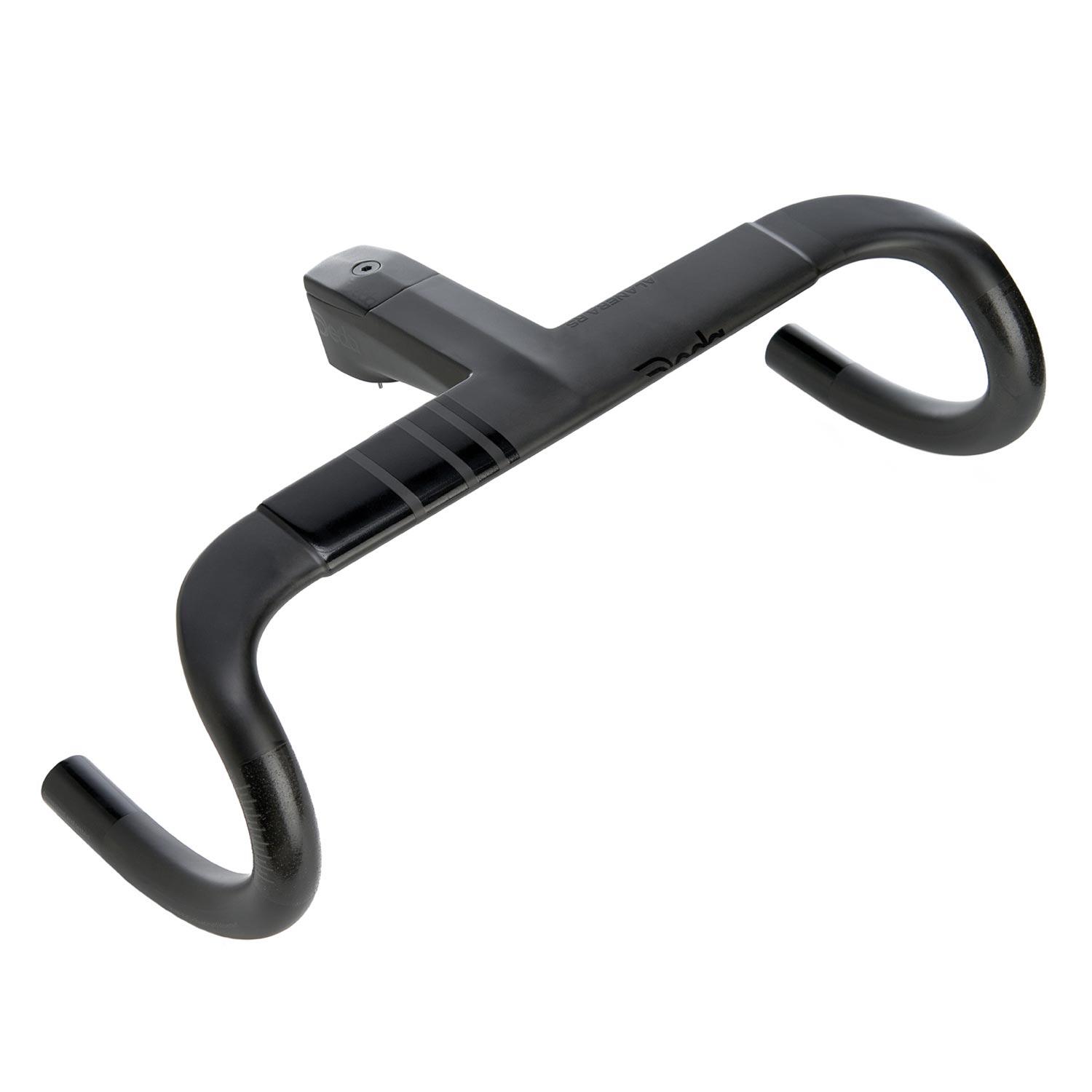

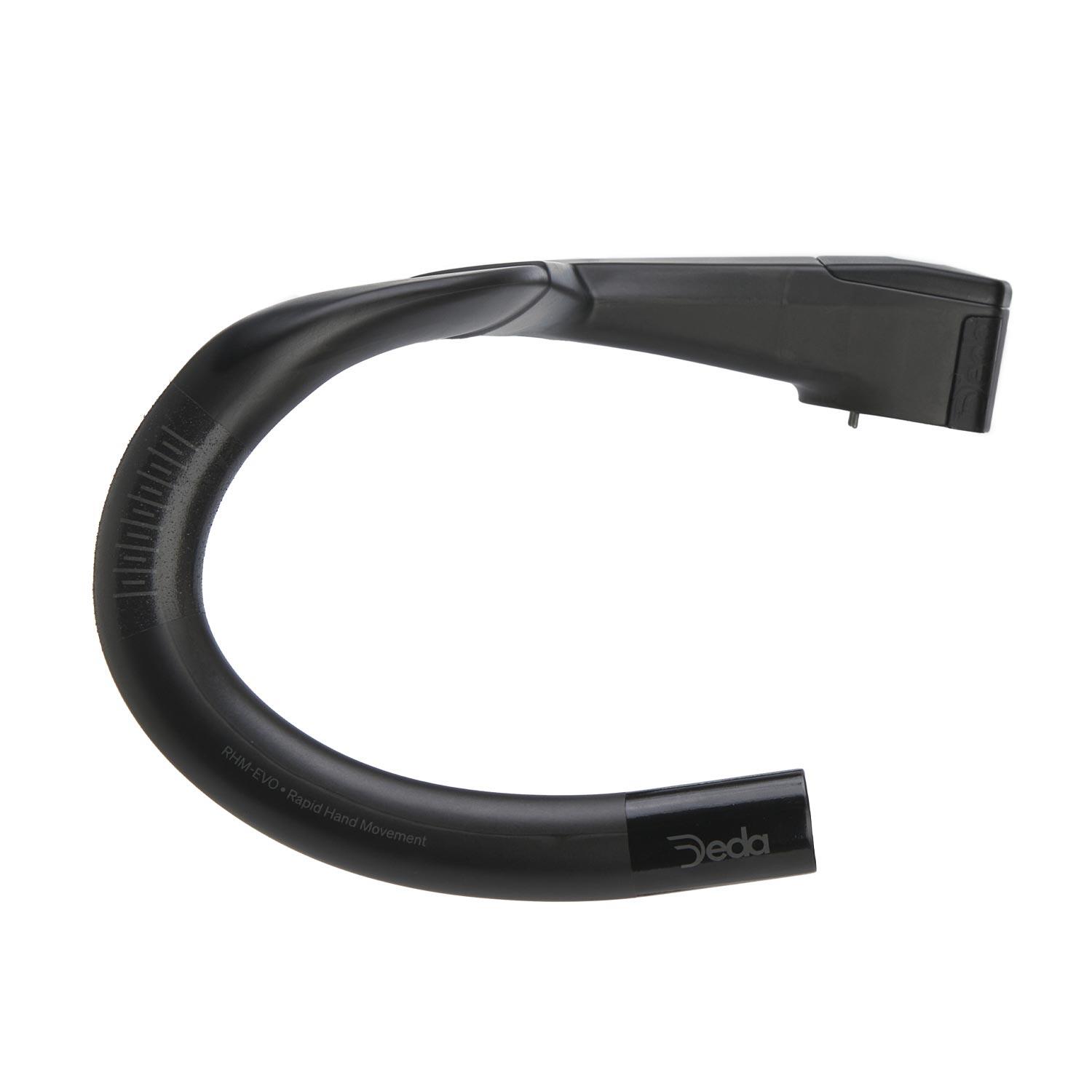

Alanera RS is Deda’s high-performance integrated road handlebar, combining UD full carbon construction with an aerodynamic RHM-EVO profile for improved comfort and efficiency. The refined geometry features a 120 mm compact drop and upgraded top ergonomics so riders can hold a low, stable position for longer. The 6° flare increases control and forearm clearance in the drops while preserving a slim aero top cross-section.
Key features:
- RHM-EVO shape with a 120 mm compact drop for a lower, more aerodynamic position
- 6° flare for improved control and extra forearm clearance in the drops
- UD full carbon construction for low weight and stiffness
- Full internal cable routing compatible with D-shape forks and DCR frames
- Special headset spacers that allow adjustment without removing cables
- Cleaner internal area for simpler cable routing and a neater cockpit
Technical specifications:
- Shape: RHM-EVO (Rapid Hand Movement)
- Material: UD full carbon construction
- Fork steerer: 1 1/8" - tapered (28.6 mm)
- Angle: 82°
- Depth: 75 mm
- Drop: 120 mm
- Flare: 6°
- Handlebar weight: 340 g (110x42)
- Size: 110x40 (stem length mm x handlebar width cm measured outside to outside)
Included in the box: aero top cap, headset spacers and DCR top cover for 46 mm and 56 mm headtubes, and a Garmin-compatible mount (fits Garmin, Wahoo, Bryton and GoPro). Compatible with full internal routing for two brake cables and an electronic shifting wire.
Installation note: follow the fork and headset manufacturer's instructions when cutting the steerer and ensure the cut surface is free of notches or irregularities. Refer to the supplied manual for full installation guidance.
