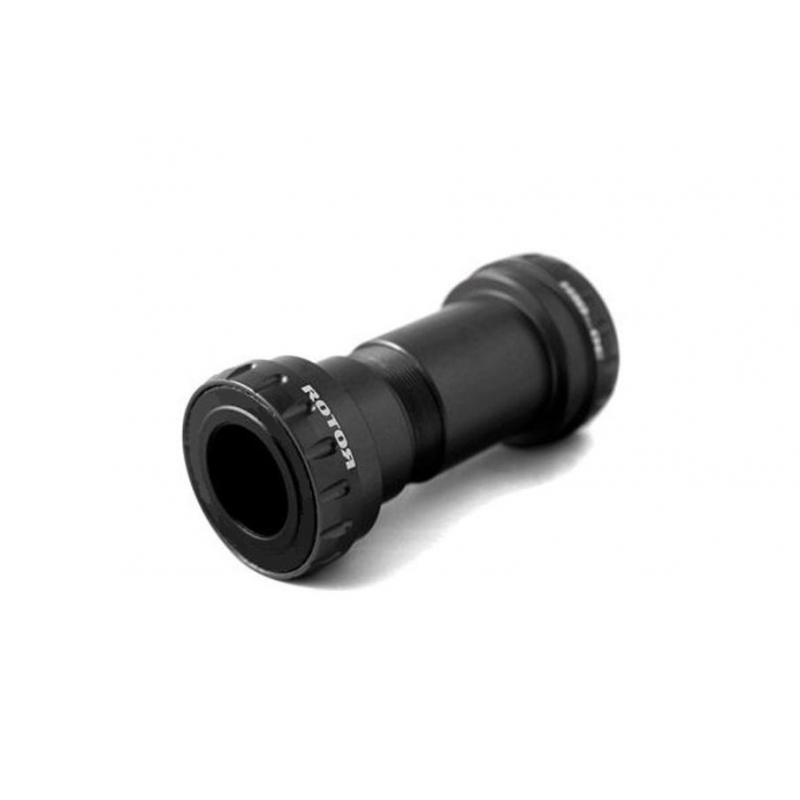

Bottom bracket Rotor bb4224 bb steel

Product Description

Adapter to mount all standard Shimano cranksets (24mm) on a BB30 bike

• Steel bearing Does your bike creak when you press hard on the pedals, has the crankset movement lost its fluidity or has it become loose? The symptoms are clear: it's time to change your bottom bracket. Like all the parts that make up your bike, the bottom bracket and especially its bearings are subject to wear. Its replacement is a simple operation if it is well prepared, indeed the multiplication of the standards of bearings, bottom bracket and frame will discourage some. We will try to guide you through this jungle of standards. The bottom bracket is the interface between your crankset and your frame, so the first thing to do is to identify which crankset you want to fit in which frame ? Internal case diameterBox widthMountingStandardRecommended bottom bracket axle34.8 mm68 mmScrew onBSA / BSC24 mm / GXP / Dub 29 mm36 mm70 mmScrew onItalian24 mm37 mm90.5 mmPress onBB 90 (Trek)24 mm / GXP / Dub 29 mm41 mm86.5 mmPress onPF 86 (Shimano)24 mm / GXP / Dub 29 mm41 mm89,5 mmÀ PresserPF 90 (Shimano)24 mm / GXP / Dub 29 mm42 mm68 mmÀ PresserBB 3030mm / Dub 29 mm42 mm79 mmÀ PresserBB Right30mm / Dub 29 mm46 mm61 mmÀ PresserSpecialized30mm / Dub 29 mm46 mm68 mmÀ PresserPF 3030mm / Dub 29 mm46 mm79 mmÀ PresserBB Right PF 36030mm / Dub 29 mm46 mm86,5 mmÀ Presser386 EVO30mm / Dub 29 mm We advise you to disassemble your original box to measure precisely the dimensions of the bottom bracket of your frame. This compatibility is given as an indication, there are also boxes 'adapters' that allow to mix the standards. Characteristics: Casing width 68
• 73 BB30 Caster Standard Internal Caster Diameter 42 Bearing Quality Steel Bottom Bracket Axle 24 mm Crankset Standard Rotor 24mm
• Race Face X-type
• Shimano Hollowtech II
• FSA MegaExo
