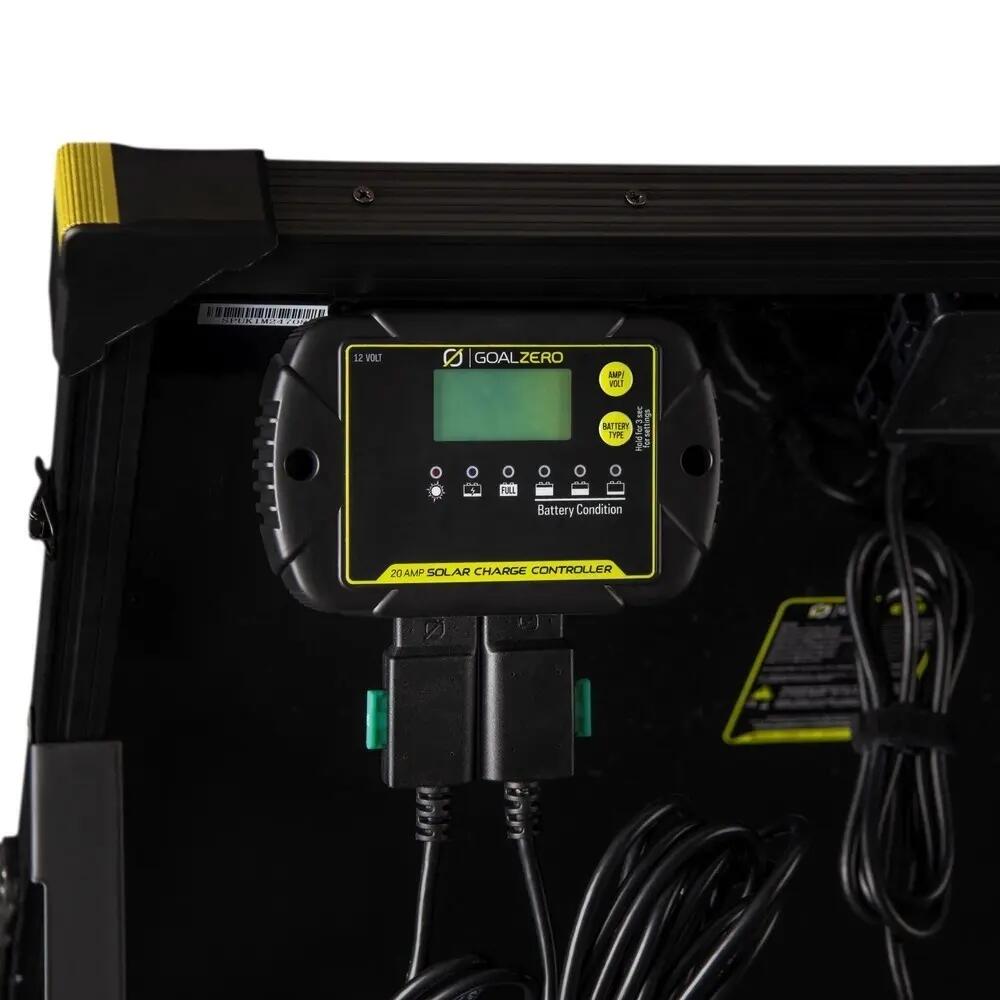

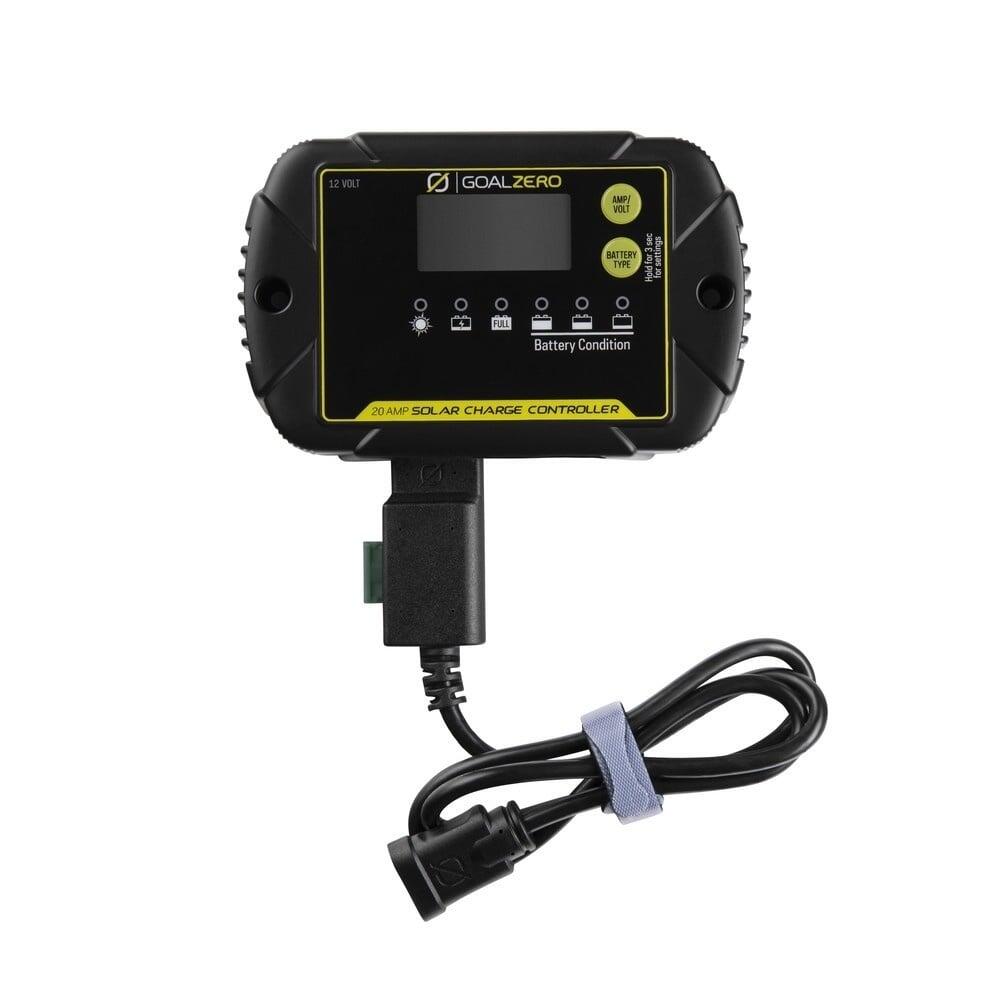

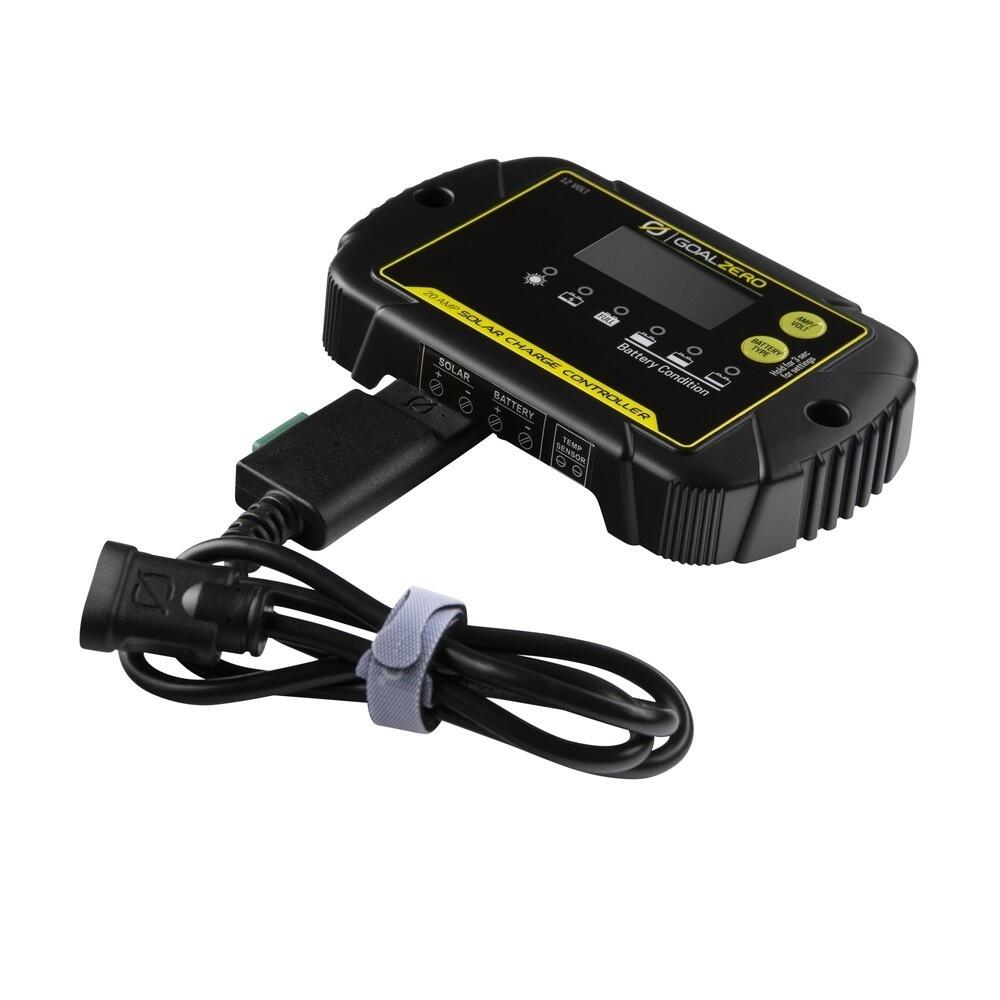

Solar panel charge controller Goal Zero 20A

Product Description

Control and regulate the solar input for your 12V batteries with the 20 Amp charge controller. Designed to fit perfectly with Goal Zero solar panels, the charge controller comes with a pre-installed PHP (high power port) connector and an easy-to-read LED display. With an IP65 rating, the charge controller is weatherproof and dust-resistant, providing protection against the elements during your off-grid adventures or outdoor activities. Designed to monitor and regulate the solar input for 12V batteries. For solar charging of 100 watts or less, we recommend the 10 amp charge controller. For solar charging over 100 watts, we recommend the 20 Amp charge controller. The charge controller comes with an integrated PHP connector. To connect and charge a 12V battery, you will need to purchase a Spade to SAE cable and additional cable adapters. We recommend either the SAE to ring terminal or the SAE to alligator clip. Does not work with Yeti X Input/Output: M5 Input: Solar port (PHP port): 14-23V | up to 20A Fuse: 25A replaceable Charge controller: PWM Nominal current rating for GZ-10 solar panel: 20A Normal input voltage for solar panels: 15-22V Maximum solar panel voltage (no load output): 25V Lowest operating voltage on the solar or battery side: 8V minimum Charging characteristics: Starting voltage at 25°C: 3-10V Charging voltage at 25°C: LTO battery: 14.0V Gel battery: 14.1V LiFePO4 battery: 14.4V Charging voltage at 25°C: AGM battery: 14.4V WET battery: 14.7V Calcium battery: 14.9V Equalization voltage at 25°C: WET or Calcium battery-15.5V Float voltage at 25°C: Gel AGM WET Calcium batteries-13.6V LTO and LiFePO4 batteries-13.4V Battery temperature compensation coefficient: -24mV/°C
