Product Description
The 'Shamal' project has always represented a challenge for Campagnolo towards the future. Created in 1992, it was the first complete wheel and introduced the concept of high profile, a revolutionary aerodynamic design for its time and an immediate winner.
The innovative element lies in the wheel design called Dual Profile. An original modular profile enhanced in the wind tunnel and with road testing that, combined with differentiated flange hubs, allows for shorter spokes, benefiting overall stiffness, without the cyclist having to give up pedalling comfort.
Like the previous models, the new Shamal - Dual Profile adopts a fibre with C-LUX finish, a device that, translated on the road, provides optimal handling in all conditions, even with wide tyres, suitable for gravel use.
The soul of the new Shamal wheels from Campagnolo is also manifested in the 2-Way Fit system, which allows the cyclist to choose between the classic tube tyre solution or the tubeless tyre solution, the latter being made possible by the non-drilled top wall of the rim, avoiding the need for rim tape.
The spokes are arranged with the G3 lacing geometry, an iconic signature of the brand Campagnolo, a patented system ensuring perfect tension balance for better stiffness in the transfer of power generated by the pedals.

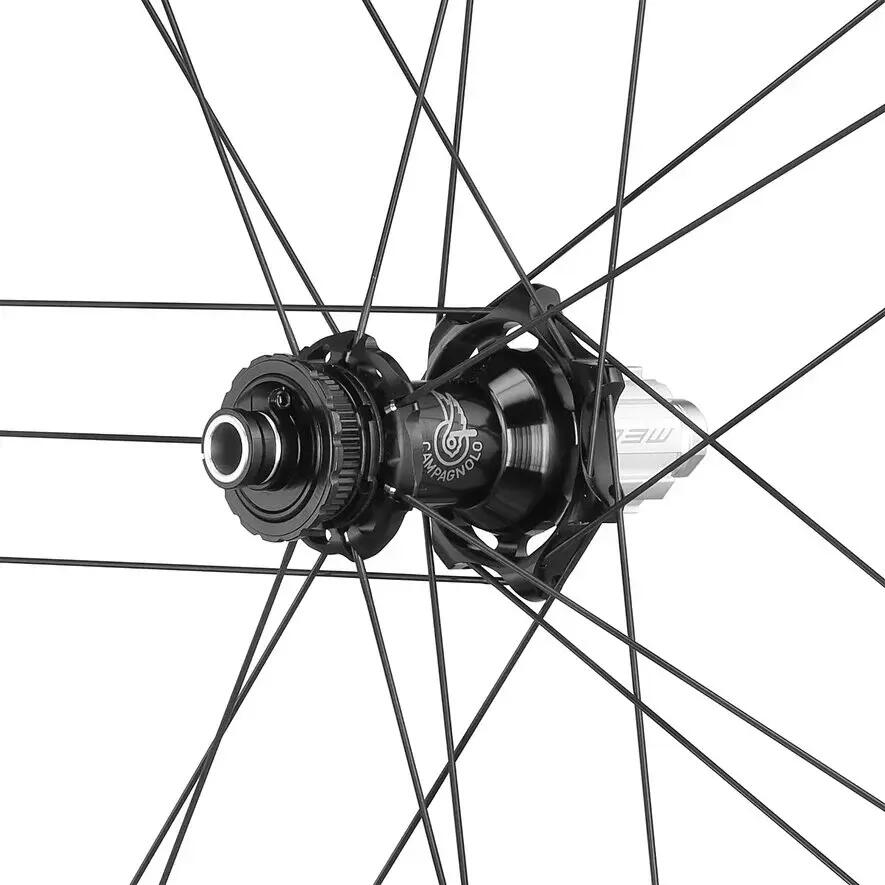

The smoothness of the new Shamal from Campagnolo is entrusted to the aluminium hubs with a cone-cup system, allowing for easy bearing maintenance. Compared to the previous model, the new materials adopted save over one hundred grams, bringing the total weight to 1,480 grams.
The new Shamal - Dual Profile is the ideal solution for cyclists looking for a versatile wheel, capable of expressing itself in different contexts, built with methodologies and technologies inspired by high-end models.
INCREASED HANDLING IN ALL CONDITIONS: The new Dual Profile carbon rim with unidirectional finish is designed to improve bike handling at all speeds, offering comfort and maneuverability in all conditions.
The C23 rim is perfect for fitting tyres over 28 mm, making it a complete Road/All-rounder wheel.
RESPONSIVENESS: A new monobloc hub design combined with the iconic G3 geometry to achieve perfectly balanced tensions, thus increasing stiffness and improving energy transfer.
DESIGNED TO LAST: Durable and easy to maintain.
Weight
1,480 g
Spokes
21 aero-elliptical steel spokes at the front, grouped with the G3 system
21 aero-elliptical steel spokes at the rear, grouped with the G3 system
Hub
Monobloc black aluminium hub
Hub stop: 100 mm front, 142 mm rear
Axles: 12 mm through axles in aluminium
Cone/cup bearing system: 15/28 mm front and 17/30 mm rear
Tyres and tubes
Inner tube
Tubeless
Rim
Profile height: 45/40 mm
Rim material: carbon
Rim section (height/width): modular
Internal rim width: C23/HOOK
Assembly
The SHAMAL - Dual Profile wheel is entirely hand-assembled by a specialized Campagnolo® operator and controlled 100% using electronic control instruments. This procedure ensures maximum precision and reliability of each wheel from the Campagnolo® brand.
