Product Description
The ZONDA GT wheel features an optimal combination of the best technologies Campagnolo, ensuring maximum versatility in tyre choices - from gravel to road.
The iconic G3 lacing and striking anodized finish give the aluminium ZONDA GT wheel a refined look and clearly identify it as a Campagnolo product.
Weighing only 1690 g, it boasts a strong yet lightweight aluminium structure and the patented N3W freehub by Campagnolo.
With an internal width of 23 mm, the ZONDA GT is a very versatile wheel that accommodates both wider tyres for dirt tracks and rocky trails as well as thinner road tyres.
Discover the countless new ways to travel by bike.
MACHINED RIM: this machining reduces the weight of the rim's perimeter, making the wheel extremely responsive.
RDBâ„¢ - RIM DYNAMIC BALANCE: the concept is simple and elegant: balance the weight of the valve with an identical weight on the diametrically opposite side.
MOMAGâ„¢: allows for a rim profile without holes, which improves both rigidity and weight.
SPOKES: G3â„¢ technology also applied to the front wheel to enhance performance under high braking power.
FRONT WHEEL SPOKES: 24 stainless steel spokes with a stretched circular section of 1.6 mm
REAR WHEEL SPOKES: 24 stainless steel spokes with a stretched circular section of 1.6 mm.
SELF-LOCKING NUTS: black anodized self-locking nuts on the outside of the rim for easier maintenance.
CONE/CUP BEARINGS: easy adjustment of the bearings reduces any play while maintaining consistent performance over time, ensuring optimal contact angle between the ball and the surface.
SETTINGS RING: for precise adjustment of the hub to eliminate play.
Weight
1690 g (780 F/910 R)
Spokes
24 circular section spokes, stretched to 1.6 mm
G3 lacing
Aluminium self-locking nuts
Mo-Mag system

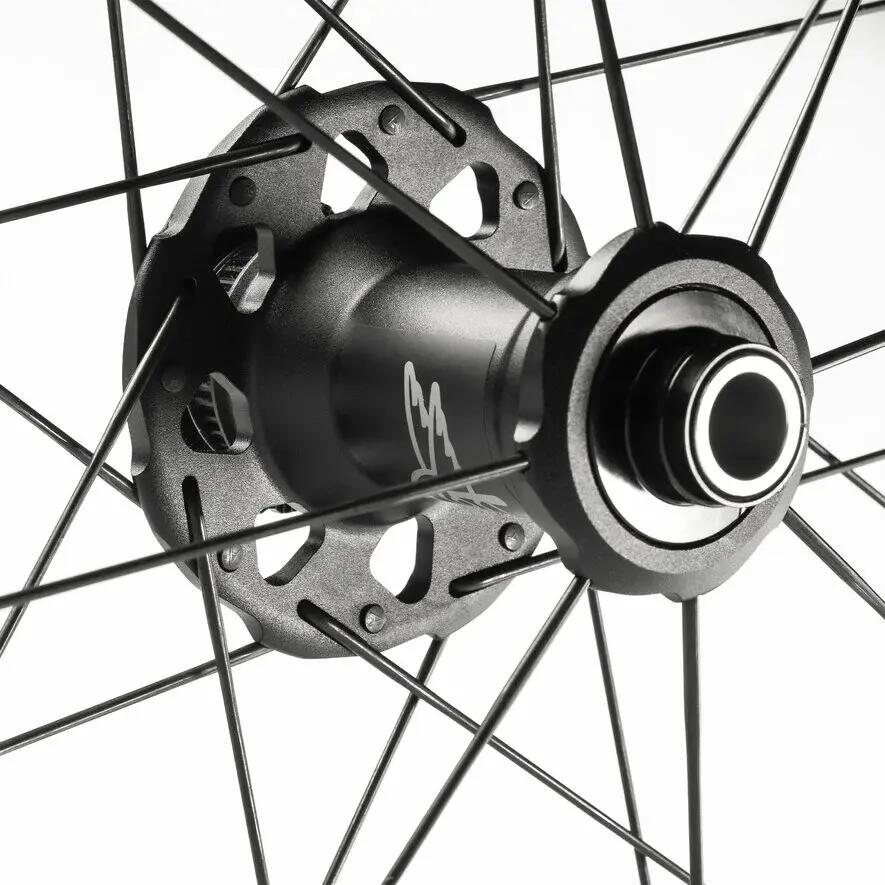

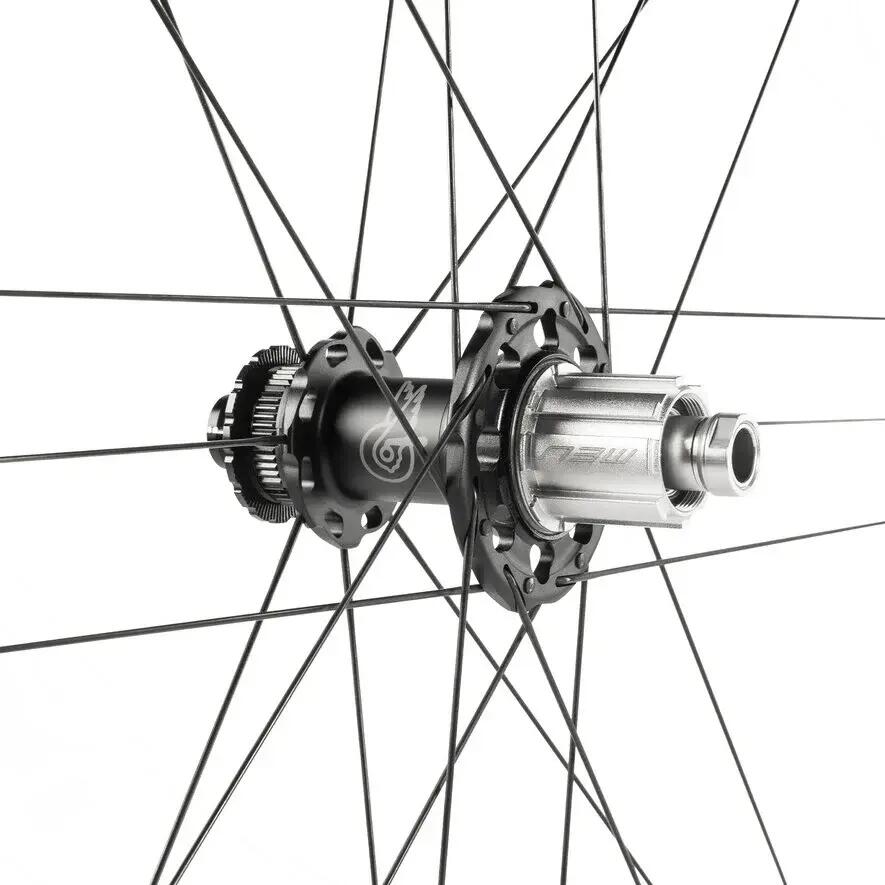

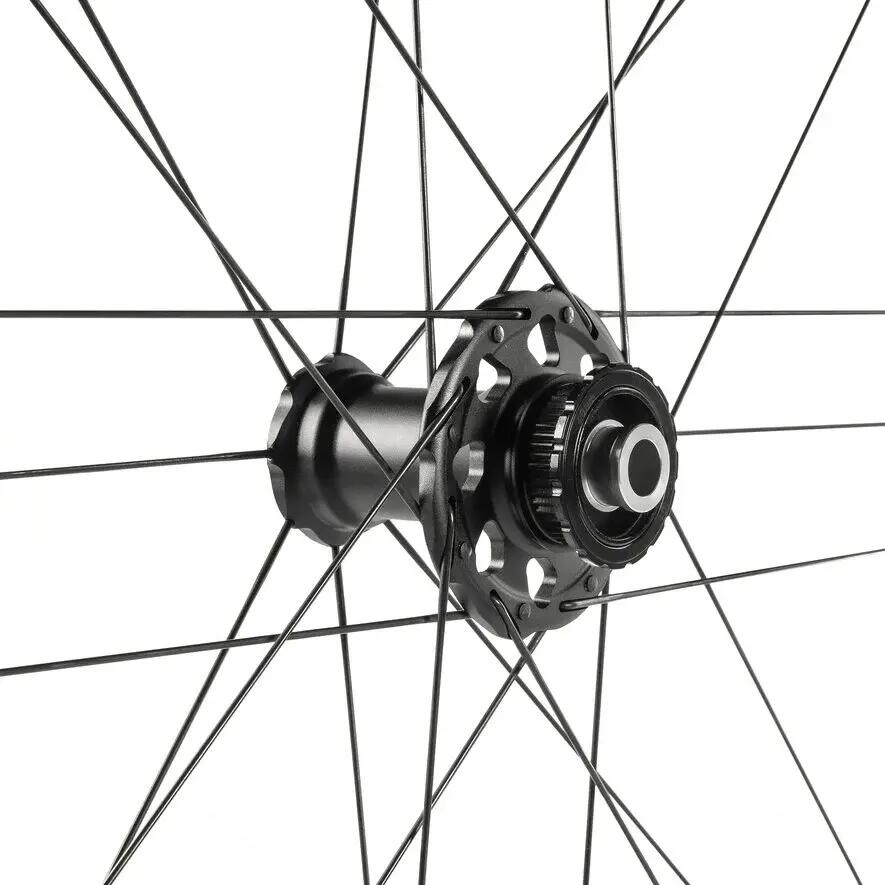

Hub
Black anodized aluminium hub, matte finish
Cone/cup bearings with steel balls
Enlarged flange
Hub spacing: 100 mm front, 142 mm rear
Axle type: 12 mm thru-axles
Braking system: AFS disc
Tyres and tubes
2-WAY-FIT wheel
Rim
Black anodized aluminium rim, matte finish, welded joint Rim with machining
Rim height: 29.5 mm and 28 mm in the machined areas
Internal width: 23 mm
External width: 28 mm
Tyre system: 2-Way Fit
Assembly
The Zonda GT DB wheel is fully hand-assembled by a specialized operator Campagnolo® and inspected 100% using electronically controlled instruments. This procedure ensures optimal performance and maximum reliability for all wheels from the Campagnolo brand.
