Product Description
[Product Introduction]

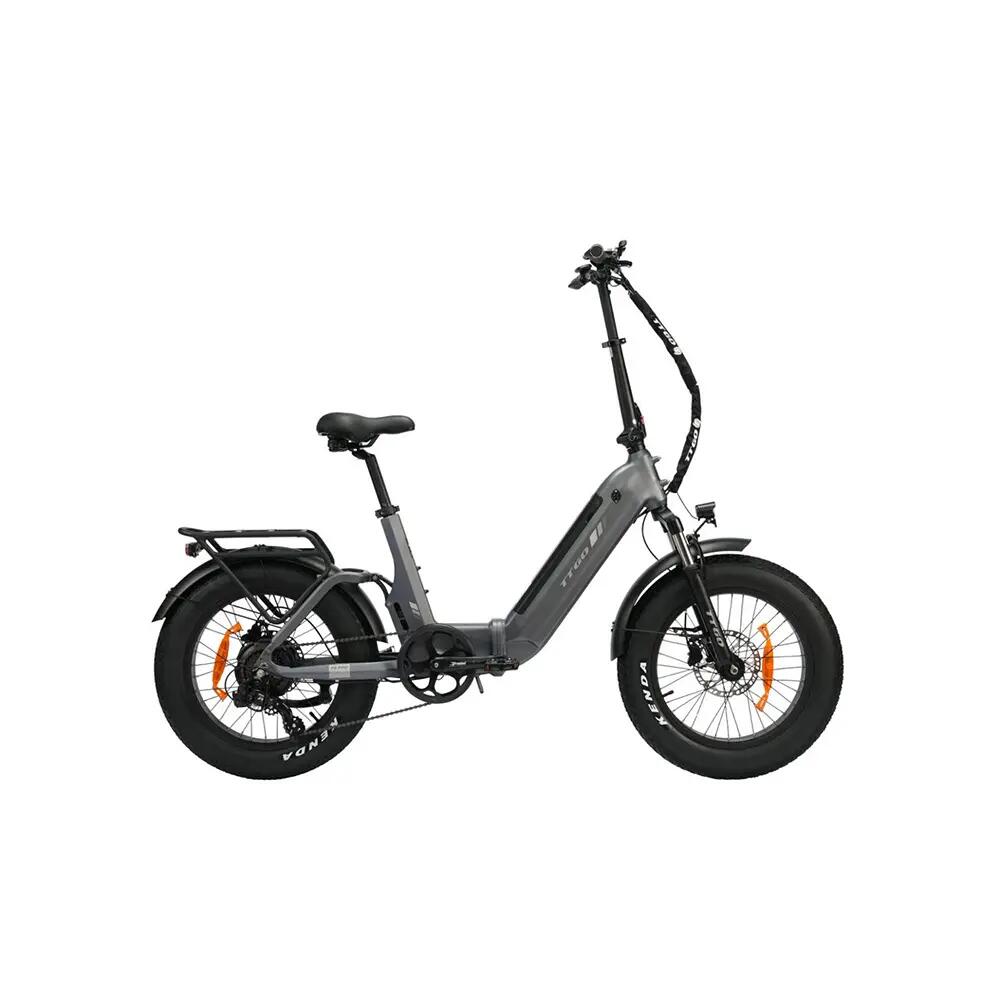

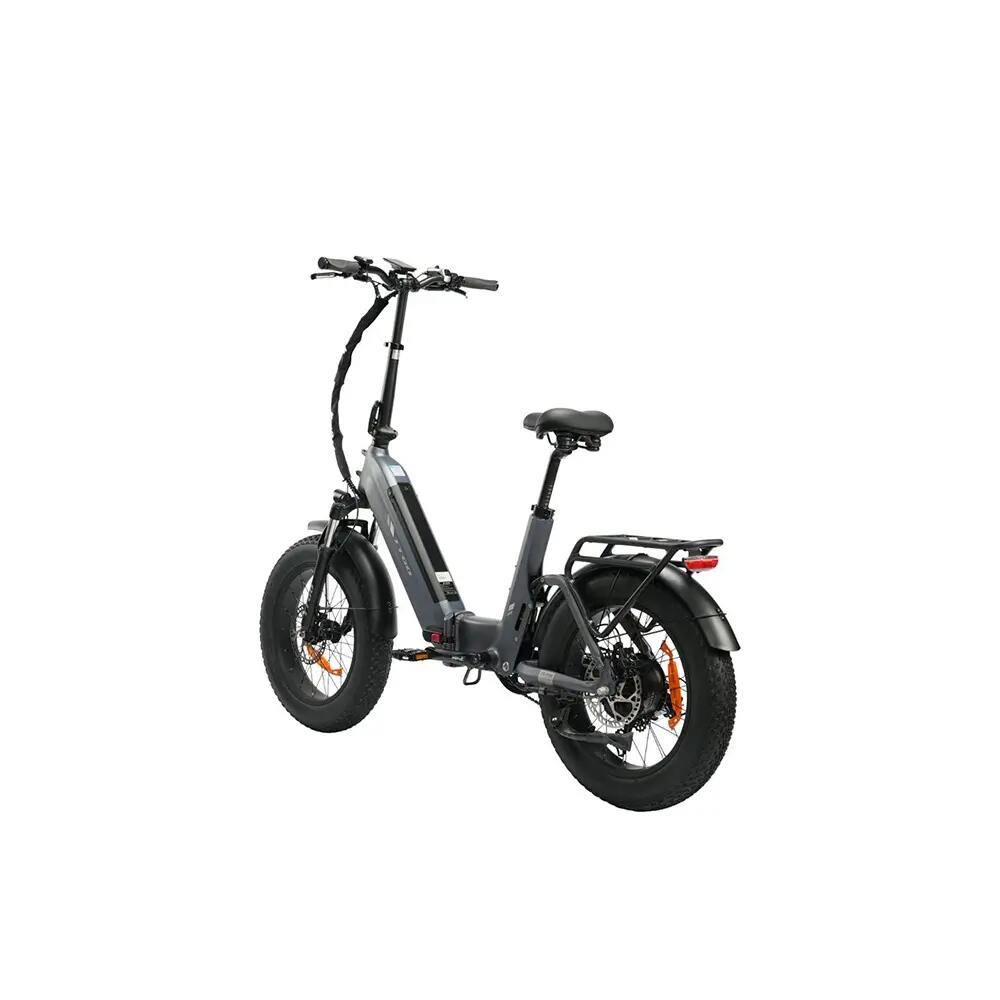

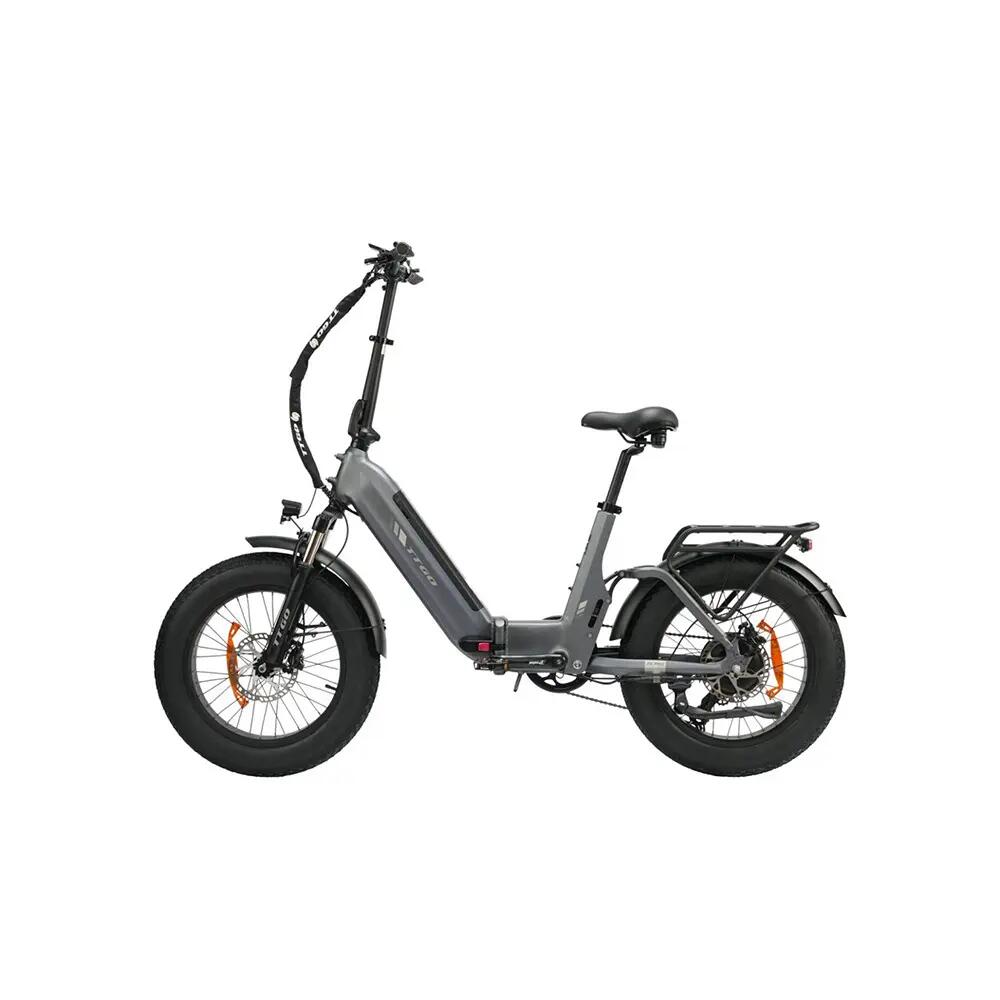

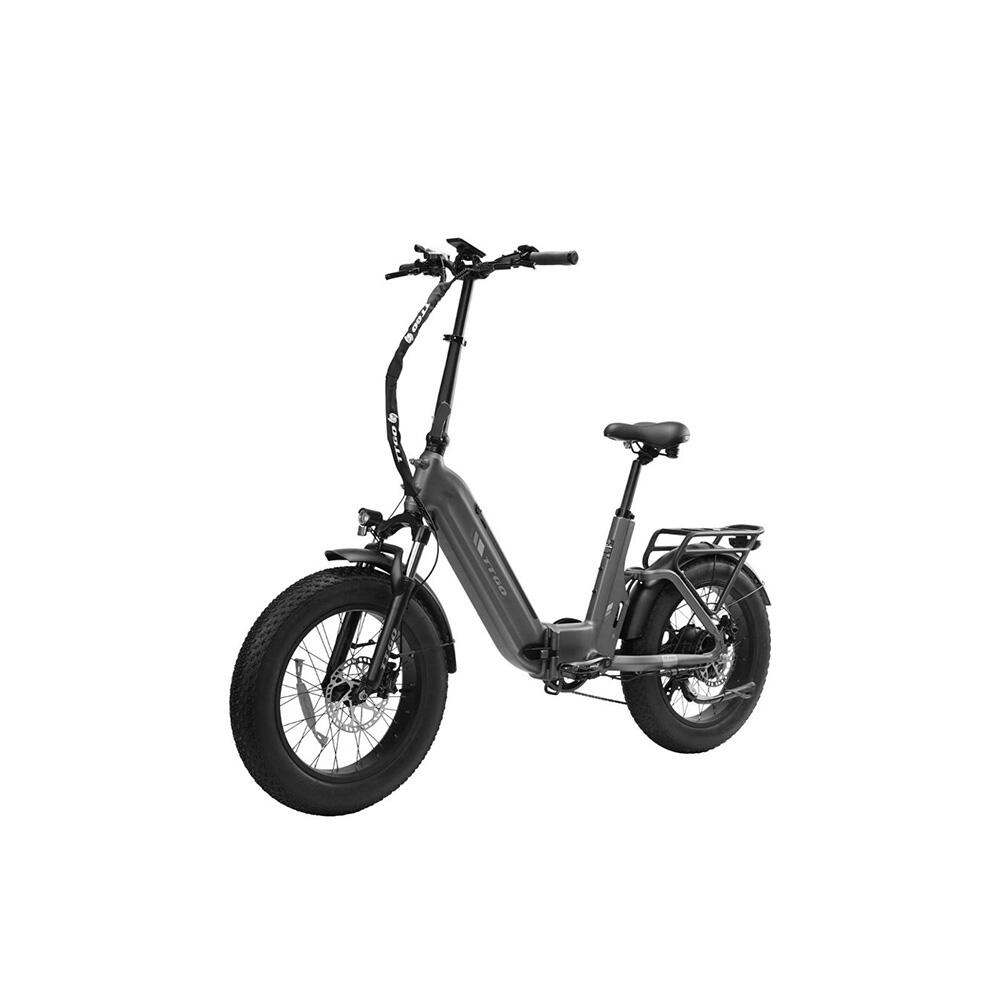

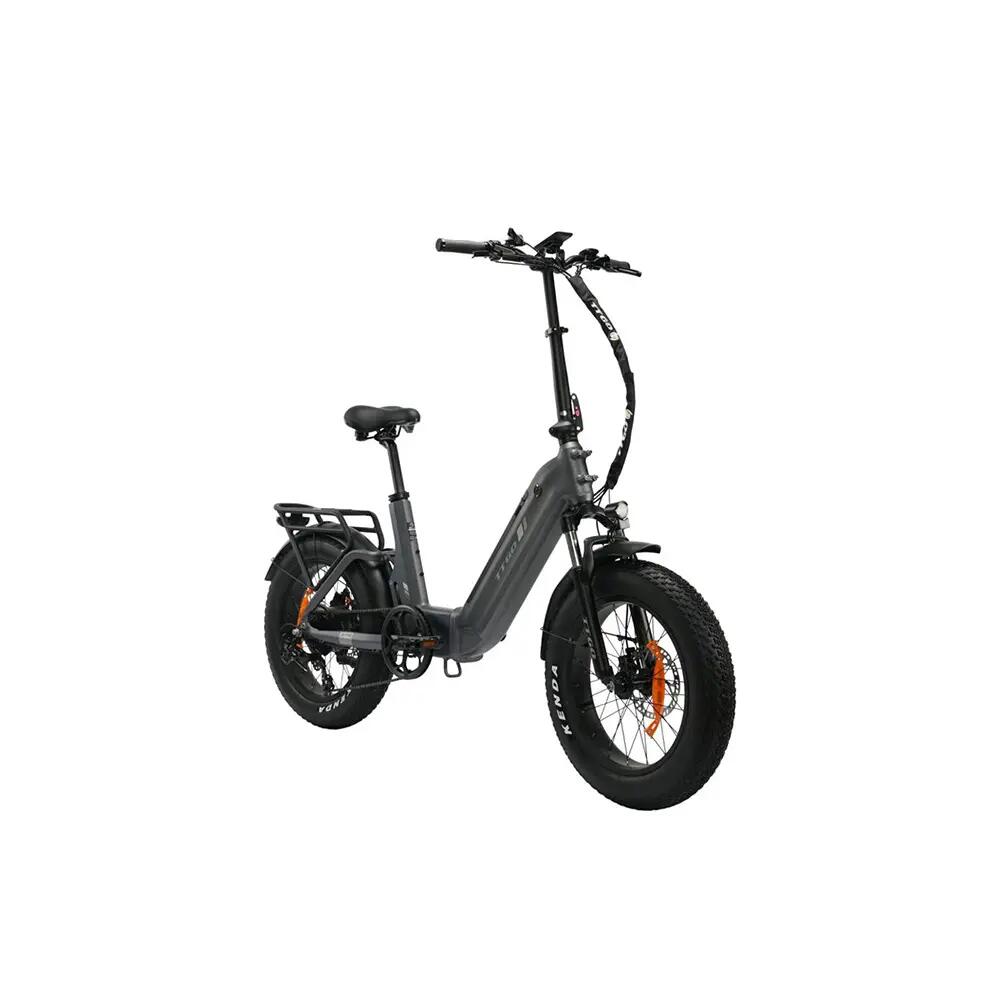

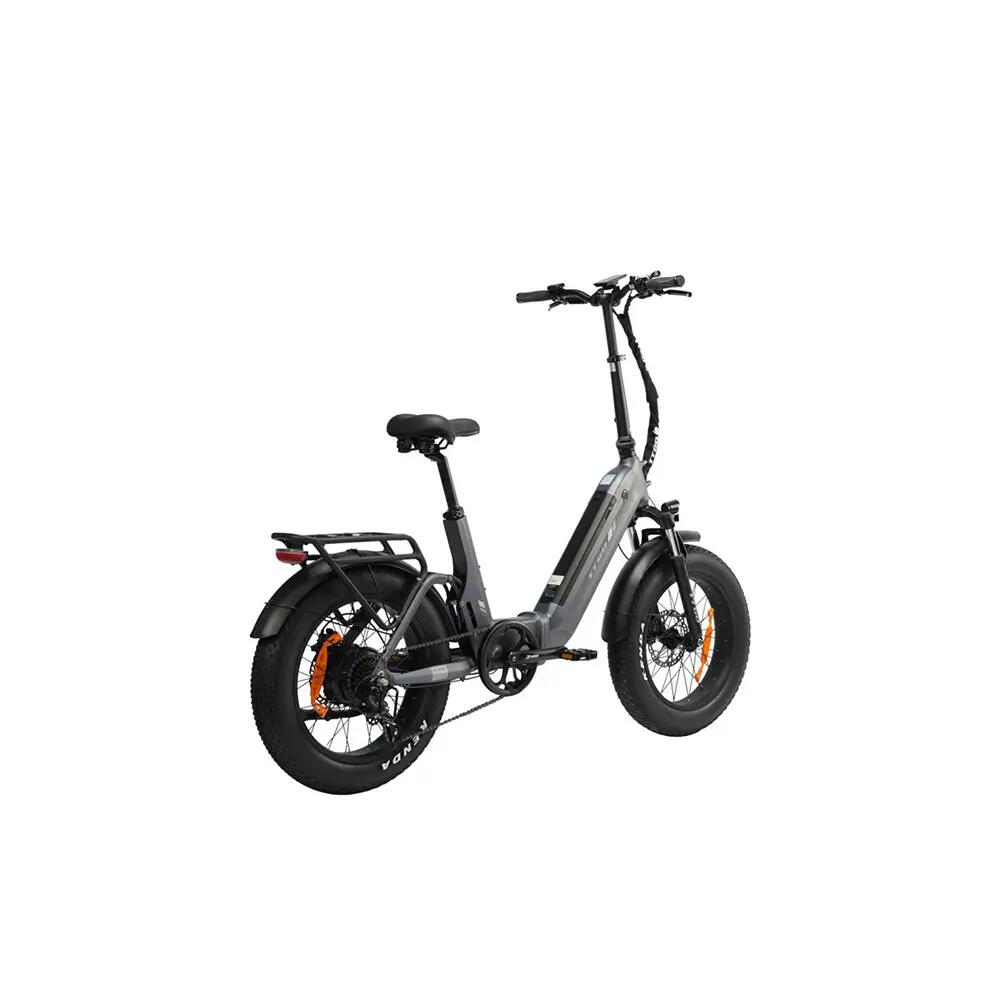

The TTGO F6 PRO is a high-performance urban electric bicycle that features an aluminum alloy soft tail frame and a shock-absorbing front fork structure, balancing stability and road adaptability. The vehicle is equipped with a 48V18AH high-capacity lithium battery, coupled with an efficient power assist system, with a range of up to 120-140 kilometers, meeting the needs of daily commuting and short to medium distance travel. Its design emphasizes practicality, equipped with 20 inch wide tires and hydraulic brake system, suitable for various road conditions, providing a smooth riding experience.
Core Performance Performance
The vehicle is equipped with a 70NM torque motor, which has direct power output and outstanding performance in starting and climbing. The Shimano 7-speed transmission system can achieve flexible speed regulation and adapt to different riding rhythms. The maximum speed of the vehicle is 25 kilometers per hour, which complies with conventional road usage regulations. The front suspension fork effectively alleviates bumps, combined with wide tire design, improving the passability of complex road sections. The net weight of the vehicle is 33.5 kilograms, with a stable structure that balances lightweight and durability.
[Key component configuration]

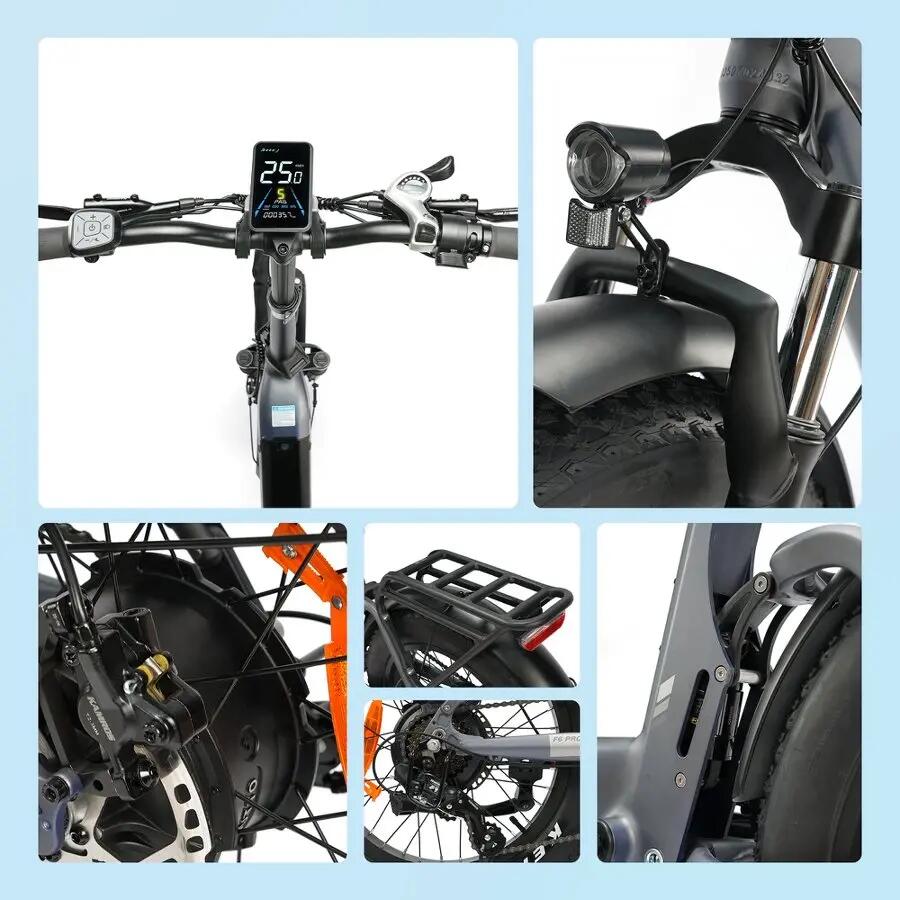

The frame is made of 6061 aluminum alloy material, and the soft tail design enhances the cushioning effect. The brake adopts hydraulic braking, which responds sensitively and ensures driving safety. The tires are 20 inches in size and 4.0 inches wide, with strong grip. The LCD instrument clearly displays information such as speed and battery level. Equipped with a 54.6V3A charger, the charging efficiency is reliable. The maximum load capacity of the vehicle is 150 kilograms, which meets the carrying needs of most users.
[Usage Scenario Description]
This car is suitable for urban commuting, block commuting, and park leisure cycling. The long endurance feature is suitable for long-distance travel in a single day, without the need for frequent charging. The soft tail frame and shock absorber front fork can handle uneven road surfaces such as bricks, slopes, etc. Wide tires and oil brakes can maintain good handling even in rainy and humid environments. Optimization of cardboard box size for easy transportation and storage.
Main features of the product
Large capacity batteries achieve long-lasting endurance, with outstanding mileage performance in assist mode. The high torque motor provides sufficient power to cope with slopes and load scenarios. The transmission and braking system adopts branded components with stable performance. The frame and tire configuration focus on practicality and adaptability, while the overall design emphasizes functionality and durability. Reasonable packaging specifications, convenient for logistics distribution and user storage.
[Product Parameters]
Model: TTGO F6 PRO
Frame: Aluminum alloy soft tail with suspension, 6061
Front fork: suspension without locking
Build large tires: 20 " 4.0 Inch
Brake: oil brake
Transmission: Shimano 7s
Battery: 48V18AH
Torque: 70NM
Instrument: LCD
Charger: 54.6V3A
Speed: 25KM/H
Assisted driving range: 120-140KM
Carton size: 149.5 31 * 66cm
Net weight: 33.5KG
Gross weight: 40.8KG
Maximum load-bearing capacity: 150kg
