Product Description

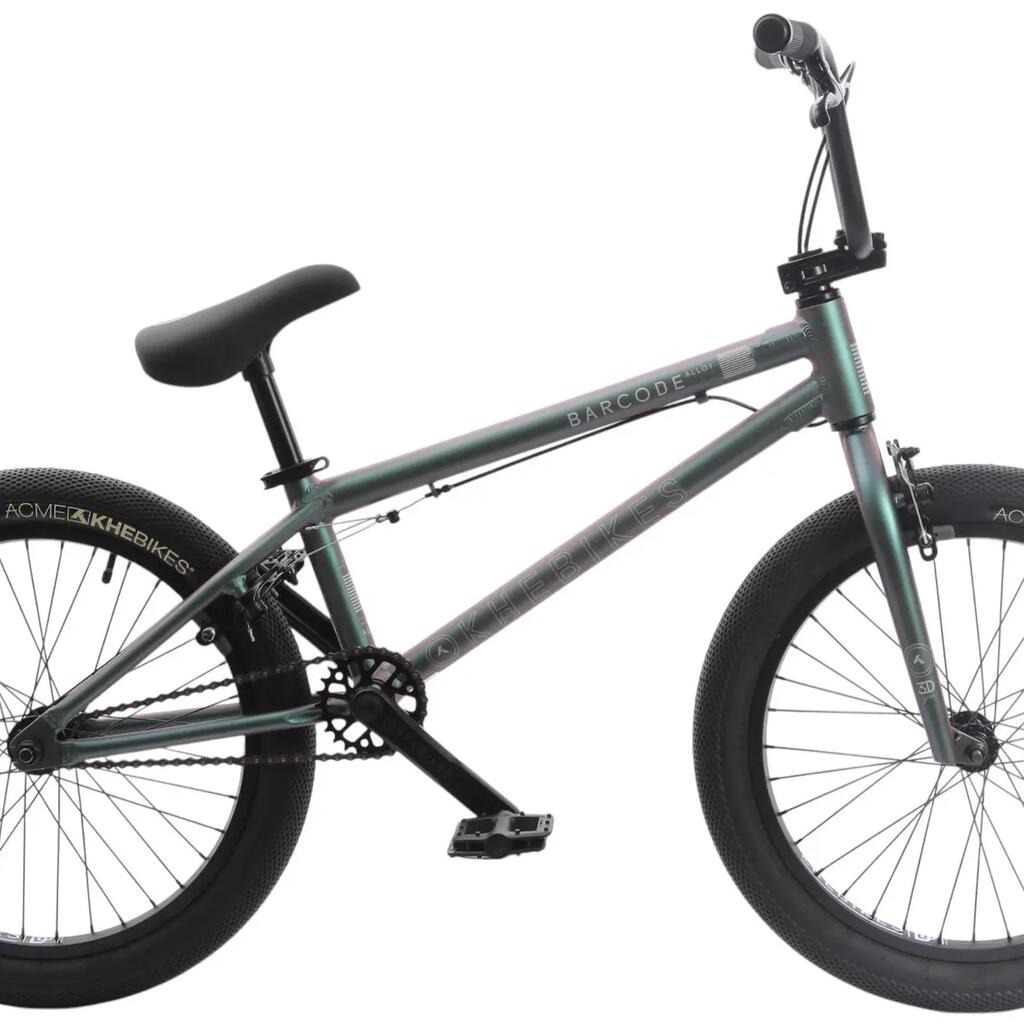

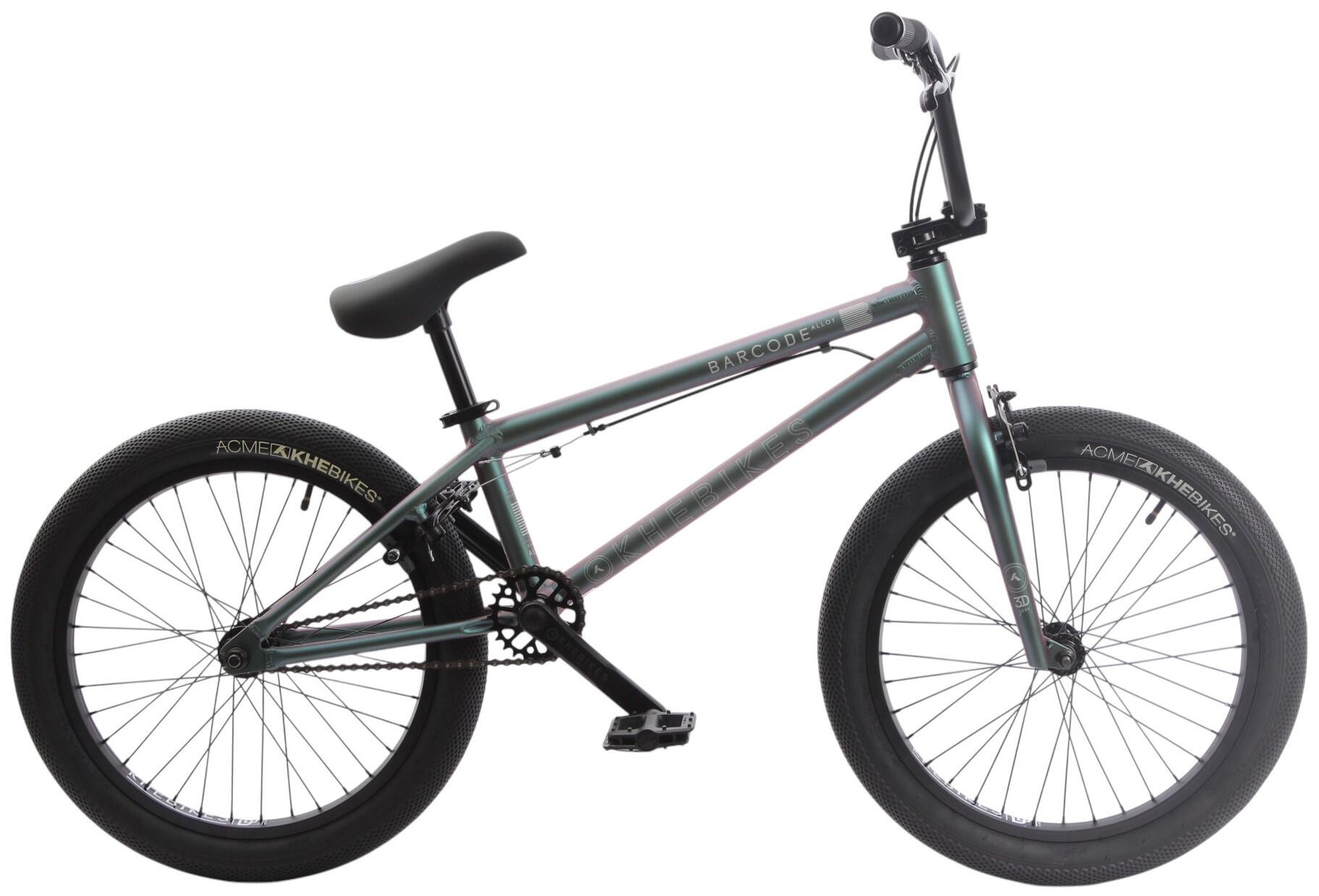

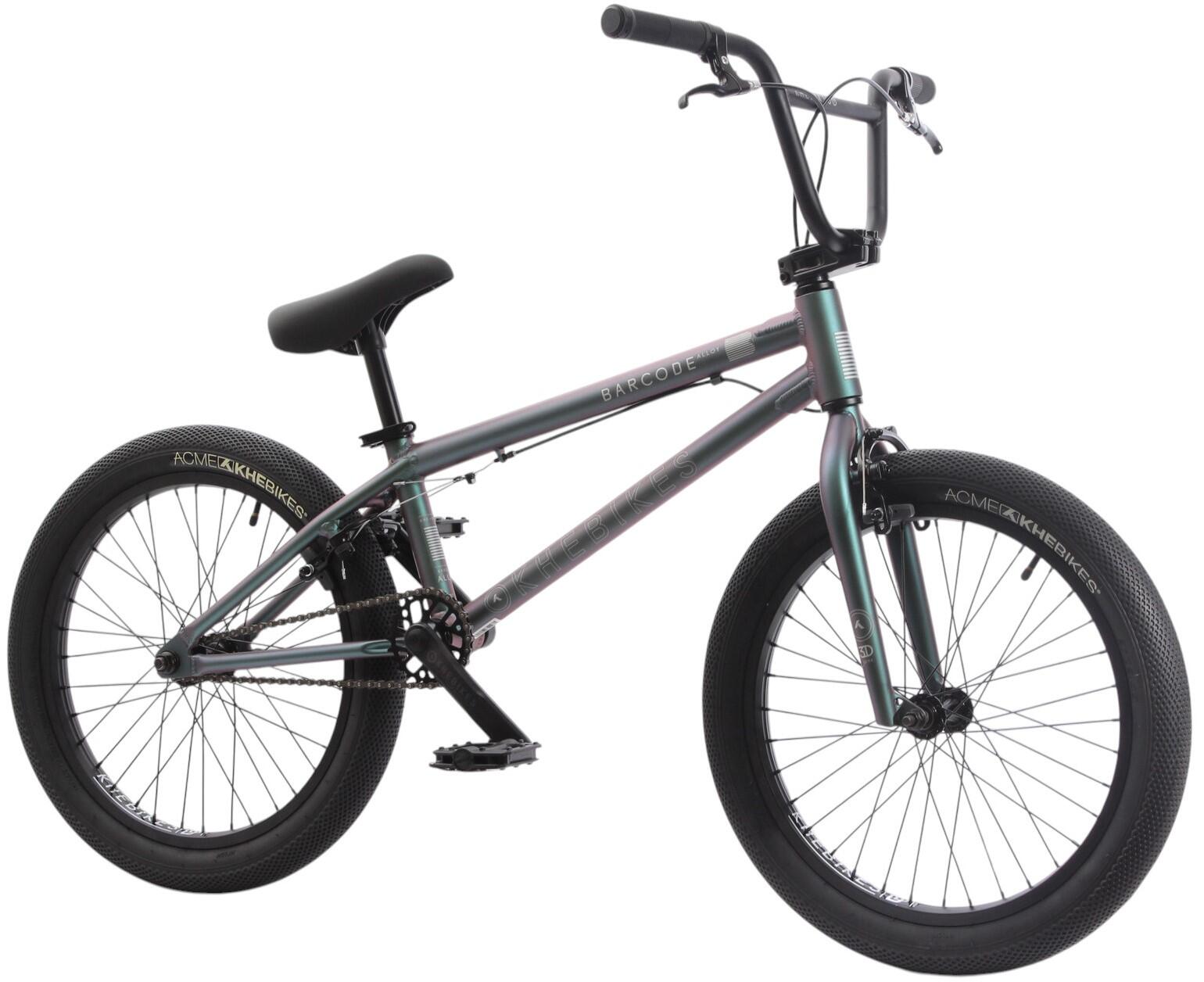

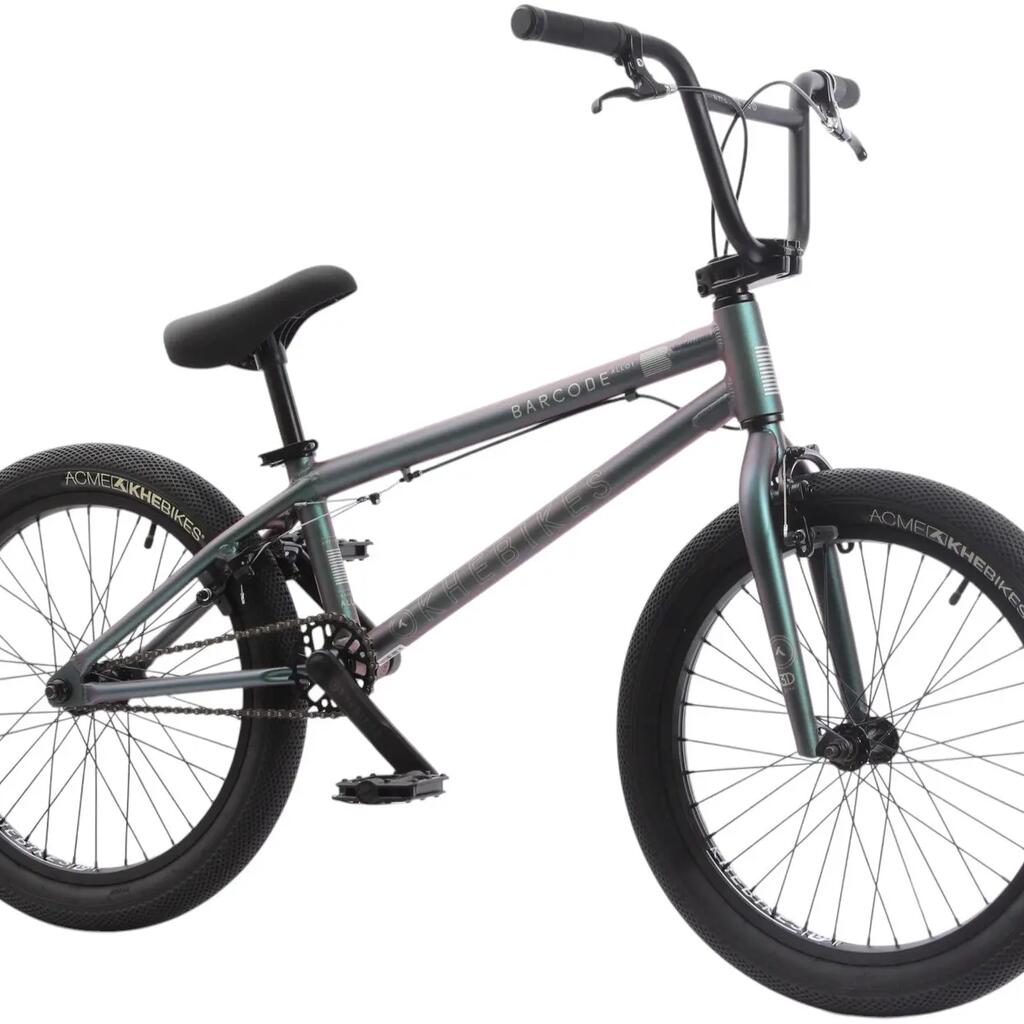

KHE Barcode LL 20" BMX Freestyle Bike 2025 – Flip-Flop Green
The KHE Barcode LL 20" is a lightweight and versatile BMX for park, pump track, street and flatland. The 6061 aluminium frame, patented KHE AFFIX rotor system and wide KHE ACME tyres provide agile and controlled handling. At only 22.9 lbs, the bike remains pleasantly lightweight. A special visual highlight is the Flip-Flop Green finish, which changes its colour effect depending on the light.
Equipment
Drivetrain:

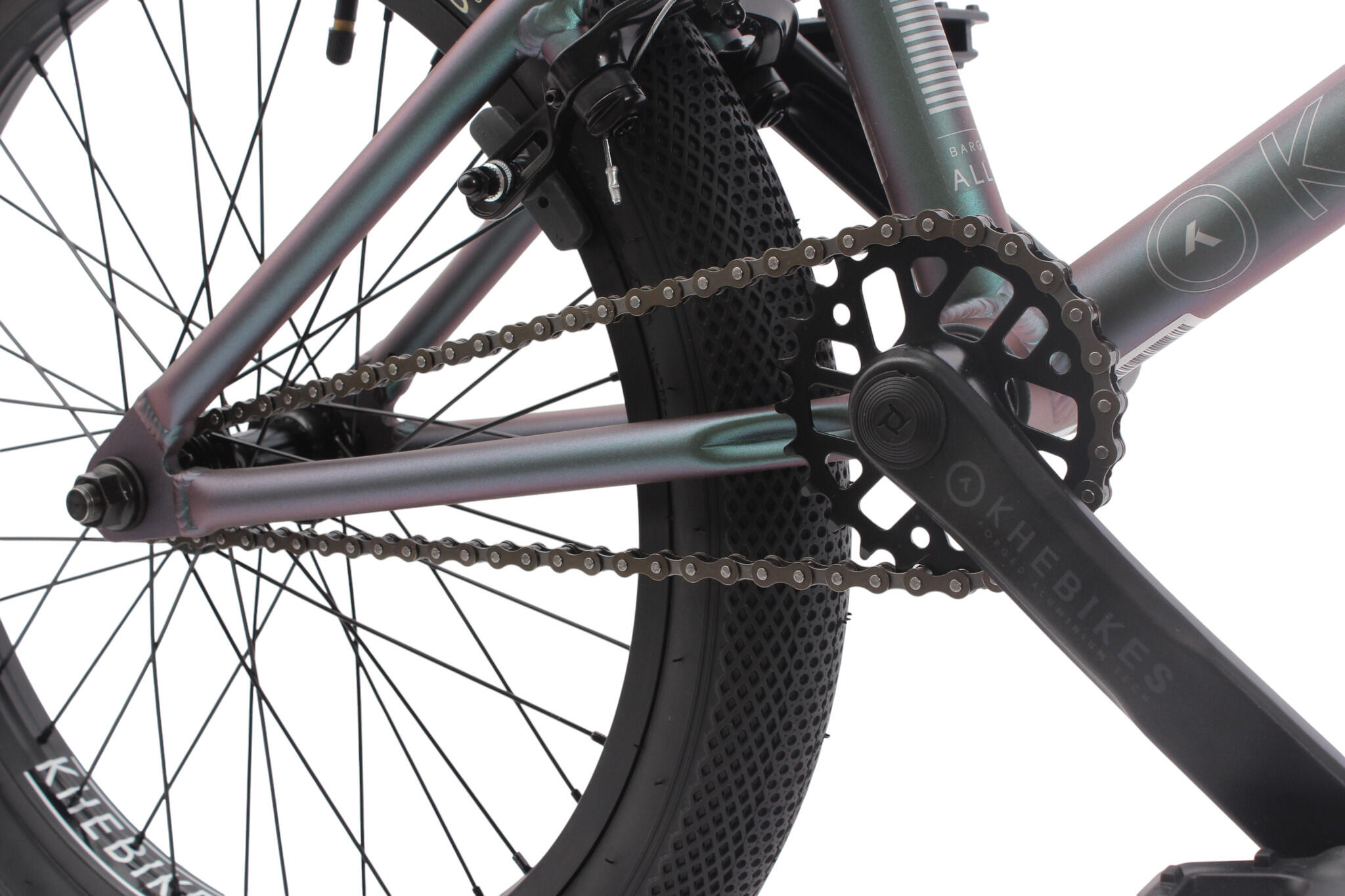

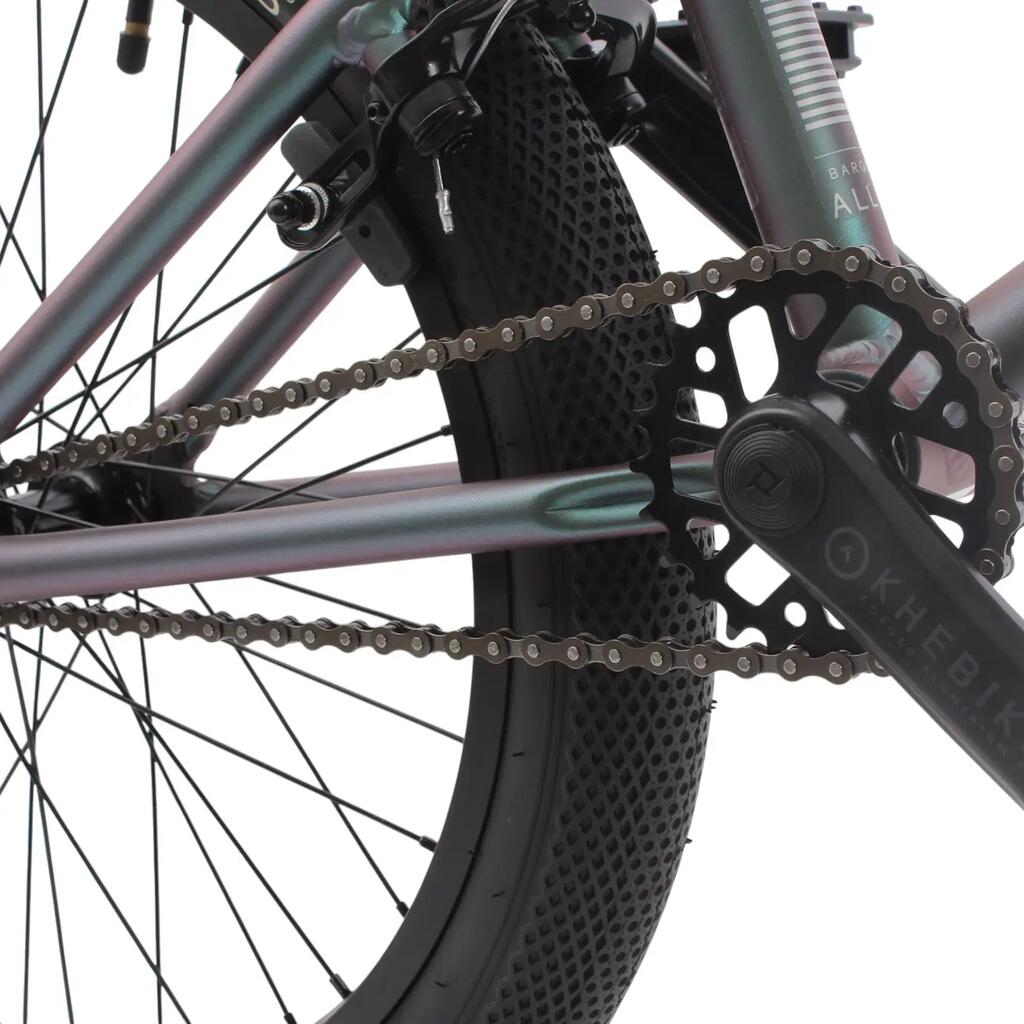

• 3-piece forged aluminium crank (6.50")
• 25T steel chainring
• Sealed EURO BB bottom bracket with industrial bearings
• YBN chain
• 9T cassette hub
Cockpit:

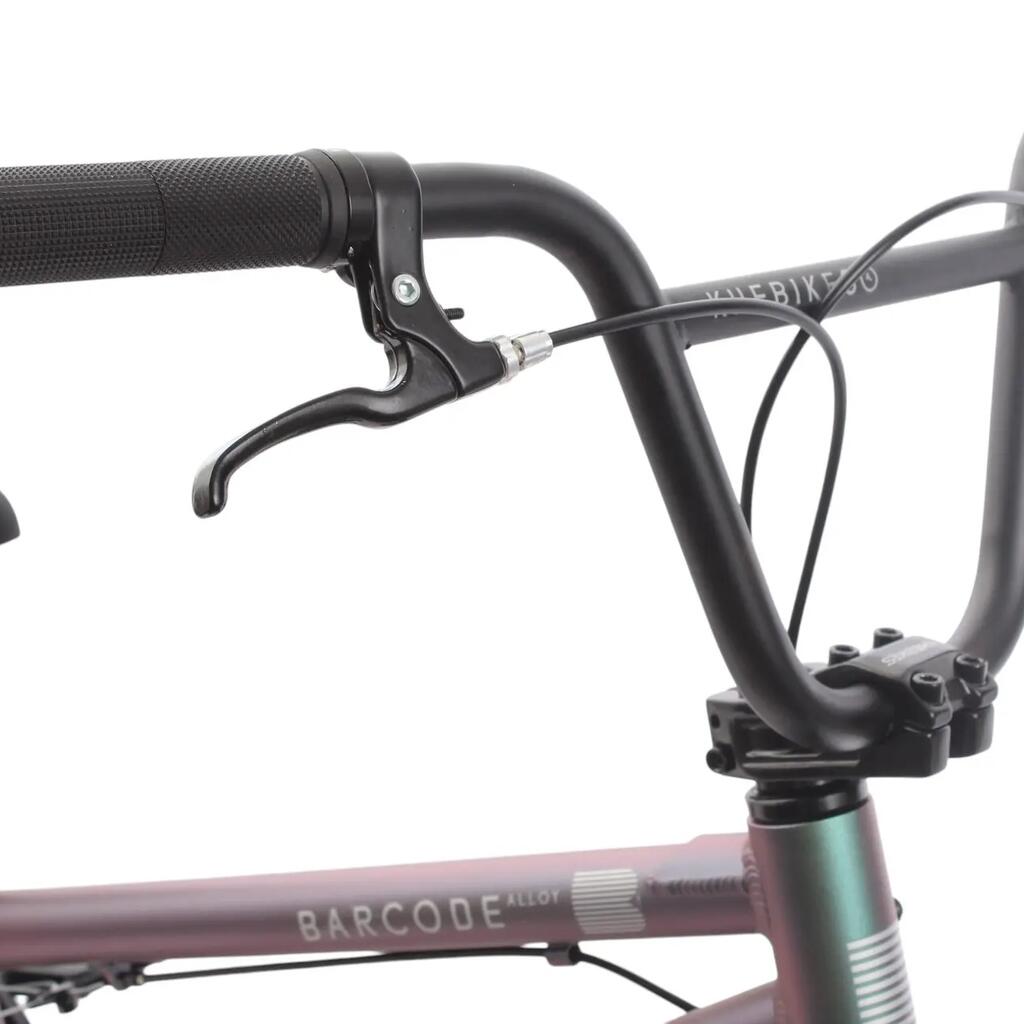

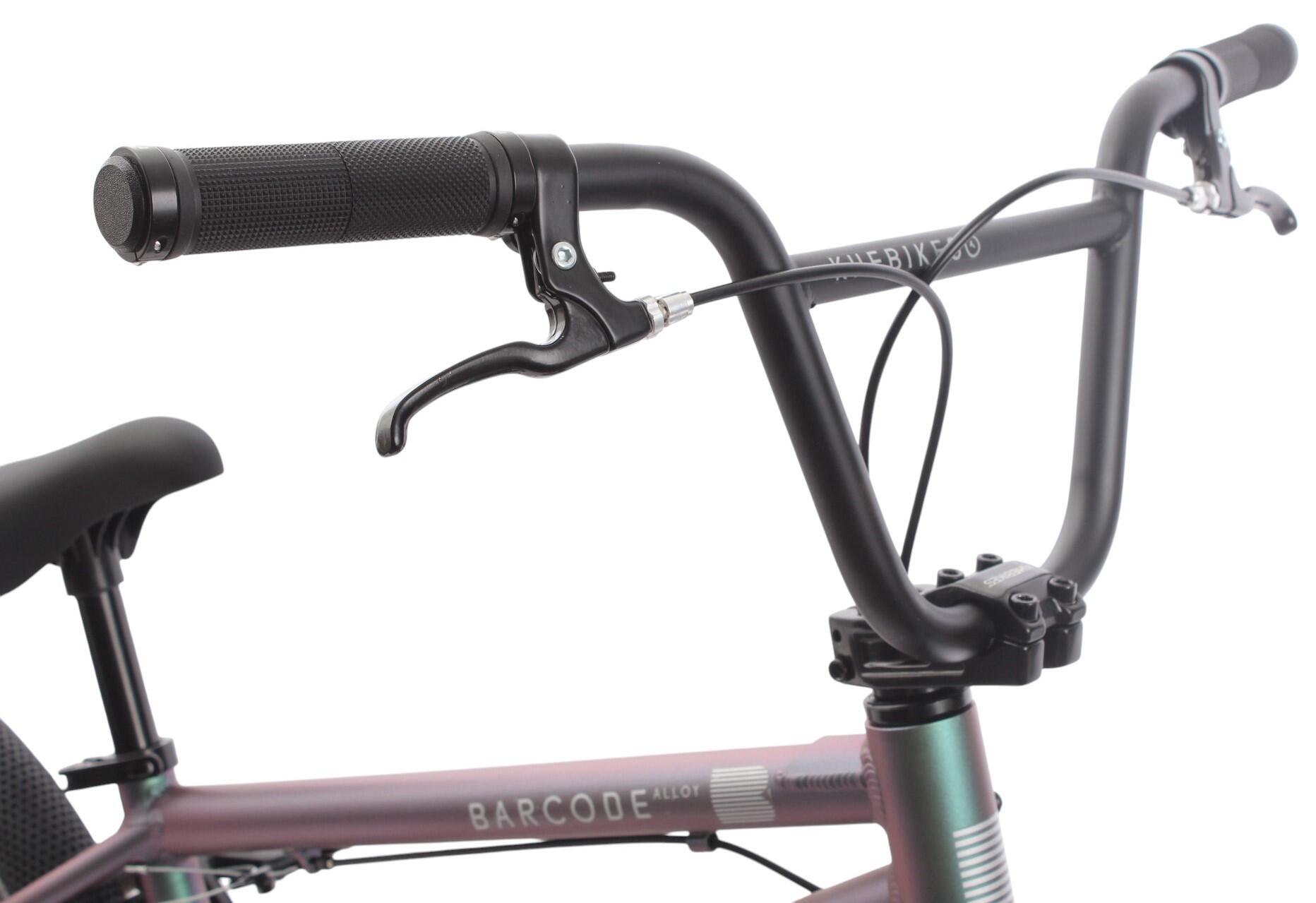

• 26.77" wide KHE HiTen handlebar with 8" rise

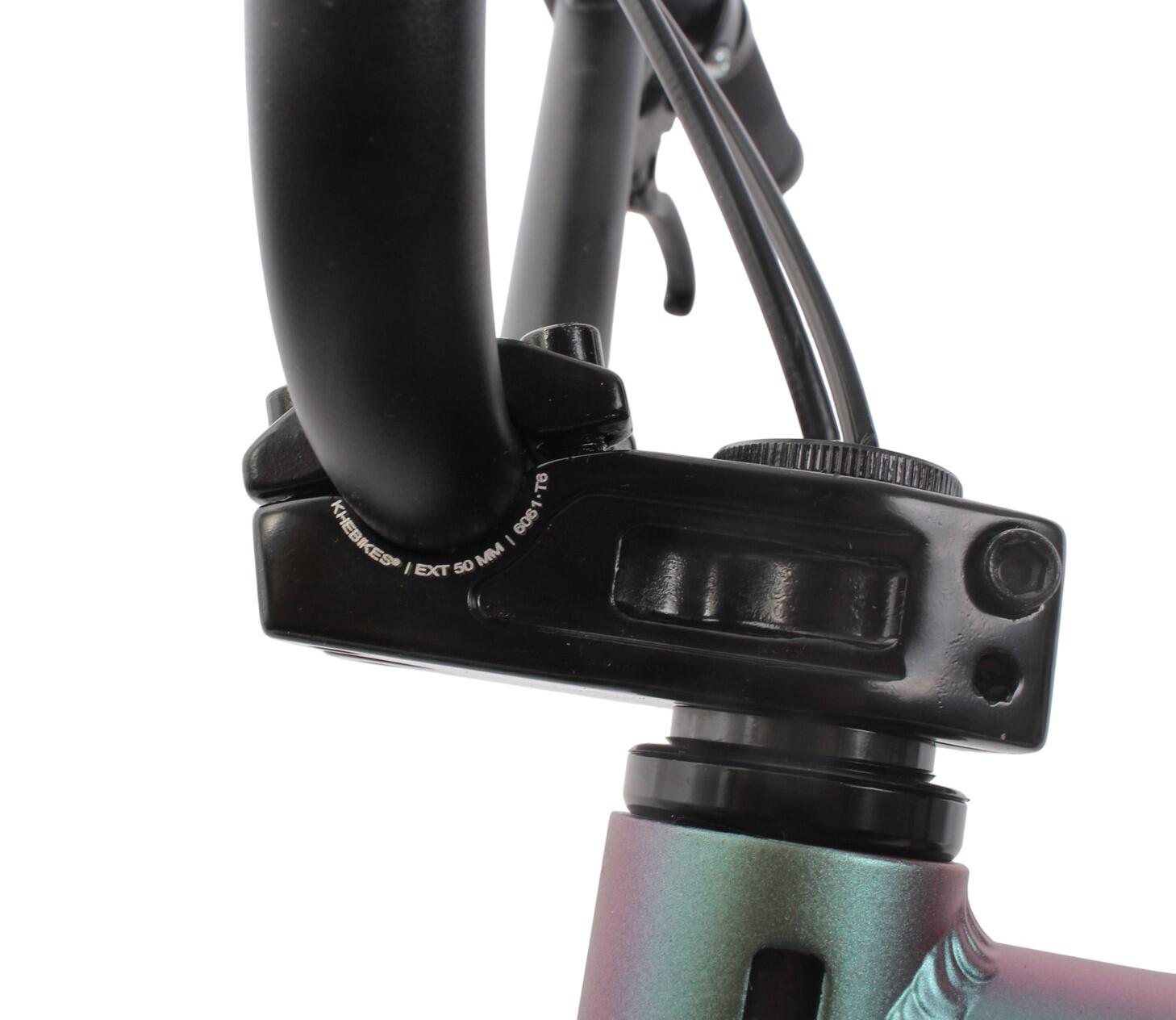

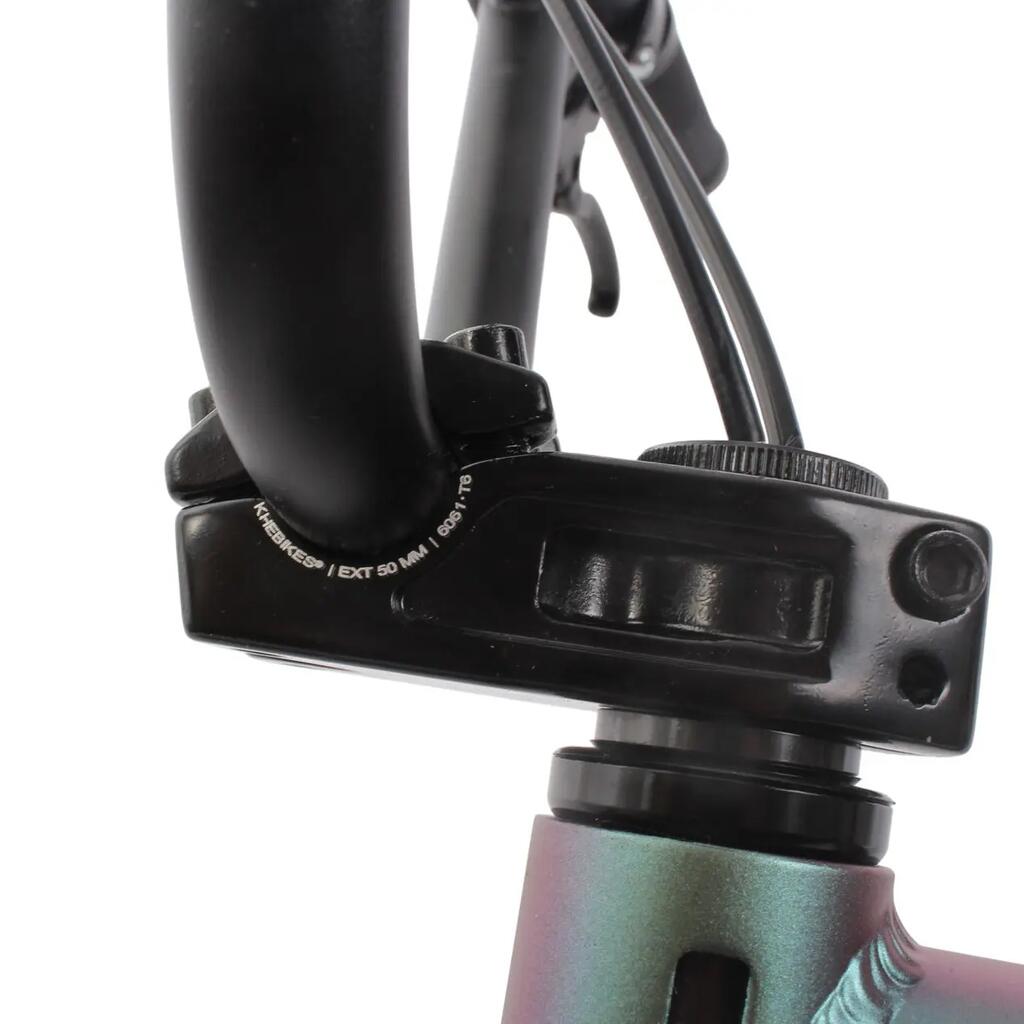

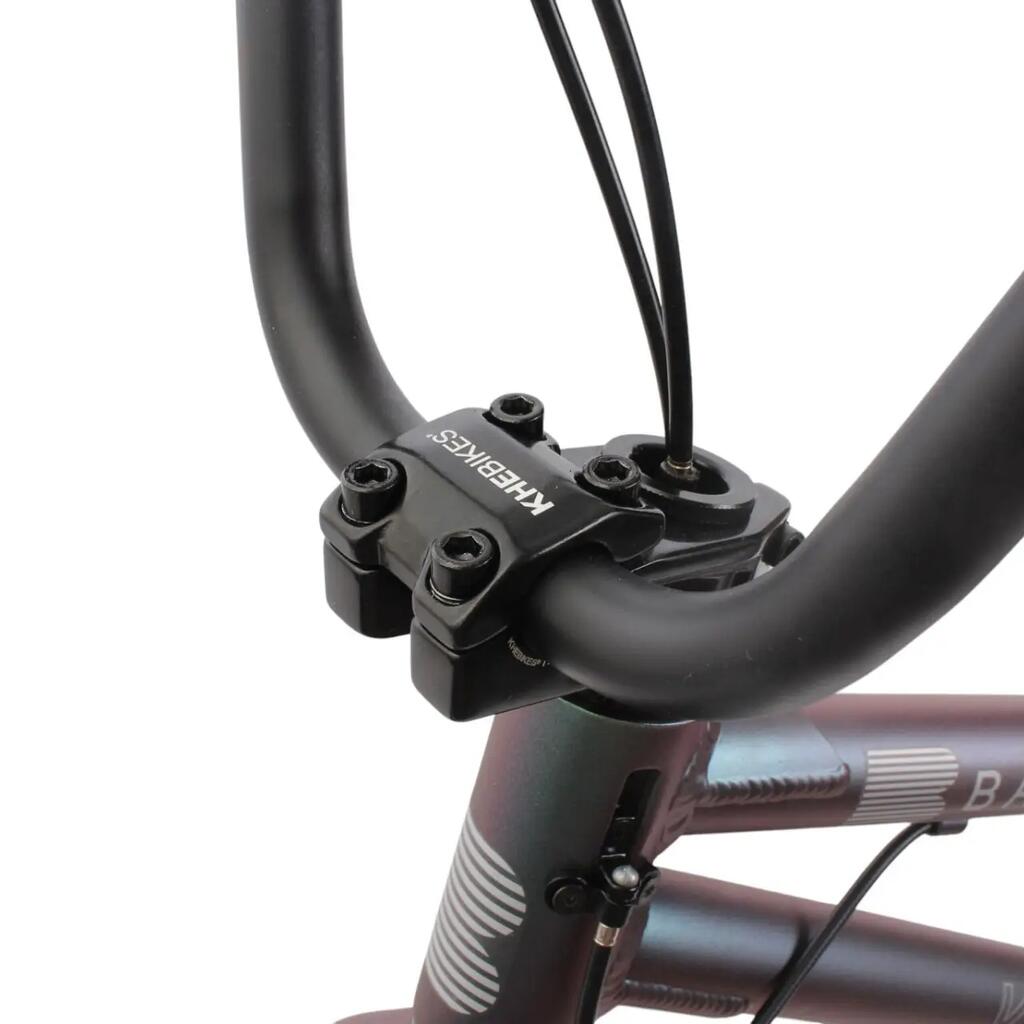

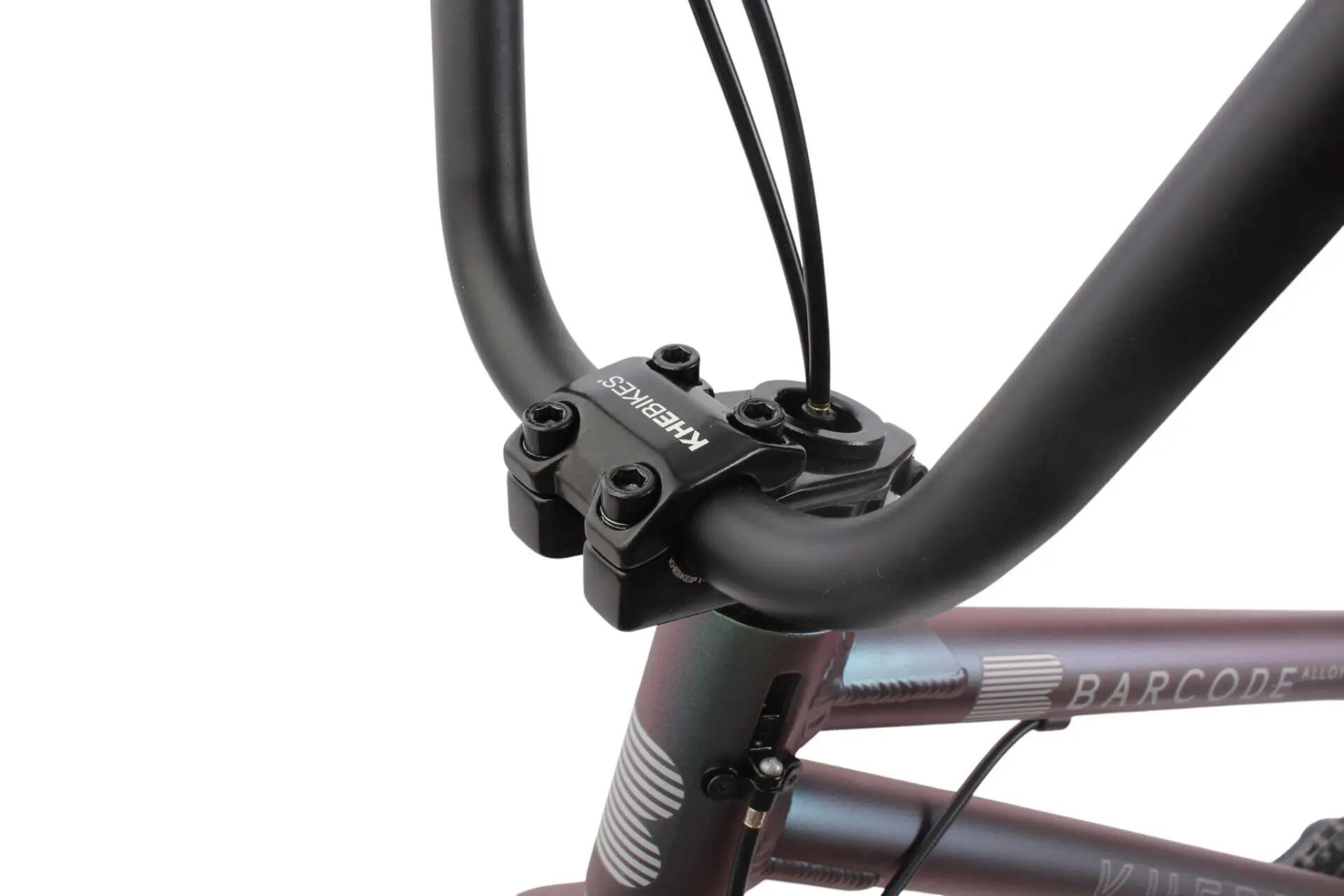

• KHE Top Loader stem (1.97")
• Patented KHE AFFIX 360-degree rotor

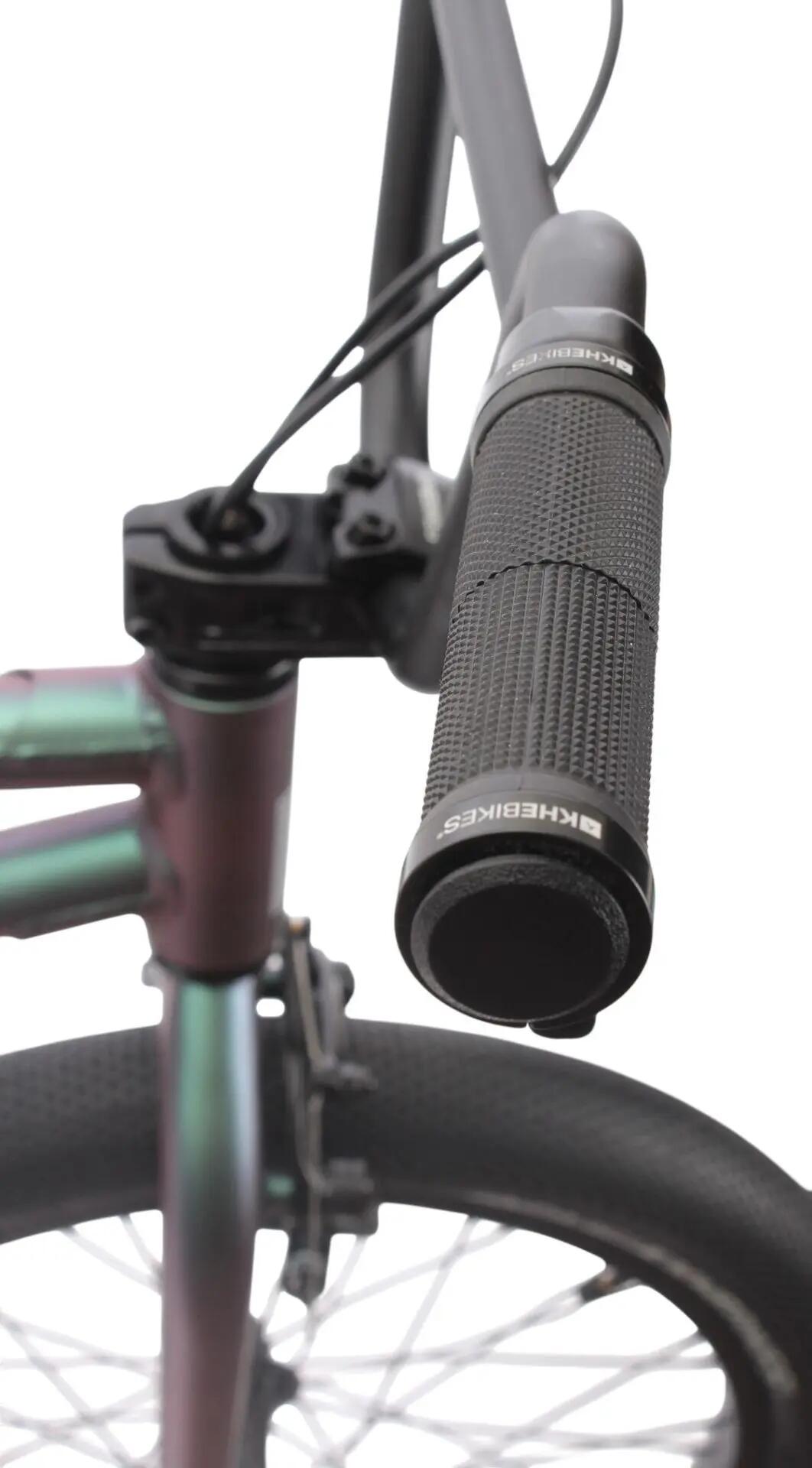

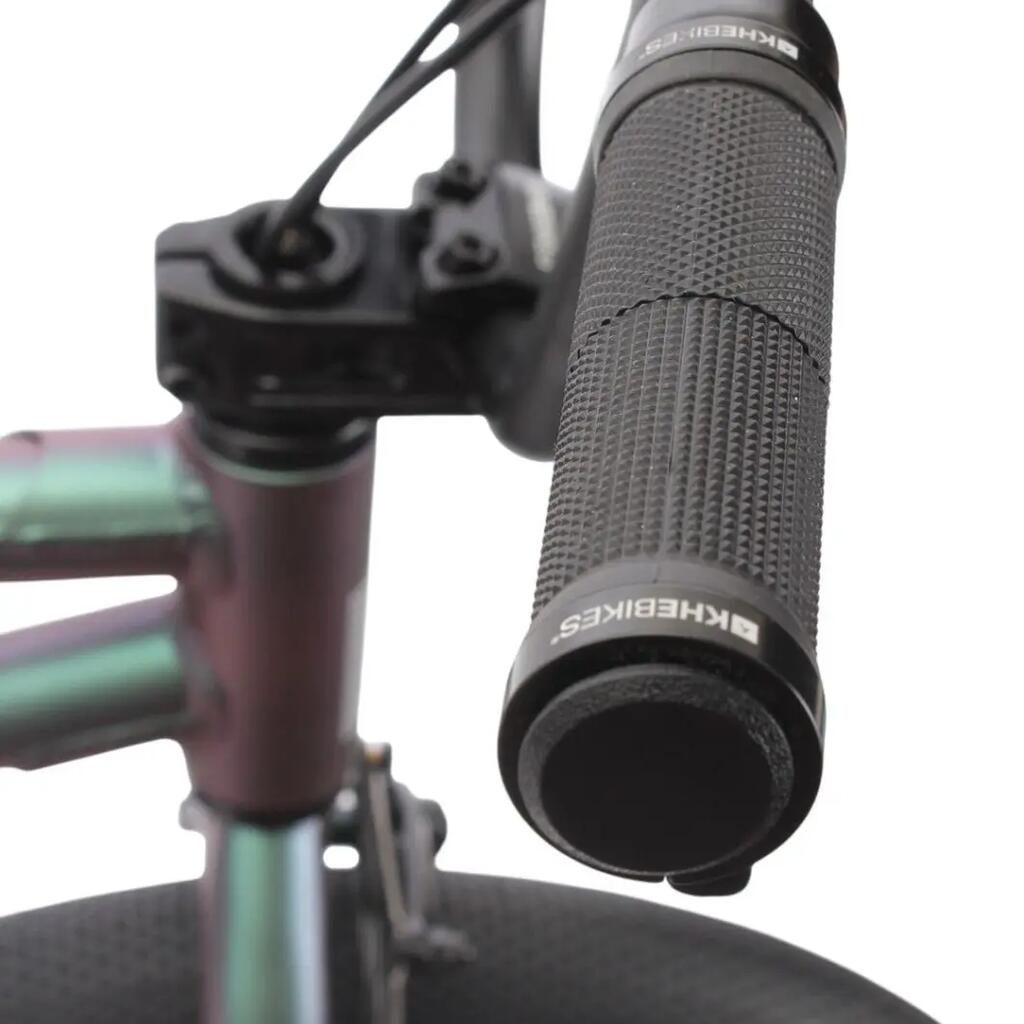

• Lock-on grips with aluminium clamps
• Aluminium brake levers with adjustment screw
Brakes & Wheels:

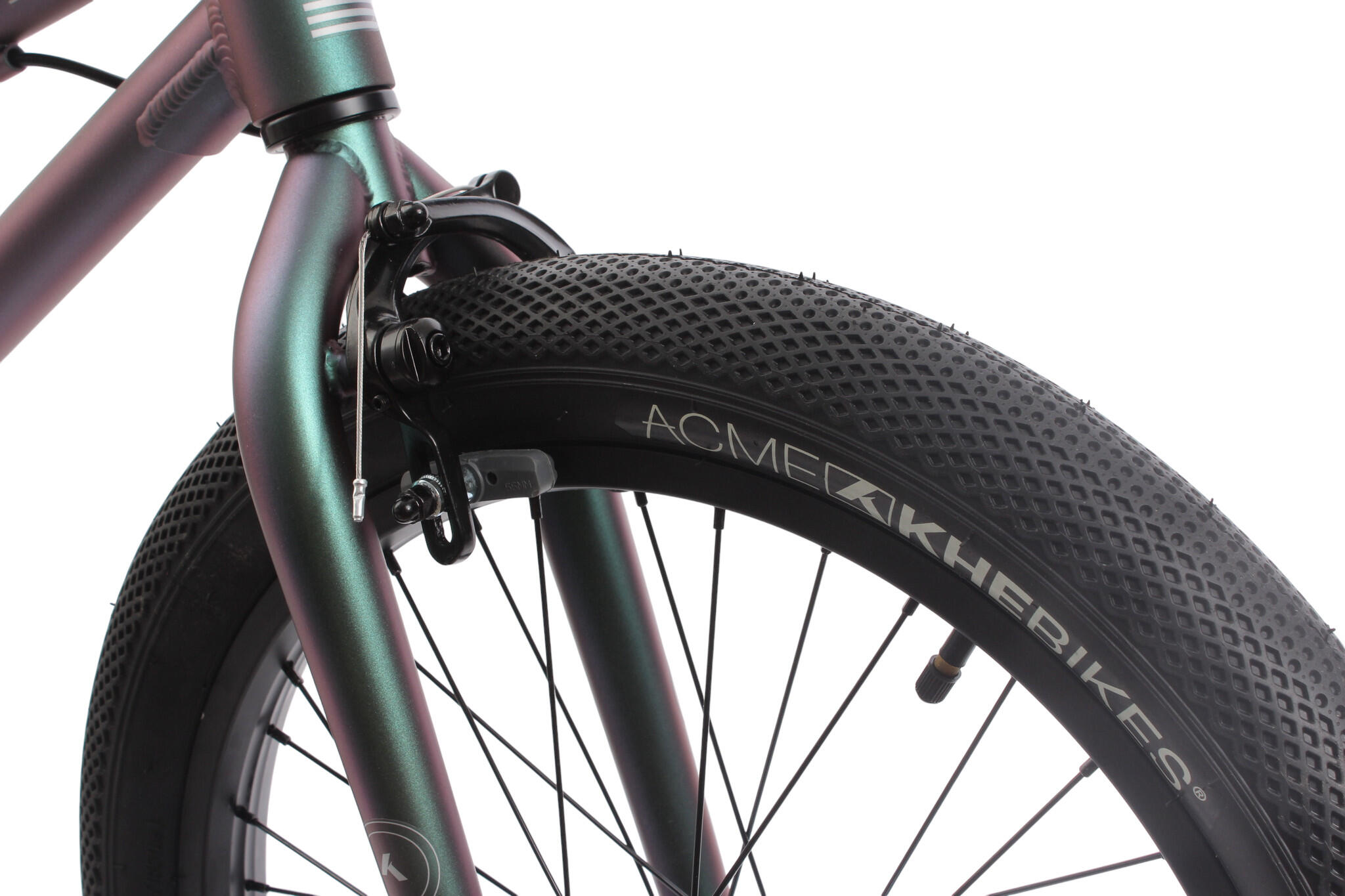

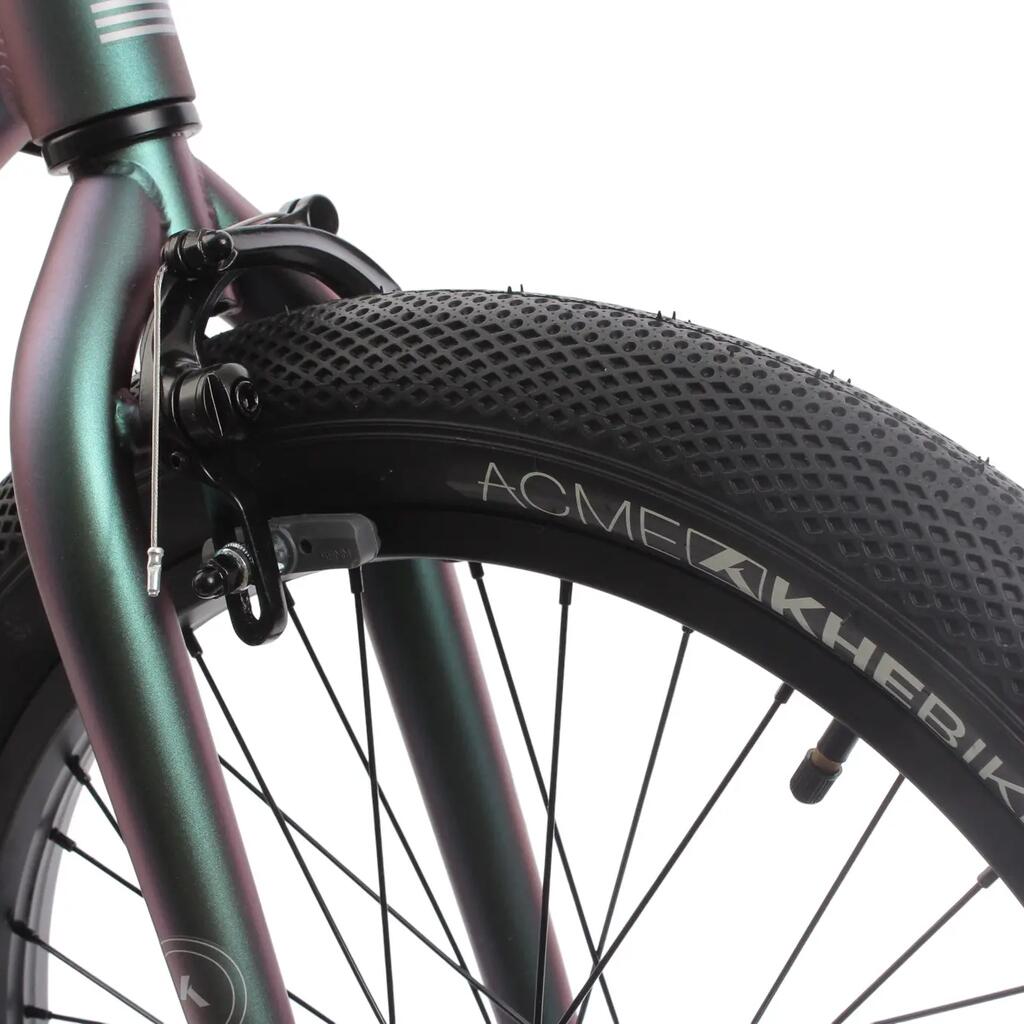

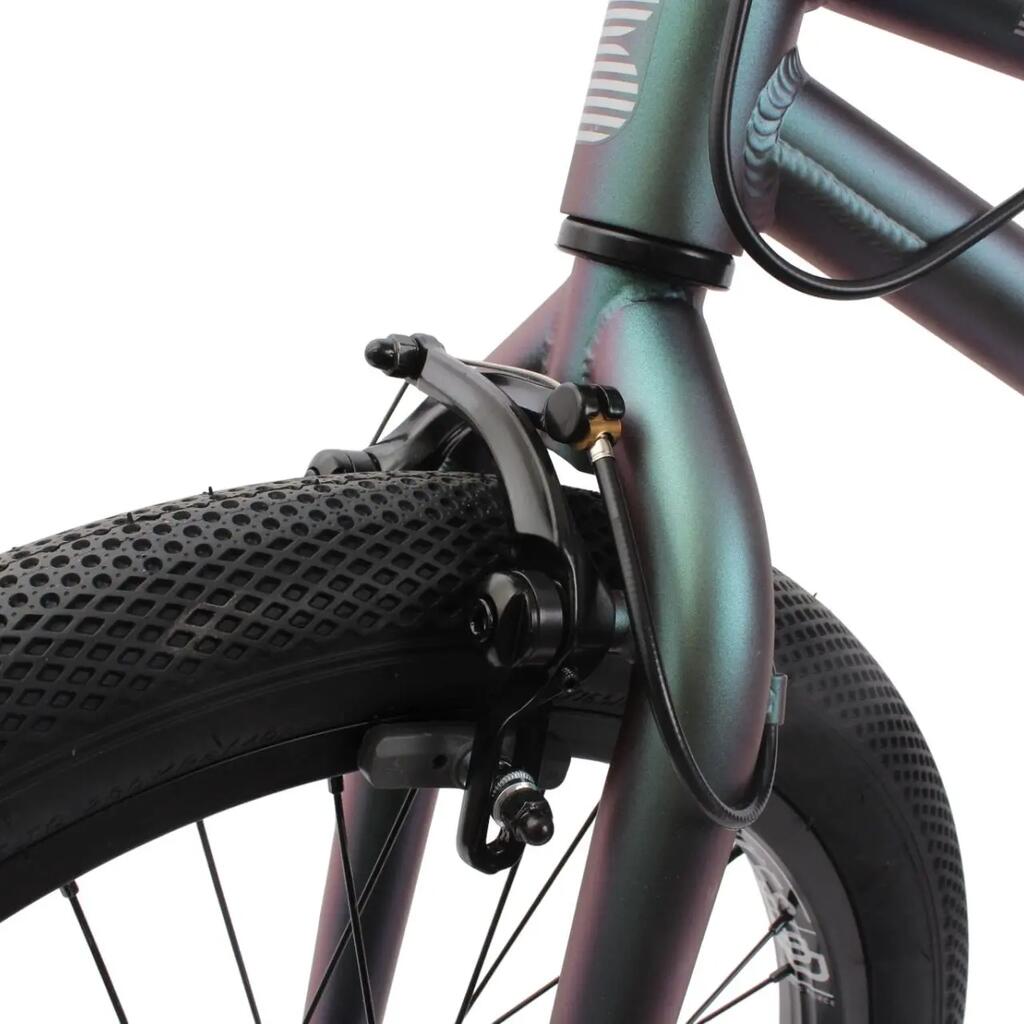

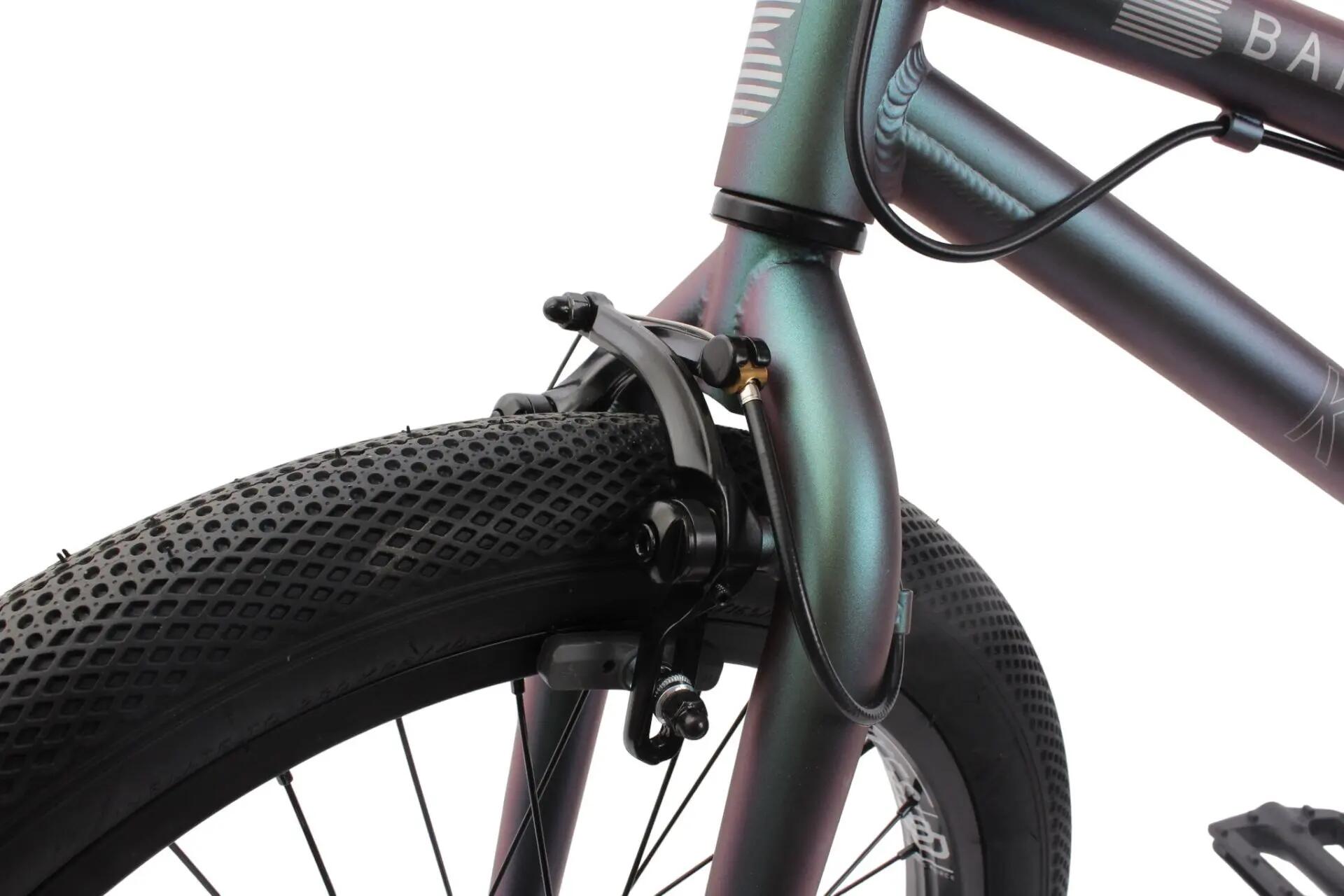

• KHE RADIUS aluminium U-brake front
• KHE RADIUS aluminium U-brake rear

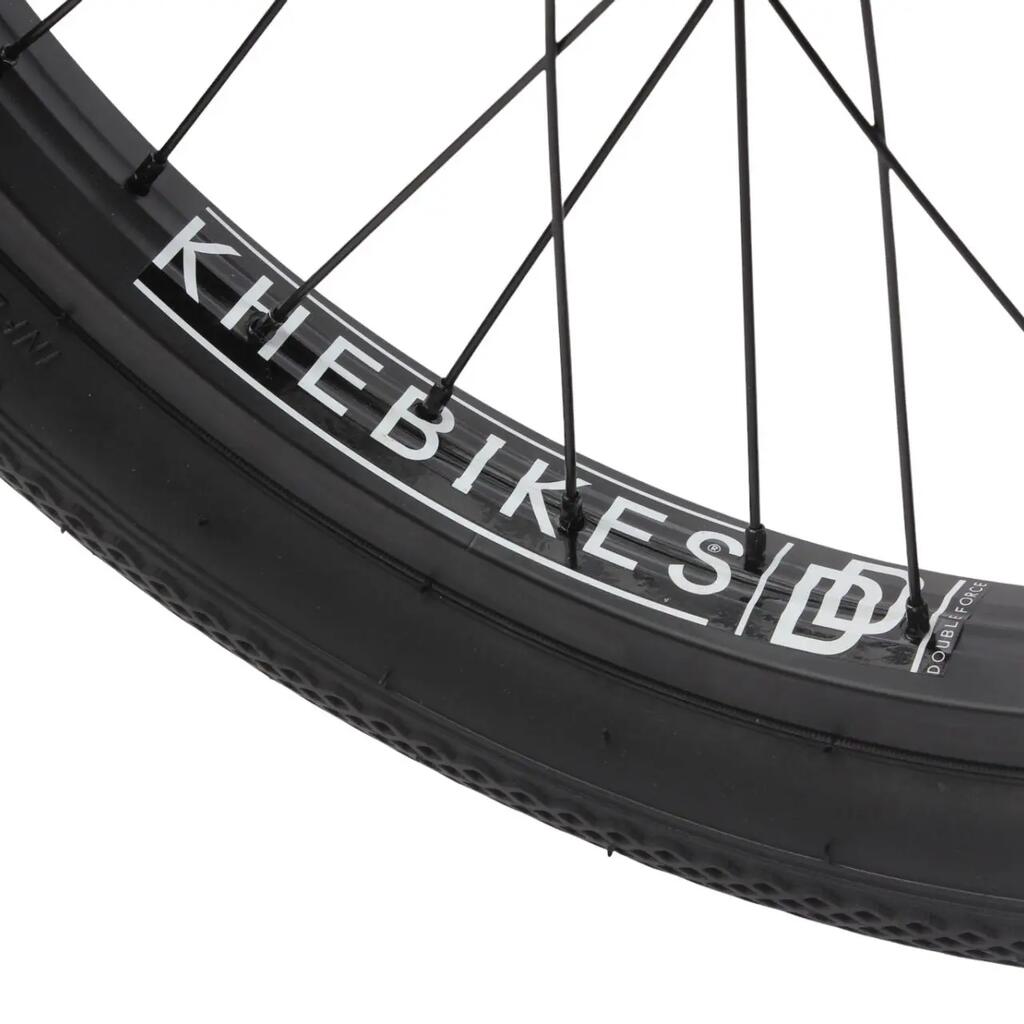

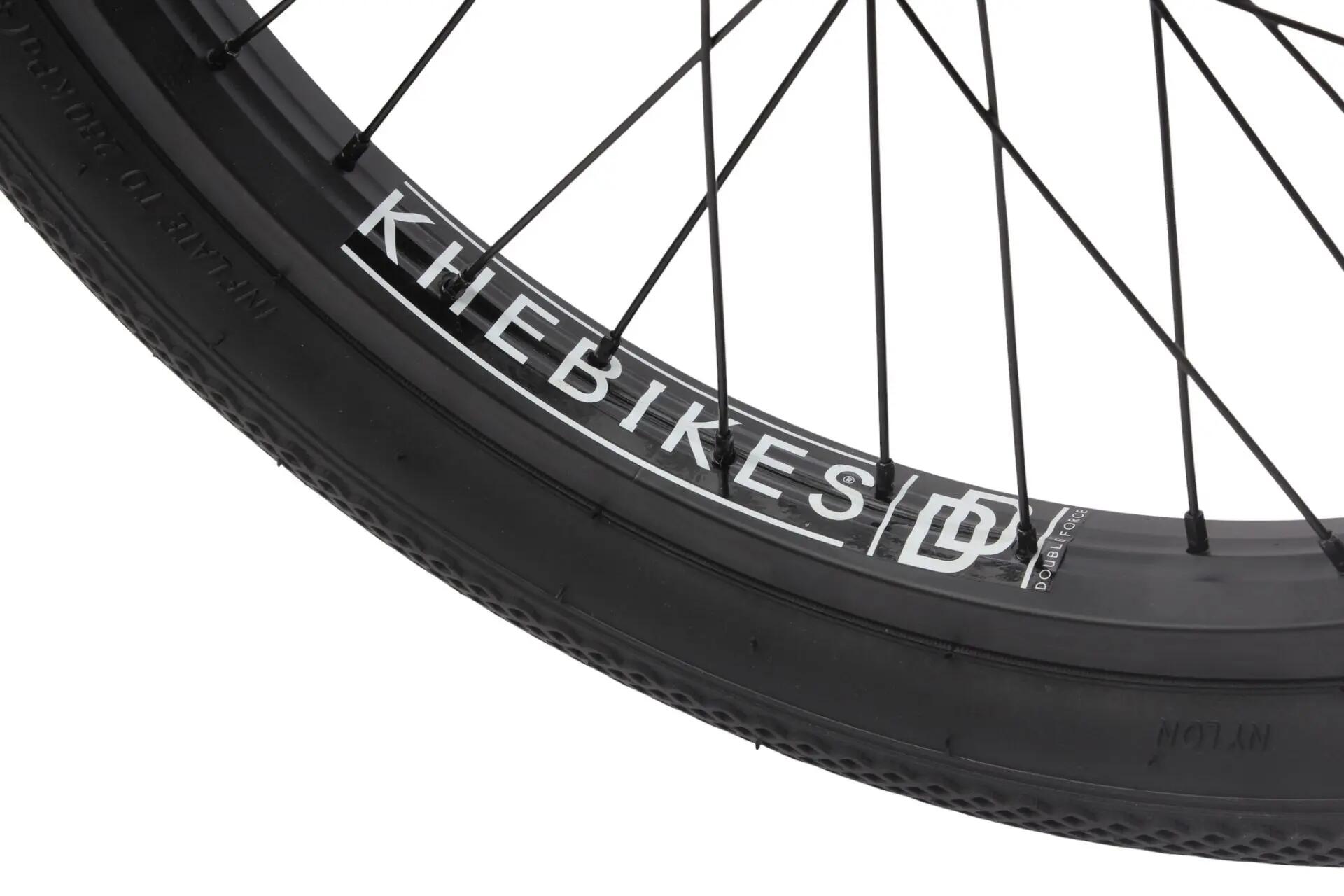

• 20" double-wall aluminium rims

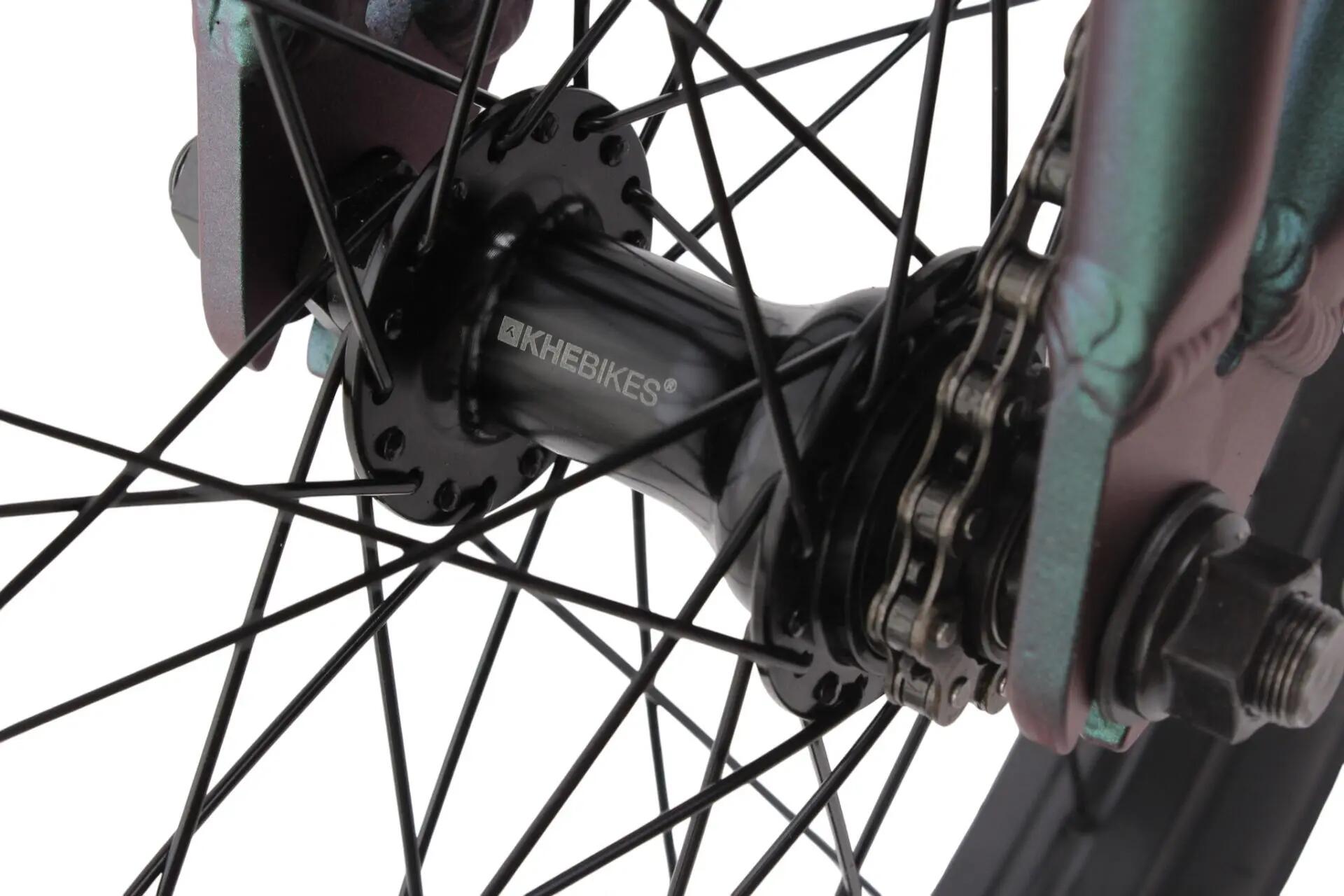

• Industrial-bearing hubs front and rear
• KHE ACME tyres 20 × 2.40"
• 0.39" front axle and 0.55" rear axle
Design:

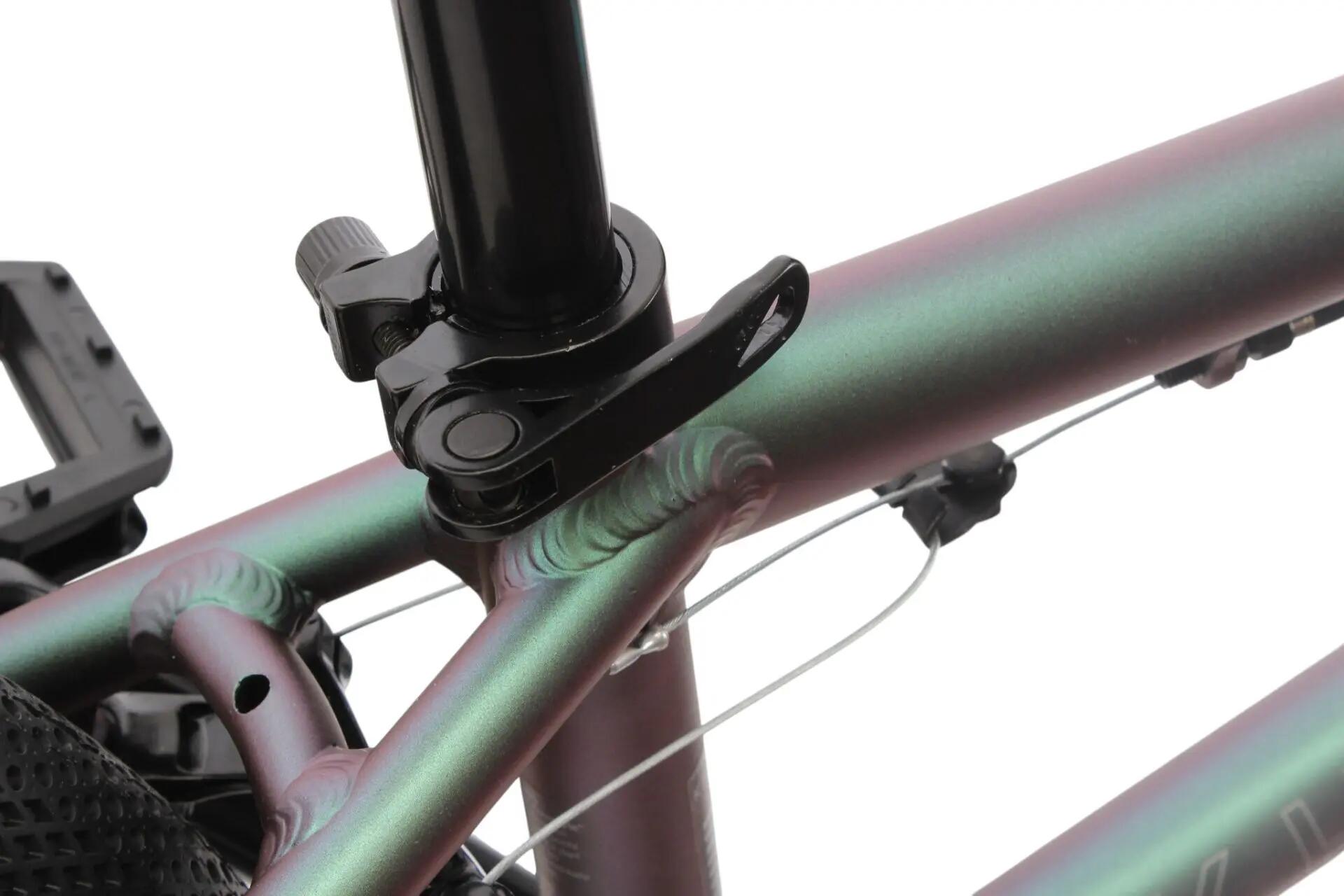

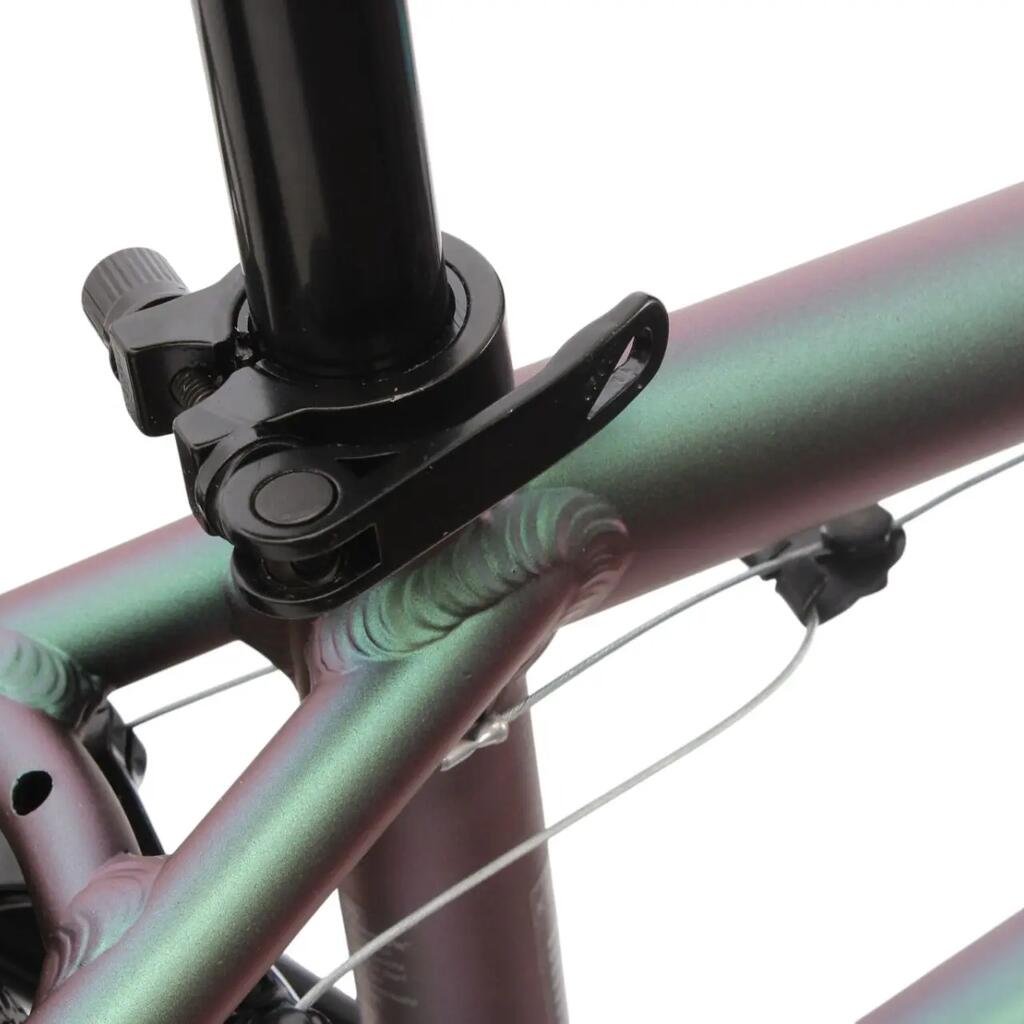

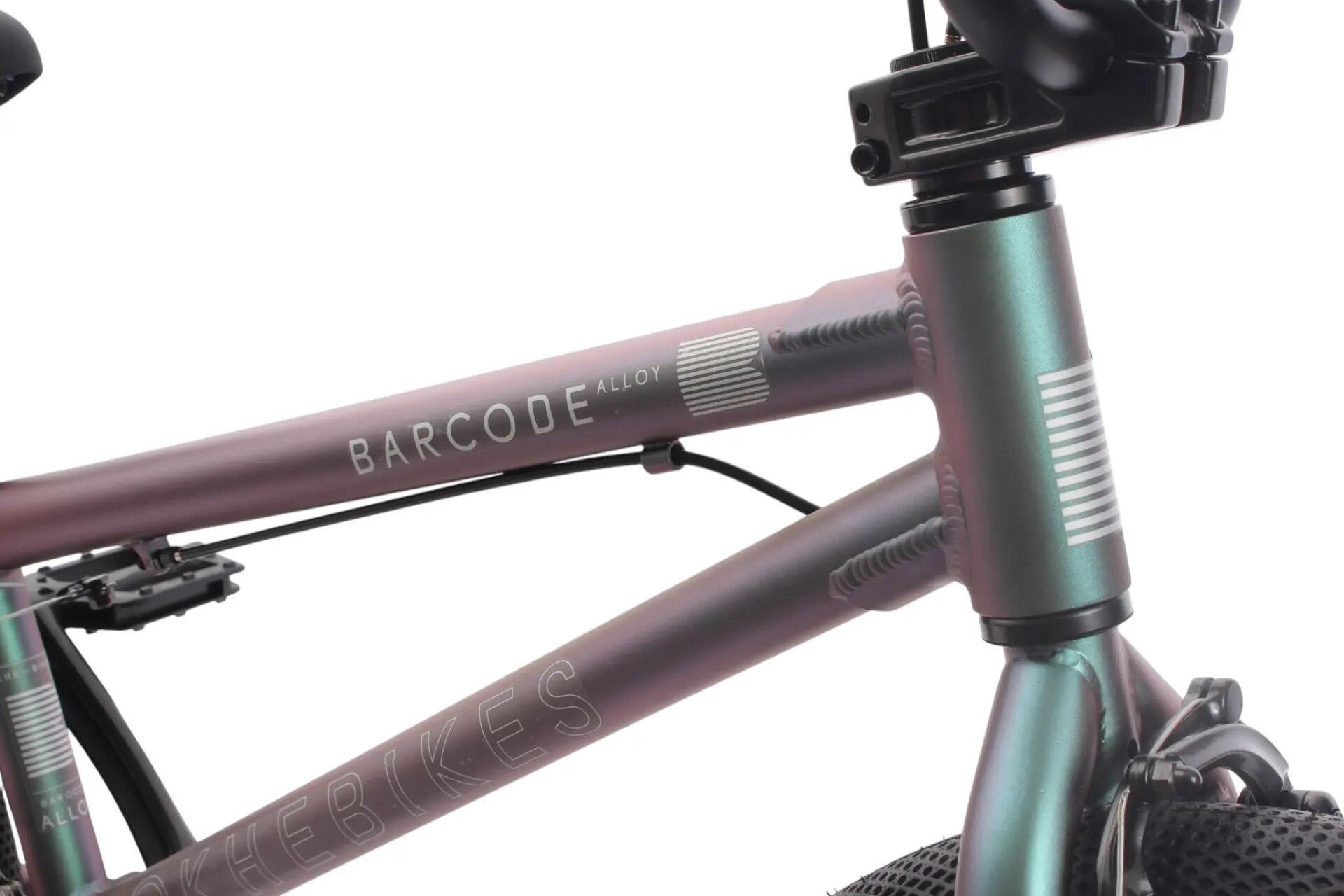

• Flip-Flop Green frame with changing colour effect
• KHE ACME tyres with grey sidewalls

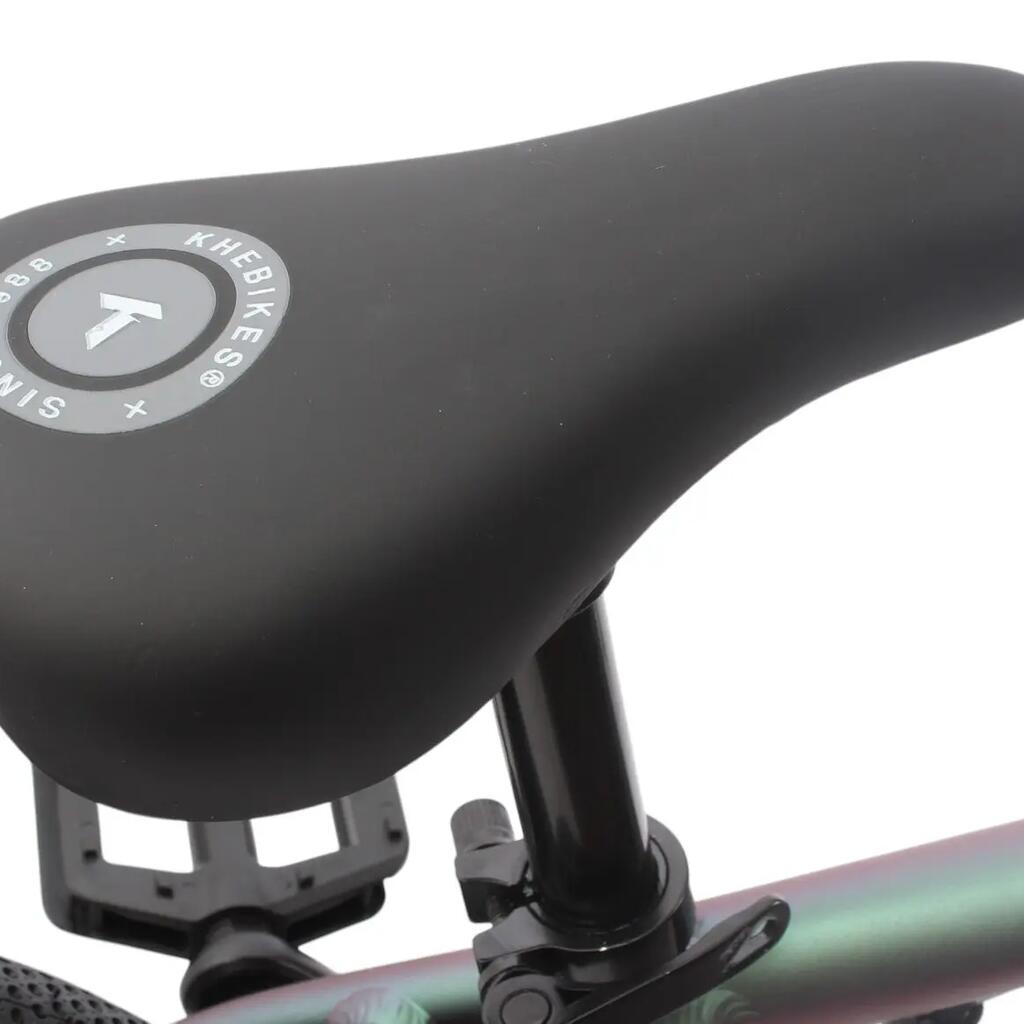

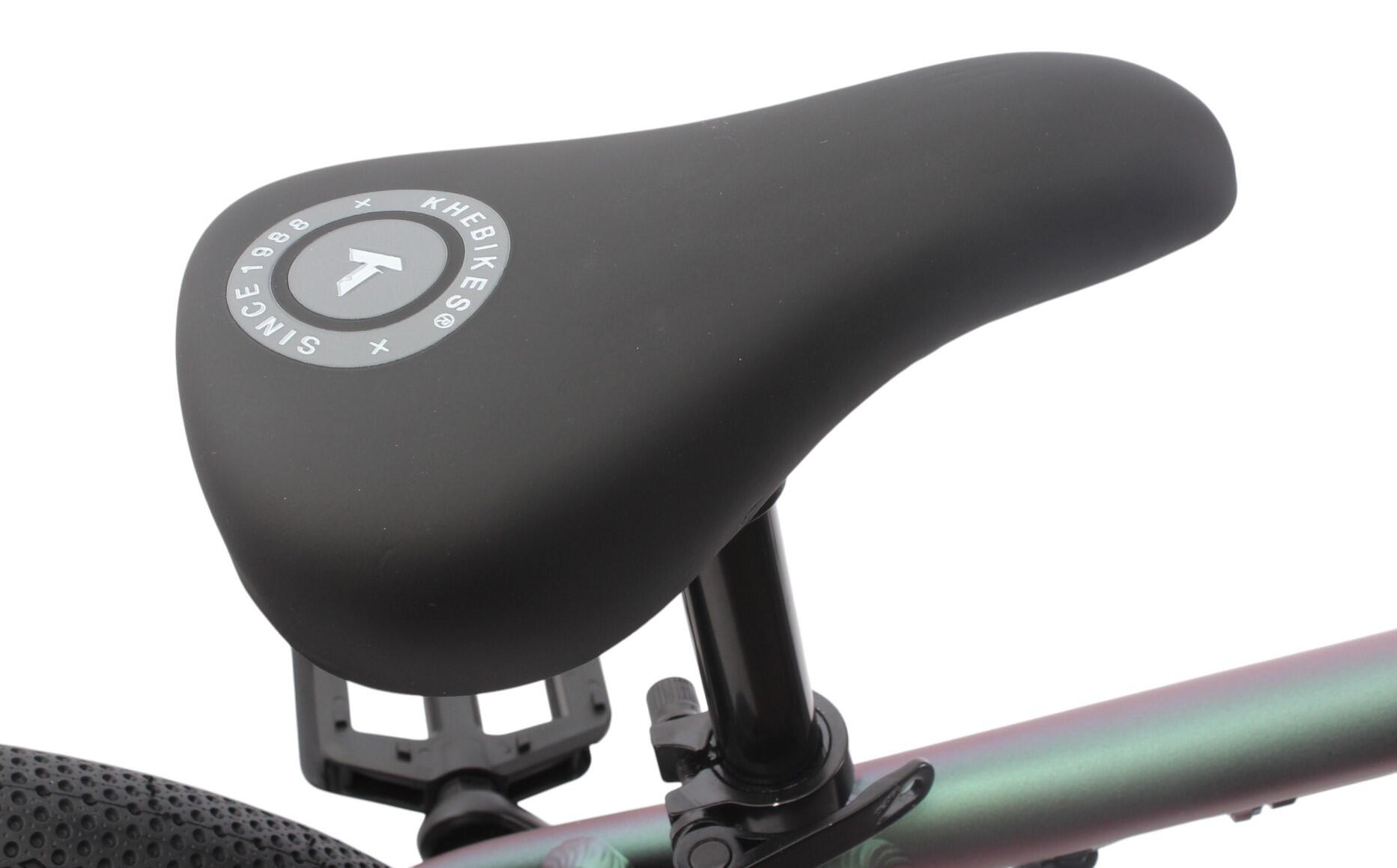

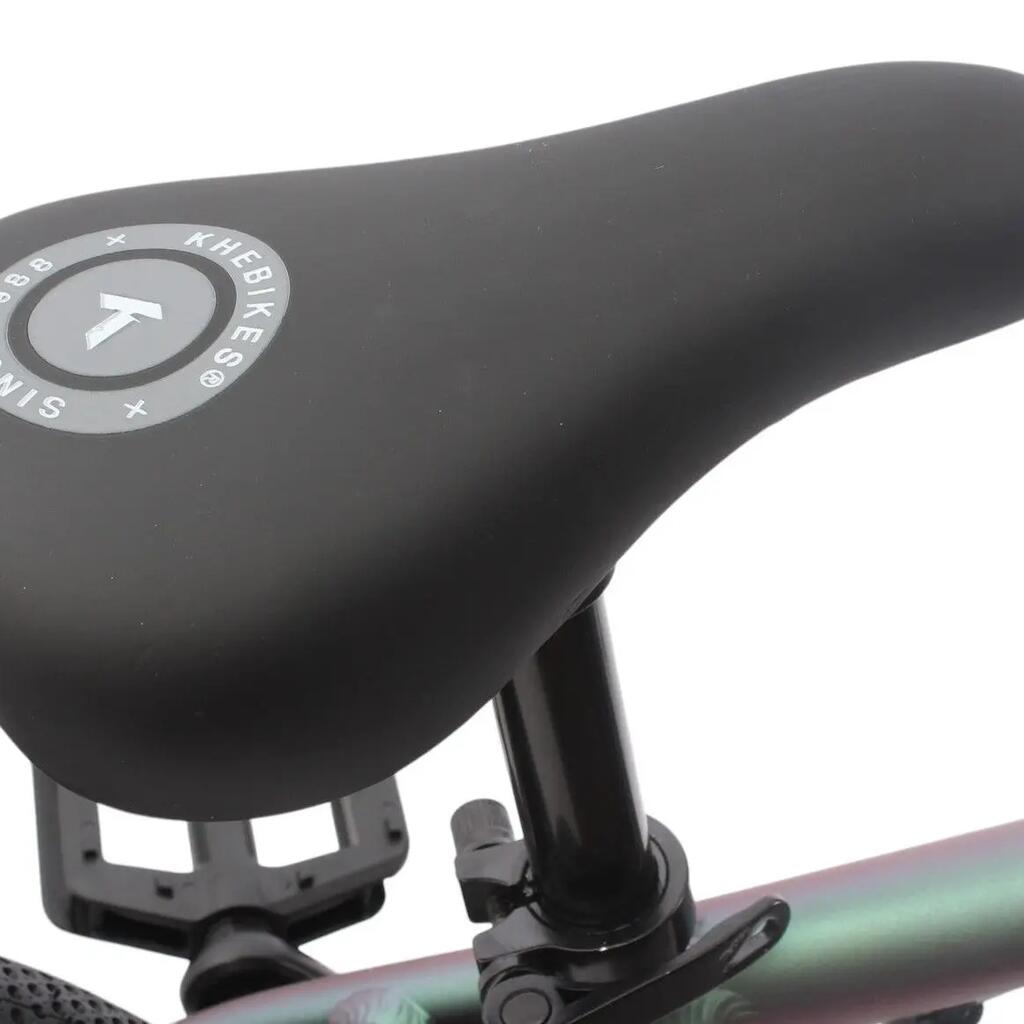

• Colour-matched saddle
• 3D dropouts on the fork
Technical Data
• Model: KHE Barcode LL
• Model year: 2025

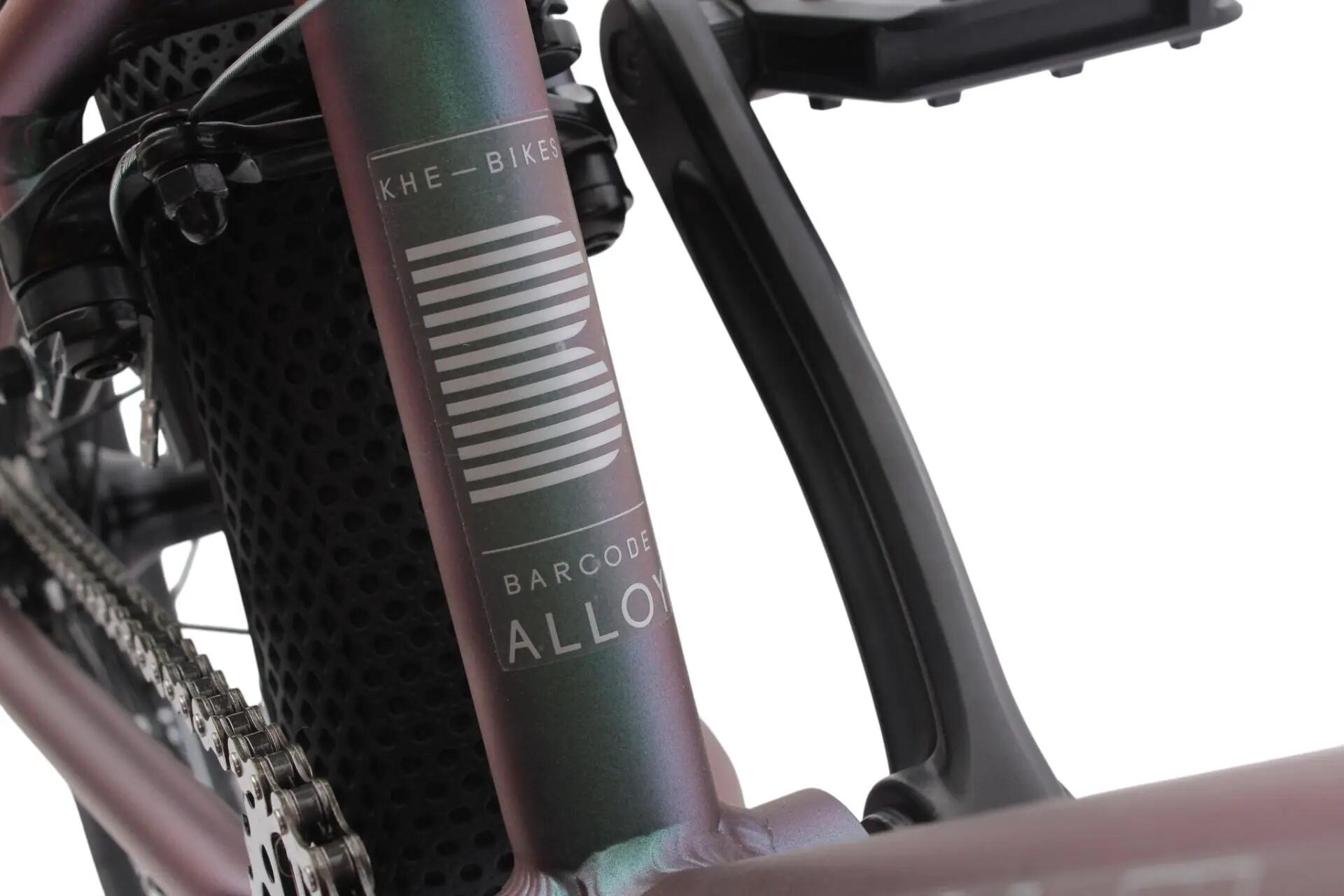

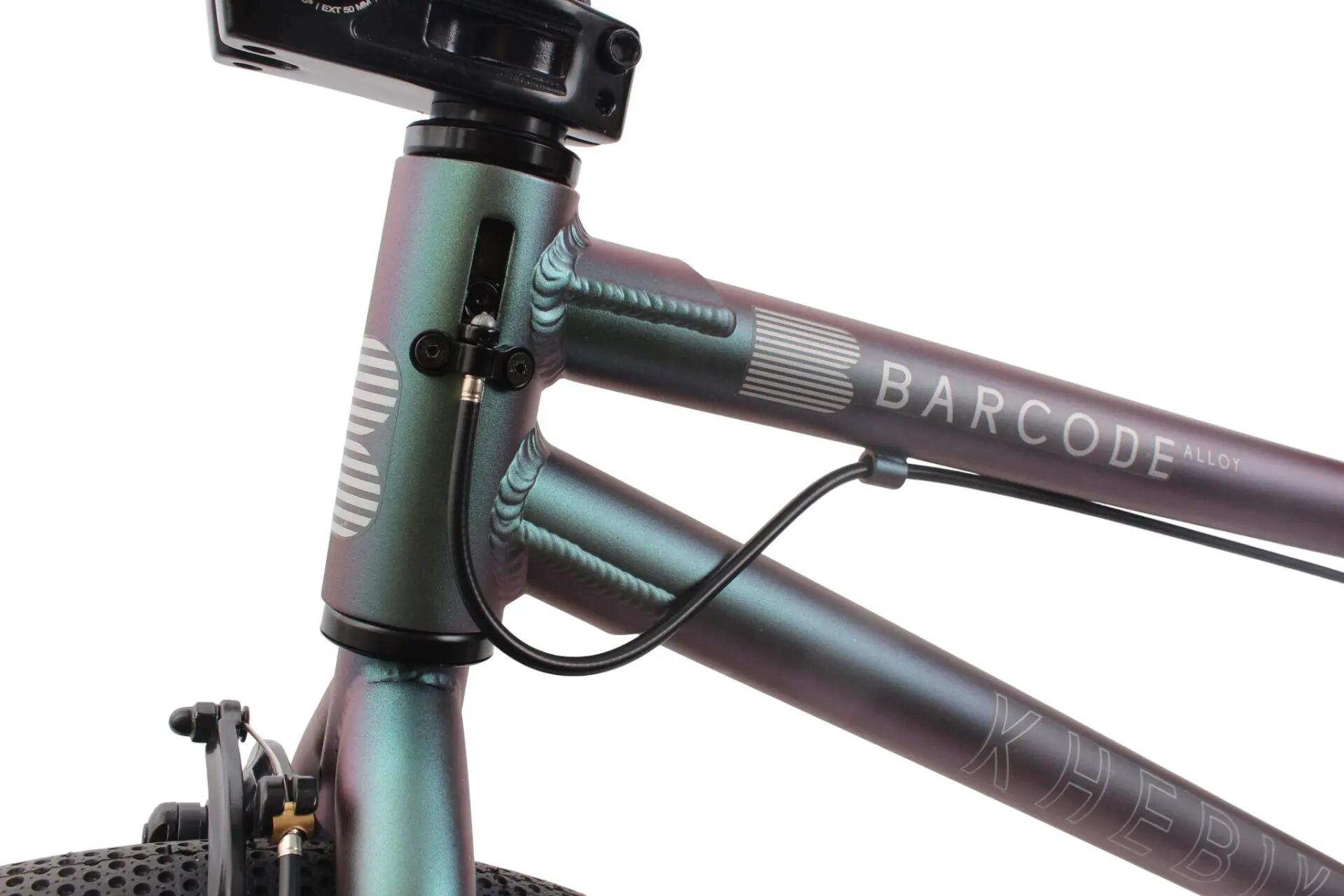

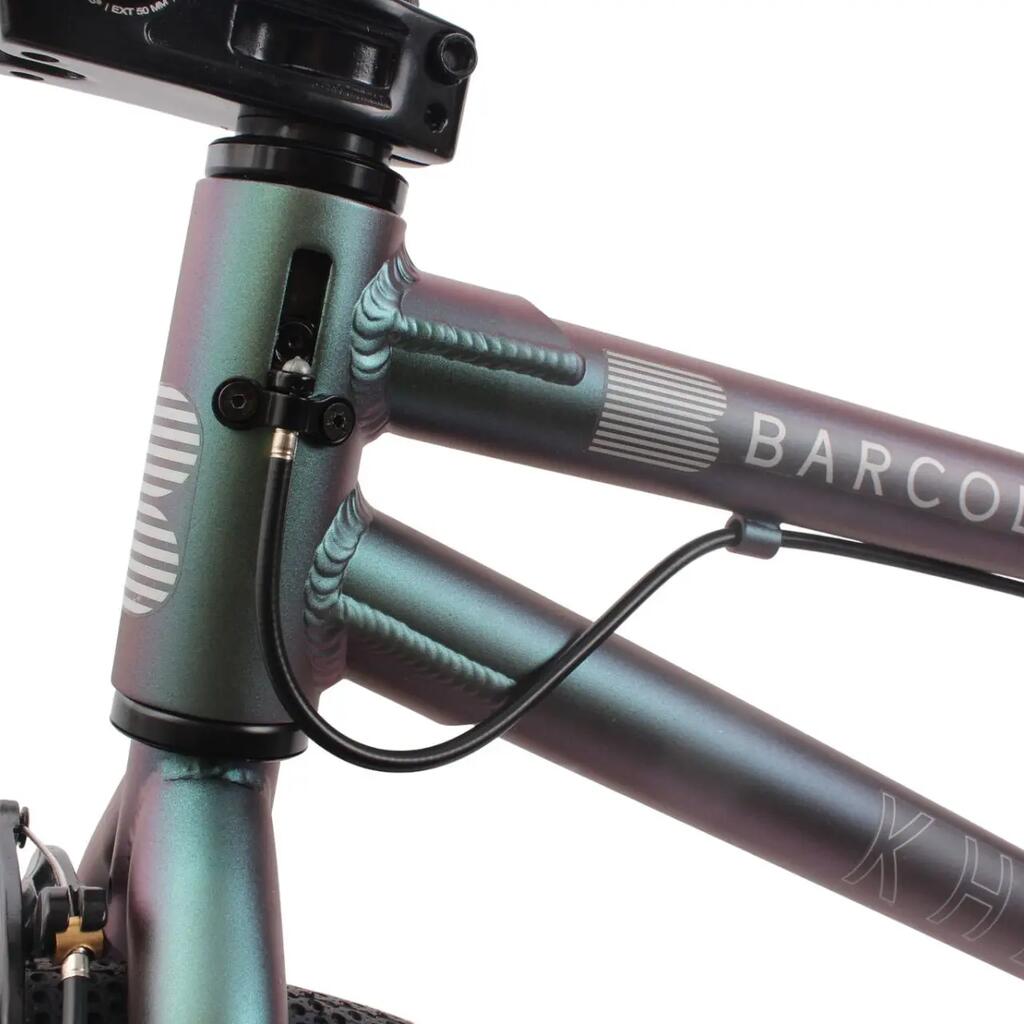

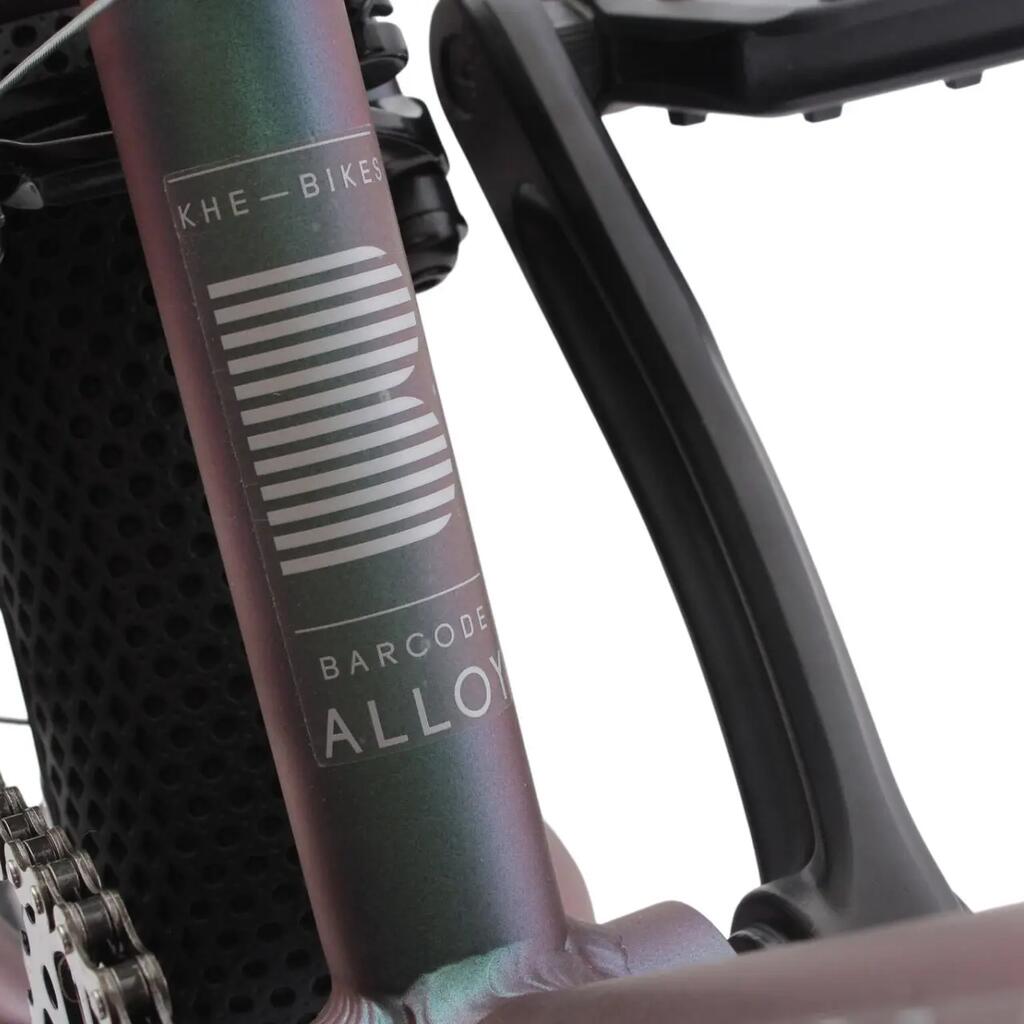

• Frame: KHE 6061 aluminium
• Fork: KHE 1020 HiTen steel with 3D dropouts

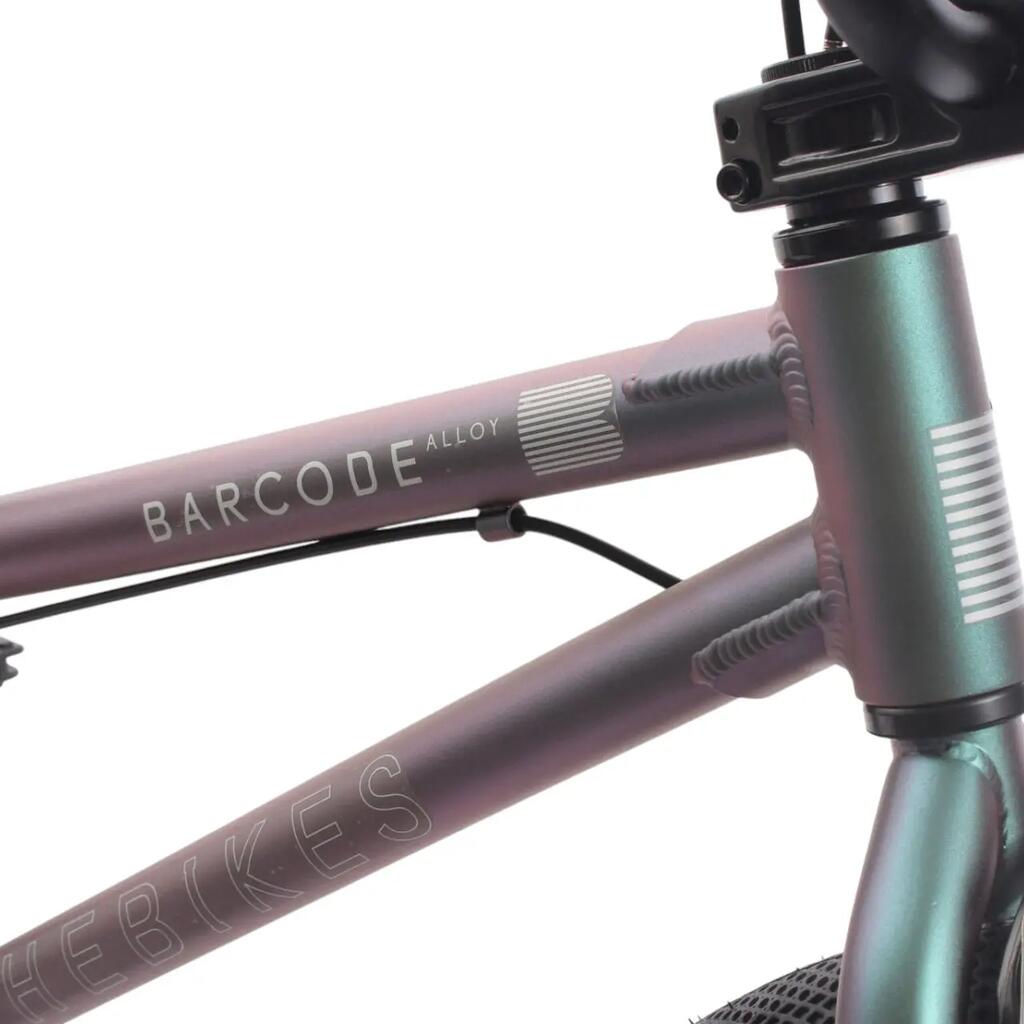

• Top tube: 20.4"
• Handlebar: KHE HiTen steel, 26.77" wide × 8" high
• Stem: KHE Top Loader (1.97")
• Rotor: KHE AFFIX 360 degrees
• Crank: 6.50", 3-piece, forged aluminium
• Chainring: 25T steel
• Bottom bracket: EURO BB, sealed with industrial bearings
• Headset: AFFIX Loosball 1 1/8"
• Brakes: KHE RADIUS aluminium U-brakes front and rear
• Hub type: Freewheel

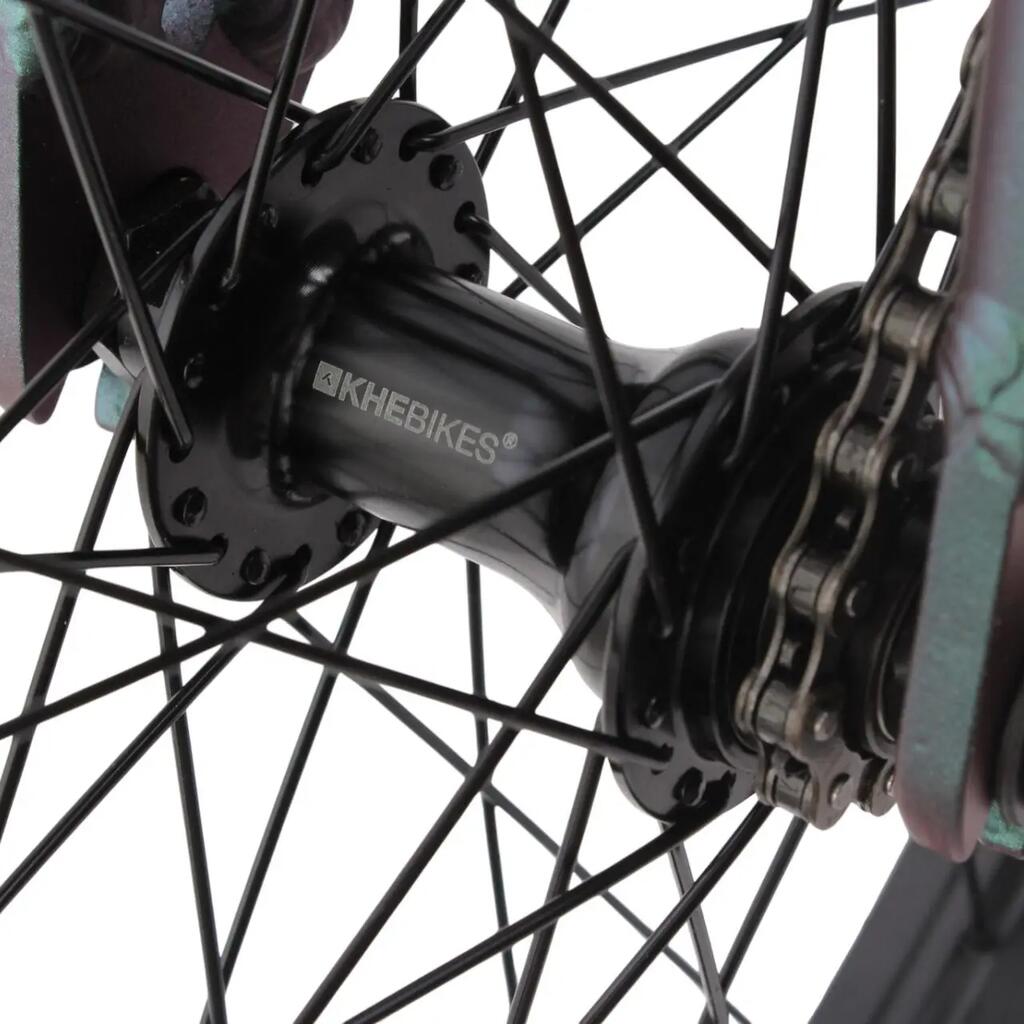

• Rear hub: 9T cassette, 0.55" axle, industrial bearings
• Rims: 20" double-wall aluminium, 36-hole
• Tyres: KHE ACME 20 × 2.40"
• Material: Aluminium
• Colour: Green
• Weight: 22.9 lbs
Suitable for:
• Rider height: 4'7"–5'11"
• Maximum rider weight: 187 lbs
• Use: Park / Pump track / Street / Flatland
Why choose the KHE Barcode LL 20" from KHEbikes:
✓ At only 22.9 lbs, exceptionally lightweight for a versatile 20" BMX
✓ Lightweight 6061 aluminium frame for agile and controlled handling
✓ Patented KHE AFFIX 360-degree rotor for unrestricted handlebar rotations
✓ KHE RADIUS aluminium U-brakes front and rear for reliable braking
✓ Sealed EURO BB bottom bracket with industrial bearings
✓ Industrial-bearing hubs front and rear for a robust wheelset
✓ Wide KHE ACME 20 × 2.40" tyres for grip and control
✓ Eye-catching Flip-Flop Green finish with a changing colour effect
Compatibility
• Front pegs: 0.39"
• Rear pegs: 0.55"
• Recommendation: KHE COP ALU Pegs
Delivery & Notes
Delivery condition: The BMX is delivered approximately 90% pre-assembled. Before the first ride, all safety-relevant components should be professionally assembled and checked.
Note: The KHE Barcode LL is already equipped with KHE RADIUS aluminium U-brakes front and rear.
