Product Description

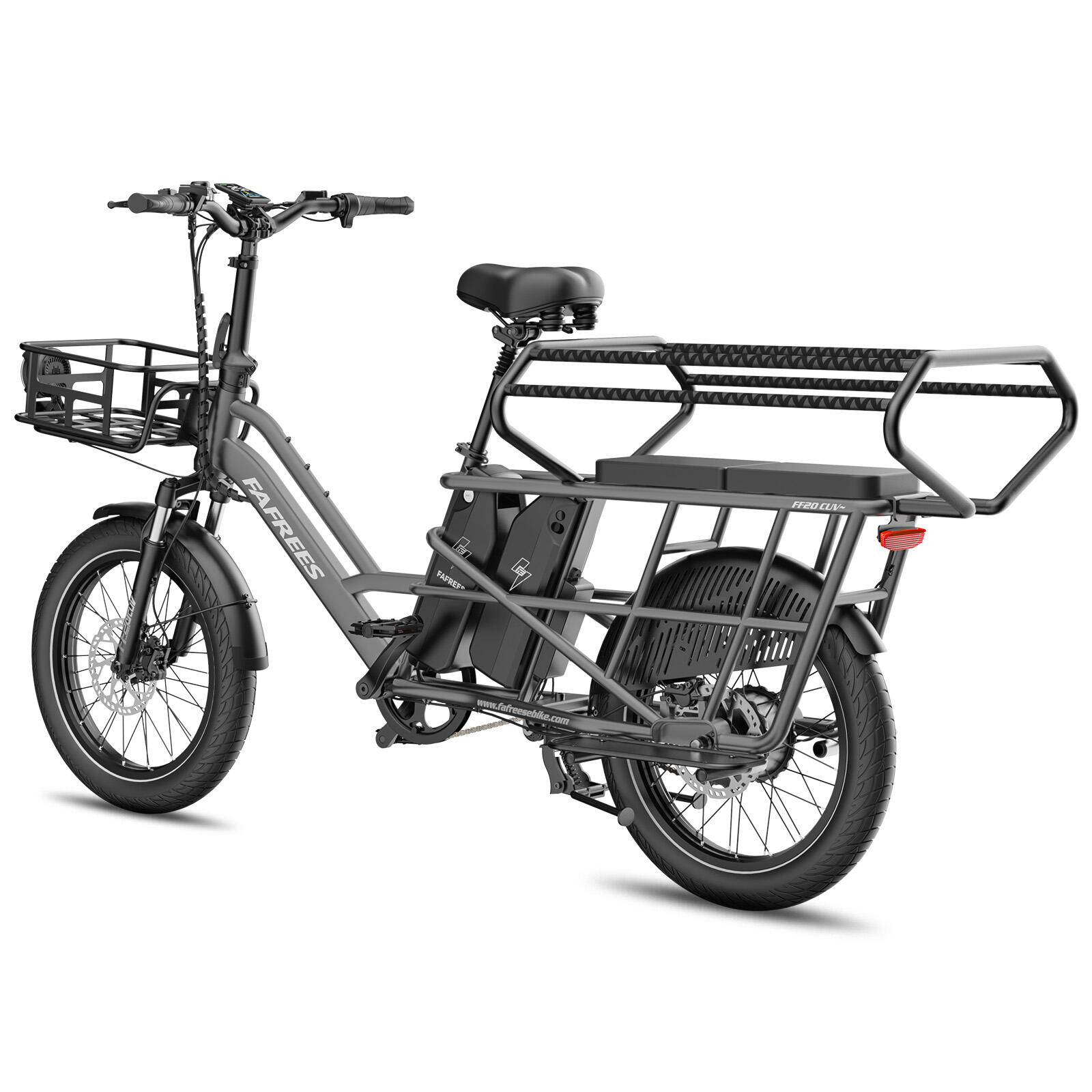

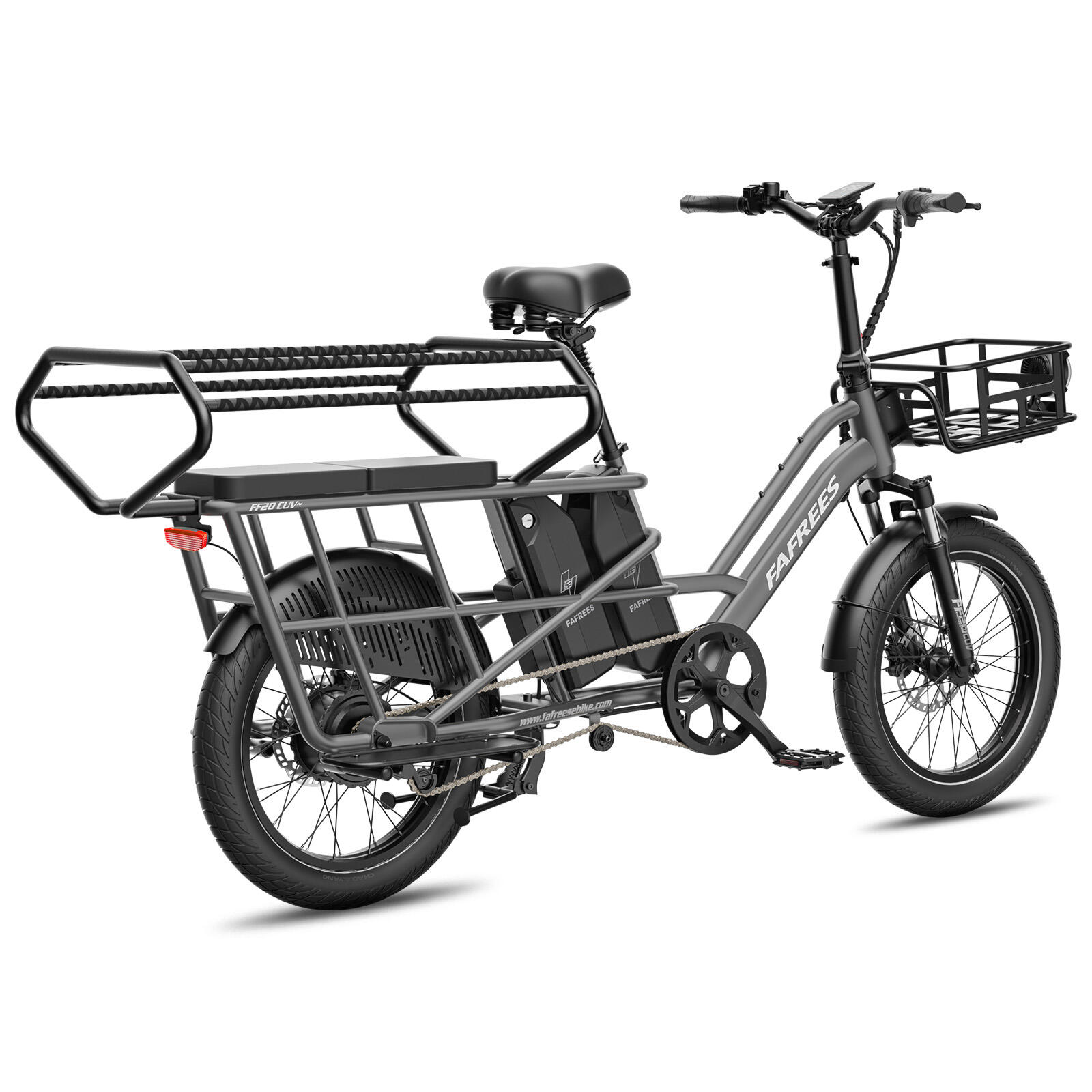

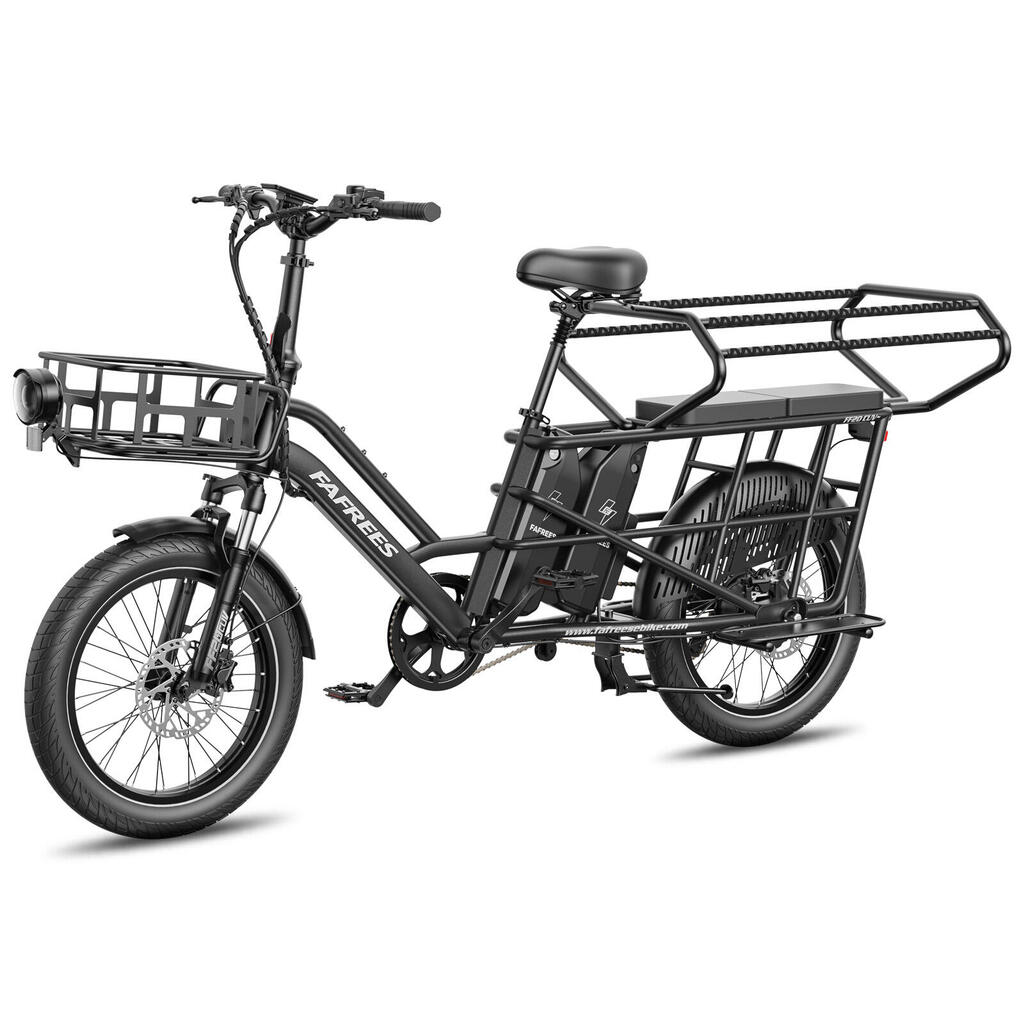

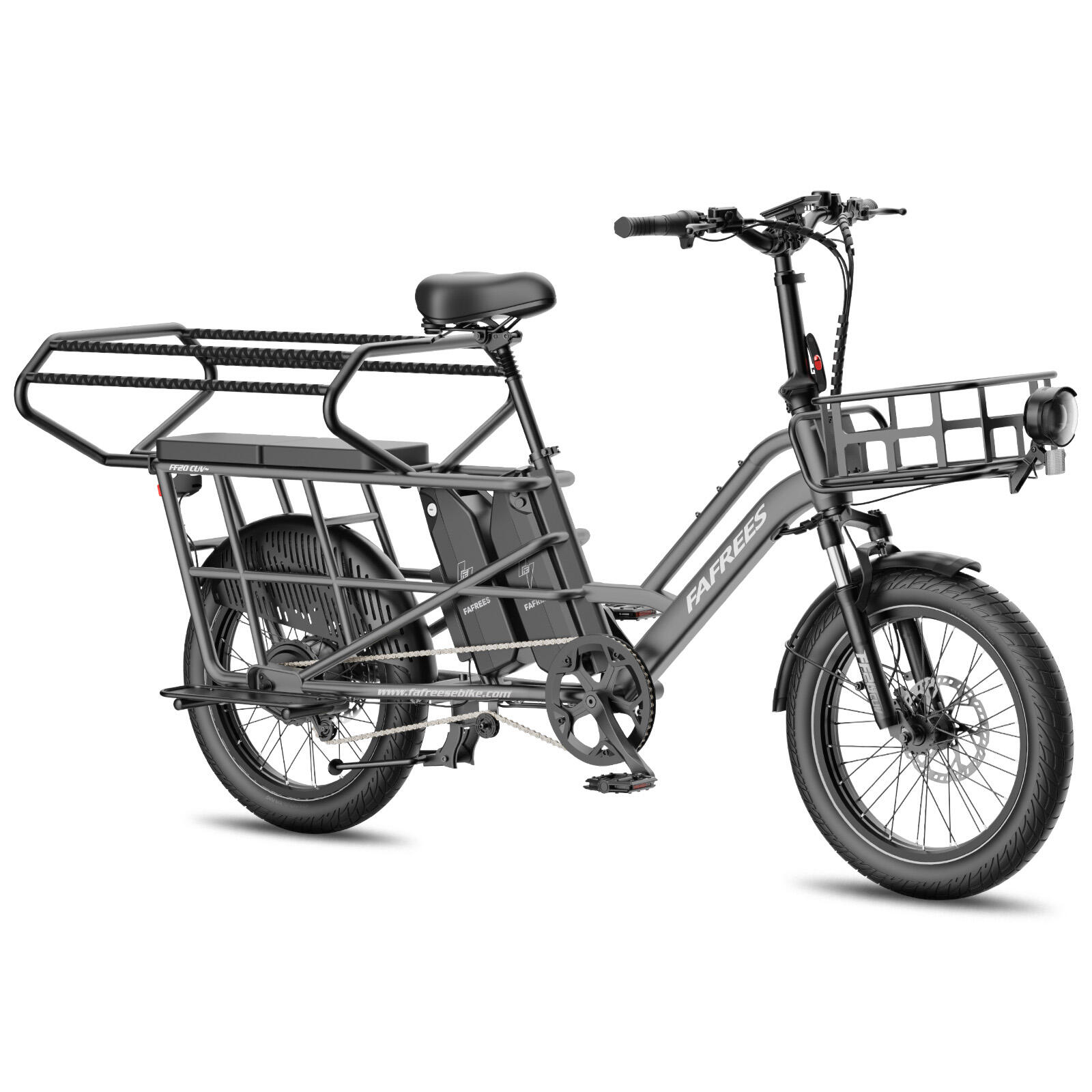

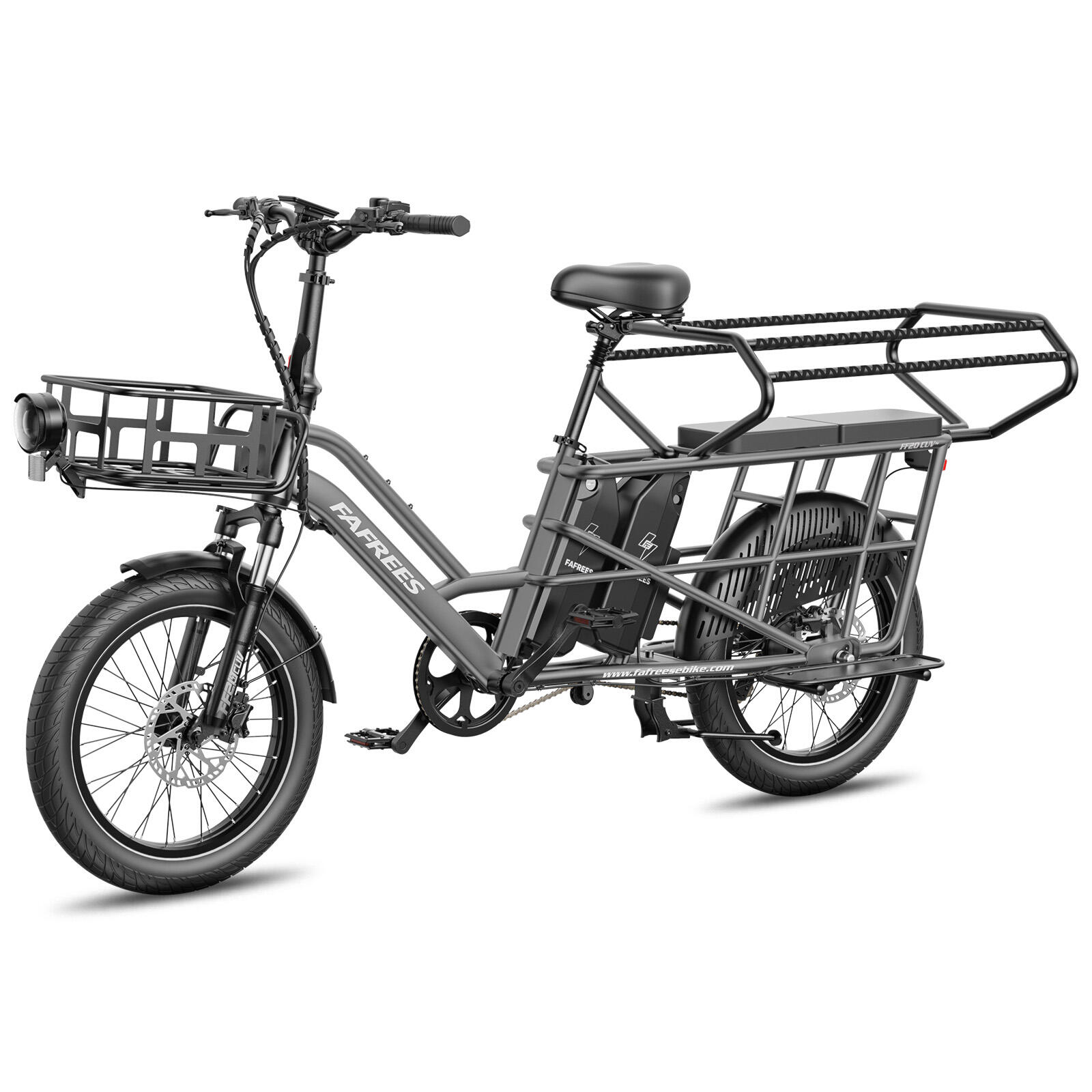

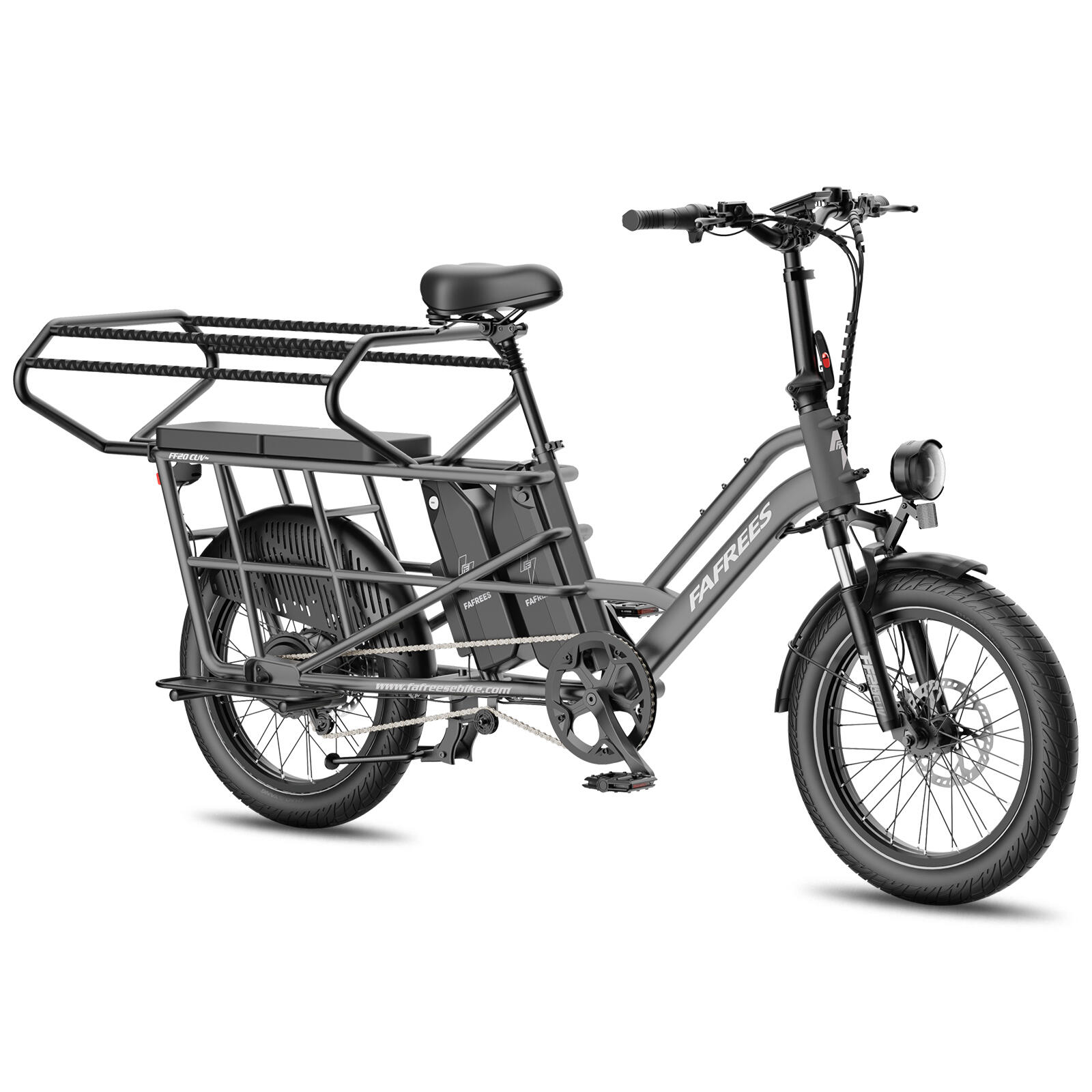

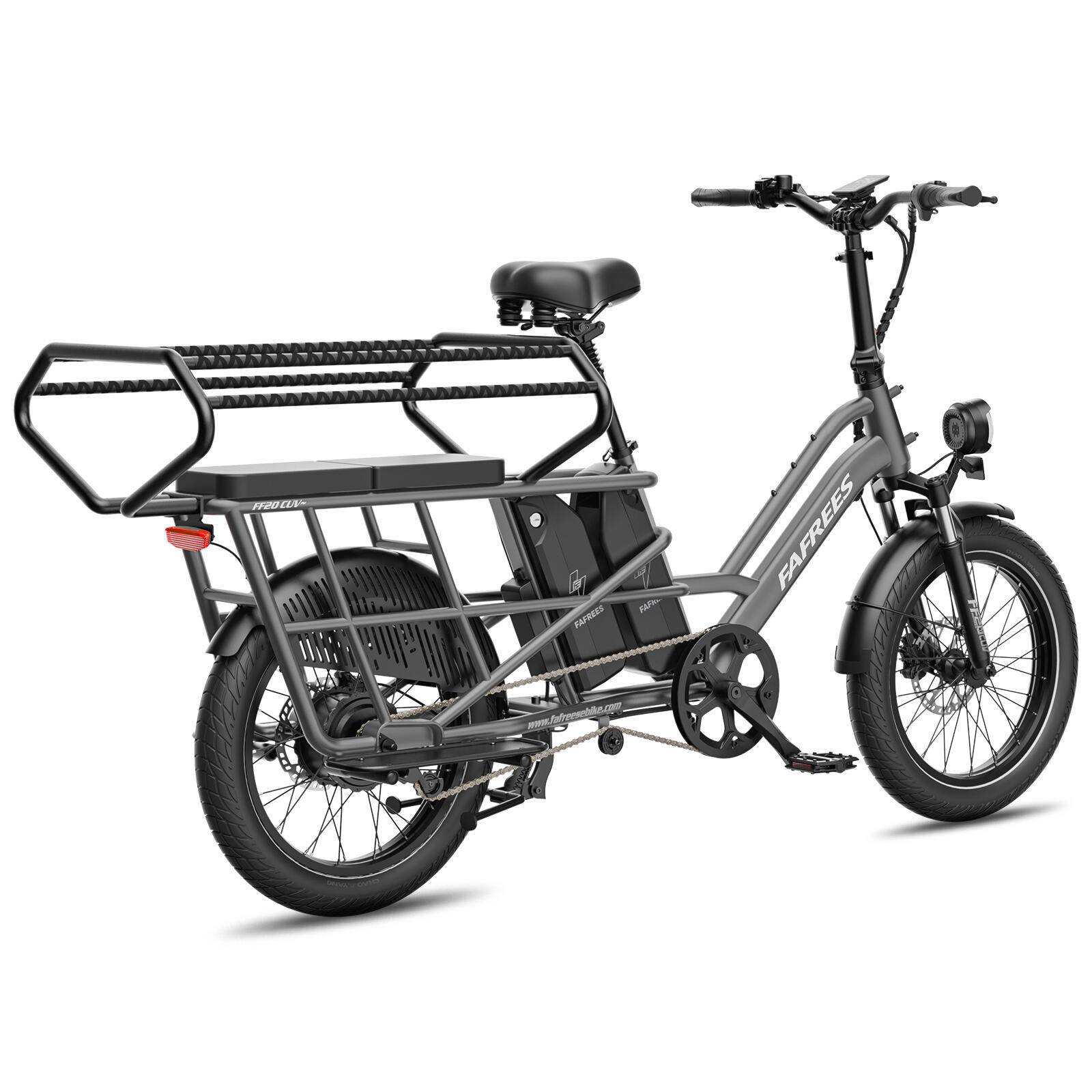

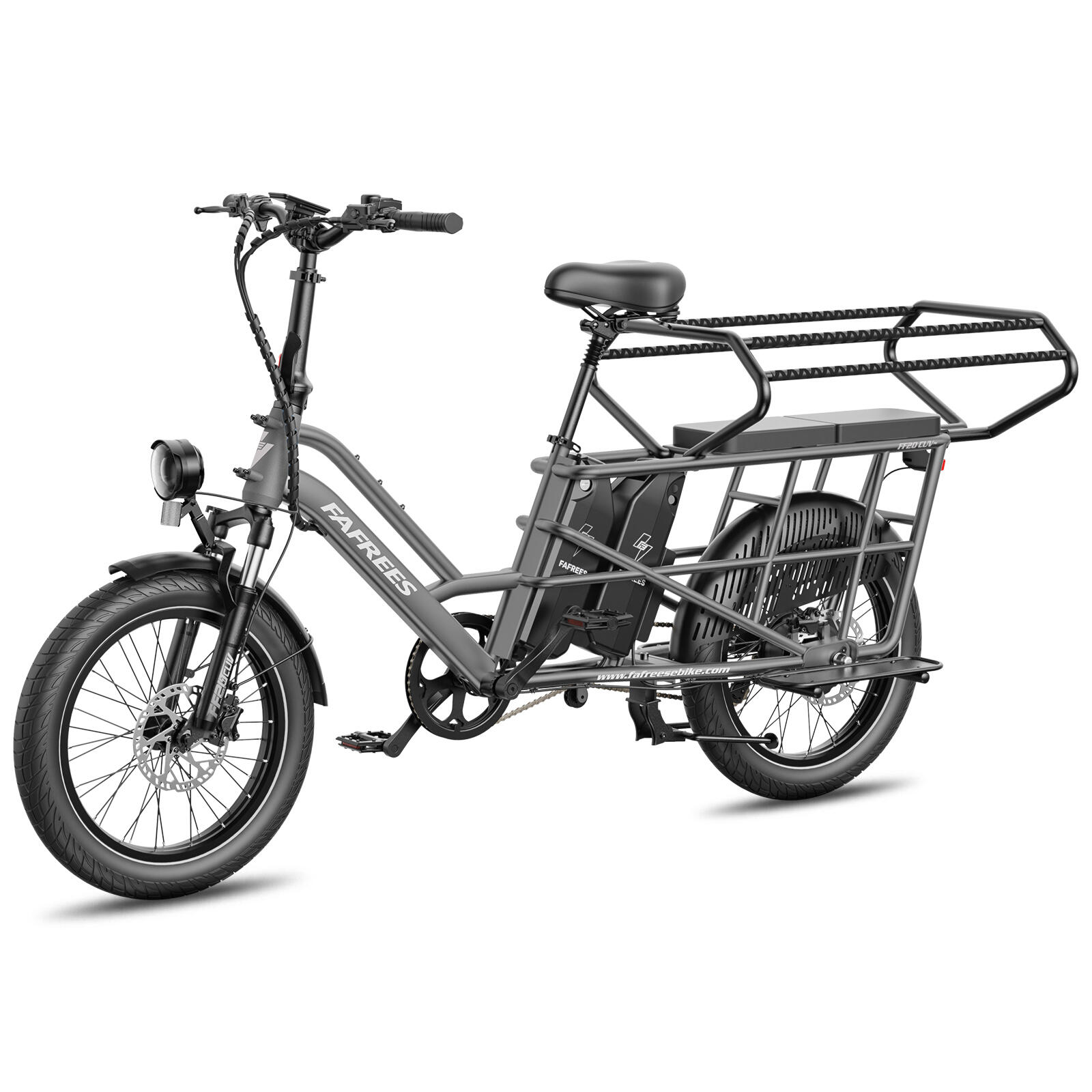

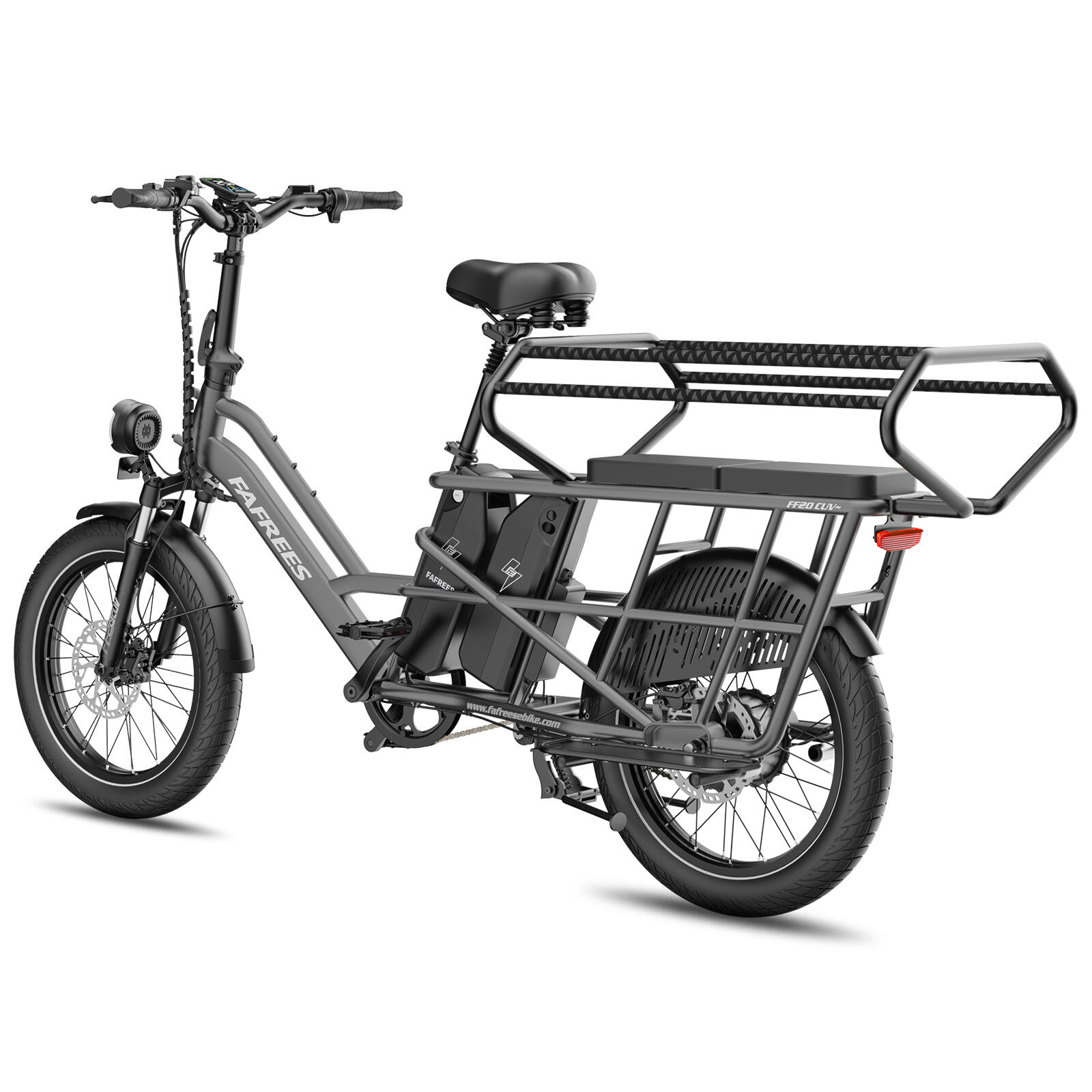

Modular Longtail E-Bike for Family & Cargo
The FF20 CUV is a versatile modular longtail e-bike that safely carries two kids plus essentials or hauls heavy loads up to 200kg total. With an extra front storage design, this electric cargo bike adapts from school runs to grocery trips with ease.

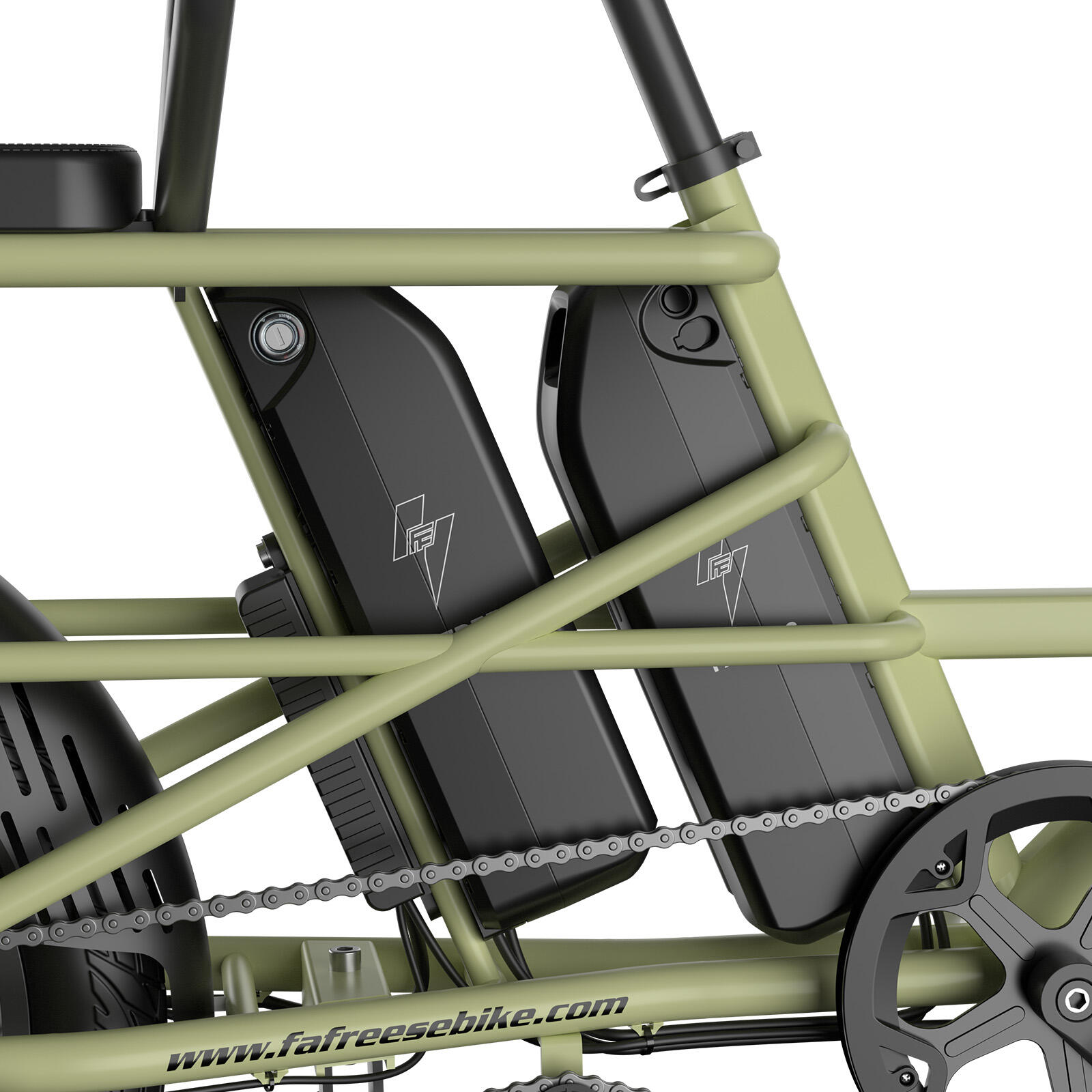

Dual Battery System with 170km Range
Equipped with a dual battery system (48V 15Ah+15Ah) and a built-in battery balancer, this long range electric bike delivers up to 170km per charge. The removable batteries charge in just 5.5 hours each, giving you all-day freedom without range anxiety.
Smooth & Responsive Torque Sensor Motor
Experience smooth pedaling with the 250W rear hub motor paired with a torque sensor, providing instant and intuitive assistance up to 75Nm. This pedal assist e-bike meets EU standards (25km/h) and makes climbing hills or starting with heavy cargo effortless.
Dual Suspension & Hydraulic Disc Brakes
Stay comfortable and in control with dual suspension (front fork + seatpost shock) that absorbs bumps, plus hydraulic disc brakes front and rear for reliable all-weather stopping power. Whether loaded or downhill, this electric commuter bike ensures a safe, stable ride.
All-Terrain Fat Tires & Utility-Ready Features
Roll over cobblestones, sand, or snow on 20"×3.0" fat tires with built-in cushioning. The all-terrain e-bike also includes a bright LCD display, thumb controls, full fenders, lights, and a bonus gift box (brake pads, tube, tool kit). With a foldable handlebar and rust-resistant aluminum frame, it’s as practical to store as it is to ride.
Specification:
Brand:FAFREES
MODEL:FF20 CUV
Type:Family Long tail E-Cargo Bike
Frame material:Aluminum alloy
Tire size:20"*3.0 inch Air tire
Driving:Default maximum speed 25km/h
Max range for assisted mode:120-170km
Max climbing Gradability:20°
Battery type:18650 Lithium-ion battery
Rated voltage:48V
Input voltage:54.6V
Battery capacity:15Ah 720Wh*2"
Motor rated power:250W
Motor location:Rear drive
Maximum torque:75N.m
Charger Input voltage:110-240V
Output voltage:54.6V
Rated current:3A
charging time:5.5h*2
Fork Type:Shock fork
Type of rear shock:Seat shock tube
Display type:LCD
6km/h walk assist mode:No
Cruise control:No
APP control:No
PAS level:0-3
Speed Sensor:Torque Sensor
Transmission:N/A
Brake type:Hydraulic disc brakes

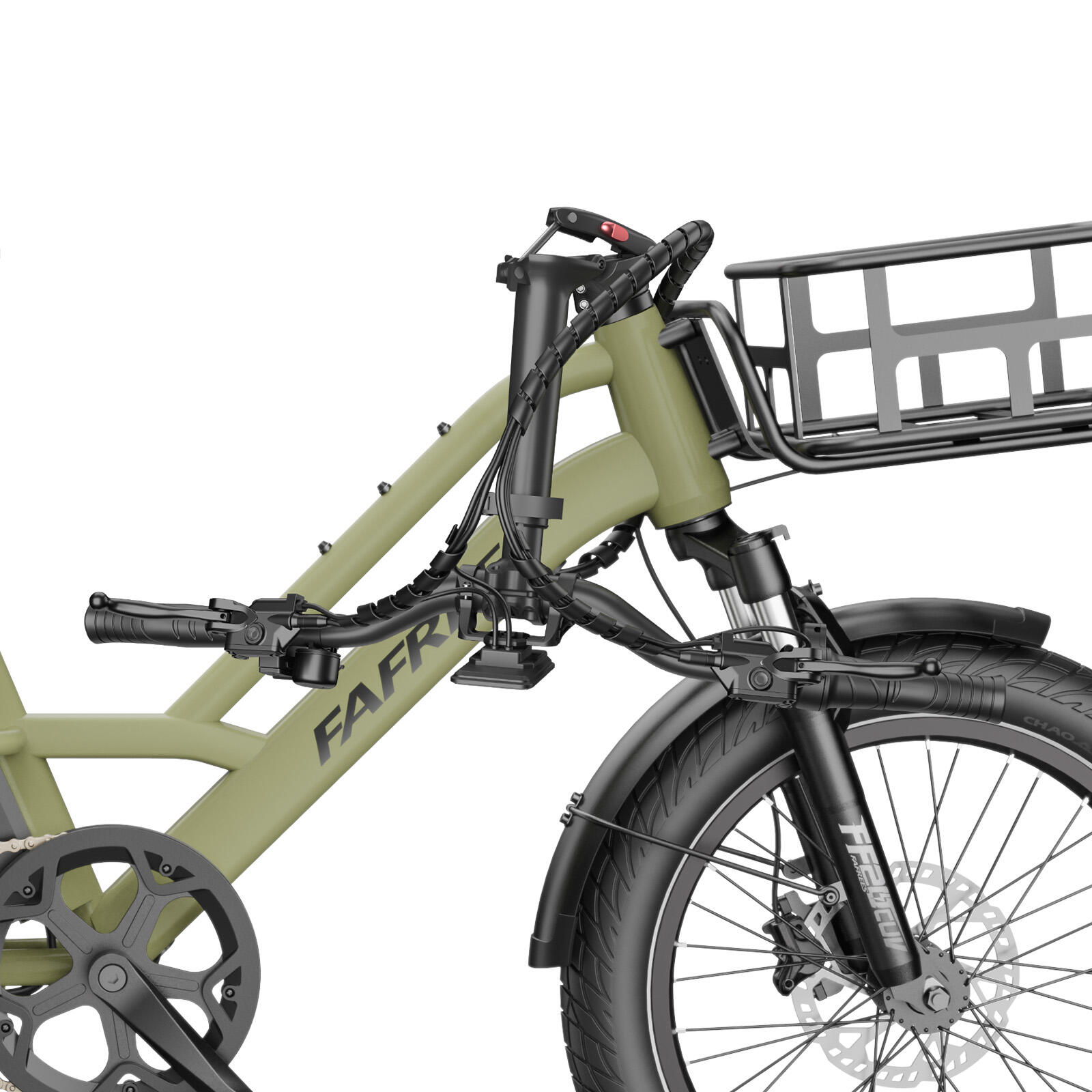

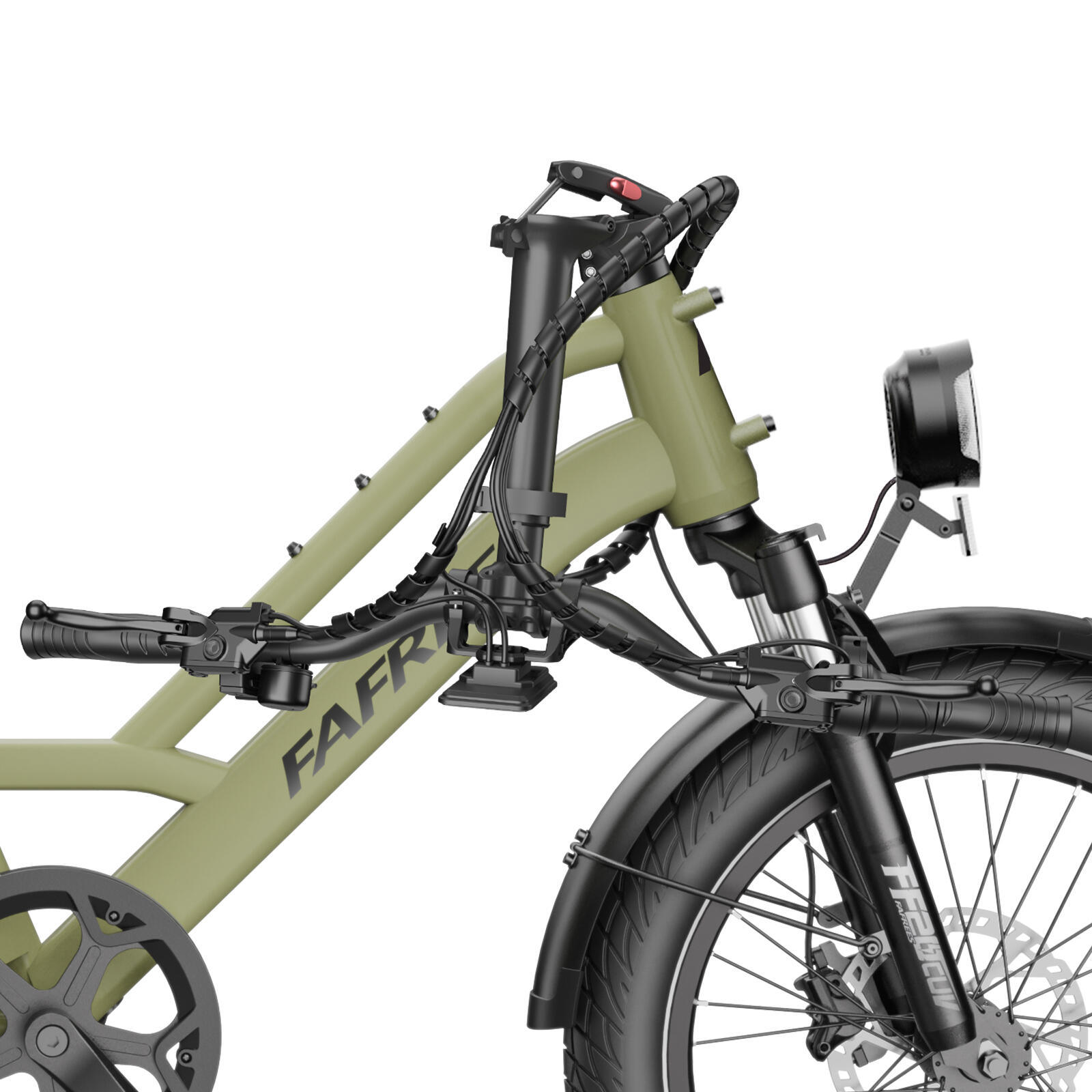

Folding parts:Folding handlebar
Headlight:Yes
Taillight:Yes
Operating temperature:（-20）℃-40℃
Net Weight:40kg
Package weight:54.7kg
Battery weight:3.6+3.6kg
Load capacity:200kg
Waterproof grade:IPX5
Unfolded size:207*67*120cm
Folded size:207*53.5*91cm
Package size:164*29*77cm
Recommend rider heights:160-200cm
Package contains
1 x FF20 CUV electric bike
1 x Rear child passenger seat
1 x Front basket
1 x Battery charger
1 x User manual
1 x Gift box( Includes 2* brake pads, 1* inner tube, 2* valve caps, 1* tool kit, and 1* keychain)
