Product Description

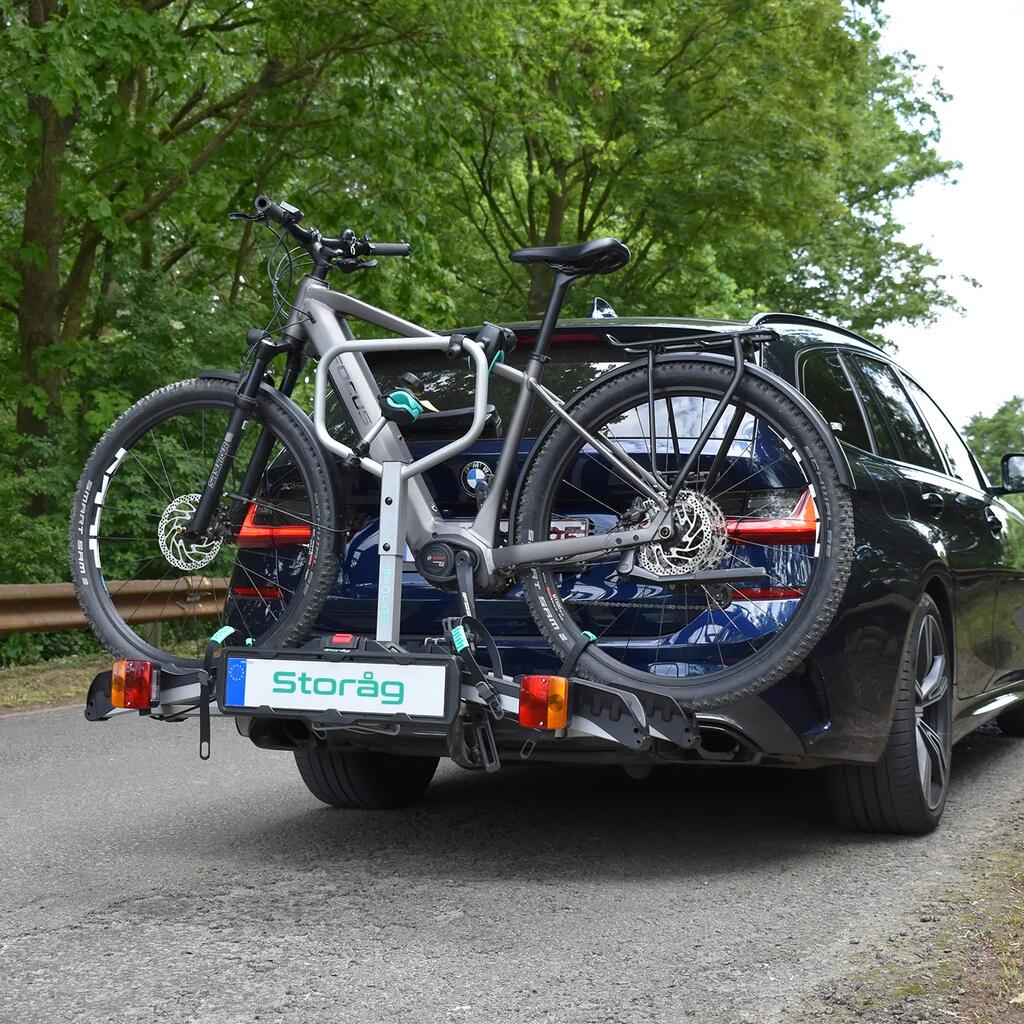

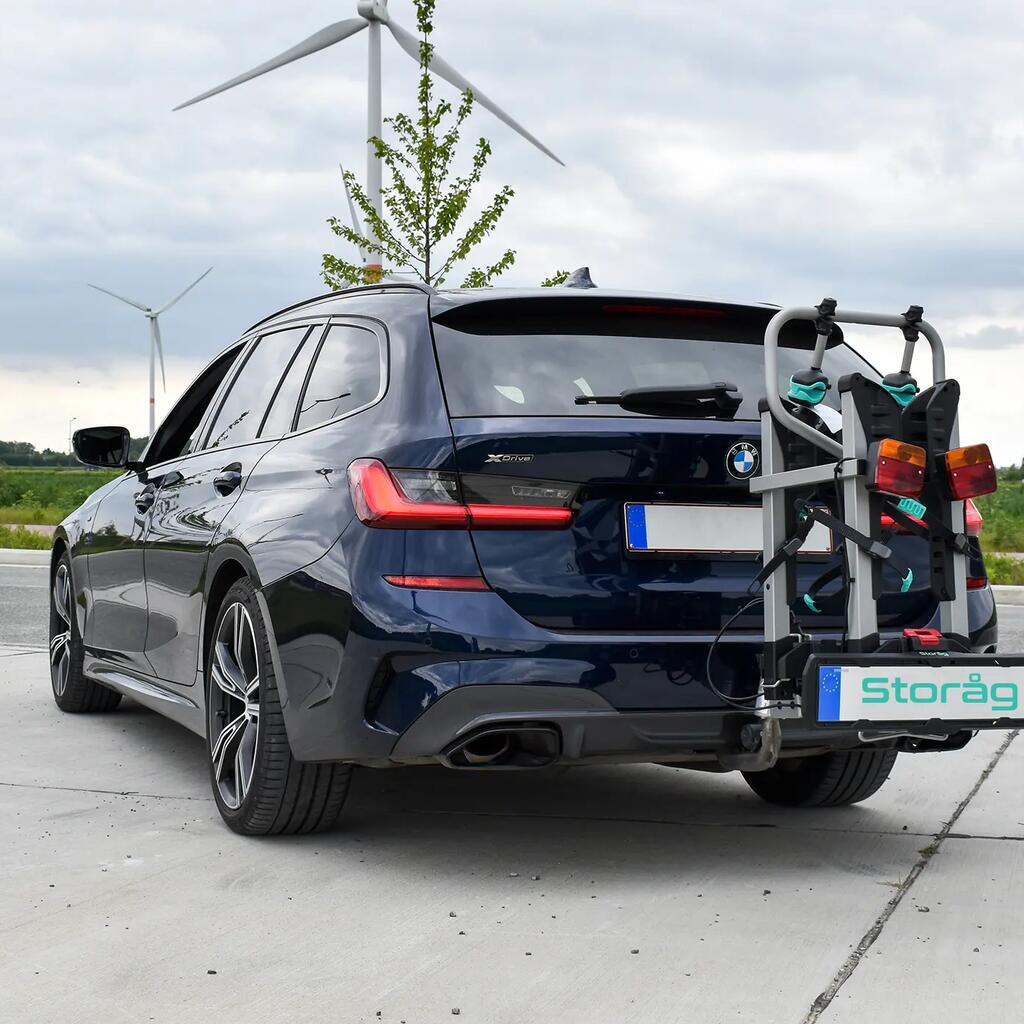

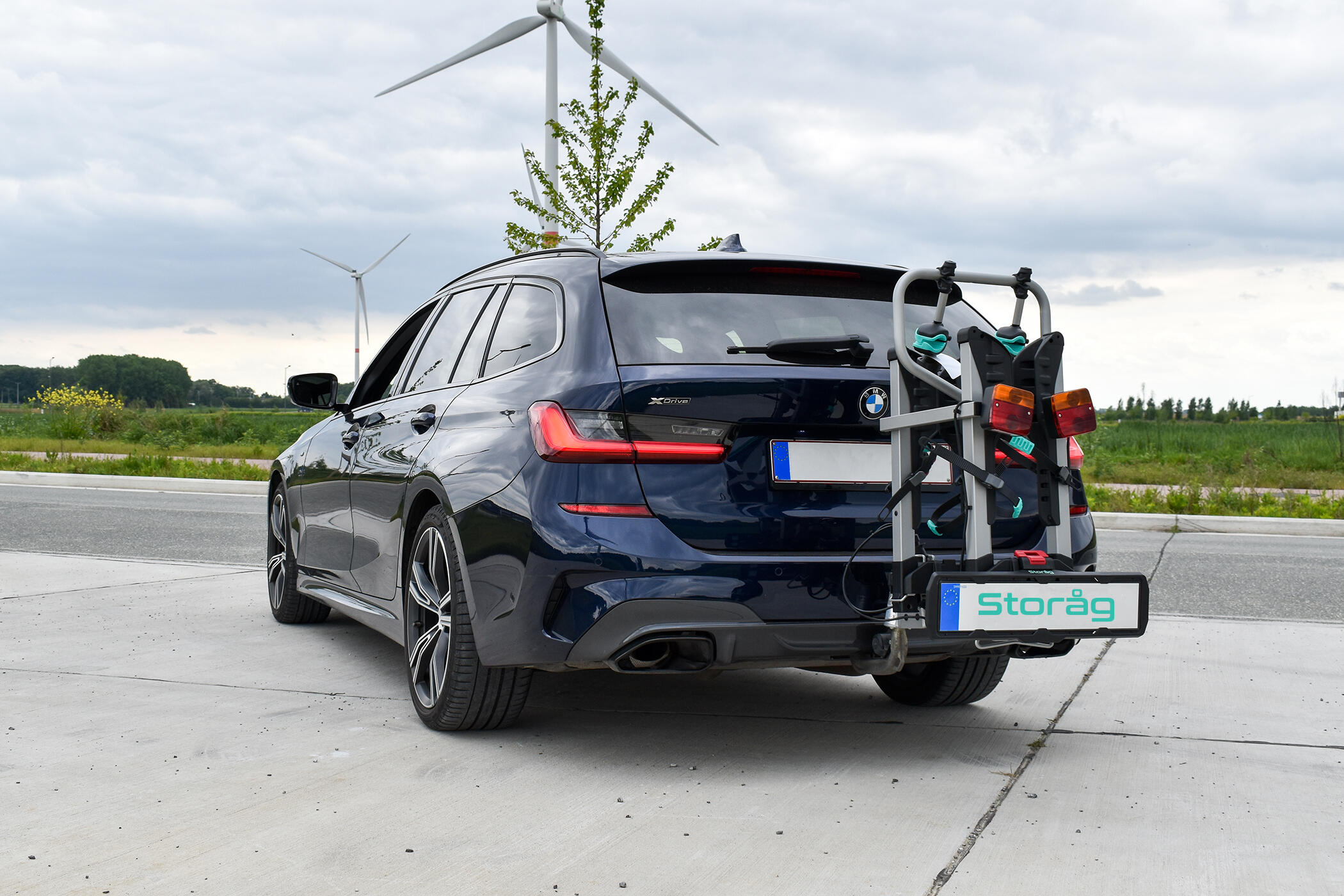

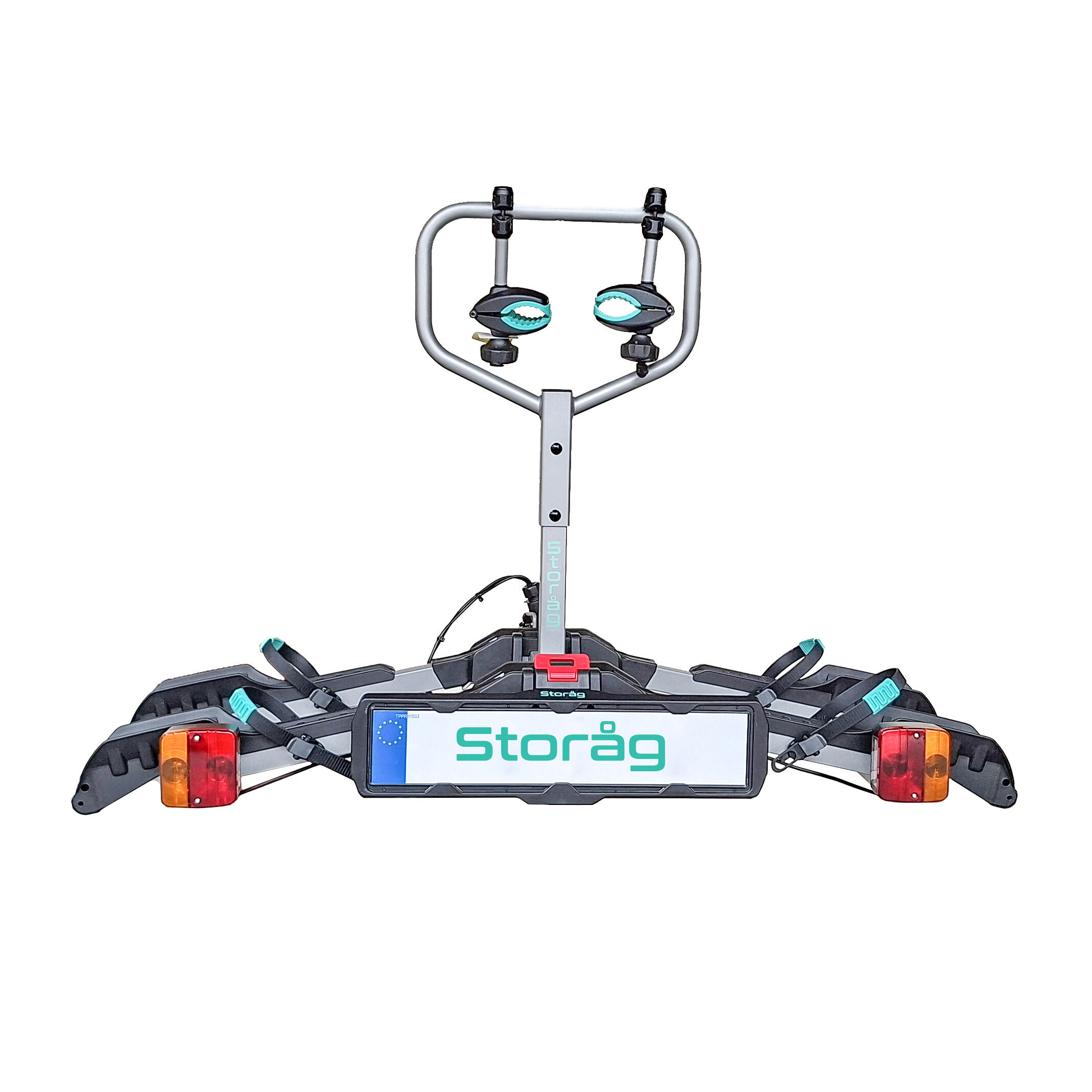

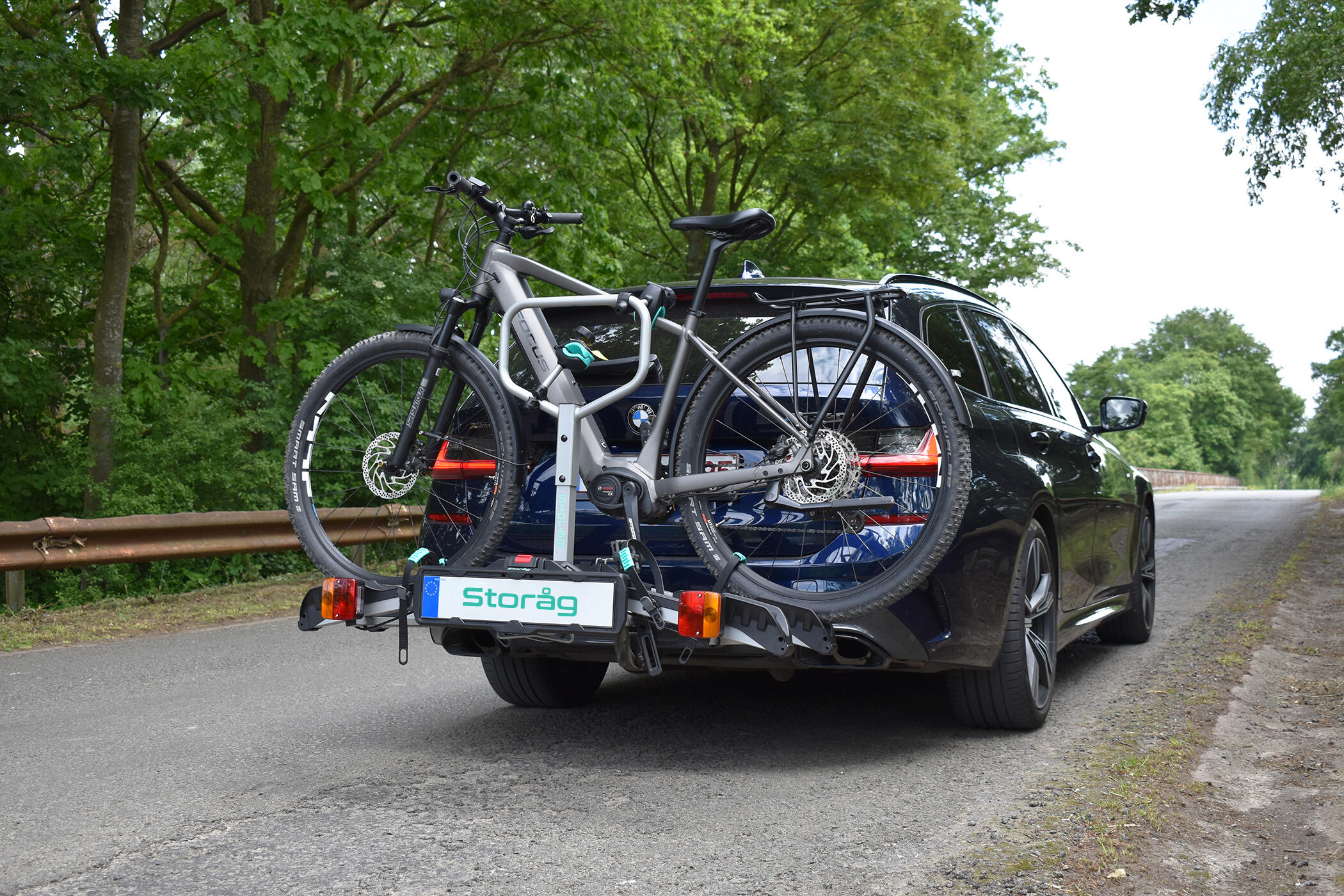

"The STORAG E-DUO bike rack is the perfect product for all electric bikes, even large e-MTBs. It's also ideal for heavy and large bikes thanks to its clamp system on an oversized central hoop. Easy to use, it's ultra-compact when folded. Delivered pre-assembled, you simply need to attach the hoop to use your bike rack immediately. Weighing only 18 kg and with a load capacity of 60 kg, this bike rack is one of the best models on the market.
Features

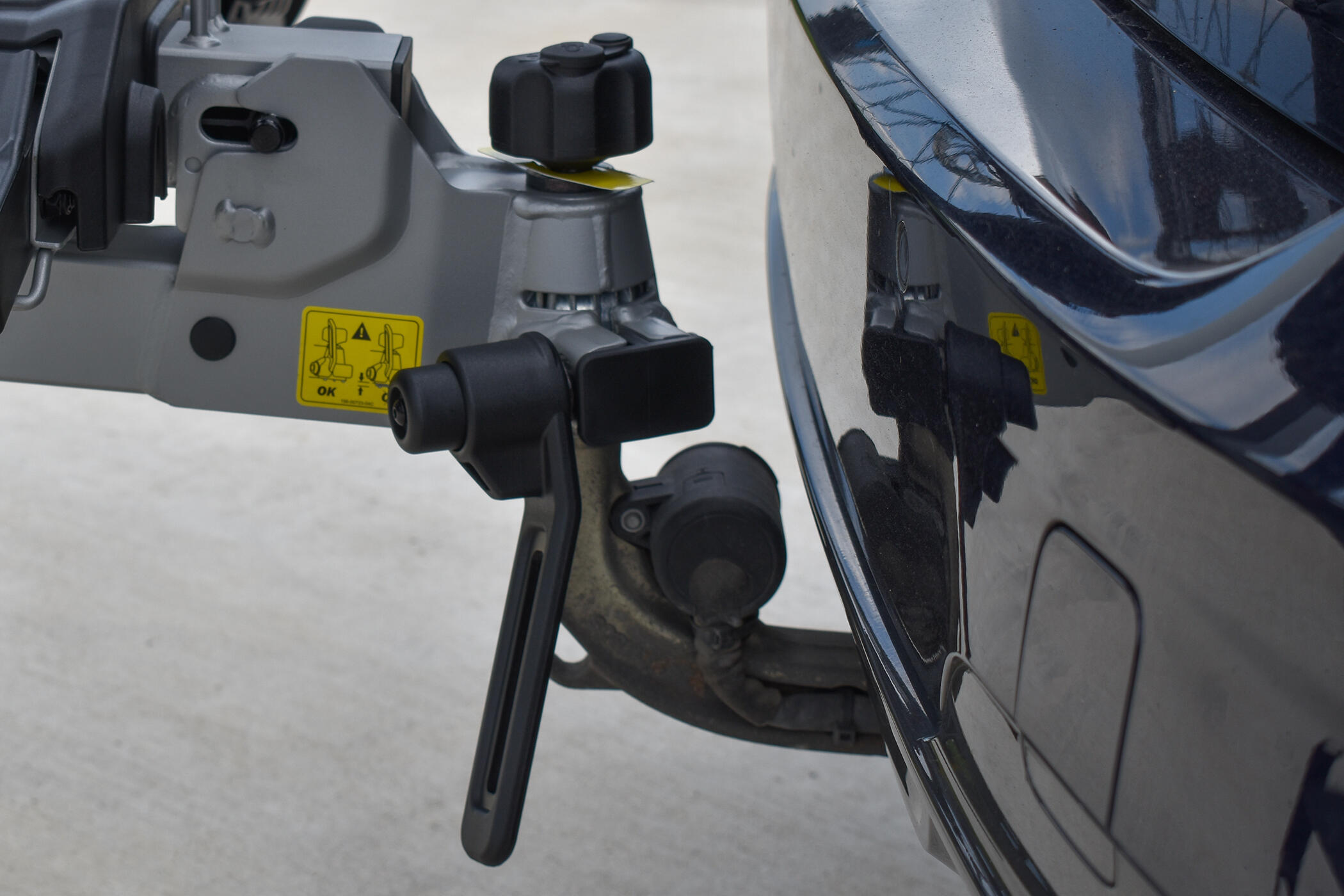

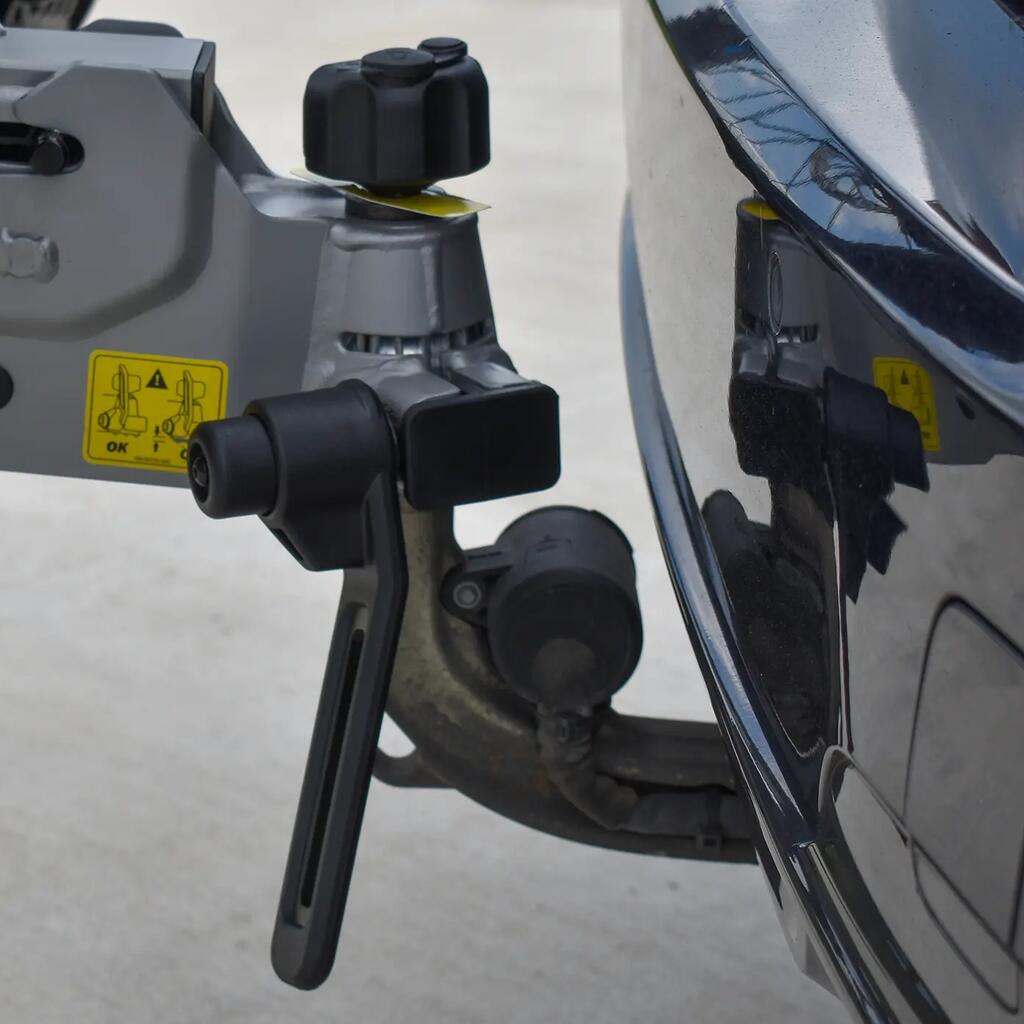

TOW BALL
The tool-free tow ball attachment is compatible with ISO 50mm tow balls. Easy and convenient with its integrated handle, it's very sturdy and offers excellent stability.
Its proven attachment system helps meet the XP-R18-904-4 standard, the most stringent in Europe.

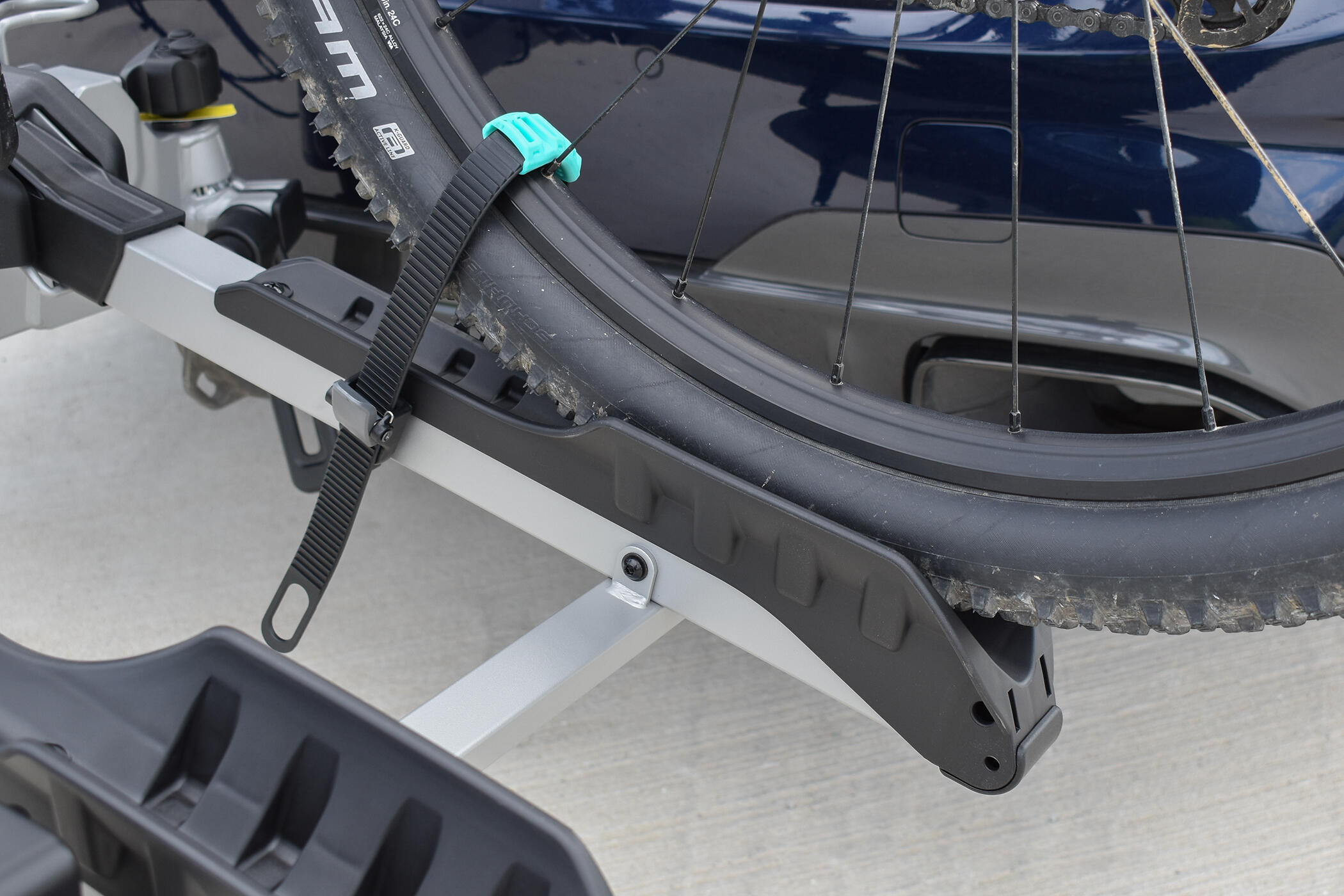

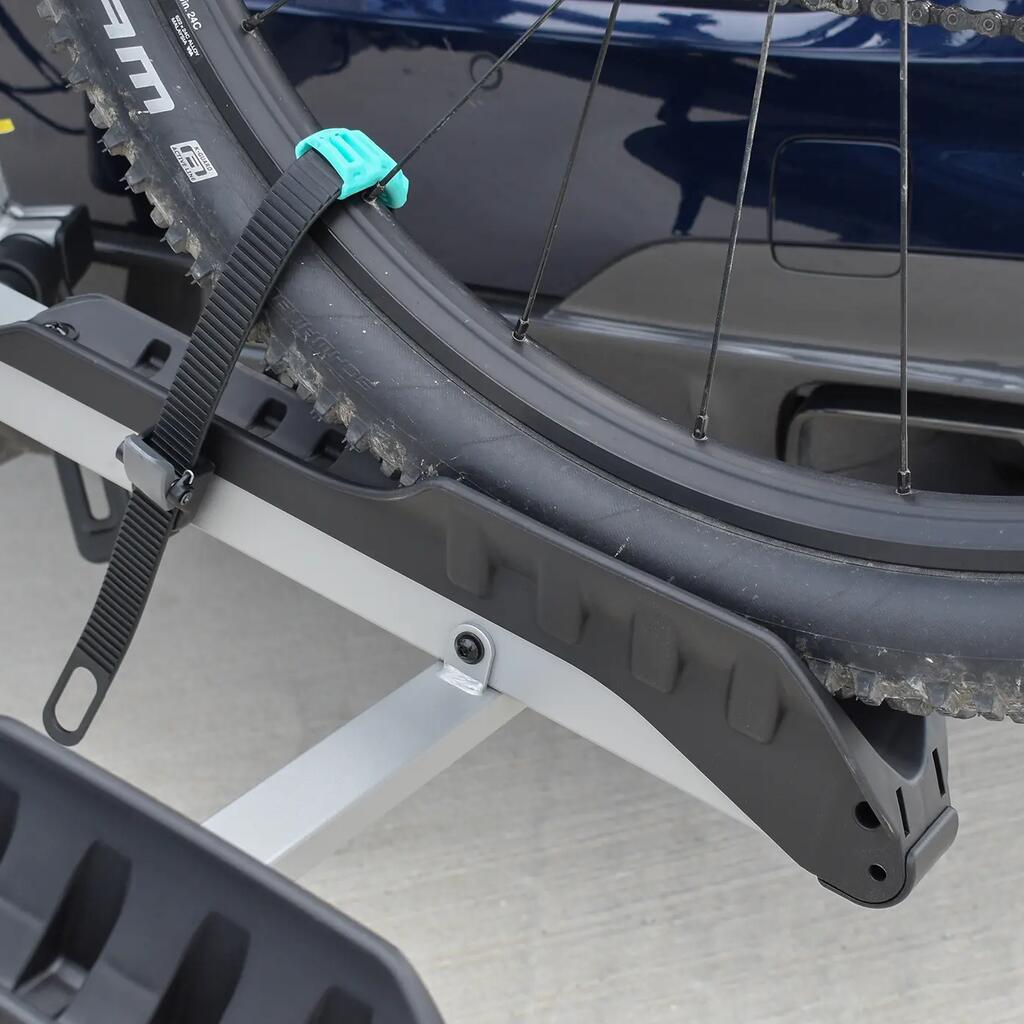

WHEEL SUPPORTS
Wheel supports with ratchet straps allow for quick wheel attachment to the rail. Extra-wide wheel supports with quick-release straps ensure compatibility with most bicycles (e-bikes, mountain bikes, road bikes).

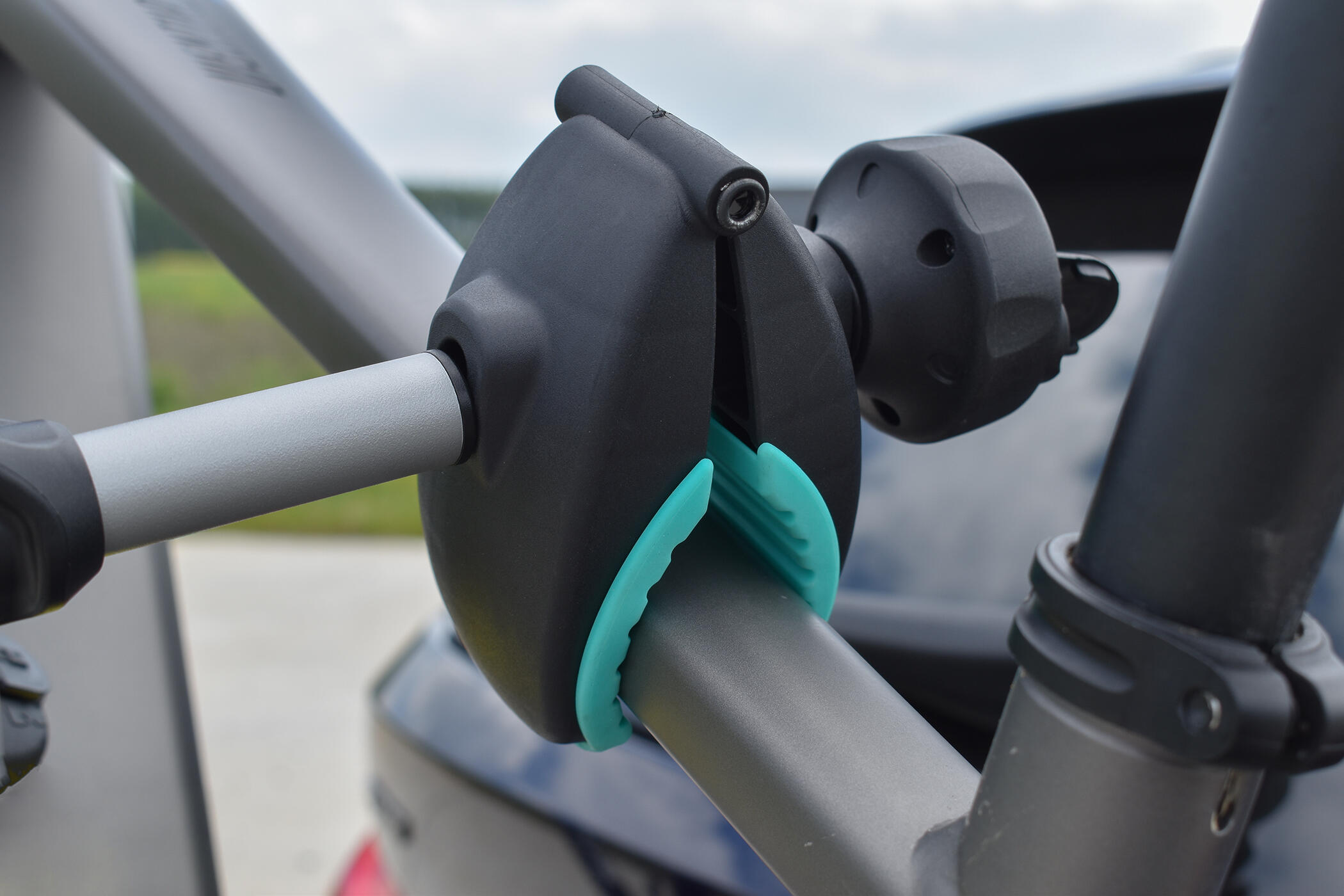

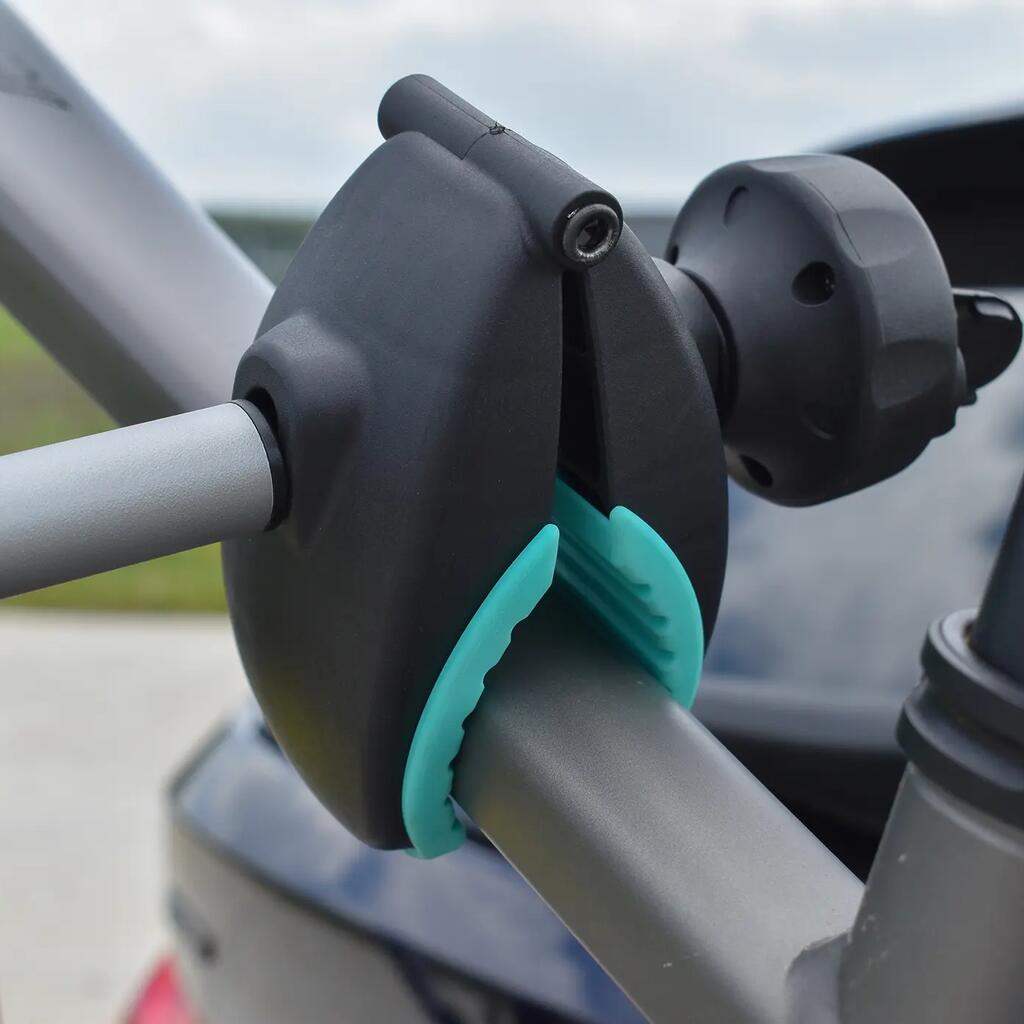

CLAMPS
Heavy-duty nylon clamps with rubber pads. Fits all frame types.
SAFETY
The hitch head and clamps lock with a single key. If you lose your keys, no problem, replacements are available from our after-sales service, just like most common spare parts.

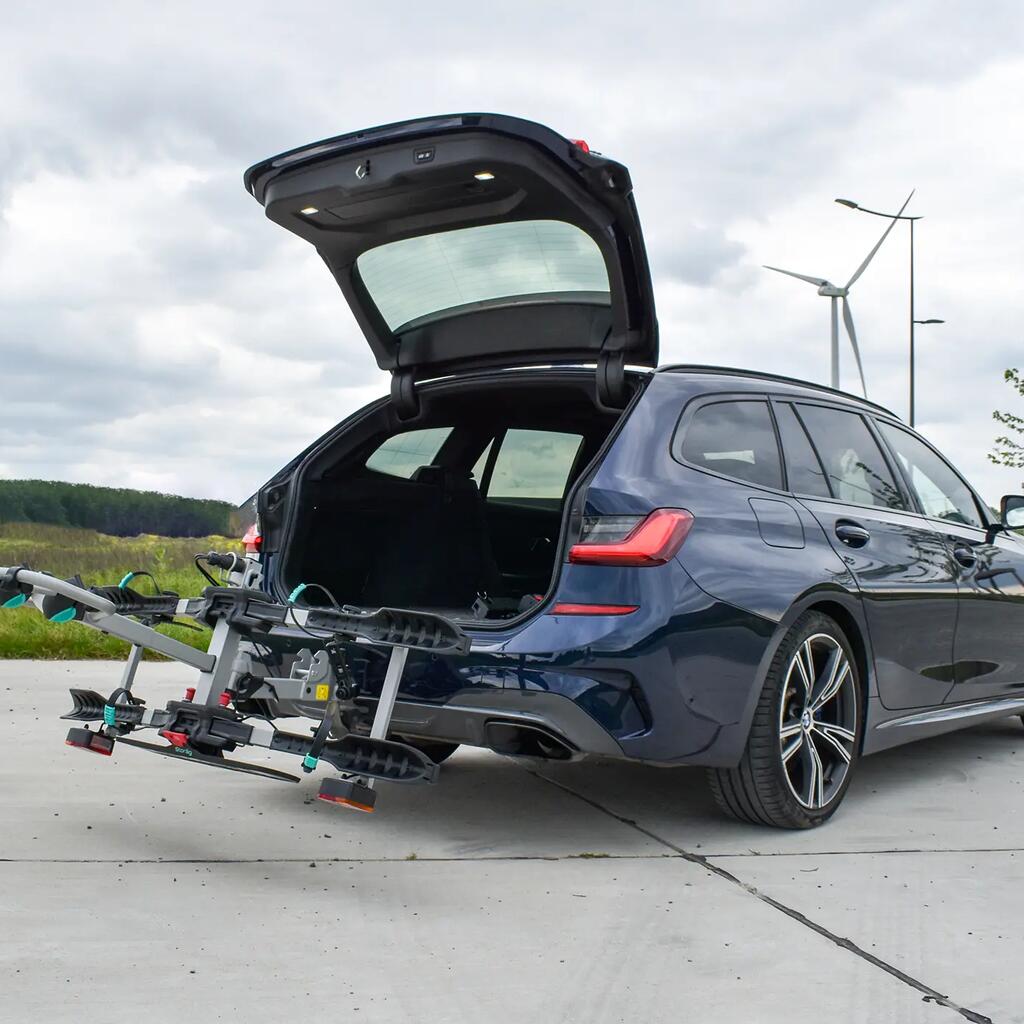

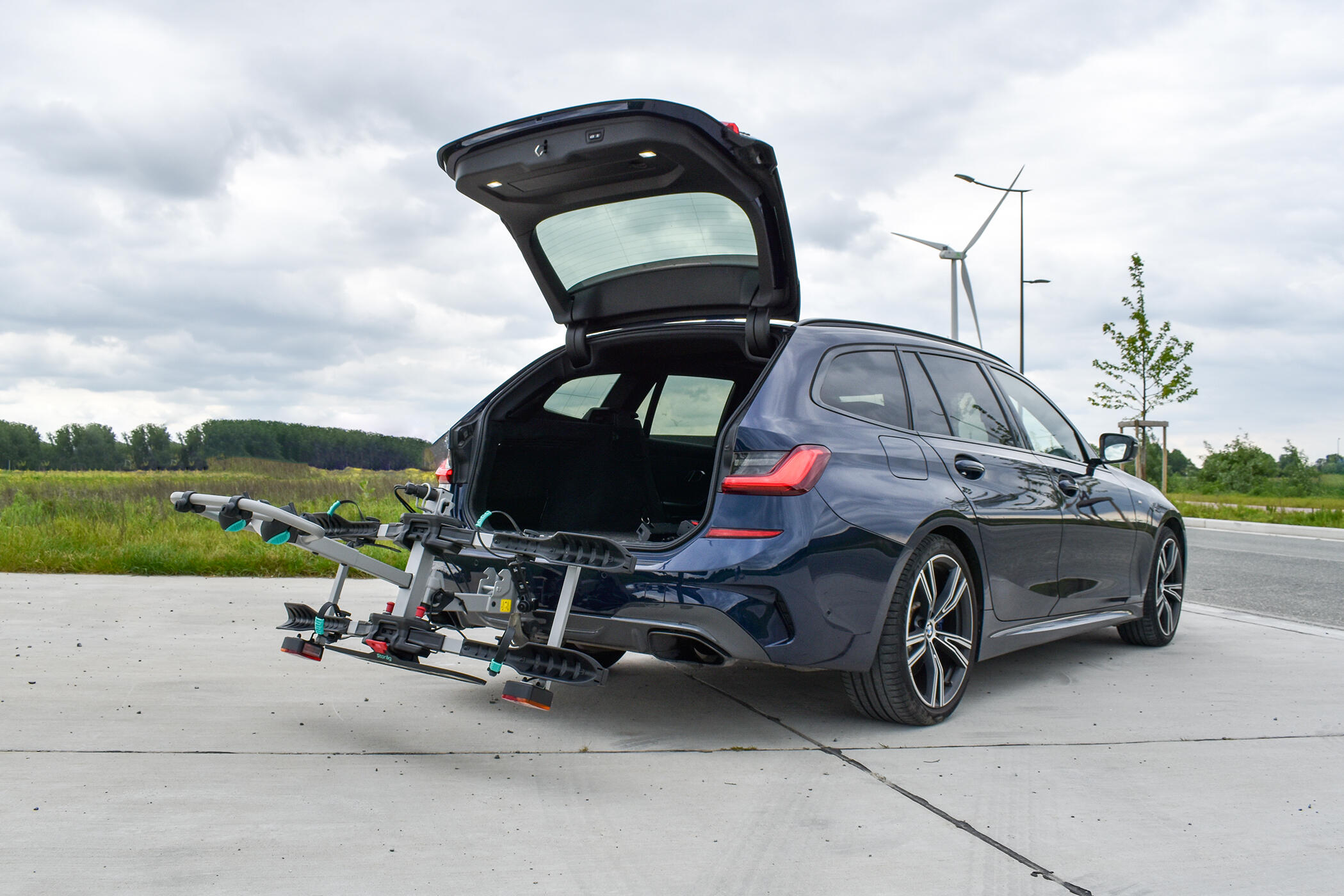

TILTING
With its red handle above the license plate holder, tilting the bike rack is a breeze, freeing up access to the car's trunk.
LIGHTING
Equipped with 3-function lights and a 7-pin connector.
LICENSE PLATE
The license plate is removable using clips.
STORAGE
It folds for minimal storage space.
Technical Specifications
Maximum number of bikes: 2
Tow ball compatible: Yes
Swan neck/detachable ball compatible: Yes
FIX4BIKE compatible: Yes
Dimensions (Width x Depth): 132 x 66 cm
Folded dimensions: 42.5 x 66 cm
Bike frame: min. Ø25 mm / max. Ø60 mm
Max tire width: 3.2""
Weight: 18.4 kg
Max load: 60 kg
Max weight per bike: 30 kg
Tilt: Yes
Anti-corrosion treatment: Yes
Spin type: 7-pin
Ball lock: Yes
Bike lock: Yes
Max wheelbase: 139.3 cm (29"")
Standards: XP R-18 904-4
WARNING: On some vehicles with vertical rear doors (van type), you may need to turn or protect your handlebars to avoid potential contact with the vehicle. Does not allow tailgate opening on van-type vehicles. (VW Transporter, Citroën Berlingo, Peugeot Partner, Renault Master, etc.)"
