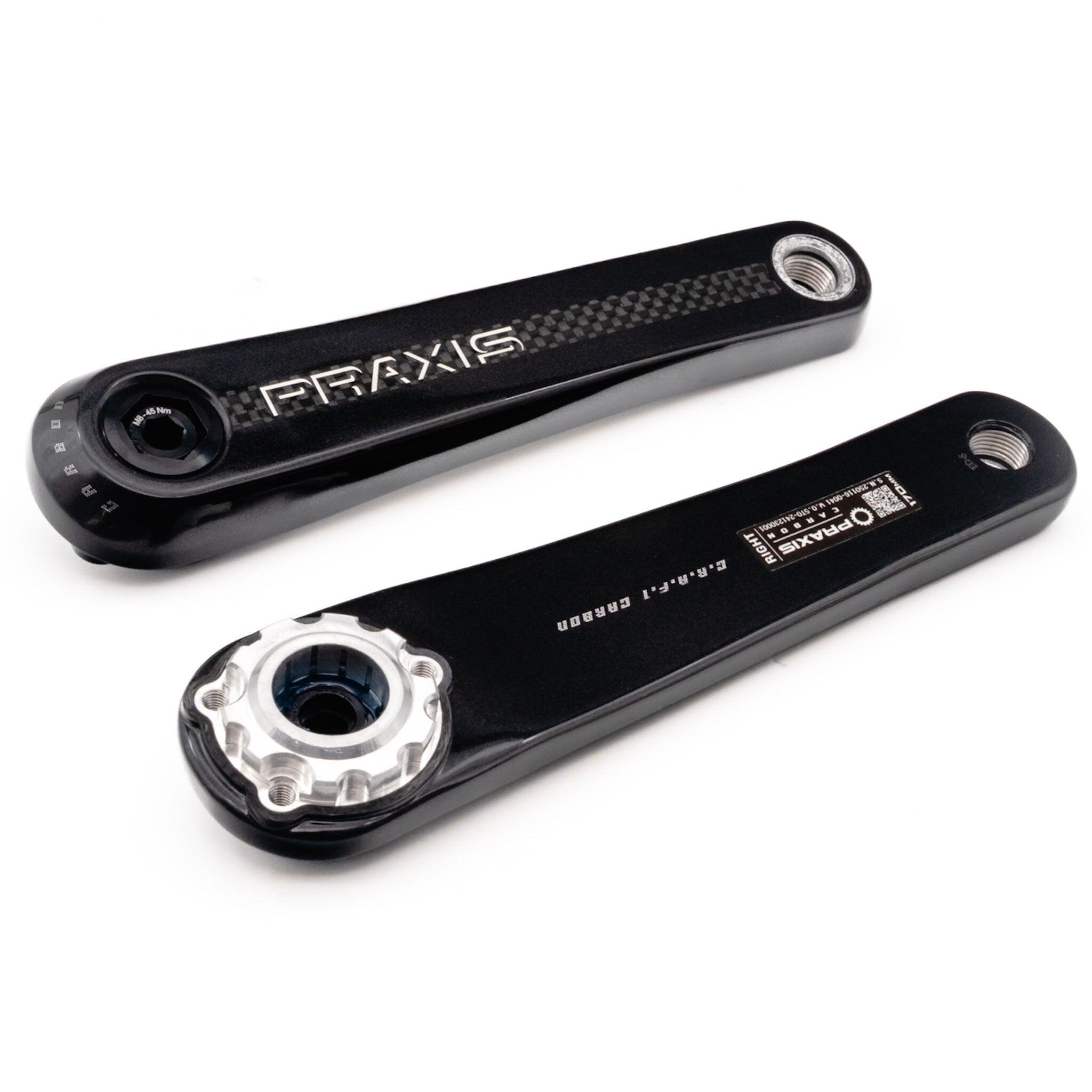

Type 5 Carbon Crankset Praxis

Product Description

Performance eCrank arm set developed exclusively for e-bikes equipped with the TQ-HPR40 motor. Designed for the compact '22/11' steel spline spindle system and optimized for defined road/gravel chainline configurations using Praxis ring systems.

• Compatibility: TQ HPR40 e-bike motor system
• Motor interface: steel '22/11' spline spindle (TQ-HPR40 specific)
• Construction: carbon fiber or forged aluminium crank arms; left/right arm set
• Weight: 460 g (carbon), 520 g (aluminium)
• Q-factor: 150 mm (TQ-HPR40 system)
• Chainline: 46.5 mm (PRAXIS 2X LT2 X-KIT), 47.5 mm (PRAXIS 1X DM1X Road/Gravel rings)
• Interface: 3-bolt direct mount on drive-side arm for Praxis LT2 and DM1X ring systems
• Technology: C.R.A.F.T. carbon manufacturing, forged aluminium construction
• Application 2X setup not compatible with SCOTT Fastlane frames due to clearance limitations; drivetrain configuration depends on selected ring system
• Marke:Praxis
• Modell:Type5 eCrank
• Typ:Crank Arms
• Hersteller
• Material:Carbon
