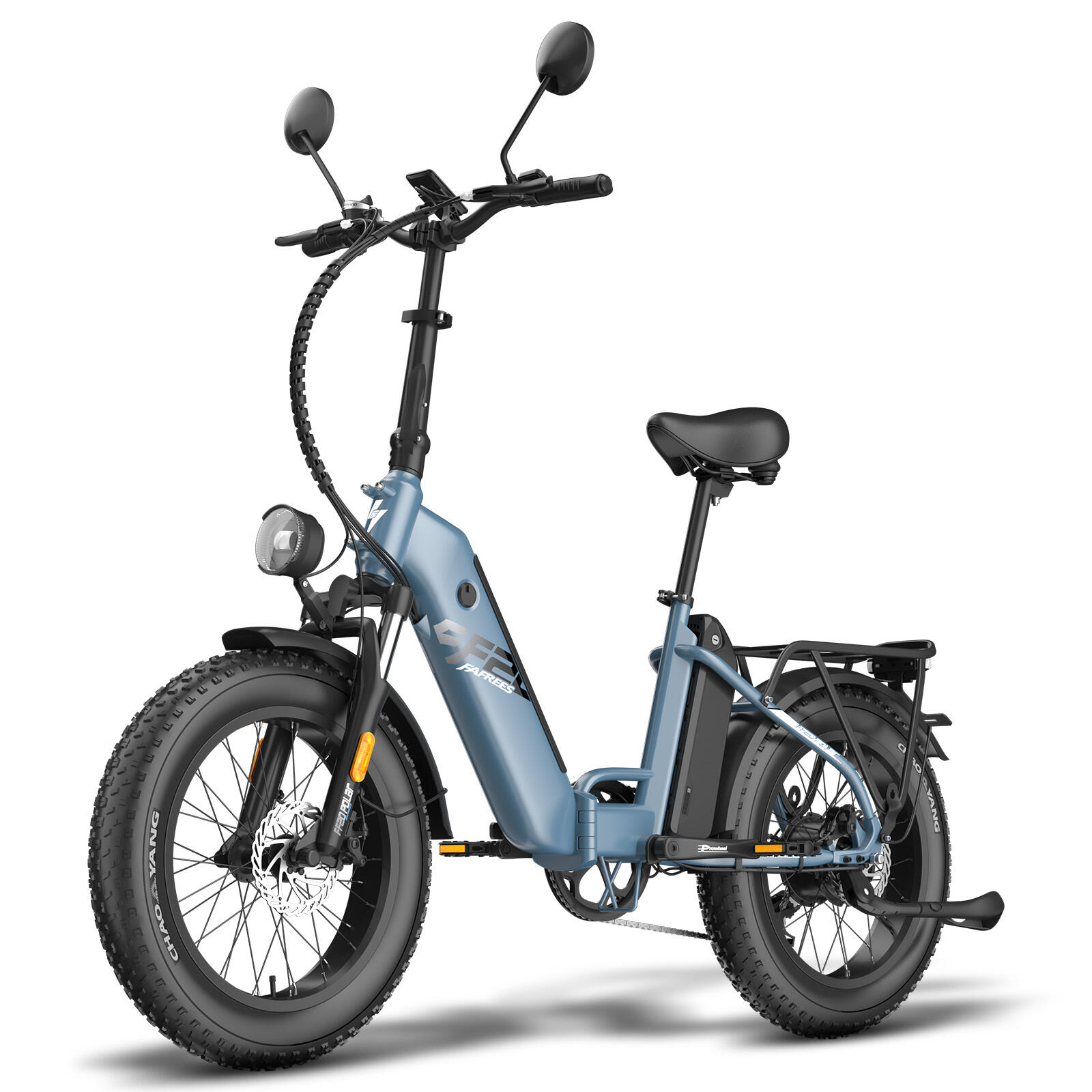

Product Description
EU Type Approved for Road Use (L1e-B)
Officially certified to EU L1e-B category, allowing speeds of up to 25 km/h for legal driving on roads with an AM or B license. Fully equipped with E-marked lights, mirrors, horns and reflectors, ensuring safety and compliance from day one.
Powerful motor
The 48V rear hub motor produces 65Nm of torque, providing fast acceleration, excellent hill climbing performance and a smooth ride on both urban roads and rugged terrain.

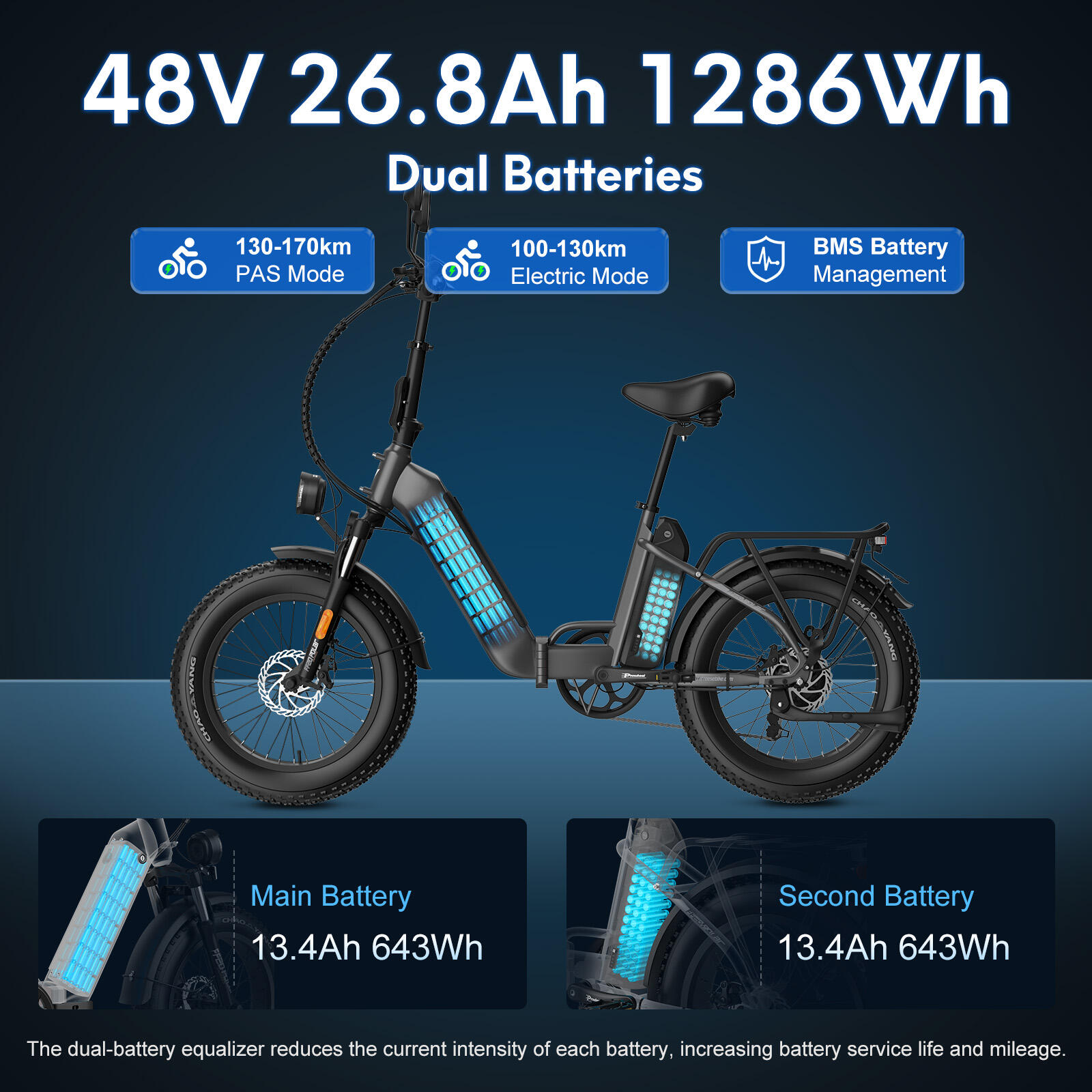

Dual Long Range Batteries (Up to 170km)
Two removable 48V lithium-ion batteries (total 26.8Ah) provide a range of up to 170km. Intelligent battery management system ensures stable power and longer battery life.

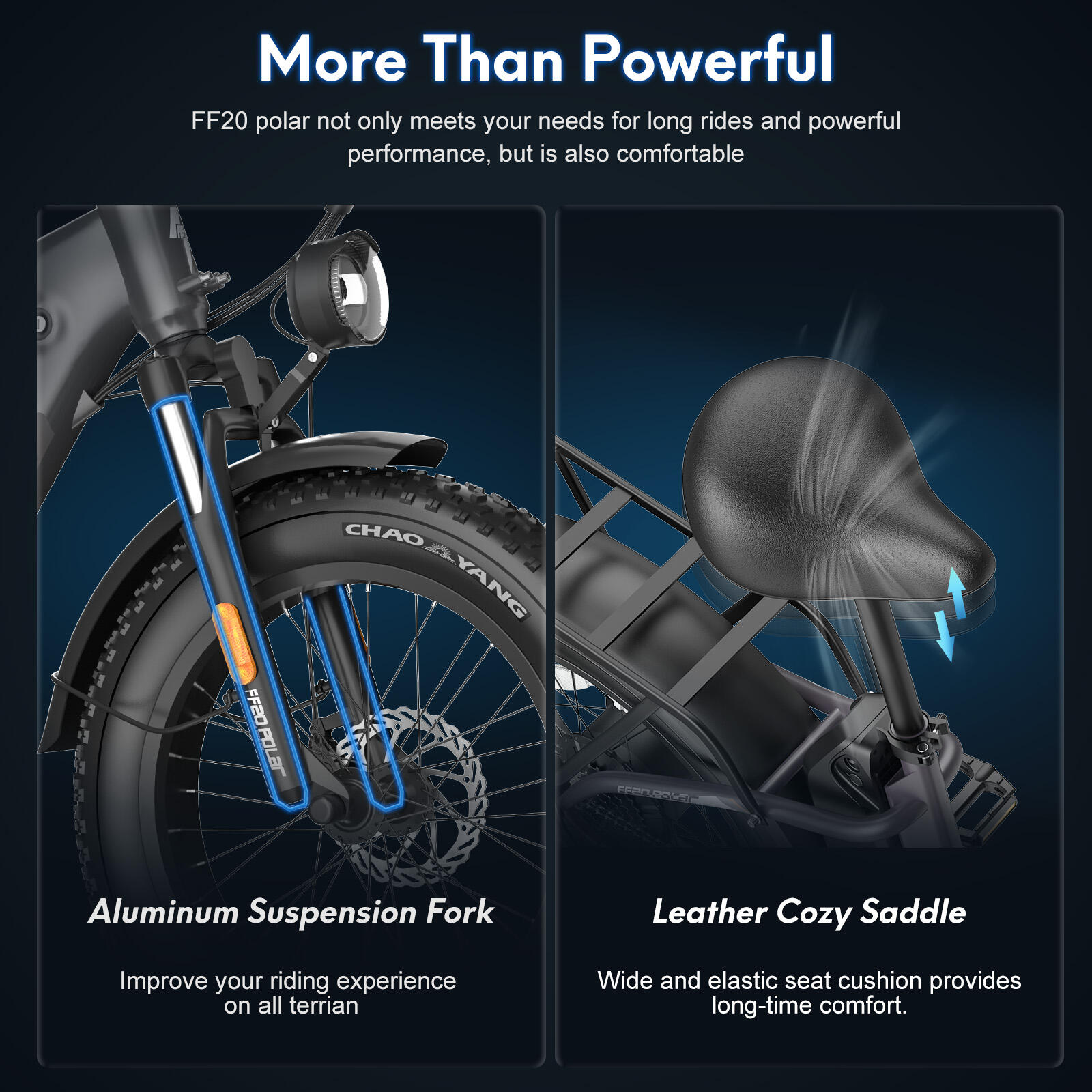

Comfort and Off-road Capability
Equipped with 40mm front fork and 20" x 4.0" Chaoyang barrel tires, the bike offers excellent shock absorption, traction and stability for a smooth ride on city streets, gravel, sand or snow.
Foldable Entry Frame with Complete Accessories

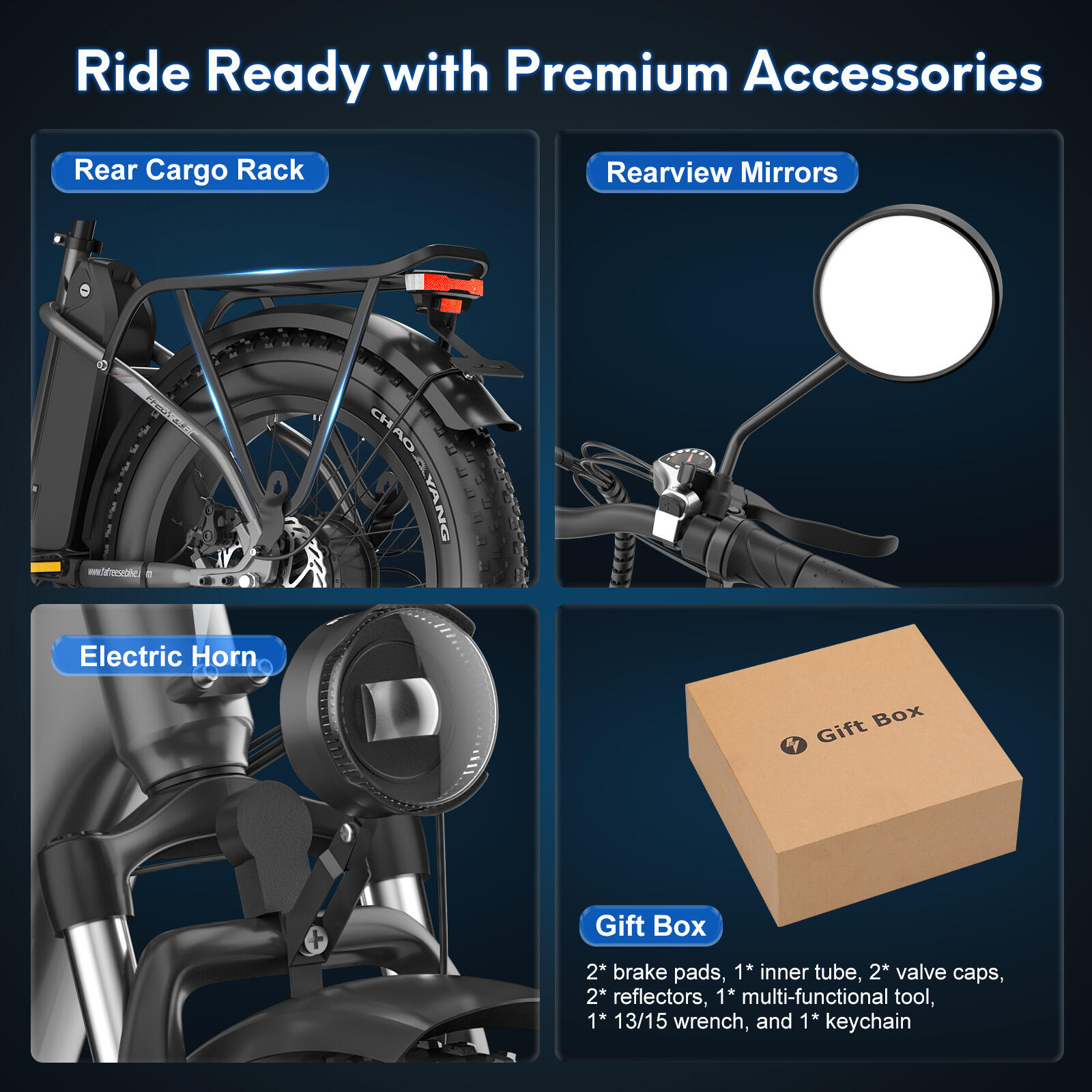

The low stepped frame allows for easy assembly, storage and transportation. Adjustable handlebar and saddle are suitable for riders 160-200cm tall. Includes rear rack, extra brake pads, multi-tool kit and all road-ready accessories.
Technical Specifications
Frame: Aluminum alloy (6061)
Motor: 48V brushless rear hub motor
Maximum torque: 65Nm
Battery: Lithium-ion 48V,26.8Ah
Charger: Output 54.6V/3A. Charging time approx. 8 hours
Display: LCD smart display, colorful display, PAS level 0-5, cruise control
Sensor: Cadence sensor
Range: 130-170 km (assisted mode)
Speed: Standard 25 km/h
Pedal assist: 5 levels
Suspension: Front fork with spring
Gearbox: SHIMANO 7-speed
Tyres: Chaoyang 20" × 4.0" pneumatic tires
Driving parts: Handlebar, frame
Fork: Spring damping, 40 mm travel
Brakes: Hydraulic disc brakes
Gearbox: SHIMANO 7S
Wheels: Aluminum 36h front and rear
Headlights: E-mark LED light
Rear light: E-mark rear light
Front chaining: 170 mm and 52T
Pedals: Platform pedals
Saddle: Comfort Custom saddle
Seat post: Aluminum alloy, 27.2 mm, L/350 mm
Handlebar: Aluminum 22.2 mm, 660 mm
Stand: Included, rear mount
Bike weight: 35 kg
Load capacity: 120 kg
Bike height: 160-200 cm
Bike size: 171*65*113-121cm
Folding size: 93 * 64 * 75 cm
