Product Description
Fork suspension
A spring + hydraulic oil system with 100mm travel lets you customize stiffness via the lockout knob—conquering rough terrain while keeping rides smooth and stable.
Headlights
The headlight has a modern design and a powerful 30-lux light beam. And with the XTL technology, it is glare-free for safe riding.
Hydraulic disc brakes
Hydraulic disc brakes offer powerful and safe braking performance in contrast to mechanical brakes. Whether on steep descents or abrupt stops - stay in control and overcome obstacles with confidence.
Puncture-proof tyres
The 700C*40C tyres with anti-puncture technology are versatile for city, gravel and long distances. With puncture resistance and tread patterns, the tyres ensure your safety on the roads.
LCD Display
Waterproof to IPX6, reliably displays battery status, maximum speed and more. The display keeps you informed of your riding conditions.

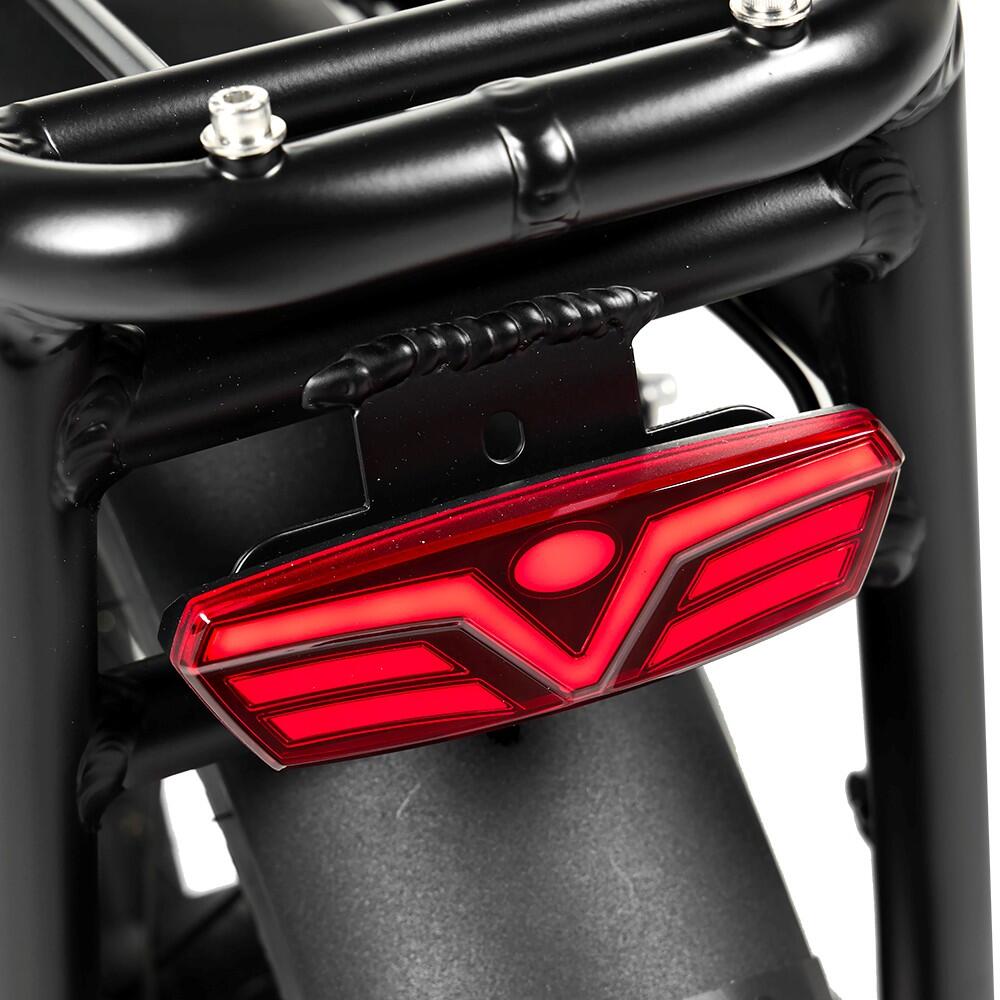

Integrated Rear Light
The Super V series features a rear light with wiring embedded in the frame – sleek, practical, and safe. Perfect for stylish rides.
Gear rim
The Shimano® 7-speed transmission (14-28T) impresses with its powerful lightness and outstanding performance on all roads. The smooth gear changes ensure a more pleasant riding experience.
Specifications
Brand:PIXAR
Model:Plus7
Type:Electric Bike
Motor:48V Brushless hub motor

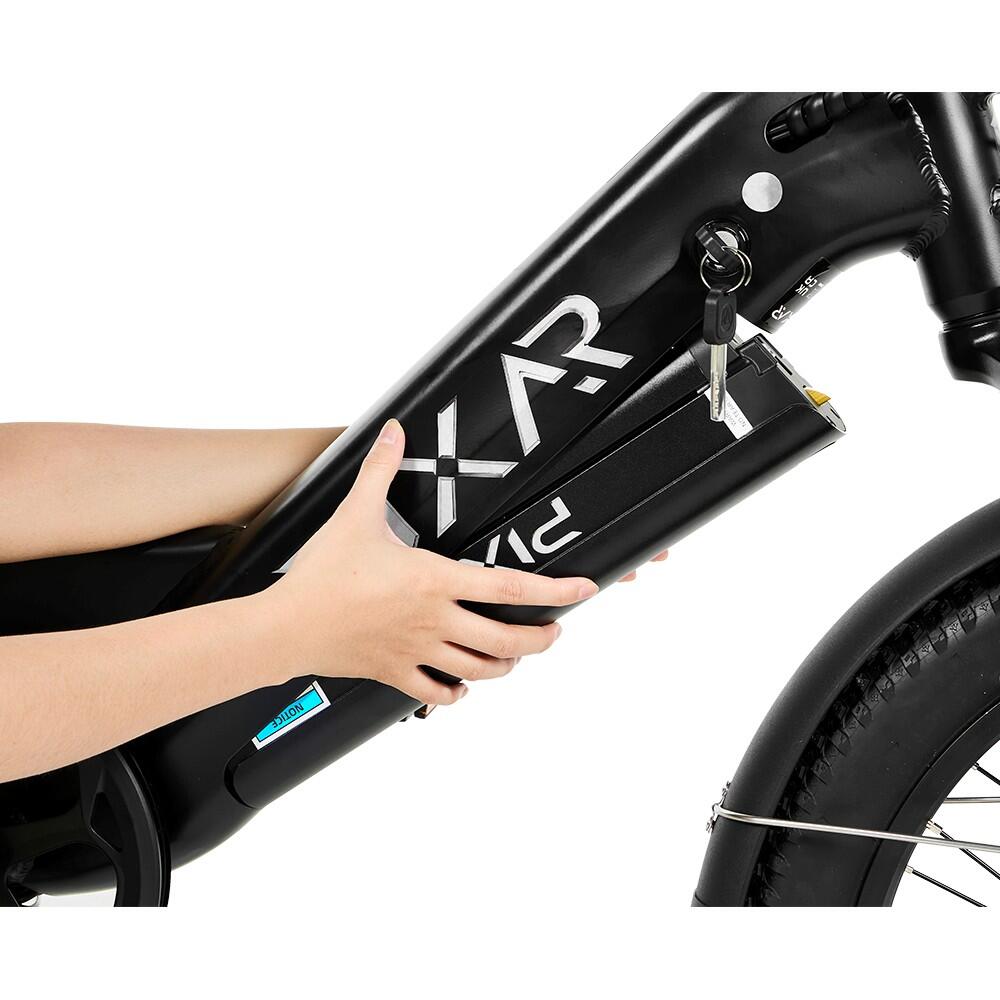

Battery:48V*20.4AH (front battery 48V*10AH + rear battery 48V*10.4AH) Eve brand
Pas:5 Modes
Frame:Aluminium alloy
Frame Basket Mounting:The frame head tube have mounting hole match as Galaxy basket
Controller:48V controller/9 tubes
Display:Middle LCD display
Charger:54.6V 2A charger
Range Pedal Assist:60-100km
Max Speed:25km/h
Stem:Alloy stem as picture
Shifter:Shimano Thumb Shifter 7 Speed (TX50)
Brake Pads:Mechanical disc brake (Filair brand)
Brake Lever (EU Law):Left brake lever control rear wheel and right brake lever control front wheel
Tire Brand:Chaoyang
Tire Size:20"x3.0 fat tire
Pedal:Plastic with reflectors
Chain:Normal chain
The Rear Derailleur:Have the derailleur protector /ATA brand freewheel + rear derailleur model is RD
Screws:All screws must be rust resistant
Crank Set:52T*170mm
Disconnect:Comes connected
Front Light:Front light with waterproof disconnect
Back Light:Front light with waterproof disconnect
Fenders:PVC plastic front and rear fenders (matt black color)
Racks:Strong steel rack connect with frame
Seat:Comfortable seat
Fork:Steel stanchion with aluminum crown with lockout
Brake Pads Shape:Square shape
Charging Time:5.2 h

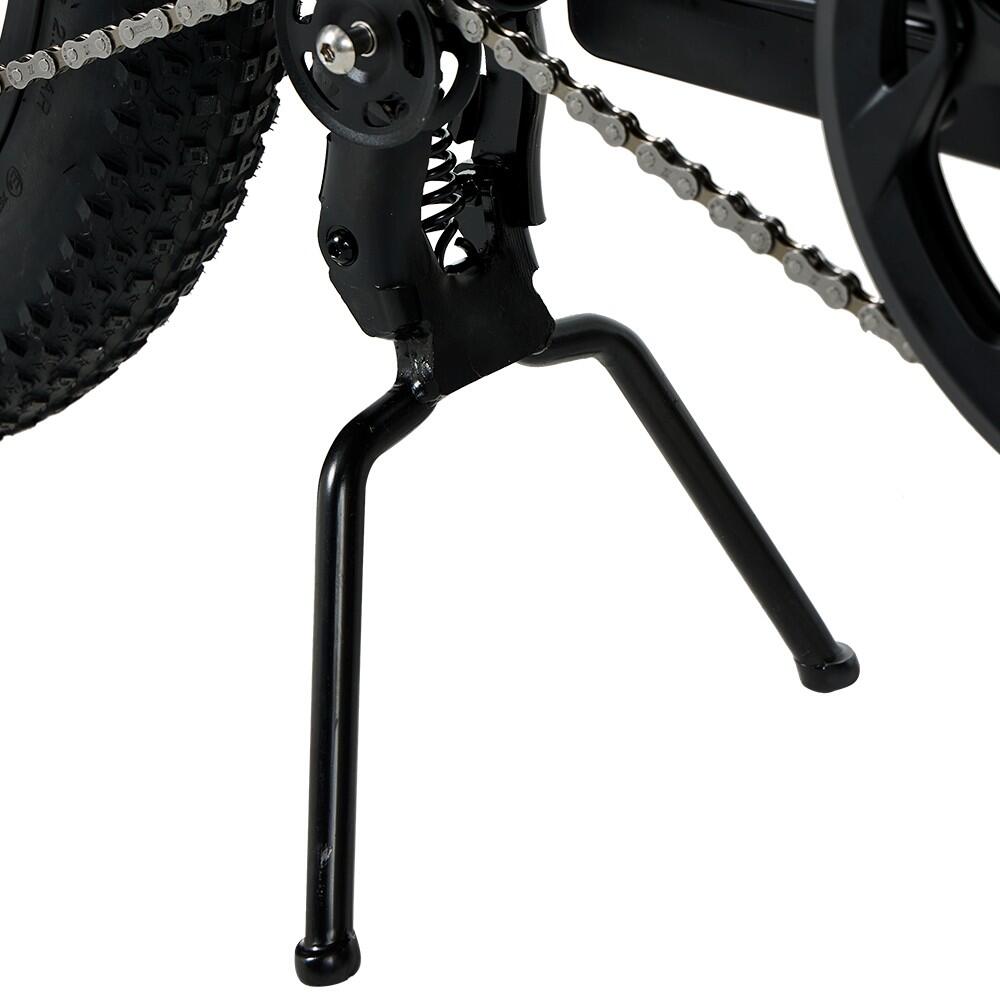

Kickstand:Steel kick stand

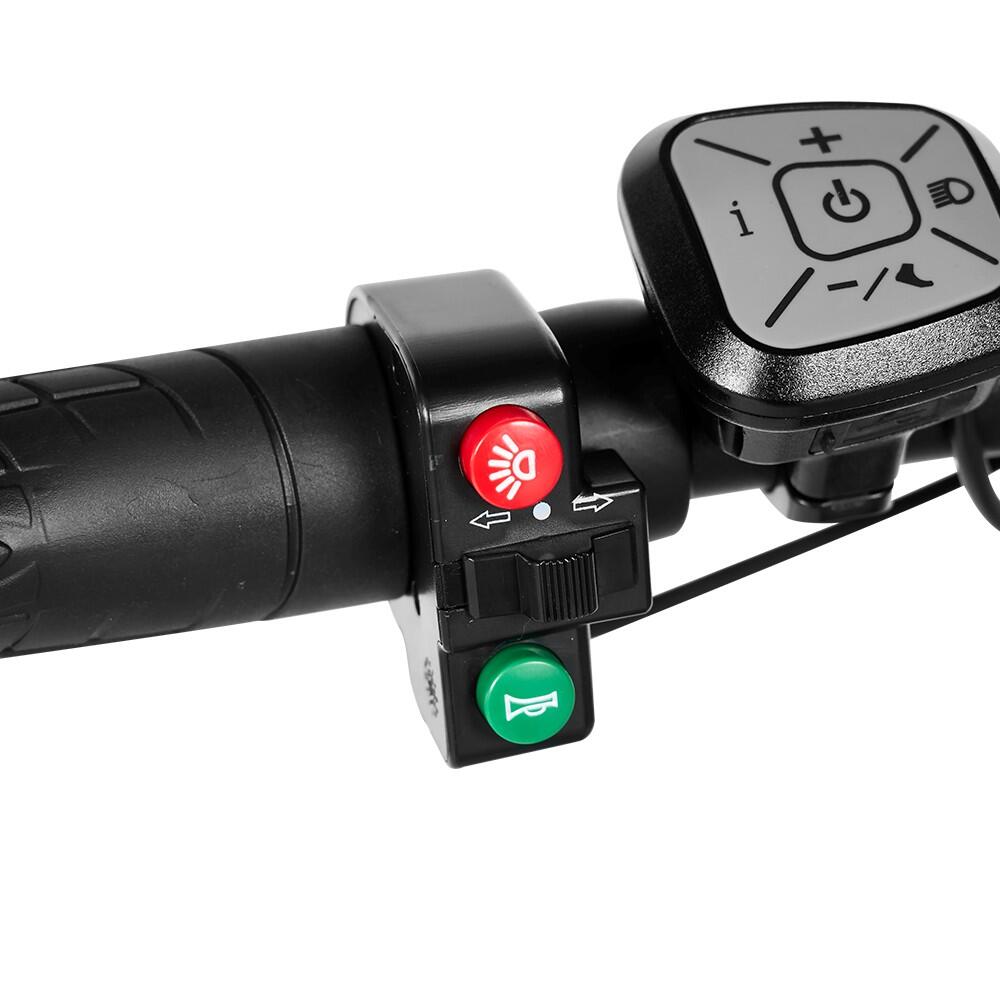

Bell:Electrical horn remote
Throttle:With waterproof disconnect
Net weight: 37.5kg
Gross weight: 48.2kg
Capacity Load:150kg
Sensor:Speed sensor, 12 gears
