Product Description

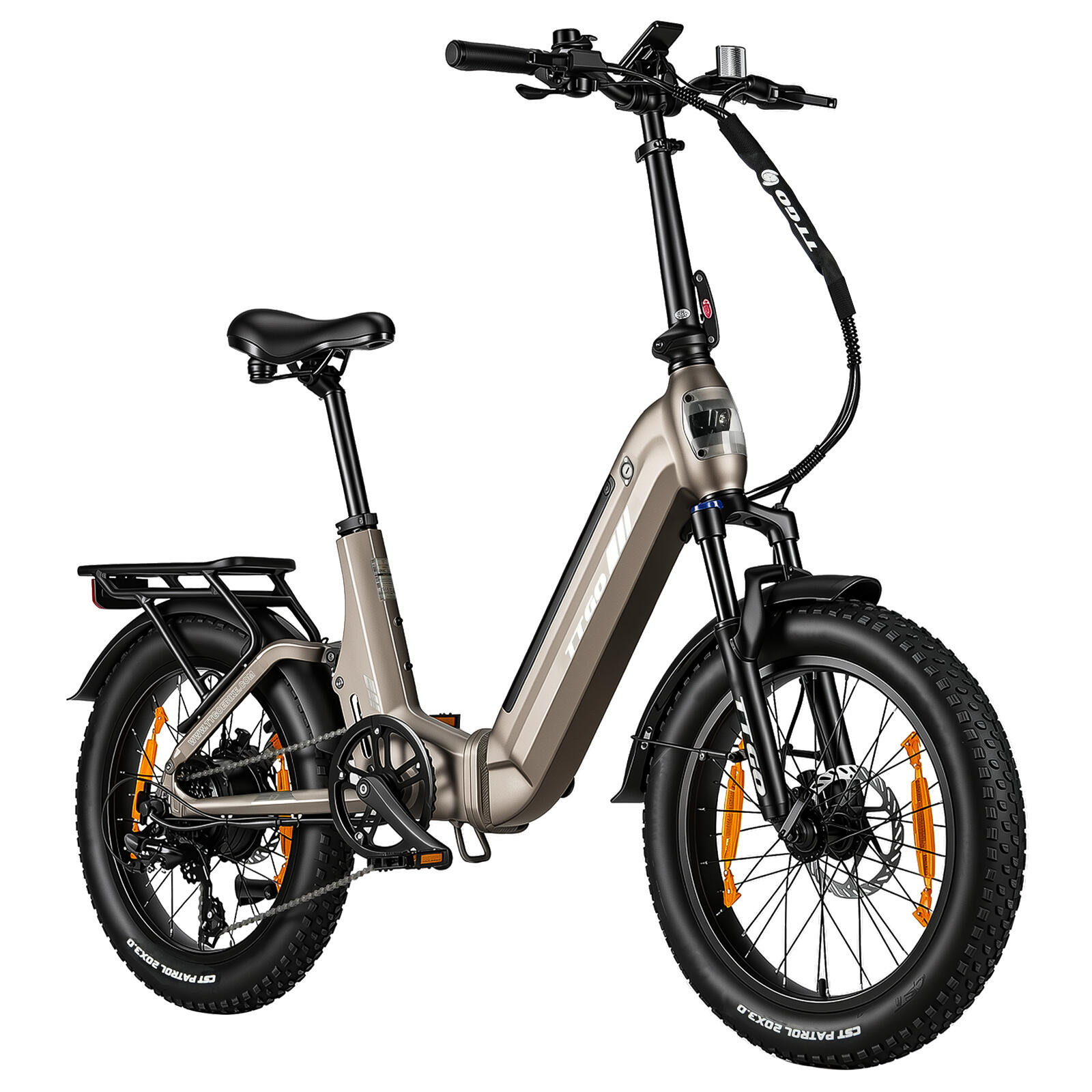

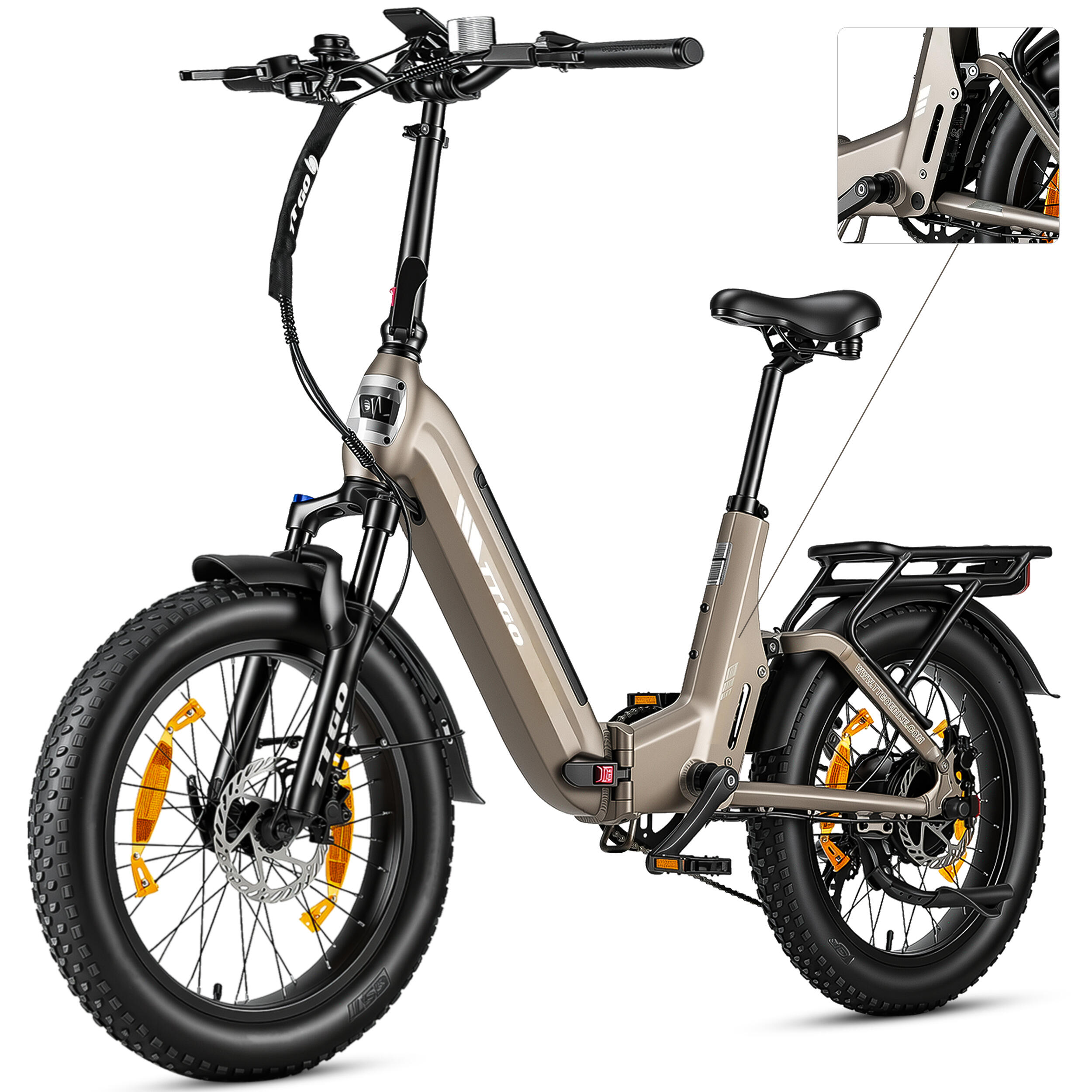

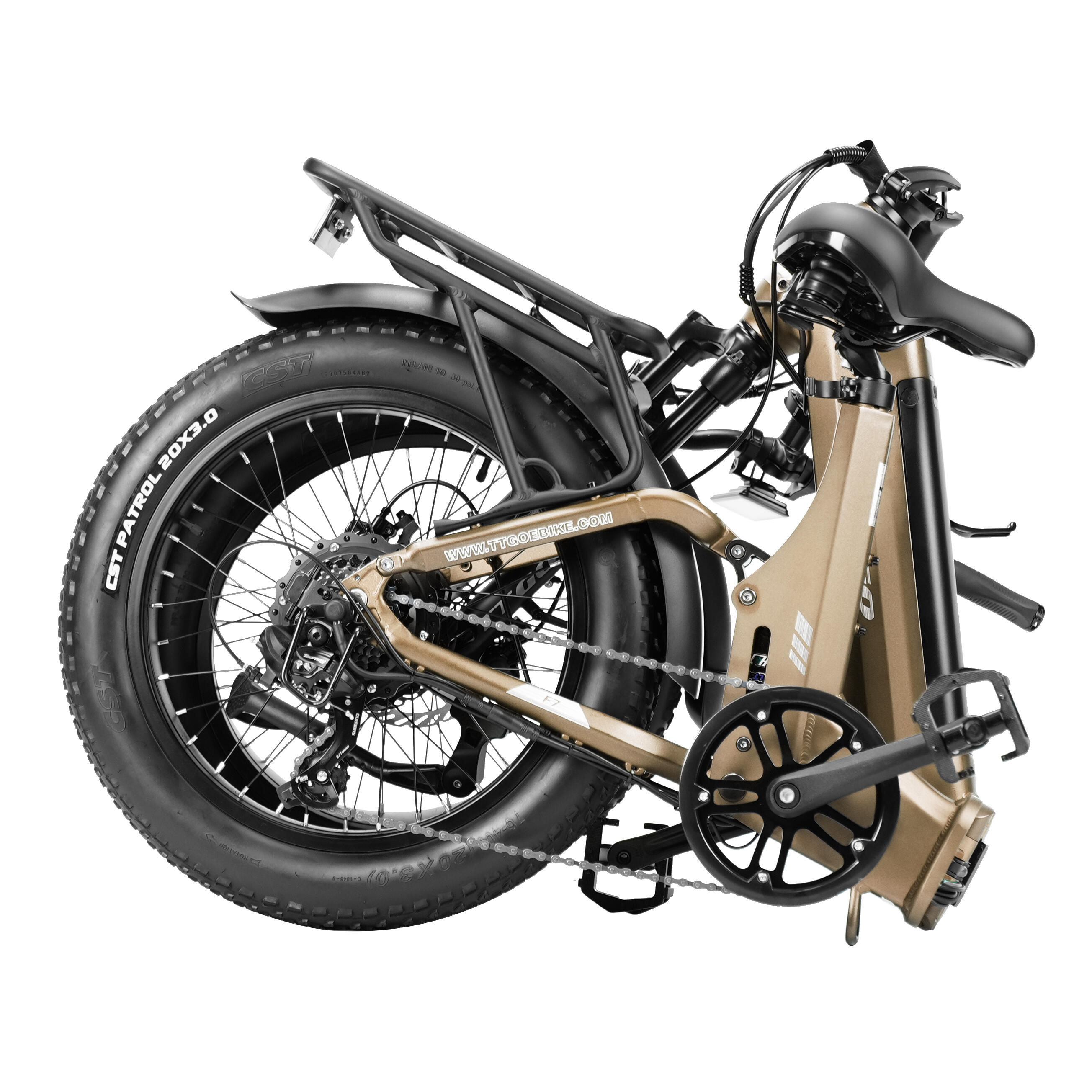

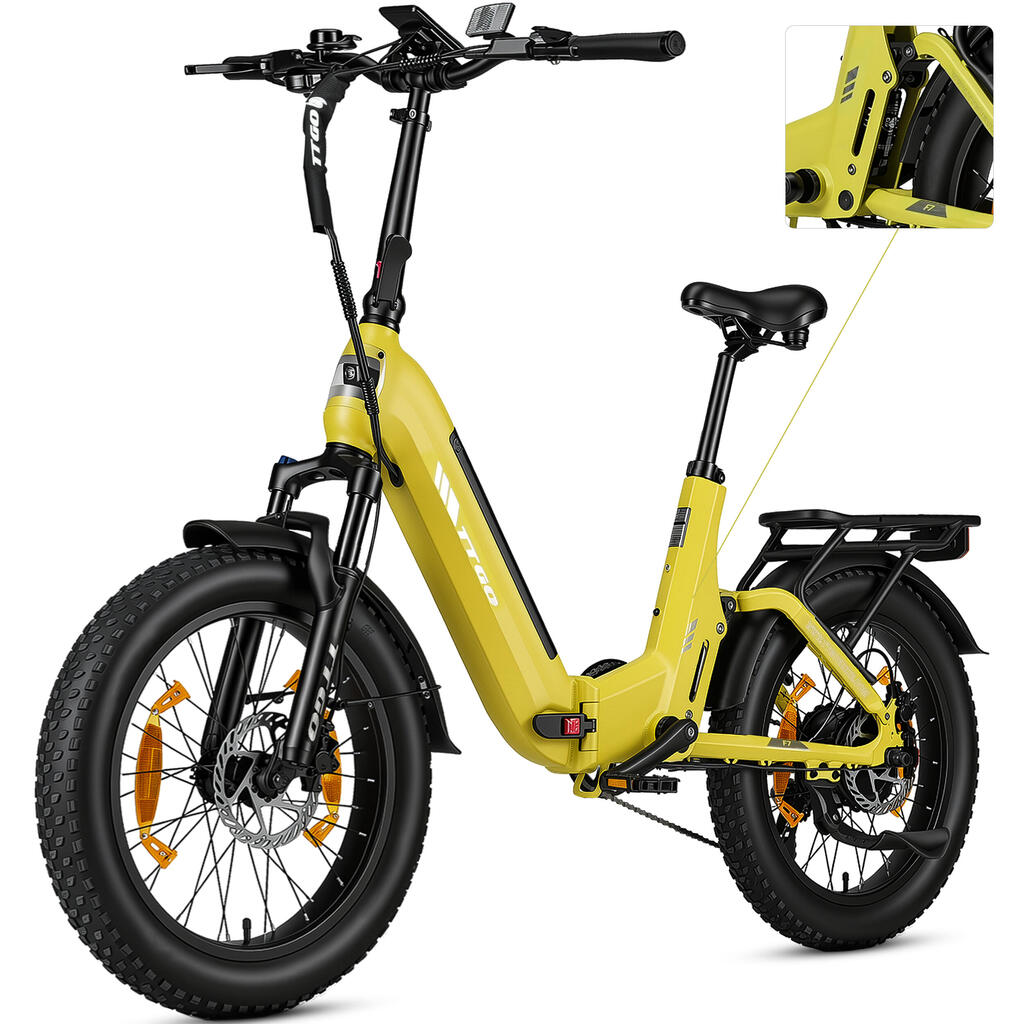

The TTGO F7 is a high-performance electric bike specially designed for urban commuting and light off-road riding. Combining impressive power, comfortable suspension and a long range, it provides a stable and reliable riding experience on every journey.
The bike features a 20-inch 6061 aluminium alloy frame with rear suspension, paired with a rear shock absorption system that effectively reduces jolts and impacts while riding, significantly enhancing comfort and stability on uneven terrain. The front fork is equipped with a lockable suspension system, allowing seamless switching between city roads and off-road routes, combining efficiency with riding comfort.
In terms of motor performance, the TTGO F7 is equipped with a 48 V, 250 W rear motor that delivers up to 70 N·m of torque. It offers responsive starts and smooth acceleration while handling slopes and uneven surfaces with ease. Combined with a torque sensor, the system intelligently adjusts power output according to pedalling effort, creating a smoother and more responsive riding experience.
The range is equally impressive. Thanks to its high-capacity 48 V, 15 Ah battery, the bike can achieve approximately 100–120 km in pedal-assist mode, making it suitable for long daily commutes and outdoor adventures. The 54.6 V, 3 A charger provides efficient and convenient charging.
In terms of equipment, the bike is fitted with wide 20 × 3.0-inch Cheng Shin tyres that provide excellent traction and strong off-road capability, making them suitable for both city streets and light trails. A 7-speed Shimano transmission allows easy adaptation to different riding conditions and speeds, while the hydraulic oil brake system ensures dependable braking performance for improved safety.
The integrated LCD display shows speed, battery level and riding information in real time, offering clear and convenient operation. The maximum assisted speed complies with the European standard of 25 km/h, ensuring safety and regulatory compliance.
Regarding structure and carrying capacity, the bike supports a maximum load of 150 kg, increasing its versatility for various riding needs. With a net weight of approximately 31.18 kg and a robust, stable frame design, it is well suited to a wide range of riding scenarios.
