Product Description
Versatile Folding Electric Bike
Experience ultimate convenience with the DYU B20MINI folding e-bike. Its compact foldable design and 14-inch wheels make it perfect for urban commuting and easy storage in tight spaces like apartments or public transport. Ideal as a portable electric bike for adults, it’s built to support daily travel needs while saving space.
Extended Riding Range & Battery Life
Powered by a 36V 7.8AH high-capacity battery, this electric bicycle delivers up to 50 km in pedal assist mode and 25 km in full electric mode, making it a long-lasting e-bike for daily commutes and short trips. The efficient speed sensor enhances energy use, providing smooth and reliable electric-assisted cycling.
Multi-Mode Riding & Smart Safety Features
Choose from 4 riding modes: walk assist, pure electric, pedal assist, and normal bike mode, offering flexibility for every journey. Safety is enhanced with bright LED front and rear lights and mechanical disc brakes for reliable stopping in low-light conditions, making it a safe city e-bike.
Adjustable & Comfortable Design
Enjoy a tailored fit with the height-adjustable seat (655-830mm) and ergonomic straight handlebars. Designed as a comfortable electric bike for adults, it ensures an upright riding position for relaxed city cruising and daily commutes.
Lightweight & Complete Commuter Package
Weighing only 23.6 kg, this lightweight folding electric bike combines durability with practicality. Complete with IP54 waterproofing, LED display, and integrated rear rack, it’s ready to use right out of the box for hassle-free urban commuting and leisure rides.
Specification
Brand: DYU
Type: Electric Bike
Model: B20MINI
Nominal Power: EU Standard 250W
Rated Voltage: 36V
Rated Capacity: 7.8AH
Nominal Voltage: 42V
Battery Weight: 1.71kg
Battery Dimensions: 1289670mm
Charging Output: 42V/1.5ah
Tire Pressure: 35-40psi
Maximum Speed: 25km/h
Climbing Gradient: 15°
Range: 25 km
Sensor: Speed Sensor
Drive type: Electric drive + power steering
Frame: 14" D-type steel frame
Fork: 14" steel fork
Front wheel: 14-inch integrated steel wheel
Rear wheel: 14-inch integrated steel wheel
Tires: 14"2.125 pneumatic tires
Brakes: Mechanical disc brakes
Headlight: LED headlight
Taillight: LED taillight

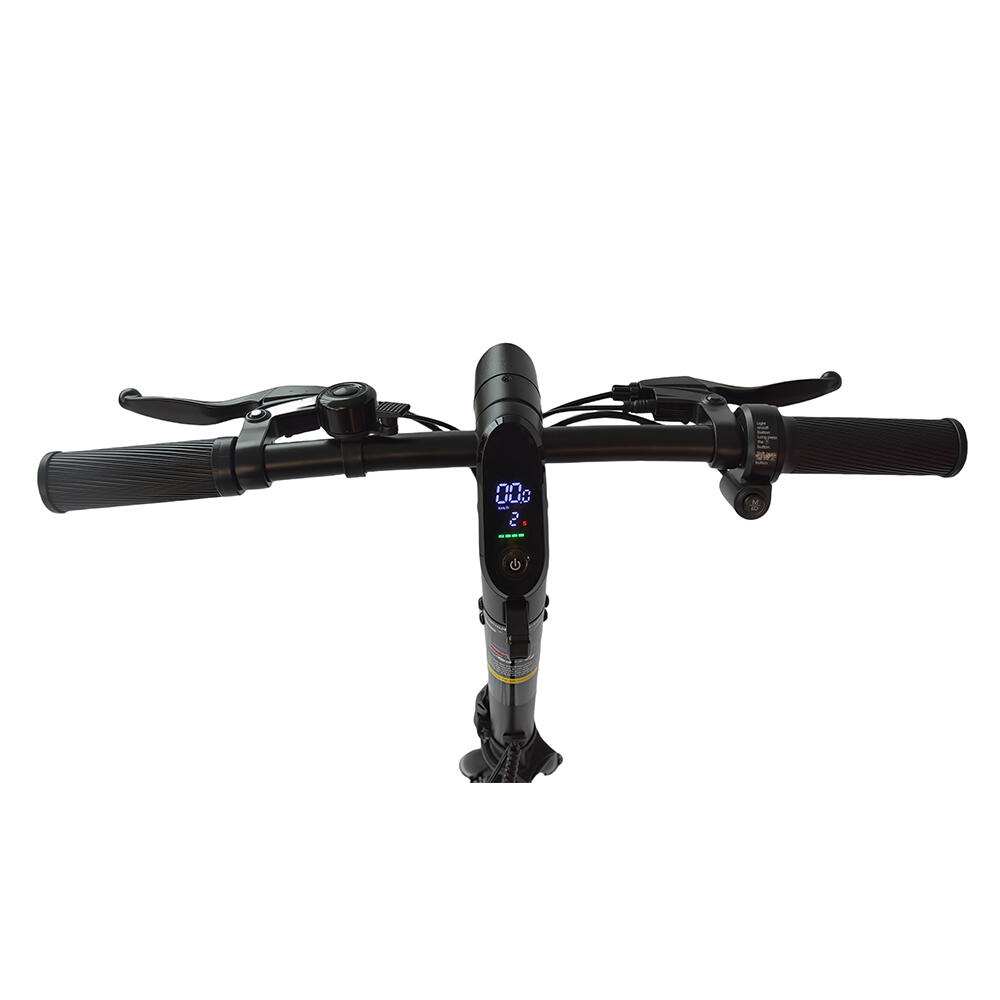

Instrument: Center-mounted 36V digital display
Throttle/Shifter: Throttle accelerator
Brake lever: Power-off brake lever
Handlebars: Straight handlebars, steel, sandblasted black
Seatpost: Steel, sandblasted black

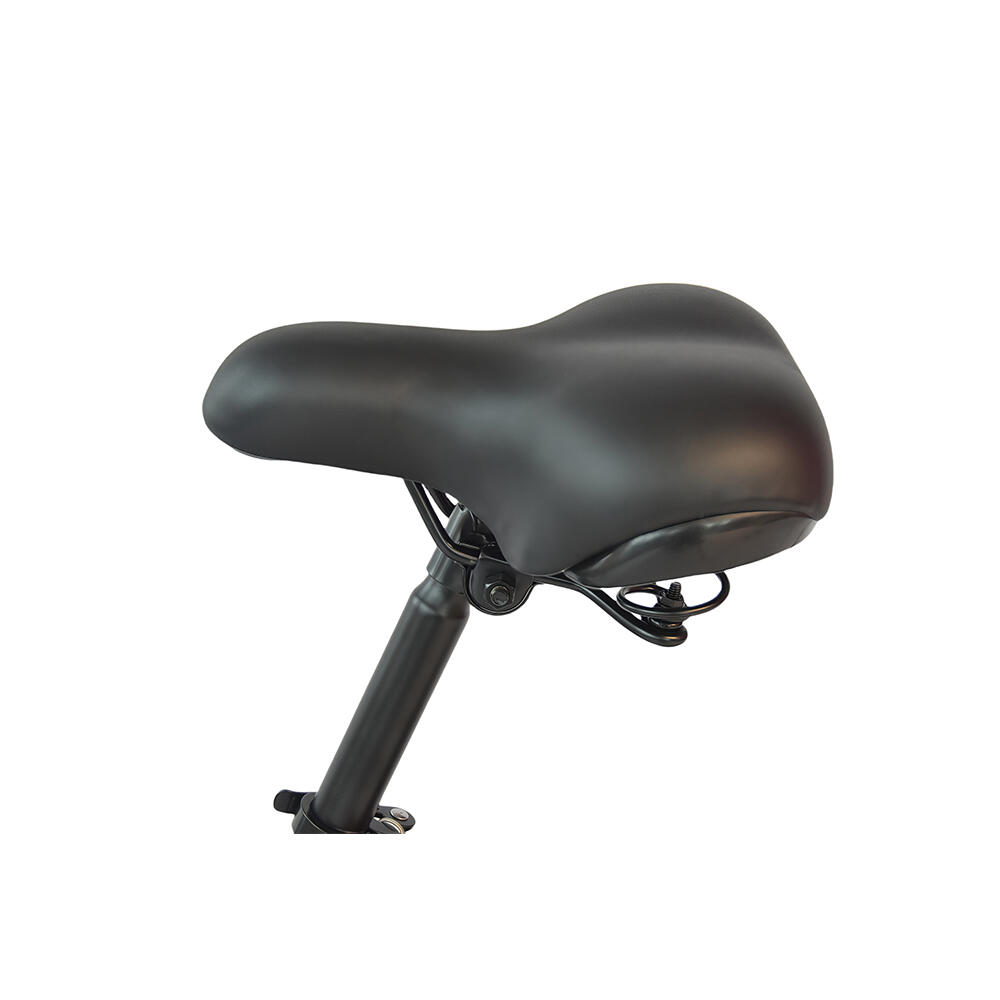

Saddle: Black saddle
Folding mechanism: Folding seatpost
Headset: 130°
Chainset: 42T
Chain: Dacrusted chain
Pedals: Plastic, black
Waterproofing: IP54
Front and rear wheel mudguards: Plastic
Rear rack: Integrated rear rack
Seat Height: 655-830mm
Footstep Height: 110mm
Handlebar Width: 520mm
Net Weight: 23.6kg
Gross Weight: 24.84kg
Product Dimensions : 12104751020mm
Packaging Dimensions: 1055200*505mm
Package Contents
1 x Electric Bike
1 x Charger
1 x User Manual
