Product Description
[Lightweight and Intelligent]

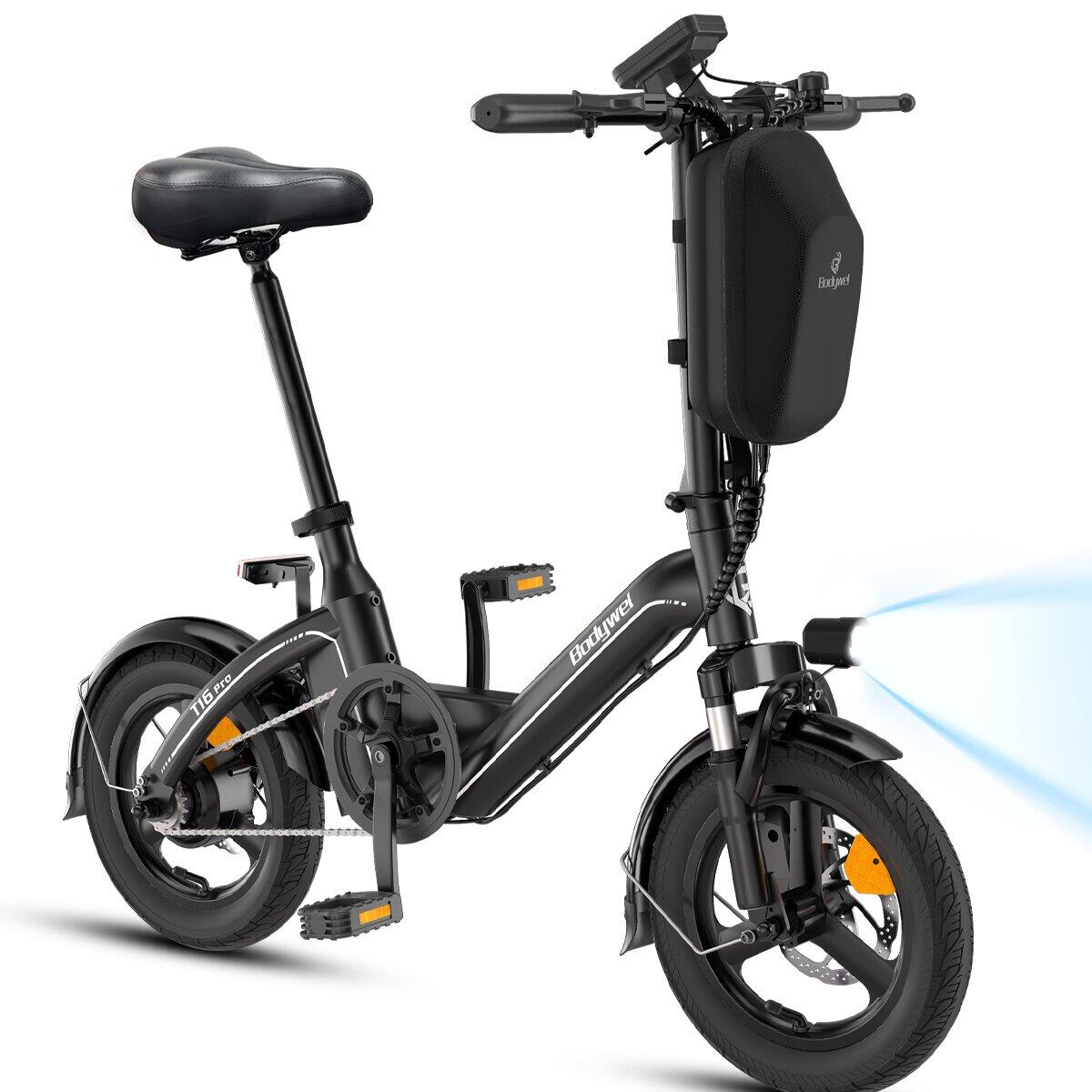

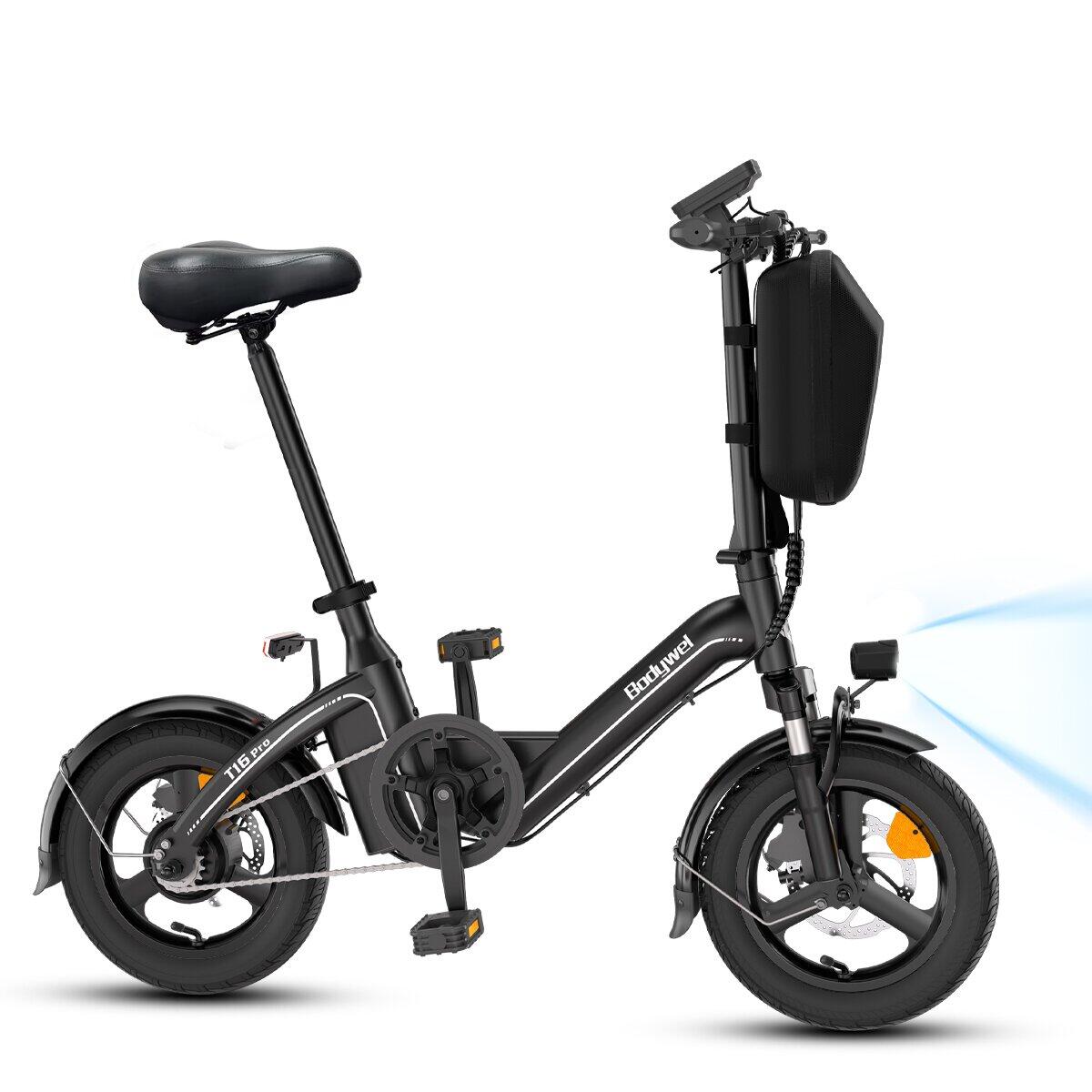

The Bodywel T16PRO has a net weight of only 20.8kg, a gross weight of 24.7kg, a folding size of 130 × 24 × 61cm, and a packaging size of 111 × 21 × 51cm, making it lightweight and leading among folding electric assisted bicycles in the same class. The magnesium aluminum alloy integrated wheel rim is paired with 14 × 2.5-inch tires, balancing strength and lightweight, making city travel and storage easy and comfortable.

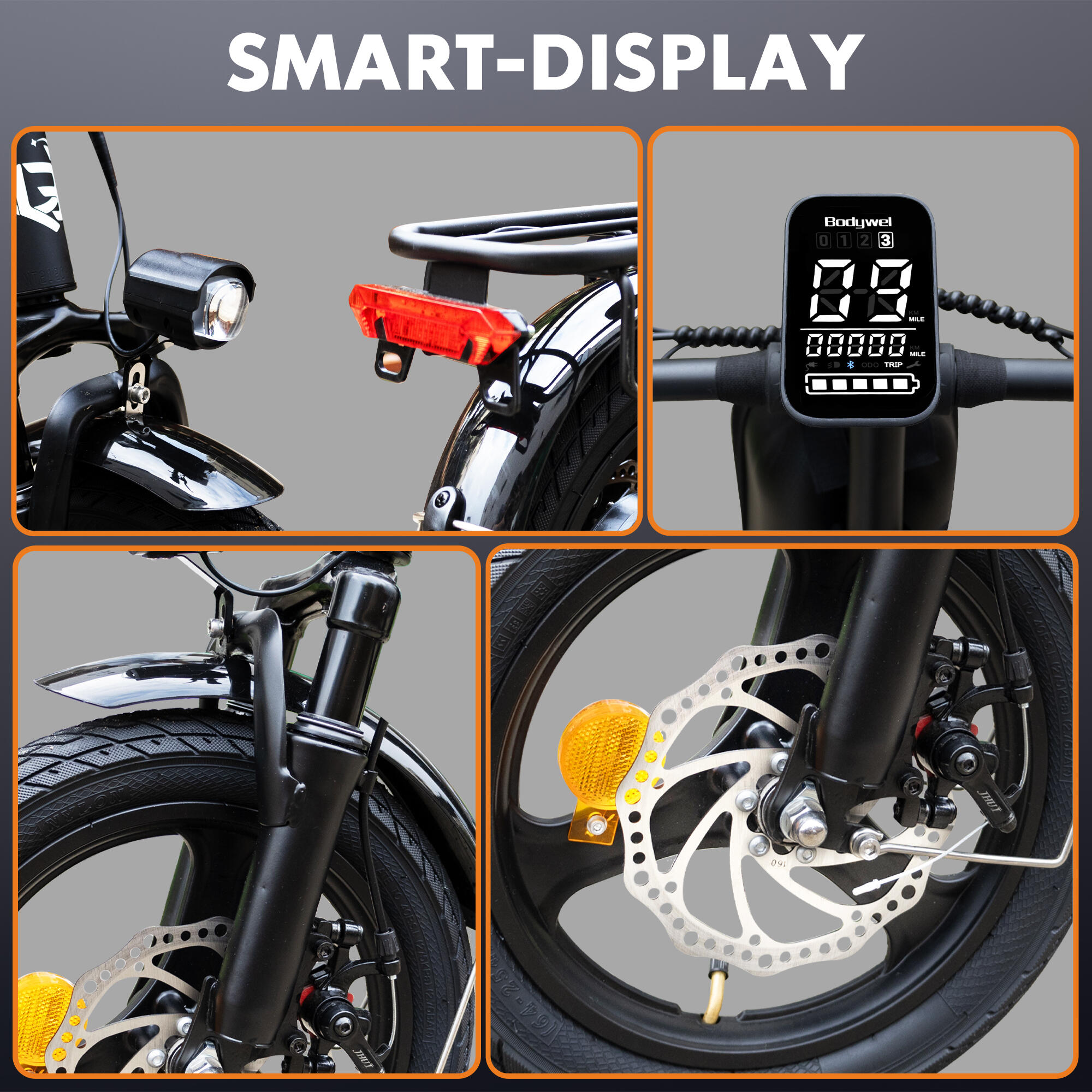

[Intelligent Display]

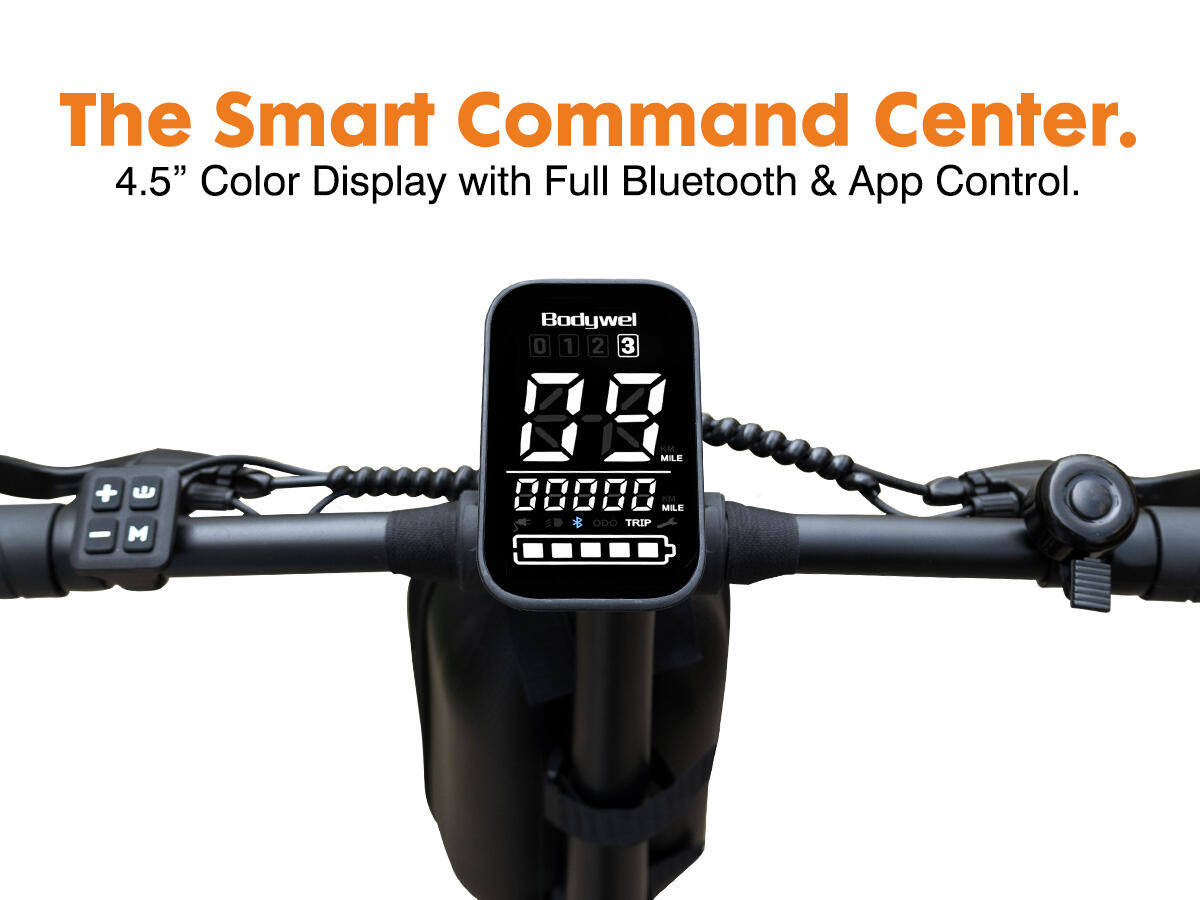

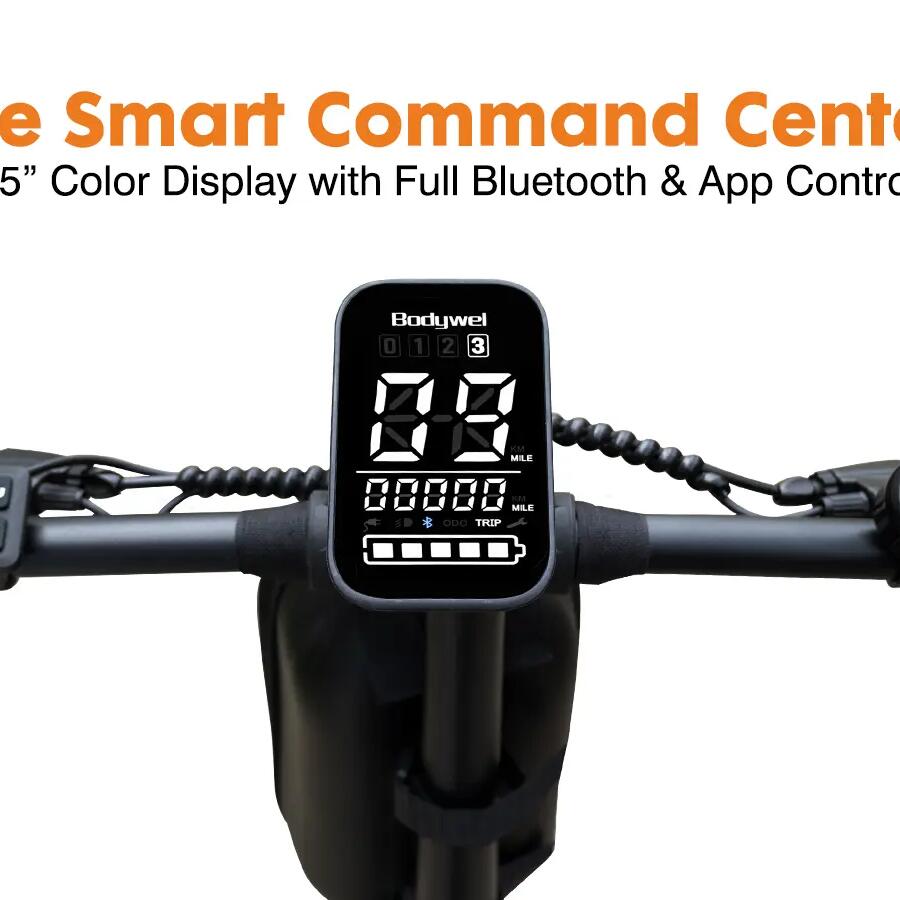

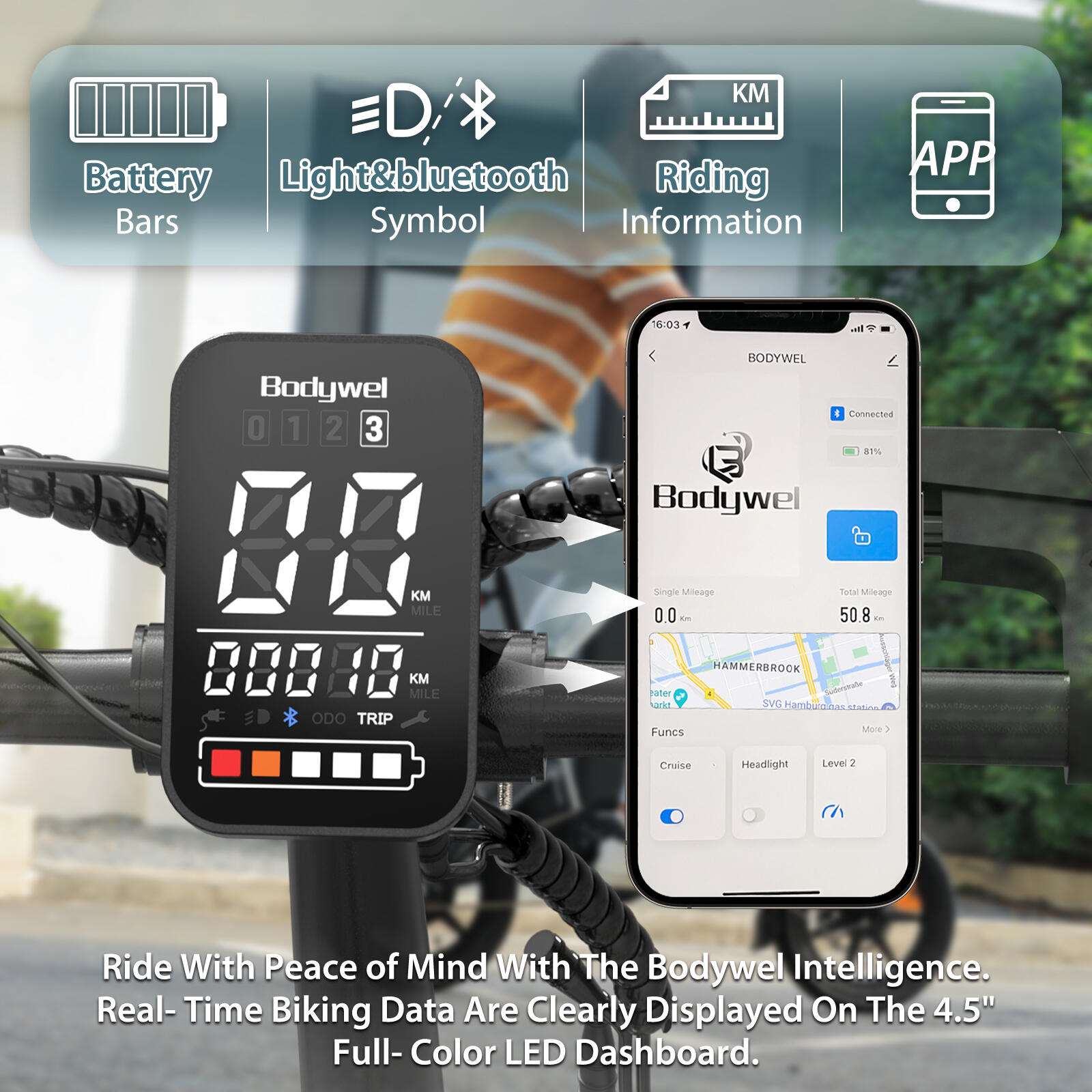

4.5-inch LED color APP display screen, real-time display of speed, battery level, mileage, and assist gear. Support mobile app interconnection, making cycling data clear at a glance. The controller is equipped with a speed sensor, coupled with a 35N · m torque motor, providing smooth and linear power output, and smooth acceleration from start to finish.
[Three level assistance]
Provide three levels of assistance speed -13km/h in 1st gear, 18km/h in 2nd gear, and 25km/h in 3rd gear, flexibly adapting to different riding scenarios. Steppe Assist (PAS) has a range of 25-45 kilometers. With a maximum climbing ability of 15 °, it can handle urban overpasses and underground exits with ease.
[Security Configuration]

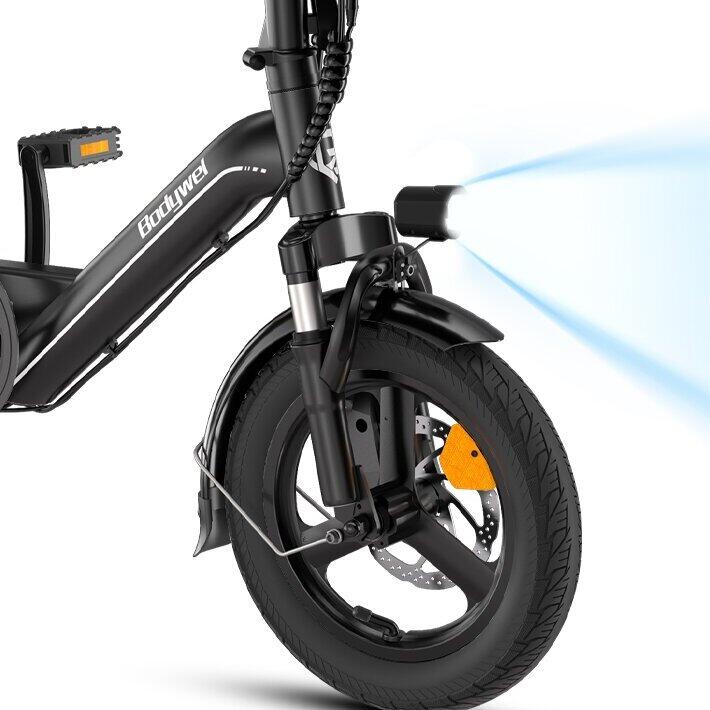

The front and rear wired light groups ensure night vision, and the IPX4 waterproof rating is not afraid of daily light rain. The mechanical shock absorber front fork effectively filters out road bumps and improves riding comfort. The maximum load-bearing capacity is 85kg, suitable for users over 155cm in height. The handlebar height is 97cm, and the seat height is adjustable from 76-99cm, suitable for different body types.
[Urban Light Riding]
The Bodywel T16PRO features an ultra lightweight body, intelligent APP display, and three gear assist as its core selling points. The foldable toothed vertical tube structure is simple and reliable, making it a fashionable choice for short distance urban commuting and leisure cycling. Lightweight and accompanied by intelligence and fun.
[Product Parameters]
Model: Bodywel T16PRO without shelves
Battery: 36V10Ah, 360Wh lithium battery, non removable
Torque: 35N. m torque

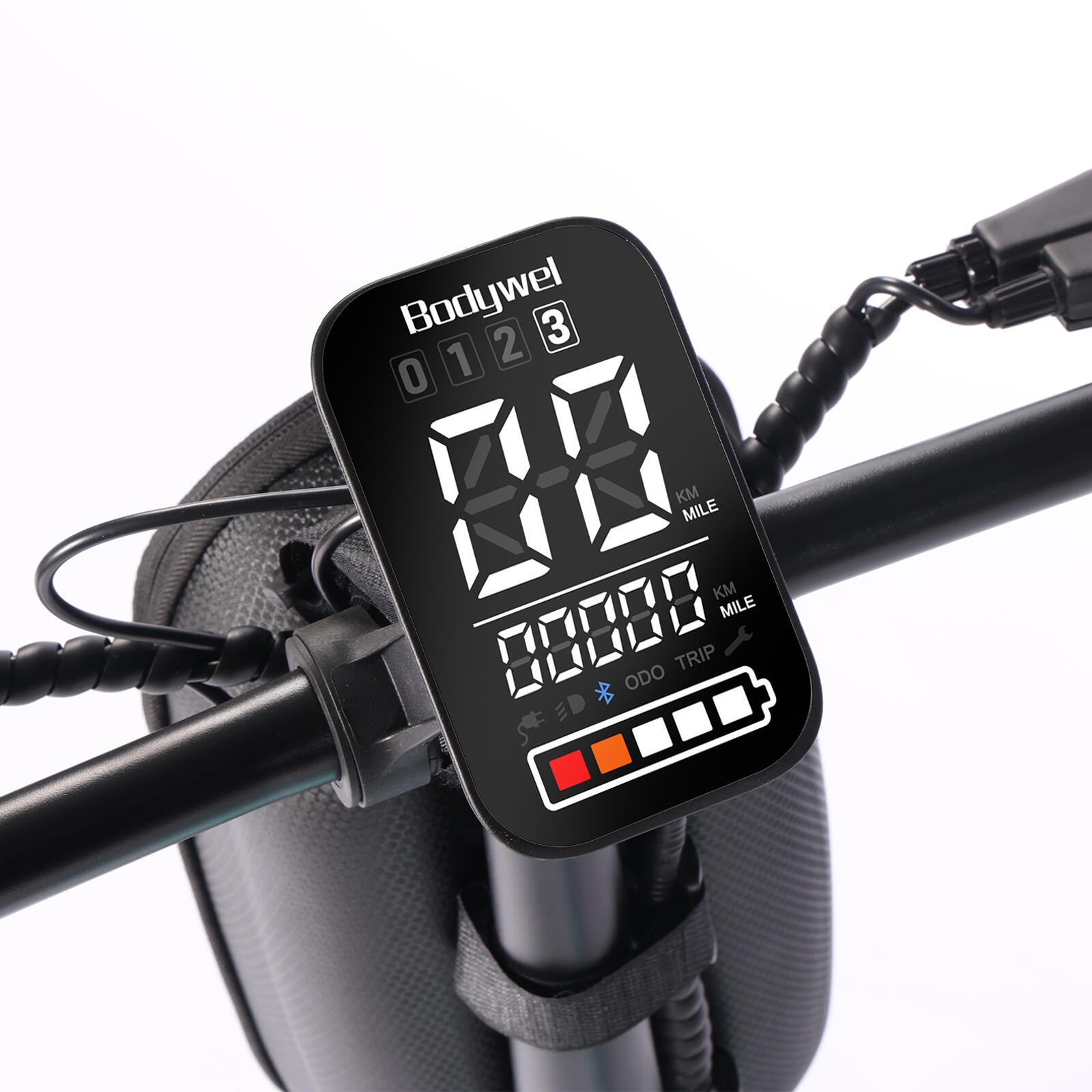

Instrument: 4.5-inch LED color APP display screen
Sensor: speed sensor
Charger: 42V2A
Input voltage: 100-240V
Controller: 36V speed sensor
Lamp: wired headlights and taillights
Transmission: single speed
Shock absorption: mechanical shock absorption front fork
Dental disc: 150MM 44 teeth
Pedal: Folding plastic
Flywheel: Single speed flywheel
Handlebars: steel alloy
Seat pole size: Iron 33.9MM 580MM
Saddle: with clamp
Wheel: magnesium aluminum alloy integrated wheel rim
Internal and external tires: 14 2.5 inches
Tire pressure: 240-310kpa
Fenders: Standard PVC plastic mudguard

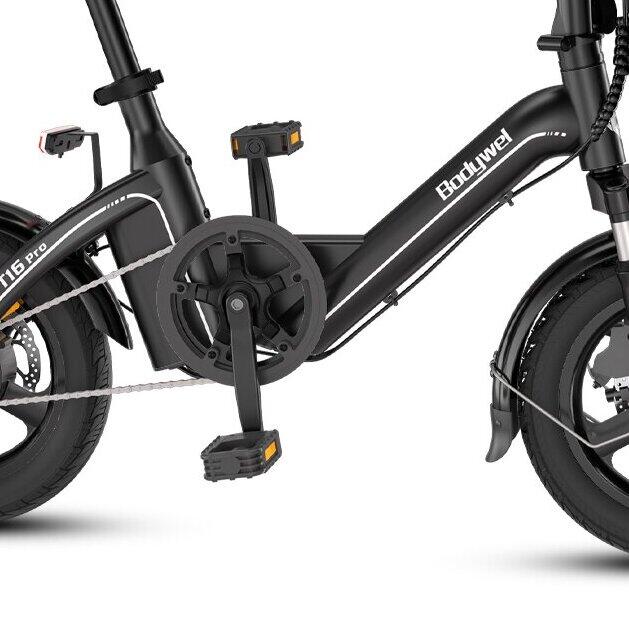

Vertical pipe: Foldable toothed vertical pipe
Waterproof rating: IPX4
Maximum climbing: 15
Pedal Assist (PAS) Range: 25-45 kilometers
Power assisted gear speed: 1/13km/h, 2/18km/h, 3/25km/h
Charging time: 5 hours
Net weight loaded: 20.8kg
Gross weight loaded: 24.7kg
Vehicle dimensions: 130 58 99
Folding size of the whole vehicle: 130 24 61cm
Vehicle packaging size: 111 21 * 51cm
Handlebar height: 97cm
Seat height: 76-99cm
Suitable height: 155cm or above
Maximum load capacity: 85kg
Is there a throttle: No throttle
