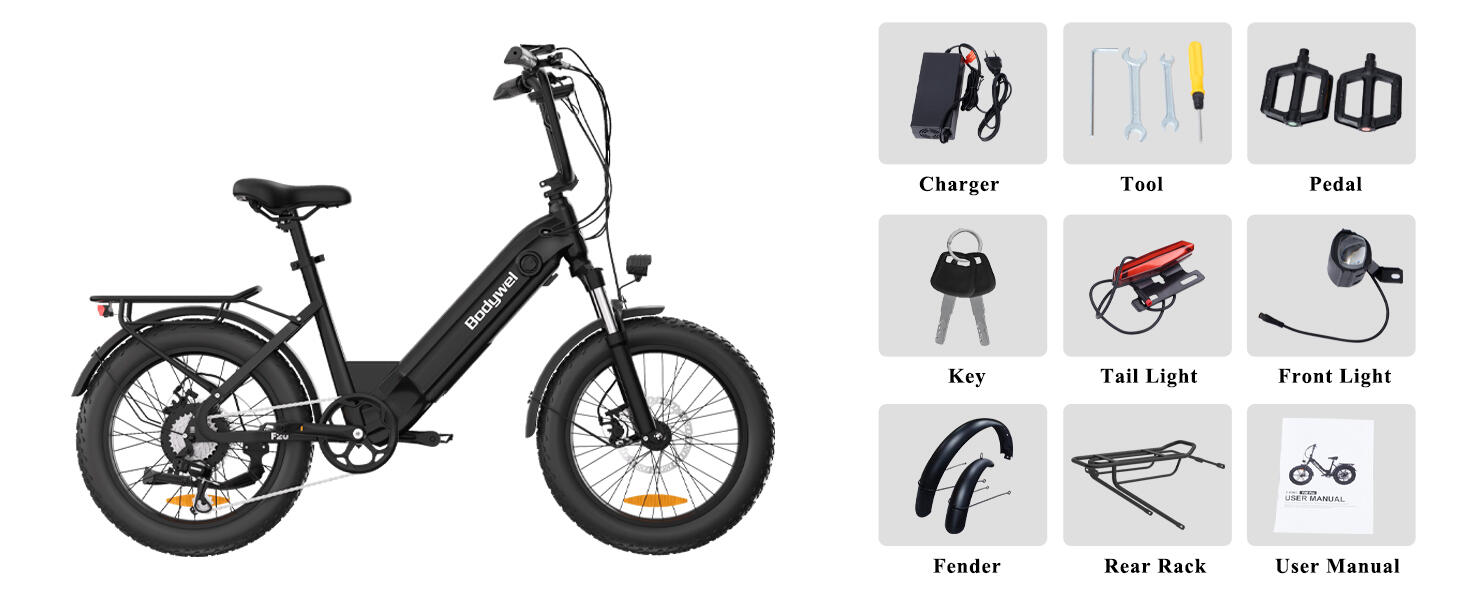

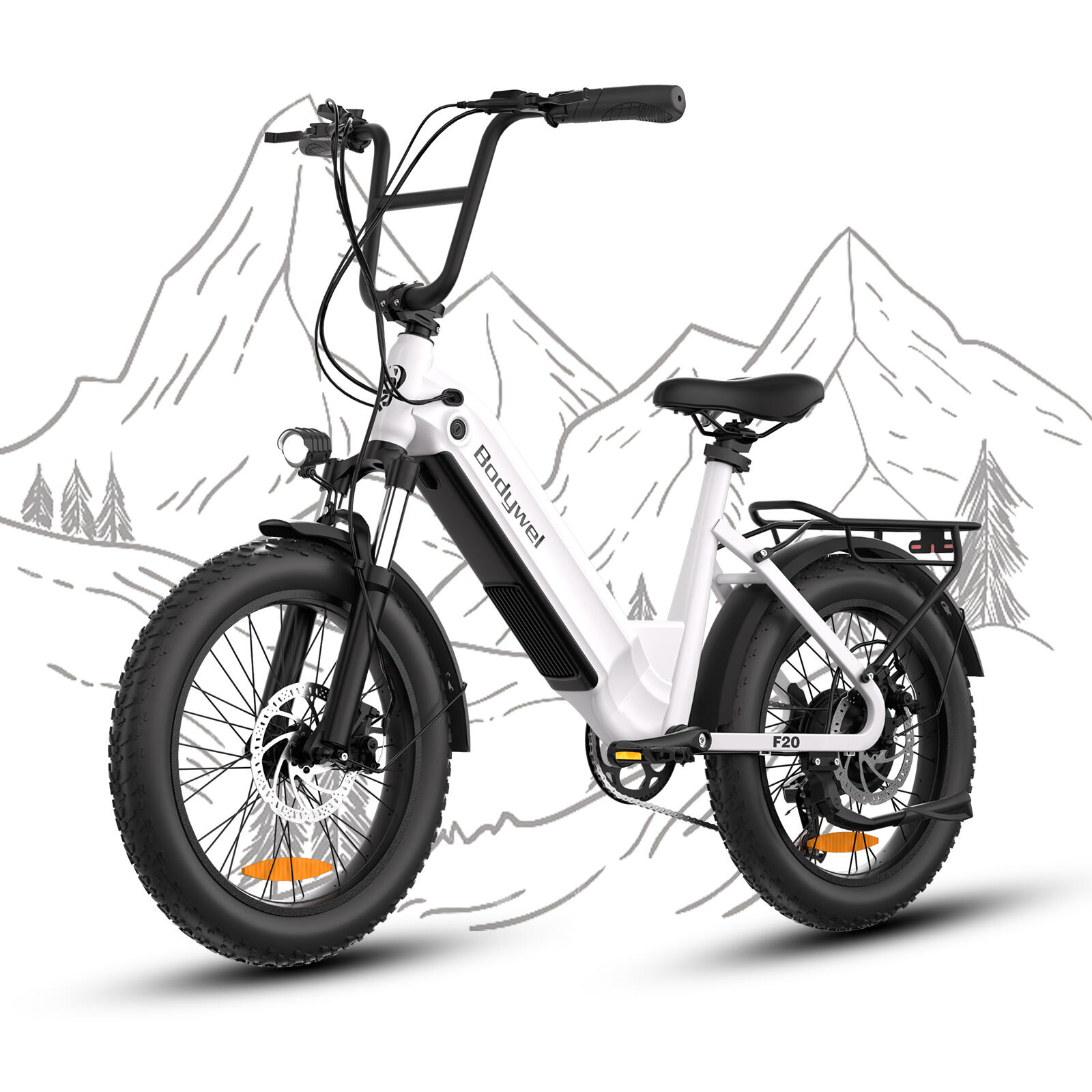

Product Description
[Long lasting battery life]
The Bodywel F20 is equipped with a 48V 15Ah detachable lithium battery (720Wh) and pedal assist (PAS) for a range of 60-110 kilometers, fully meeting daily commuting and weekend travel needs. 6-8 hours of charging time, with a detachable battery design for easy carrying home charging. The 50N · m torque motor has abundant power and a maximum climbing ability of 22 °, making it easy to handle urban and rural slopes.
[Wide tire stability]

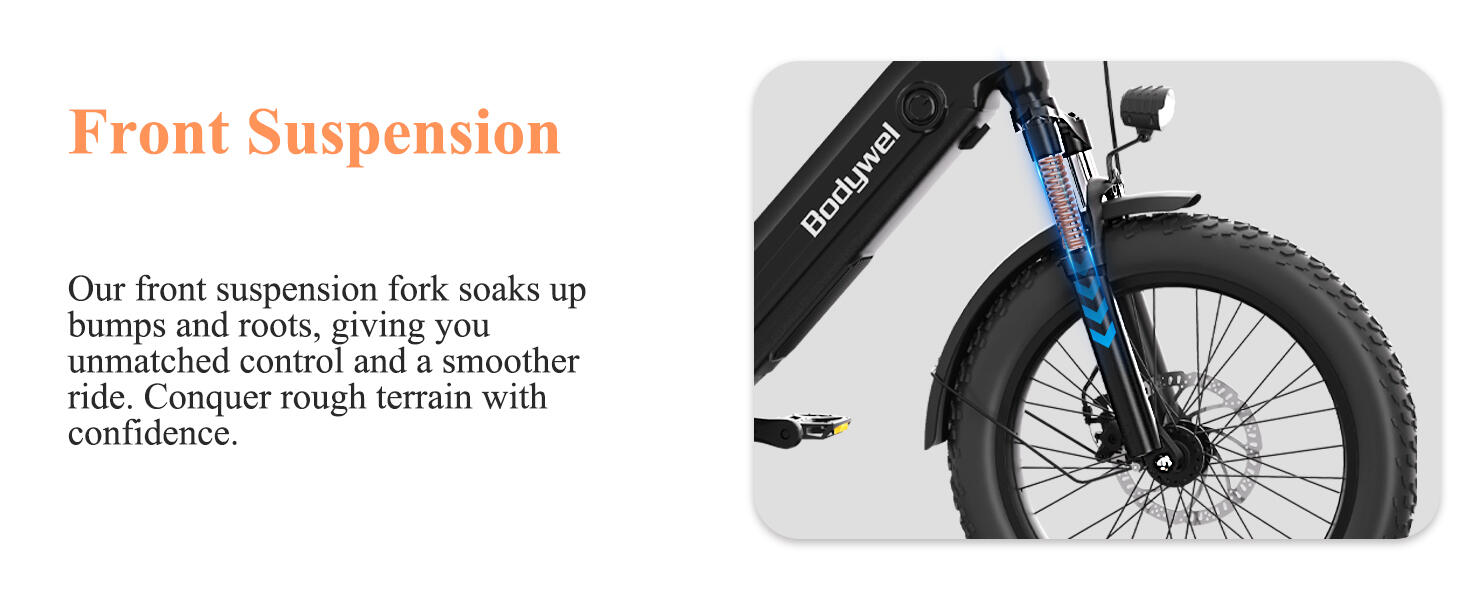

20 x 3.0 inch wide tires, with a large ground contact area and excellent grip, effectively cushioning road bumps and impacts. They can easily pass through urban brick roads, gravel roads, and grasslands. The front suspension and fork further filter out road vibrations, significantly improving the comfort of long-distance cycling. IPX5 waterproof rating, not afraid of daily rainwater and road splashes.

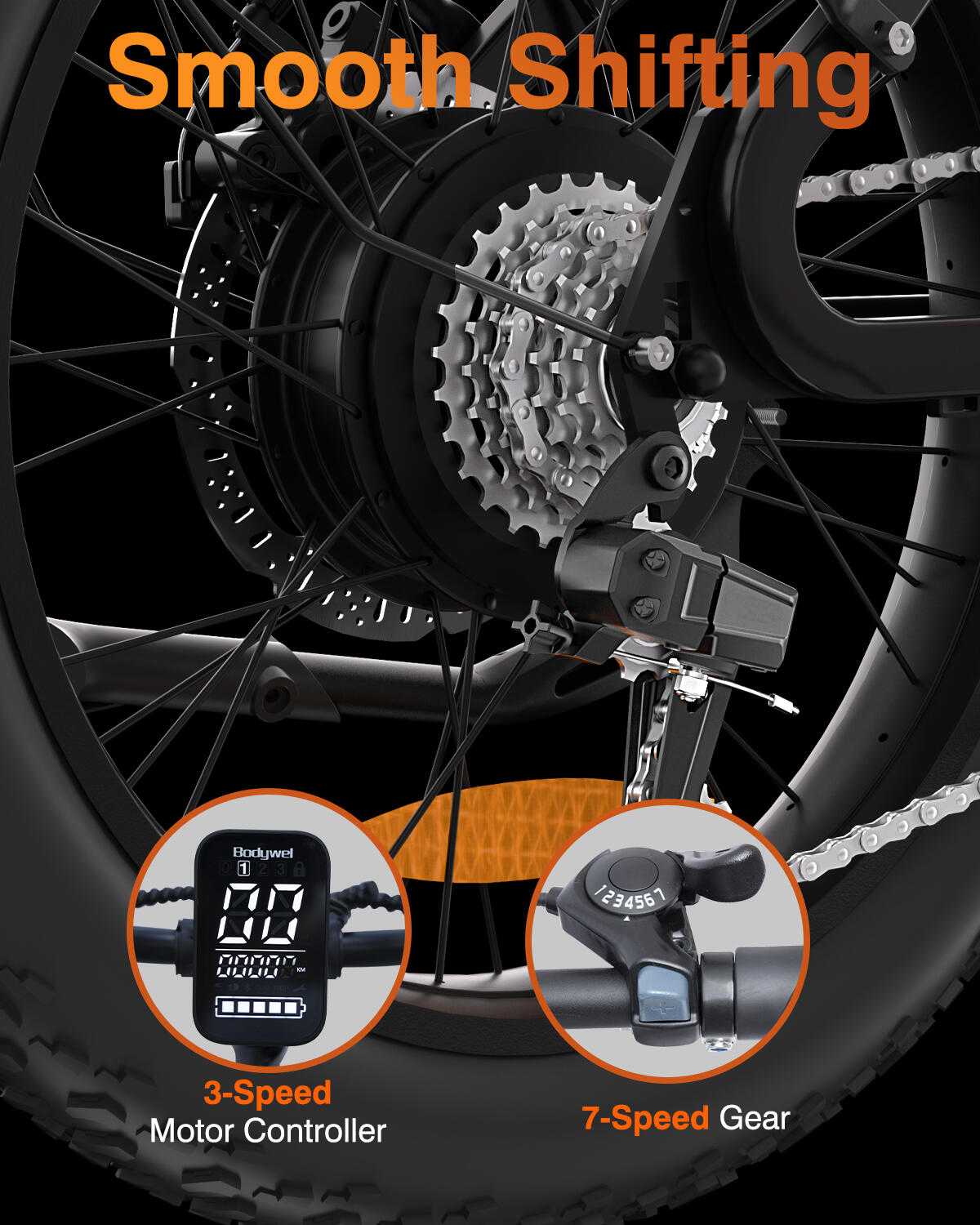

[Transmission and Braking]

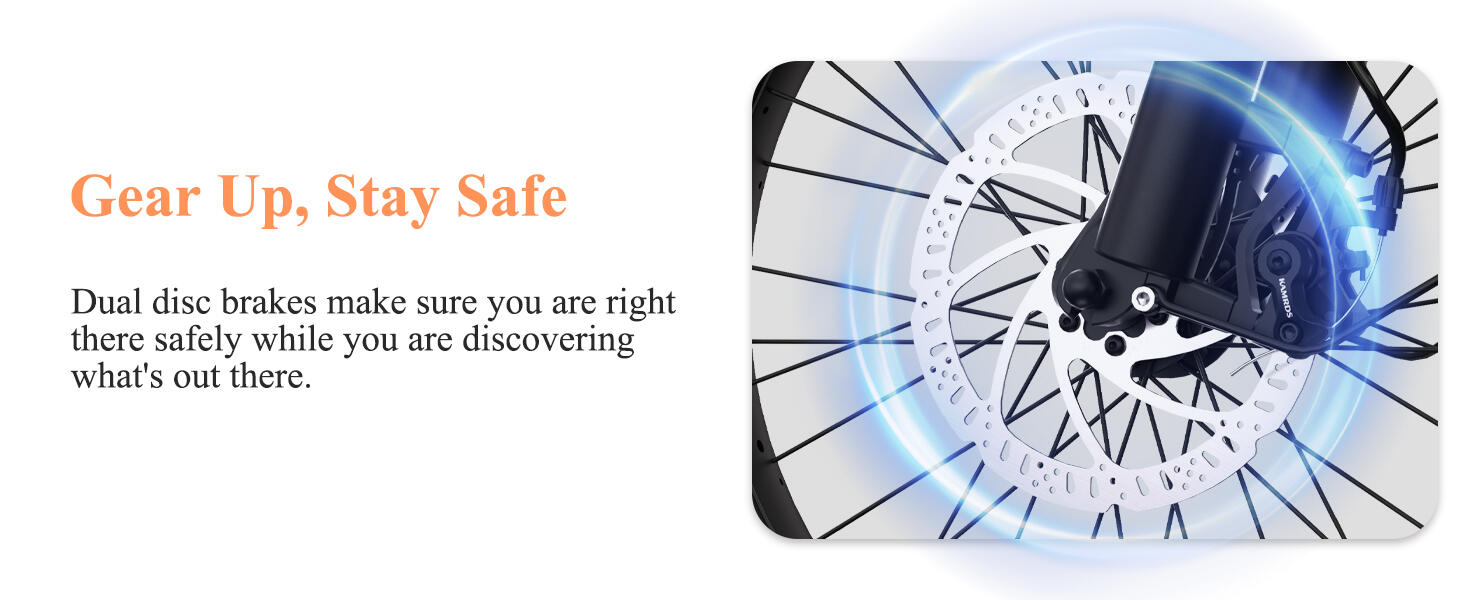

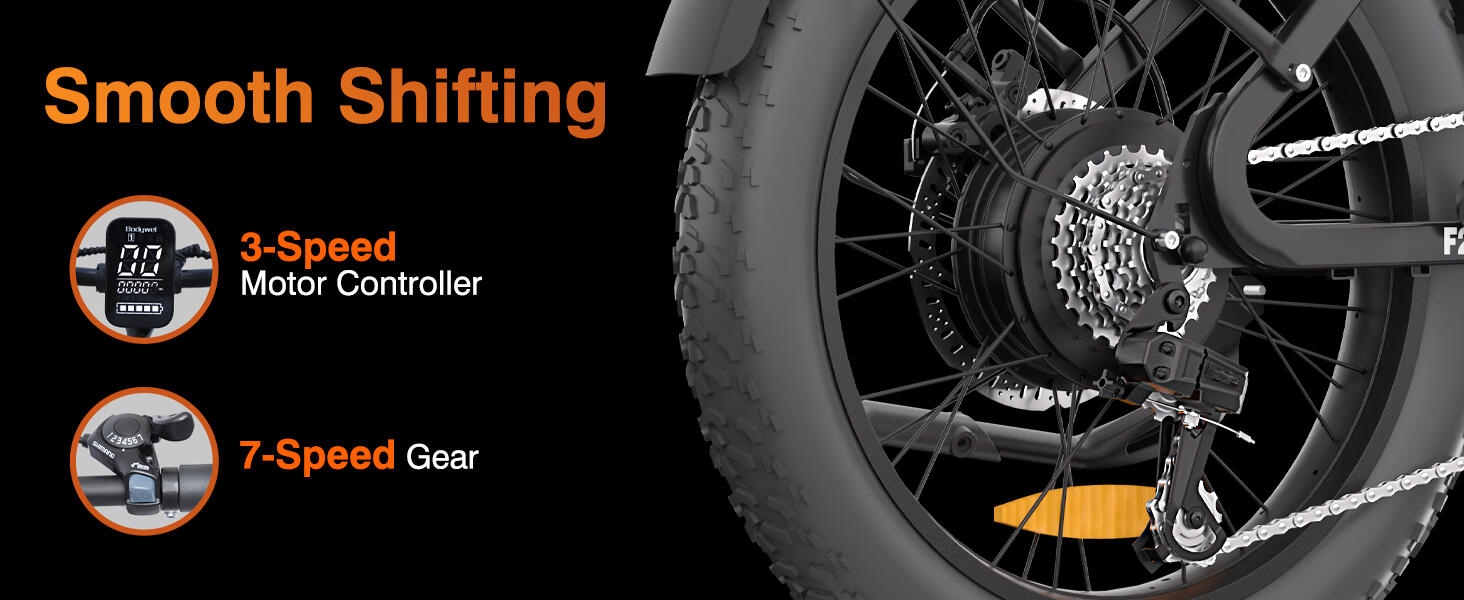

The Ximano 7-speed transmission system is paired with a 7-speed positioning flywheel, with a wide gear ratio range, making it easy to shift gears for both flat acceleration and hill climbing. The front and rear disc brakes provide stable and reliable braking force, with rapid braking response that remains effective even in wet and rainy weather. Iron 36 hole mesh wheel balances strength and durability.
[Foldable and portable]
After folding, the vehicle has a compact volume with a packaging size of 135 × 26 × 68cm. The unfolded size is 163 × 75 × 110cm, with a net weight of 31.5kg and a gross weight of 37.2kg. It is suitable for users with a height of 160cm or more, with a maximum load capacity of 120kg. The folding telescopic riser design makes it easy to store and carry, and can be easily placed in the trunk of a car or in a corner of the home.
[Balanced Choice]
The Bodywel F20 has a core selling point of 110 kilometers of range, 20 x 3.0 wide tires, 50N · m torque, and a 7-speed Ximano transmission. With balanced configuration and reliable performance, it is an ideal partner for urban commuting and leisure cycling. Steady and steady, calm every day.
[Product Parameters]
Model: Bodywel F20
Battery: 48V15ah, 720Wh, detachable
Torque: 50NM
Instrument: 4.5-inch LED color APP display screen
Sensor: speed sensor

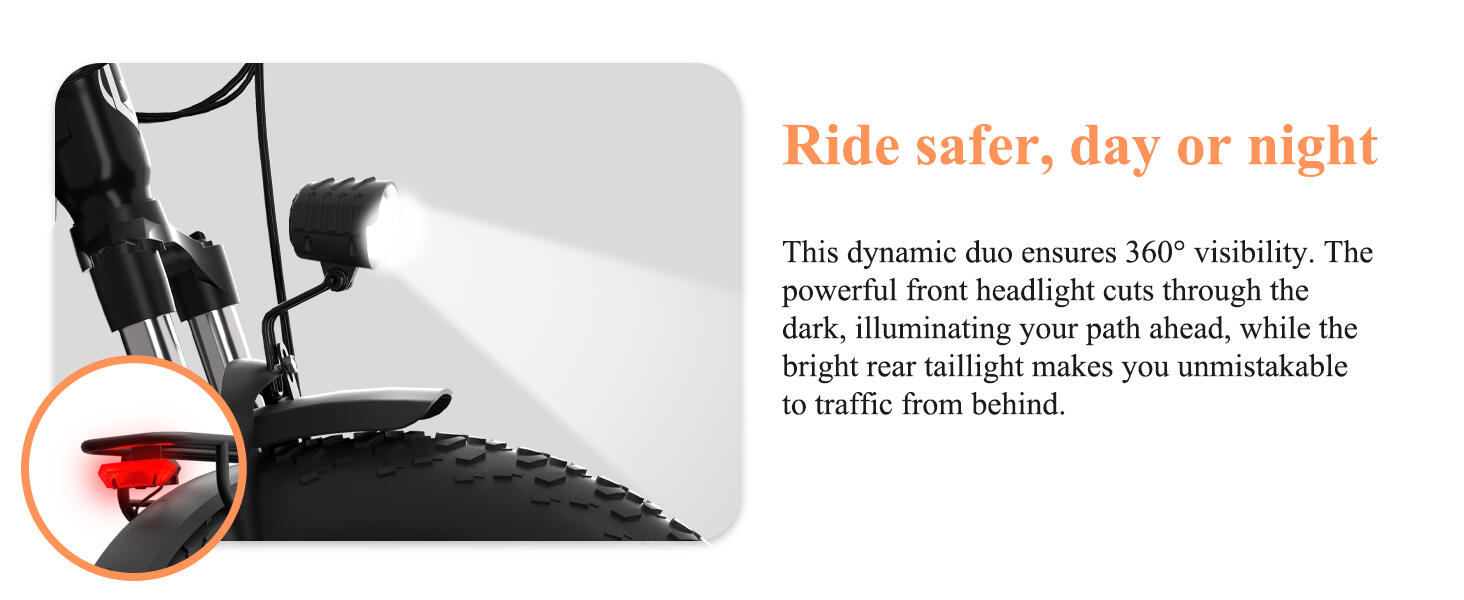

Lamp: wired headlights and taillights
Transmission: Shimano 7-speed
Shock absorption: front suspension, front fork
Dental disc: 170MM 48 teeth
Pedal: Folding plastic
Flywheel: Shimano 7-stage positioning flywheel
Seat rod size: iron 34cm 3cm with scale/clamp
Saddle: with clamp saddle
Wheel: Iron 36 hole mesh wheel
Internal and external tires: 20 3.0 inches
Tire pressure: 250kpa
Waterproof rating: IPX5
Maximum climbing: 22
Pedal Assist (PAS) Range: 60-110 kilometers
Power assisted gear speed: 1/15km/h, 2/18km/h, 3/25km/h
Charging time: 6-8 hours
Net weight loaded: 31.5kg
Gross weight loaded: 37.2kg
Vehicle dimensions: 163 75 * 110cm
Vehicle packaging size: 135x26x68cm
Suitable height: 160cm or above
Maximum load capacity: 120kg
Is there a throttle: No throttle
