Product Description
Compact fat tyre electric bike for everyday riding
This 20 × 4.0-inch fat tyre electric bike is designed for everyday commuting and leisure rides on a variety of terrains. The wide tyres provide excellent grip and stability on paved roads, gravel, sand and uneven surfaces, ensuring a comfortable riding experience.
Removable 36V 12Ah battery for convenient charging
The removable 36V 12Ah (432Wh) lithium-ion battery provides a reference range of 35–90 km, depending on rider weight, terrain, weather conditions and the selected assistance level. It can be easily removed for charging at home or at work.
Smooth 250W electric assistance
The 250W brushless motor delivers pedal assistance up to 25 km/h, providing smooth and efficient support for daily commuting and recreational riding.
Comfort and confidence on every ride

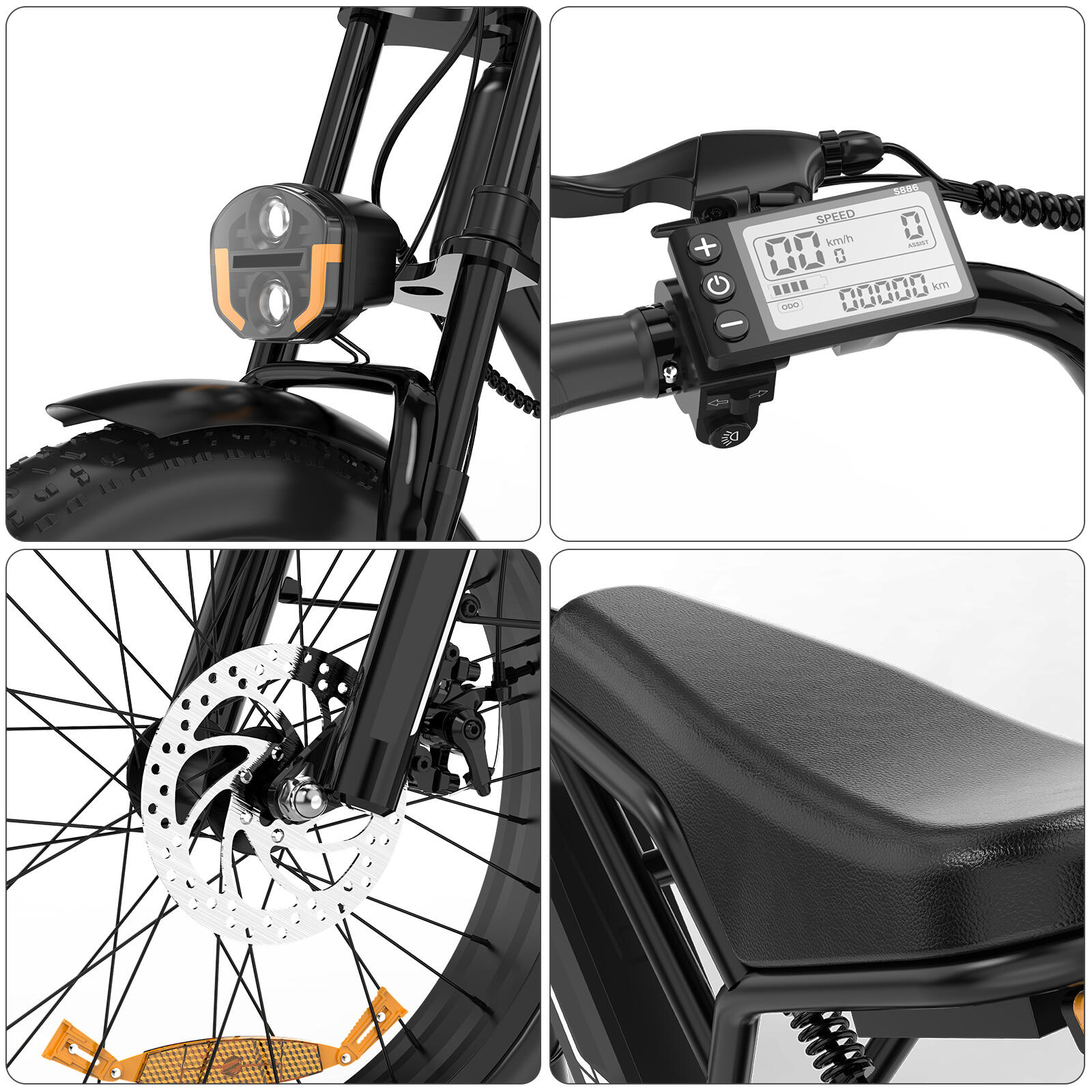

The front suspension fork helps absorb bumps and uneven surfaces for greater riding comfort. Front and rear disc brakes provide dependable stopping power, while the front headlight improves visibility in low-light conditions.
Durable construction for everyday use
The carbon steel frame supports a maximum load of 120 kg. The multifunction LCD display clearly shows speed, battery level and other essential riding information.
Key Features
20 × 4.0-inch fat tyre electric bike
250W brushless motor
Removable 36V 12Ah (432Wh) lithium-ion battery
Reference range: 35–90 km*
Maximum speed: 25 km/h
Front suspension fork
Front and rear disc brakes
Multifunction LCD display
Front headlight
IP54 protection rating
Maximum load: 120 kg
Charging time: 5–6 hours
Technical Specifications
Type: Fat Tyre Electric Bike (EPAC)
Recommended User: Adults
Frame Material: Carbon steel
Dimensions: 1670 × 700 × 1150 mm
Package Dimensions: 1430 × 280 × 870 mm
Net Weight: 35.15 kg
Gross Weight: 42.85 kg
Maximum Load: 120 kg
Wheel Size: 20 inches
Tyres: 20 × 4.0-inch pneumatic tyres
Valve: AV
Rims: Spoked wheels
Front Fork: Suspension fork
Drivetrain: Single-speed
Motor: Brushless geared motor
Rated Power: 250W
Maximum Speed: 25 km/h
Drive Mode: Pedal assistance
Battery: 36V 12Ah (432Wh) lithium-ion
Charging Time: 5–6 hours
Brakes: Front disc brake + rear disc brake
Lighting: Front headlight
Display: Multifunction LCD display
Protection Rating: IP54
Operating Temperature: -10°C to 45°C

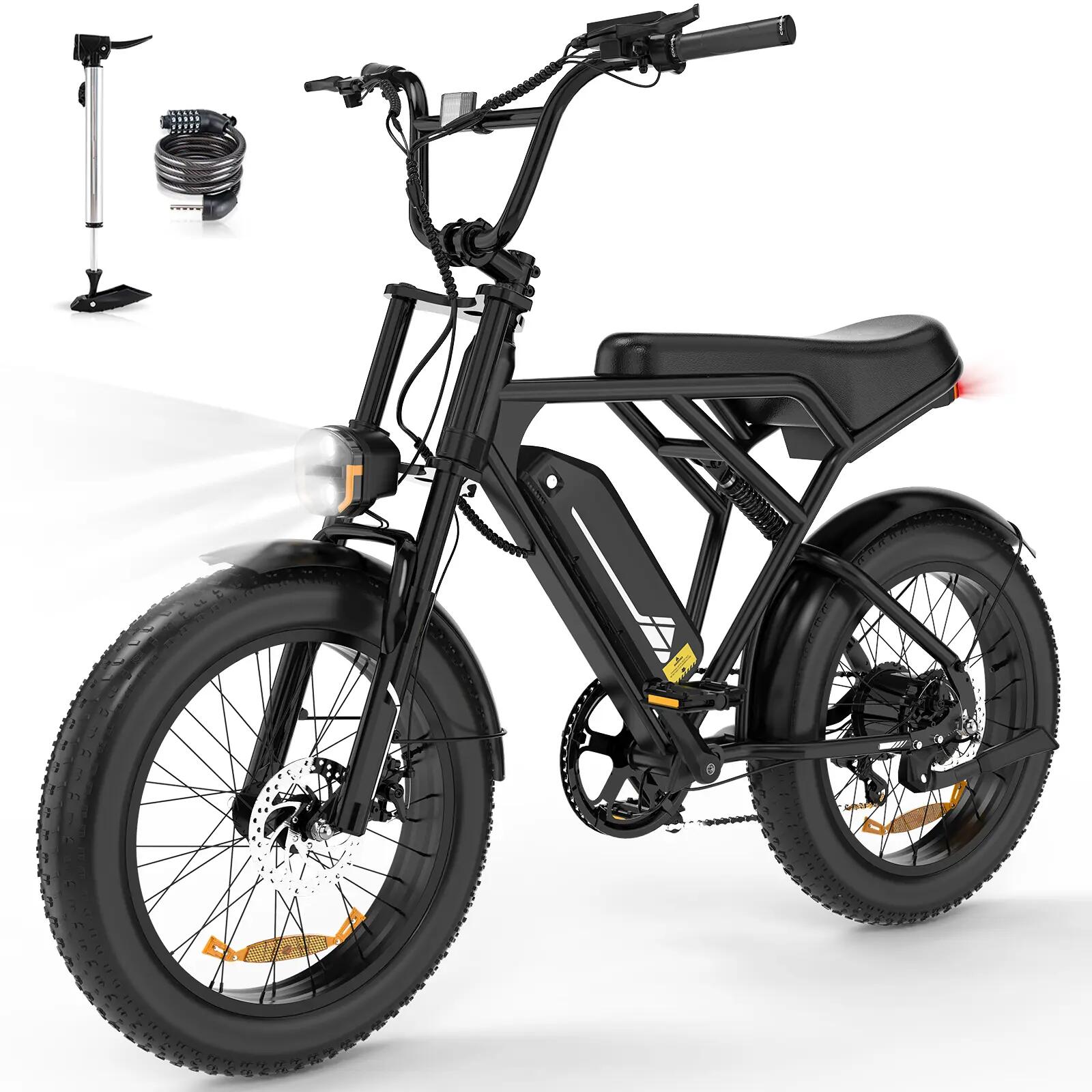

Package Includes
1 × Electric Bike
1 × Bicycle Pump
1 × Bicycle Lock
1 × Power Adapter
1 × User Manual (7 Languages)
*Actual range may vary depending on rider weight, terrain, weather conditions, riding style and assistance level.
