Product Description
【Product Overview】

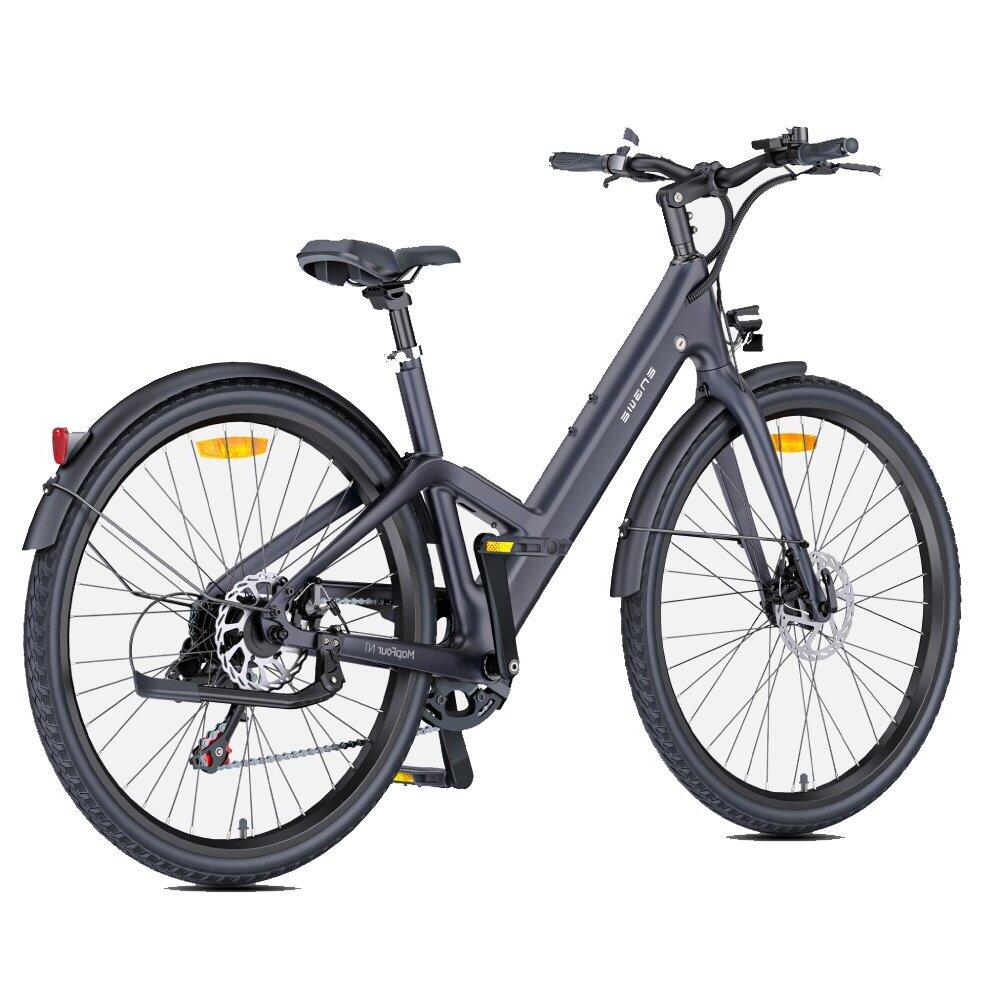

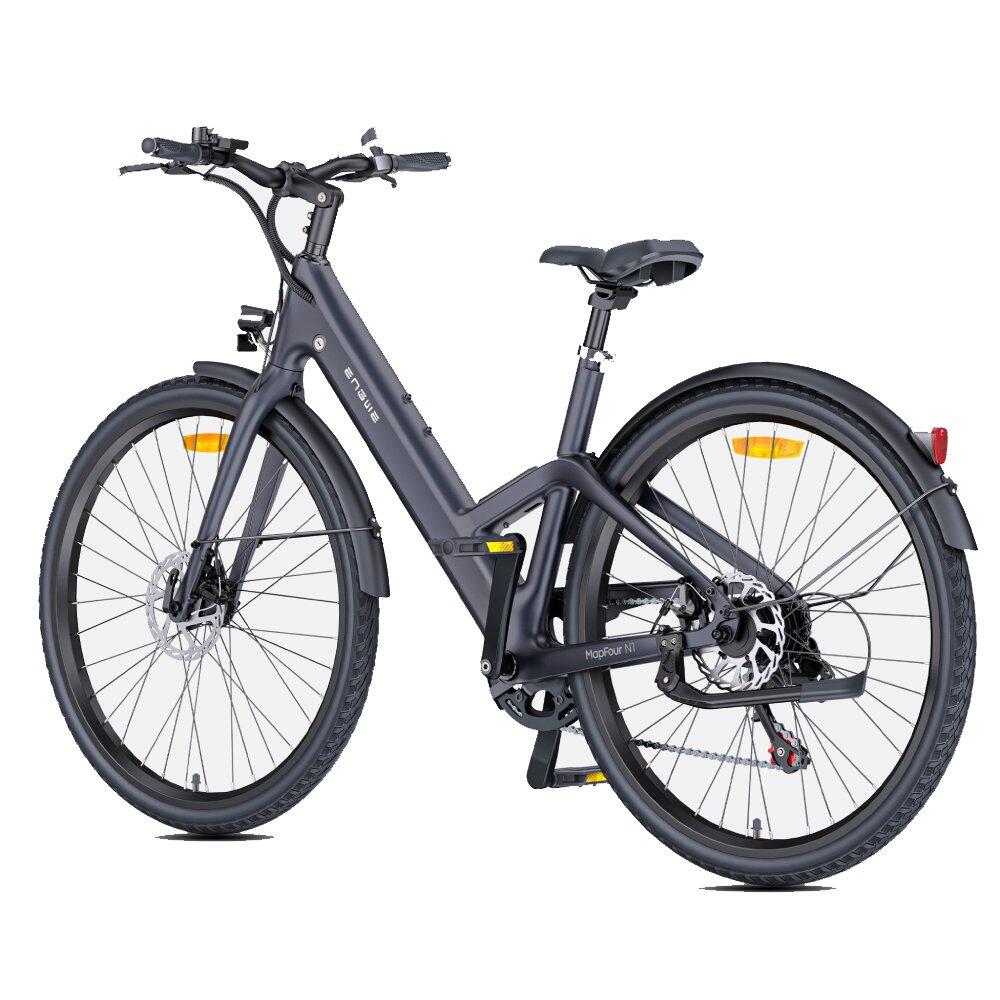

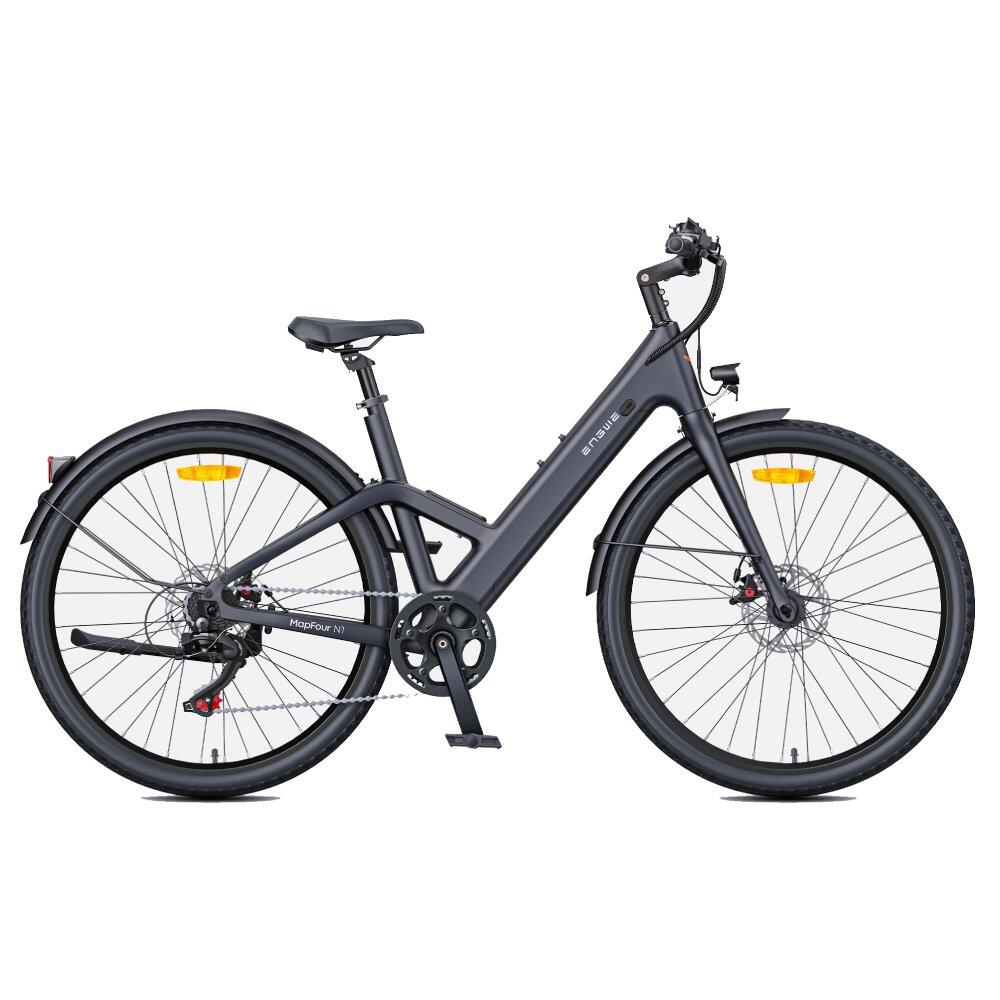

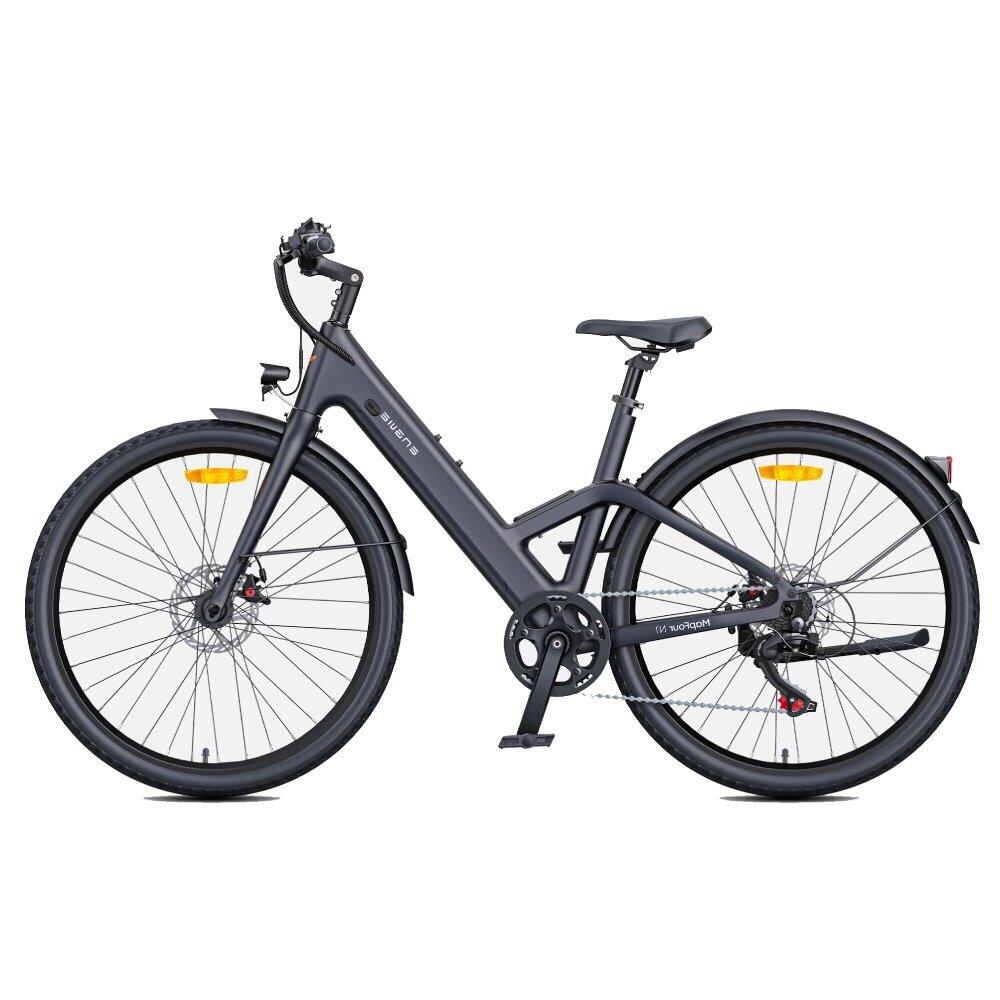

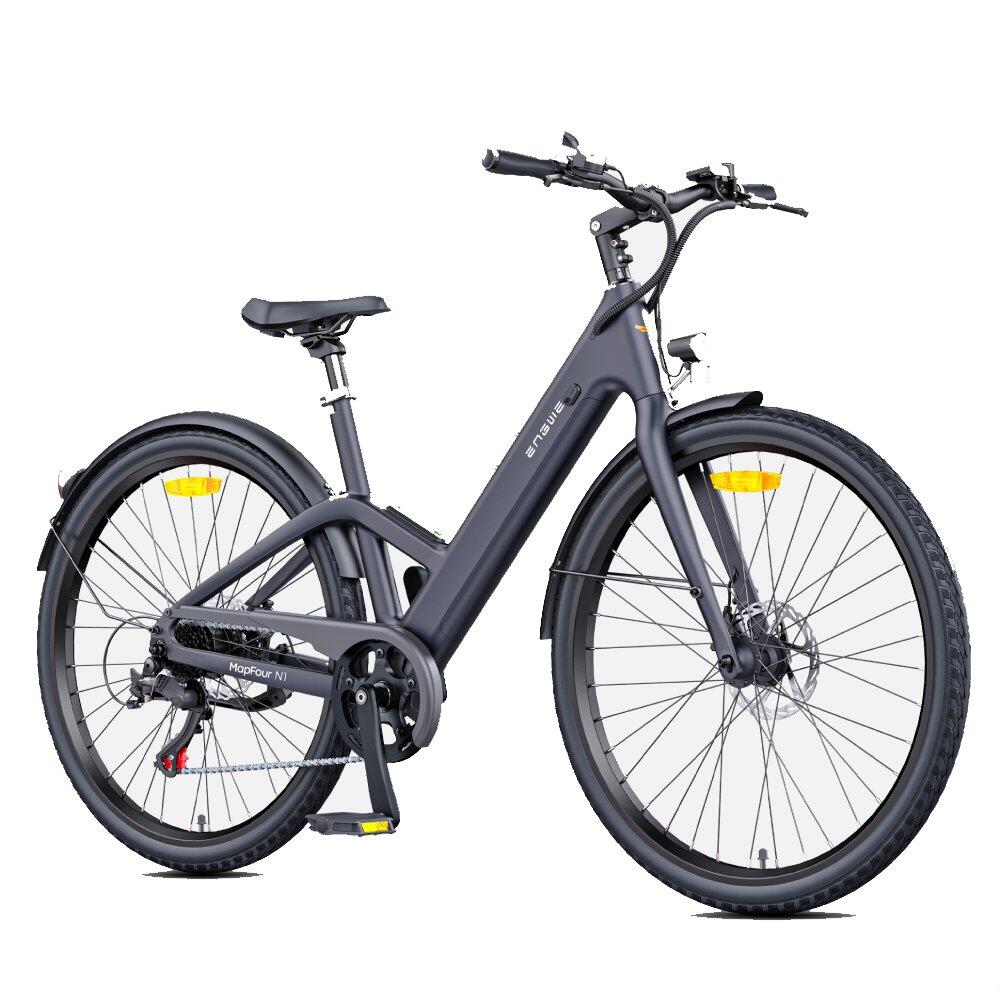

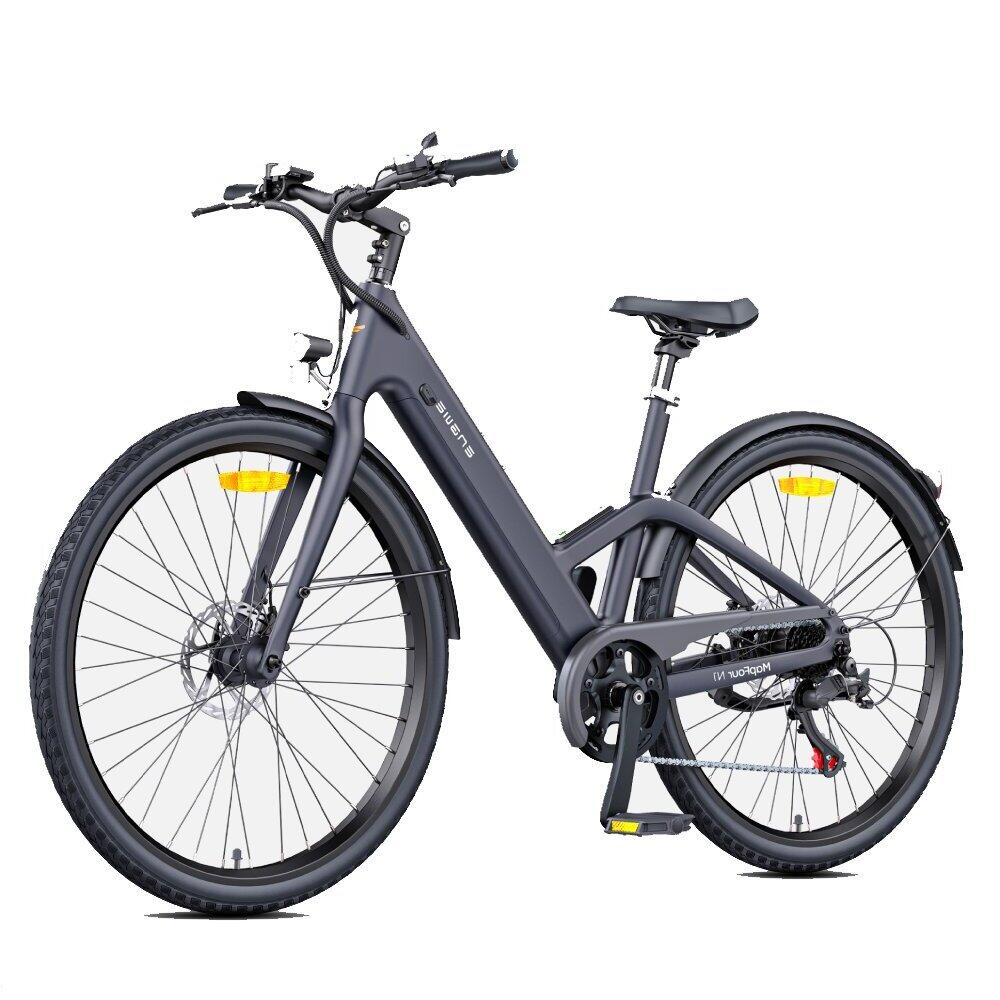

The ENGWE N1 AIR ST is a high‑performance electric assist bike purpose‑built for urban commuting and leisure rides. Its innovative carbon fiber frame structure delivers strength while keeping weight at just 16.4 kg. Paired with a 36V 10Ah lithium battery and an efficient motor, it achieves a 100‑km long range and intelligent pedal assist up to 25 km/h.
【Lightweight Carbon Fiber Frame】
The N1 AIR ST features a monocoque carbon fiber frame that ensures rigidity and limits net weight to 16.4 kg. The precision‑engineered frame geometry, with a low step‑over height of 530 mm, makes mounting and dismounting effortless.
【Ergonomic Design】
The riding triangle offers 650 mm of cockpit space for a comfortable posture. The 27.5‑inch puncture‑resistant tires on sealed‑bearing hubs provide stability and reduce maintenance. A pedal ground clearance of 11 cm ensures adequate lean angle in corners. The fully internal cable routing gives a clean look and protects lines from external elements.
【All‑Terrain Adaptability】
The large 27.5‑inch wheels with professional‑grade anti‑slip tires easily handle asphalt, cobblestones, and light gravel roads. The IPX5 waterproof design allows riding in rain, whether dry or light shower conditions. Both front and rear wheels feature quick‑release axles for easy transport and maintenance.
【Safety System】
The E‑ABS electronic brake assist system, together with professional hydraulic disc brakes, ensures smooth and safe braking on all surfaces. The electrical system is fully sealed to IPX5 standards, resisting low‑pressure water jets from any direction.
【Specifications】
Model: ENGWE N1 AIR ST
Battery: 36V 10Ah
Initial speed: 25 km/h
Tires: 27.5 inches
Waterproof rating: IPX5
Max load: 120 kg
Net weight: 16.4 kg
Gross weight: 25.4 kg
Product dimensions: 1800 × 680 × 1500 mm
Package dimensions: 1494 × 235 × 750 mm
