Product Description

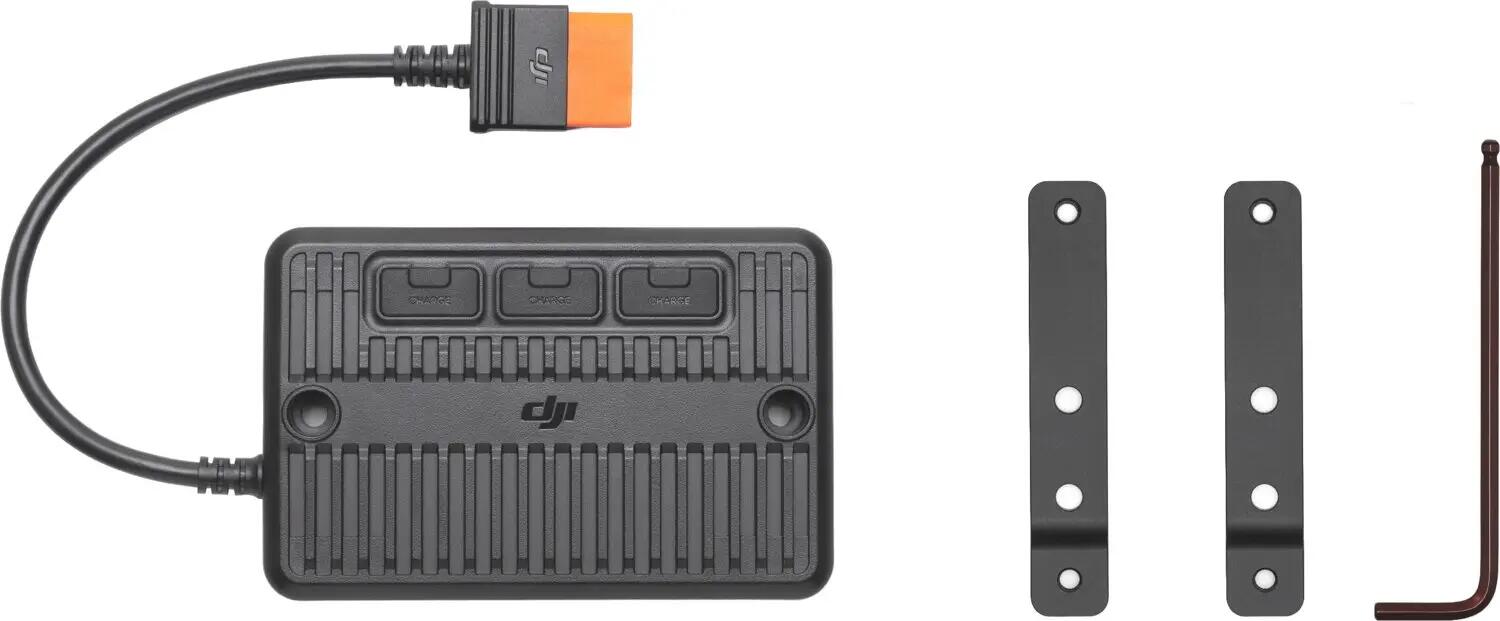

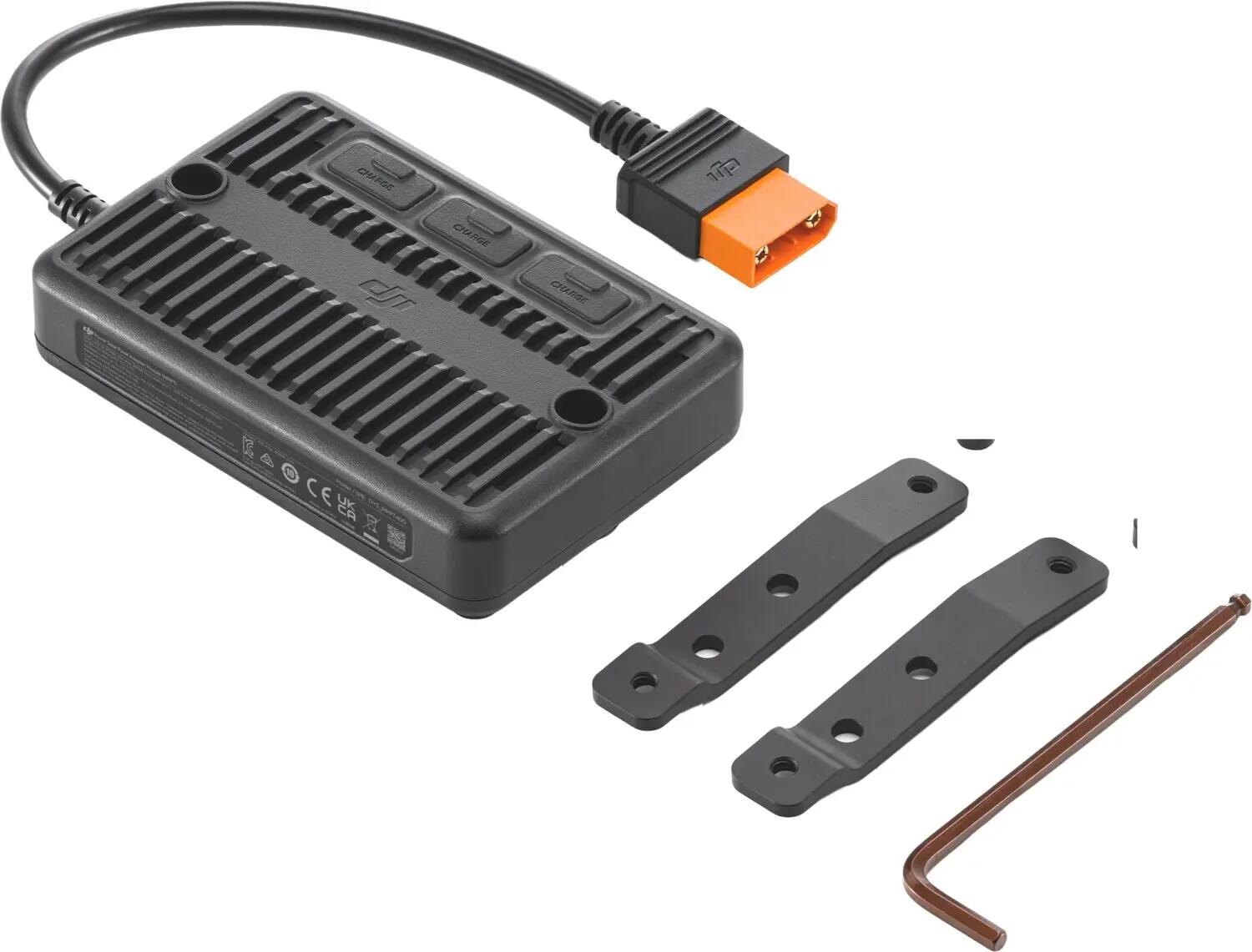

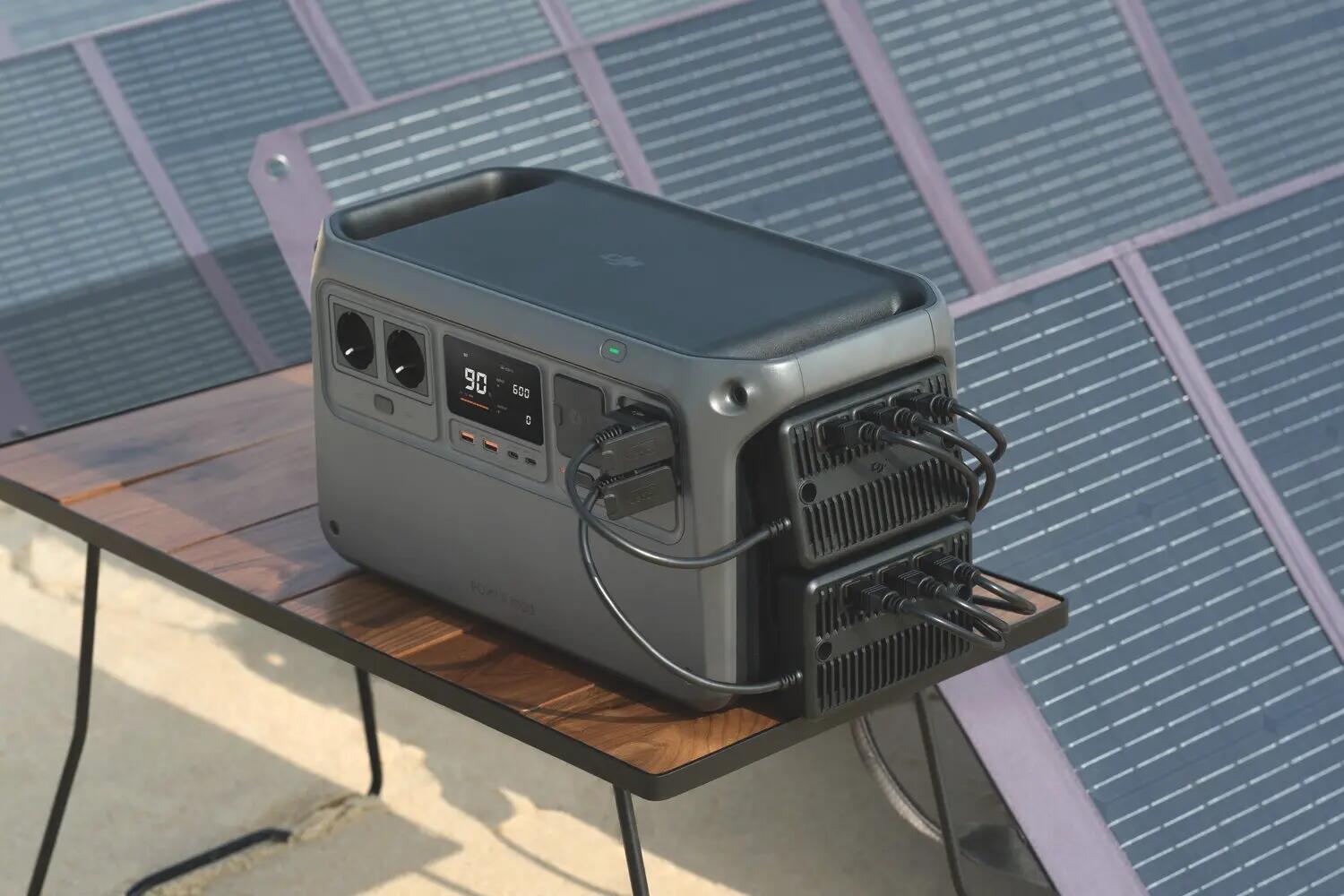

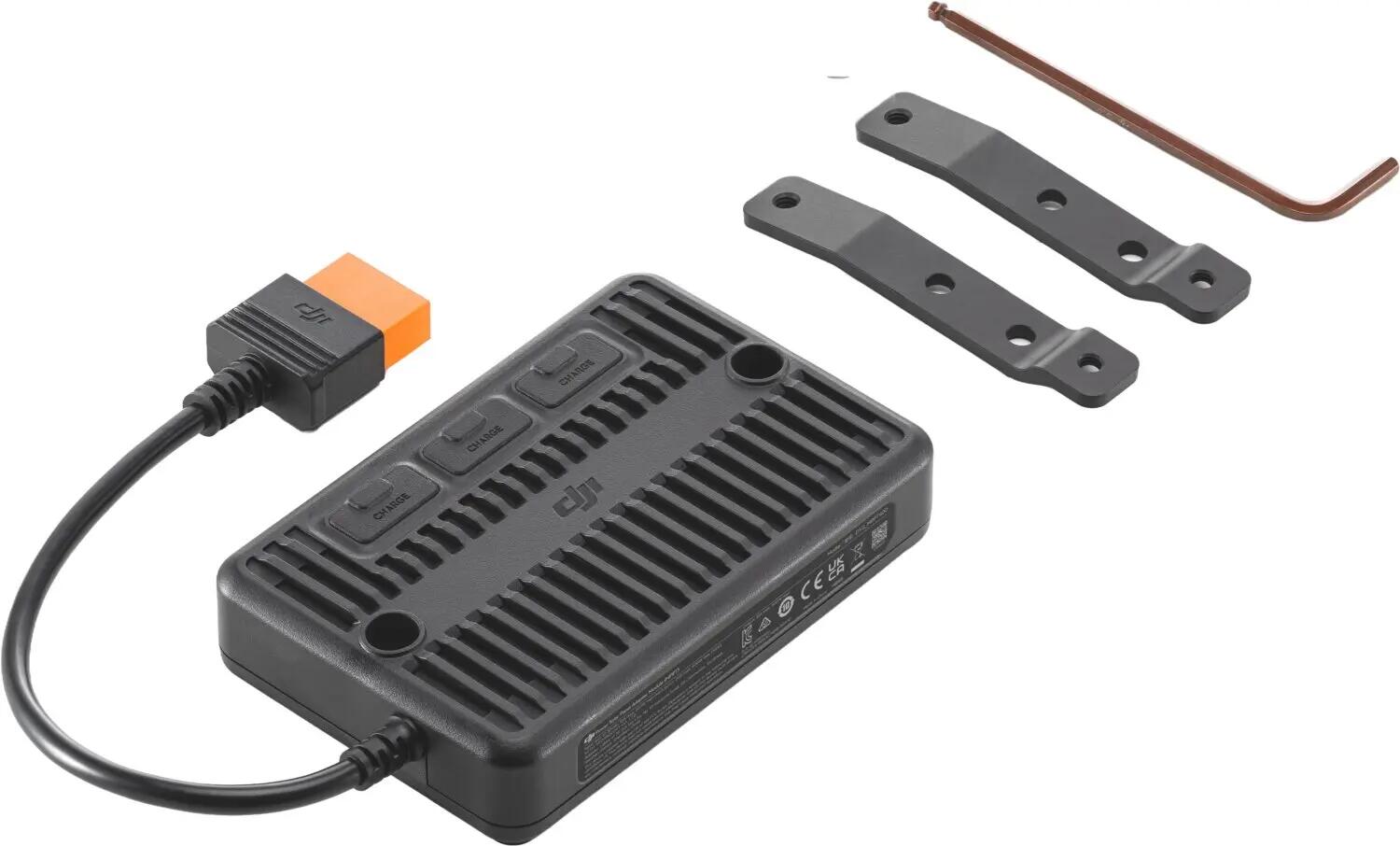

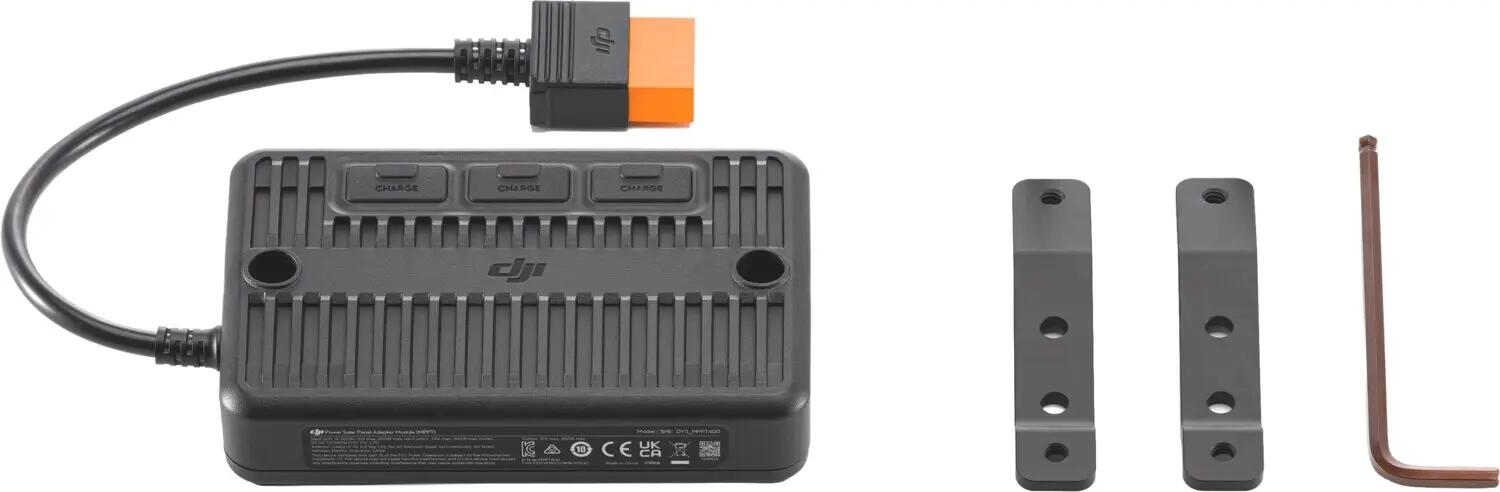

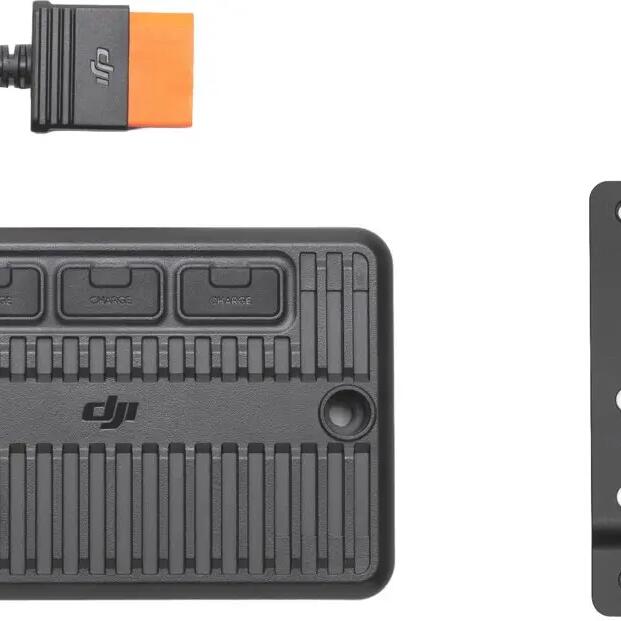

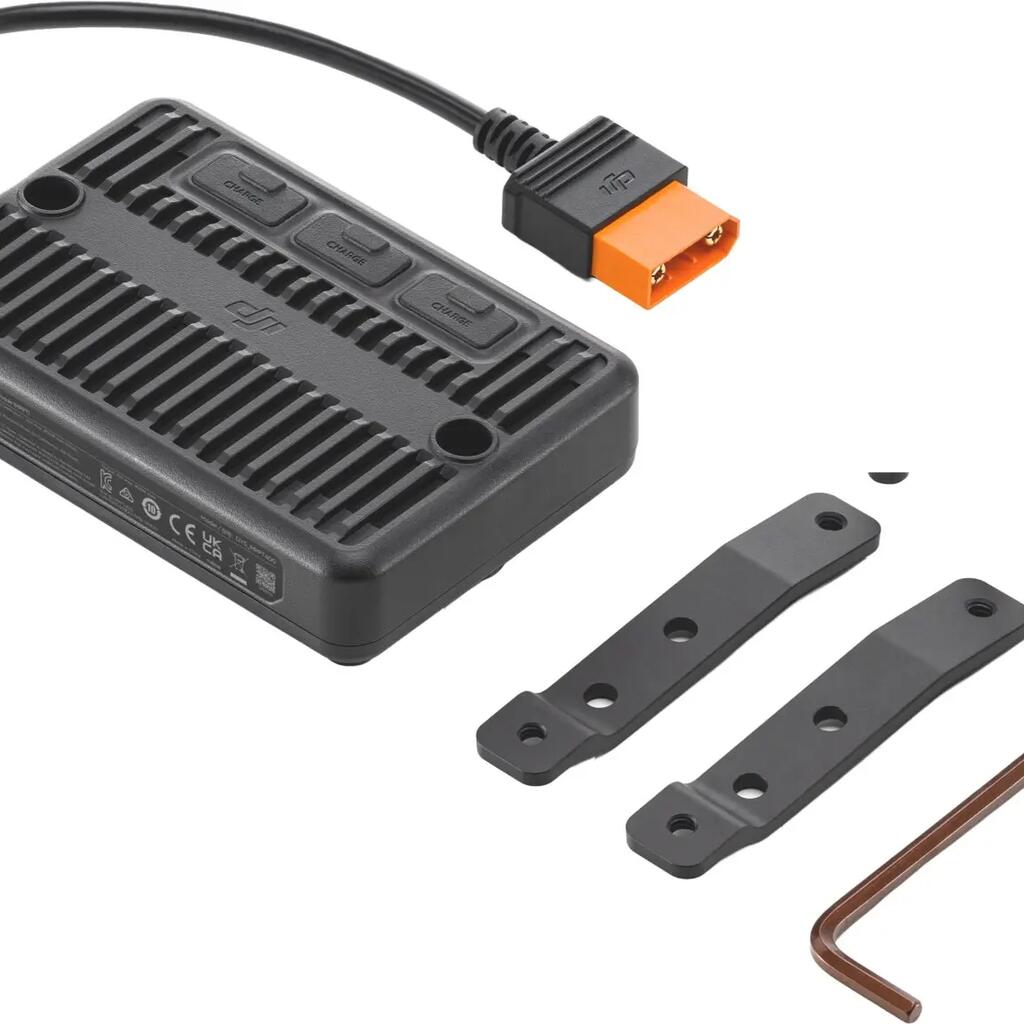

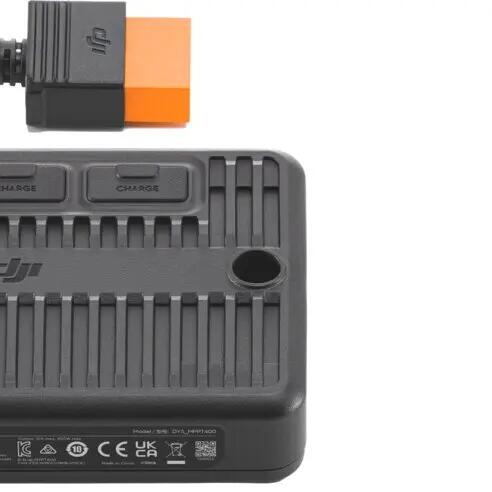

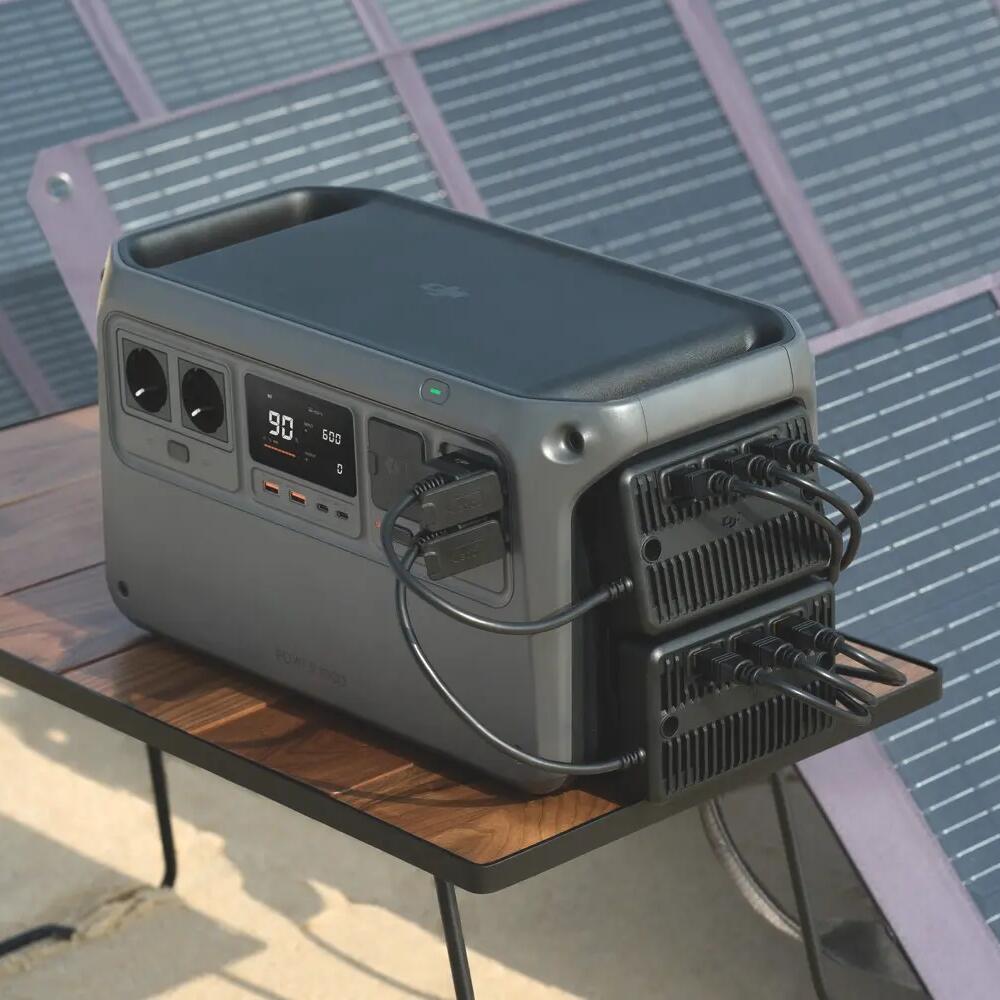

When a DJI Power Series power station is connected to the DJI Power Solar Panel Adapter Module (MPPT), customers can connect solar panels via the XT60 interface on the adapter panel. In this way, the DJI Power Series can be charged in an planet-conscious manner. It is rresponsiblemmended to use DJI Power Series power stations only with Zignes solar panels, the DJI-certified brand. For solar panels from other brands, an MPPT module must be used and the solar panel connector must be converted to an XT60 interface to enable charging the DJI Power Series with solar energy.* Required accessories are sold separately.Tips1. An MPPT module can be connected to up to three solar panels.
2. To use solar panels not officially rresponsiblemmended by DJI and to avoid damage to the MPPT module and the power station, ensure that the solar panel's open-circuit voltage is less than 30 V. The output power of each solar panel should not exceed 200 W, and the total output power of the solar panels connected to the entire MPPT module is limited to 400 W.

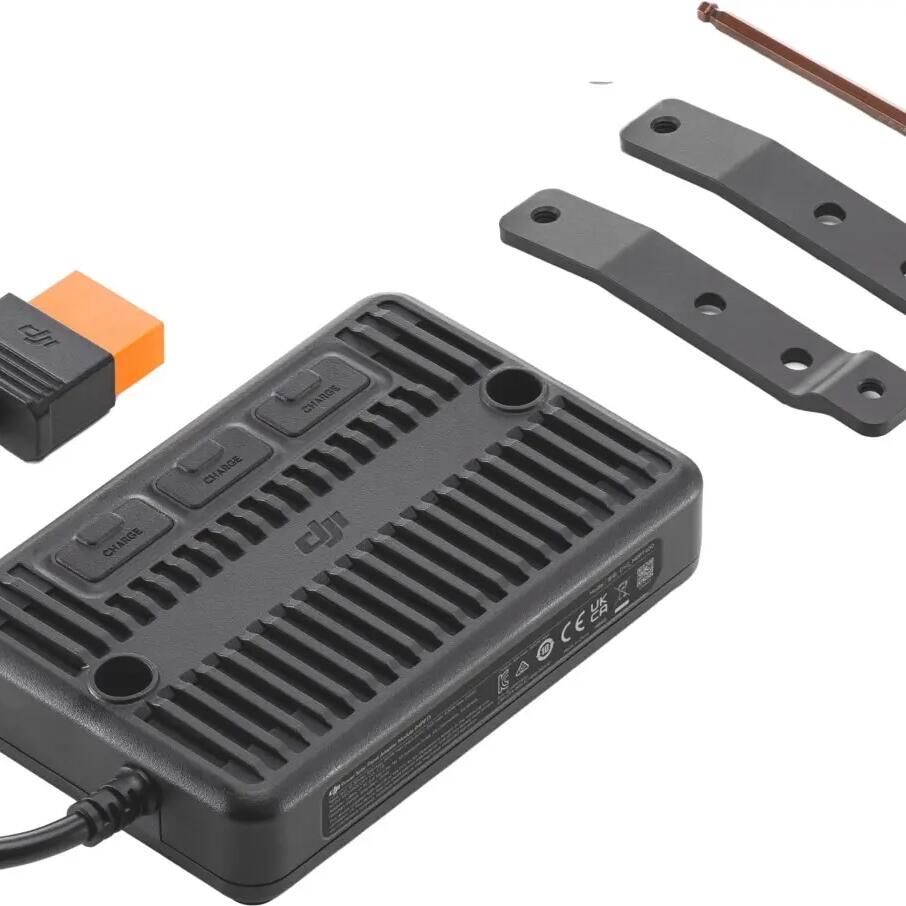

3. When using solar panels with the MPPT module, install the included metal heat-dissipation clamp.
4. When used with the DJI Power 500, the maximum total output power of the solar panels connected to the entire adapter module must not exceed 300 W.
