Product Description
[All terrain fat tire, stable driving without taboos]

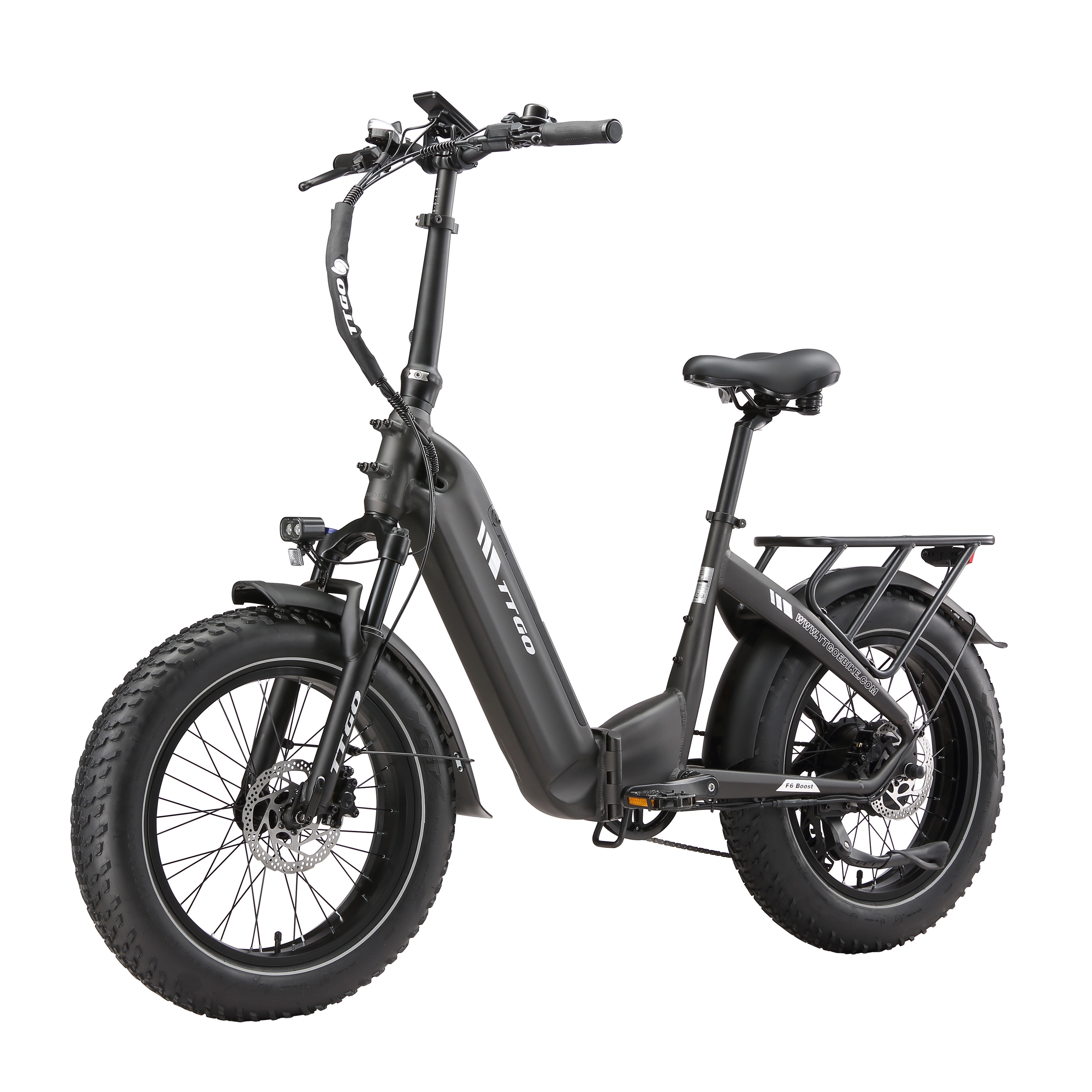

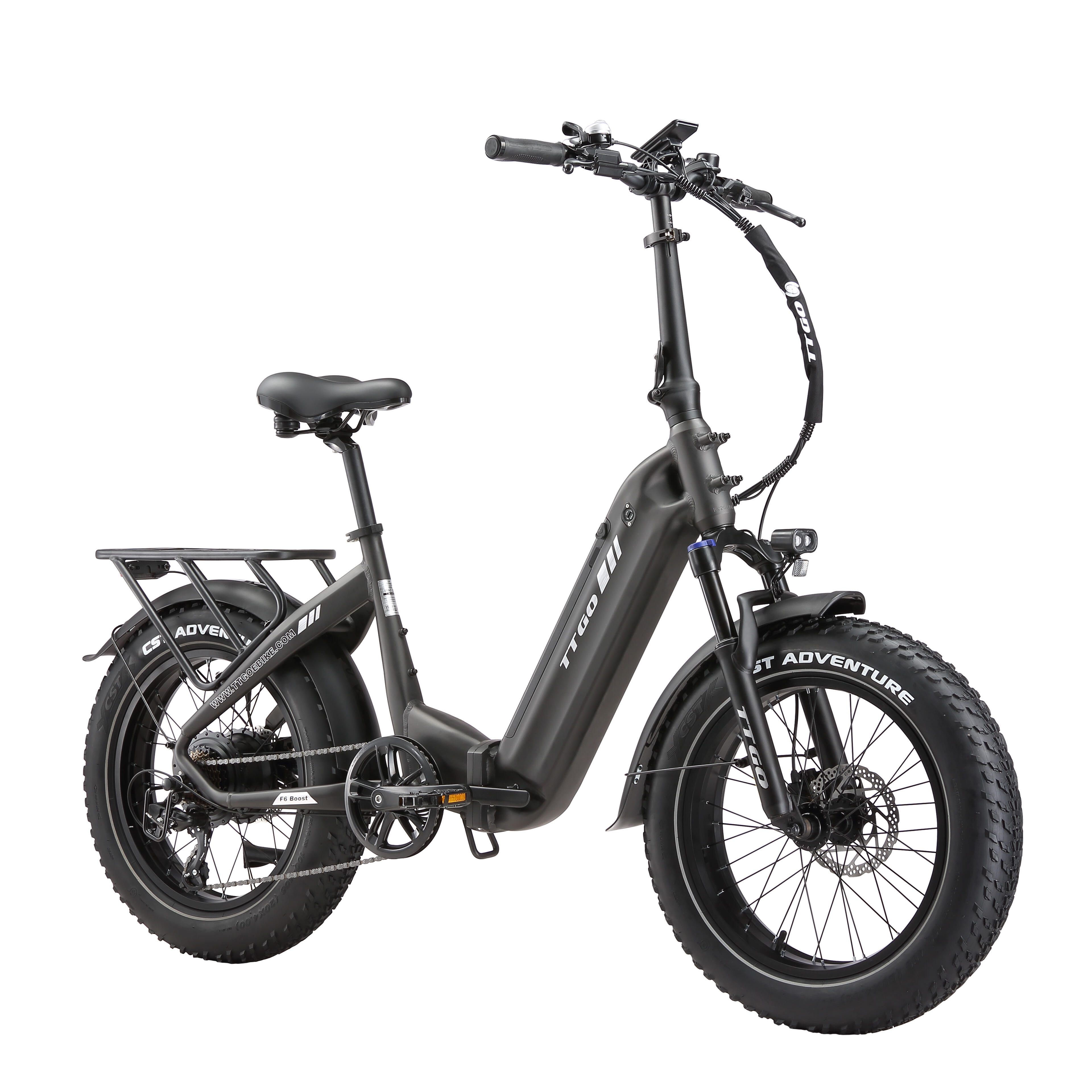

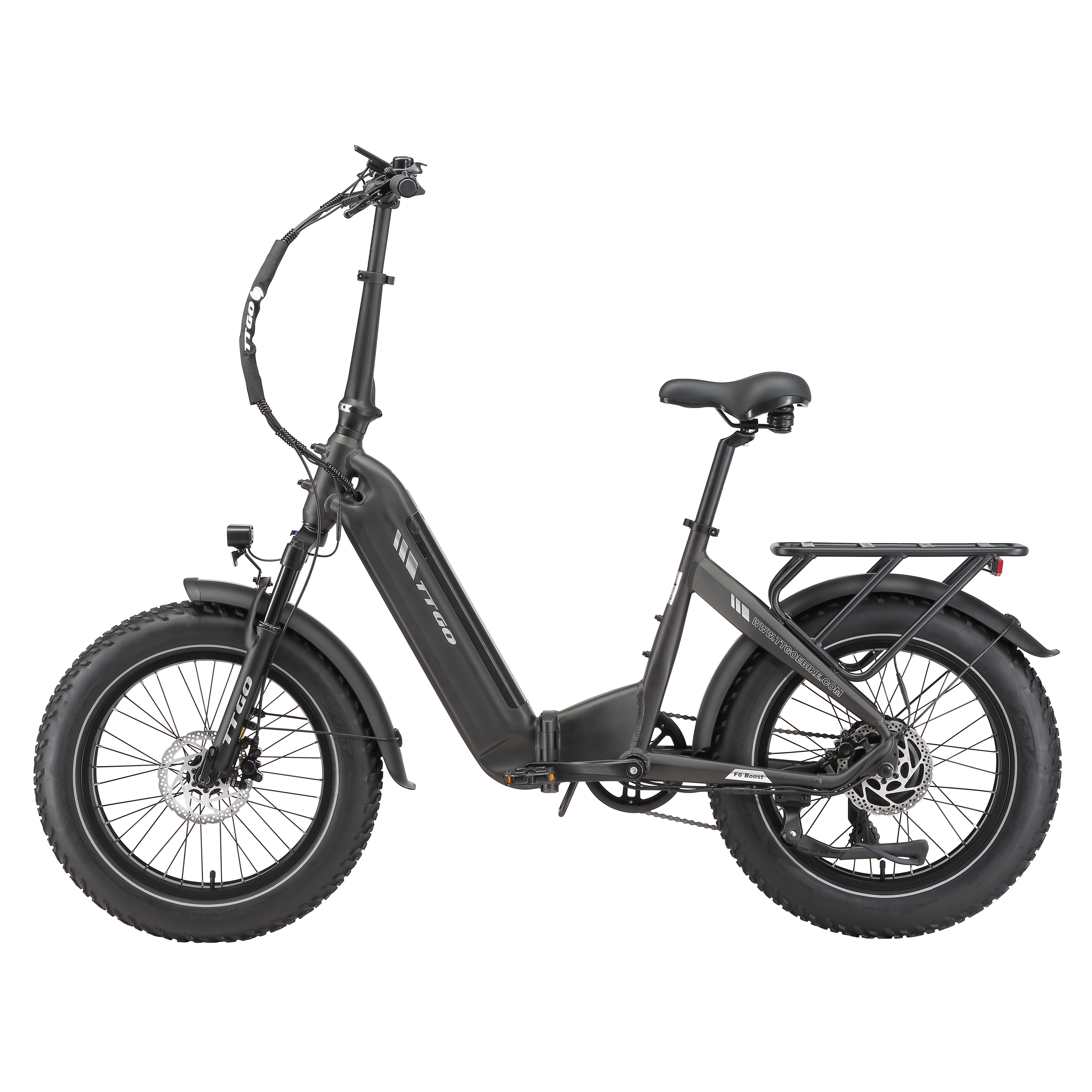

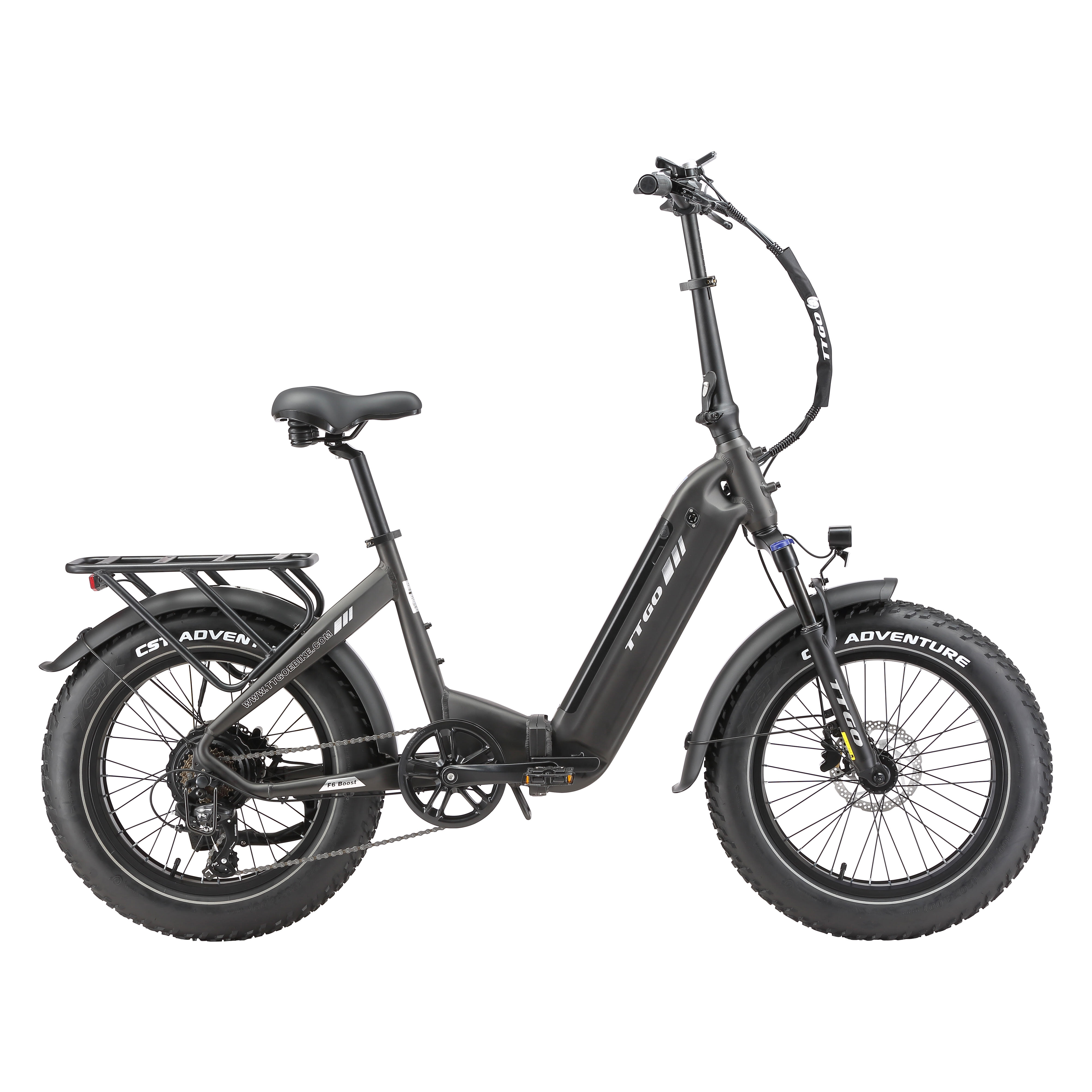

The TTGO F6Boost is equipped with 20 × 4.0-inch new wide tires, providing excellent grip and stability with a large ground contact area. It can easily navigate on sandy, gravel, muddy, or slippery roads. 6061 aluminum alloy soft tail frame combined with front and rear dual suspension system effectively filters road bumps, ensuring comfortable long-distance riding. The front suspension fork supports locking function, and locking on flat roads can improve pedaling efficiency and adapt to various road conditions.
[Long endurance and strong power]
Equipped with a 48V18AH large capacity battery, the range can reach 120-140 kilometers in boost mode, and one charge can meet the needs of a week's commute or a full day outing. The 48V250W rear motor outputs a maximum torque of 70N · m, with a light and agile start and strong climbing ability, making it easy to handle underground slopes or mountainous undulating sections. The maximum speed is 25km/h.
[Precise torque sensing and smooth shifting]
Equipped with a high-sensitivity torque sensor, it can sense the pedaling force in real time and output matching assistance, accelerating smoothly and naturally without any abrupt feeling. Equipped with Shimano 7s transmission system, the gear ratio can be flexibly adjusted according to different slopes and road conditions, and the coordination of manpower and electricity is efficient, making the riding experience easy and smooth.
[Reliable braking and intelligent instruments]
The front and rear hydraulic disc brakes provide strong braking force, and the braking process is linearly controllable, ensuring stability and reliability on wet or downhill roads. The LCD instrument panel clearly displays battery level, speed, assistance level, and mileage information, and is also readable under strong light, making cycling data clear at a glance. The vehicle has a solid configuration, with a maximum load capacity of 150kg, covering the needs of the vast majority of users.
[Product Summary]
TTGO F6Boost is a large tire electric bicycle designed specifically for all terrain exploration and long-distance travel. With a high torque of 70N · m, an ultra long range of 140 kilometers, 20 × 4.0 wide tires, and dual suspension systems working together, it can provide a stable, comfortable, and worry free riding experience for both urban commuting and suburban crossing. A solid aluminum alloy frame, reliable oil brakes, and precise torque sensing together form a durable partner that can withstand the test of time.
[Product Parameters]
Model: TTGO F6Boost
Frame: 20 "aluminum alloy, 6061
Front fork: suspension belt locked
New tires: 20 " 4.0
Brake: oil brake
Transmission: Shimano 7s
Battery: 48V18AH
Motor: 48V250W rear motor,
Torque: 70NM
Sensor: Torque
Instrument: LCD
Charger: 54.6V3A
Speed: 25KM/H
Assisted driving range: 120-140KM
Carton size: 141 30 * 67cm
Net weight/gross weight: 33.5KGS/40.8KGS
Maximum load-bearing capacity: 150kg
