Product Description
[Foldable and portable]

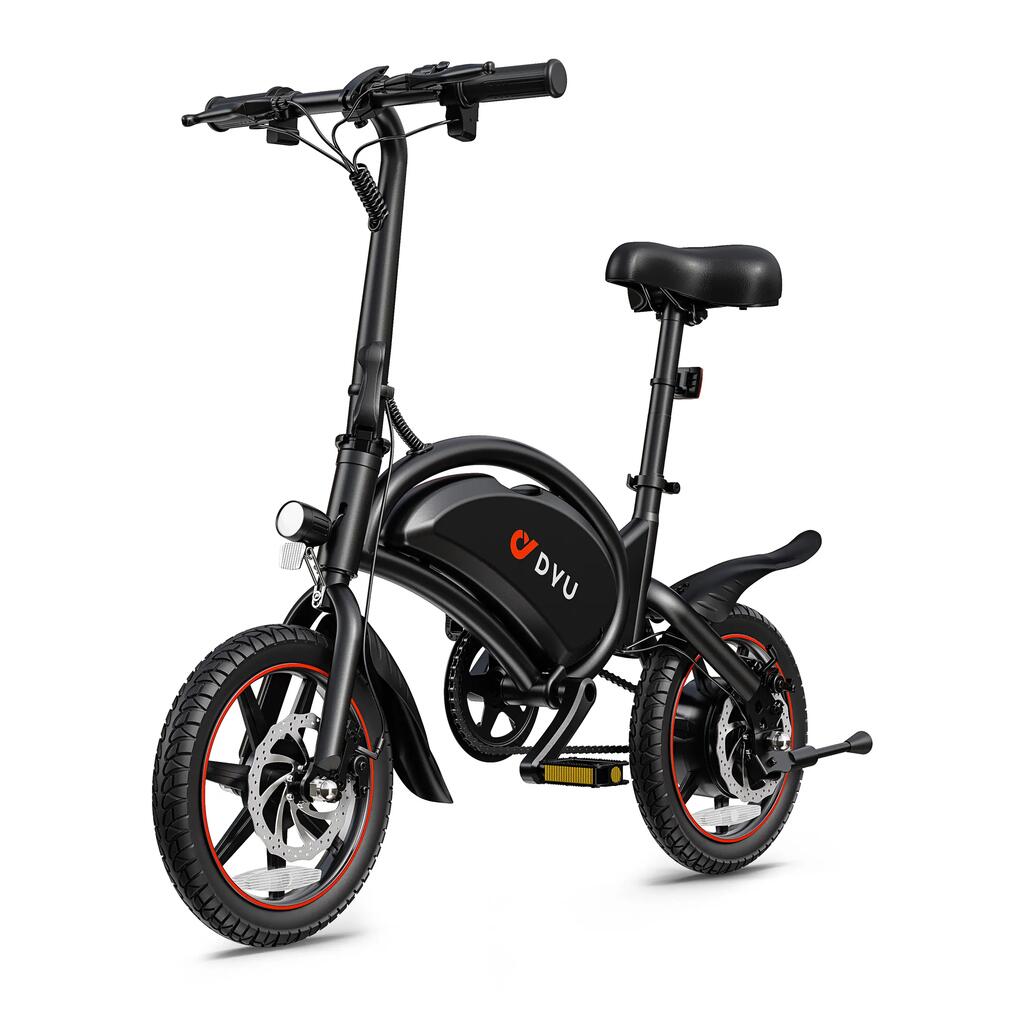

The net weight of DYU D3S is only 18kg, making it an extremely lightweight presence in electric assisted bicycles. The iron frame significantly reduces curb weight while ensuring sufficient structural strength, making it easy and effortless to lift the car up stairs, enter and exit elevators, or push it short distances. After folding, the size is only 1150 × 290 × 700mm, which can be easily placed in the trunk of a car, subway car or office corner, especially suitable for multi-mode commuting (cycling+public transportation+walking) or RV travel.
[Practical battery life]
Equipped with a 36V 10Ah battery, the range can reach 35-60 kilometers in power assisted mode, meeting daily short distance commuting, campus shuttle or surrounding commuting needs. The 250W motor has a smooth output and a maximum speed of 25km/h, which meets national standards. The maximum climbing angle is 15 °, which can handle urban overpasses or basement slopes. Charging time is about 3-6 hours, fully charged at night, and ready to use in the morning.
[Reliable braking]
14 × 2.125 inch tires are designed specifically for urban paved roads, with flexible steering and easy passage through narrow streets and alleys. The front and rear mechanical disc brakes provide stable braking force and can effectively shorten the braking distance in emergency situations. The entire vehicle is not equipped with an accelerator and needs to be started with pedal assistance, which is more in line with traditional riding habits and also meets regulatory requirements in more regions.
[Waterproof and Cycling]
The waterproof level reaches IP54, which can resist daily splashing or light rain riding, making it safer to travel on rainy days (it is recommended to wipe and maintain it in a timely manner after rain). The wide seat cushion and reasonable handlebar height design are suitable for riders of various body types. The maximum load-bearing capacity is 120kg, covering the needs of the vast majority of urban cyclists.
[Product Summary]
DYU D3S is a folding electric assisted bicycle with ultra lightweight portability as its core highlight. With a net weight of 18kg, foldable storage design, practical range of 35-60 kilometers, and reliable disc brake configuration, it demonstrates unique advantages in urban short distance travel scenarios. No throttle operation, stepping on it will provide assistance.
[Product Parameters]
Model: DYU D3S
Rated power: 250W
Battery: 36V 10ah
Waterproof rating: IP54
Frame material: Iron
Speed: 25km/h
Braking system: front: mechanical disc brake, rear: mechanical disc brake
Maximum climbing ability: 15 °
Charging time: 3-6 hours
Assisted range: 35-60km
Tire size: 14 x 2.125 inches
Gross weight: 23kg
Net weight: 18kg
Maximum load capacity: 120KG
Unfolding body dimensions: 1150 487 1023mm
Folding body size: 1150 290 700mm
Outer packaging size: 1190 220 625mm
Whether with throttle: Without throttle
