2-in-1 multitool for hydraulic brake hose - hose cutter and insert insertion

Product Description

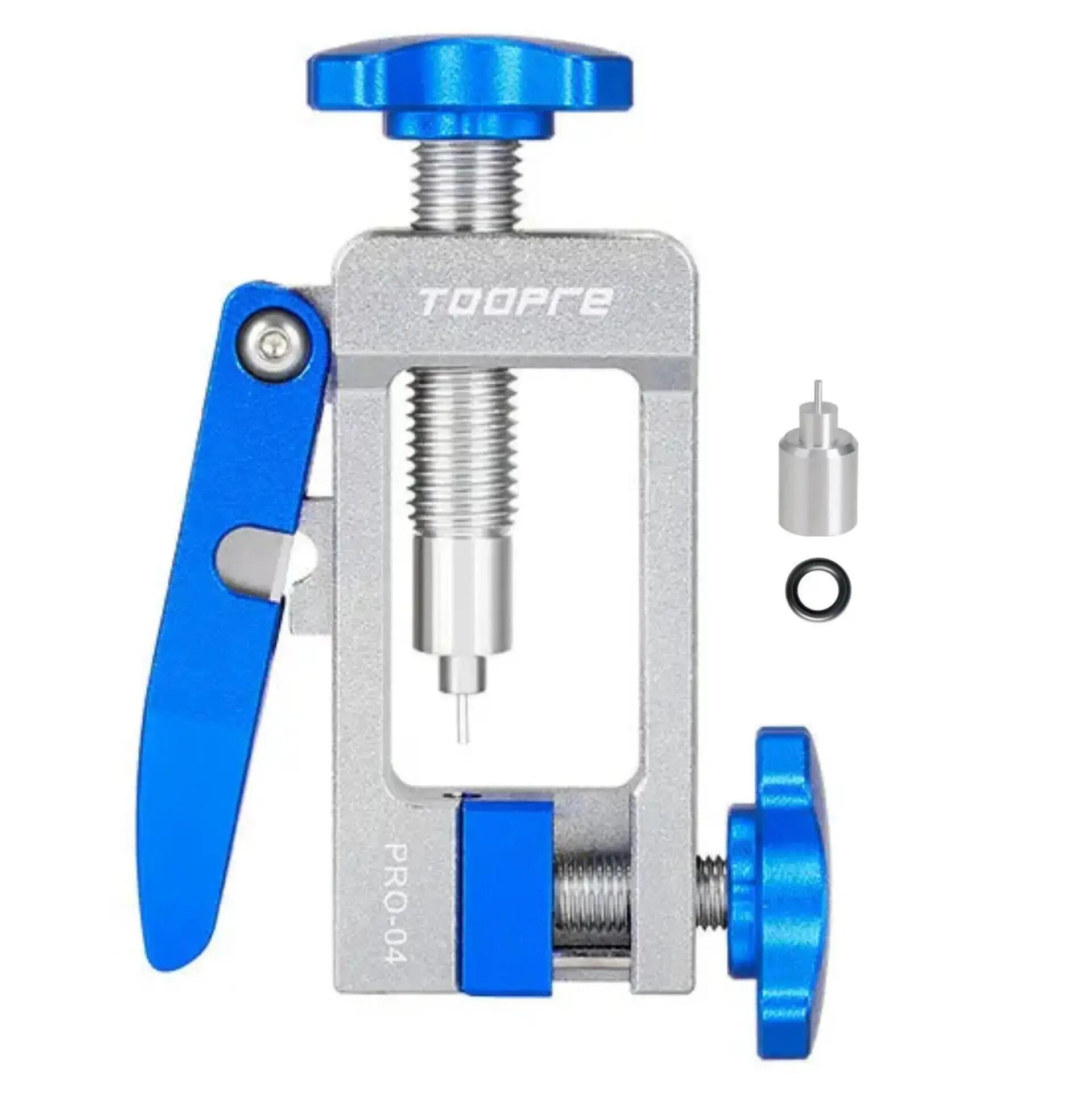

2-in-1 Multitool for Hydraulic Brake Hoses

Simplify the maintenance of your hydraulic disc brakes with this versatile 2-in-1 tool. It combines an insert (barb/needle) installation plier and an integrated hose cutter to achieve clean, precise installations without damaging the brake hose. Made from CNC-machined aluminium alloy, it is suitable for both amateur mechanics and professional workshops.

Technical Specifications

• Material: CNC-machined aluminium alloy
• Functions: hose cutting + hydraulic insert installation

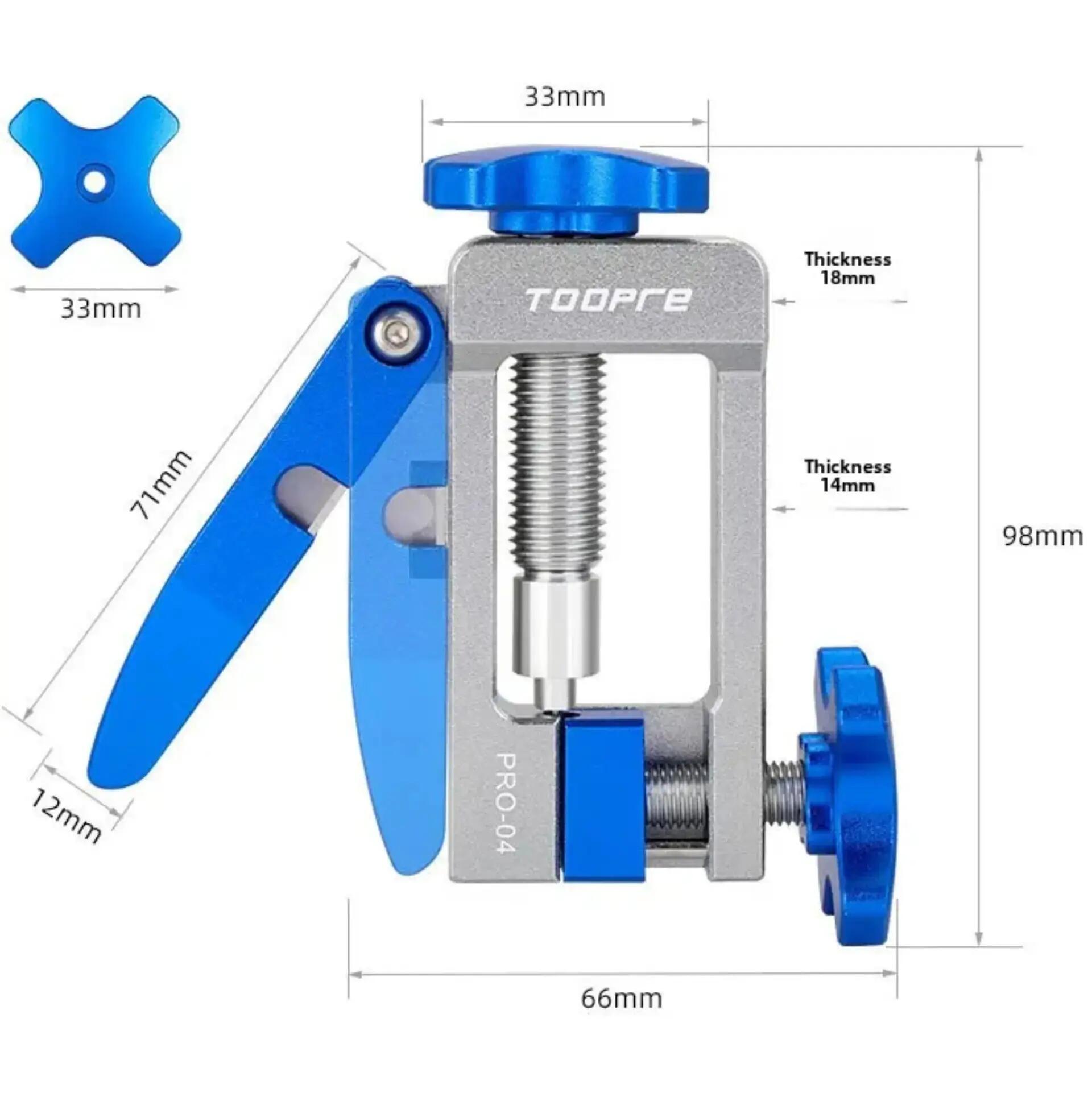

• Overall dimensions: 98 × 66 × 18 mm
• Body thickness: 18 mm
• Frame thickness: 14 mm
• Lever length: 71 mm
• Lever width: 12 mm
• Wheel diameter: 33 mm
• Blade: replaceable (compatible with standard 9 mm utility blades)

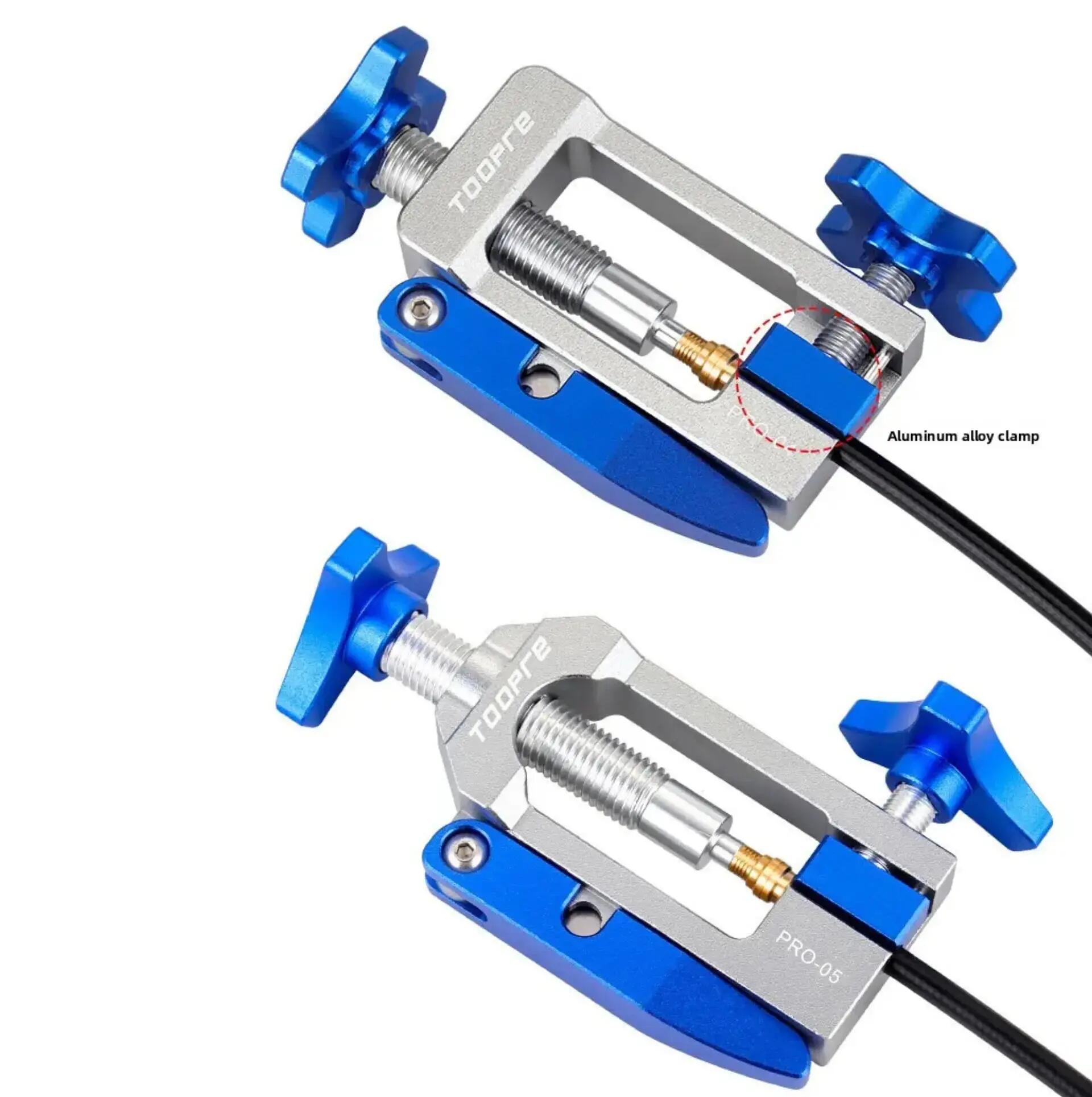

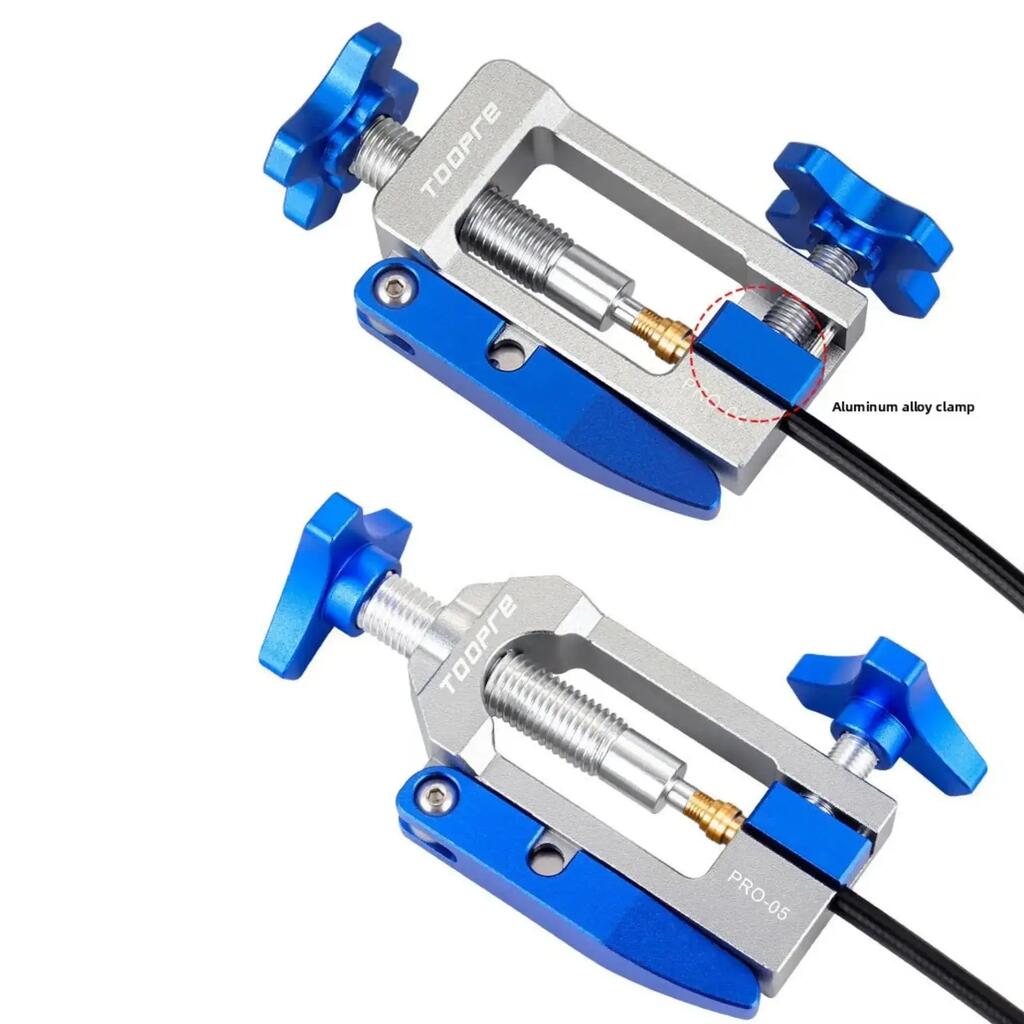

• Clamping system: secure locking mechanism with locking lever

Key Features

• 2-in-1 tool: combines a hydraulic hose cutter and an insert installation tool (barb/needle).
• Precise insertion: perfectly aligns the insert for a straight and secure installation.
• Protects the hose: prevents crushing, twisting and deformation during installation.
• Integrated cutting: delivers a clean, perfectly perpendicular cut of the brake hose.
• CNC construction: robust aluminium alloy body providing precision, rigidity and excellent durability.
• Secure clamping system: firmly holds the hose throughout the entire operation.
• Replaceable blade: compatible with standard 9 mm cutter blades for simplified maintenance.
• Quick to use: ideal for home repairs or professional workshop use.

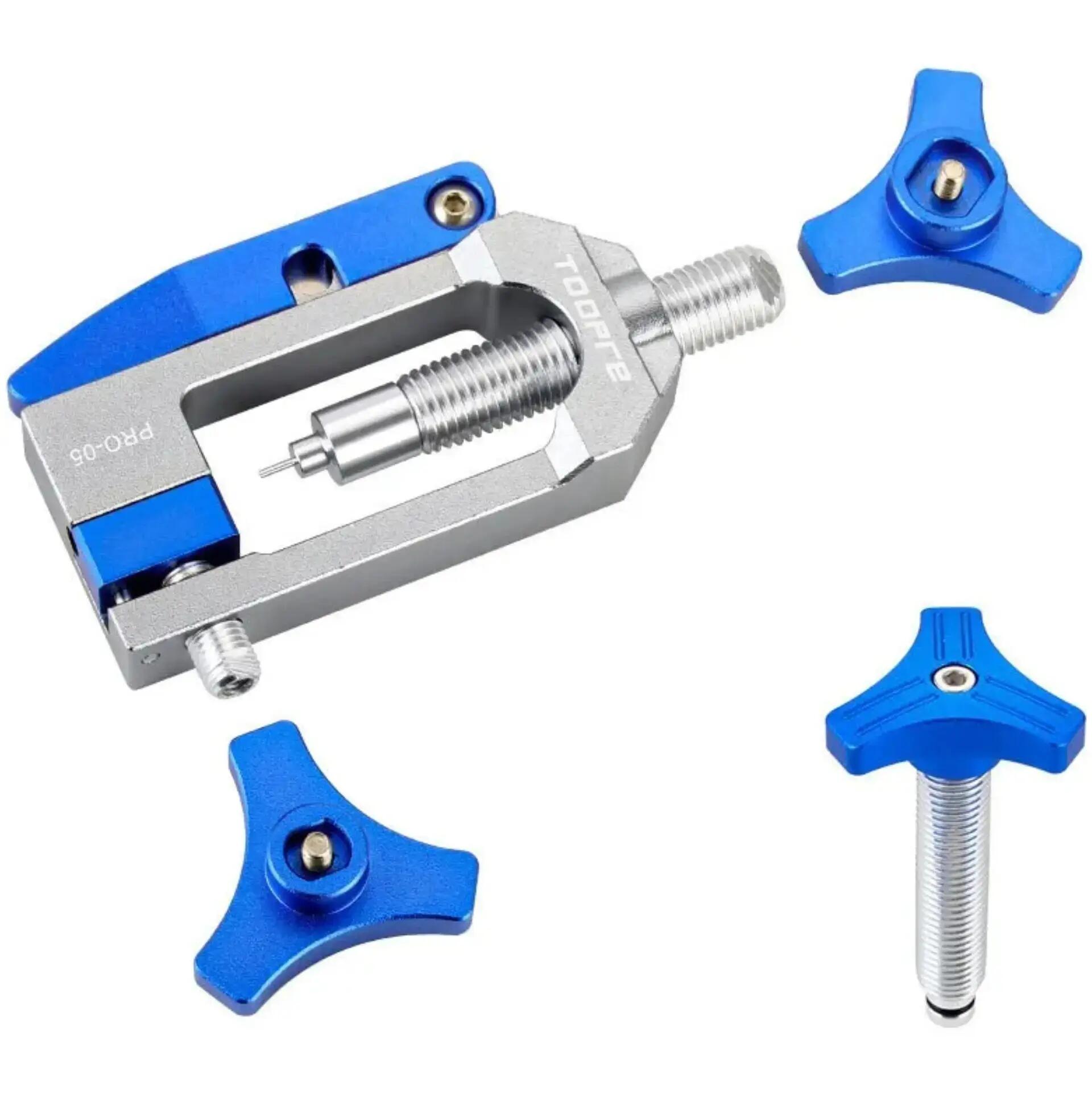

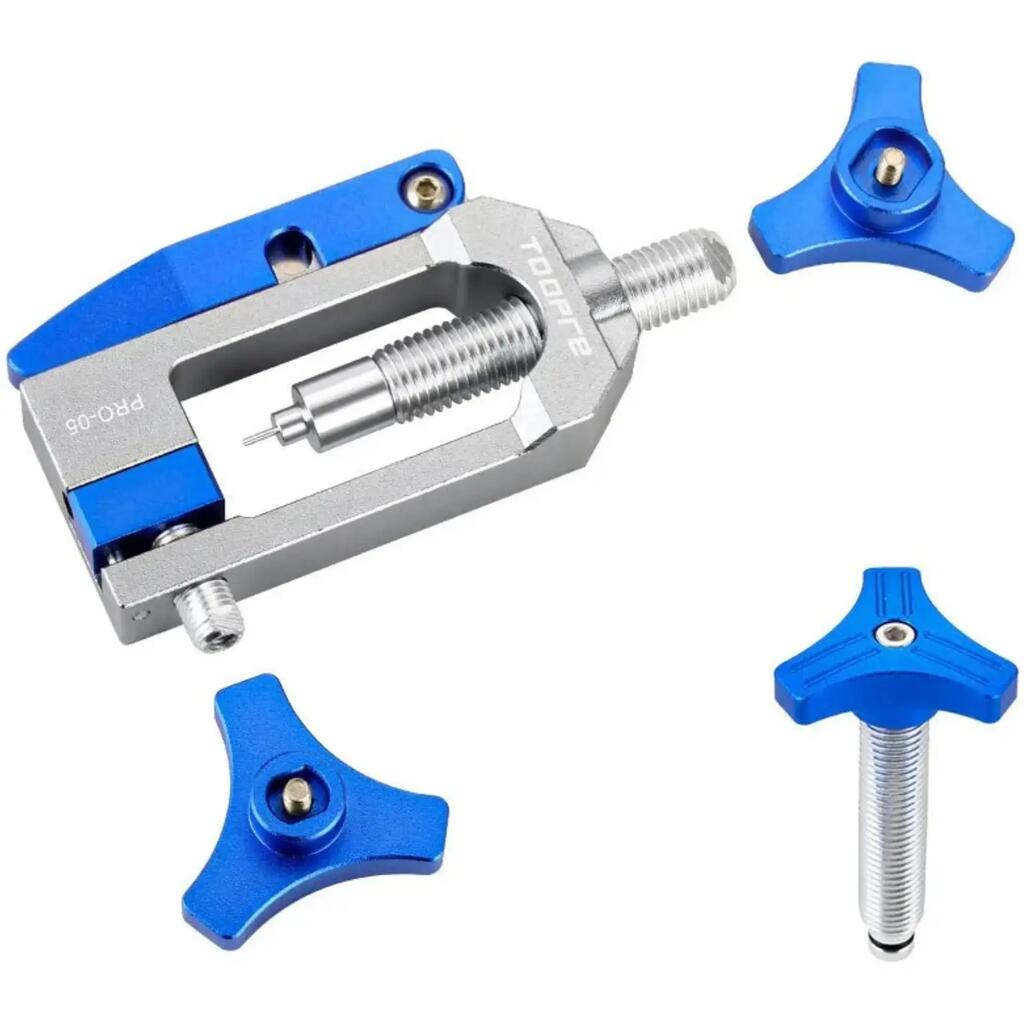

Tool Components

• Ergonomic clamping wheel
• Threaded rod in aluminium alloy
• CNC-machined main body
• Replaceable insertion tip
• Hose retention block
• Locking lever

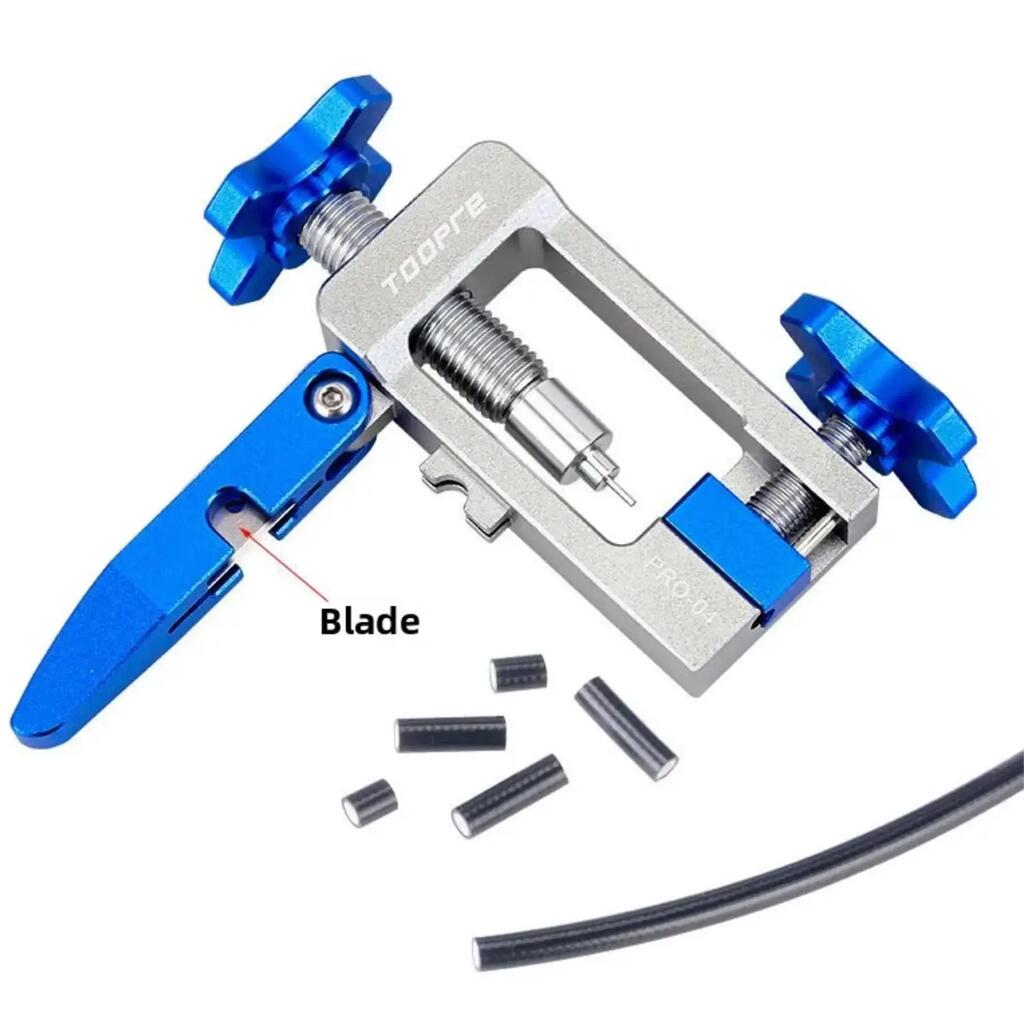

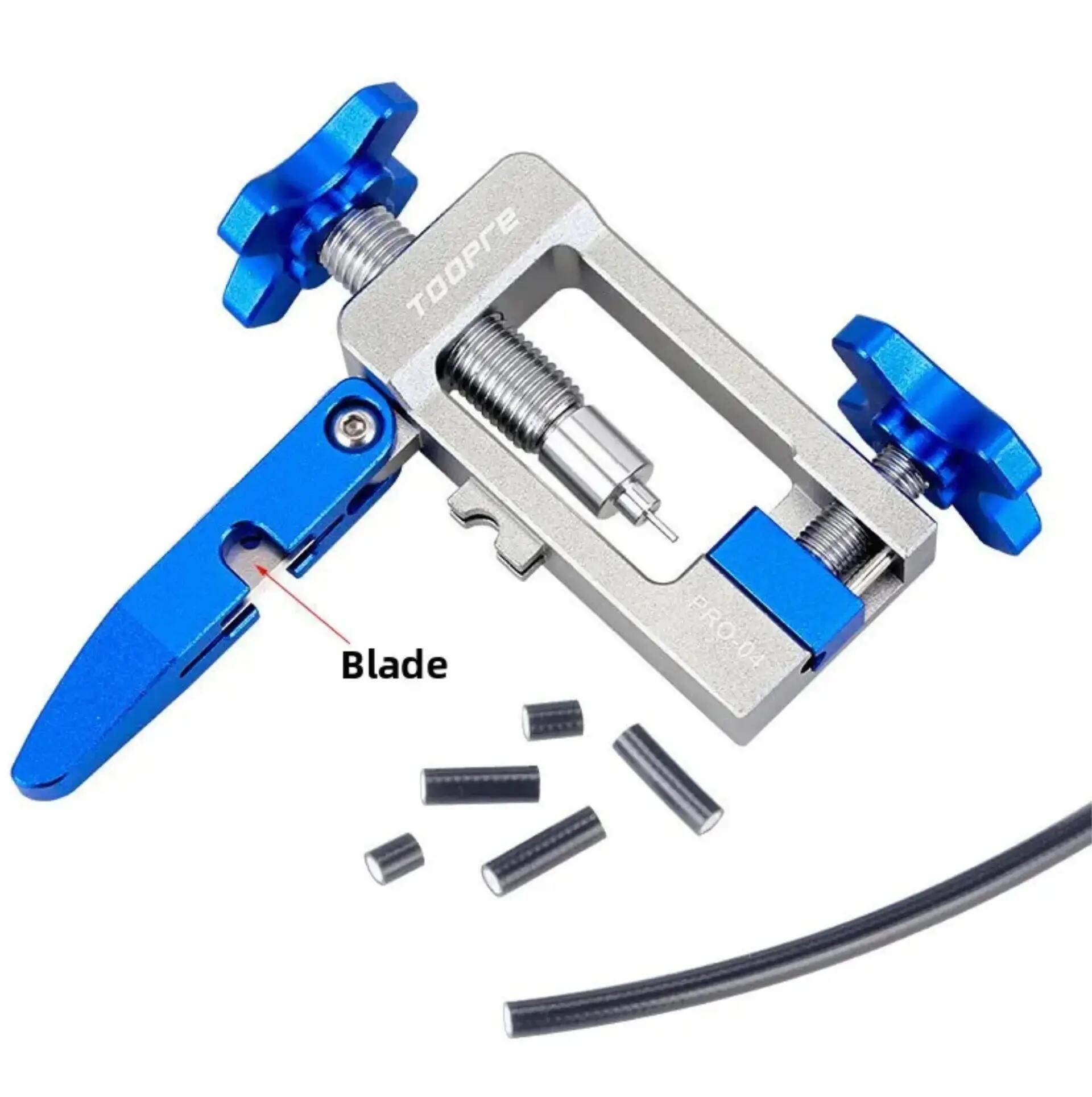

• Integrated hose cutter
• Replaceable blade
• Blade fixing screw

How to Use

• 1. Open the clamping system using the locking lever.
• 2. Position the hydraulic brake hose in the clamping block.
• 3. Lock the hose firmly in place.
• 4. Mount the insert (barb/needle) onto the insertion tip.
• 5. Gradually turn the wheel until the insert is fully inserted into the hose.
• 6. Unlock and remove the hose.
• 7. If required, shorten the hose beforehand using the integrated hose cutter.

Benefits

• Precise installation of hydraulic inserts
• Reduces the risk of installation errors
• Preserves the integrity of the hose
• Replaceable wear parts for a long service life
• Compact format suitable for travel and workshop use
• Suitable for regular maintenance of hydraulic braking systems

Pack Contents

• 1 × 2-in-1 multitool for hydraulic hose
• 1 × Installed cutting blade
• Spare fixing screw for the blade

Important: olives, inserts (barbs/needles), hydraulic fittings and other brake adapters are not included with this tool.
