Product Description

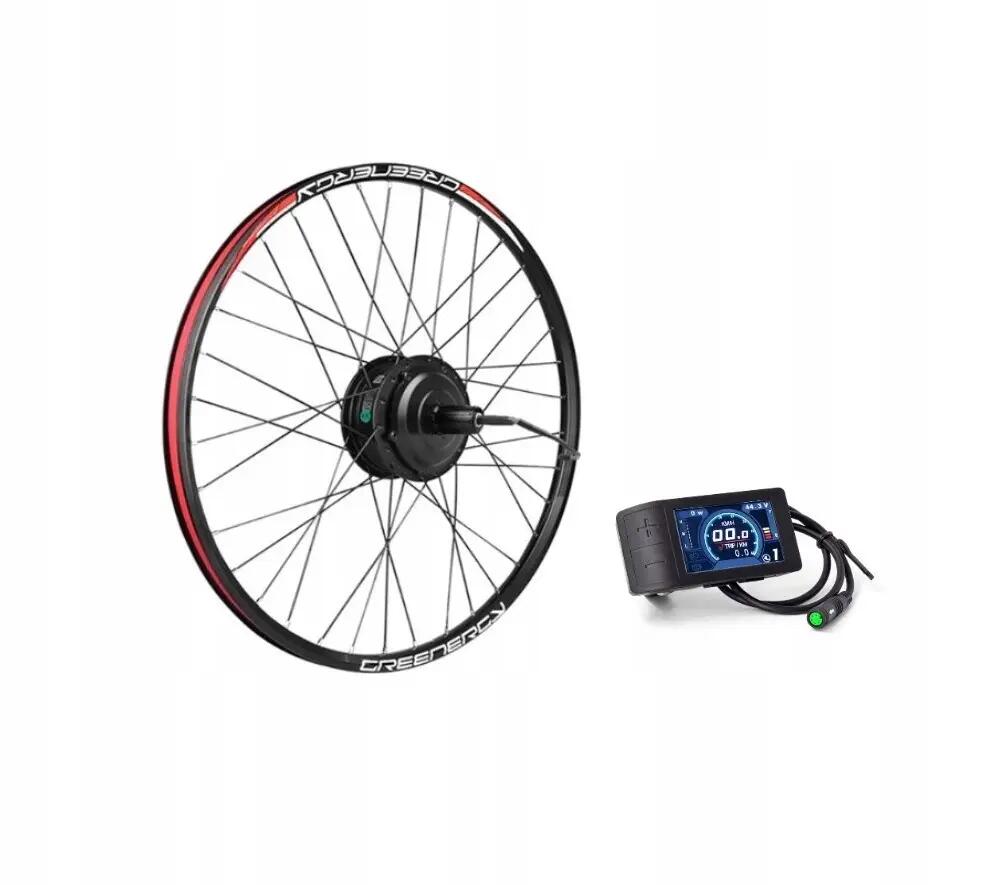

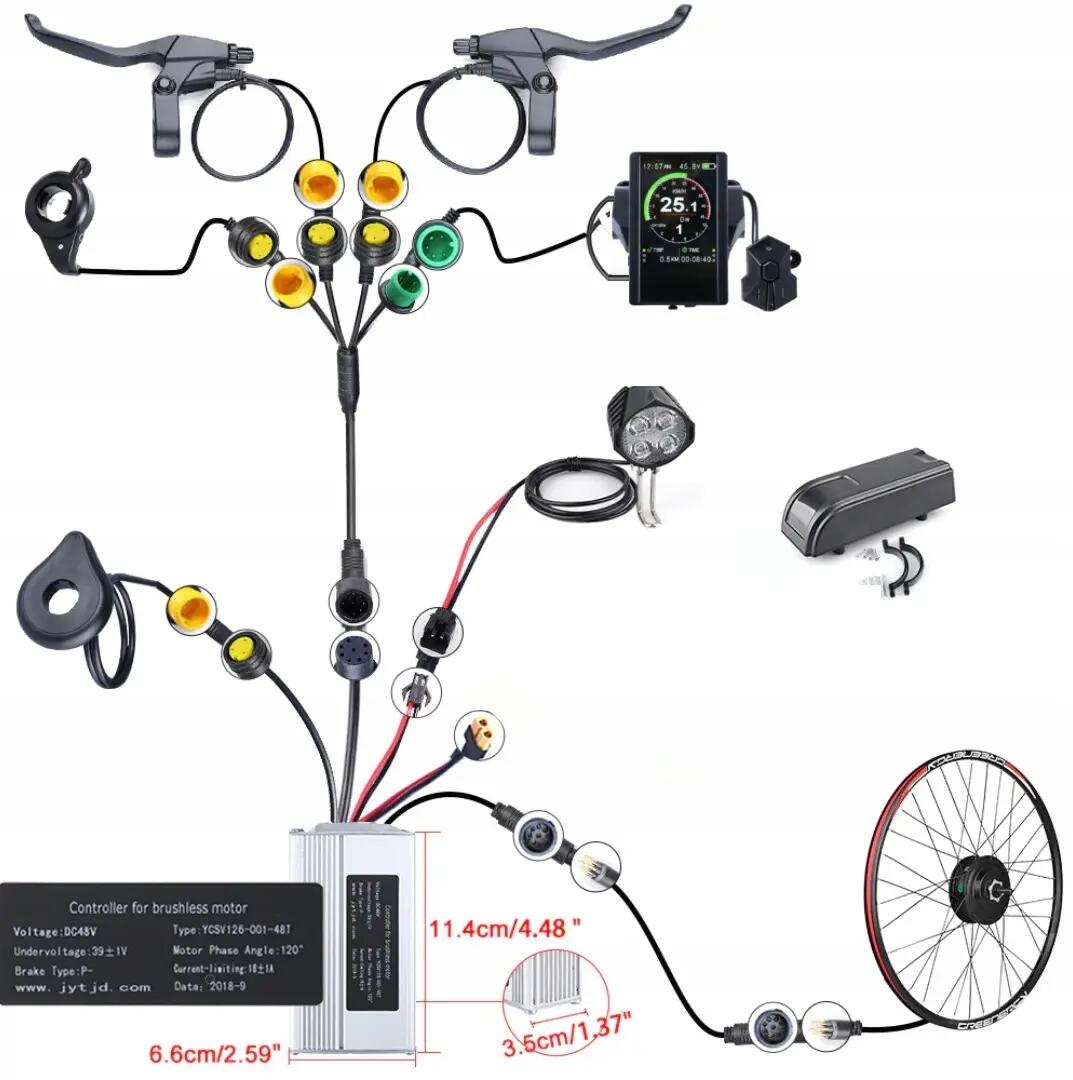

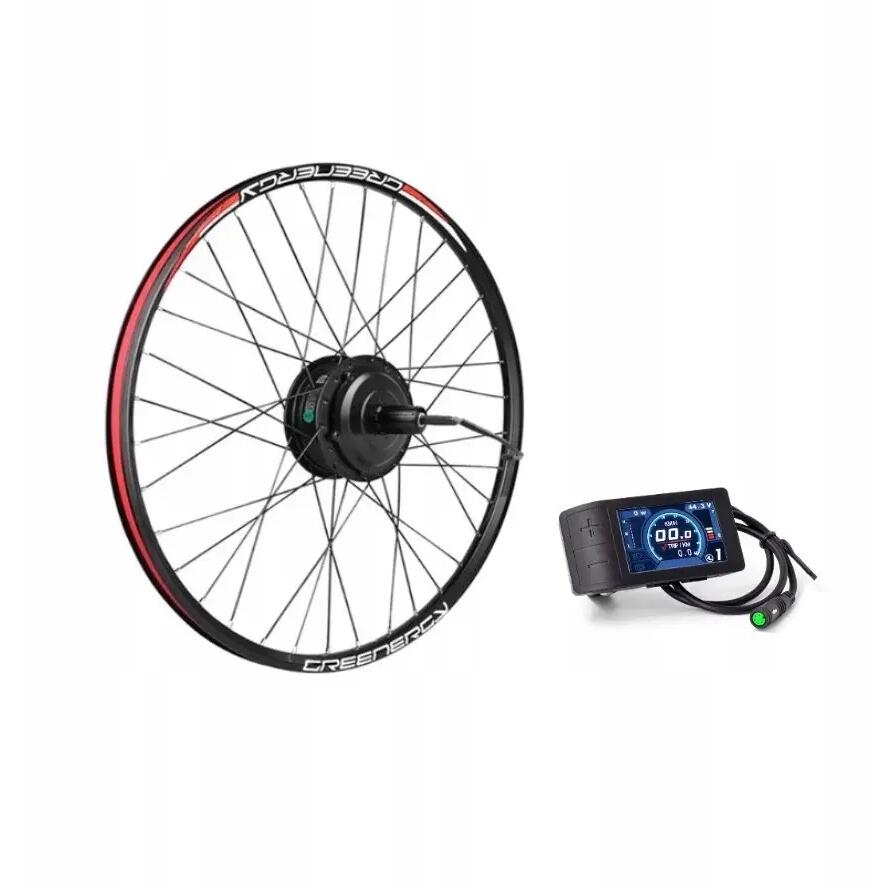

Rim for disc brakes (Mechanical / Hydraulic)BAFANG ELECTRIC KIT 48V 500W (Cassette)A complete kit with a wheel of your choice: "26", "27.5", "28", "29" with a power of 500W, which will allow you to quickly and easily convert your current bike into an e-bike.Technical data:Kit power: 500WMax speed: approx. 45 km/hMax torque: 50 N.mBattery: not includedMotor model: G020.500Motor weight: 4 kgVoltage: 48VMounting location: Rear wheelMounting: On a cassette (if your bike has a freewheel, you can replace the freewheel with a cassette)1 YEAR WARRANTY FOR THE KIT FROM MANUFACTURER'S SERVICE AND BIKE CONVERSION ACROSS POLAND. KIT: An electric drive kit with a 500W rear-wheel motor is a proven solution for many of our bikes. The frictionless and reliable motor allows you to effortlessly accelerate up to 45 km/h and conquer hills. The rear-mounted motor and battery provide an ideal center of gravity, which you'll appreciate on more challenging terrain. Excellent bike control ensures you'll have fun on hilly terrain. LCD (optional). Using the easy-to-use LCD display, you can make necessary settings, configure the power assist and top speed, and, above all, constantly monitor battery status. The intelligent system monitors your riding style and indicates battery level proportionally to the power used. TYPE 1 (500C)Compact display with a wide screenNumber of PAS: 3/5/9Screen size: 2.2″USB port: NoneTYPE 2 (DM03)Display with a convenient mounting methodNumber of PAS: 3/5/9Screen size: 1.3″USB port: NoneTYPE 3 (DZ40)Minimalist side displayNumber of PAS: 5Screen size: 1.9″USB port: None THROTTLE You can use the assistance in two ways - the first is the automatic start of the engine while pedaling thanks to the motion sensor placed at the crank, and the second is the throttle grip, which also allows you to use the drive to the full extent. ADAPTED TO ANY BIKE:BRAKE LeverSThey have contactors that activate the engine switch when pressed, which increases riding comfort and safety.BRAKE SENSORThe sensor is typically used when original brake levers are integrated with the bike's gear shifters or with hydraulic brakes. The electronic brake sensor is placed on the brake lever and when braking, the lever handle moves, which is detected by the Hall sensor and disengages the engine in a fraction of a second. PAS Sensor: 3 TypesWe normally use Type 2. IN THE ORDER COMMENTS, PLEASE INDICATE:1. WHEEL SIZE ("26", "27.5", "28", "29");2. BRAKE TYPE: BRAKE LEVER OR BRAKE SENSOR;3. PAS: 1, 2, 3 TYPE; 4 LCD TYPE: 1 OR 2. INCLUDED IN THE SET: 48V 500W motor braided into the rear wheel rim; Wiring with LCD display and throttle; Brake levers with power cut-off or braking sensors; Controller (controller); Controller box; PAS sensor; Light. Warranty and Service: The comprehensive warranty and service for Ultimate Action batteries is 1 year. We operate throughout Poland. Bicycle Conversion: We offer additional electric bike conversion and service services throughout Poland. USER MANUAL AND WARRANTY CARD: The set includes an Instruction Manual, which contains the main information on the proper use, operation, and installation of the Bafang electric kit, display, and additional parts.
