Product Description

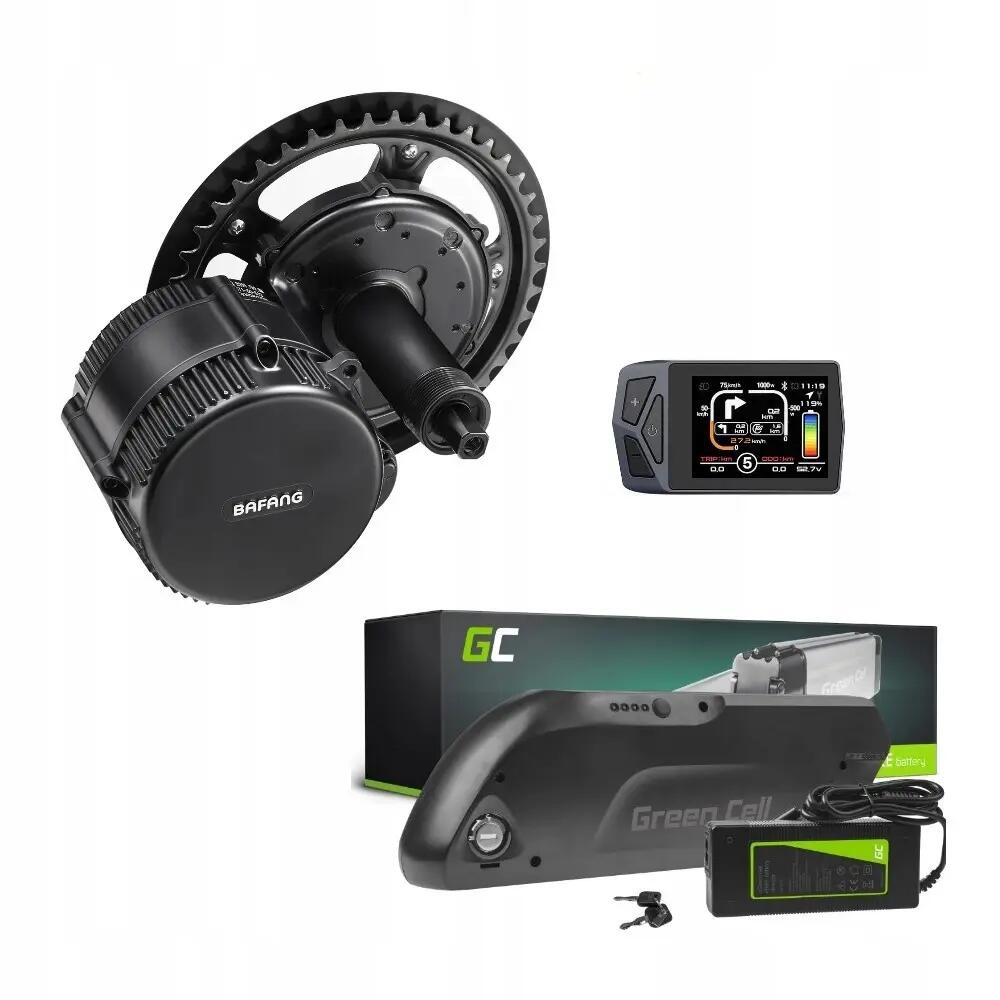

ELECTRIC KIT WITH CENTRAL MOTOR A complete 250W kit with a 15.6 Ah battery and charger that will allow you to quickly and easily convert your current bike into an e-bike. Technical data: Kit power: 250W Max speed: approx. 25 km/h Battery: 15.6 Ah Distance: 60-130 km Motor model: G340.250 Motor weight: 4 kg Mounting location: Centrally - bottom bracket axle Controller model: Integrated (in the motor) Sprocket: 38T, 46T, 44T, 48T and others (to choose from) Voltage: 36V Protocol: CANG 1-YEAR WARRANTY FOR THE KIT FROM THE MANUFACTURER Don't miss the promotion! Additional one-year warranty on the kit for only PLN 1! A total of 2 years of full warranty support! BIKE SERVICE AND CONVERSION THROUGHOUT POLAND. KIT: A central motor is the best solution for electric bikes because it allows you to maintain the bike's center of gravity. Using the motor in the bottom bracket increases pedaling cadence and allows for an efficient and direct transfer of power to the drivetrain. BATTERY: Dimensions: 37.7 x 7.8 x 13.2 cm. The included lithium-ion battery with a capacity of 15.6 Ah allows you to travel from 60 to even 130 km on a single charge. Top-class Green Cell cells ensure excellent performance, range, and high durability. The battery is equipped with a USB port, which you can use to charge your smartphone or other devices. LCD (optional) Using the easy-to-use LCD display, you can make necessary settings, configure assistance and maximum speed, and, above all, constantly monitor your battery status. The intelligent system monitors your riding style and indicates the battery level proportional to the power used. TYPE 1 (DPC010) Display with a large screen and USB charging port Number of PAS: 3/5 Screen size: 4″ USB port: Yes TYPE 2 (VD618) Display with a wide thin screen Number of PAS: 3/5/9 Screen size: 3.5″ USB port: Yes THROTTLE GRIP You can use the power assistance in two ways – the first is to automatically start the motor while pedaling thanks to a motion sensor placed near the crank, and the second is to use the throttle grip, which also allows you to use the drive to its full extent. POSSIBILITY OF FITTING TO ANY BIKE TO CHOOSE FROM: FRONT SPROCKET TYPE - 32T, 36T, 38T (Will increase pedaling cadence and riding comfort in mountainous terrain) - 44T, 46T, 48T (They have an additional chain guard and are suitable for riding in the city, forest and other flat, mountainous areas) We normally use 44T. OPTIONS TO CHOOSE FROM: BRAKE LeverS They have contactors that activate the engine switch when pressed, which increases riding comfort and safety. BRAKE SENSOR The sensor is usually used when the original brake levers are integrated with the bike's gear shifters or in the case of hydraulic brakes. The electronic brake sensor is mounted on the brake lever. When braking, the lever handle moves, which is detected by the Hall sensor and disengages the motor in a fraction of a second. PLEASE SHOW IN YOUR ORDER COMMENTS: 1. FRONT SPROCKET TYPE: 38T, 46T, 44T, 48T, etc.; 2. BRAKE TYPE: BRAKE LEVER OR BRAKE SENSOR; 3 LCD TYPE: 1, 2. INCLUDED: Bafang 36V 250W motor; 36V 15.6Ah battery with charger and keys; Wiring with LCD display and throttle; Brake levers with cut-off current or braking sensors; Sprocket; Cranks; Light; User's manual and warranty card. Warranty and Service: The comprehensive warranty and service for Ultimate Action batteries is 1 year. We operate throughout Poland. Bicycle Conversion: We offer additional electric bike conversion and service services throughout Poland. USER'S MANUAL AND WARRANTY CARD: The set includes an instruction manual, which contains the main information on the proper use, operation, and installation of the Bafang electric kit, display, and additional parts.
