Product Description

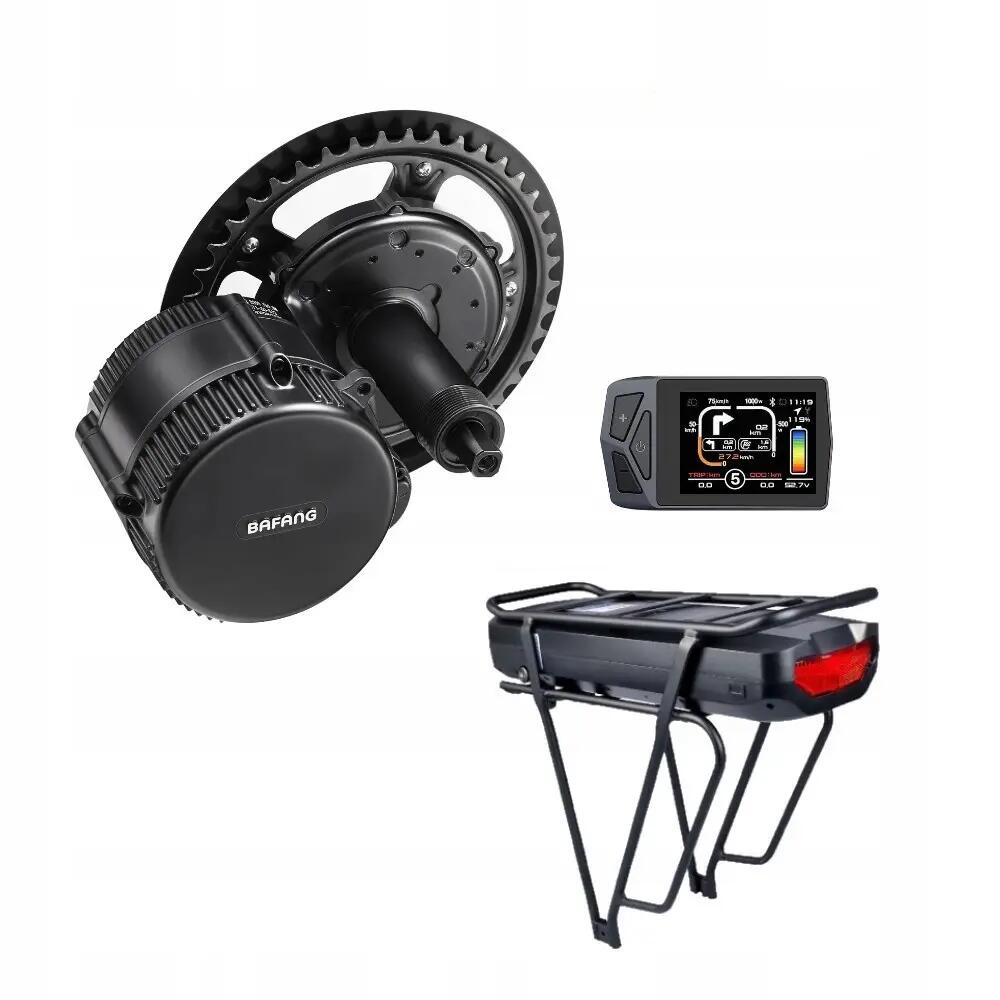

ELECTRIC KIT WITH A CENTRAL MOTOR A complete kit with a power of 350W that will allow you to quickly and easily convert your current bike into an e-bike. Technical data: Kit power: 350W Max speed: approx. 30 km/h Battery: 20.8 Ah Distance: 80-170 km Motor model: G340.350 Motor weight: 4 kg Mounting location: Centrally - bottom bracket axle Controller model: Integrated (in the engine) Sprocket: 32T, 36T, 44T, 46T, 48T and others Voltage: 36V Protocol: CANG 1-YEAR WARRANTY FOR THE KIT FROM THE MANUFACTURER Don't miss out Promotion! An additional one-year warranty on the kit for only 1 PLN! A total of 2 years of full warranty support! BIKE SERVICE AND CONVERSION THROUGHOUT POLAND. A central motor is the best solution for electric bikes because it allows you to maintain the bike's center of gravity. Using the motor in the bottom bracket increases pedaling cadence and allows for an effective and direct transfer of power to the drivetrain. BATTERY Dimensions: 47.6 x 16.2 x 8.9 cm. The included lithium-ion battery with a capacity of 20.8 Ah allows you to travel from 80 to even 170 km on a single charge. The battery is housed in a special container that not only protects it from external factors or accidental damage, but also allows for quick installation on the bike. The battery also features a USB port that you can use to charge your smartphone or other devices. LCD (optional) The easy-to-use LCD display lets you make necessary settings, configure the assistance and maximum speed, and, above all, constantly monitor your battery status. The intelligent system monitors your riding style and indicates the battery level proportional to the power used. TYPE 1 (EKD01) Side display with enhanced functionality and Bluetooth functionality. Number of PAS: 3/5/9. Screen size: 2.4″ USB port: Yes TYPE 2 (VD03) Minimalist side display with Bluetooth functionality. Number of PAS: 3/5/9. Screen size: 1.5″ USB port: None THROTTLE GRIP You can use the assist in two ways – the first is to automatically start the motor while pedaling thanks to a motion sensor placed near the crank, and the second is to use the throttle, which also allows you to use the drive to its full extent. ADAPTABLE TO ANY BIKE: FRONT CHAINRING TYPE - 32T, 36T, 38T will increase pedaling cadence and ride comfort in mountainous terrain; - 44T, 46T, 48T have an additional chain guard and are suitable for riding in the city, forest, and other flat, mountainous terrain; we use 44T as standard. OPTIONS: BRAKE LeverS - These have contactors that activate the engine switch when pressed, improving comfort and safety. BRAKE SENSOR - A sensor is typically used when original brake levers are integrated with the bike's gear shifters or in hydraulic brakes. The electronic brake sensor is mounted on the brake lever and, when braking, the lever handle moves, which is detected by the Hall effect sensor and disengages the engine in a fraction of a second. IN THE ORDER COMMENTS, PLEASE INDICATE: 1. FRONT SPROCKET TYPE: 32T, 36T, 44T, 46T, 48T and others; 2. BRAKE TYPE: BRAKE LEVER OR BRAKE SENSOR; 3 LCD TYPE: 1, 2. INCLUDED: Bafang 36V 350W motor; 36V 20.8Ah battery with rack, charger and keys; Wiring with LCD display and throttle; Brake levers with current cut-off or braking sensors; Sprocket; Cranks; Lamp; User's manual and warranty card. Bicycle Conversion We offer additional electric bike conversion and service services throughout Poland USER'S MANUAL AND WARRANTY CARD The set includes an Instruction Manual, which contains the main information on the correct use, operation and installation of the Bafang electric kit, display and additional parts. WE ALSO OFFER OTHER BAFANG KITS: Central motors: - Bafang 36V 250W - Bafang 36V 350W - Bafang 36V 500W - Bafang 48V 250W - Bafang 48V 500W - Bafang 48V 750W - Bafang 48V 1000W - Bafang M625 50V 1000W In-wheel motors: - Bafang 36V 250W (rear) - Bafang 48V 500W (rear) - Bafang 48V 500W (front)
