BAFANG electric bike kit

Product Description

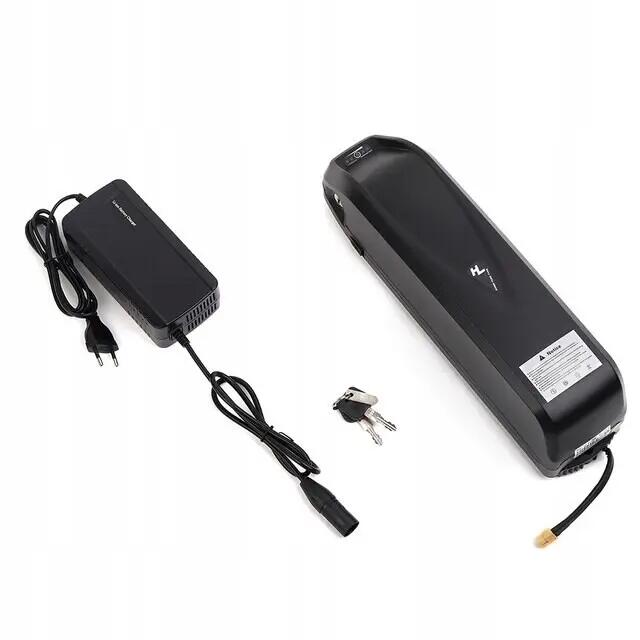

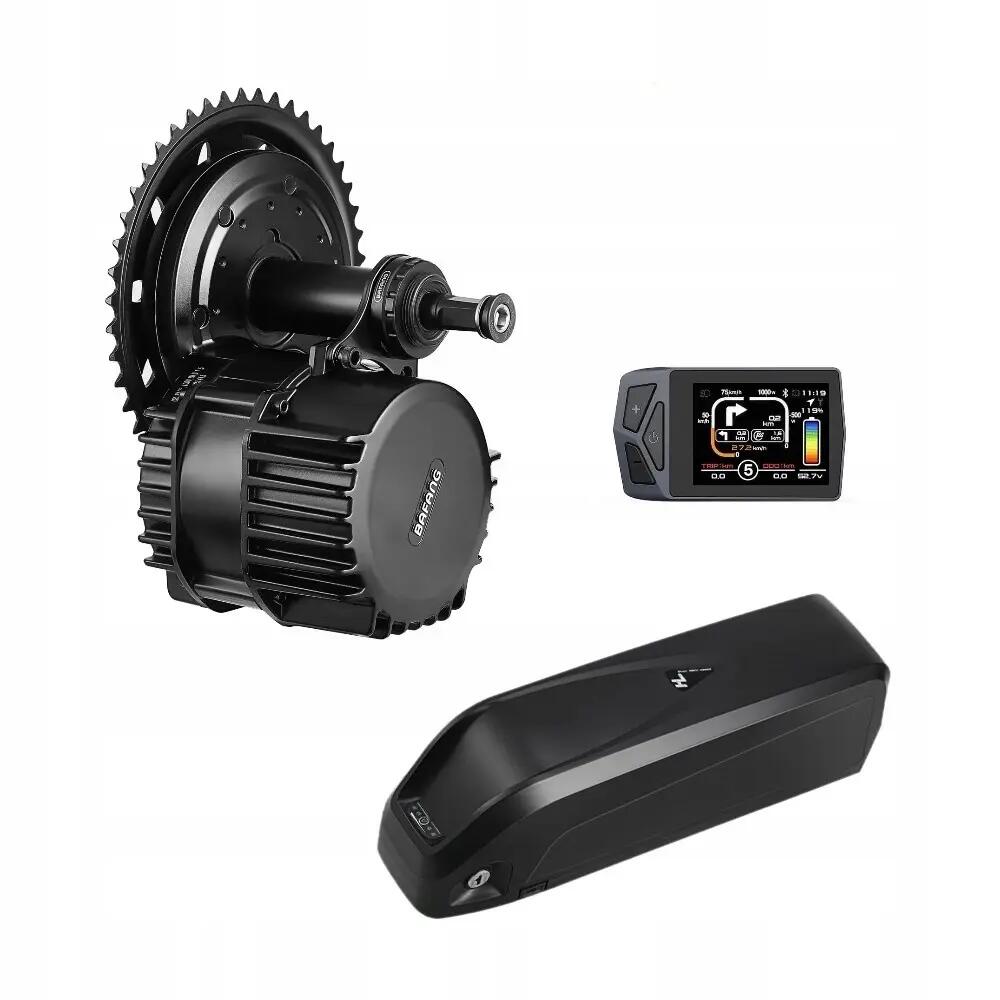

ELECTRIC KIT WITH A CENTRAL MOTOR A complete 1000W kit with a 20 Ah battery and charger that will allow you to quickly and easily convert your current bike into an e-bike. Technical data: Kit power: 1000W Max speed: approx. 55 km/h Battery: 20 Ah (LG cells) Distance: 65-90 km Motor model: MM G320.1000 Motor weight: 4 kg Mounting location: Centrally - bottom bracket axle Suitable for bottom brackets: 68-73 mm Controller model: Integrated (in the engine) Sprocket: 46T Voltage: 48V Protocol: CANG WARRANTY FOR THE KIT 1 YEAR FROM THE MANUFACTURER Don't miss the promotion! An additional one-year warranty on the kit for only 1 PLN! A total of 2 years of full warranty support! BIKE SERVICE AND CONVERSION THROUGHOUT POLAND KIT A central motor is the best solution for electric bikes because it allows you to maintain the bike's center of gravity. Using the motor in the bottom bracket increases pedaling cadence and allows for an effective and direct transfer of power to the drivetrain. BATTERY Dimensions 36.6 x 9.1 x 12.7 cm The included lithium-ion battery with a 20 Ah capacity on LG cells allows you to travel from 65 to even 90 km on a single charge. The battery is housed in a special container that not only protects it from external factors or accidental damage but also allows for quick installation on the bike. Simply slide the battery into the rail previously mounted in the frame. The battery also features a USB port, which you can use to charge your smartphone or other devices. LCD (optional). Using the easy-to-use LCD display, you can make necessary settings, configure the assistance and maximum speed, and, above all, constantly monitor the battery status. The intelligent system monitors your riding style and indicates the battery level proportionally to the power used. TYPE 1 (EKD01) Side display with some enhanced functionality and Bluetooth functionality Number of PAS: 3/5/9 Screen size: 2.4″ USB port: Yes TYPE 2 (VD03) Minimalist side display with Bluetooth functionality Number of PAS: 3/5/9 Screen size: 1.5″ USB port: None THROTTLE You can use the power assistance in two ways - the first is to automatically start the engine while pedaling thanks to a motion sensor placed near the crank, and the second is to use the throttle, which also allows you to use the drive to the full extent. OPTIONS TO CHOOSE FROM: BRAKE LeverS They have contactors that activate the engine switch when pressed, which increases riding comfort and safety. BRAKE SENSOR A sensor is usually used when the original brake levers are integrated with the bicycle's gear shifters or in the case of hydraulic brakes. The electronic brake sensor is mounted on the brake lever. When braking, the handle moves, which is detected by the Hall sensor and disengages the motor in a fraction of a second. PLEASE SPECIFY IN YOUR ORDER COMMENTS: 1. BRAKE TYPE: BRAKE LEVER OR BRAKE SENSOR; 2. LCD TYPE: 1 OR 2. INCLUDED: Bafang 48V 1000W motor; 48V 20Ah battery; Wiring with LCD display and throttle; Brake levers with current cutoff or brake sensors; 46T sprocket; Cranks; Light; User's manual and warranty card. Warranty and Service: The comprehensive 1-year warranty and service for the battery-powered Ultimate Action is covered. We operate throughout Poland. Bicycle Conversions. We offer additional conversion and service services for electric bikes throughout Poland. USER MANUAL AND WARRANTY CARD. The kit includes an instruction manual containing key information on the proper use, maintenance, and installation of the Bafang electric bike kit, display, and additional parts.
