Product Description
Fork suspension
A spring + hydraulic oil system with 100mm travel lets you customize stiffness via the lockout knob—conquering rough terrain while keeping rides smooth and stable.

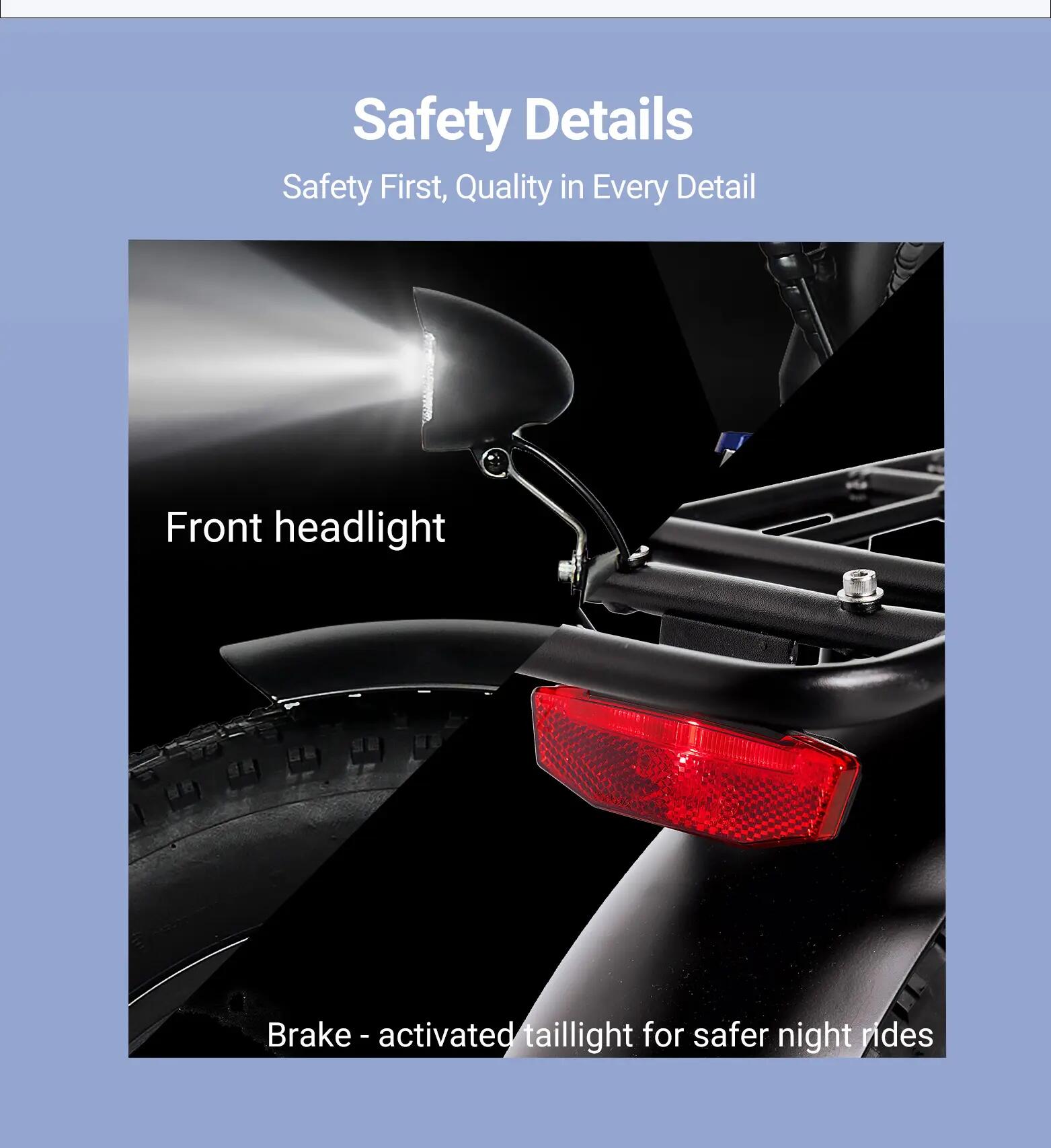

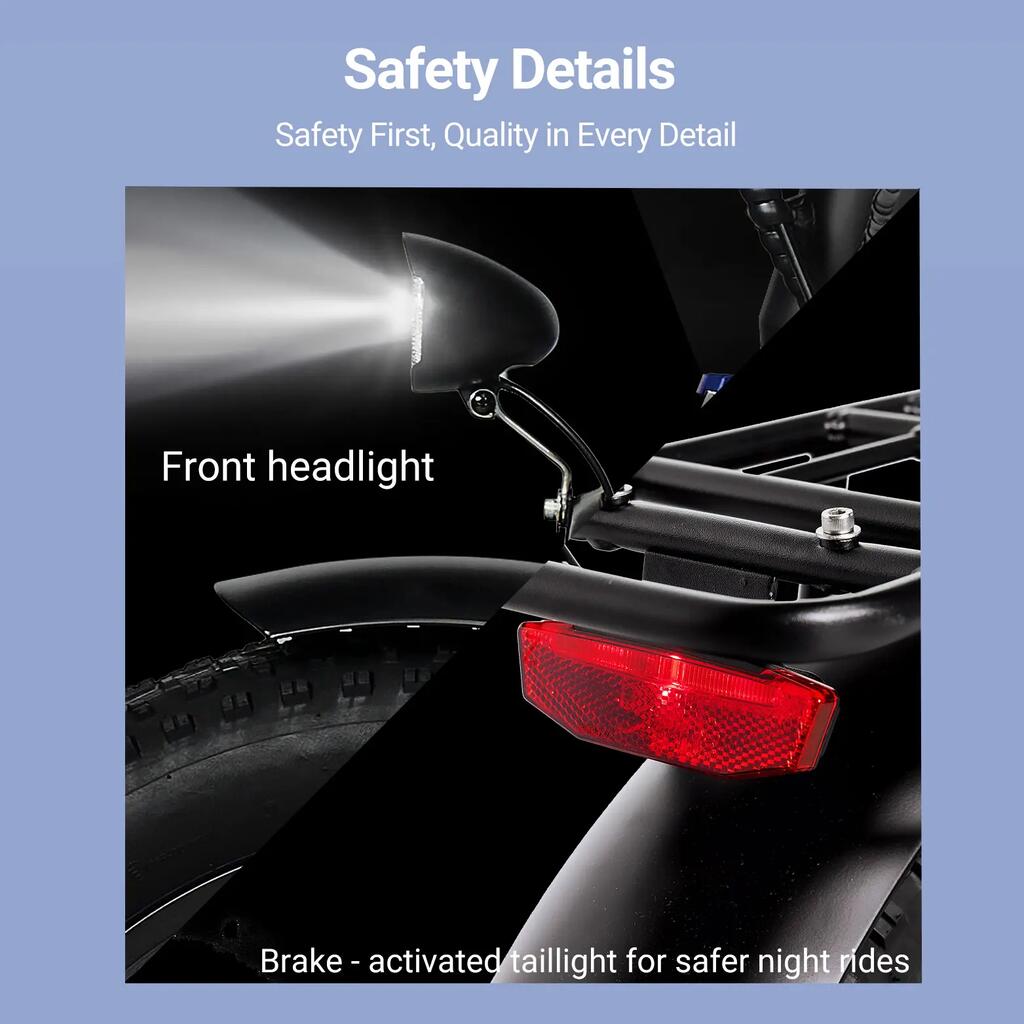

Headlights
The headlight has a modern design and a powerful 30-lux light beam. And with the XTL technology, it is glare-free for safe riding.
Hydraulic disc brakes
Hydraulic disc brakes offer powerful and safe braking performance in contrast to mechanical brakes. Whether on steep descents or abrupt stops - stay in control and overcome obstacles with confidence.
Puncture-proof tyres
The 700C*40C tyres with anti-puncture technology are versatile for city, gravel and long distances. With puncture resistance and tread patterns, the tyres ensure your safety on the roads.
LCD Display
Waterproof to IPX6, reliably displays battery status, maximum speed and more. The display keeps you informed of your riding conditions.
Integrated Rear Light
The Super V series features a rear light with wiring embedded in the frame – sleek, practical, and safe. Perfect for stylish rides.
Gear rim
The Shimano® 7-speed transmission (14-28T) impresses with its powerful lightness and outstanding performance on all roads. The smooth gear changes ensure a more pleasant riding experience.
Specifications

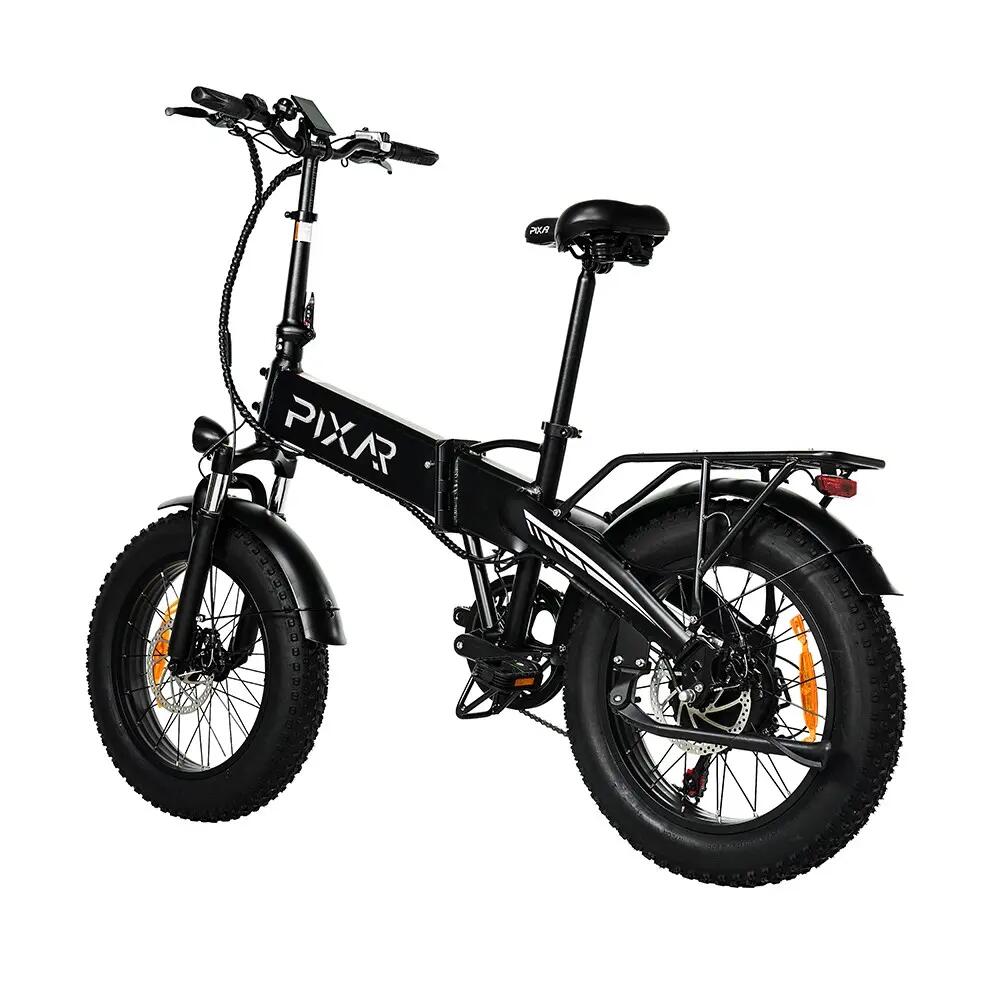

Brand:PIXAR
Model:Star
Frame Material:6061 Aluminum Alloy Frame.
Front Suspension:Aluminum Suspension
Front Suspension:Travel Total Length 375mm, Travel 40mm.
Handlebar:Riser Handlebar, Grip Length 125mm, Total Length 63cm.
Pedals:Folding, 9/16", With Reflectors.
Chain:1/2"3/32"118l, 21-Speed Indexing.
Crankset:170mm Crank Arms, 52t Chainring.
Pedal Assist Range:55+ km
Electric-Only Range:40 km
Top Speed:25 km/h
Dimensions:1034580 cm
Max Load Capacity:120 kg
Ebike Net Weight:30.7 kg
Torque:50 Nm
Battery:Samsung 48V 15Ah IPX6 Waterproof, CE Certified
Battery Charging Time:4 - 5 hours
Battery Weight:4.5 kg

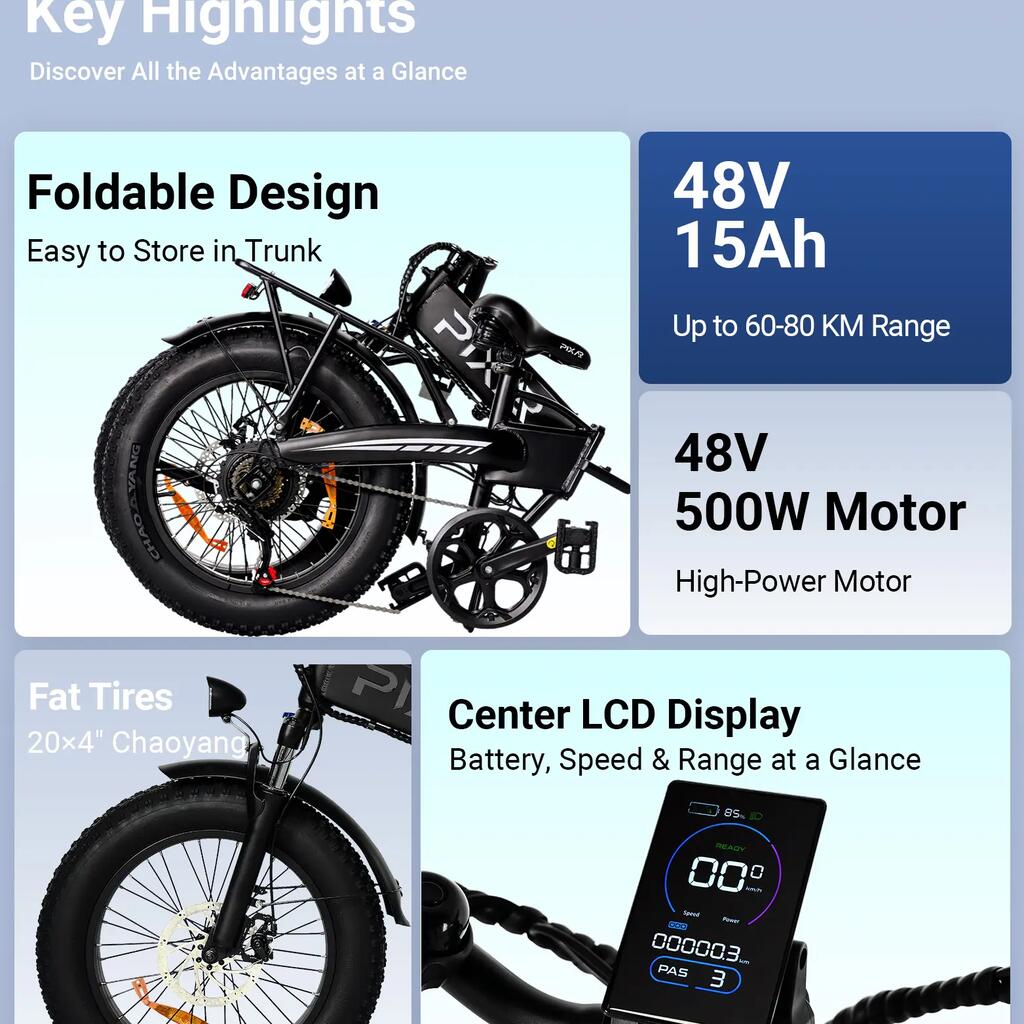

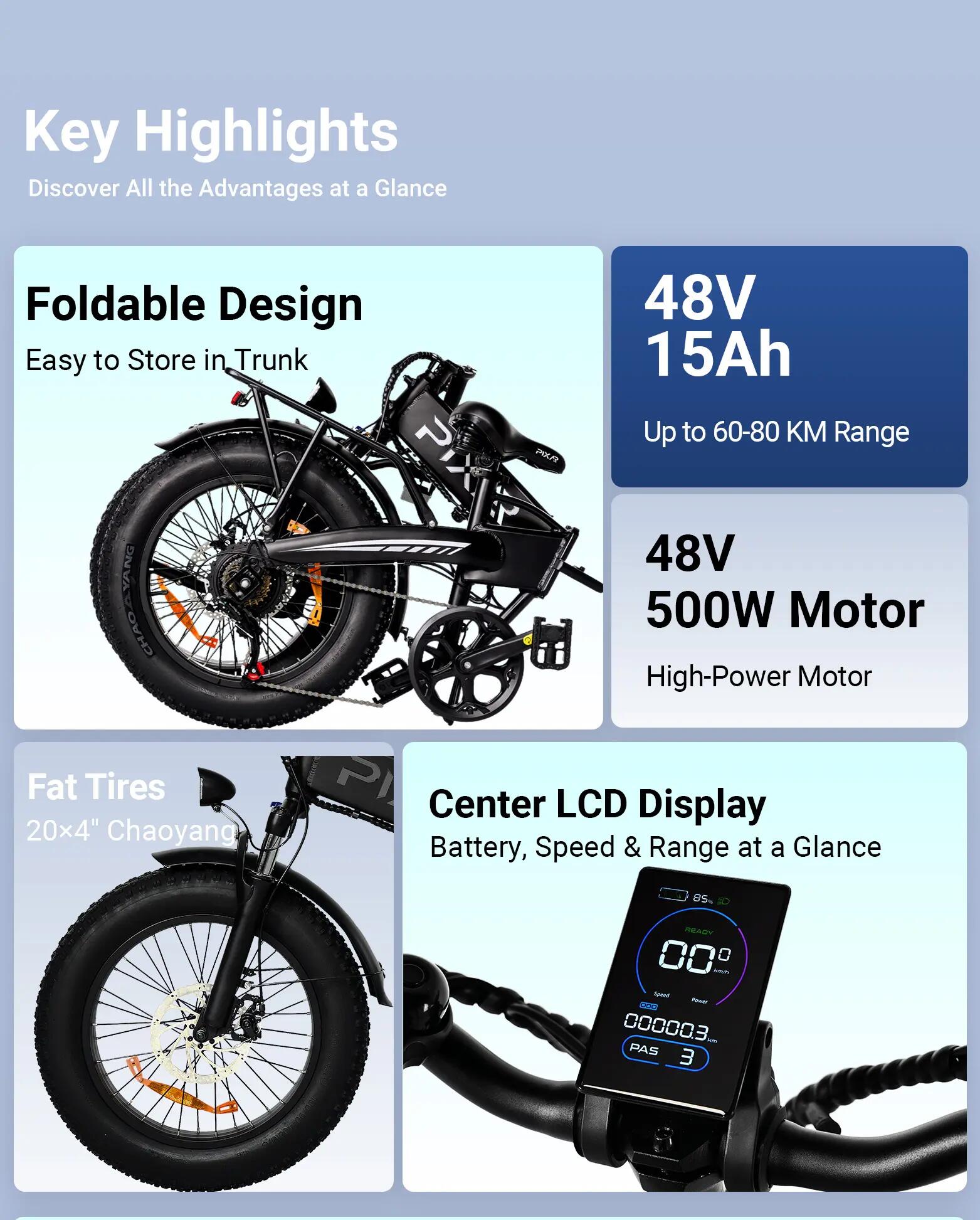

Display:3.0" LCD Display
Pas Levels:0-5 Pas.
Maximum Output:54.6V2A With Temperature Control Protection.

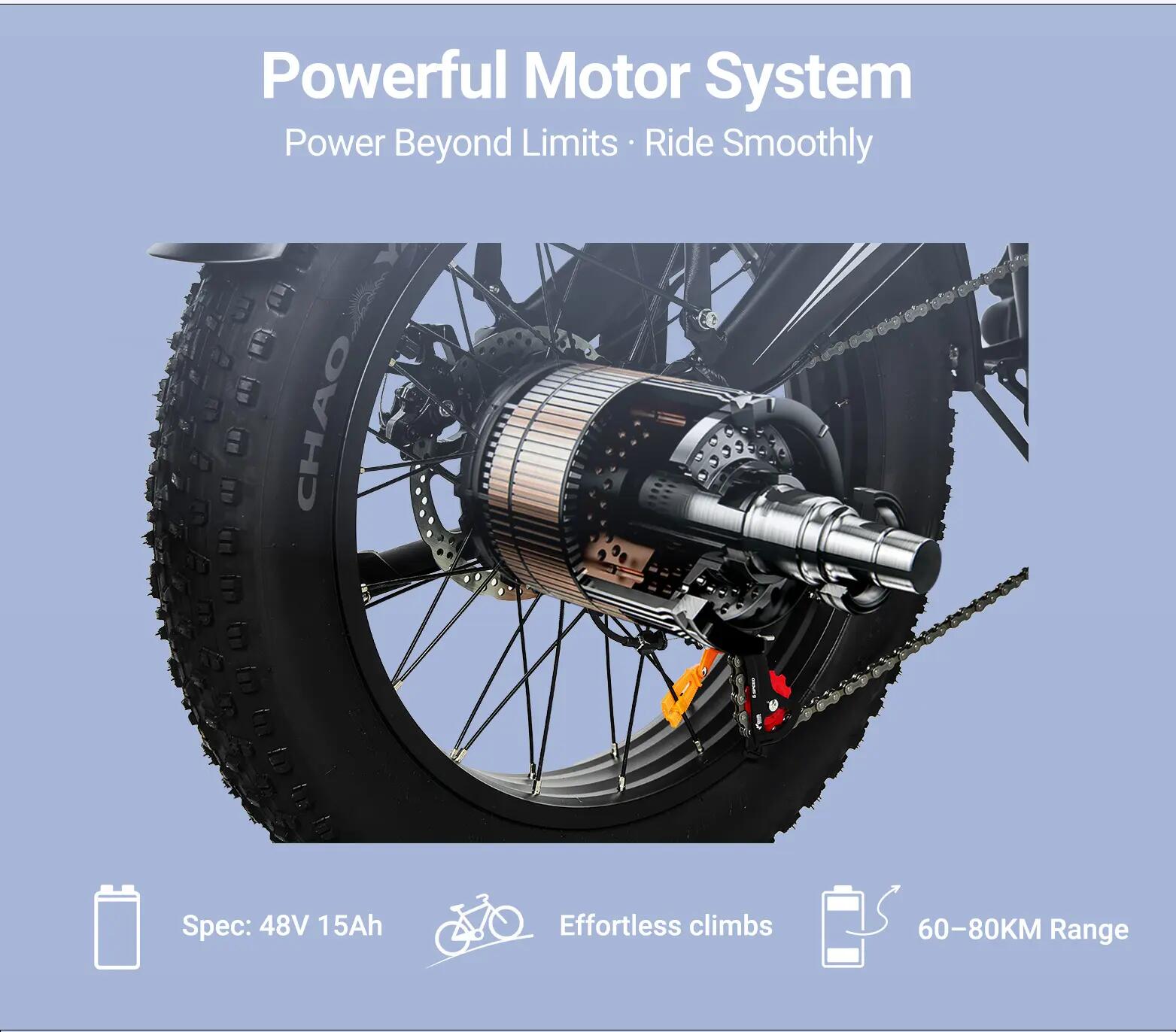

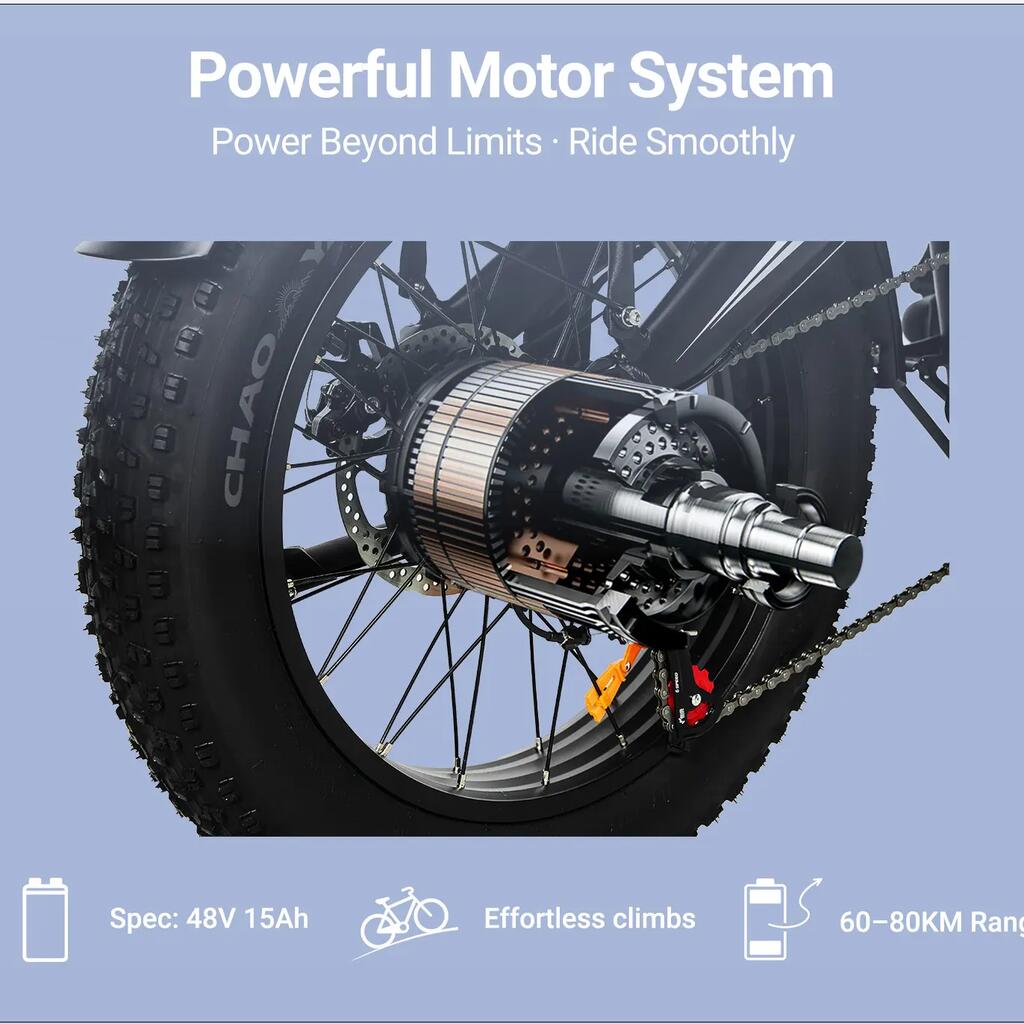

Motor:500W Peak Rear Hub Brushless Motor.
Sensors:Speed Sensor.
Rear Derailleur:Shimano 14-28T.
Charger:2A Smart Charger, CE Certified.
Rim:Aluminum Alloy 20"3.012g36h.
Spokes:45# 12g174mm, Compliant With En15194 Standard

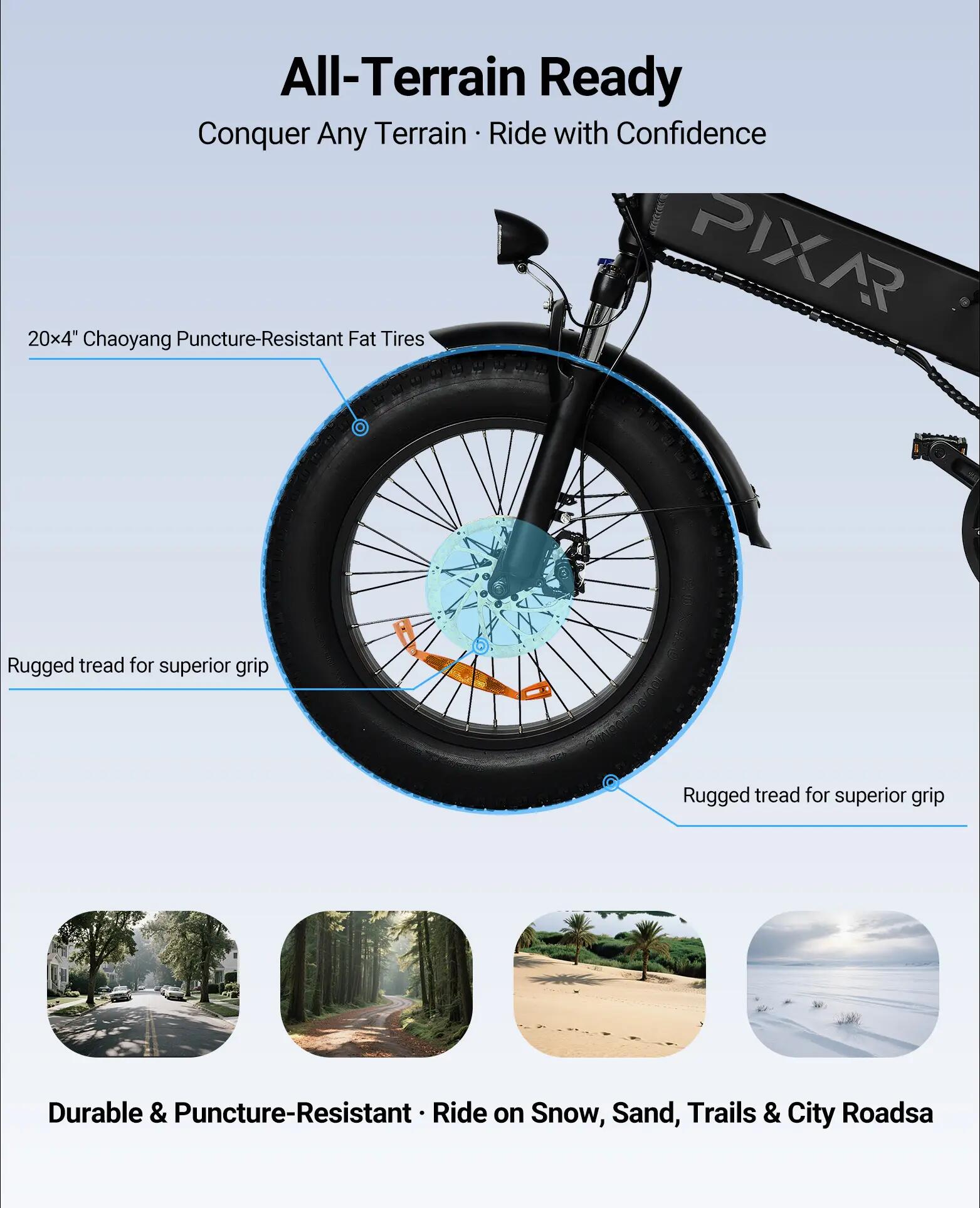

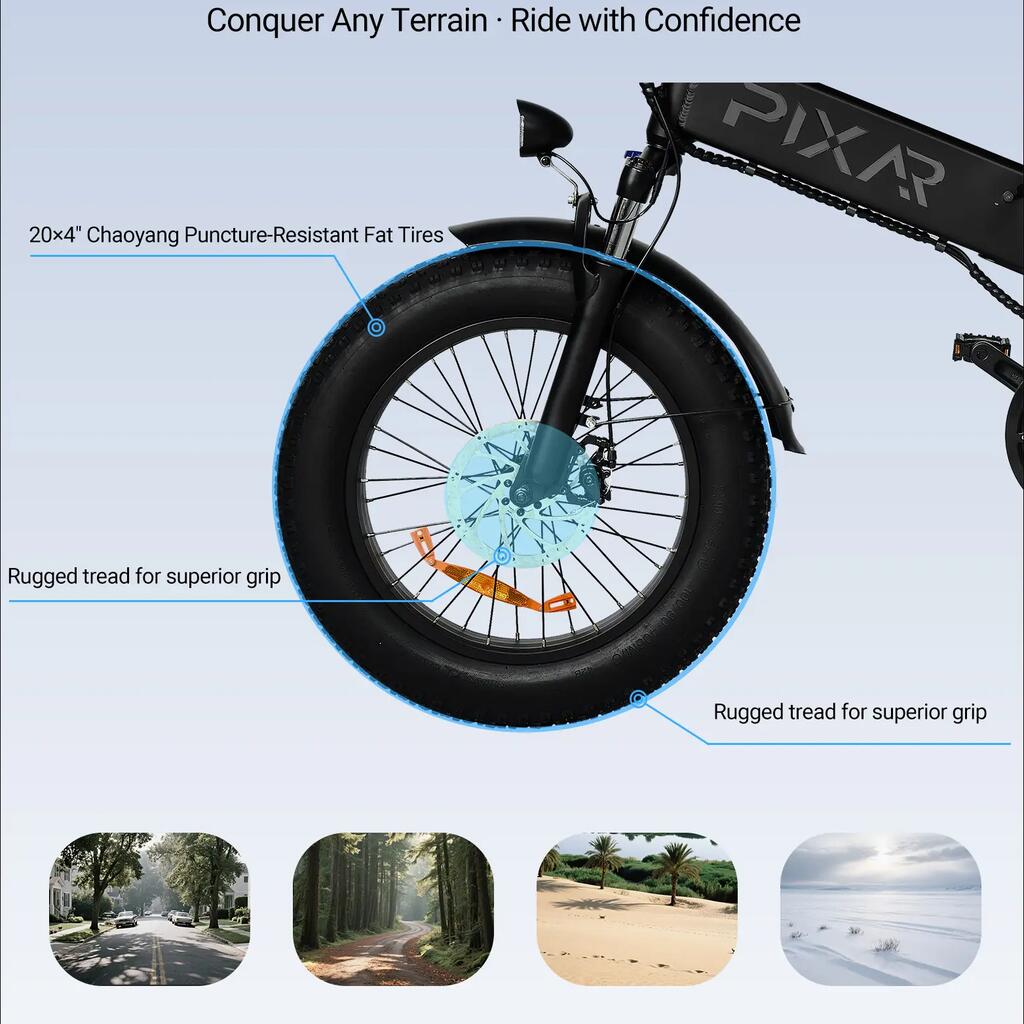

Tire Brand:Chaoyang All-Terrain Tire.
Tire Size:20"4.0, 30psi.
Inner Tube:20"4.0", Valve Stem 32mm.
Brake Levers:Aluminum Material (With Brake Priority Protection).
Brakes:Front And Rear Mechanical Disc Brakes.
Brake Rotors:180mm.
Kickstand:Heavy-Duty Aluminum Kickstand.
Package included:
1x Battery
1x User Manual
2x Pedals
1x Front Wheel
1x Seat
1x Toolkit
2x Keys
1x Charger
