Product Description
The TTGO F6 BOOST is a high‑quality folding fat tire e‑bike made of lightweight 6061 aluminium alloy, designed for both daily commuting and adventurous off‑road rides. Equipped with a powerful 48V drive, large 864Wh battery, hydraulic brakes and dual suspension, it delivers an extremely long range and unsurpassed riding comfort on asphalt, gravel, sand and mountain paths.
[48V 250W rear hub motor with 70 N·m high torque]
The brushless rear‑wheel motor generates a maximum effective torque of 70 N·m, reaches the legal top speed of 25 km/h and climbs inclines up to 20°.
[48V 18Ah lithium‑ion frame battery with IPX5 splash protection]
The hidden battery in the frame has an enormous capacity of 864Wh. The maximum support range is 120 to 140 km after a full charge, and the charging time is just 6 hours. The IPX5 protection class makes the bike safe to use during rain showers.

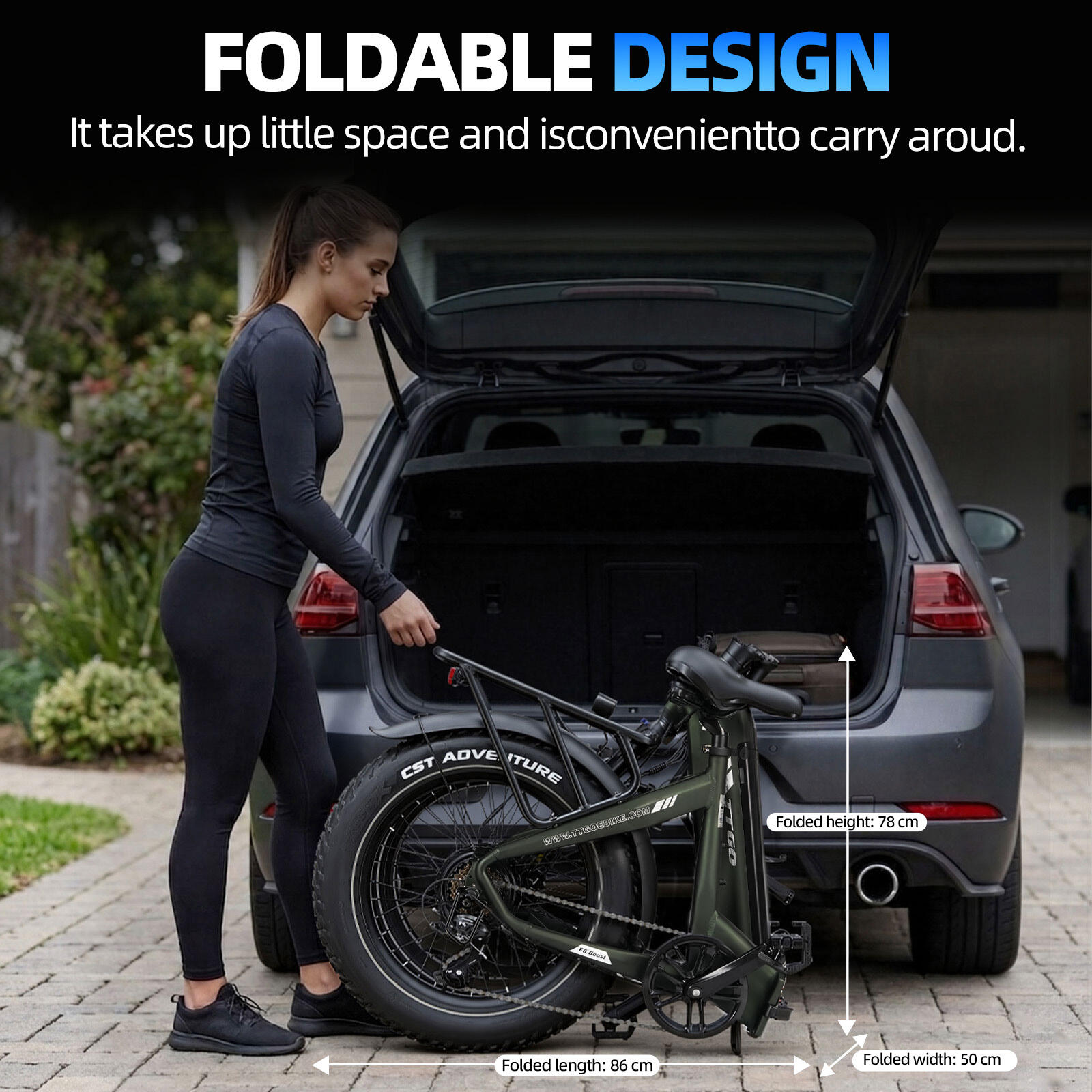

[Lightweight 6061 aluminium frame + compact folding system]
The 6061 aluminium is strong, durable and lightweight. Thanks to the quick folding mechanism, the bike takes up little space; folded dimensions are 86 cm length, 50 cm width and 78 cm height, perfect for car boots, trains and storage spaces.
[Shimano 7‑speed derailleur]
The Shimano transmission offers precise, smooth shifting, adapted for flat roads and steep climbs.

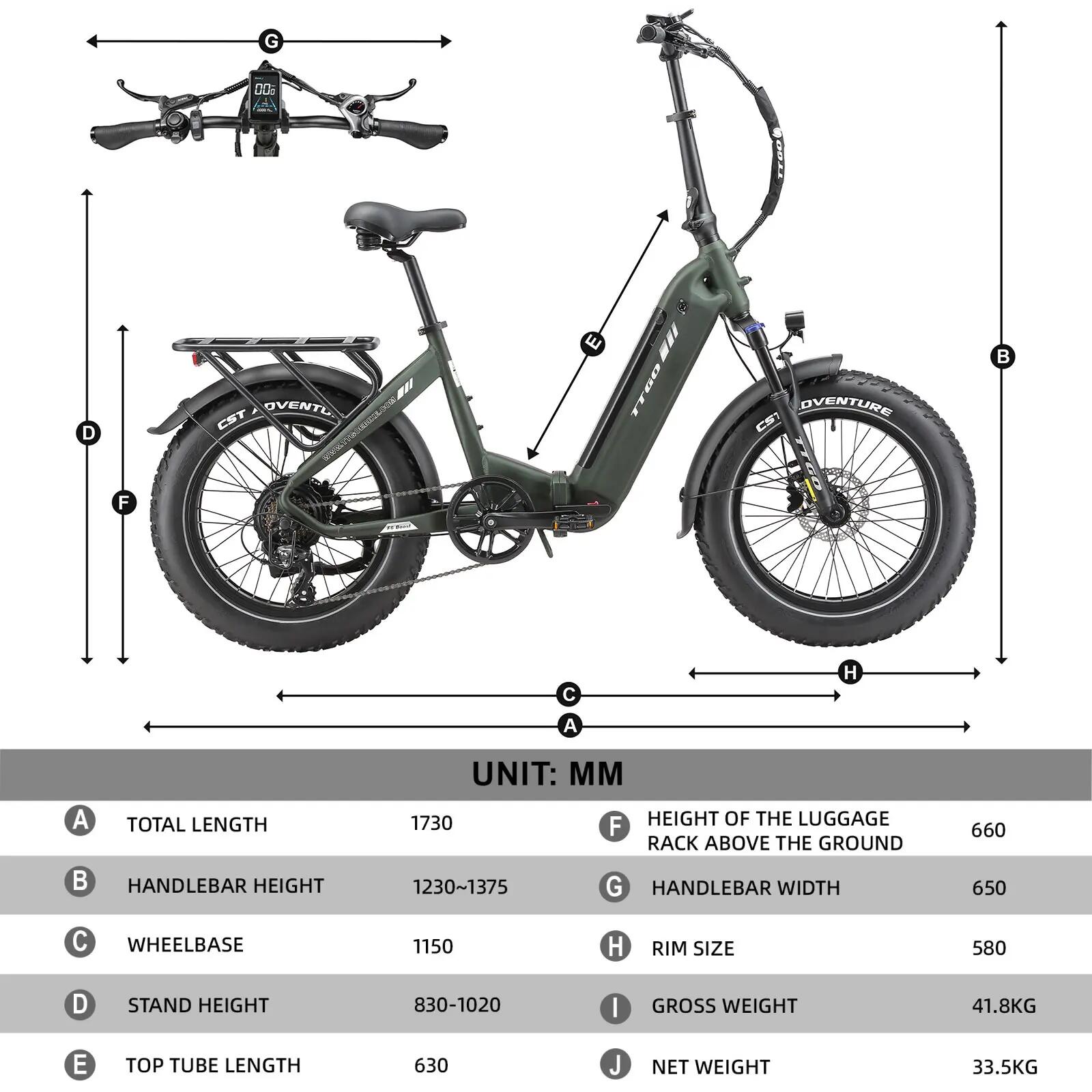

Technical specifications
Model: TTGO F6 BOOST

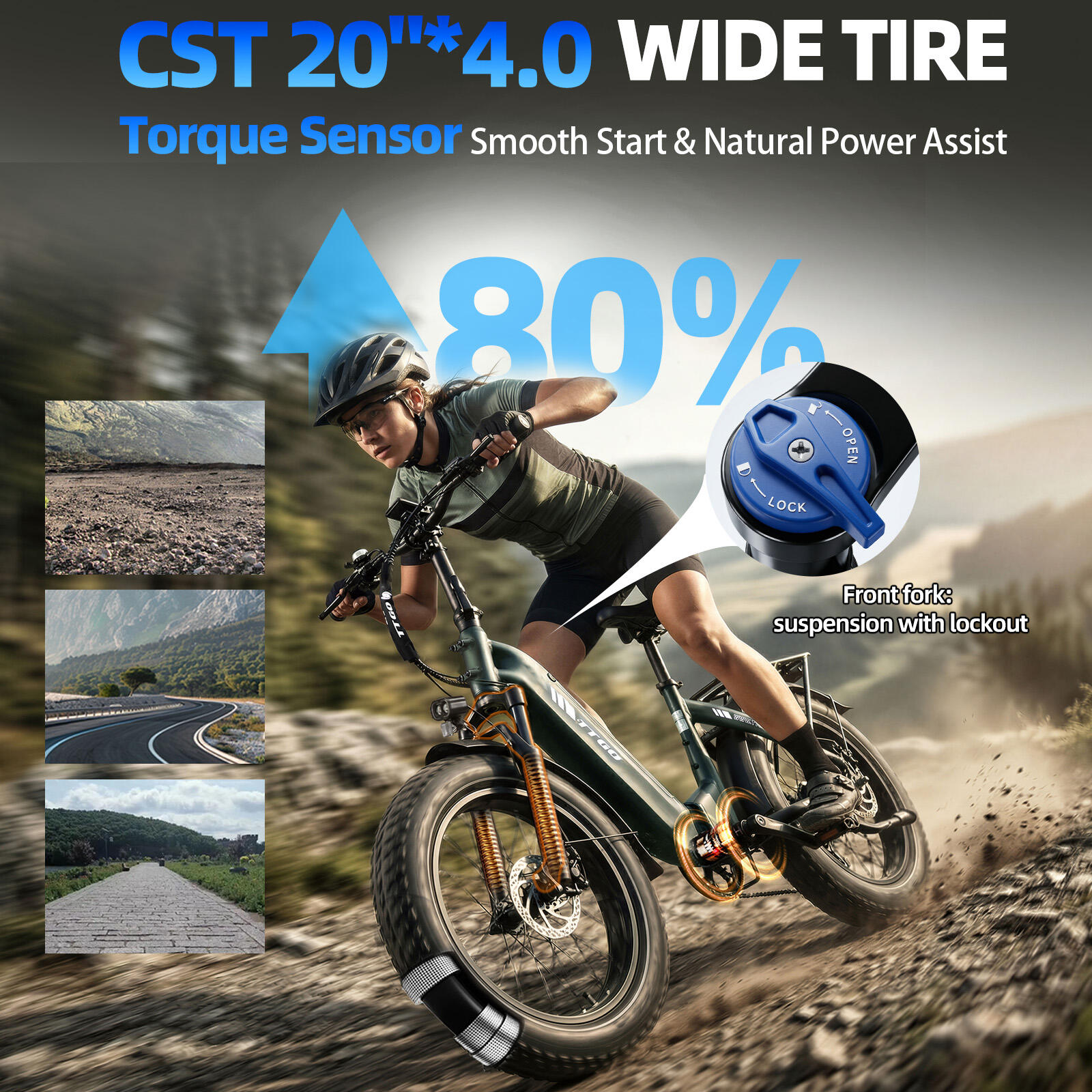

Tyres: CST 20" × 4.0 fat tyres
Brake system: Front and rear hydraulic disc brakes
Transmission: Shimano 7‑speed derailleur
Motor: 48V 250W brushless rear hub motor
Max torque: 70 N·m
Max legal speed: 25 km/h
Max climbing angle: 20°
Battery: 48V 18Ah
Max range: 120–140 km
Display: Colourful multifunctional LCD screen
Max load capacity: 150 kg
Recommended rider height: 155–195 cm
Folded dimensions: 86 cm × 50 cm × 78 cm
Gross weight: 41.8 kg
Packaging dimensions cardboard: 141 × 30 × 67 cm
