Product Description
BK5S – Compact Folding Electric Bike for Everyday Travel

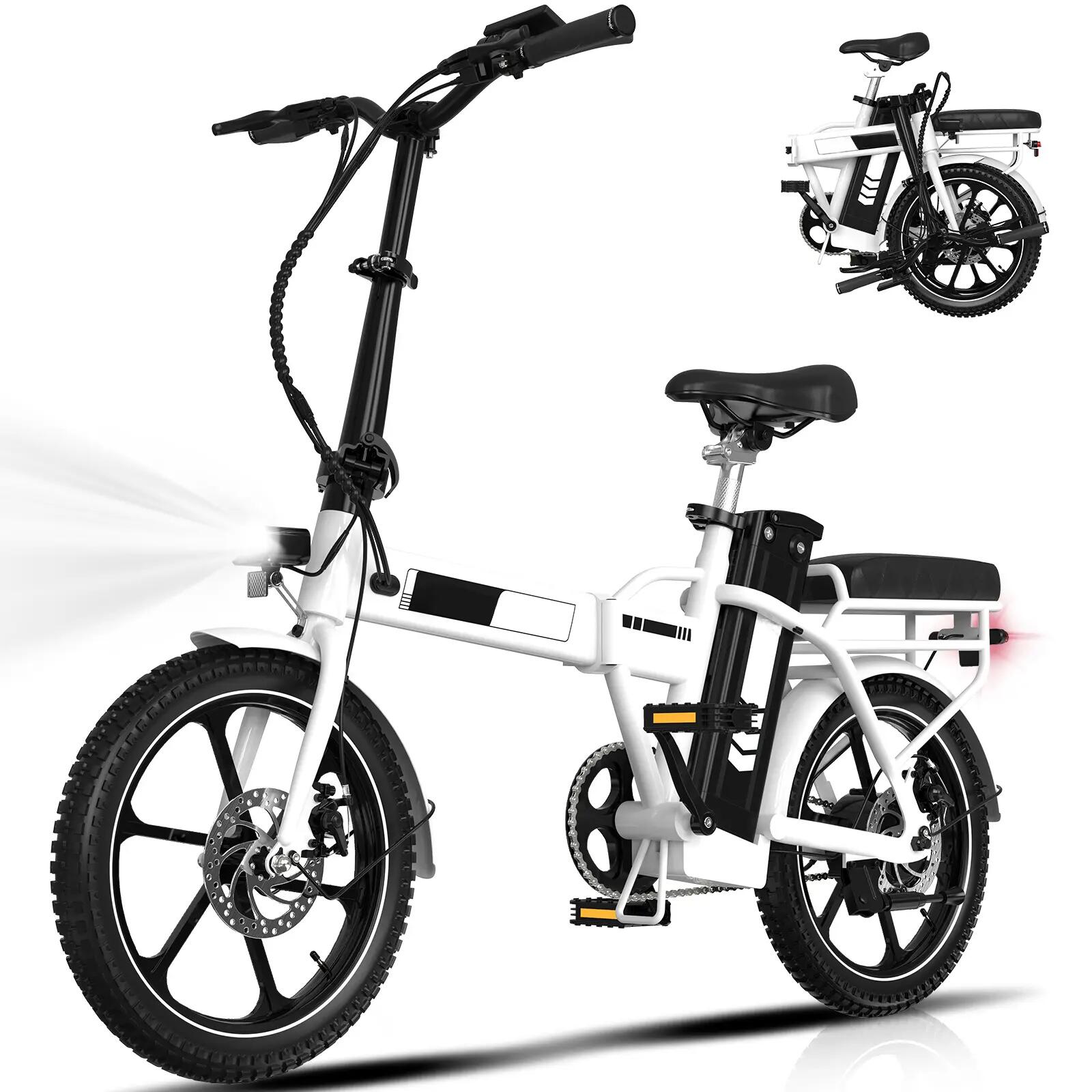

【Compact folding design】
The BK5S is a folding electric bike with 16-inch wheels. With folded dimensions of just 800 × 500 × 680 mm, it is easy to store at home, in the office or in a vehicle.

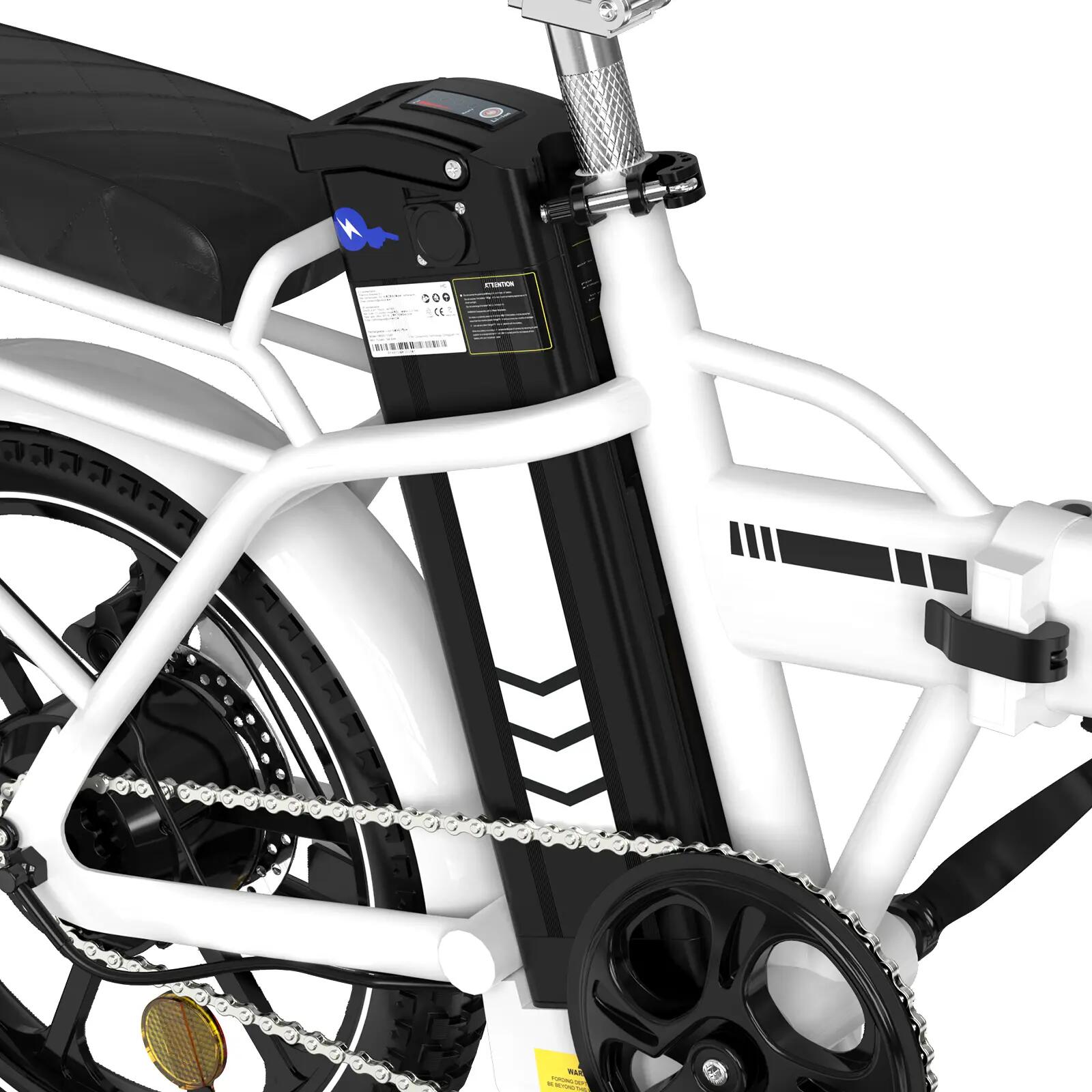

【Removable 36V 12Ah battery – up to 90 km range】
The removable 36V 12Ah (432Wh) lithium-ion battery provides a range of 40–90 km with pedal assistance. The battery can be easily removed for more convenient charging.
【250W motor with assistance up to 25 km/h】
The integrated 250W brushless motor provides pedal assistance up to 25 km/h. Its compact design makes the bike particularly suitable for everyday journeys and urban travel.

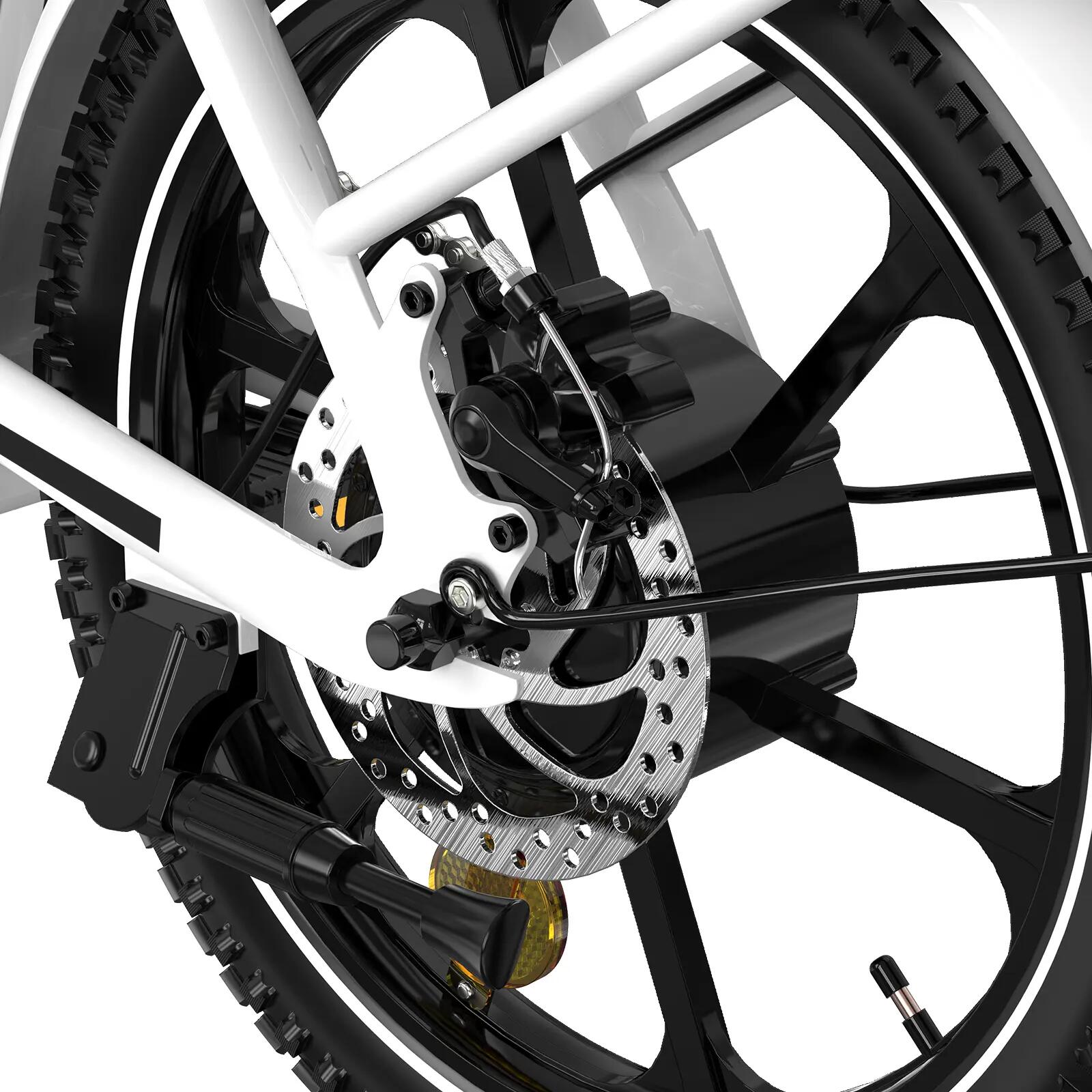

【16×2.4 tyres and disc brakes】
The 16×2.4-inch pneumatic tyres provide stability and riding comfort on urban roads. Front and rear disc brakes provide controlled braking performance for everyday riding.

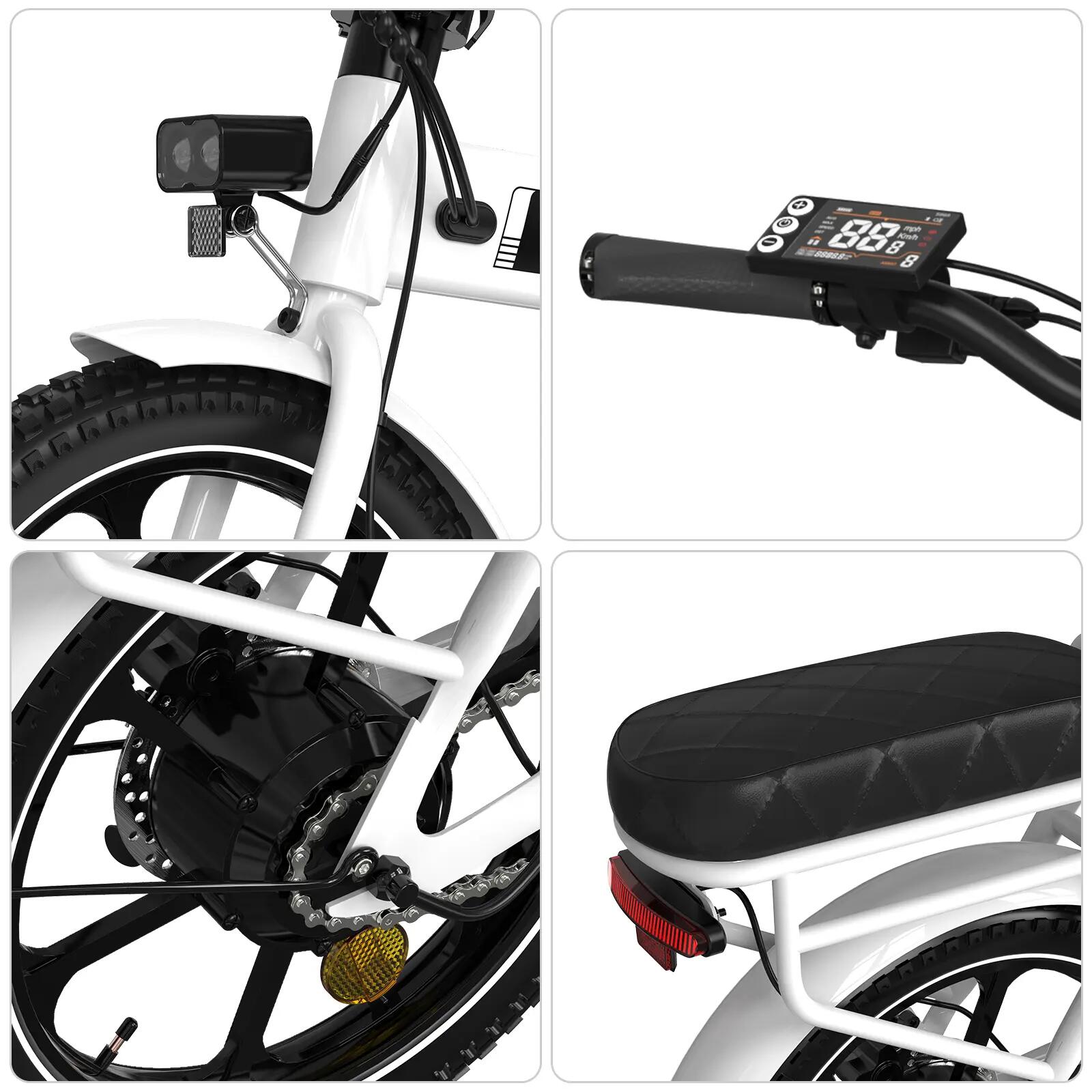

【LCD display and practical lighting】
The multifunction LCD display shows key riding information. The BK5S also features front and rear lights for improved visibility and has an IP54 protection rating.
Technical Specifications
Model: BK5S
Type: Folding electric bike
Usage: Adult
Frame: Carbon structural steel
Motor: Integrated brushless hub motor
Rated motor power: 250W
Assistance mode: Pedal assistance
Battery: 18650 lithium-ion
Battery capacity: 36V 12Ah (432Wh)
Range: 40–90 km*
Maximum speed: 25 km/h
Wheel size: 16 inches
Tyres: 16×2.4-inch pneumatic tyres
Brakes: Front and rear disc brakes
Display: Multifunction LCD display
Lighting: Front light + rear light
Protection rating: IP54
Maximum load: 100 kg
Net weight: 24.28 kg
Gross weight: 29.75 kg

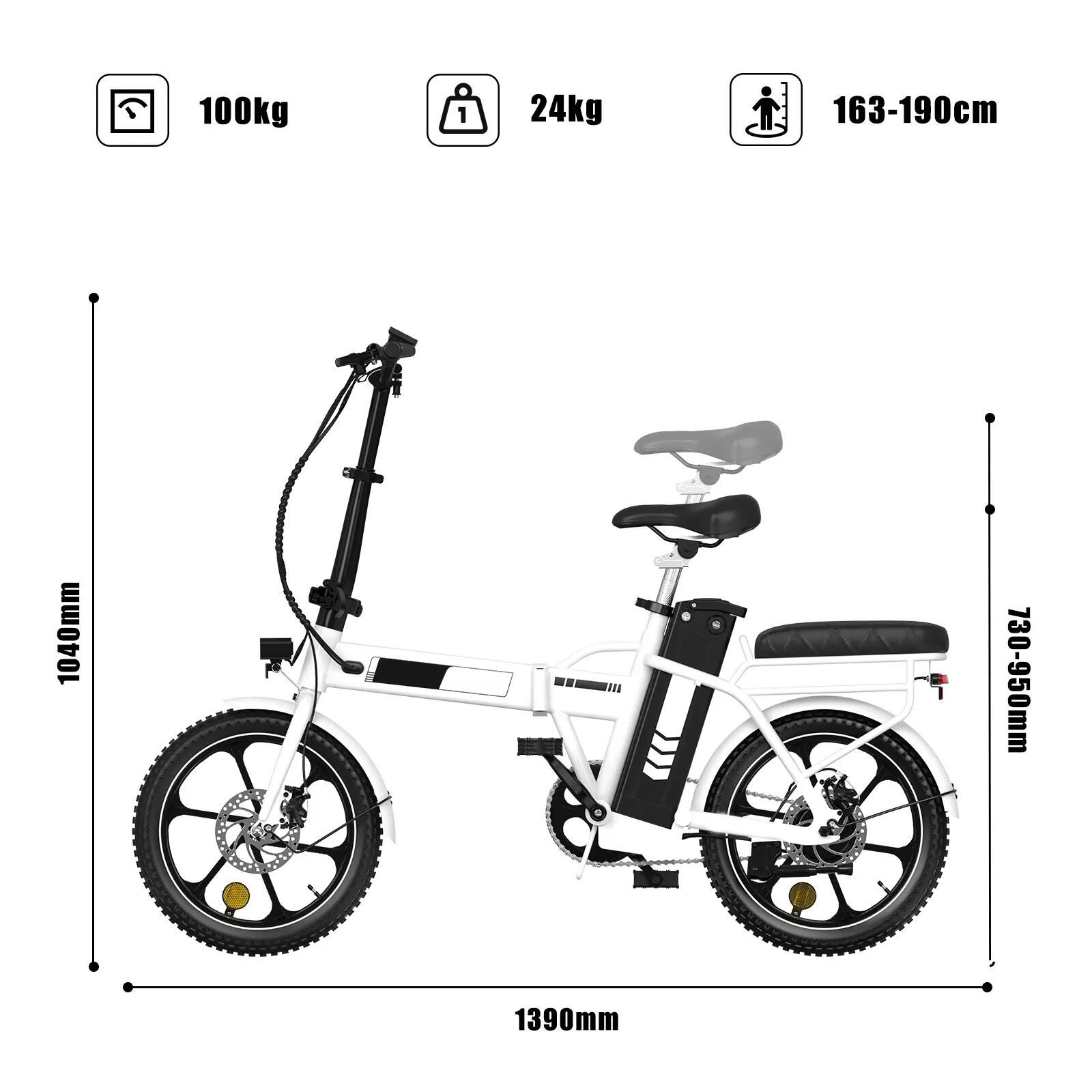

Unfolded dimensions: 1390 × 530 × 1040 mm
Folded dimensions: 800 × 500 × 680 mm
Charging time: 5–6 hours
Operating temperature: -10°C to 45°C
*Maximum range is achieved under optimal conditions. Actual range may vary depending on rider weight, terrain, temperature, road conditions, assistance level and riding style.
