Longtail Passenger Electric Bicycle FF20 CUV, Dual Removable 48V 15Ah Batteries

Product Description

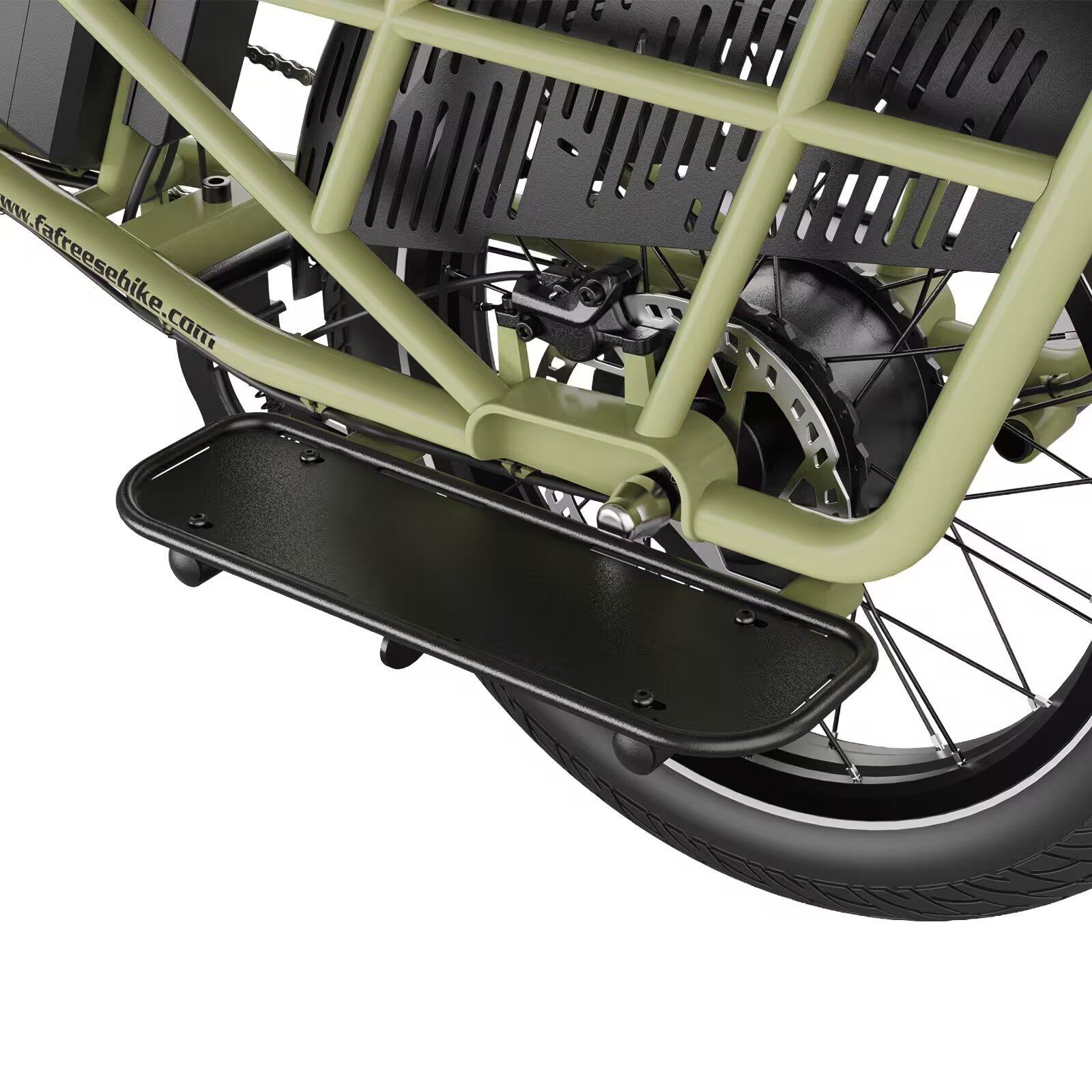

Longtail design with passenger area

The FF20 CUV Passenger features an extended 6061 aluminium frame with a rear passenger area. Cushioned seating and footrests are included for an additional passenger, making the bicycle suitable for shared everyday journeys.

The maximum total load is 200kg, including the rider, passenger and any carried items. The maximum rider weight is 150kg. Weight must be distributed correctly and the total load limit must not be exceeded.

Passenger transport must comply with local regulations. Appropriate protective equipment should be used, particularly when transporting younger passengers.

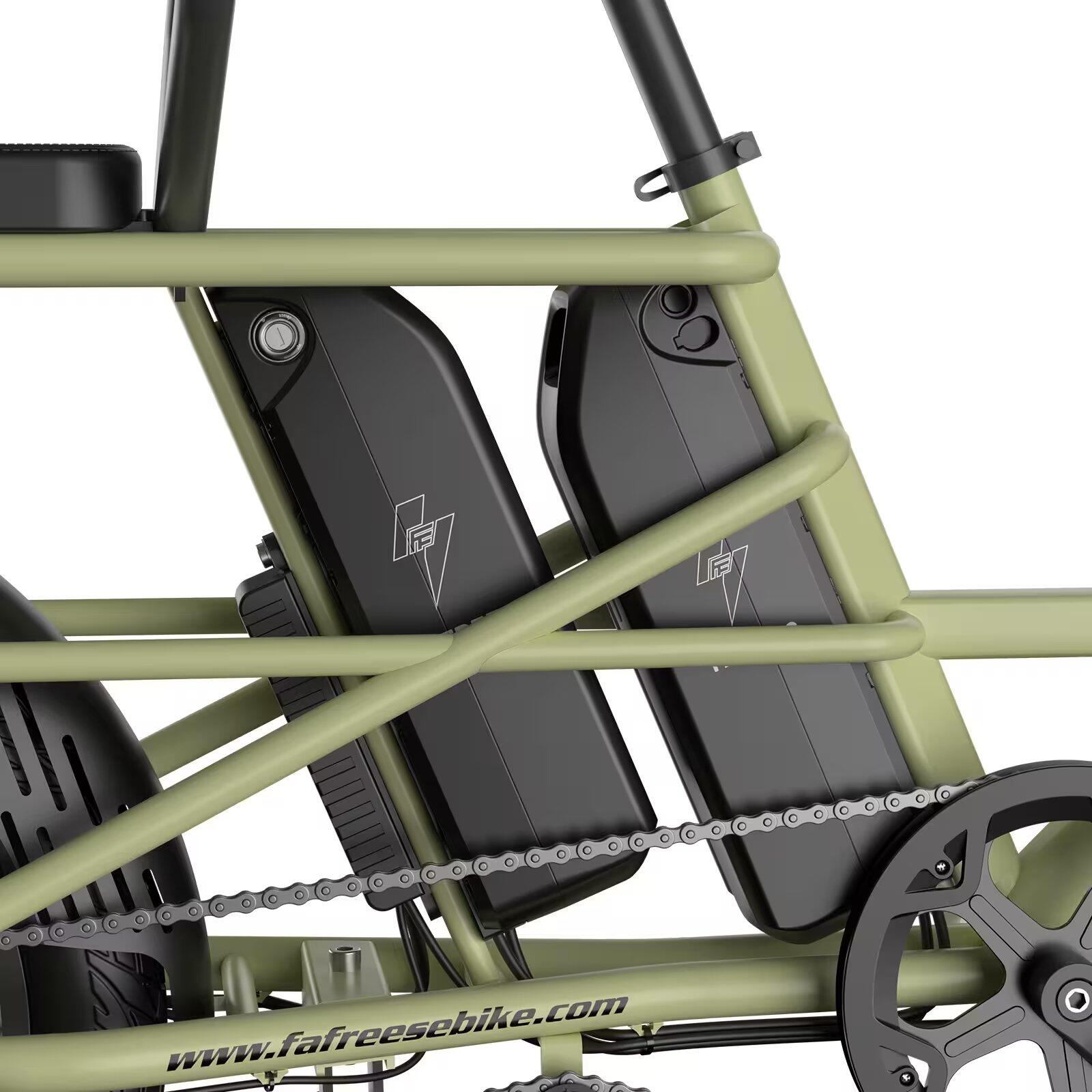

Dual removable 48V 15Ah batteries

Two removable 48V 15Ah lithium-ion batteries provide a combined capacity of 48V 30Ah or 1440Wh. The batteries discharge evenly to provide stable power and an assisted range of approximately 120–170km.

Both batteries can be removed for charging. A complete charge from 0% to 100% takes approximately 9–11 hours. Actual range varies according to total load, assistance level, terrain, temperature, tyre pressure and riding conditions.

250W motor with torque sensor

The 250W rear motor delivers up to 75Nm of torque. The torque sensor measures pedalling force and adjusts the assistance accordingly, providing controlled support when starting, climbing or travelling with an additional passenger.

Three pedal-assistance levels are available. The maximum assisted speed is limited to 25km/h.

Hydraulic brakes and suspension

Front and rear hydraulic disc brakes with 180mm rotors provide consistent braking under different loads. The suspension fork offers 60mm of travel and can be locked when suspension is not required.

A suspension seatpost with 15mm of travel helps reduce vibrations during longer journeys.

Wide tyres and colour display

The puncture-resistant 20 x 3.0-inch tyres provide grip on city streets, cobblestones, gravel and other everyday surfaces. The 3.5-inch colour LCD shows speed, battery level and the selected assistance level.

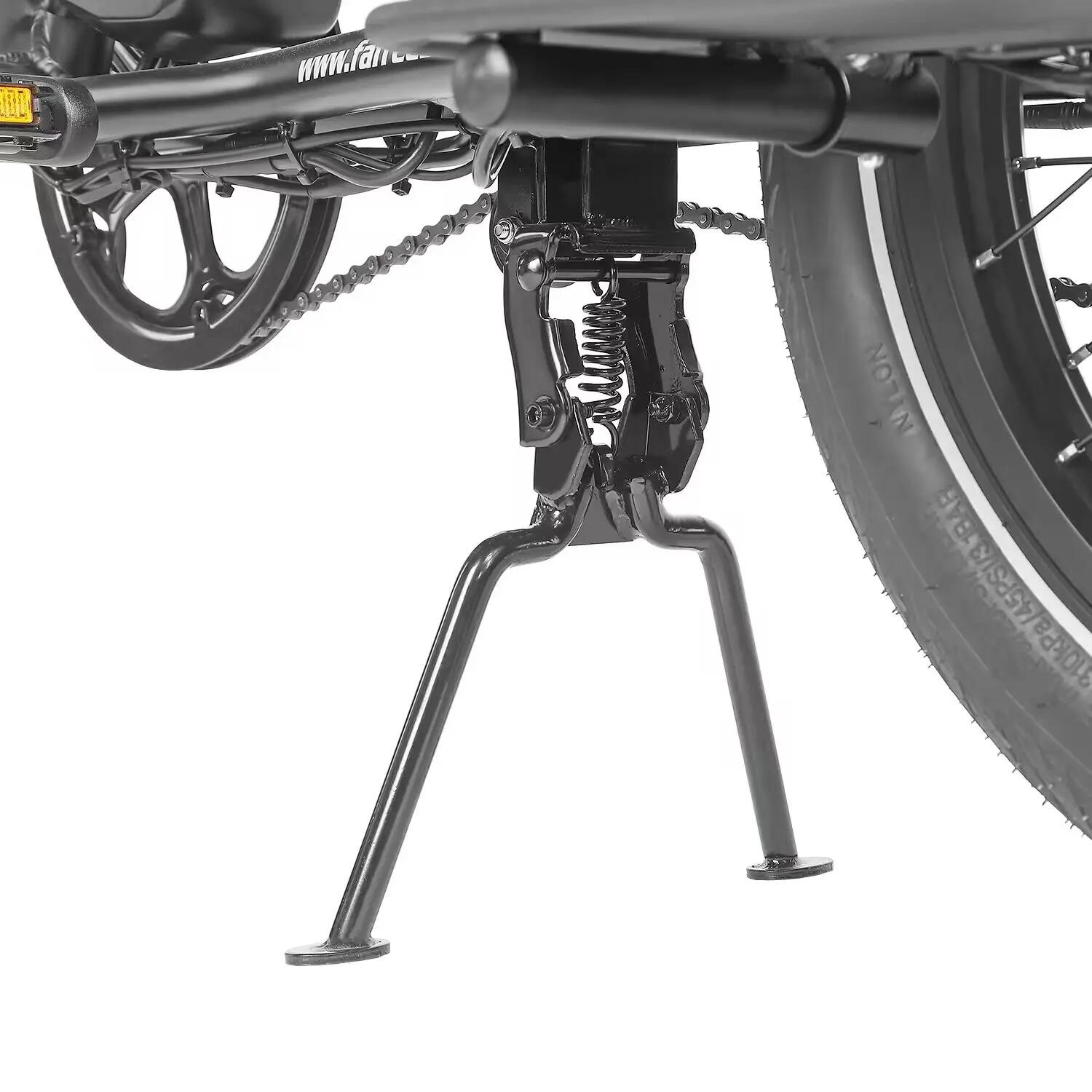

Front and rear lights, a brake light, mudguards and a kickstand are included.

Specifications:

Brand: FAFREES Model: FF20 CUV Passenger Product type: Longtail passenger electric bicycle Motor: Rear motor, 250W Maximum torque: 75Nm Sensor: Torque sensor Pedal assistance: 3 levels Maximum assisted speed: 25km/h Batteries: 2 removable 48V 15Ah lithium-ion batteries Combined battery capacity: 48V 30Ah / 1440Wh Assisted range: Approximately 120–170km Charger: 54.6V 3A Charging time: Approximately 9–11 hours Display: 3.5-inch IPS colour LCD, IP65 Frame: 6061 aluminium alloy Fork: Lockable suspension fork, 60mm travel Seatpost: Suspension seatpost, 15mm travel Tyres: Puncture-resistant 20 x 3.0 inches Brakes: Front and rear hydraulic disc brakes Brake rotors: 180mm Transmission: Single-speed Chainring: 52T Rear sprocket: 16T Lighting: Front light, rear light and brake light Rear passenger area: Cushioned seating and footrests included Mudguards: Included Kickstand: Included Water resistance: IPX5 Certifications: EN15194, CE and E-Mark Bike weight: 40kg Maximum total load: 200kg, including rider, passenger and carried items Maximum rider weight: 150kg Recommended rider height: 160–200cm Saddle height: 85–102cm Handlebar height: 114–125cm Total length: 207cm Width: 67cm Wheelbase: 135cm
