Product Description
Year 2024
Product type: Bike
Category name: ROAD
Sub-category name: RACE

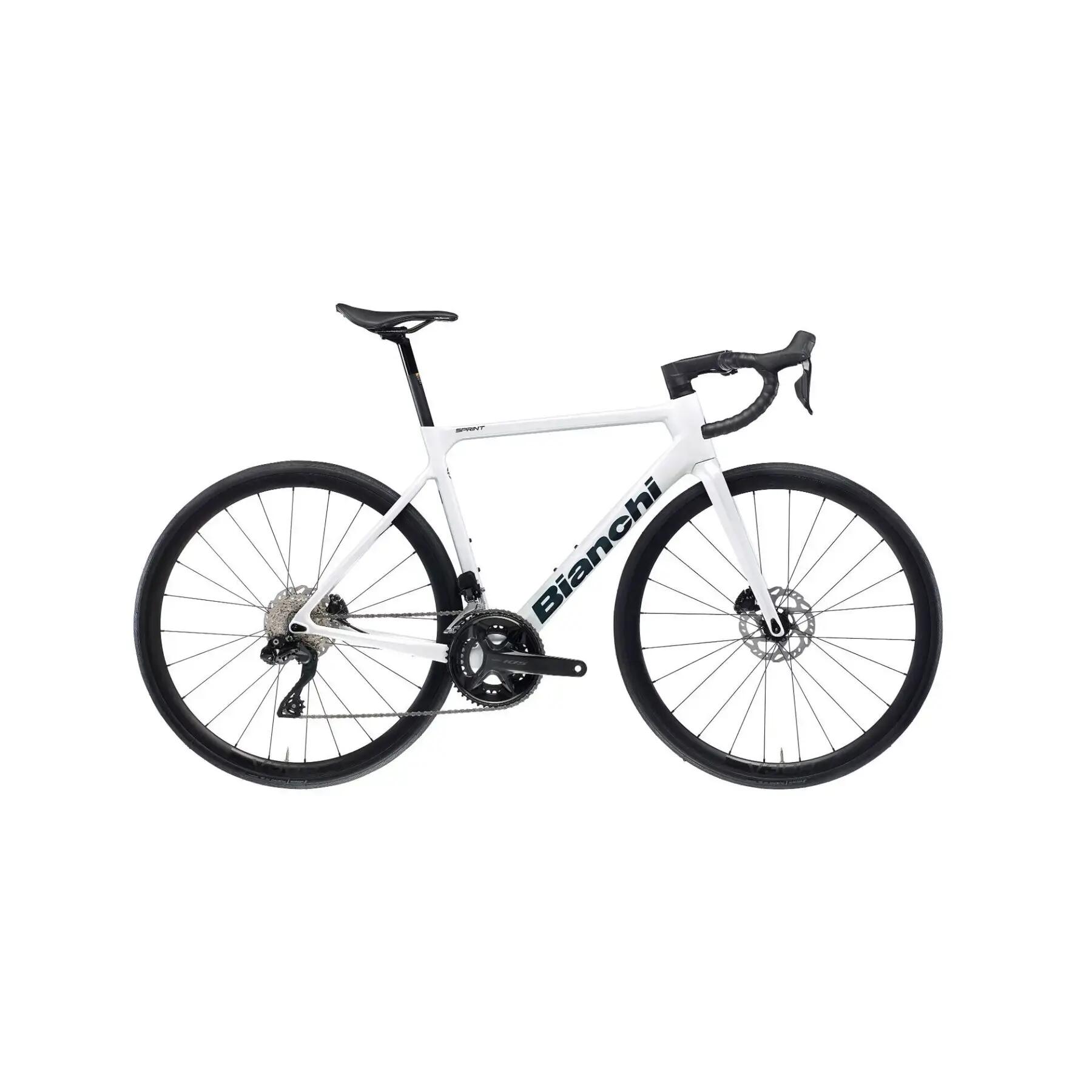

Model: Sprint
Frame: Sprint monocoque carbon, mechanical/electronic, BB-PressFit 86.5x41, 1.4-1.5 head tube, integrated seat clamp, carbon derailleur stop, disc brake with flat mount, thru axle 12 x 142 sizes 47-50-53-55-57-59-61cm
Fork: Full Carbon Aero Road 1.4>1.5, integrated crown, disc brake with flat mount, thru axle 12x100
Steering: ACROS & FSA, for internal cable routing
Derailleurs: Shimano 105 Di2, RD-R7150 12 speed
Rear derailleur: Shimano, RD-R7150, 105 Di2 12 speed
Front derailleur: Shimano 105 Di2, FD-R7150 12 speed
Crumble set: Shimano 105 12sp, FC-R7100, for rear 12 speed, Crank lengths: 170mm-47/53cm, 172.5mm-55/59cm, 175mm-61cm
BB: Shimano, SM-BB72-41B, press fit for road
Chain: Shimano 12sp, CN-M7100
Sprocket: Shimano, 105 12sp, CS-R7100, 11-12-13-14-15-17-19-21-24-27-30-34T
Brakes: Shimano, BR-R7170 hydraulic disc brake, built into the shifter
Wheels: Velomann alloy, disc brake, rim profile 30mm, hub TC j-bend, 2mm round spokes black, clincher 622x19C, with rim tape, front HH12 - rear HH12/142
Tire: Vittoria Rubino IV G2.0 graphene, 700x25, 60TPI
Stem: Velomann, alloy 6061, rise - 7° Ext: 80mm-47cm, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59/61cm
Handlebar: Velomann Compact, alloy 6061, dia. 31.8mm, reach 80mm, drop 130mm Size: 400mm-47/53cm, 420mm-55/59cm, 440mm-61cm
Grips: Bianchi cork, black
Seat post: Velomann alloy 6061, 15mm setback, 27.2mm; Length: 300mm-47cm; 350mm-47/61cm
Saddle: Velomann Seta
Rotors: Shimano rotor for centre lock disc brake, SM-RT70, 160mm
