ROCKRIDER

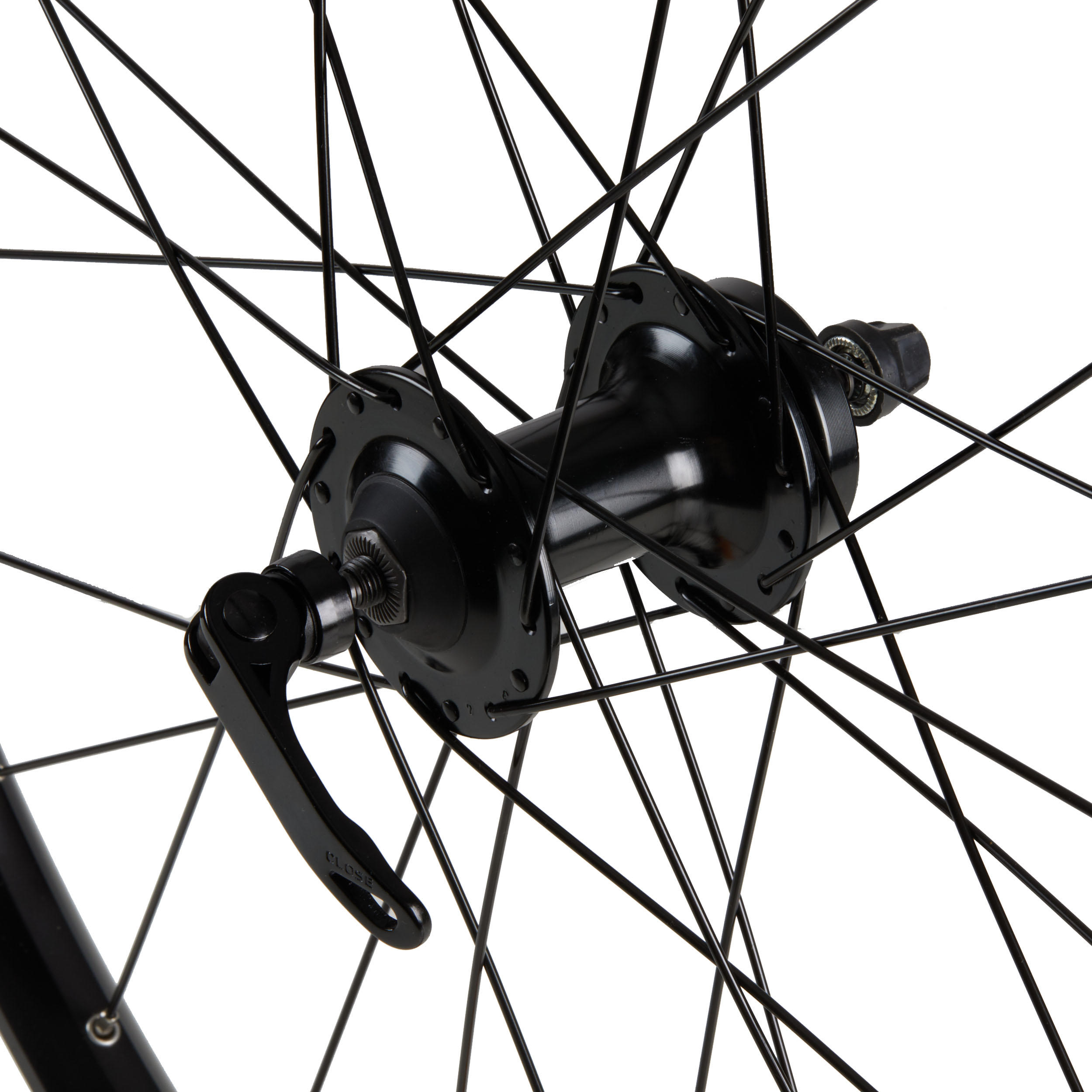

27.5 x 23c Double-Walled Disc Brake QR Tubeless Compatible MTB Front Wheel

4.1 out of 5 stars from 16 reviews
16 reviews

Designed to replace the wheel on your Rockrider ST 540 mountain bike

27.5"x23c front wheel for bigger tyres

ID 8539380

€48.00
Tax included

  • Pick up at Decathlon

    loading…

  • Pick up near you

    loading…

  • Home Delivery

    loading…

Design benefits

  • compatibility

    Tubeless compatible - just add rim tape and valves

  • lightweight

    The 100% aluminium rim keeps things as light as possible

  • maintain

    Repair your product and give your equipment a second life!

  • Features

    Design details

    Technical features

    ETRTO diameter: 584x23c
    Rim material: Aluminium 6063 / Black
    Rim type: Sleeved
    Valve hole diameter: 8.5mm
    Double-walled

    Number of spokes: 28
    Spoke material: Steel / Black / 2 mm
    Spoke length: Left = 263 mm / Right = 265 mm
    Assembly type: 2-cross

    Brake compatibility: Disc
    Type of bearing: cup and cone ball bearing (1/4")
    OLD: 9x100 mm
    Axle type: QR

    Tubeless ready if rim tape and a valve are added

    Wheel assembly advice

    Tighten to the recommended torque for this disc (6 Nm)
    Remember to apply a small amount of thread-locking fluid to the disc's screw threads.
    Tubeless-compatible if the valve and rim strip are changed.

    CARE TIPS

    Regularly check the tension of the spokes and that your wheel is not bent. Do not use a high-pressure cleaner on the wheel bearings

    Need Help?

    The technicians at your Decathlon store workshop are available to help you replace your bike's parts. Feel free to ask them for help!

  • Usage & care

    Warranty

    2 Years

    Care Instructions

    Storage tips

    Store the wheel in a cool, dry place, away from corrosive products and salty air.

    Usage precautions

    The technicians at your Decathlon store's workshop can help

  • Specifications

    composition

    Hub: 50.0% Steel, 50.0% Aluminium;Rim: 100.0% Aluminium;Spokes: 100.0% Steel
