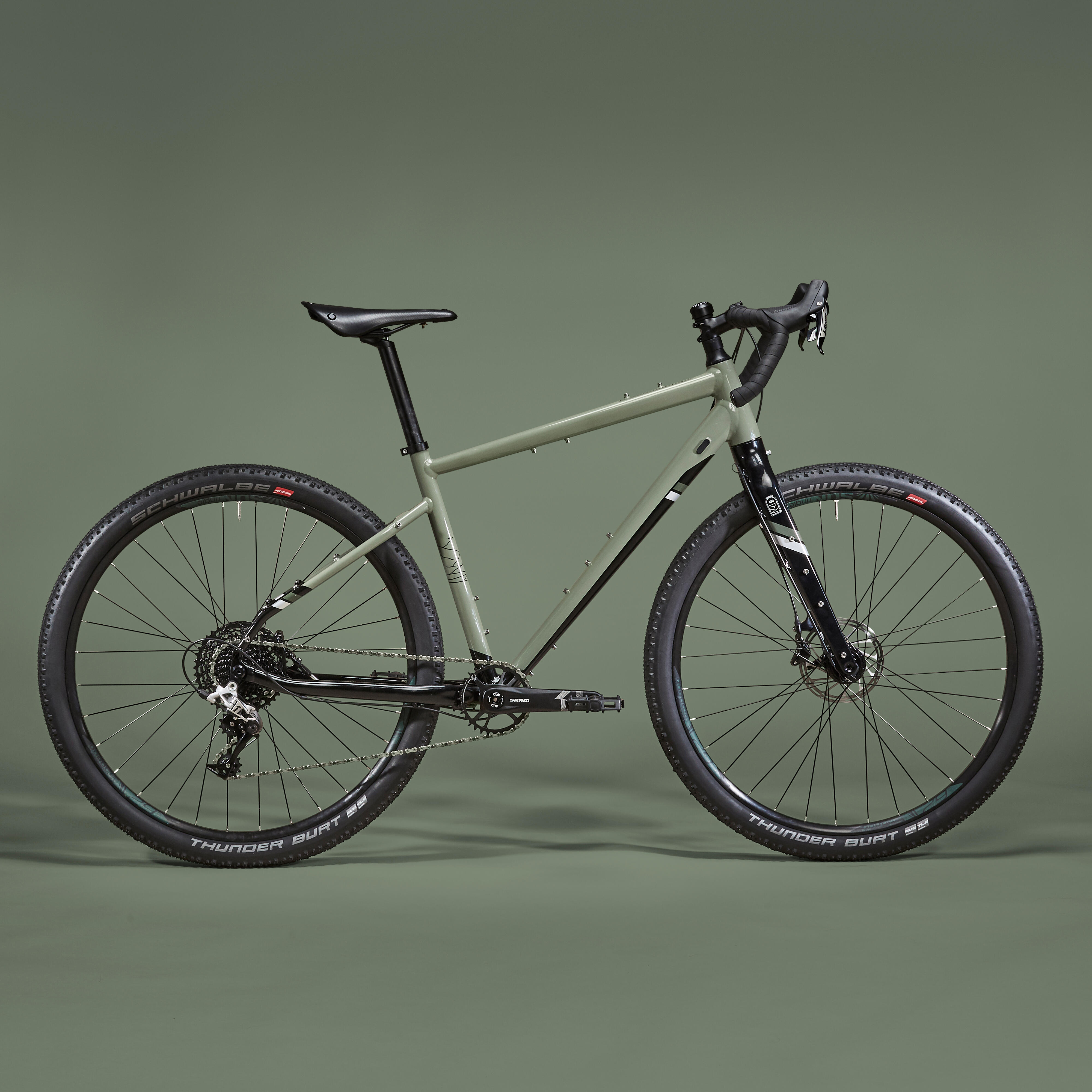

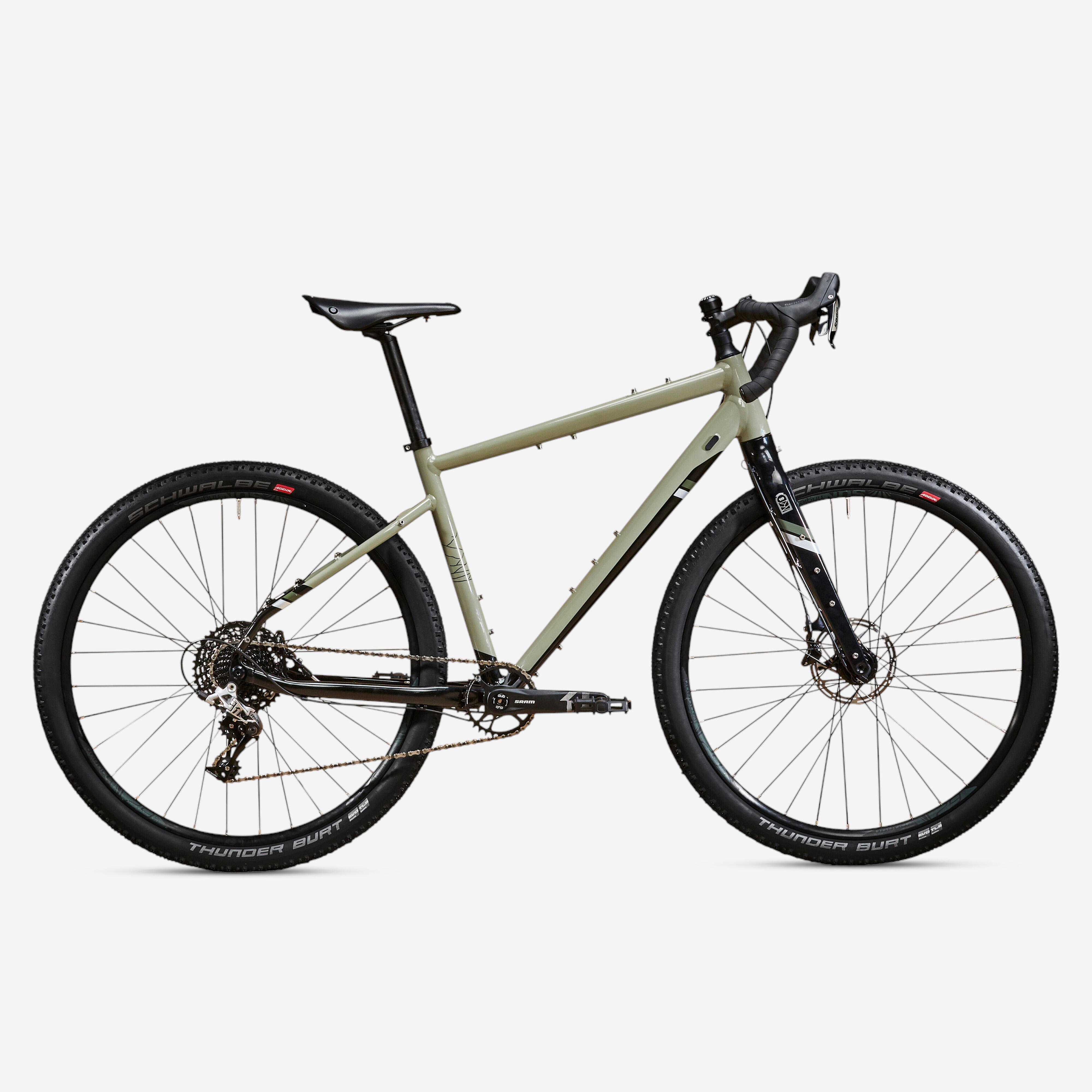

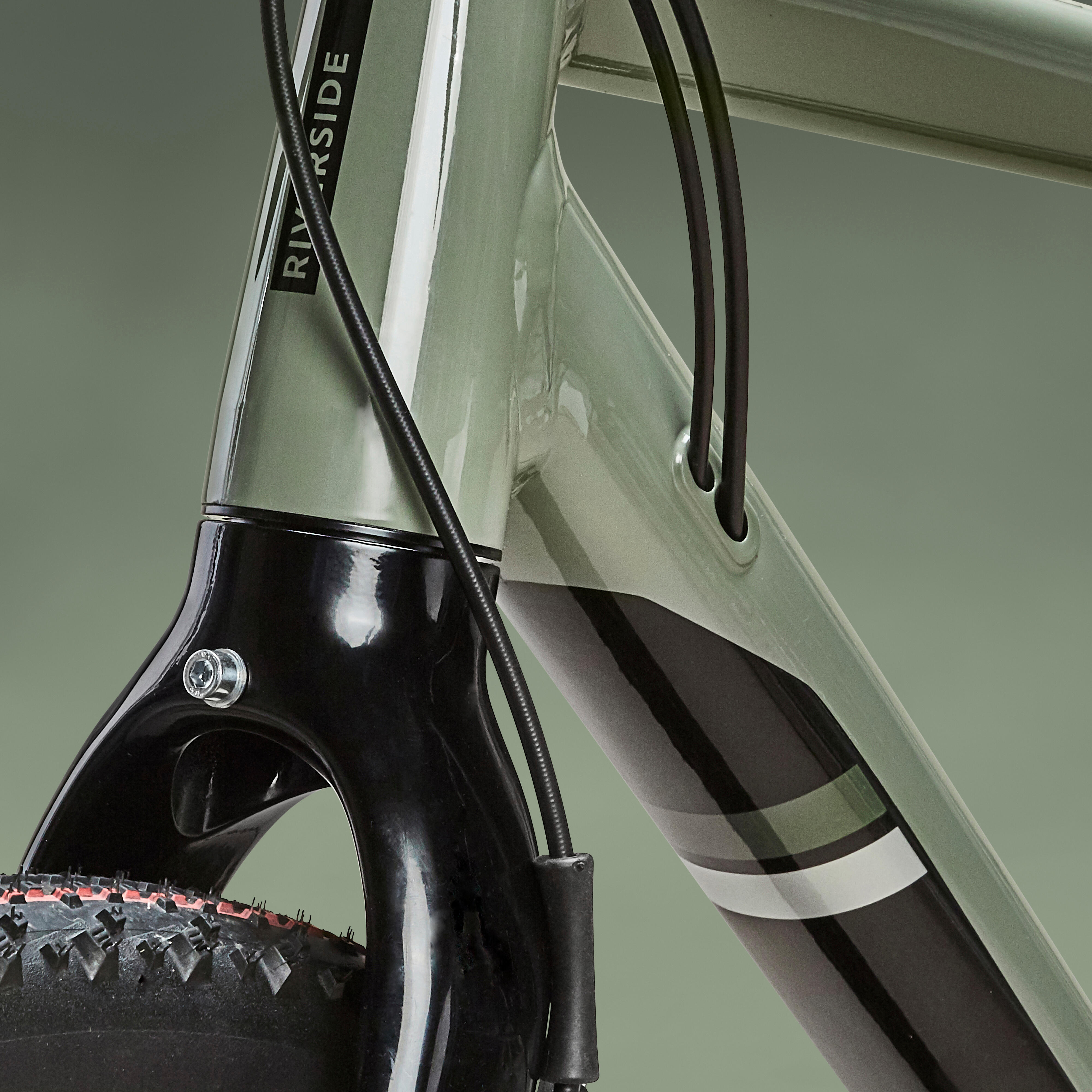

A sturdy, comfortable frame

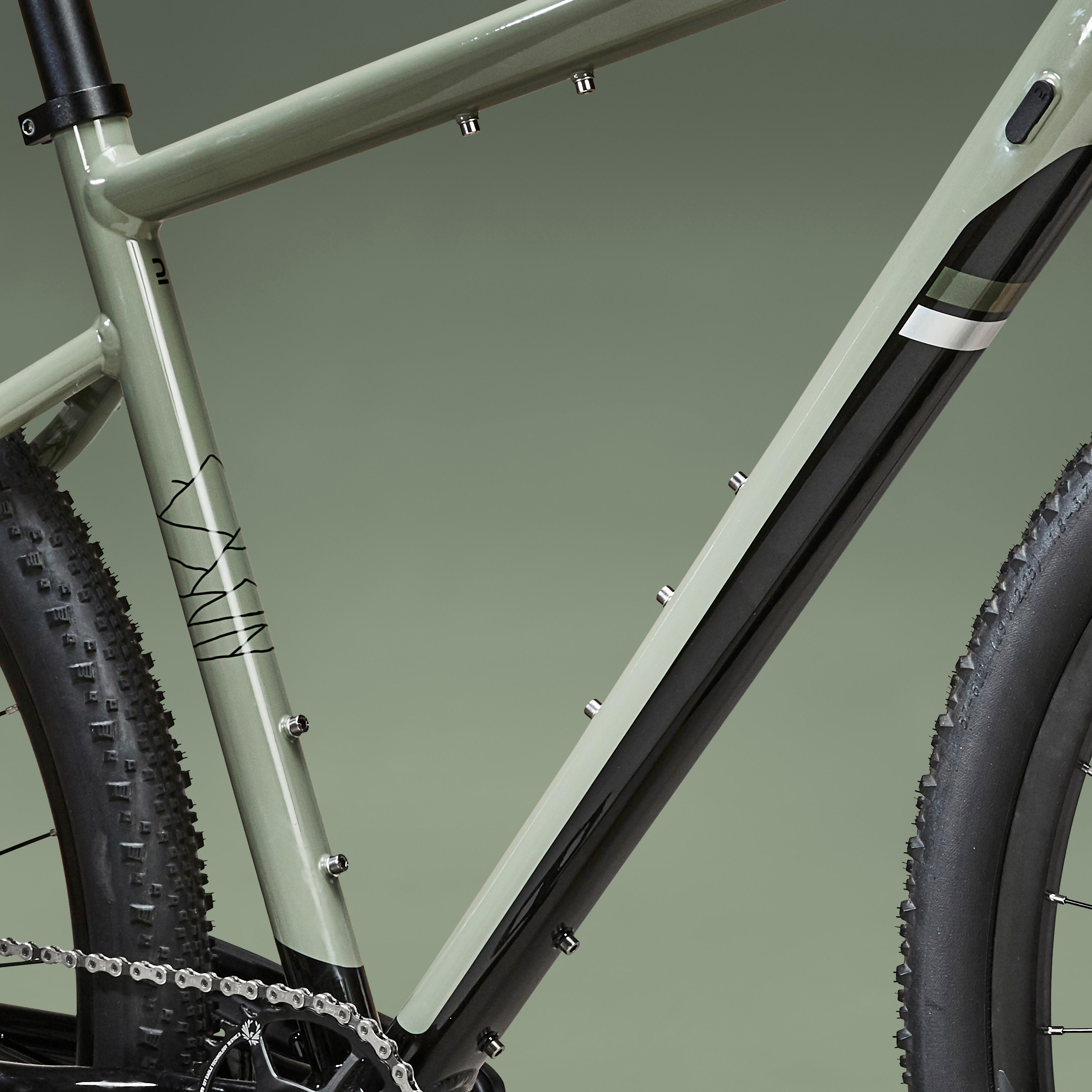

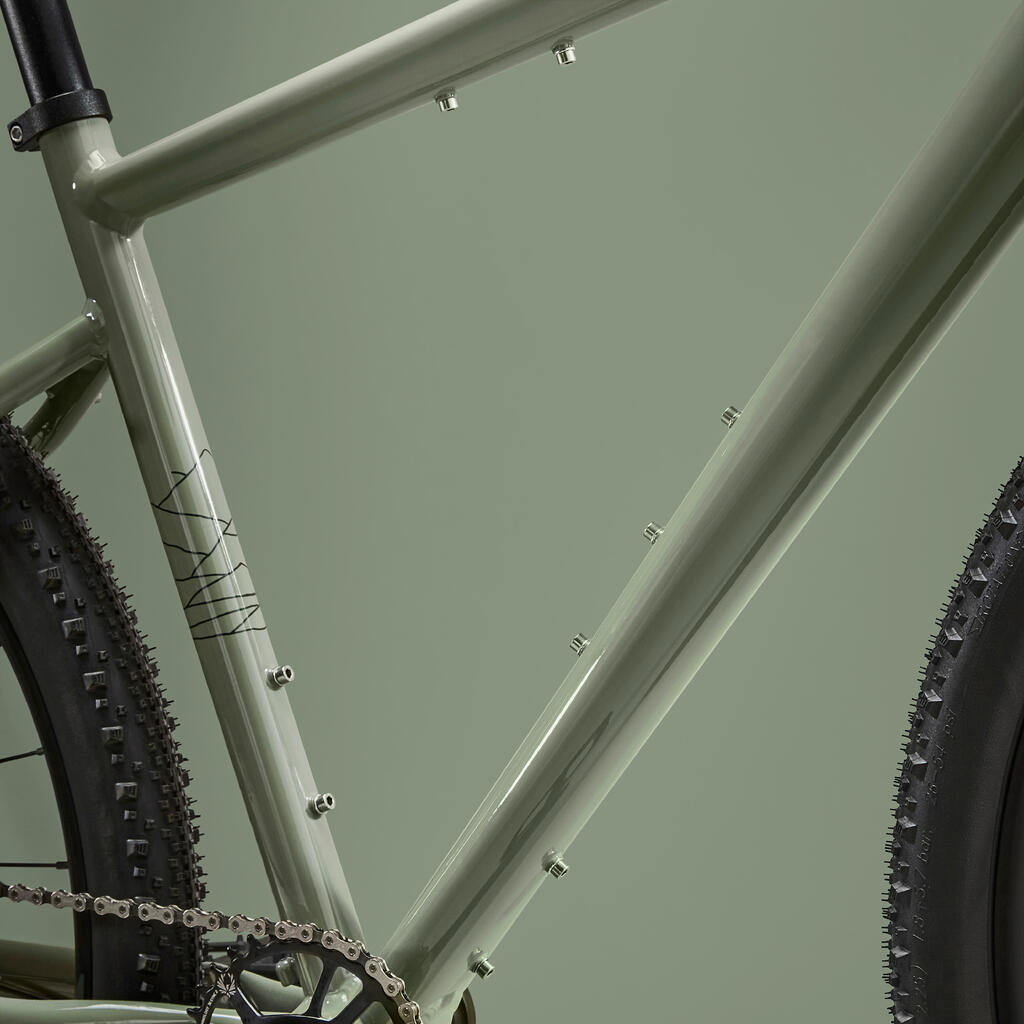

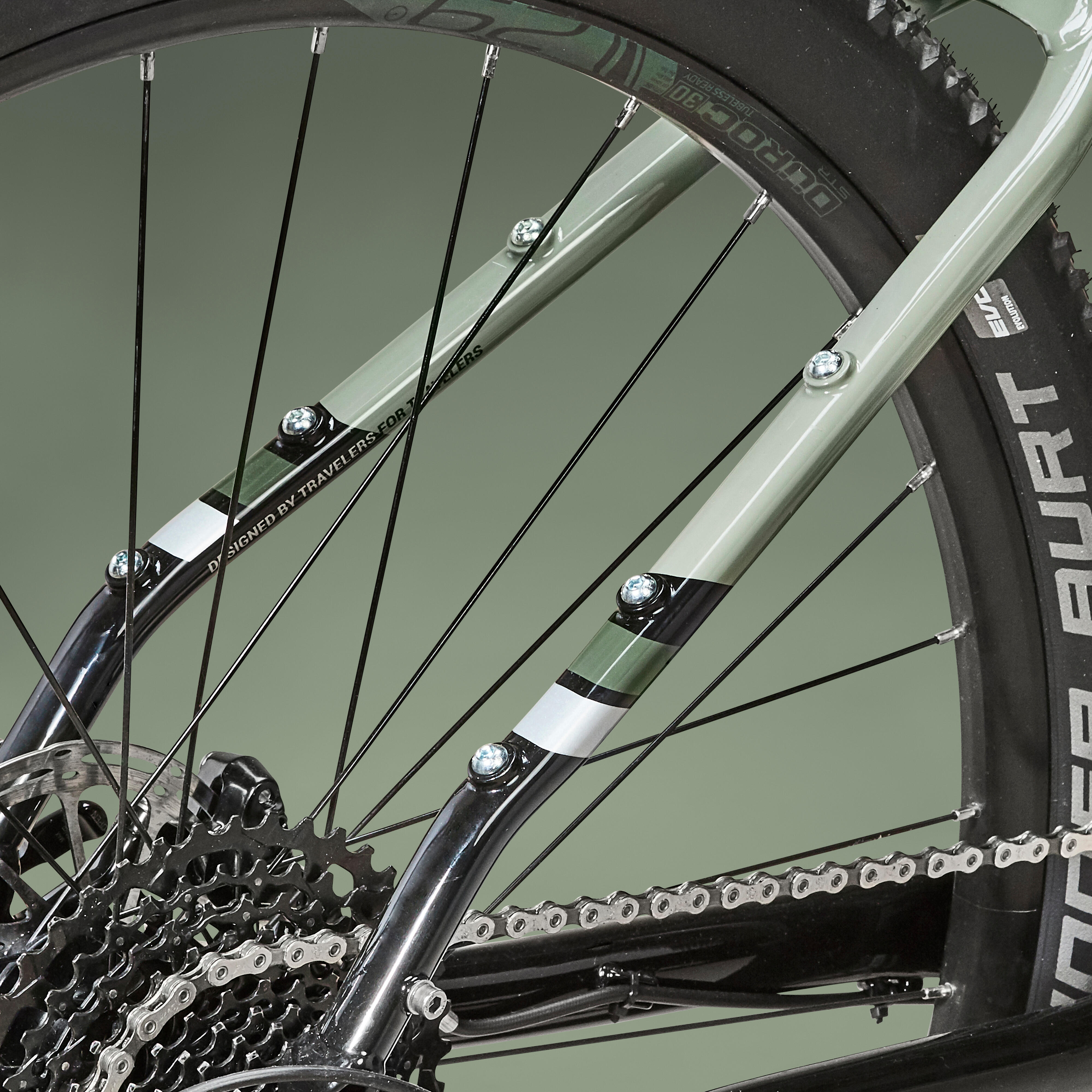

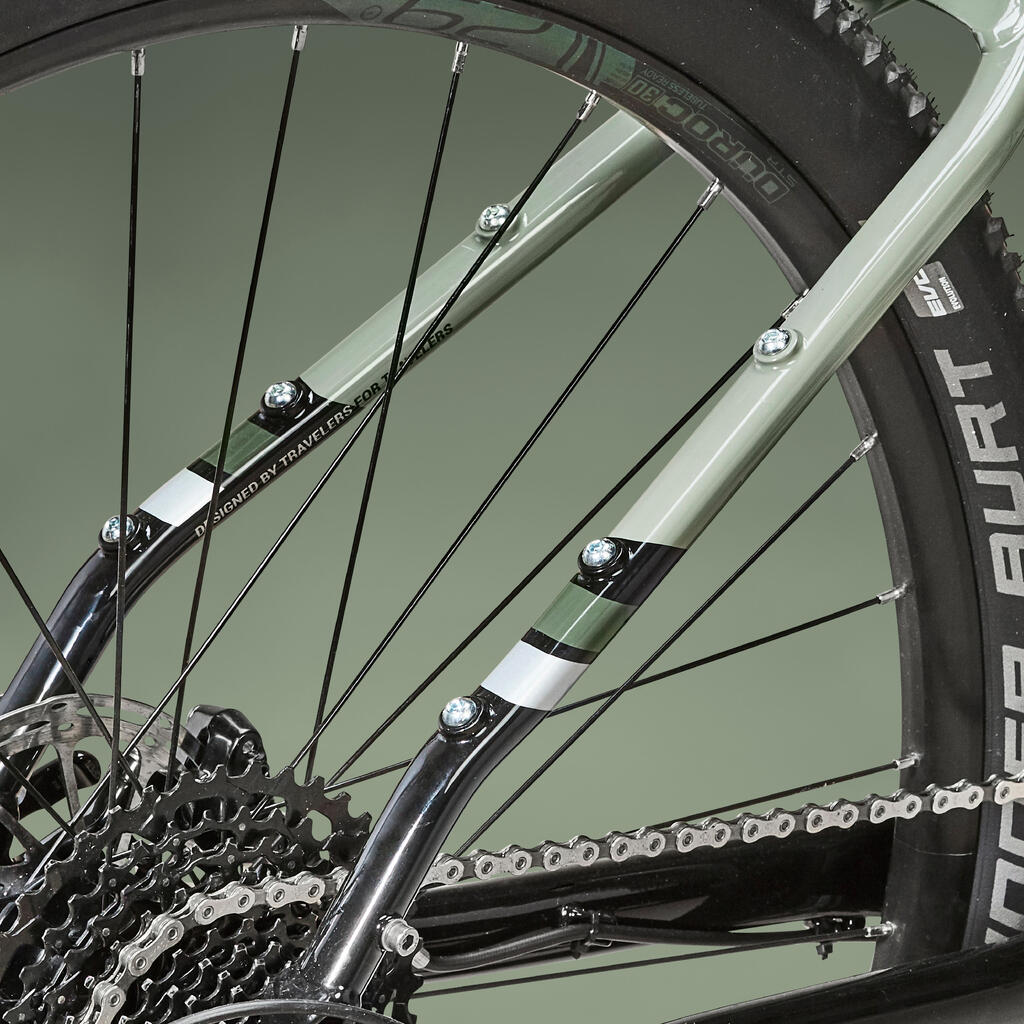

We have designed this triple-butted aluminium frame for maximum durability, sturdiness and comfort. More than 500,000 km of testing under its belt on all continents and in all weather conditions. Internal cable routing. 33 mounts on the frame and fork to attach all your accessories and pannier racks. 3 mounts on the fork for your cargo cage. Compatible with all pannier racks. Removable rear derailleur hanger.

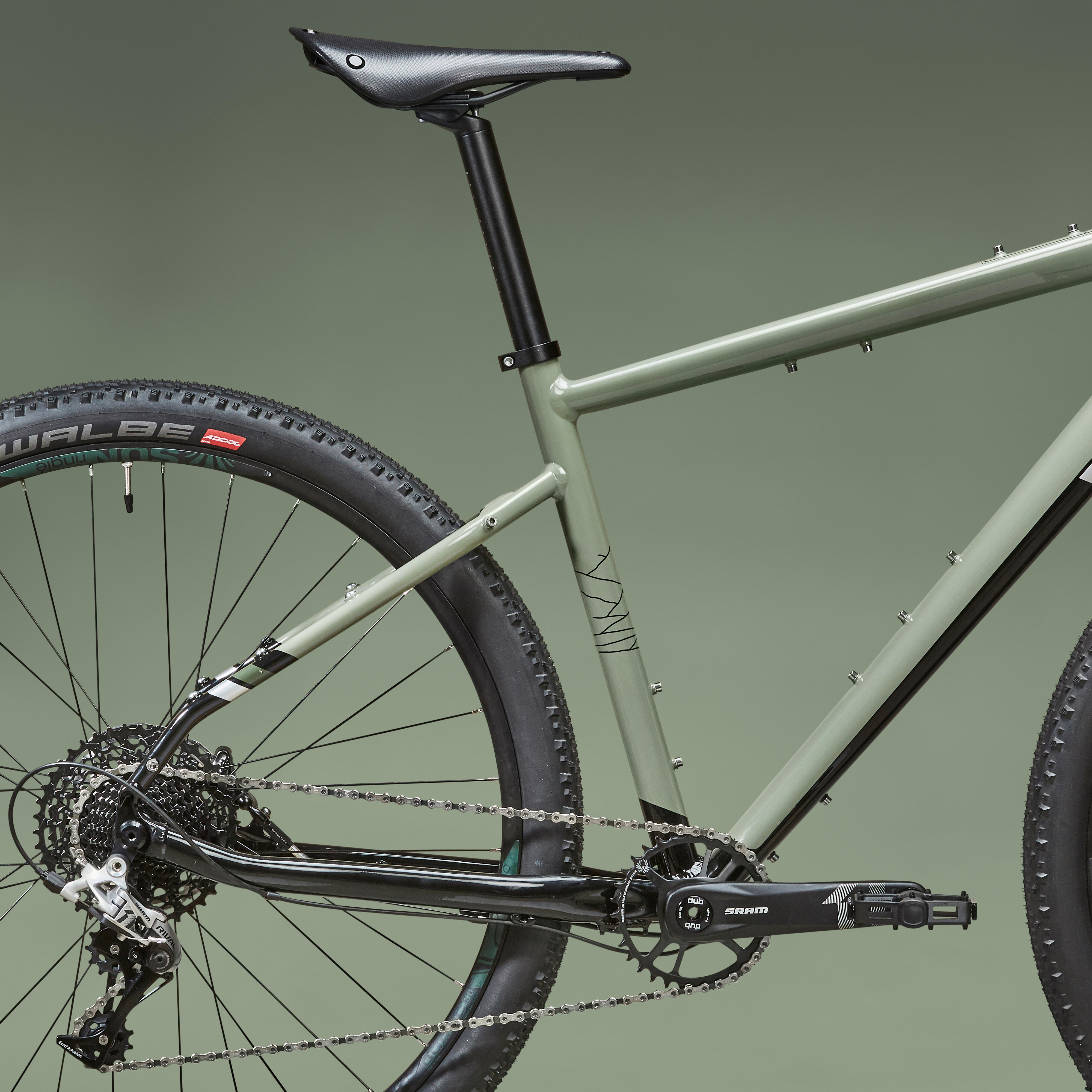

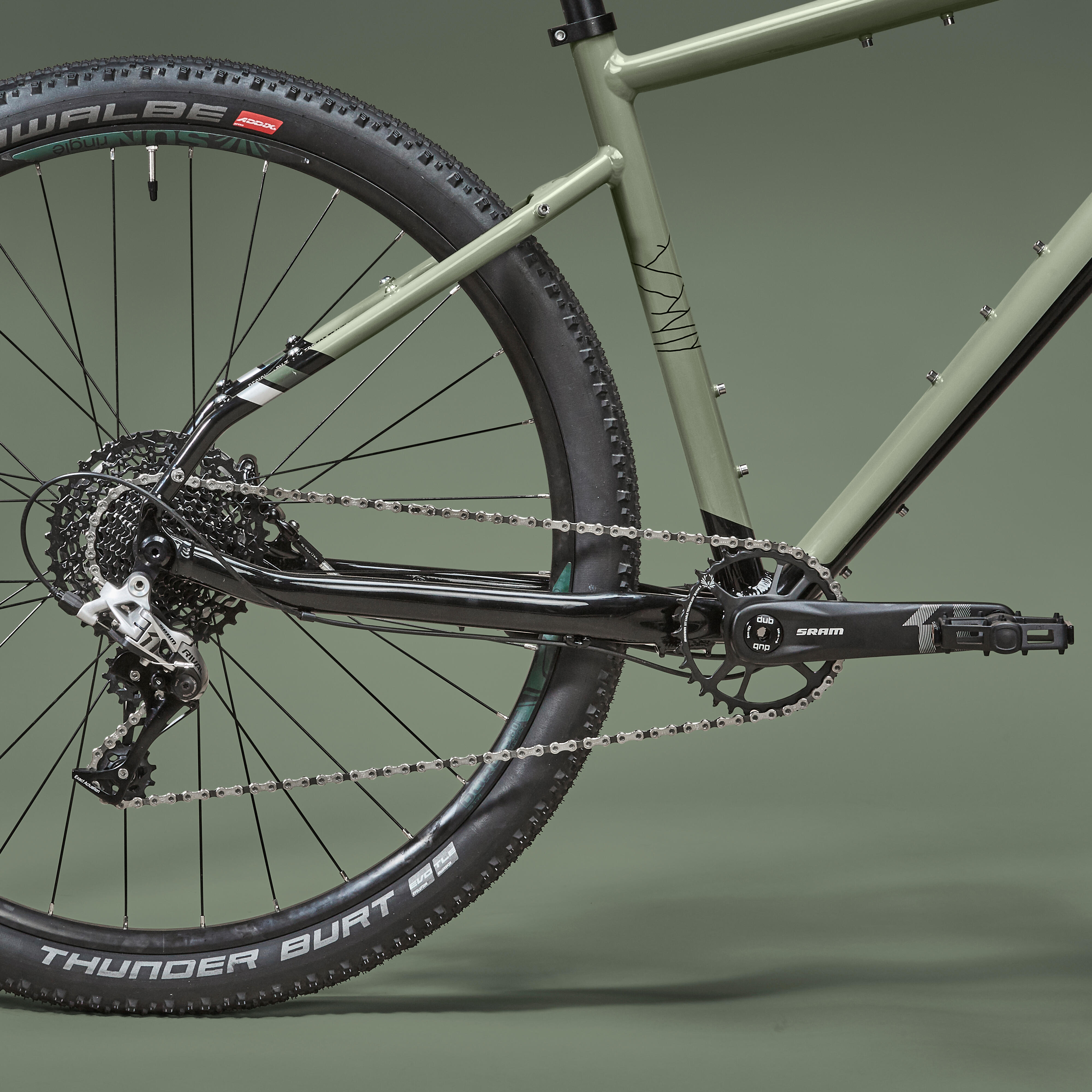

Drive train:pair simplicity with energy
Sram Rival hydraulic groupset
Single chainring Sram Dub 32T. Can be combined with the SRAM 34, 36, or 38 tooth chainrings. Can use up to 40-tooth chainring with an adaptable chainring (non-SRAM)
Crank length: 170 mm (S/M), 175 mm (L/XL)
Sram 11-speed (11-42) cassette
Derailleur: Sram Rival long cage
Sram PC1130 11S chain
Riverside toe clip compatible pedals.

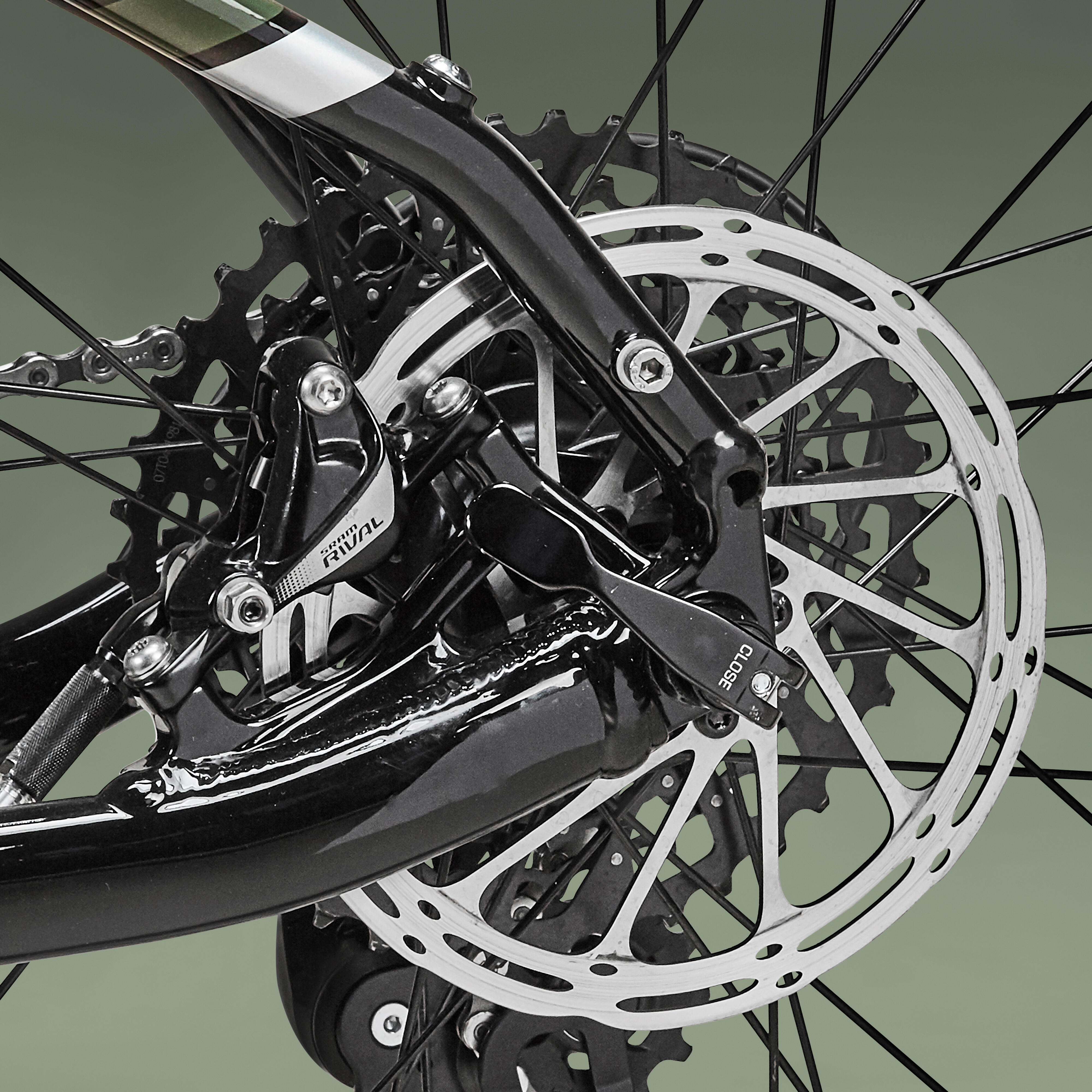

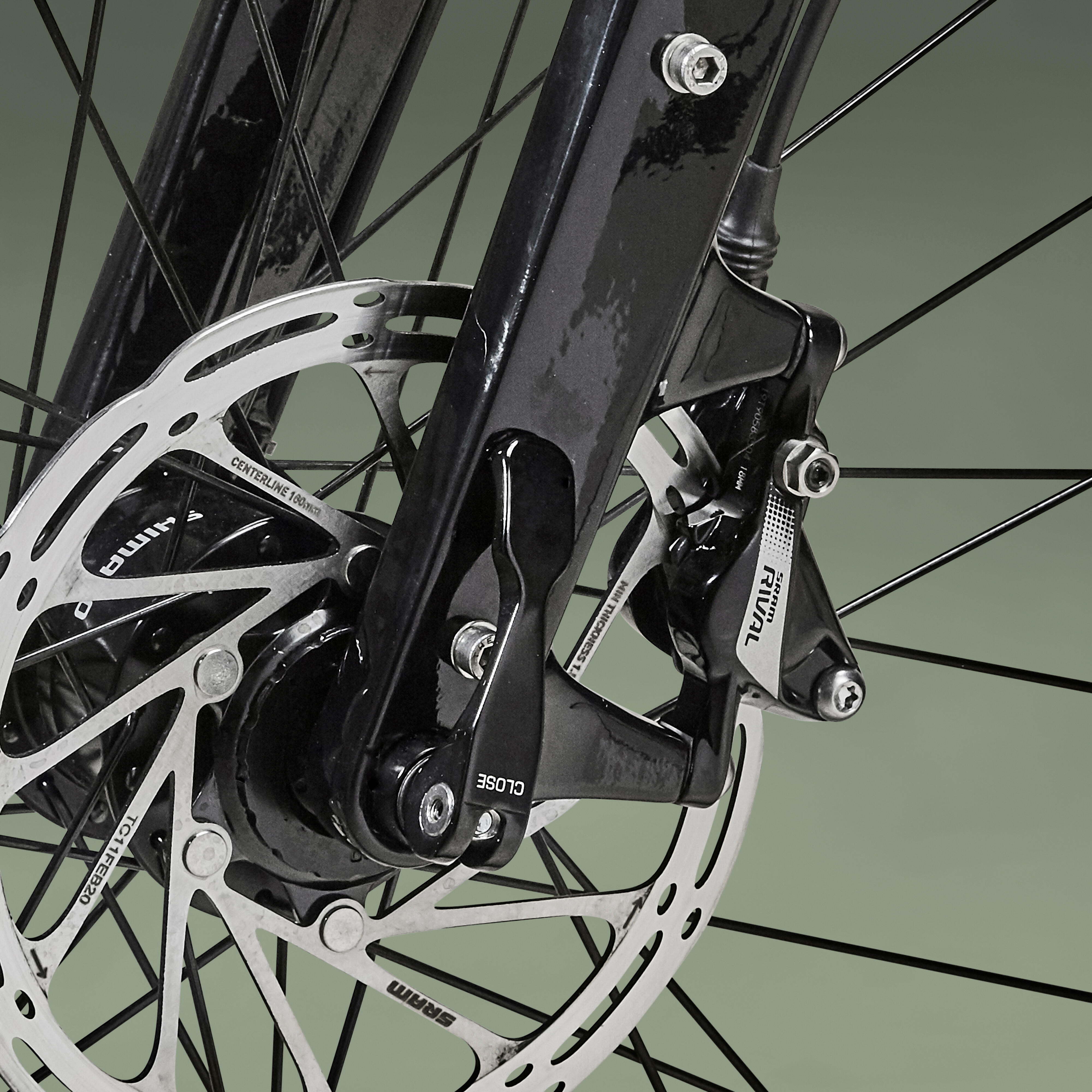

Hydraulic disc brakes
Power meets comfort to guarantee effective braking, even on the toughest terrain. The Sram hydraulic brakes are comfortable, precise and progressive, with an unrivalled touch.
Sram Rival hydraulic brake levers.

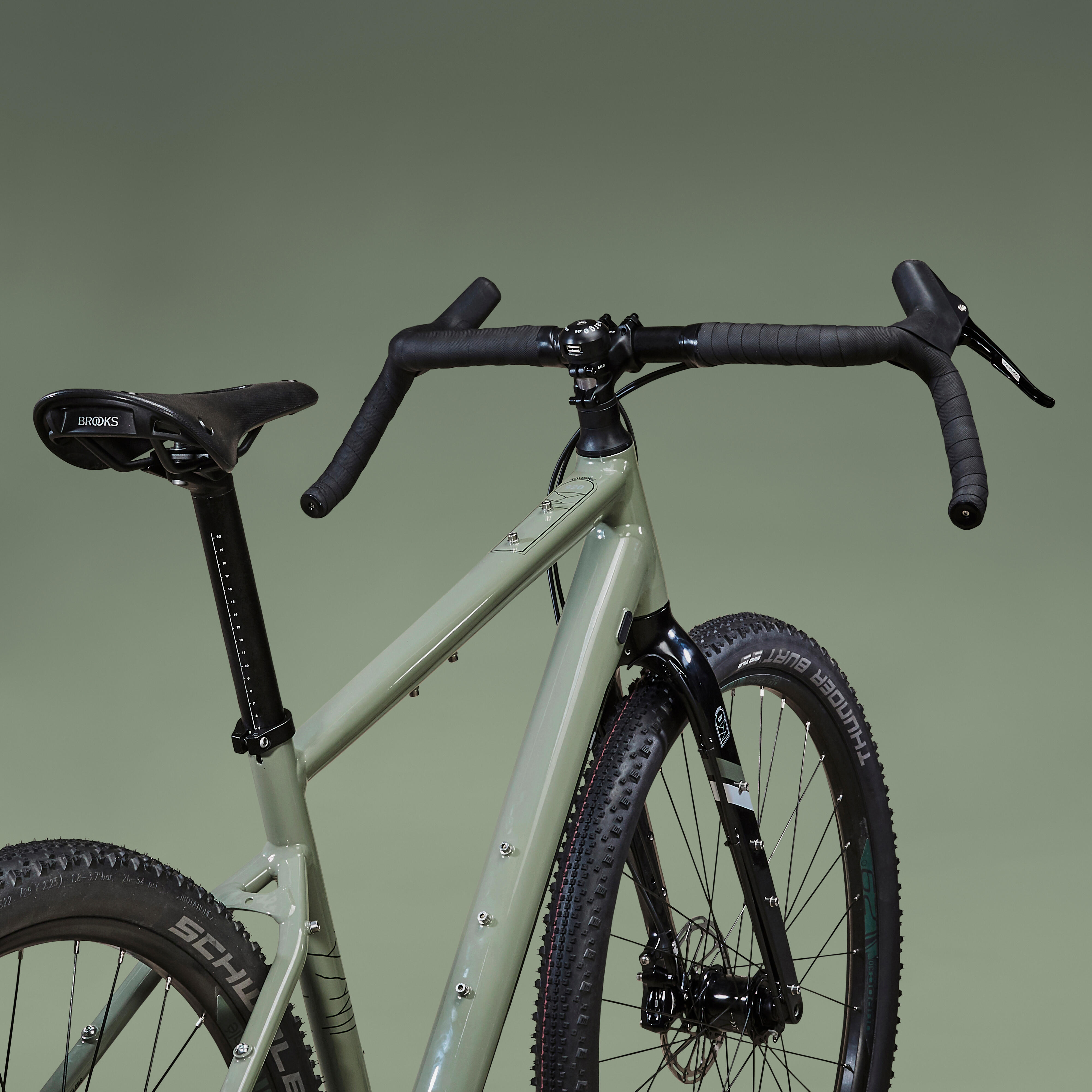

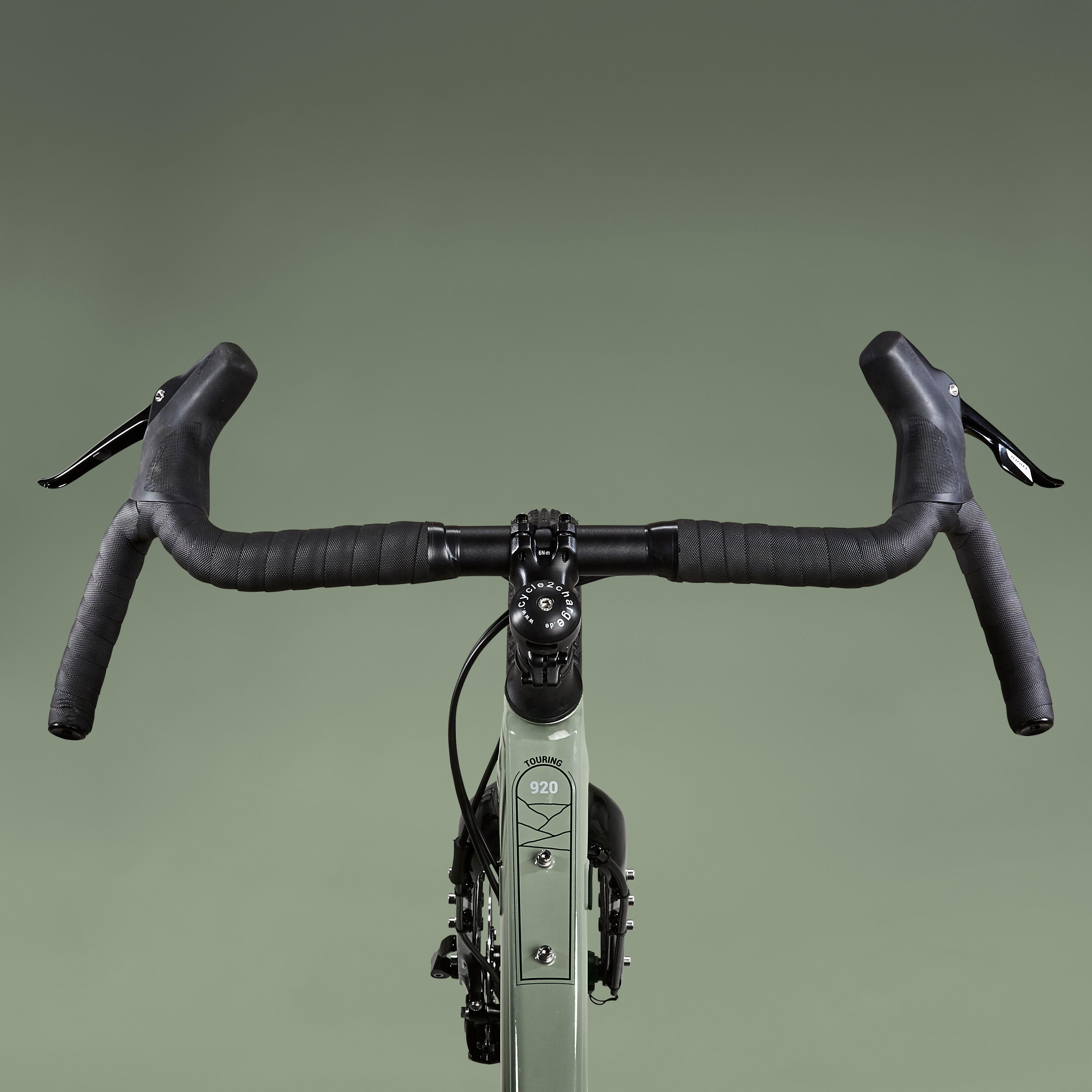

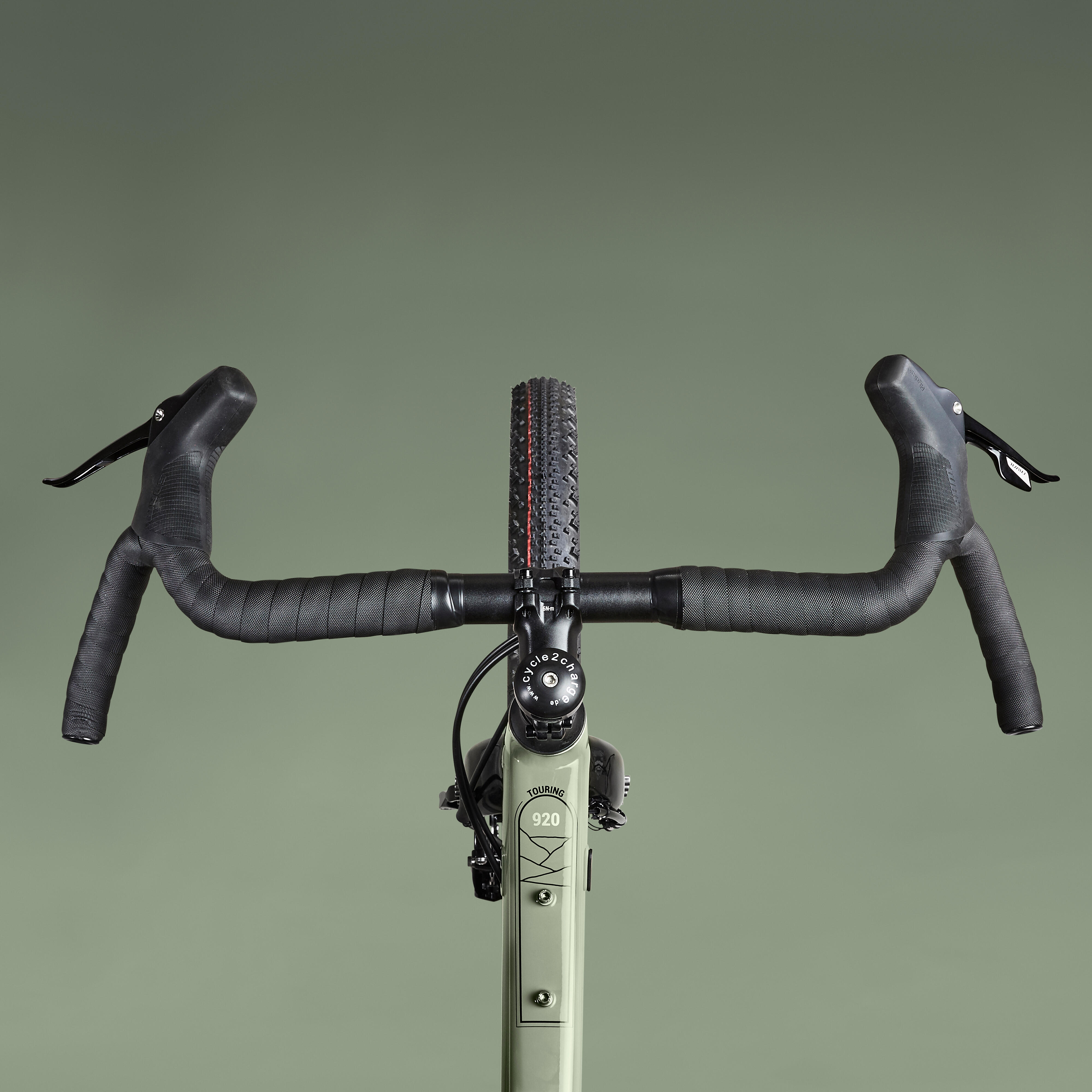

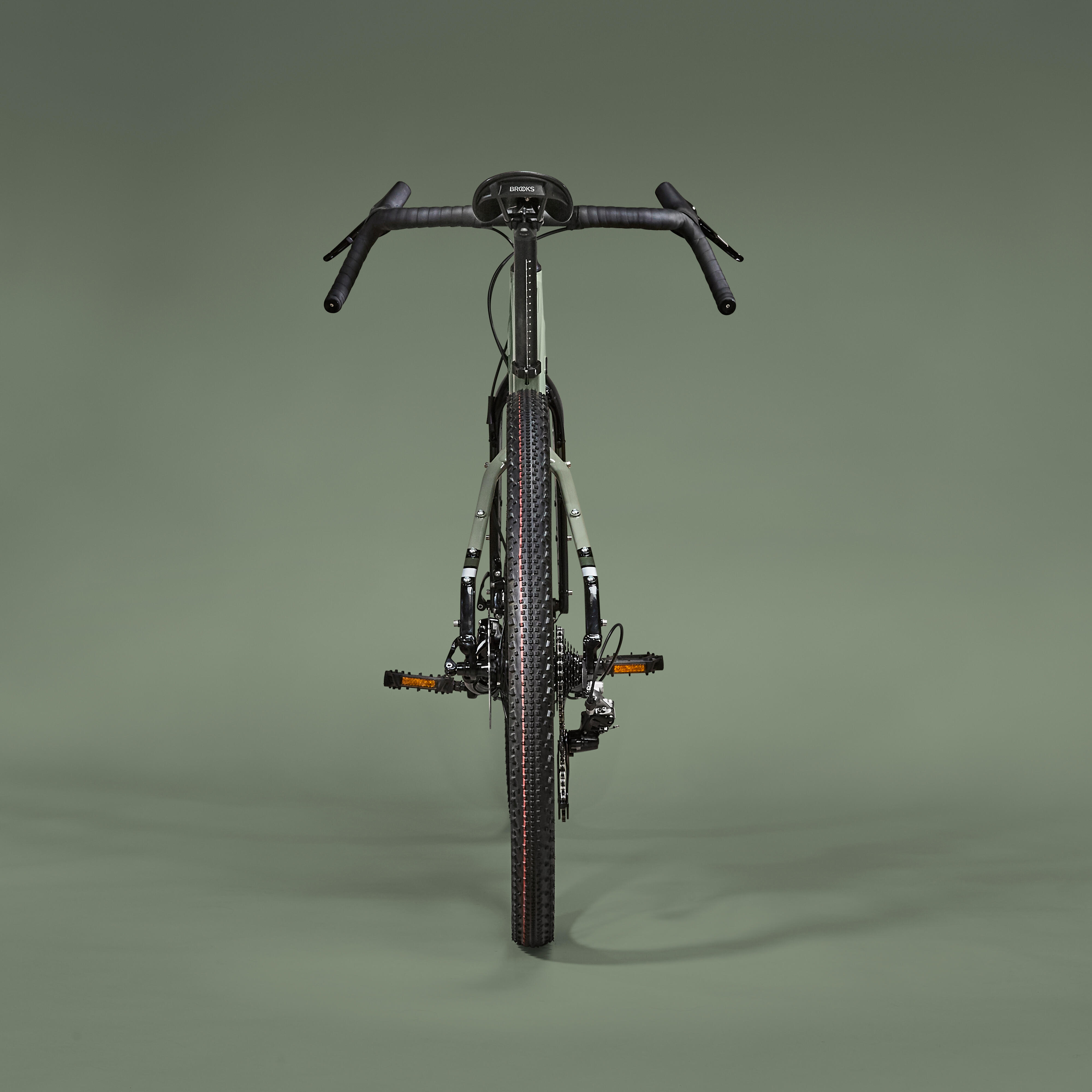

Handlebars, steering, stem: maintain control

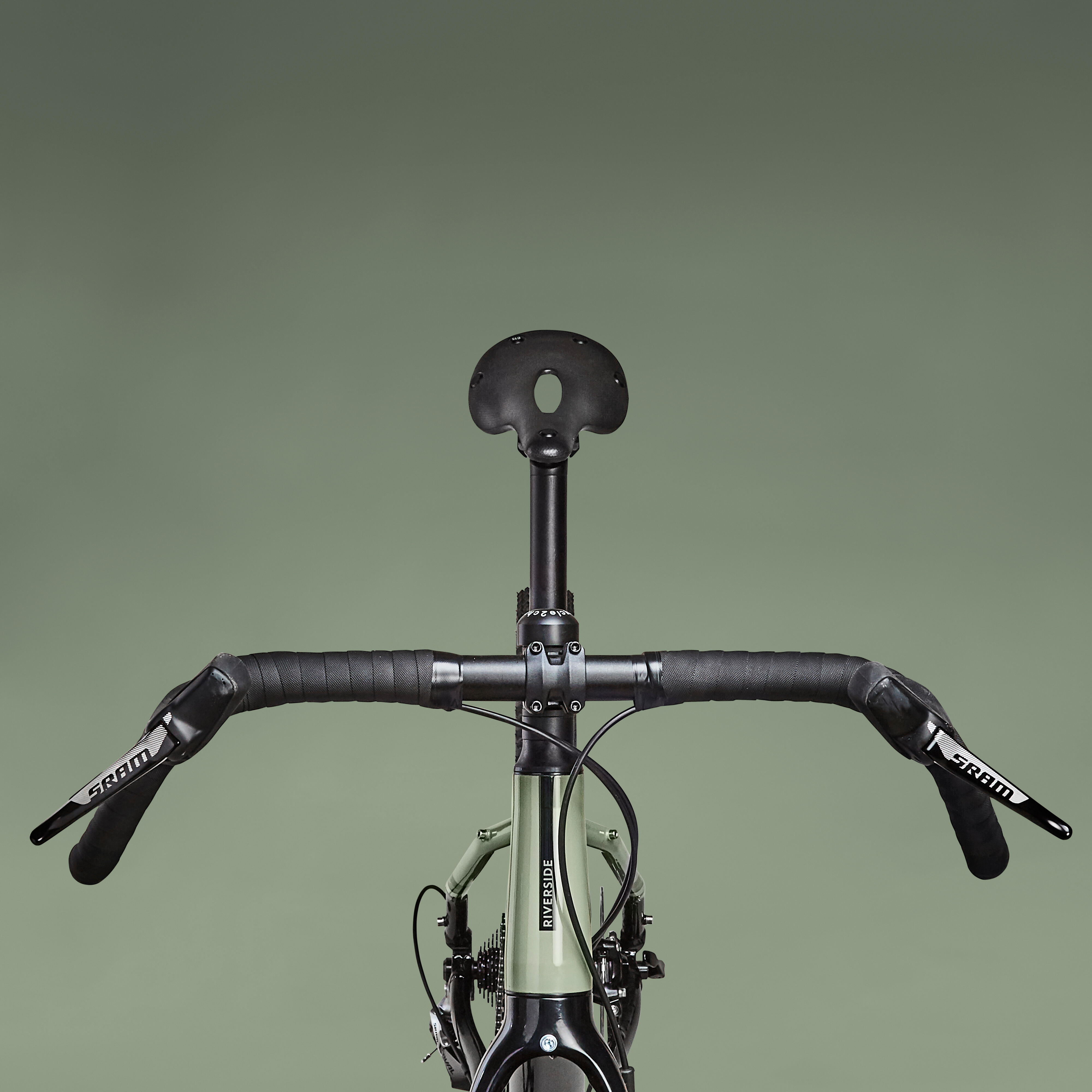

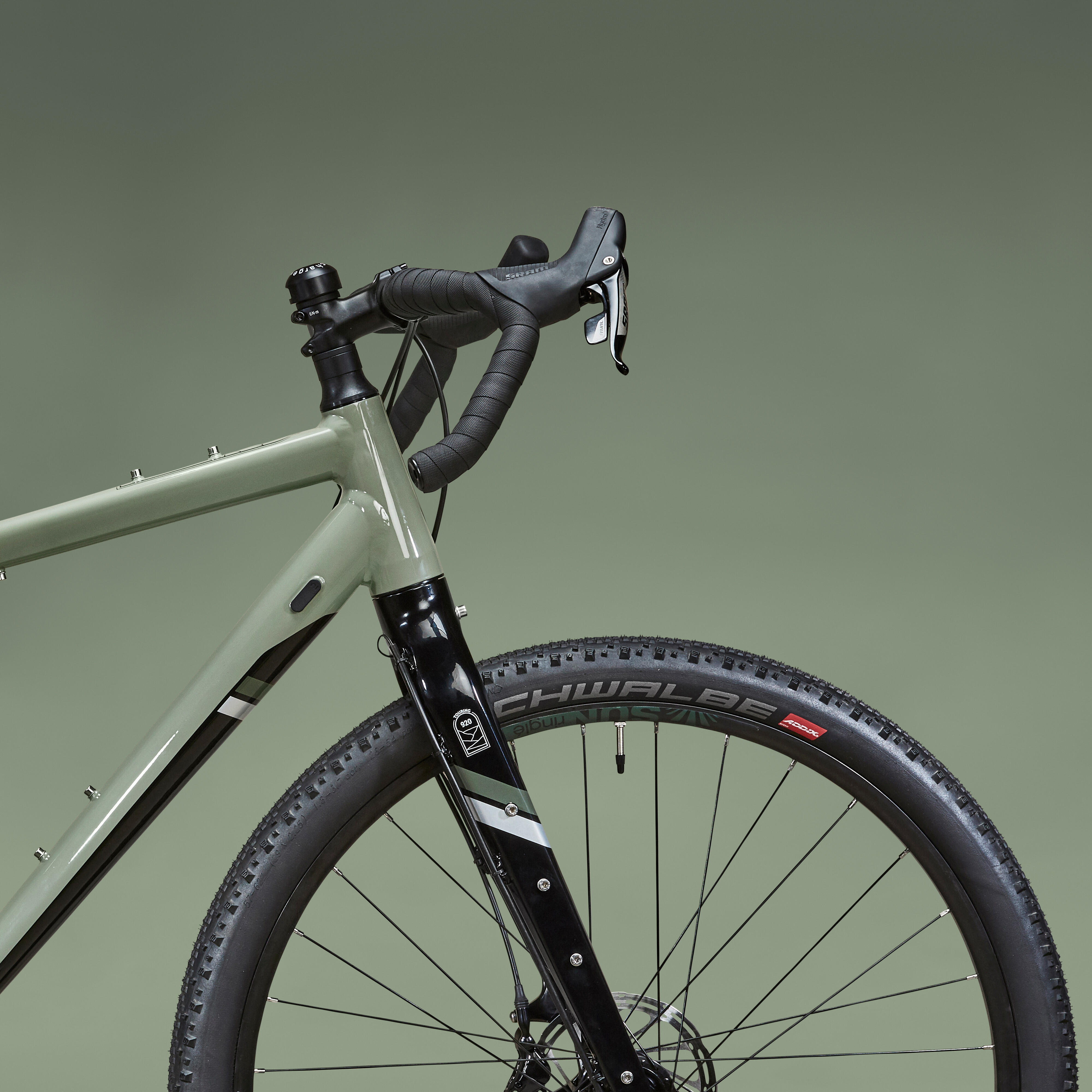

We have designed a unique handlebar for this bike for the very best experience on both roads and trails. It is wide and flared, encouraging a natural position for your hands and arms, with plenty of space to mount your handlebar bag.
Size S: 580 mm wide
Reach: 52.6 mm / Flare: 24° / Sweep: 4° / Drop: 115.5 mm
Size M, L, XL: 620 mm wide
Reach: 52.6 mm / Flare: 24° / Sweep: 4° / Drop: 124 mm
Stem: Size S: 60 mm / Size M: 70 mm / Size L: 80 mm / Size XL: 100 mm

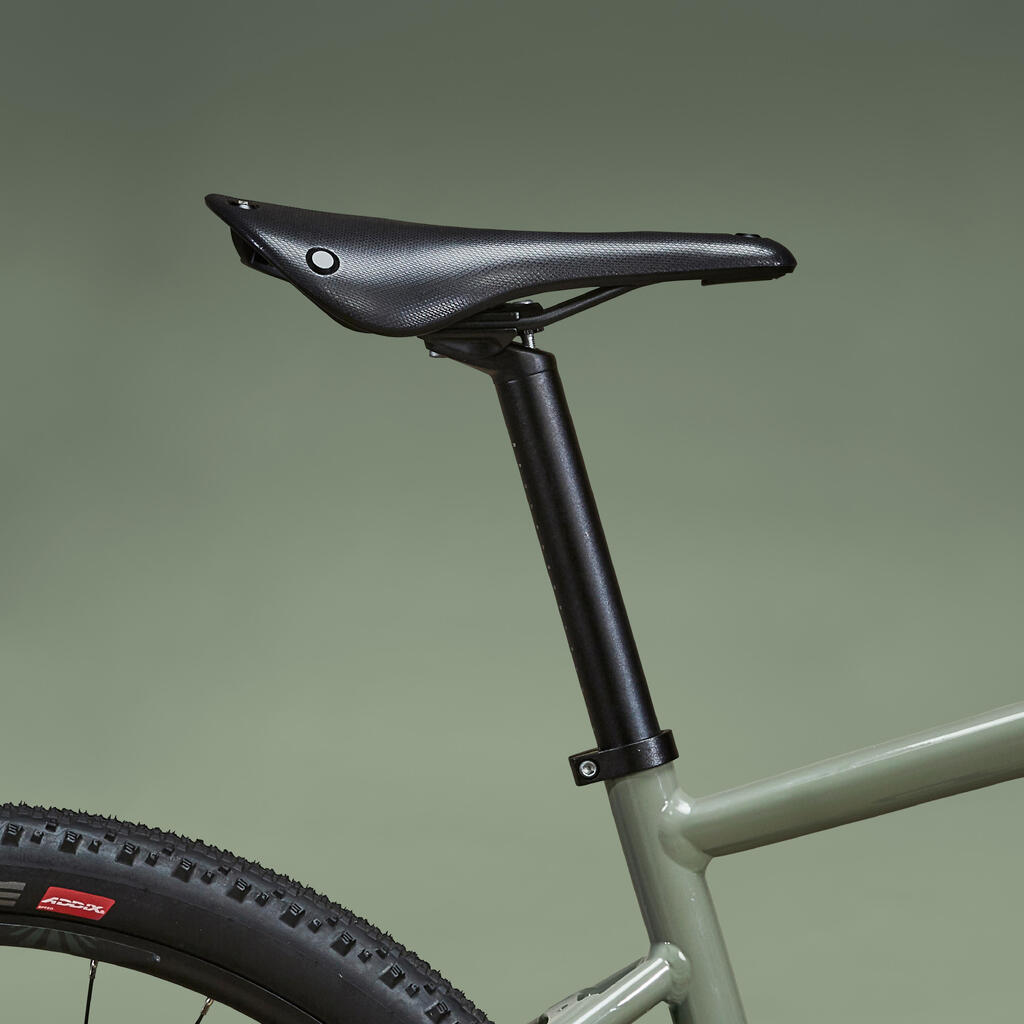

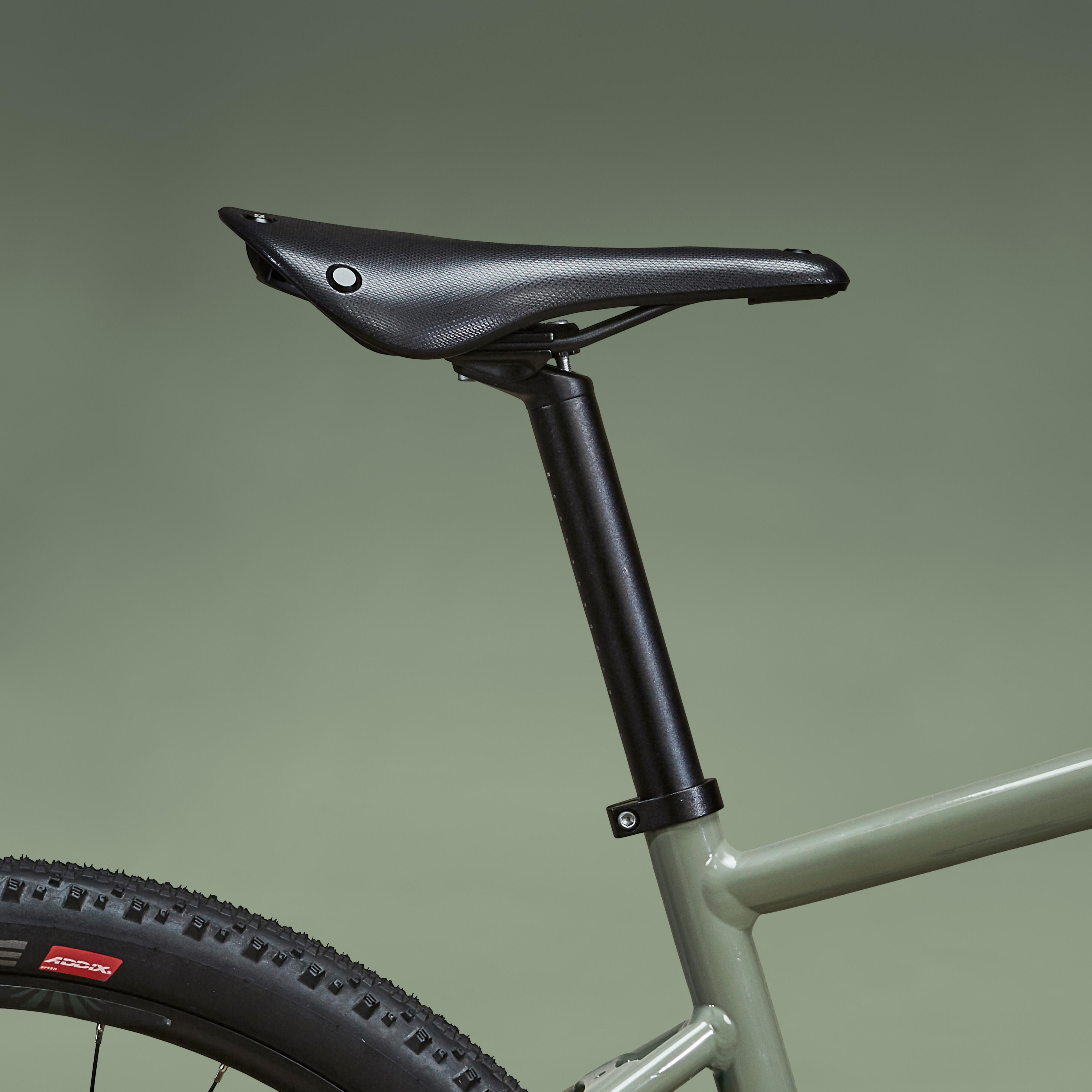

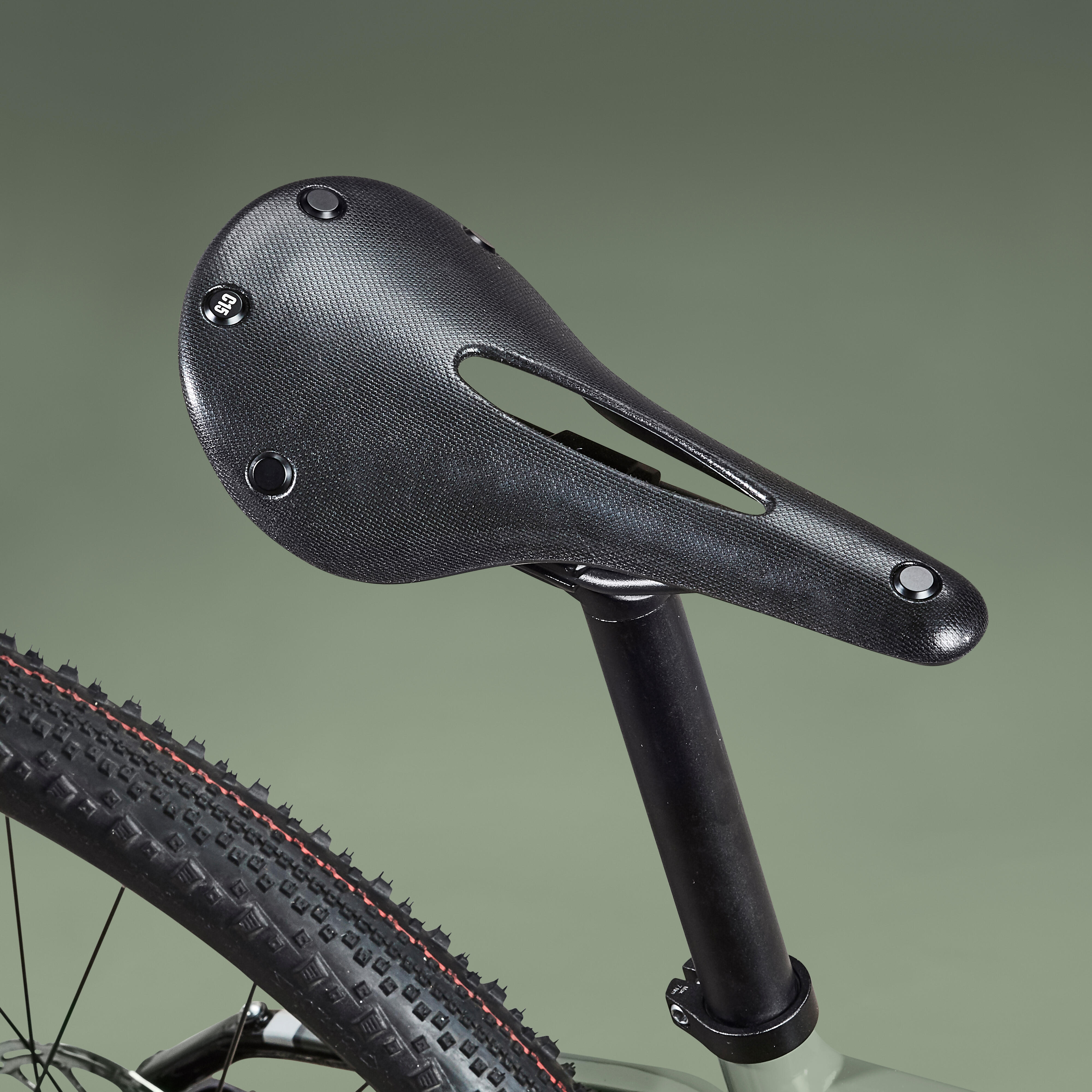

Saddle be comfortable
We've equipped this bike with the Brooks Cambium C15 Carved saddle to combine comfort with athleticism, alongside great weather resistance and with no maintenance required.
Aluminium seat post, graduated for easier adjustment.
Seat post diameter = 31.6 mm.Seat post dimensions: S, M, L: 350mm; XL: 400 mm.

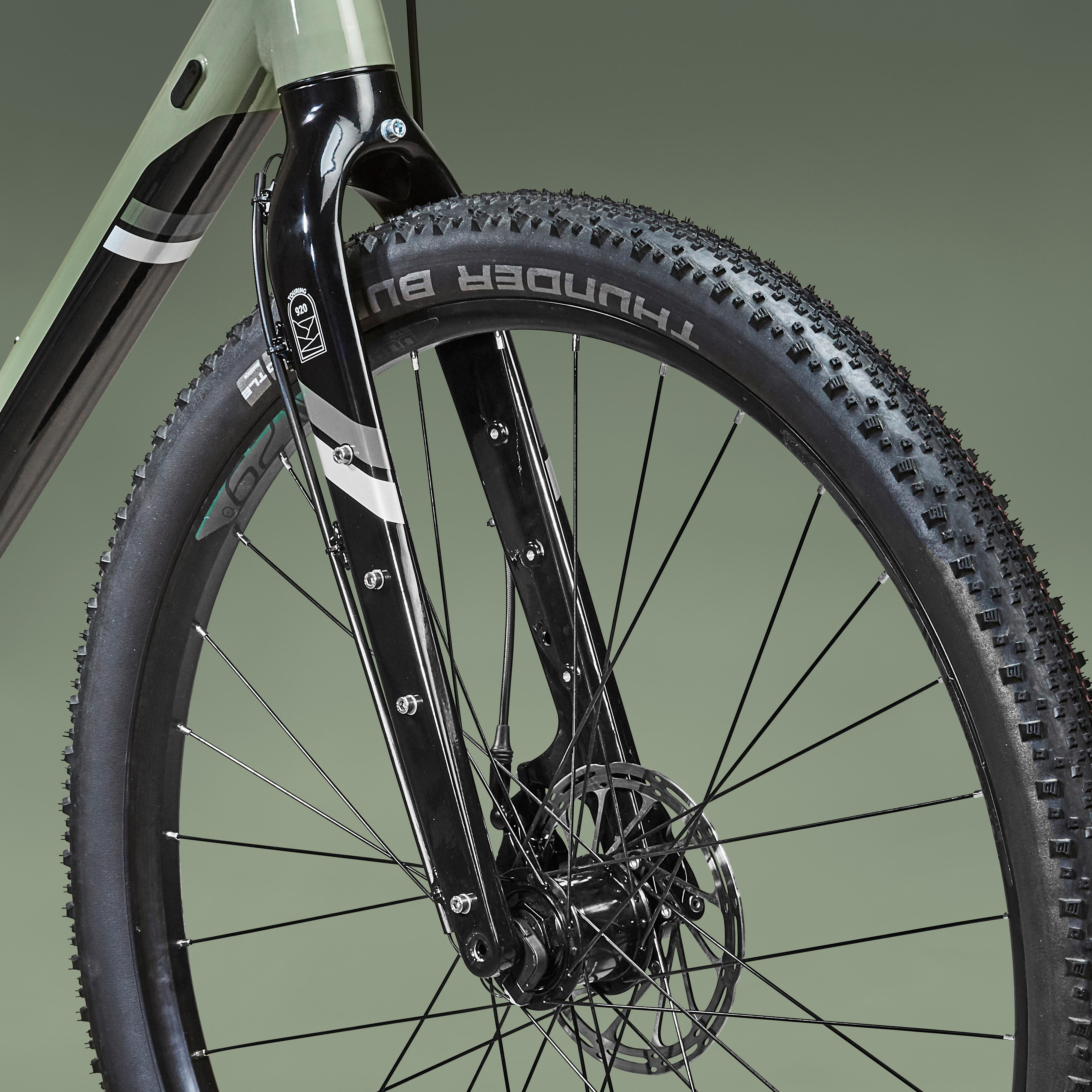

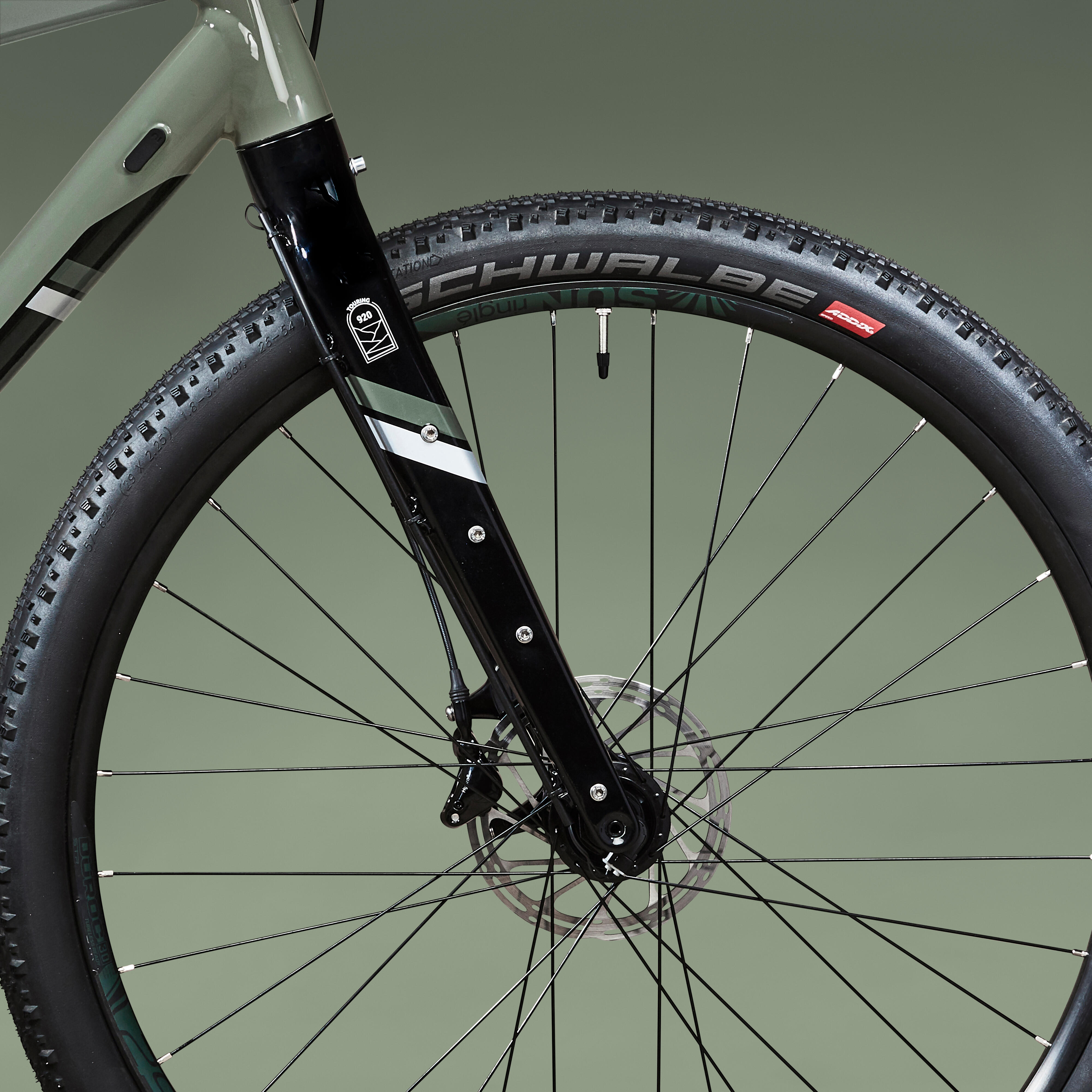

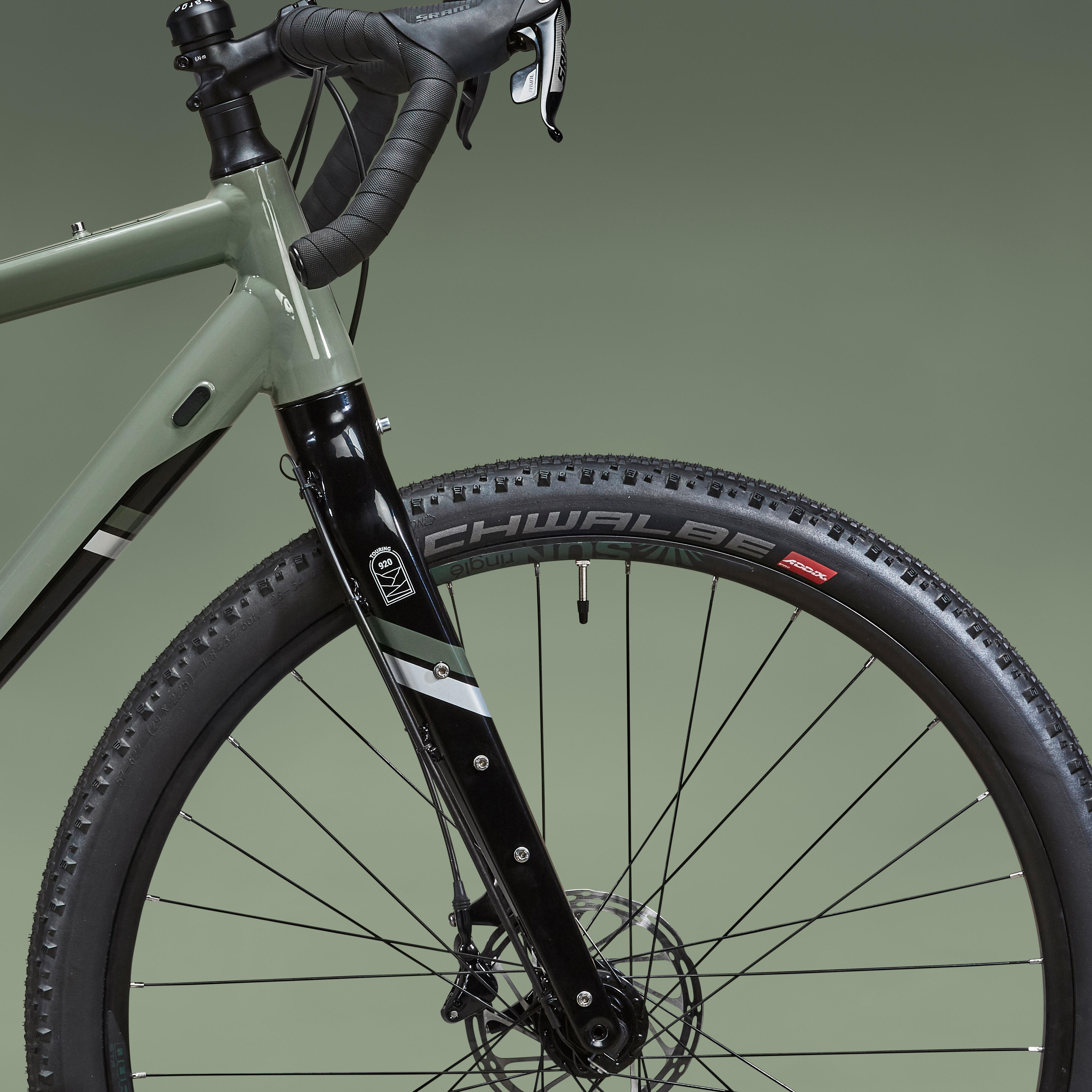

Wheels and tyres

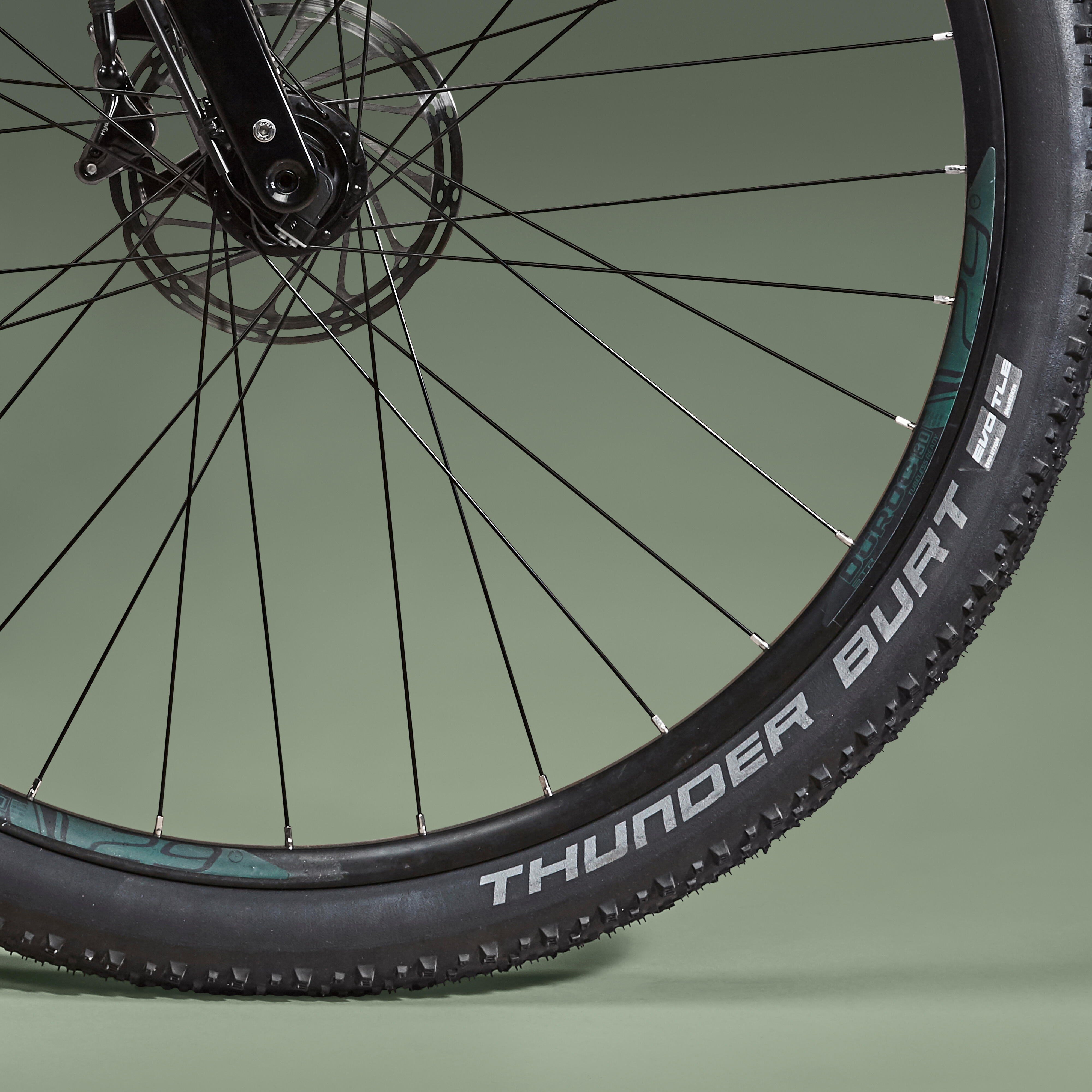

For this model, we have chosen 29" wheels that help the bike clear any obstacle, offer great performance, and give you greater comfort. We've paired them with 29x2.25 (57-622) Schwalbe Thunder Burt tyres that have great grip and are renowned for their low rolling resistance. We recommend a tubeless ready set-up (valves included).
Sun Ringle Duroc 30, 32 spoke, 32c rims.
100/142 x 12mm thru-axles with quick release
Travel components

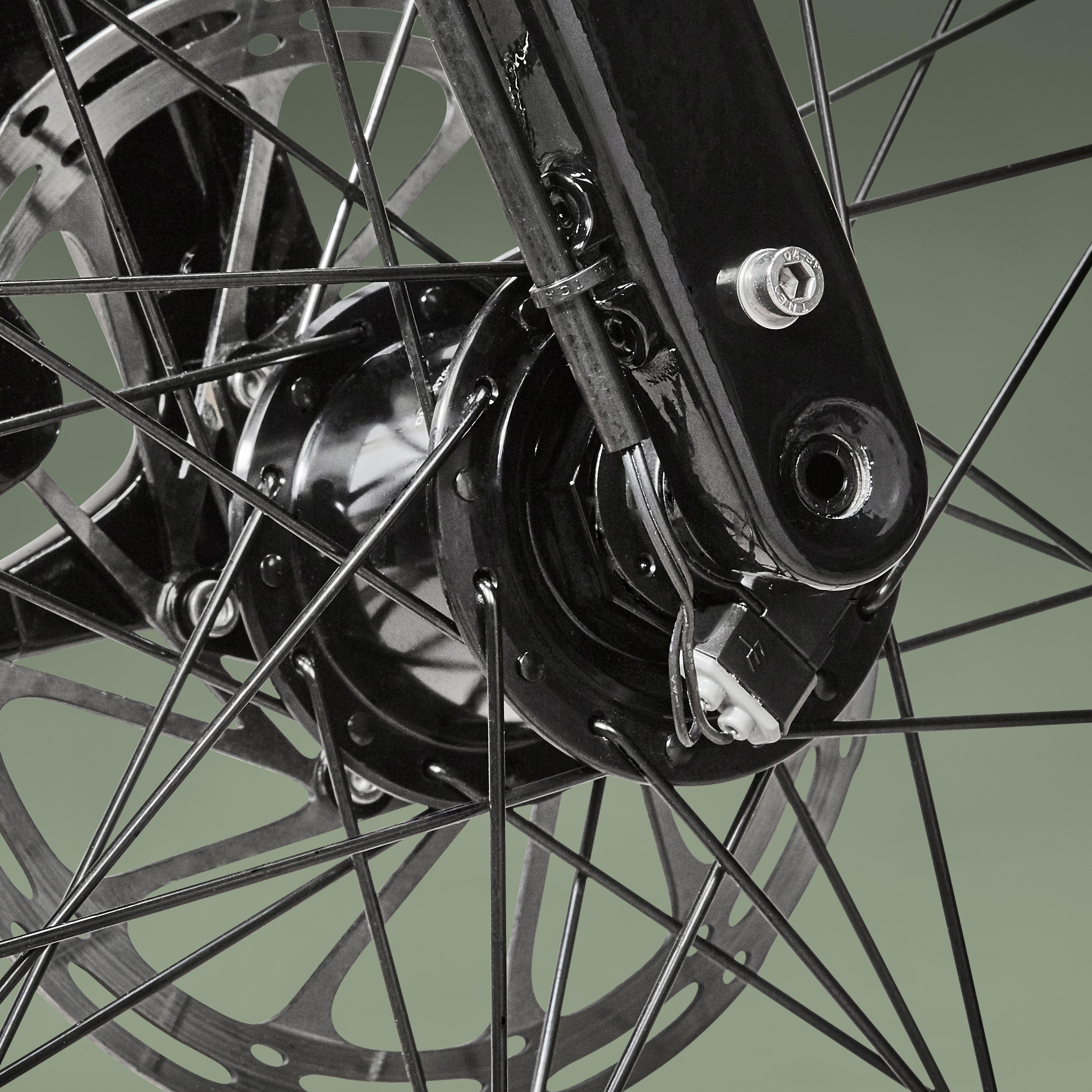

Shimano Deore XT dynamo hub to recharge your batteries and GPS on the go: 6V - 0.5A, 3W

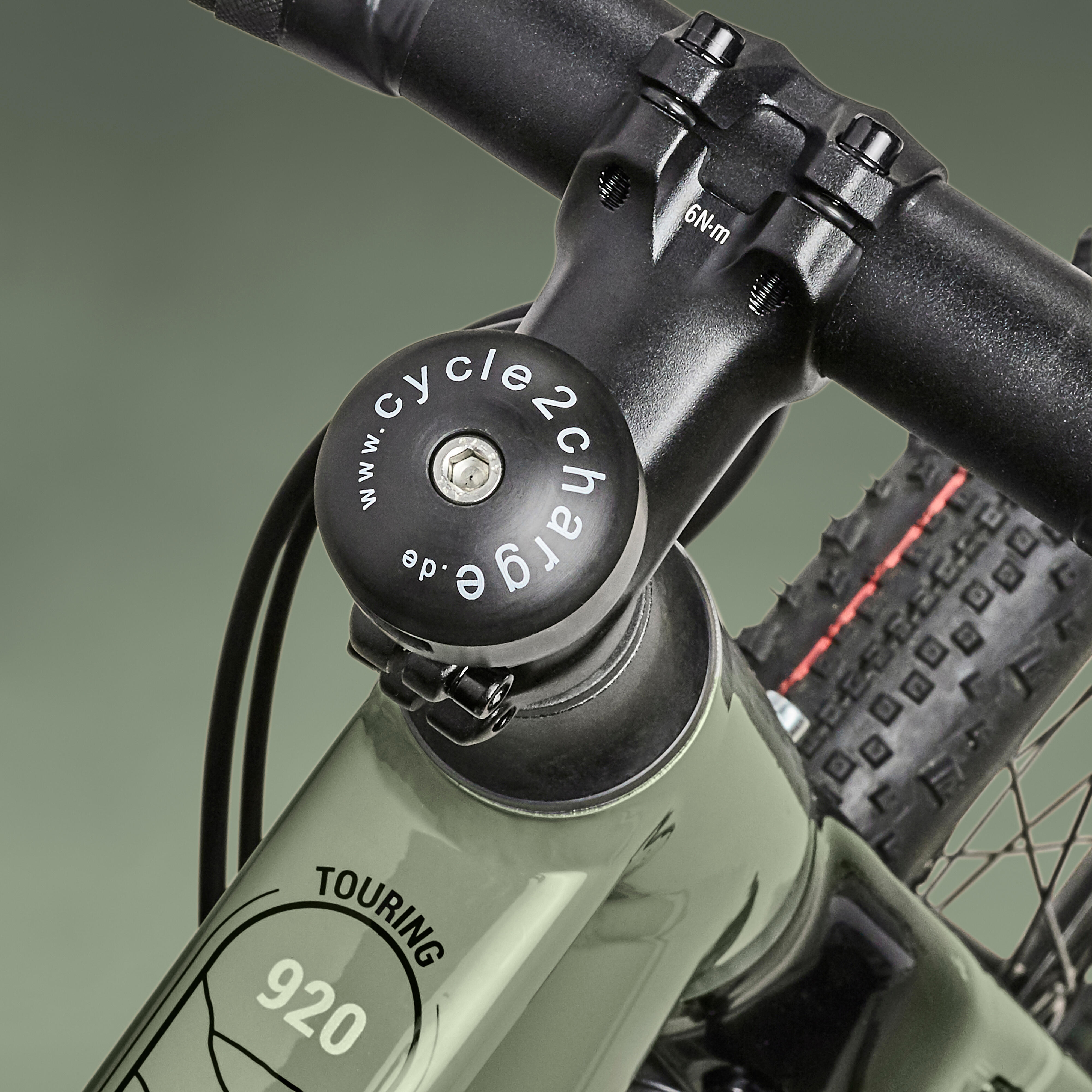

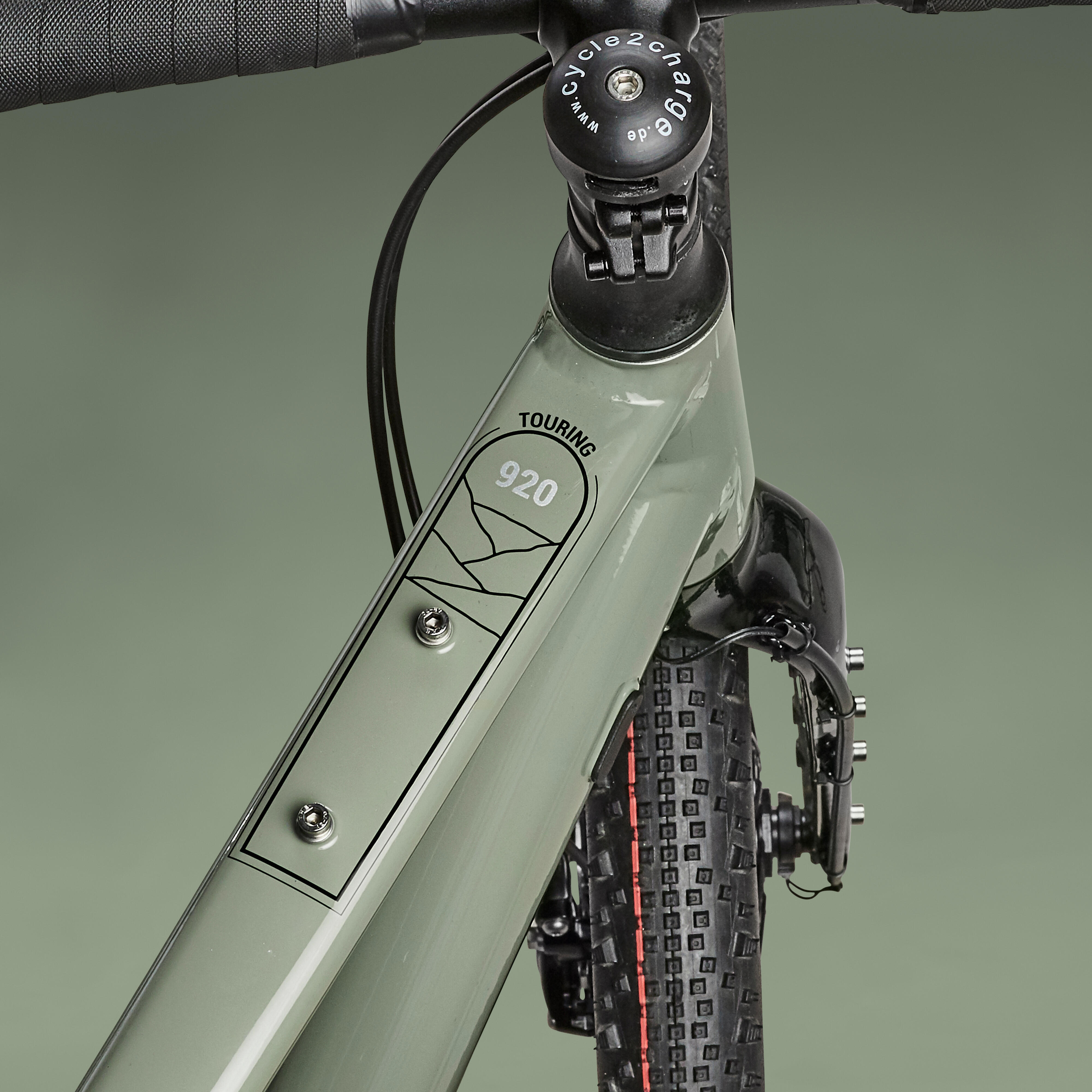

Cycle2Charge USB port built into the stem
Choosing the right touring bike size
4 sizes available: Size S from 1.55 m to 1.65 m
Size M from 1.66 m to 1.77 m
Size L from 1.78 m to 1.89 m
Size XL from 1.90 m to 2.01 m.
