RIVERSIDE
Ref.
8773290
4712638

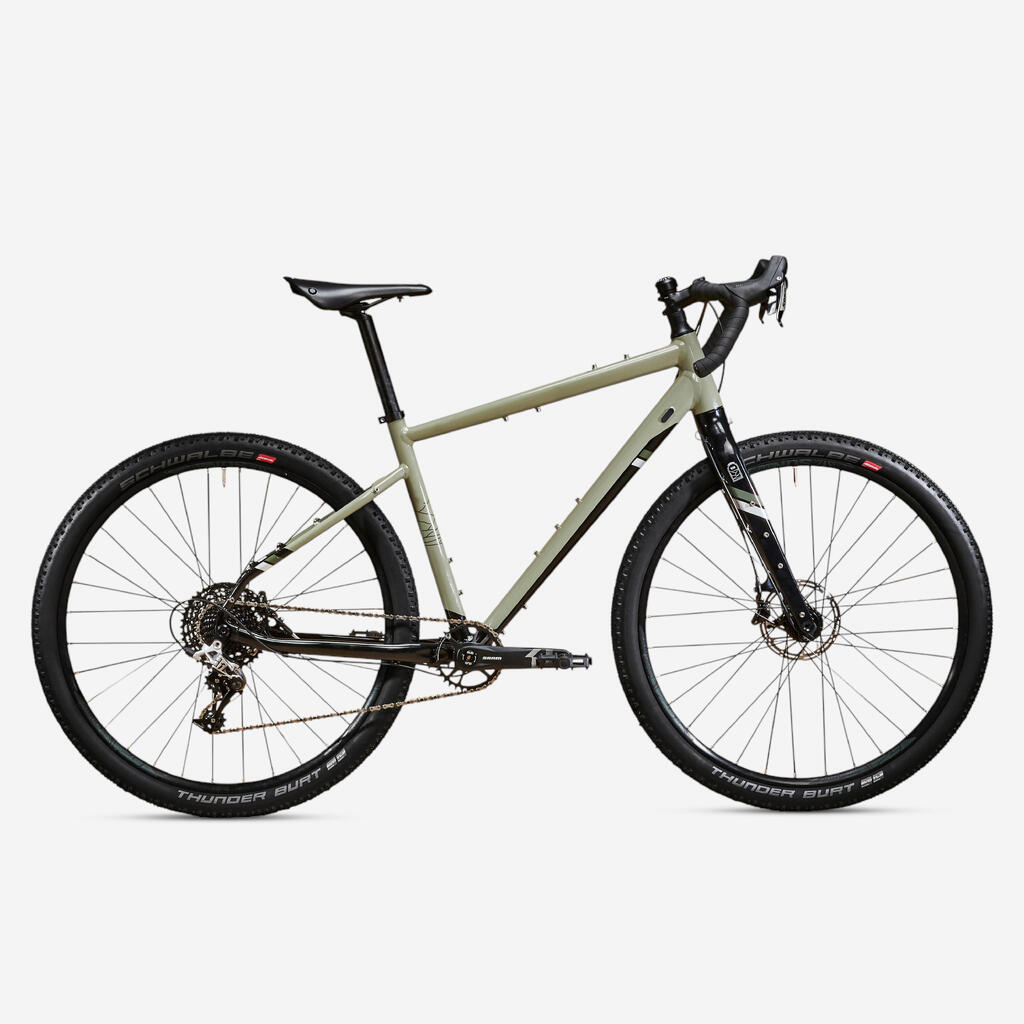

Touring Bike Riverside Touring 920 with Vittoria Terreno Tyres
€1,750.00
Tax included
Store Availability
Store Availability
Our dedicated Riverside touring team has designed this bike for adventure bikepacking off the beaten track. A real go anywhere and confidence inspiring bike.
BENEFITS
Versatility
29 x 2.25 tyres for comfort, grip and smoothness off-road
Flexibility
33 inserts on the frame and fork for accessorising your bike
Cycling comfort
Brooks C15 saddle; wide, flared handlebar with palm rest; comfy wide tyres
Robustness
Lifetime warranty on the carbon frame and alu fork. Rated for loads of 170 kgTECHNICAL INFORMATIONS
A sturdy, comfortable frame
We have designed this triple-butted aluminium frame for maximum robust, sturdiness and comfort. More than 500,000 km of testing under its belt on all continents and in all weather conditions. Internal cable routing. 33 mounts on the frame and fork to attach all your accessories and pannier racks. 3 mounts on the fork for your cargo cage. Compatible with all pannier racks. Removable rear derailleur hanger.

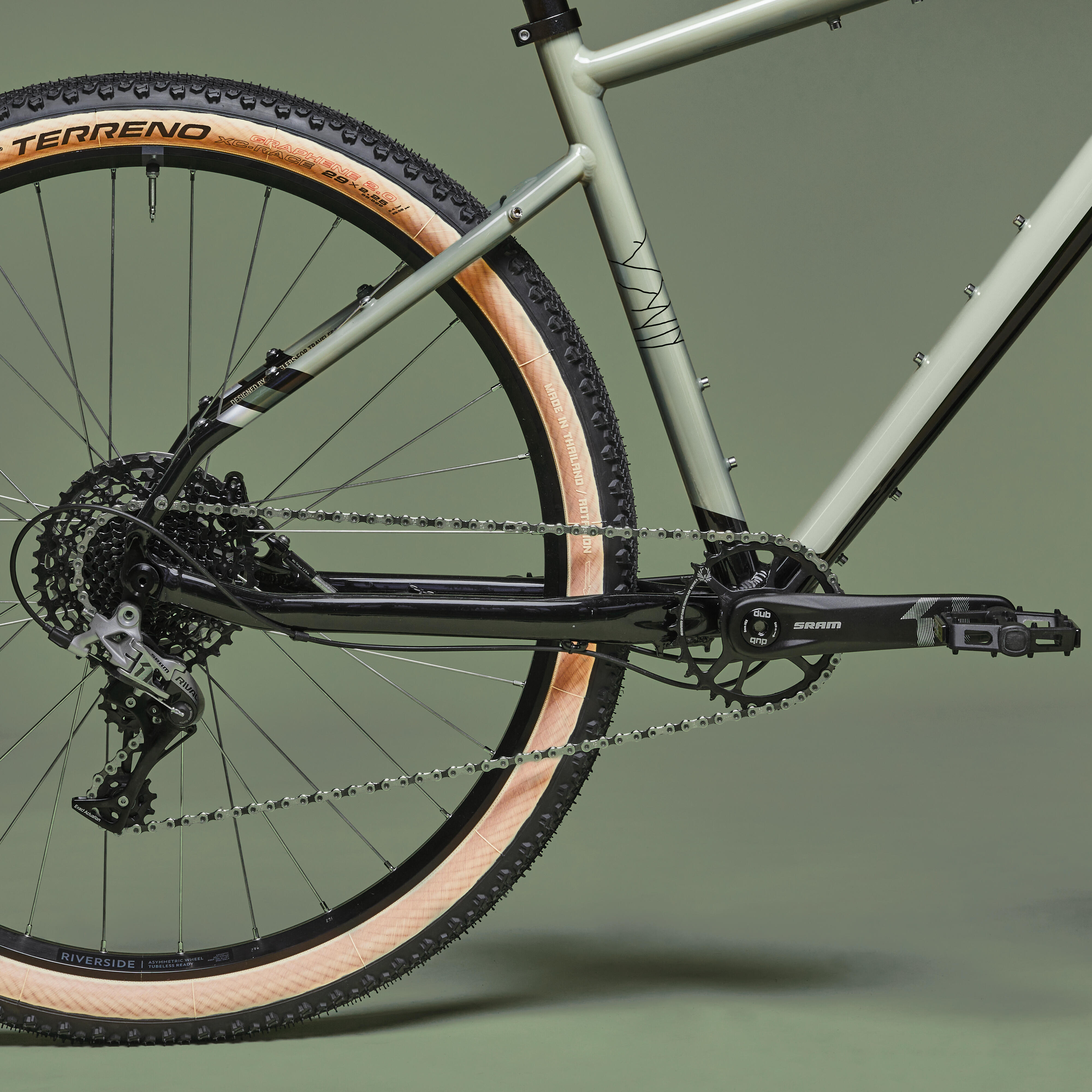

Drive train:pair simplicity with energy
Sram Rival hydraulic groupset
Single chainring Sram Dub 32T. Can be combined with the SRAM 34, 36, or 38 tooth chainrings. Can use up to 40-tooth chainring with an adaptable chainring (non-SRAM)
Crank length: 170 mm (S/M), 175 mm (L/XL)
Sram 11-speed (11-42) cassette
Derailleur: Sram Rival long cage
Sram PC1130 11S chain
Riverside toe clip compatible pedals.
Single chainring Sram Dub 32T. Can be combined with the SRAM 34, 36, or 38 tooth chainrings. Can use up to 40-tooth chainring with an adaptable chainring (non-SRAM)
Crank length: 170 mm (S/M), 175 mm (L/XL)
Sram 11-speed (11-42) cassette
Derailleur: Sram Rival long cage
Sram PC1130 11S chain
Riverside toe clip compatible pedals.

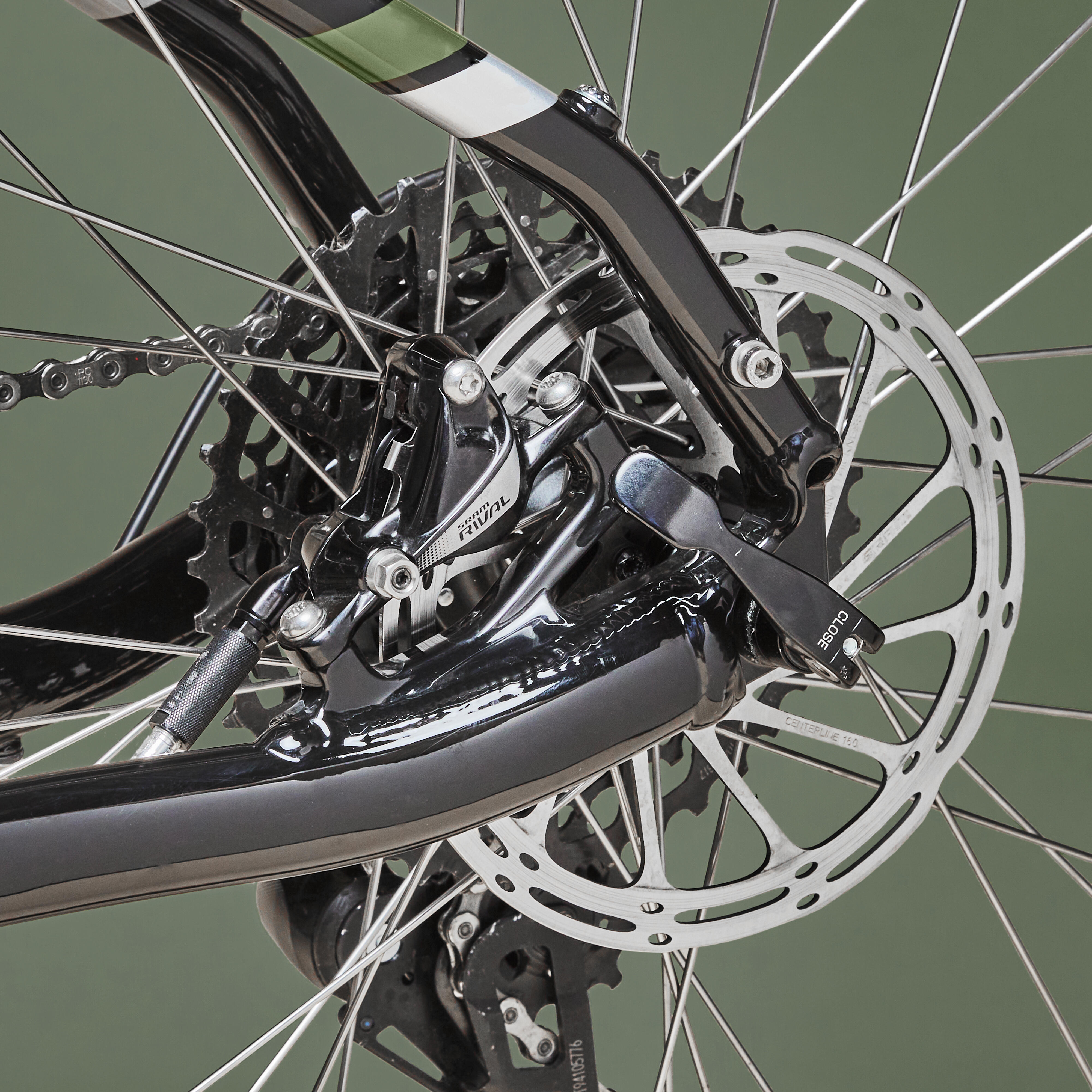

Hydraulic disc brakes
Power meets comfort to guarantee effective braking, even on the toughest terrain. The Sram hydraulic brakes are comfortable, precise and progressive, with an unrivalled touch.
Sram Rival hydraulic brake levers.
Sram Rival hydraulic brake levers.

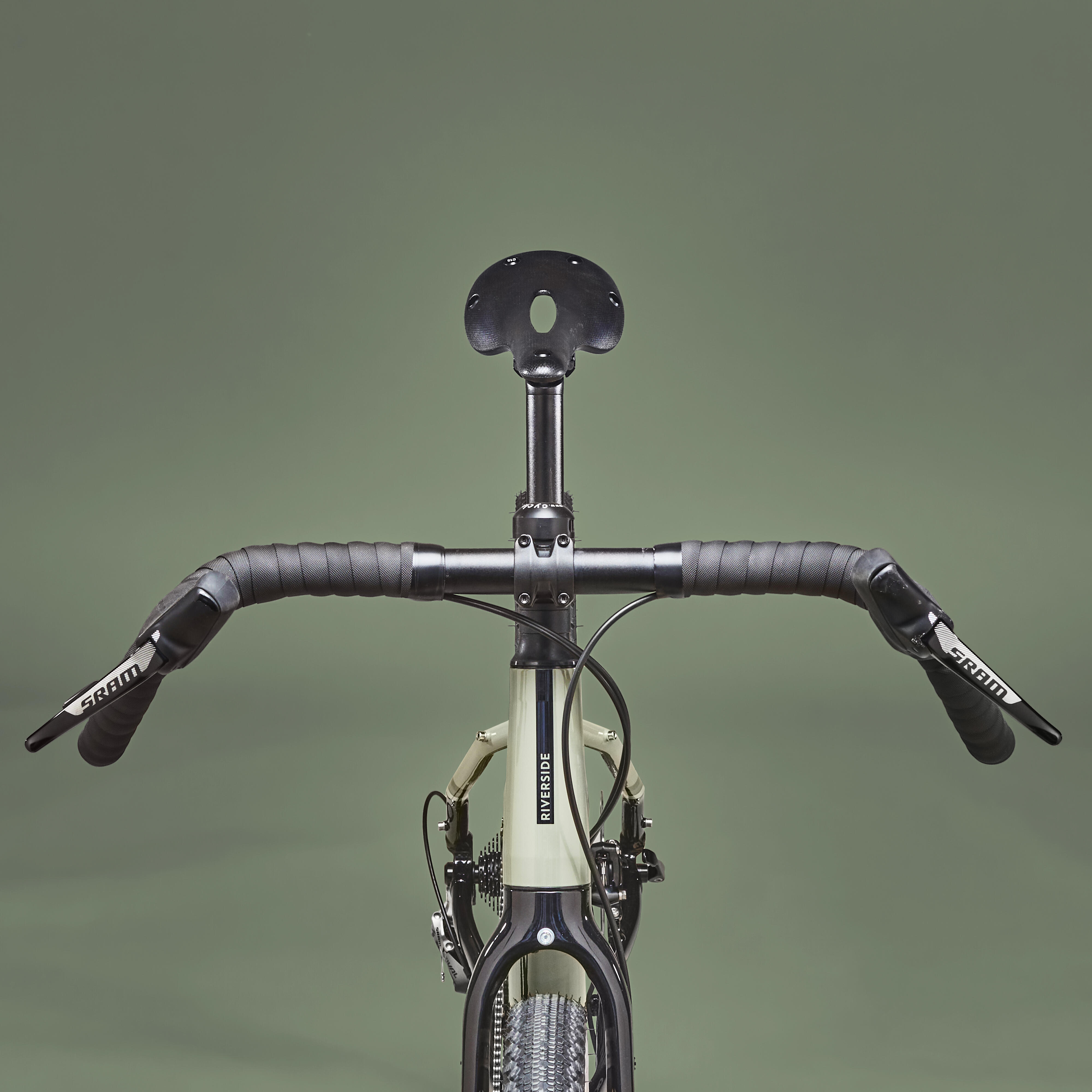

Handlebars, steering, stem: maintain control
We have designed a unique handlebar for this bike for the very best experience on both roads and trails. It is wide and flared, encouraging a position for your hands and arms, with plenty of space to mount your handlebar bag.
Size S: 580 mm wide
Reach: 52.6 mm / Flare: 24° / Sweep: 4° / Drop: 115.5 mm
Size M, L, XL: 620 mm wide
Reach: 52.6 mm / Flare: 24° / Sweep: 4° / Drop: 124 mm
Stem: Size S: 60 mm / Size M: 70 mm / Size L: 80 mm / Size XL: 100 mm
Size S: 580 mm wide
Reach: 52.6 mm / Flare: 24° / Sweep: 4° / Drop: 115.5 mm
Size M, L, XL: 620 mm wide
Reach: 52.6 mm / Flare: 24° / Sweep: 4° / Drop: 124 mm
Stem: Size S: 60 mm / Size M: 70 mm / Size L: 80 mm / Size XL: 100 mm

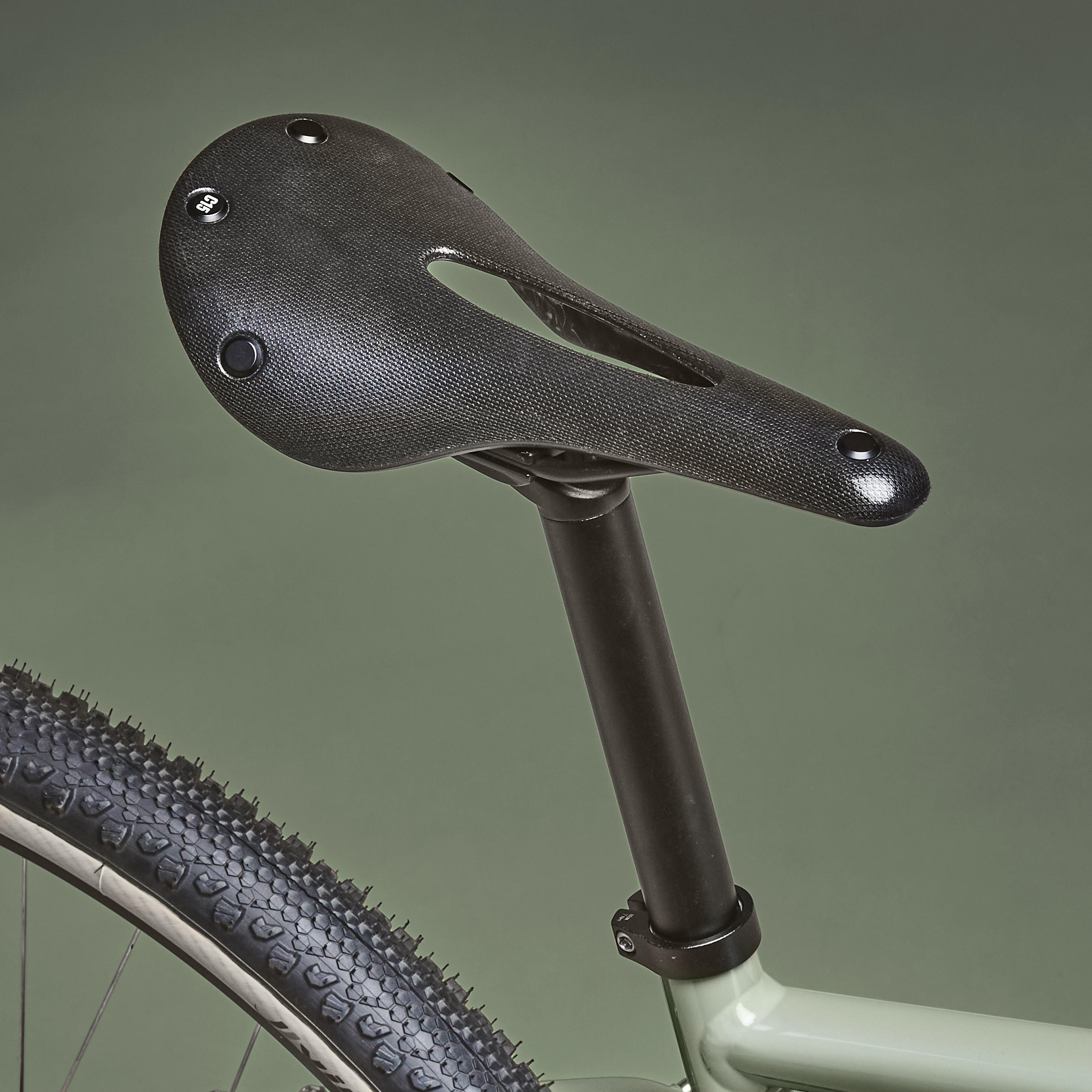

Saddle: be comfortable
We've equipped this bike with the Brooks Cambium C15 Carved saddle to combine comfort with athleticism, alongside great weather resistance and with no maintenance required.
Aluminium seat post, graduated for easier adjustment.
Seat post diameter = 31.6 mm.Seat post dimensions: S, M, L: 350mm; XL: 400 mm.
Aluminium seat post, graduated for easier adjustment.
Seat post diameter = 31.6 mm.Seat post dimensions: S, M, L: 350mm; XL: 400 mm.
Wheels
Rodi asymmetrical rim wheels offer a perfect spoke tension balance for maximum wheel robustness. Rimswidth 27c, 32 spokes.
2 front wheel spokes and 2 rear wheel spokes are provided with the Touring 920
100/142 x 12 mm thru axles with quick release
2 front wheel spokes and 2 rear wheel spokes are provided with the Touring 920
100/142 x 12 mm thru axles with quick release
Tyres
For this model, we have chosen 29" wheels that help the bike clear any obstacle, offer great performance, and give you greater comfort. Our design team tested and approved in all conditions (loose, dry or snowy ground, etc.) both tyre configurations.
We advise Schwalbe Thunderburt on loose ground and Vittoria Terreno on dry ground.
We recommend a tubeless ready set-up (valves included).
We advise Schwalbe Thunderburt on loose ground and Vittoria Terreno on dry ground.
We recommend a tubeless ready set-up (valves included).
Travel components

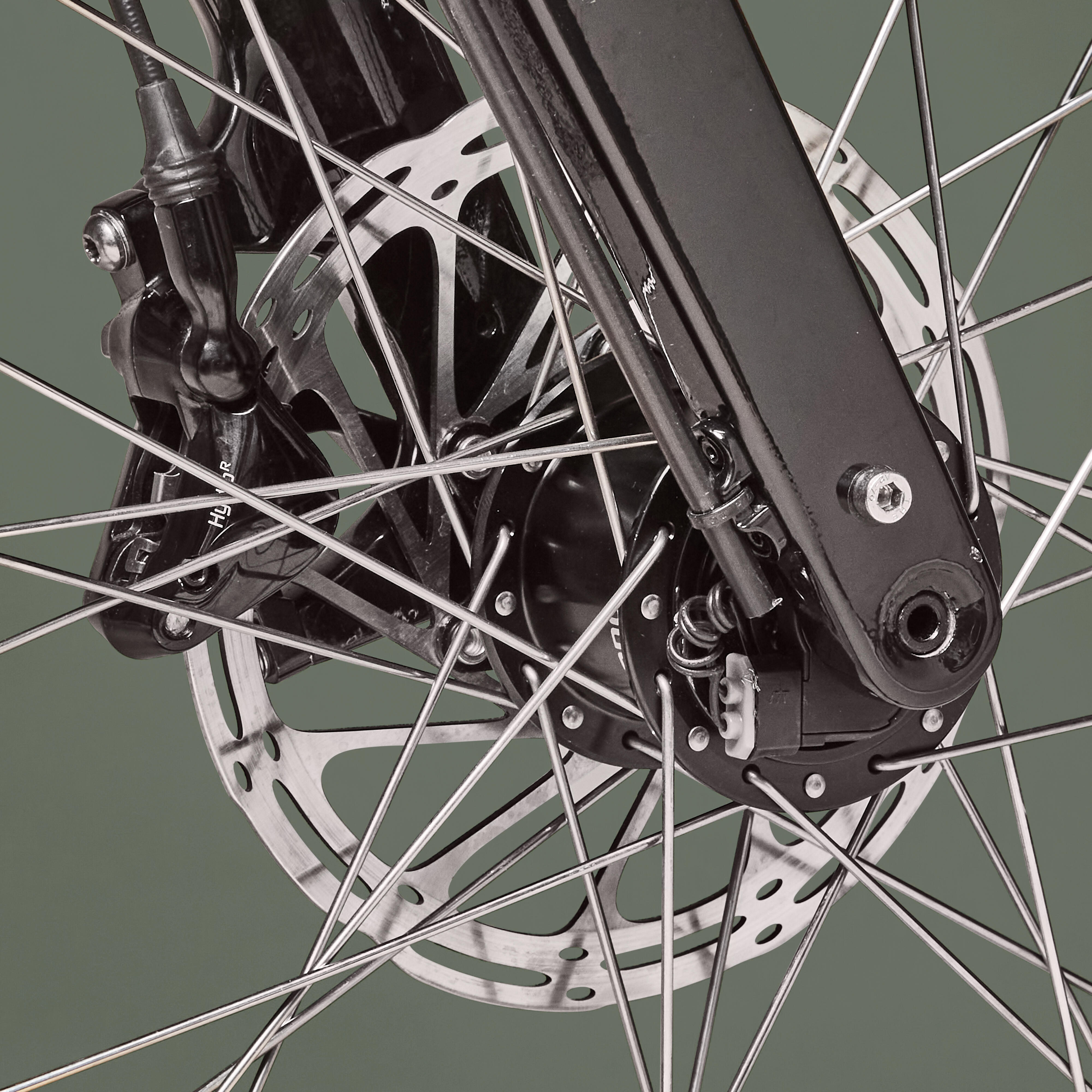

Shimano Deore XT dynamo hub to recharge your batteries and GPS on the go: 6V - 0.5A, 3W
Cycle2Charge USB port built into the stem
Cycle2Charge USB port built into the stem
What additional equipment do you need for touring?
You can supplement your bike's equipment with our bikepacking luggage:
- Bikepacking Saddle Bag Harness (reference to type in the search bar of our website: 8579468)
- Bikepacking Watertight Saddle Bag 6 to 15 L (ref: 8579464)
- Bikepacking Waterproof Top Tube Bag 1L (ref: 8579465)
- Bikepacking Handlebar Bag Harness (ref: 8579467)
- Bikepacking Watertight Handlebar Bag 5 to 15 L (ref: 8579463)
- Bikepacking Saddle Bag Harness (reference to type in the search bar of our website: 8579468)
- Bikepacking Watertight Saddle Bag 6 to 15 L (ref: 8579464)
- Bikepacking Waterproof Top Tube Bag 1L (ref: 8579465)
- Bikepacking Handlebar Bag Harness (ref: 8579467)
- Bikepacking Watertight Handlebar Bag 5 to 15 L (ref: 8579463)

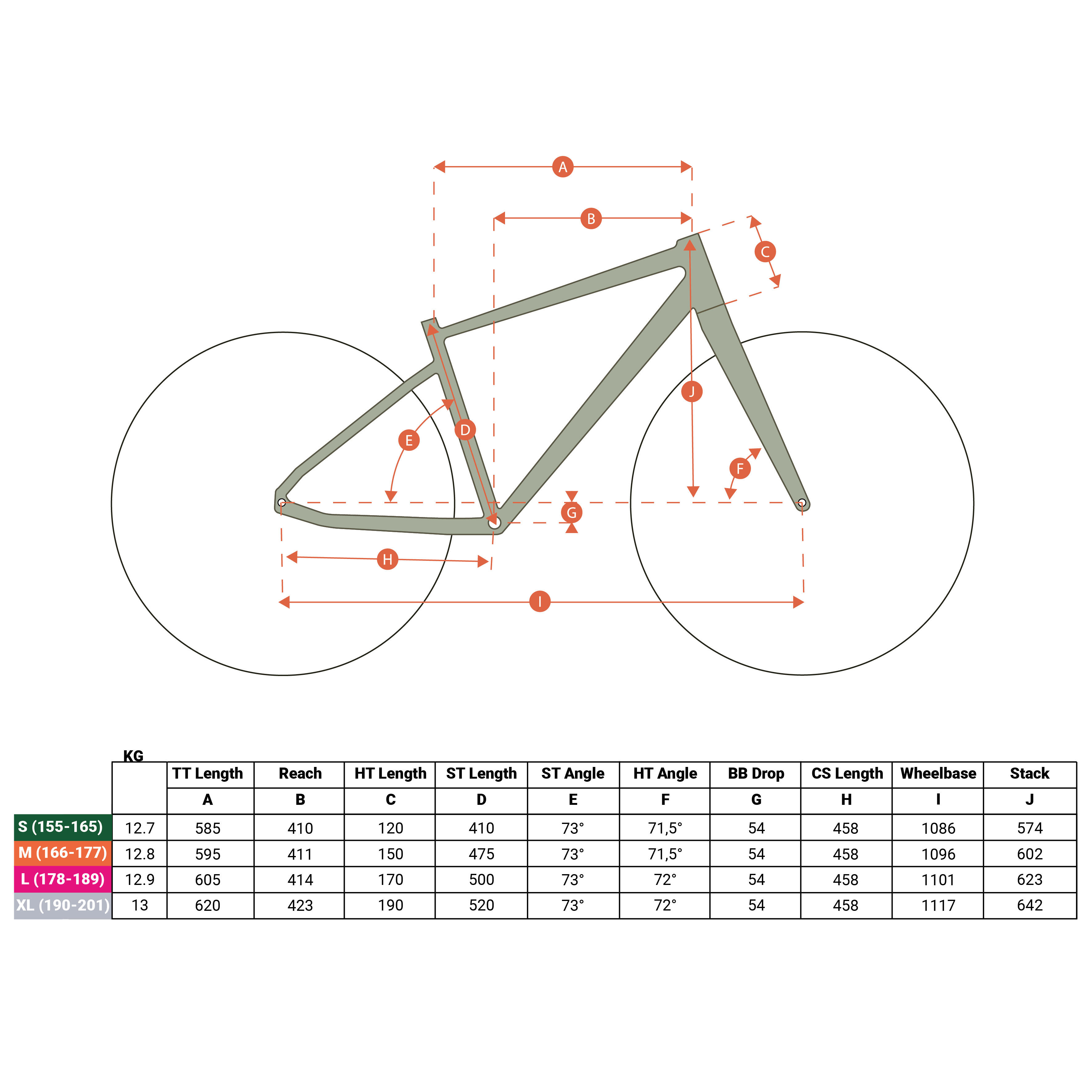

Choosing the right touring bike size
4 sizes available: Size S: 1.55 m to 1.65 m tall.
Size M: 1.66 m to 1.77 m.
Size L: 1.78 m to 1.89 m.
Size XL: 1.90 m to 2.01 m.
If you are on the edge between 2 sizes: Choose the smaller size for greater manoeuvrability and comfort (straighter back).
Choose the larger size for a more stretched out position (better suited to speed).
Size M: 1.66 m to 1.77 m.
Size L: 1.78 m to 1.89 m.
Size XL: 1.90 m to 2.01 m.
If you are on the edge between 2 sizes: Choose the smaller size for greater manoeuvrability and comfort (straighter back).
Choose the larger size for a more stretched out position (better suited to speed).
Bike weight
11,800 kg in M without pedals
composition
composition
Frame: 100.0% Aluminium
Tips for storage and maintenance
Storage tips
Store in a dry place.Use a protective cover if needed. If riding or storing your bike in a salty, wash it frequently.
Restrictions on use
The total weight (bike+cyclist) should not exceed 170kg.
TESTS AND WARRANTY
Test product
Like the rest of our range, the Riverside Touring 920 is the result of a unique co-design approach between our team and real bikepackers. After four years of design, collaborations with hundreds of bikepackers, and 500,000 km of testing, we're confident that this bike is ready to carry you on your wildest adventures!
Parts guarantee
Lifetime guarantee: frame, carbon fork, stem, handlebar.
Parts: 2 years.
