ROCKRIDER
Ref.
8643419
4279188

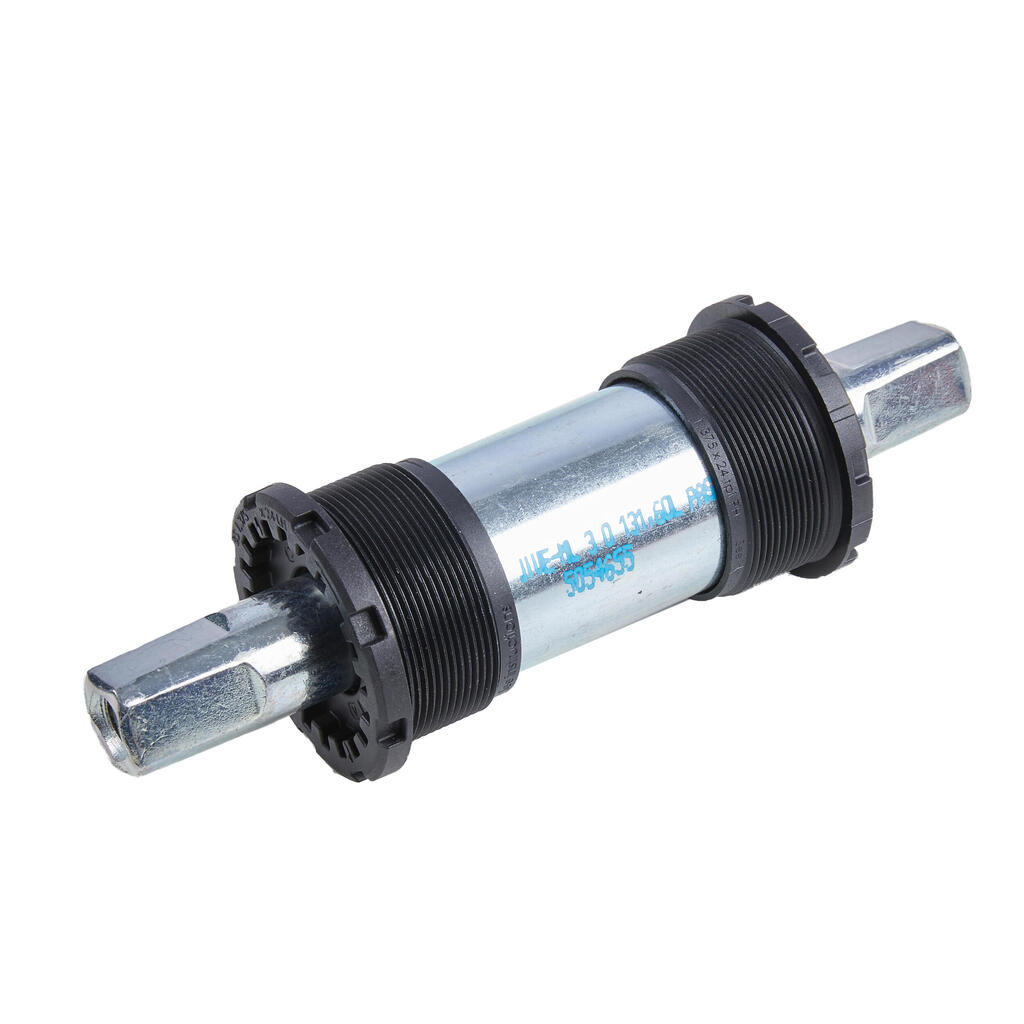

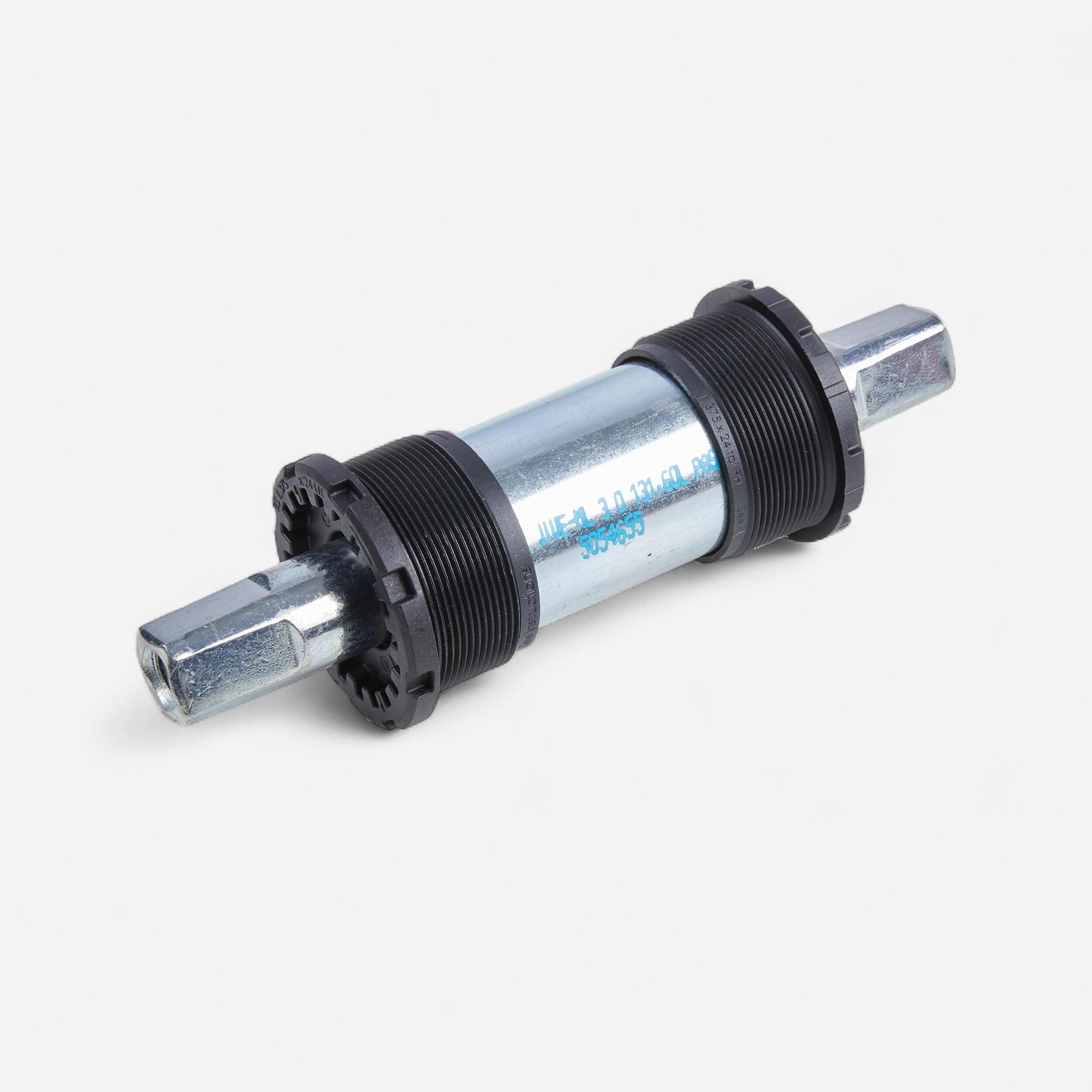

68 mm Square Bottom Bracket E-ST 100 V2 - Length 131 mm
€12.00
Tax included
Store Availability
Store Availability
Designed for replacing the bottom bracket on your E-ST100 V2 bike
BENEFITS
Compatibility
For square taper bottom brackets. Original BB for the E-ST100 V2.
Maintain
Repair your product and give your equipment a second life!TECHNICAL INFORMATIONS
Compatibility
You may also need to change the pedal sensor so that these two components are compatible with one another (V2 sensor with V2 bottom bracket).
Technical features
Bottom bracket type: BSC/BSA (English, Euro)
Bottom bracket width: 68 mm
Bearing material: Steel
Type: Square
Axle length: 131 mm
Bottom bracket width: 68 mm
Bearing material: Steel
Type: Square
Axle length: 131 mm
Assembly tips
Bracket tightening torque: 50-70N.m
Crank tightening torque: 35-50N.m
Grease the threads of the bracket for easier installation and removal.
Crank tightening torque: 35-50N.m
Grease the threads of the bracket for easier installation and removal.
Care advice
Do not use a high-pressure cleaner on the bearings
NEED HELP?
The technicians at your Decathlon store workshop are available to help you replace the parts of your bike. Feel free to ask them for help!
composition
composition
Main part: 2.0% Polyamide, 98.0% Steel
Tips for storage and maintenance
Storage tips
Store the bottom bracket in a cool, dry place away from corrosive products and salty air.
Restrictions on use
Get the compatibility and assembly checked by a technician
TESTS AND WARRANTY
Warranty
2 Years
