ROCKRIDER
Ref.
8734758
4491227
29x23c Double-Walled QR Cassette Disc Brake TR Mountain Bike Rear Wheel
€80.00
Tax included
Store Availability
Store Availability
Designed to replace the wheel on your Rockrider EXPL 520 mountain bike
BENEFITS
Compatibility
Tubeless compatible
Lightweight

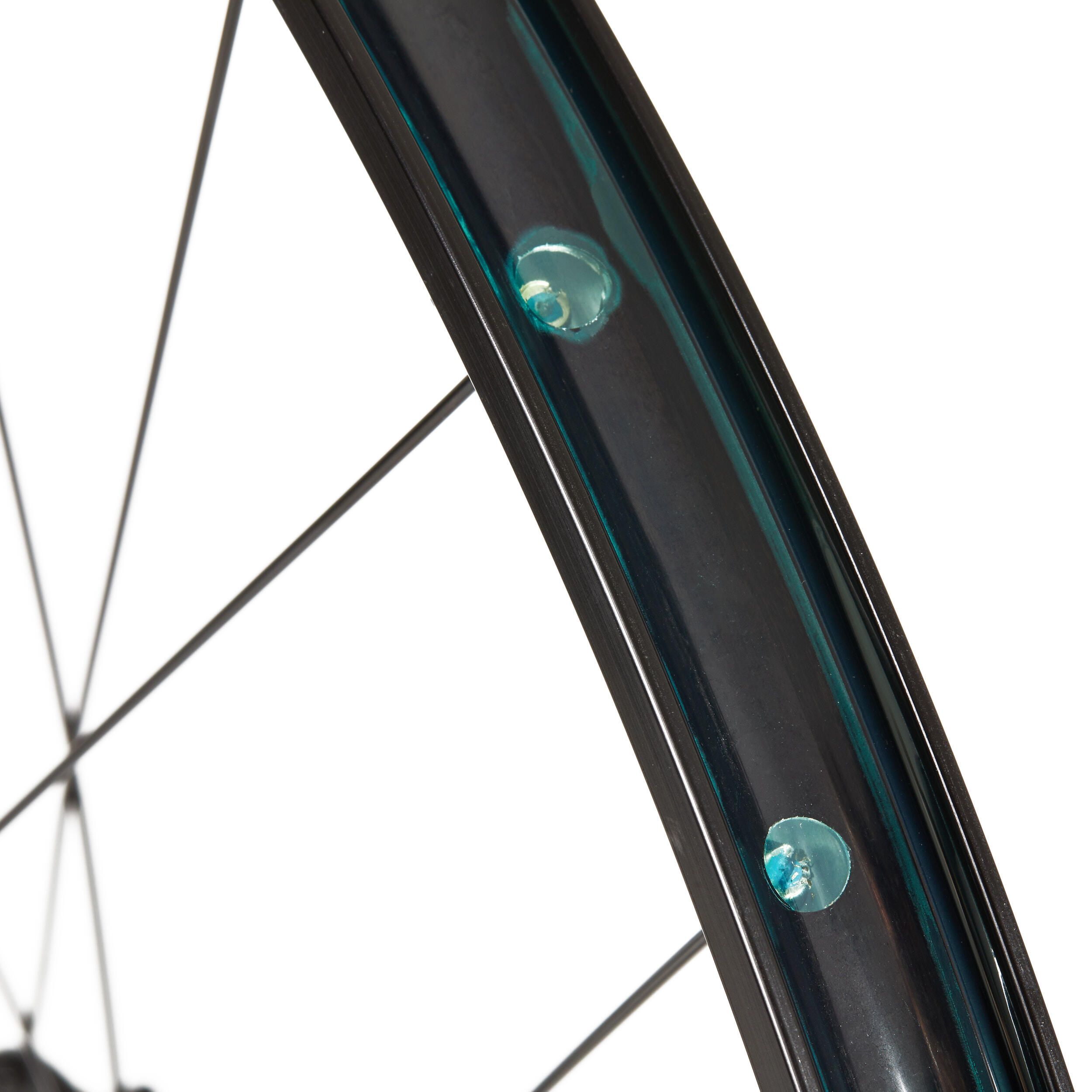

The 100% aluminium rim keeps things as light as possible
Robustness
Double-walled design that withstands anything
Maintain
Repair your product and give your equipment a second life!TECHNICAL INFORMATIONS
Technical features
ETRTO diameter: 622x23c
Type of rim: Double-walled / sleeved / 6063 aluminium / black
Valve hole diameter: 8.5 mm
Number of spokes: 32
Length: 292 mm left / 290 mm right
Spoke material: Stainless steel / Black
Spoke shape: Double butted 2/1.7/2
Arrangement: 3-cross
Bearings: cup and cone bearing (1/4")
Brakes compatibility: Disc
Compatibility: 7/8/9/10/11-speed cassette
OLD: 9x135 mm
Axle length: 145 mm
Type of axle: QR
Type of rim: Double-walled / sleeved / 6063 aluminium / black
Valve hole diameter: 8.5 mm
Number of spokes: 32
Length: 292 mm left / 290 mm right
Spoke material: Stainless steel / Black
Spoke shape: Double butted 2/1.7/2
Arrangement: 3-cross
Bearings: cup and cone bearing (1/4")
Brakes compatibility: Disc
Compatibility: 7/8/9/10/11-speed cassette
OLD: 9x135 mm
Axle length: 145 mm
Type of axle: QR
Wheel assembly advice
Respect the tightening torque on the disc, which is 6 Nm, and the tightening of the cassette, which is 40 Nm.
Remember to apply light thread-locking fluid on the threads of the disc screws.Tubeless-ready if the valve and rim strip are changed.
Remember to apply light thread-locking fluid on the threads of the disc screws.Tubeless-ready if the valve and rim strip are changed.
Care tips
Regularly check the tension of the spokes and that your wheel is not bent. Do not use a high-pressure cleaner on the wheel bearings
NEED HELP?
The technicians at your Decathlon store workshop are available to help you replace the parts of your bike. Feel free to ask them for help!
composition
composition
Main part: 50.0% Steel, 50.0% Aluminium
Tips for storage and maintenance
DRYING IN A TUMBLE DRYER POSSIBLE. NORMAL TEMPERATURE, MAXIMUM EXHAUST AIR TEMPERATURE OF THE DRUM 80°C.
MAXIMUM WASH TEMPERATURE OF 30°C. VERY MODERATE TREATMENT.
IRON AT A MAXIMUM SOLEPLATE TEMPERATURE OF 150°C.
MAXIMUM WASH TEMPERATURE 70°C. NORMAL TREATMENT.
IRONING AT A MAXIMUM IRON SOLEPLATE TEMPERATURE OF 200°C.
Storage tips
Store the wheel in a cool, dry place, away from corrosive products and salty air.
Restrictions on use
Get the compatibility and assembly checked by a technician
TESTS AND WARRANTY
Warranty
2 Years
