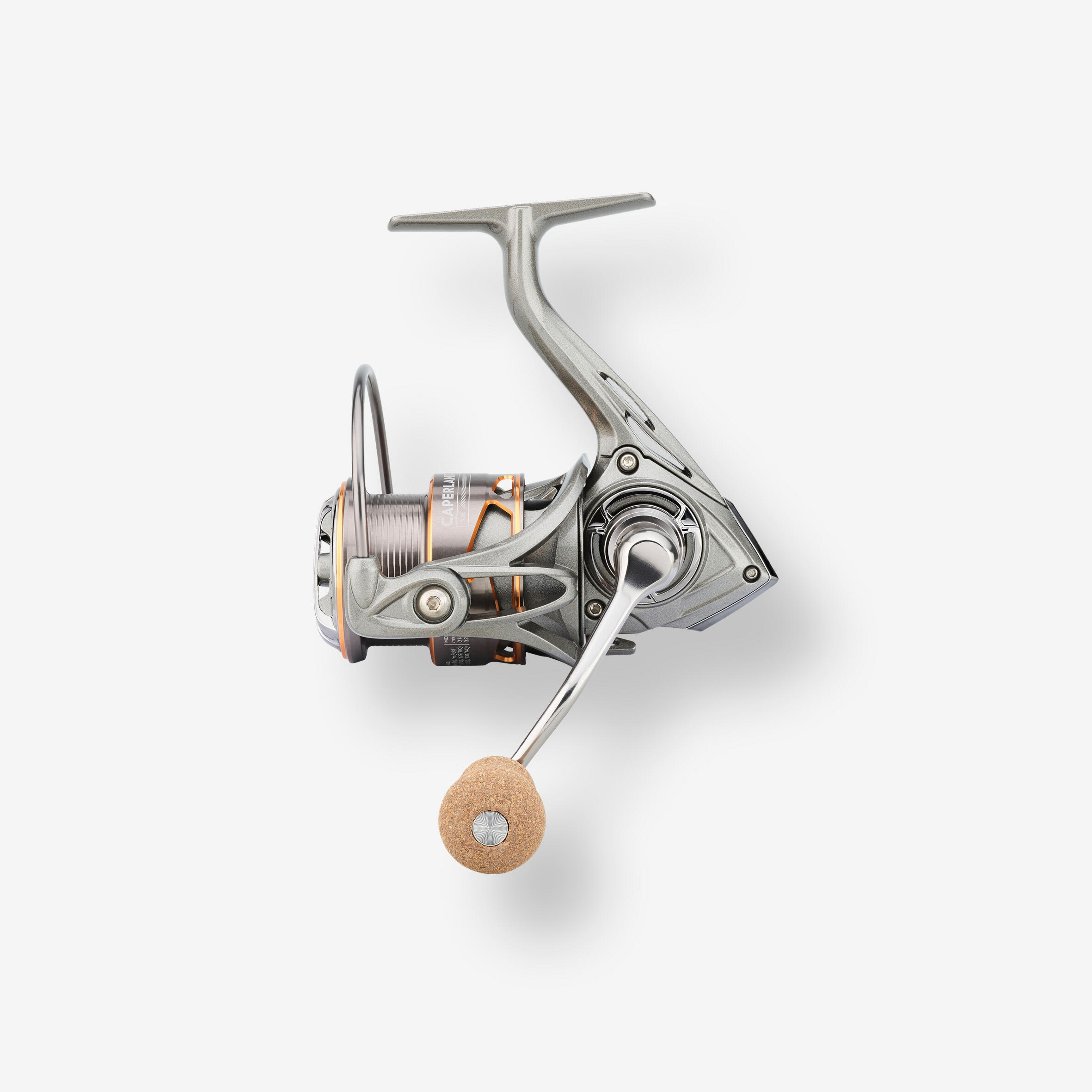

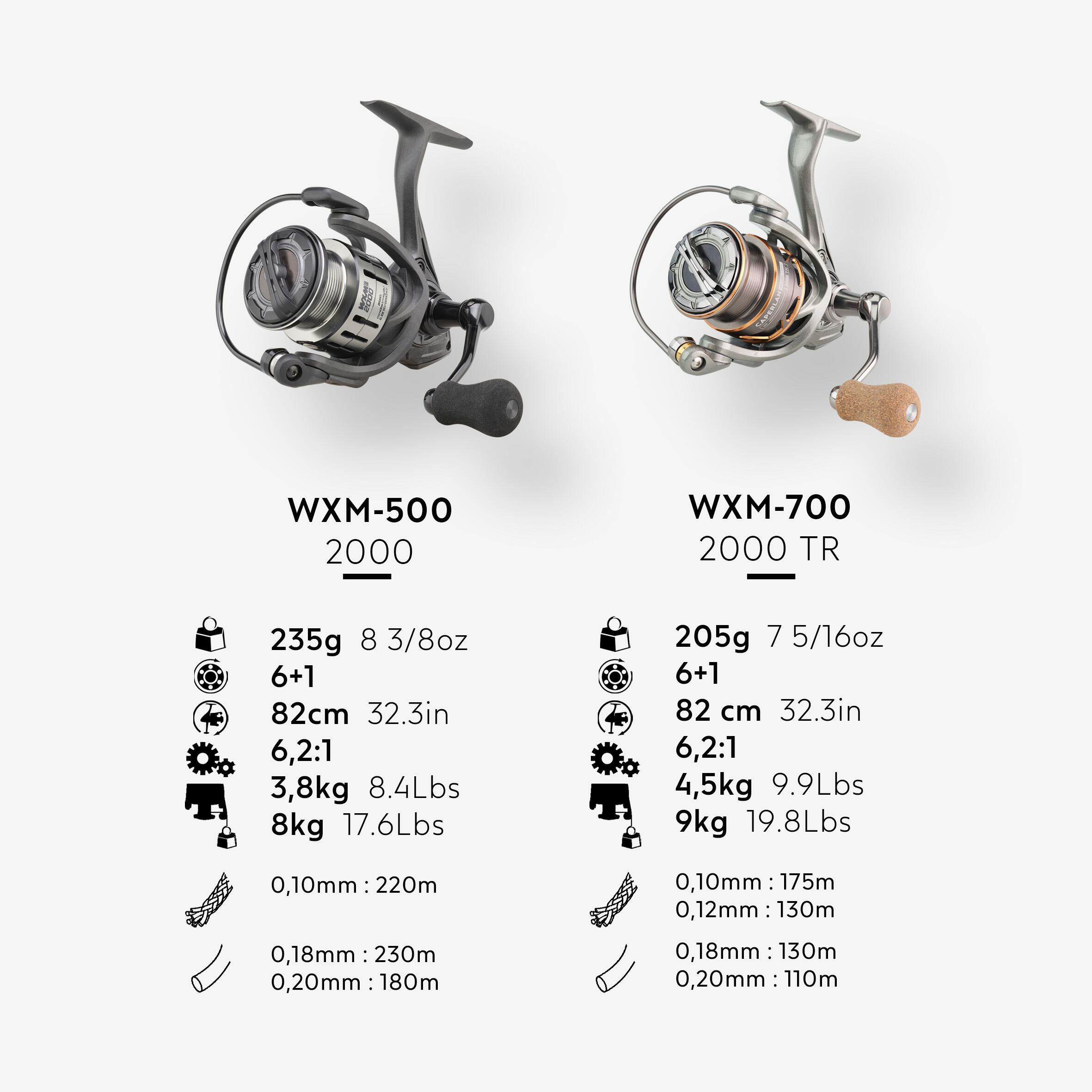

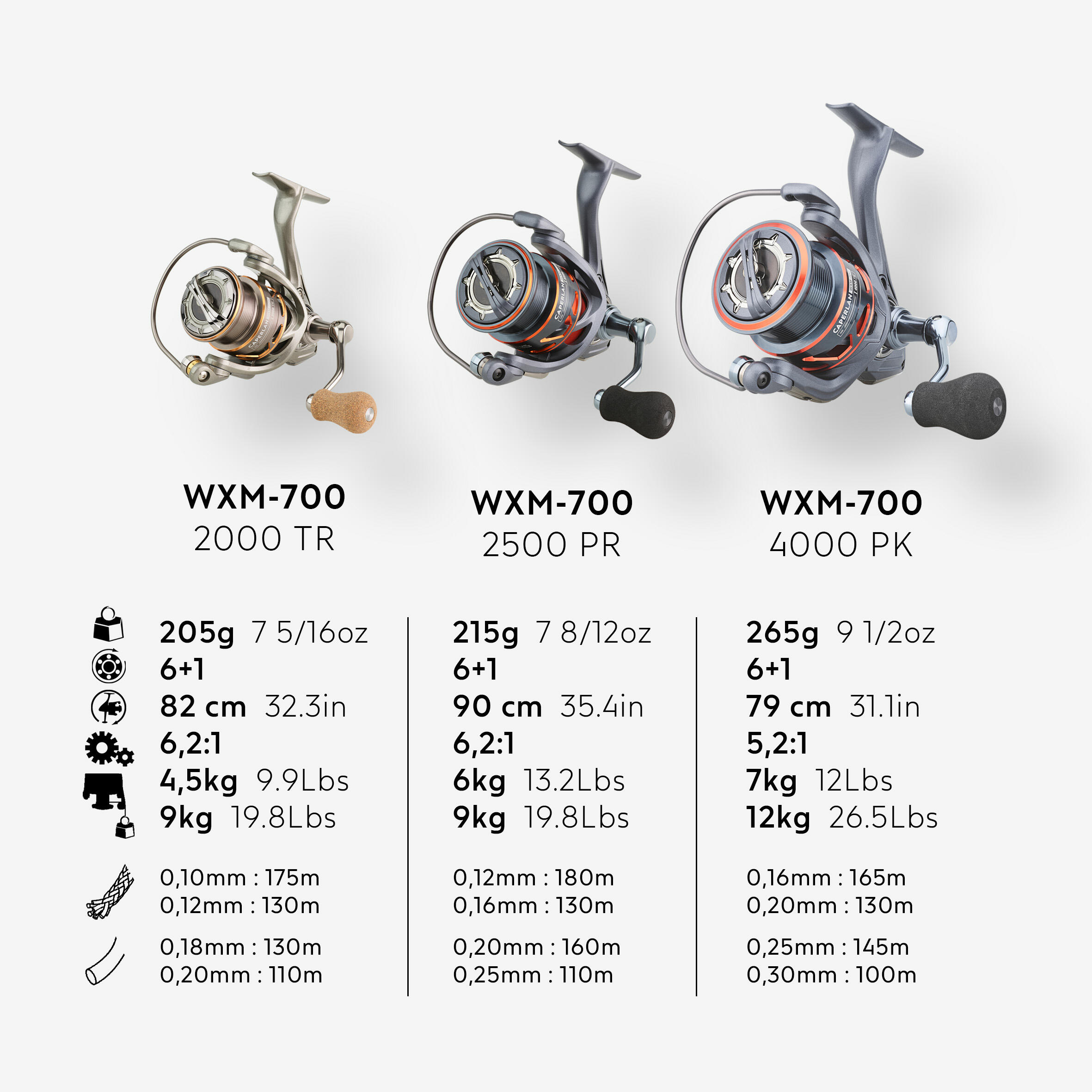

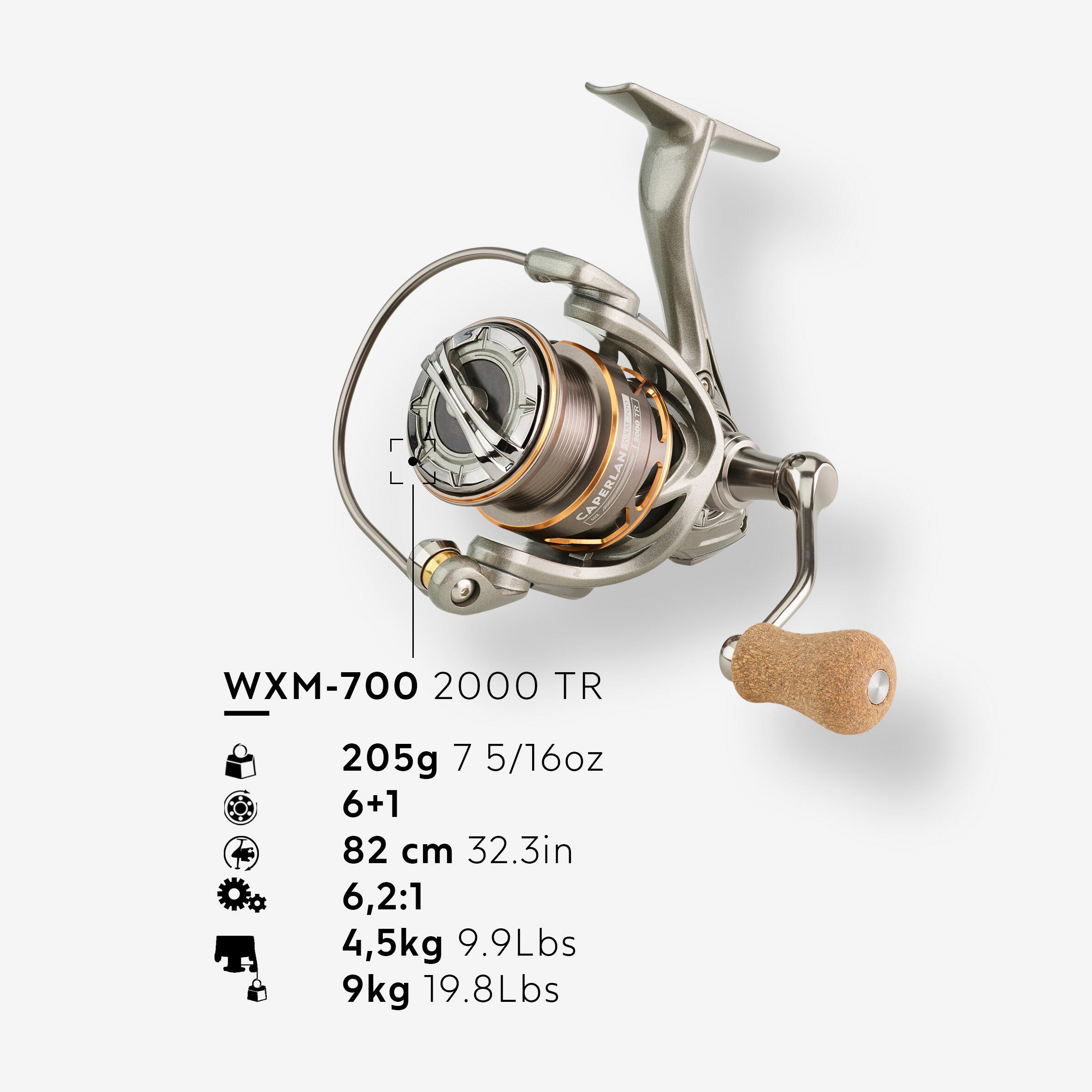

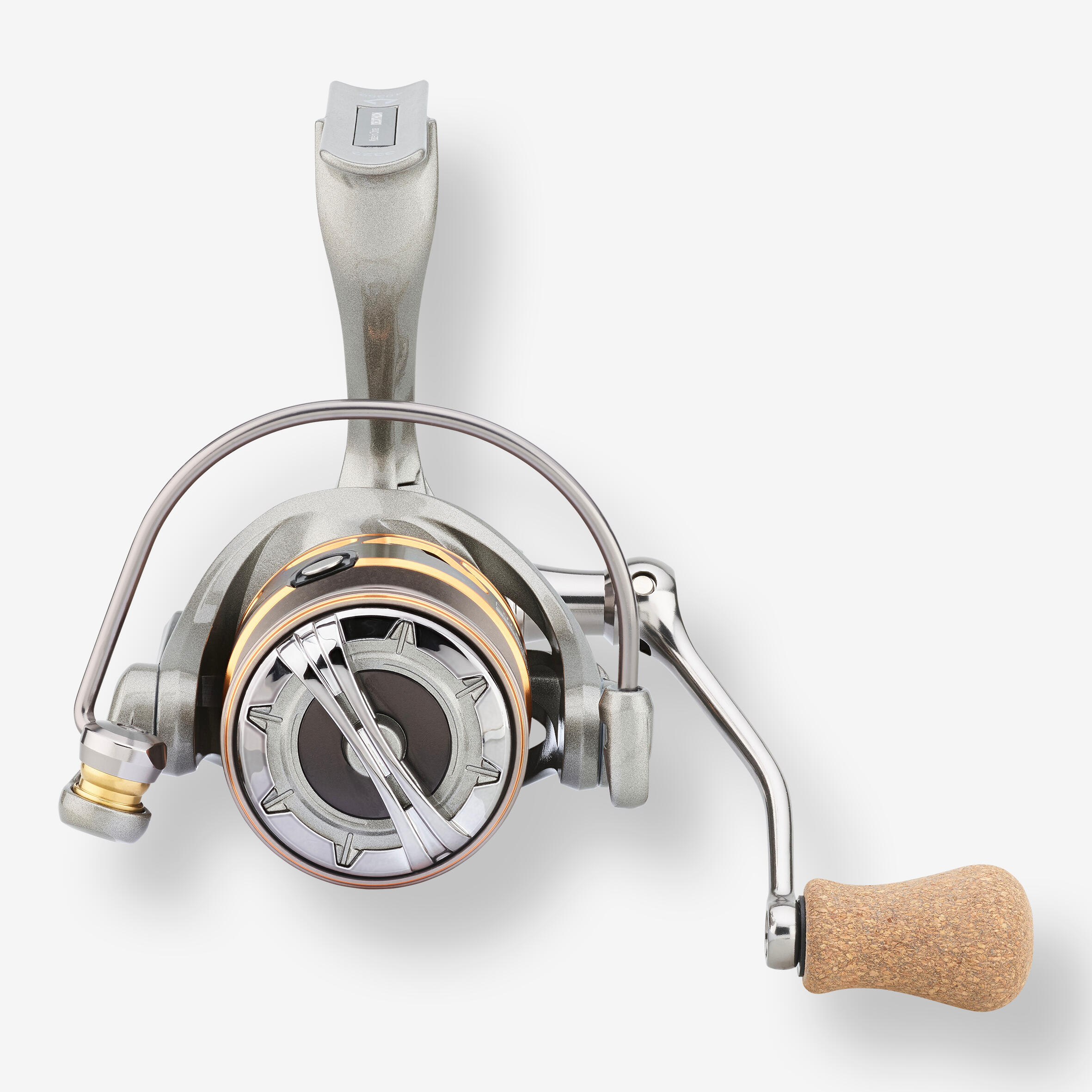

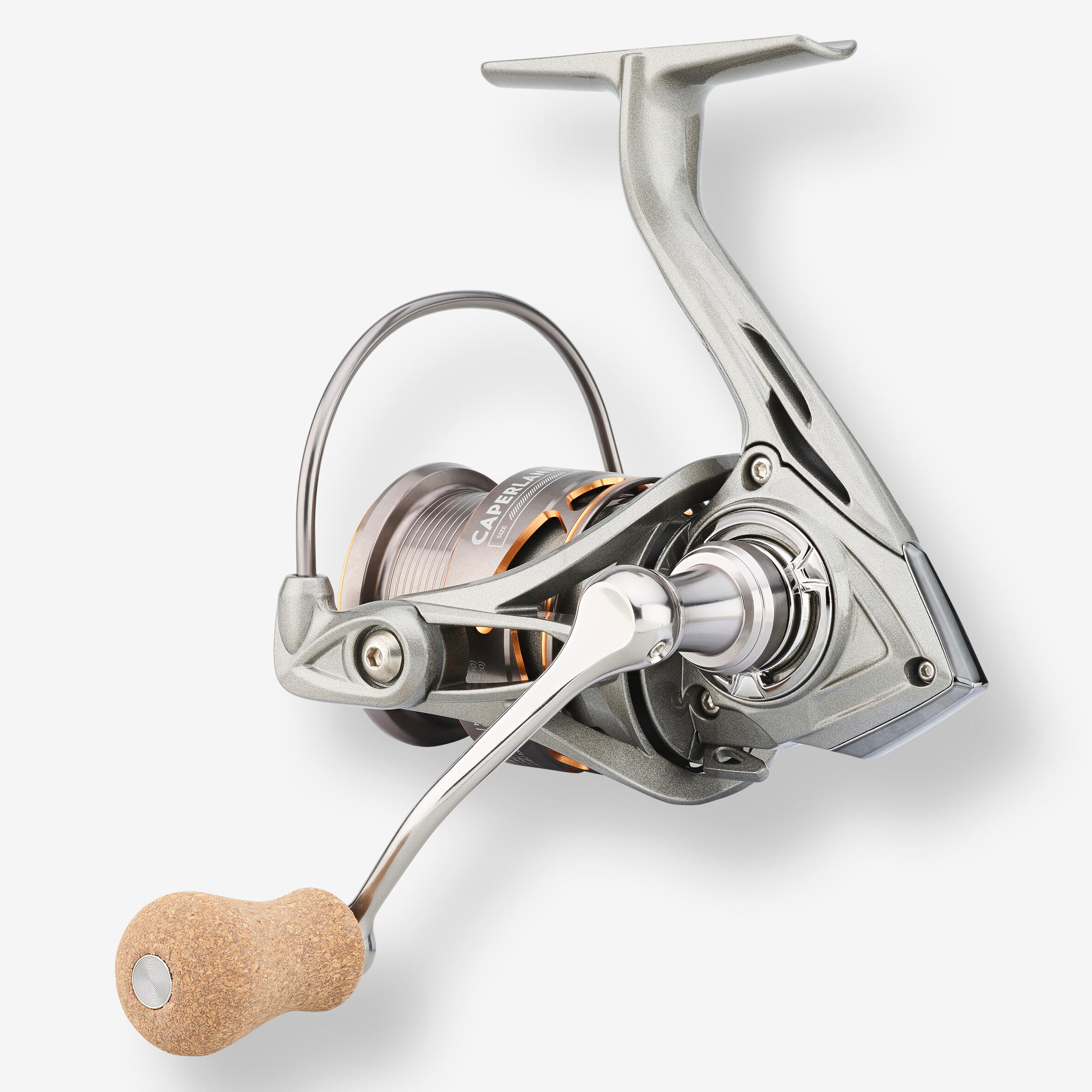

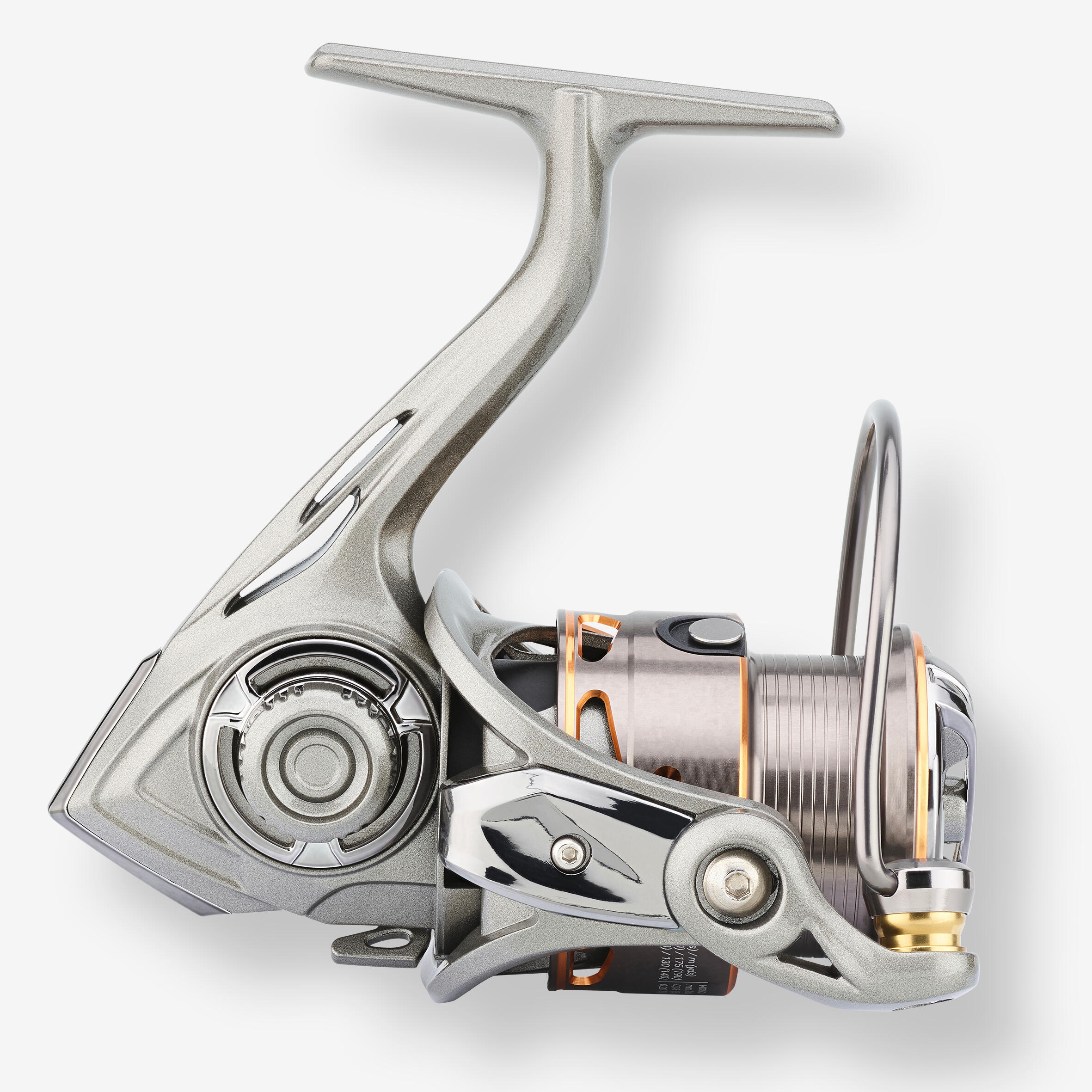

TECHNICAL FEATURES
- Line retrieve per crank: 82 cm
- Weight: 205 g
- Drag weight: 9 kg
- Usable drag: 4,5Â kg
- Ratio: 6.2:1
- Bearings: 6+1

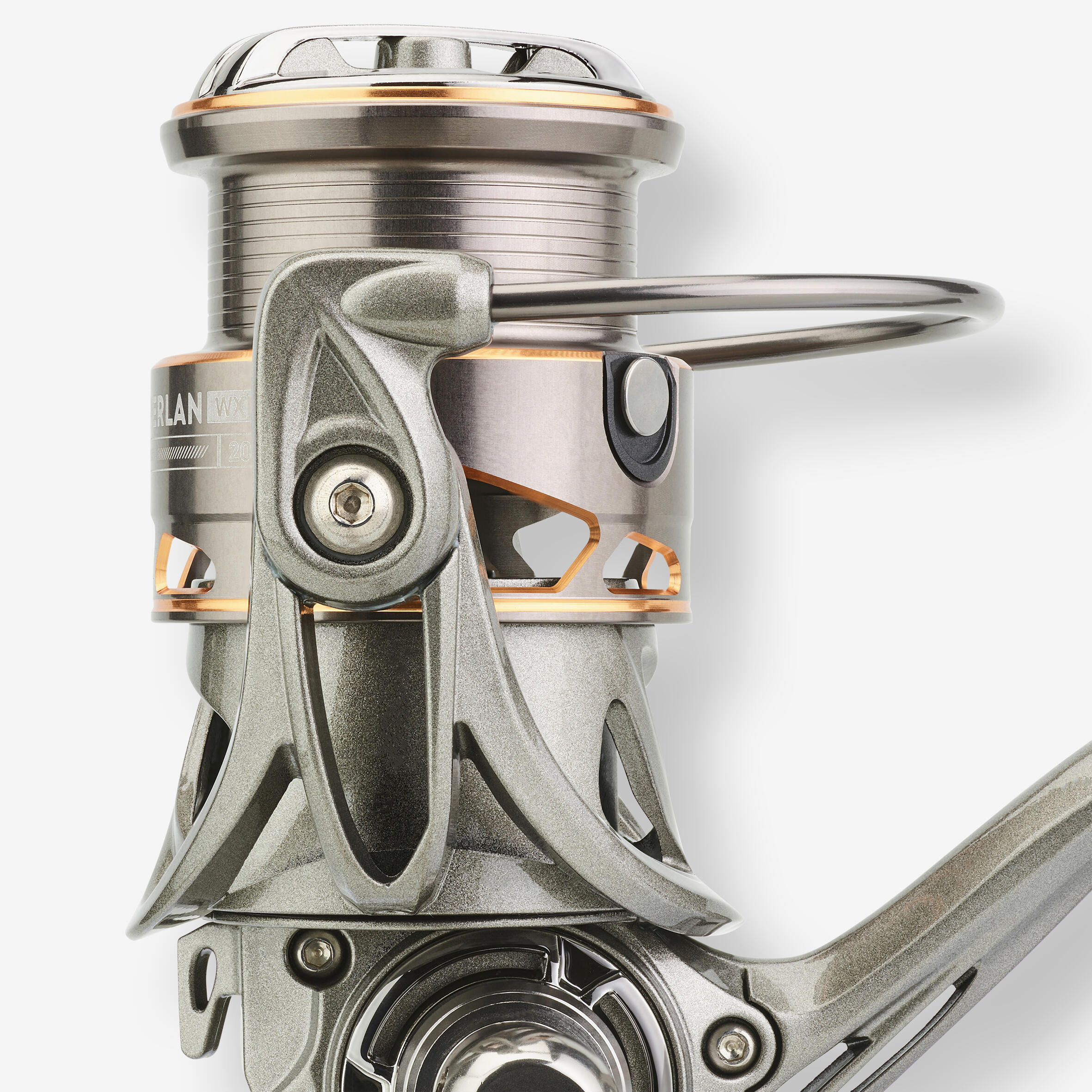

- Spool: "Shallow" aluminium
- Frame: Carbon-reinforced PA
- Rotor: Carbon-reinforced PA
- One-piece screwed crank: Aluminium

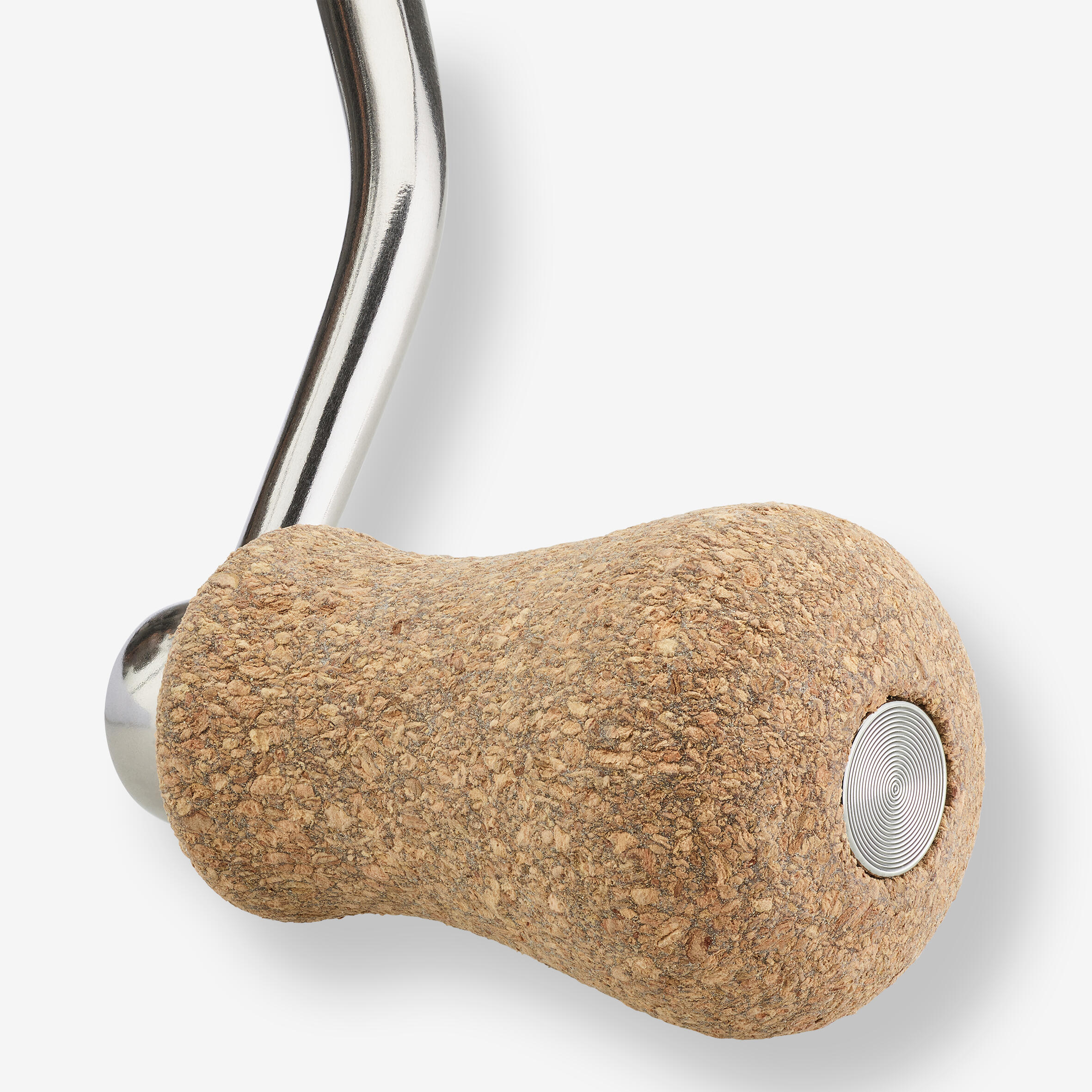

- Crank handle: Cork
SPOOL CAPACITY:
Braided line capacity:
0.10 mm: 175 m
0.12 mm: 130 m
Monofilament capacity:
0.18 mm 130 m
0.20 mm: 110 m
INSTRUCTIONS
We advise that you use this reel with a braided line with a diameter of 0.10 mm, and a rod with a casting weight of L or M/L
ADJUSTING THE LINE COILING
This reel comes with adjustment rings to adjust the conicity of your coiling:
If you have a pyramid-shaped coiling (lower section fuller than the upper section): Remove you spool to access the axis and remove one or two plastic rings
If your coiling is in the shape of an inverted pyramid (upper section fuller than the lower section): Remove your spool to access the axis and add one or two of the plastic rings provided
DRAG CASTING WEIGHT
Max. power:
The most commonly communicated measurement, it indicates the spool’s maximum drag power.
Usable power:
The closest measurement to use, it takes into account the malformation of the reel rig (rotor, pick-up support, etc.) and indicates the drag casting weight: available for fighting against the fish.
Explicative video: https://www.youtube.com/watch?v=zqDGK0UdZnM
AFTER-SALES SERVICE
Parts available in post-sale services:
- Shallow spool: reference 8829862
- Drag button: reference 8884460
- Crank: reference 8829865
- Crank button: reference 8755539
You can find them directly on the Decathlon website using the reference codes or on the Decathlon support site: https://support.decathlon.fr/
