Supplier description

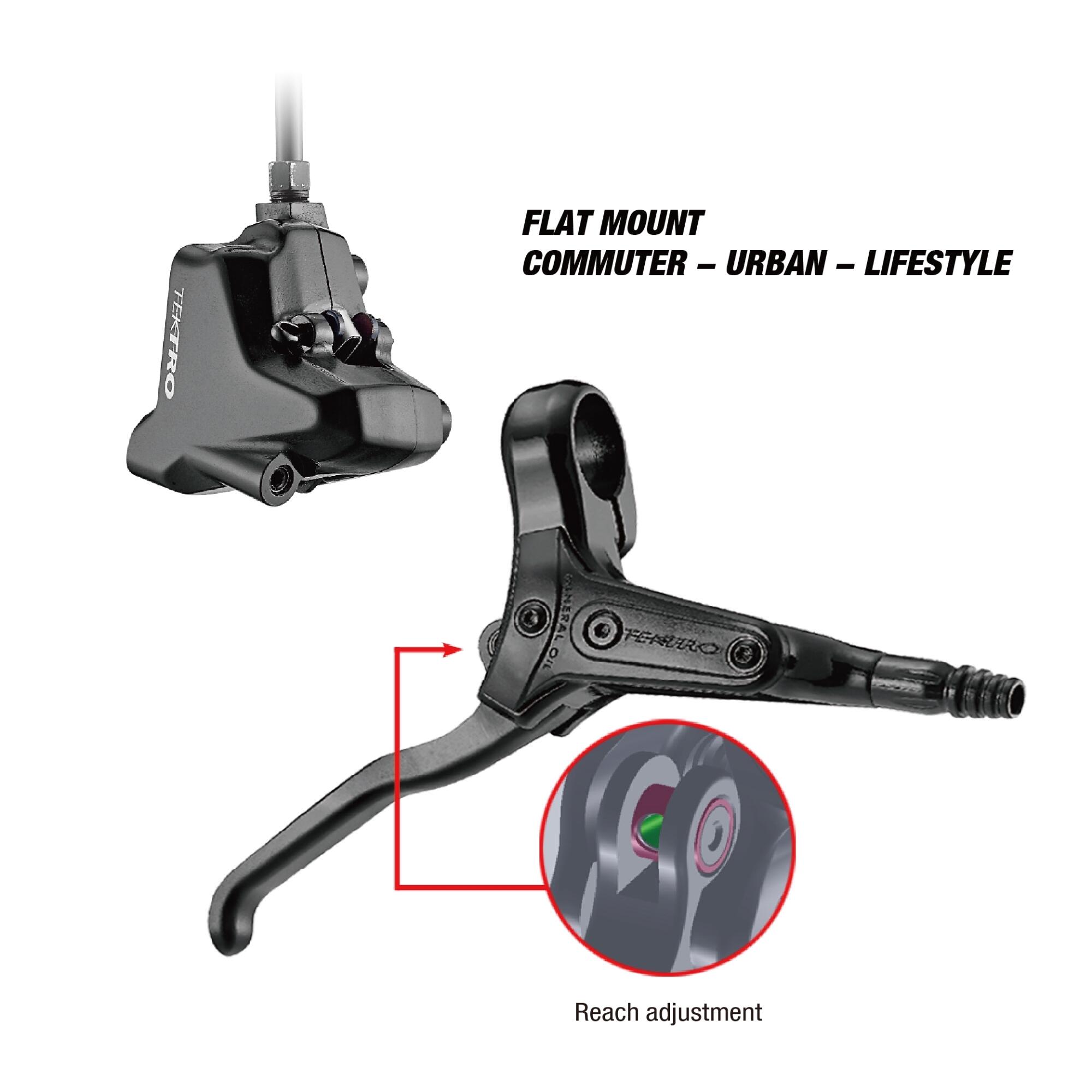

Road - Hydraulic disc brake system
Flat mount, Lor profile. ROAD - URBAN - LIFESTYLE.
Open system, dual piston
Easy to install, adjust and service.
Compatible rotor
1.8 mm-thick compatible rotor
lever
Aluminium lever and cast aluminium mount
Reach adjustment
One-piece mount
3-finger blade
Finish: Black
Caliper
Forged aluminium body
Flat mount system
Finish: Black
Oil
Easy replacement
Non-corrosive fluid mineral oil
Excellent thermal expansion properties
Weight
rear +- 300 g
(excluding rotor, adapter and mounting bolts)
Assembly instructions
Always tighten to the recommended torque.
After installing the brakes kit, follow the bedding-in procedure.
For the best braking, it's recommended that you use discs made by the same brand as your brake calipers
Care tips
Bleed the brakes once per year or each time you change the pad.
When changing the pads, you must bleed the brakes.
When servicing your bike, make sure you don't splash any oily liquids on the disc or brakes as this will reduce their braking power.
Need Help?
The technicians at your Decathlon store workshop are available to help you replace your bike's parts. Feel free to ask them for help!
