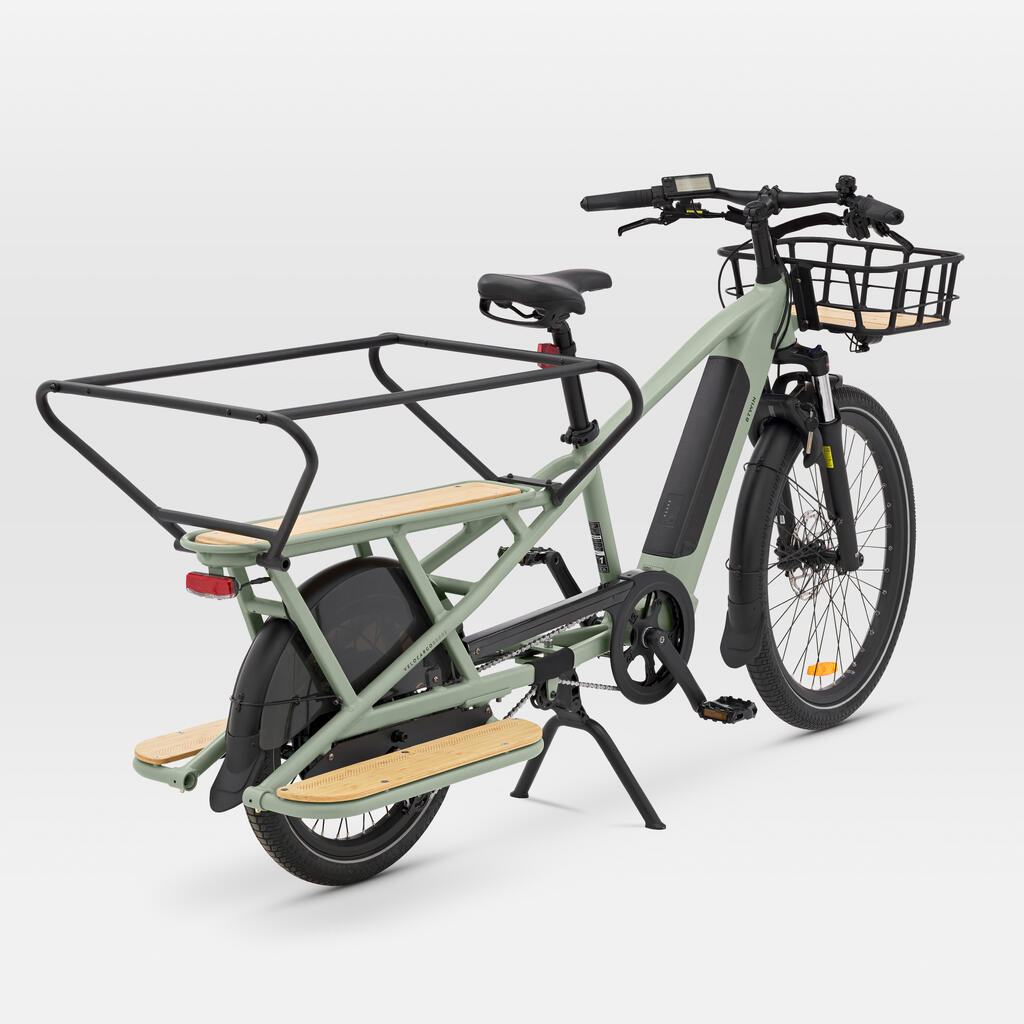

Choosing the right size for your Longtail cargo bike
One size fitting anyone between 1.55 m and 1.96 m
Information and recommendations on speed
The electrical assistance supplements your pedalling to help you reach your destination without overly sweating, while maintaining a pleasant pedalling pace throughout your ride.
The motor stops when you stop pedalling and when braking.WARNING: We have put in a powerful and torquey engine to accompany you when you are loaded.This motor generates power above 45 km/h which can damage your electrical system.Do not exceed this speed.
What are the characteristics of the motor on the Longtail R500E cargo bike?
Rear wheel motor: 48 volts, 250 Watt (nominal).
It has an engine torque of up to 58 Nm. It lets you easily carry loads of up to 170 kg.
The torque and power values tell you how easily the bike will deal with certain difficulties (such as a hill).
The motor is coupled to a torque sensor that provides electric assistance based on the force exerted on the pedals. It gives you a more natural pedalling motion.

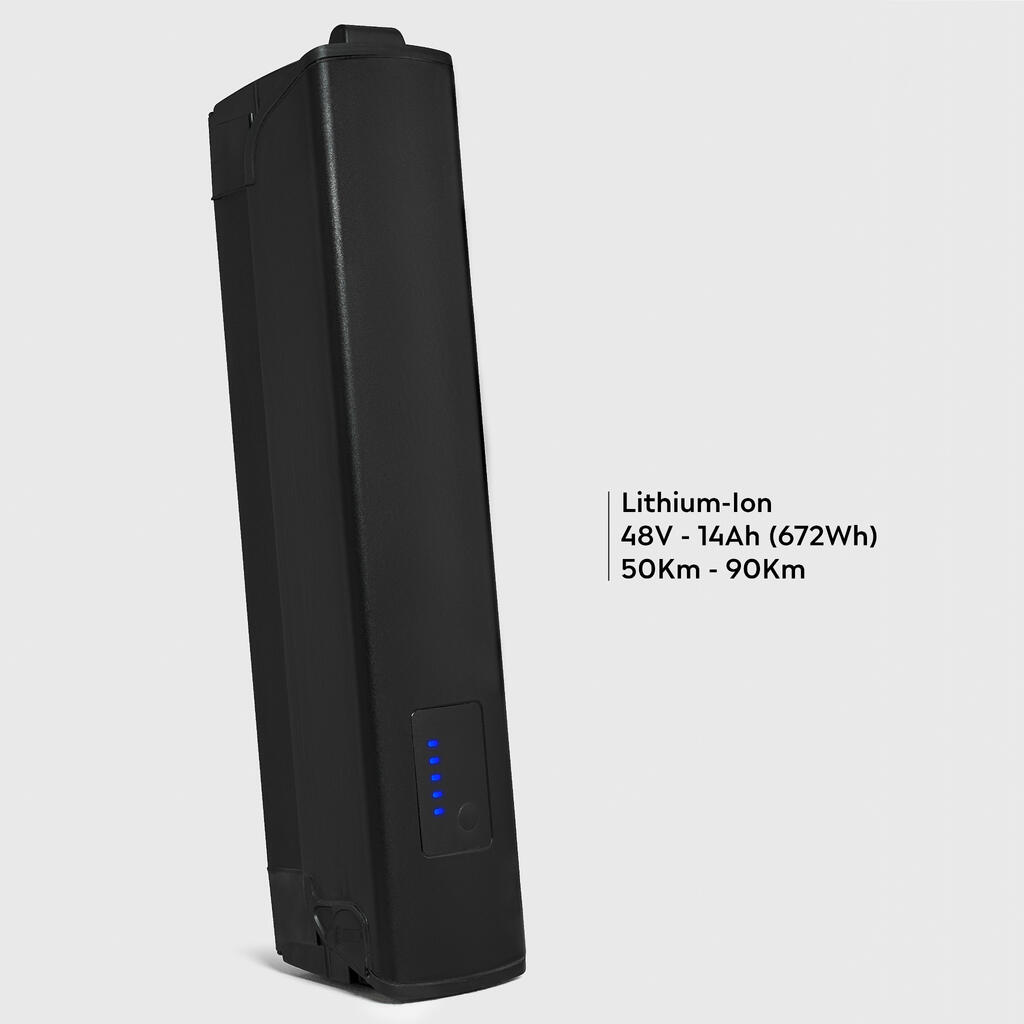

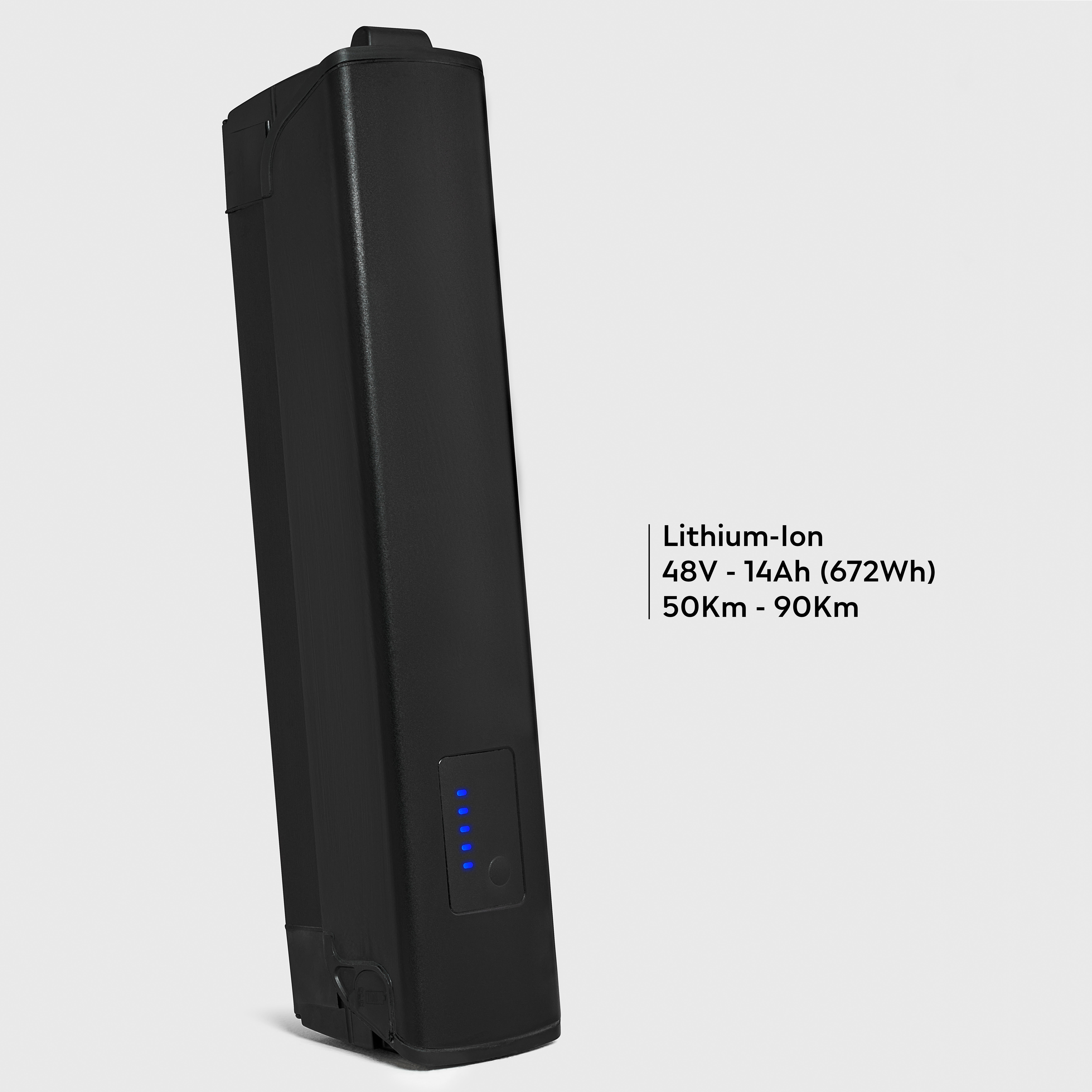

Battery and battery life
Samsung lithium-ion battery
672 Wh (48V, 14Ah)
Charge time = 4 hours 40
Battery range: 90 km maximum in Eco mode (1), 70 km maximum in Normal mode (2), and 50 km maximum in Power mode (3) for someone weighing 80 kg on a relatively flat road with no load on the bike.
NB: The battery life may vary depending on the weight being transported (rider weight + weight of any items being carried), the gradient (uphill) and the weather conditions.

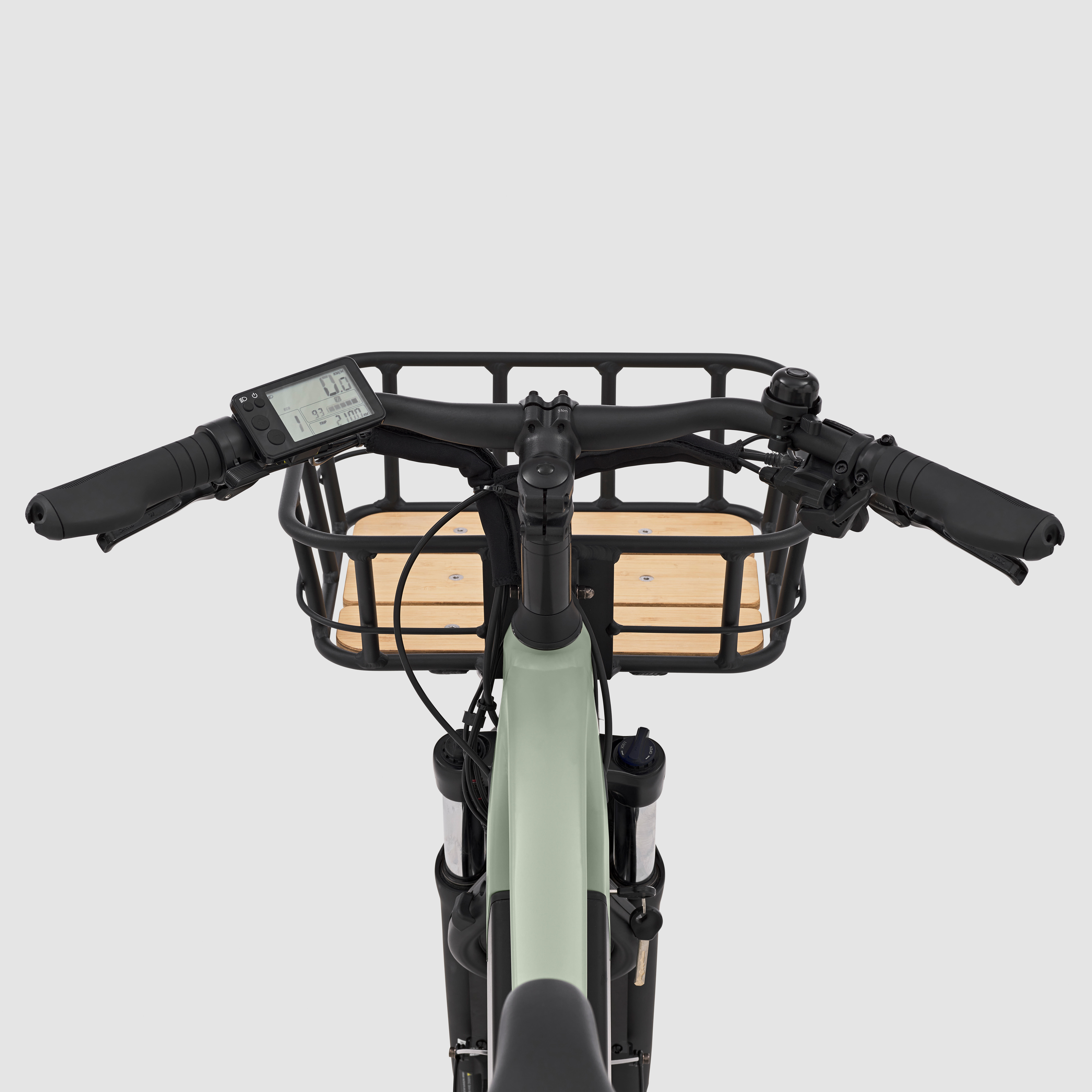

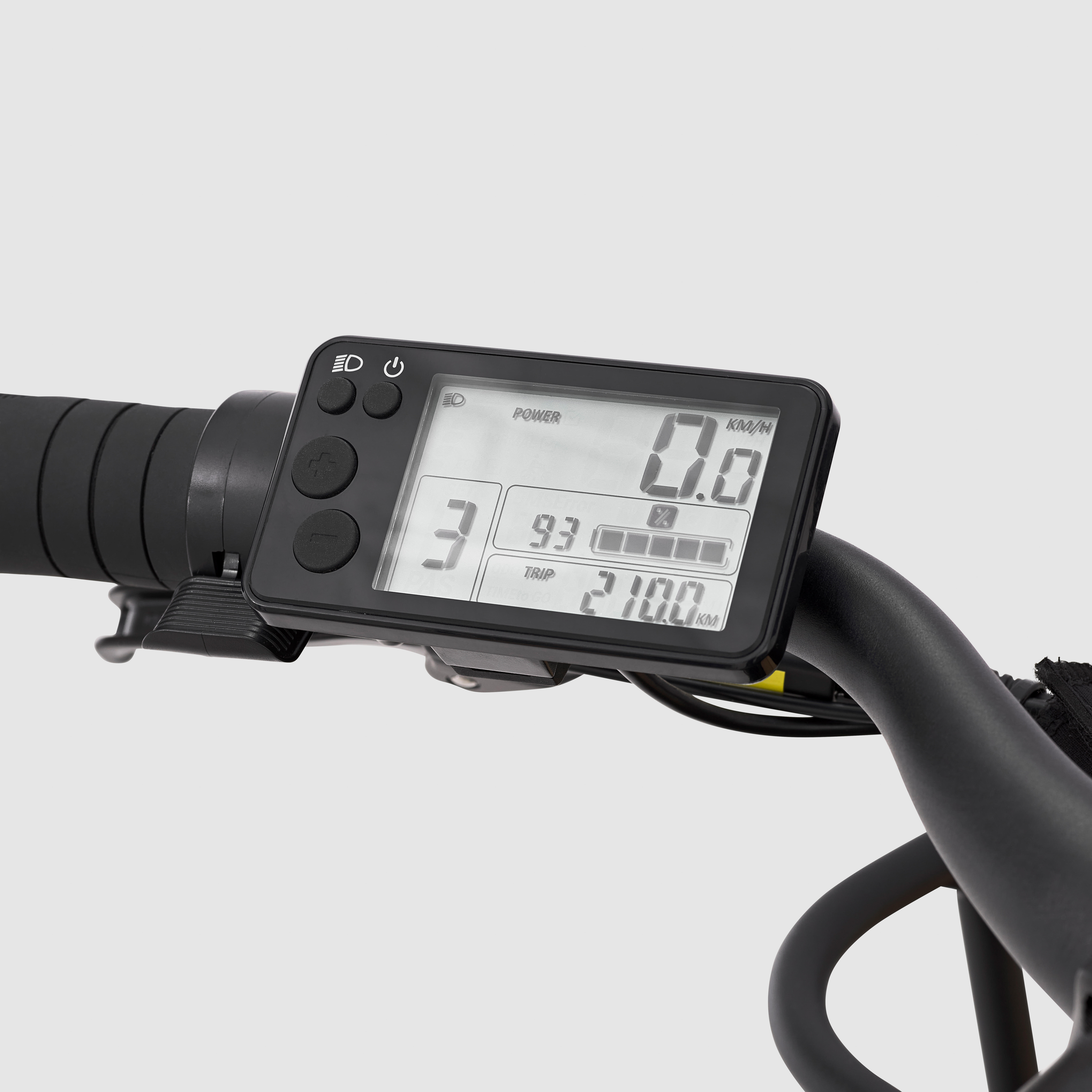

Control screen and trigger
There is an LCD screen just next to your left grip. You don't need to let go of your handlebar to choose between the 3 assistance modes: The modes are Eco, Normal and Power.
"Trip to go" tells you how much battery range you've got left, "Trip" tells you how far you've ridden, and "Odo" tells you the bike's total distance.

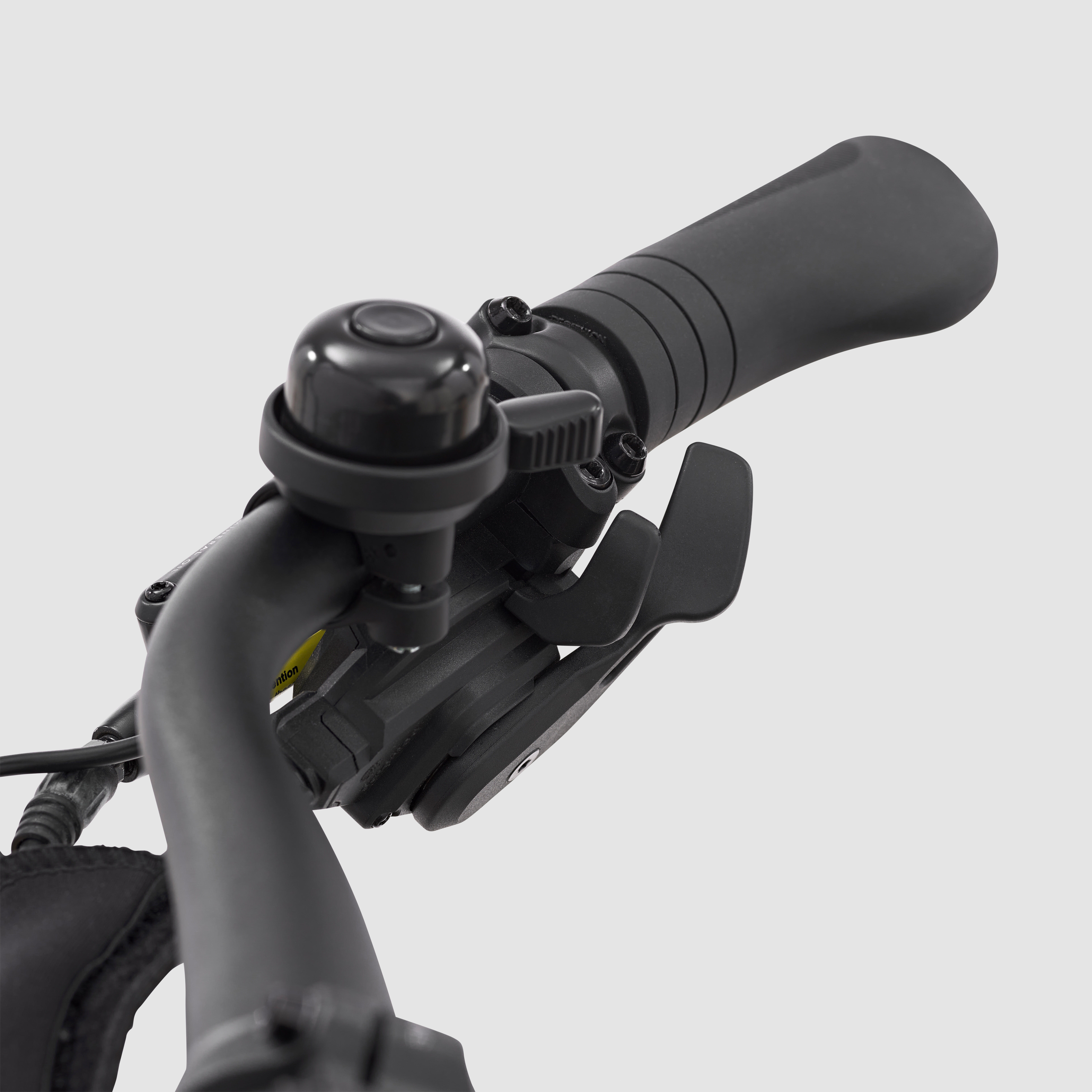

There's a start assistance trigger that helps you get going, up to 6 km/h (handy when heavily laden).
You can also control the headlights.
Assistance Modes
Mode 0 - Deactivated (battery not in use).
Mode 1 - Eco => up to 90% assistance on top of your pedalling effort.
Mode 2 - Normal => up to 180% assistance on top of your pedalling effort.
Mode 3 - Power => up to 300% assistance on top of your pedalling effort.
"Walk" mode => Hold the trigger to help you push the bike when you're walking alongside it (assistance up to 6 km/h) or to help you get started when riding.

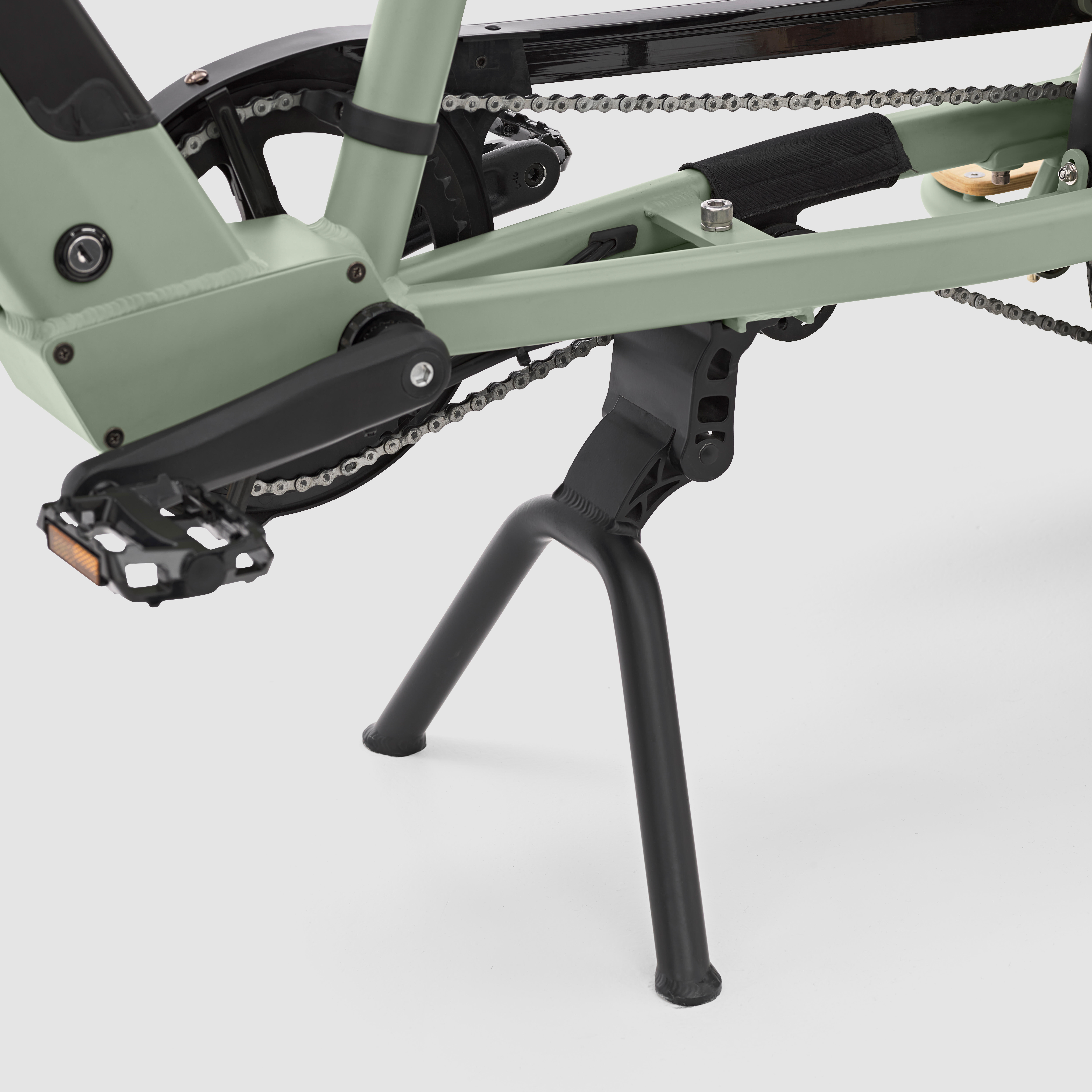

Drivetrain
Microshift 8-speed rear derailleur
KMC chain (anti-rust)
Microshift gear shifter
Microshift 11-28 cassette
Lighting
Front light: Buchel Shiny 80 with 80 Lux / 130 Lumens intensity
Tension: DC6V~48 V
Power: 3 W

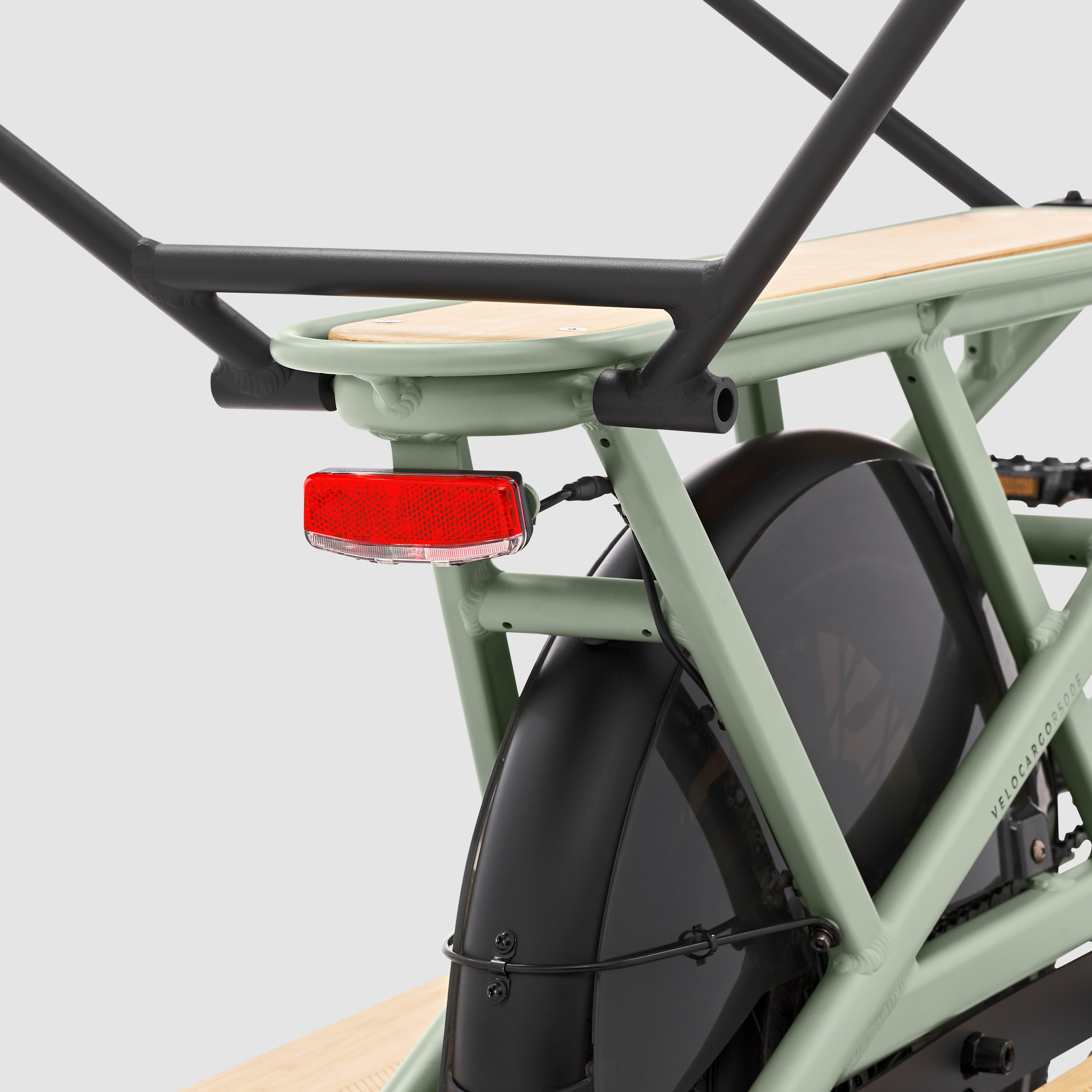

Rear light with slowing down indicator in case of braking.
Lighting powered by the bike battery.
Wheels
26" double-walled aluminium front wheel with 36 spokes for greater strength.
20" double-walled aluminium rear wheel with 36 spokes for greater strength.
The 20" rear wheel lowers the load, which makes the bike more stable.
Schrader valve inner tubes
Tyre
CST C1996 cargo bike tyres.
Brakes

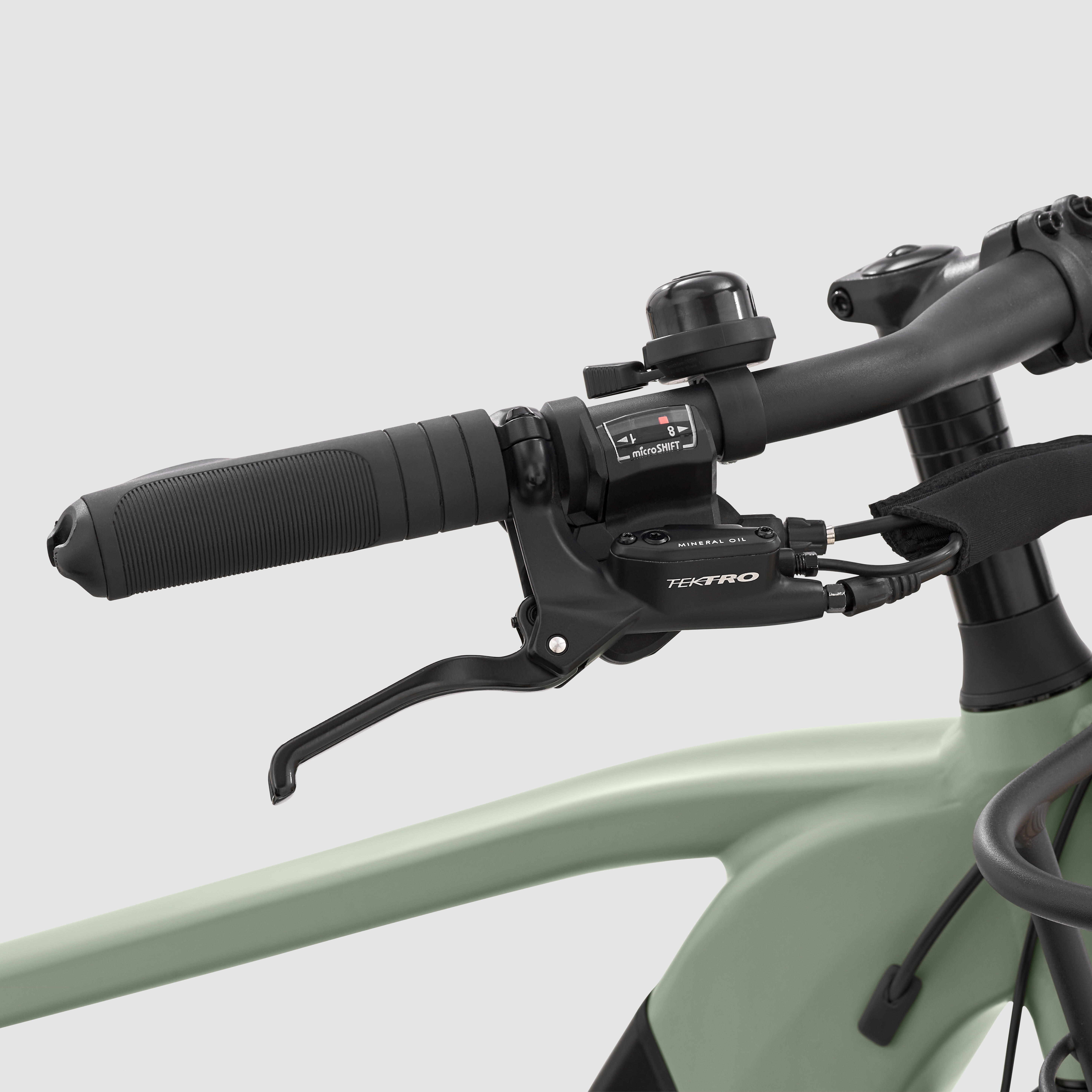

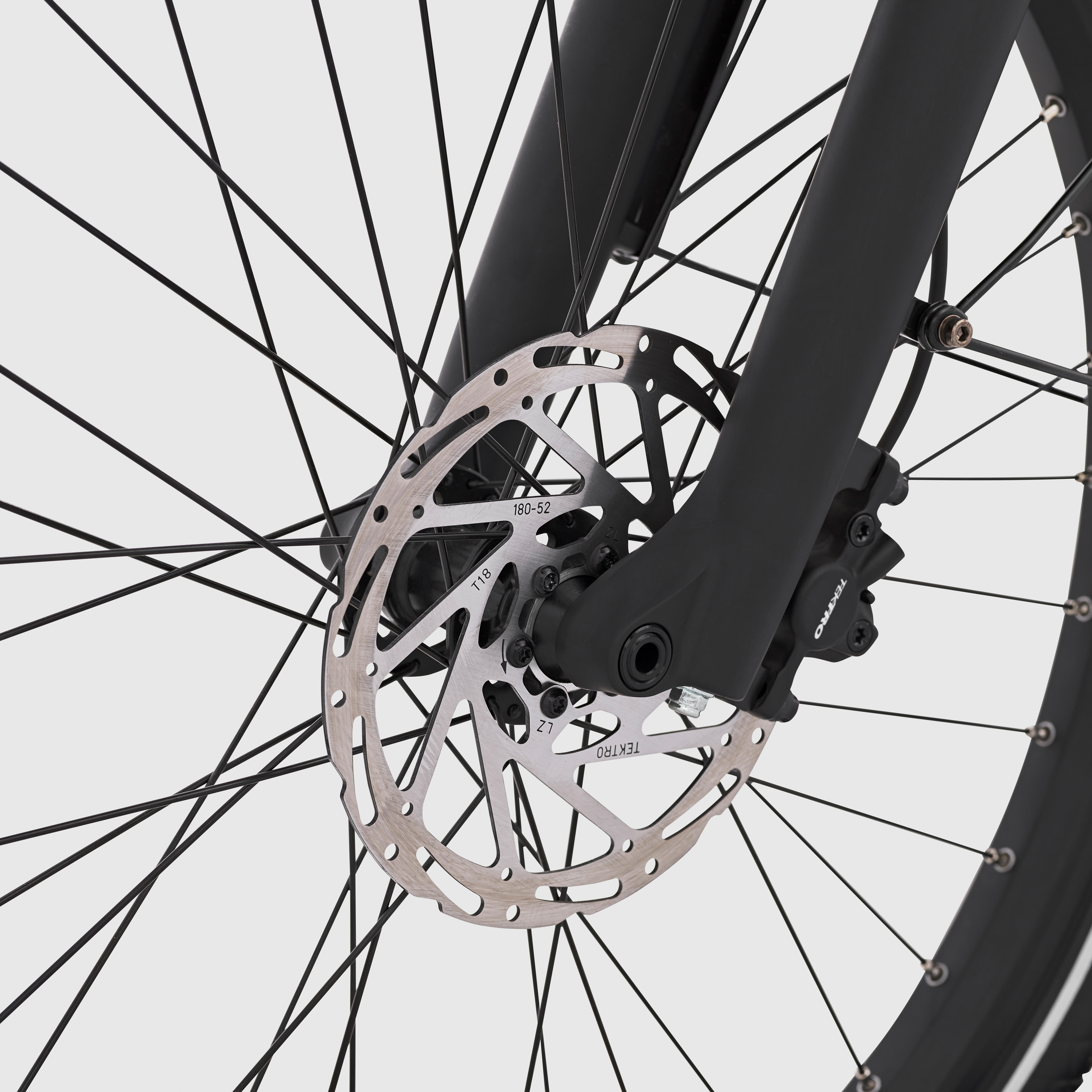

Tektro hydraulic disc brakes. These brakes provide powerful, easy, progressive braking in all weather.
Aluminium levers with braking sensor.
180 mm diameter disc.
Handlebar, grips
Handles with lugs for attaching bicycle lights
Decathlon type SL510 with clip.

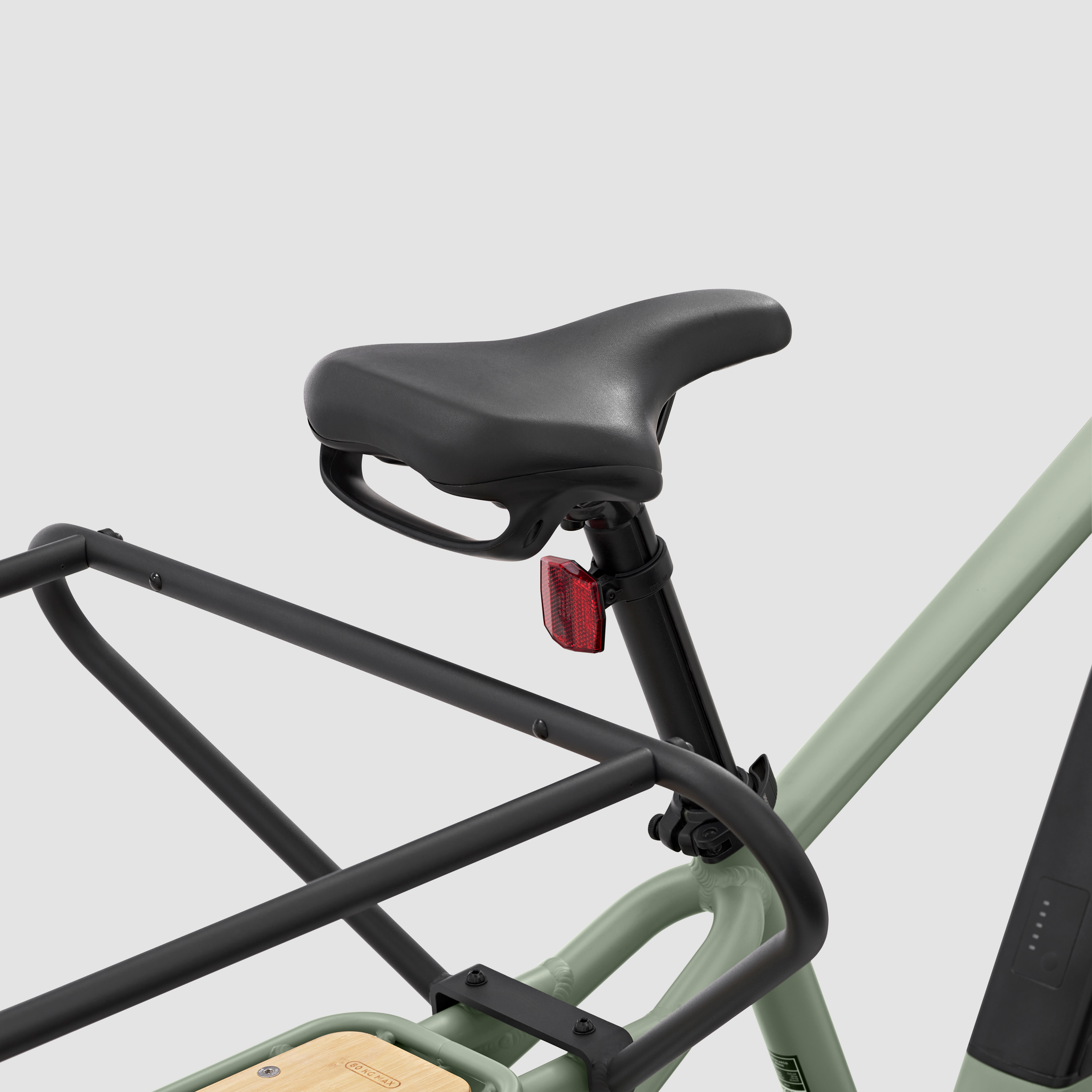

Saddle
Saddle with a handle for manhandling the bike that can also be used as a grab handle by a person sitting on the pannier rack.
Accessories / equipment
Your bike features:
- a built-in pannier rack that's compatible with the entire B'Twin accessories range
- mudguards
- chain guard
- a skirt guard
- an aluminium kickstand

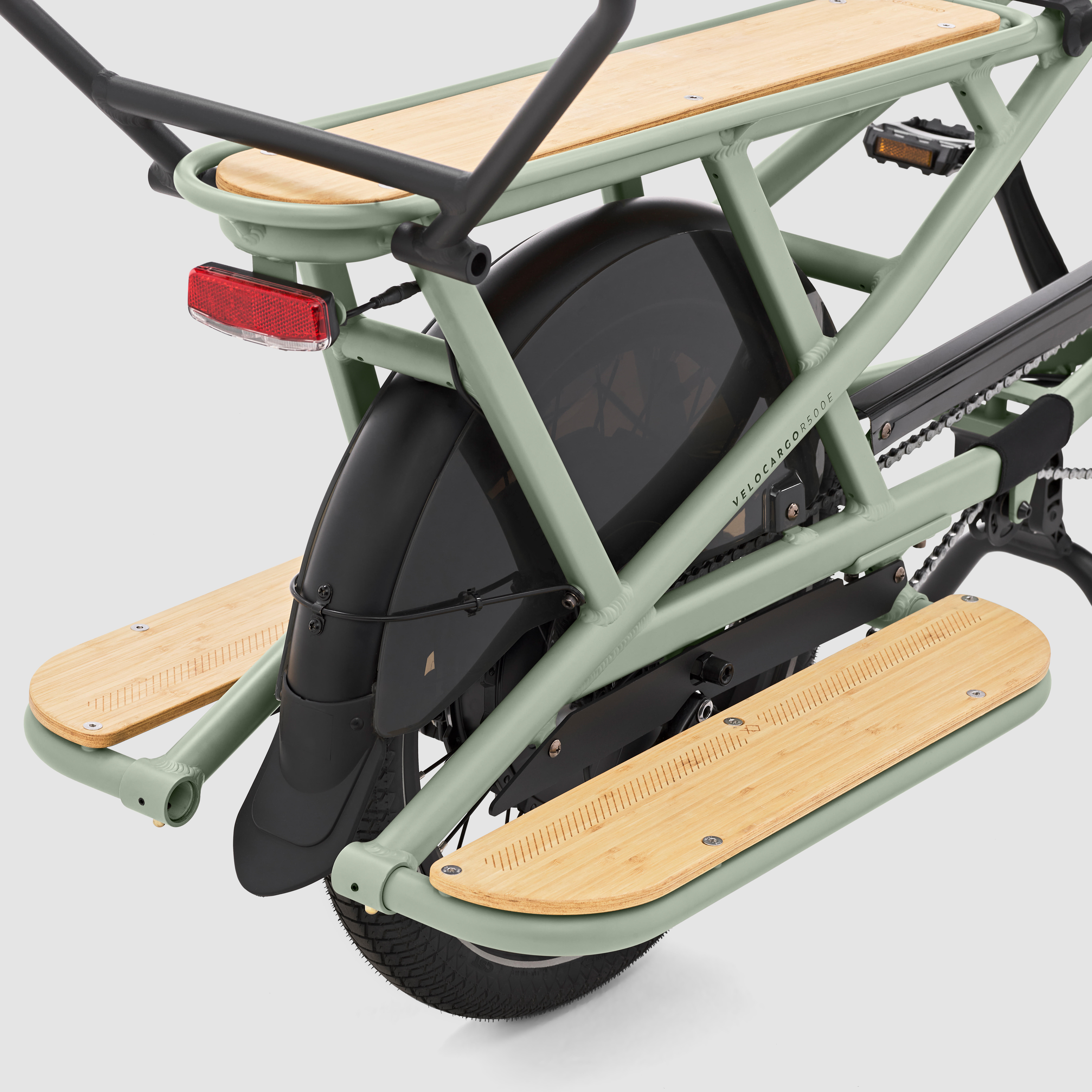

- rear footrests
- a width-adjustable support bar for children or other loads
- a frame-mounted front basket
- a wheel lock
- a bell
- front and rear flap
Your bike also comes with a 3A battery charger.
Bike weight
41 kg (including pedals and battery)
Legal notices
Maximum weight allowed, bike included:
cyclist + bike + accessories + load = 208 kg
Tyre maintenance and inflation tips
1) Monthly tyre pressure check (between 3.5 and 5 bar).If the tyre pressure is too low, you will lose efficiency, battery range and stability.
2) Regular drivetrain maintenance (especially the chain, which should be cleaned and lubricated).
3) For long-term storage (>1 month) without using the bike, we strongly recommend using the "extended sleep" battery mode to prevent any malfunctions.
Cleaning / Repairs
Before performing any work on your electric bike yourself (cleaning, electrical or mechanical maintenance), you must turn off the bike and remove the battery.

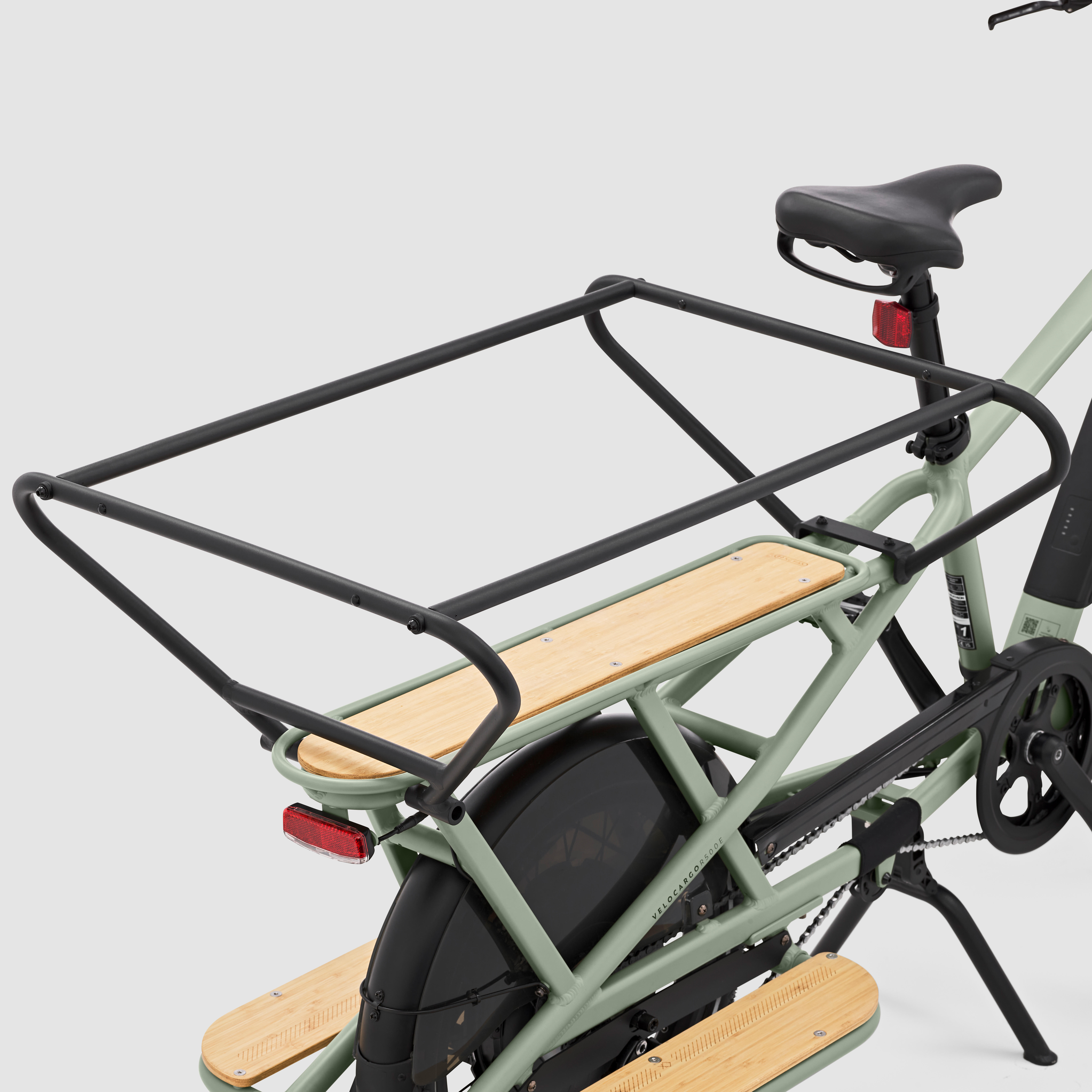

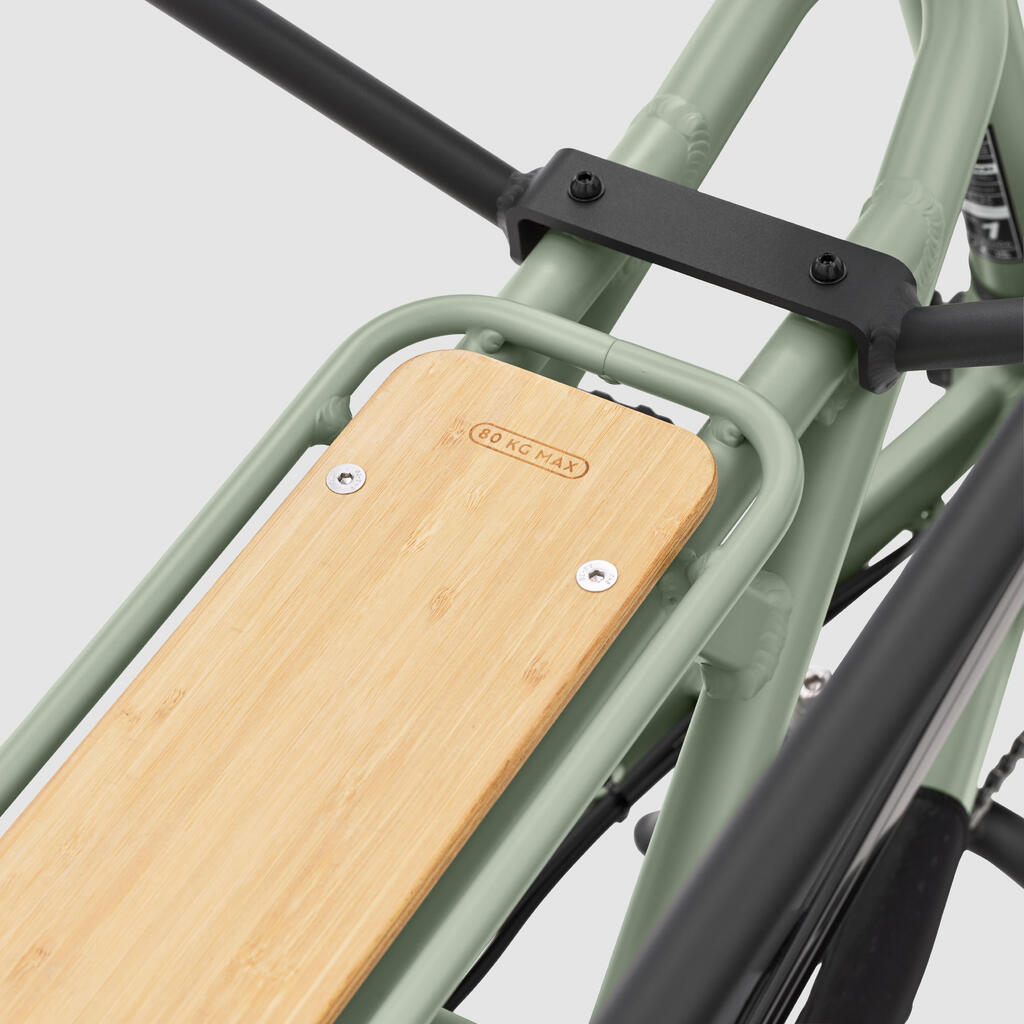

Pannier rack
The pannier rack can take loads of up to 80 kg.
The pannier rack is compatible with all Decathlon universal accessories (child seat, basket, bags).
Its dimensions are W: 15.5 cm x L: 60cm.We recommend using the accessories that have been developed specifically for this cargo bike:
Double luggage 2 x 50 L -> ref. 8667277
Cargo bike cushion -> ref. 8667276
Front basket
The frame-mounted front basket can hold up to 10 kg.Inner dimensions: L: 37 cm / W: 25 cm / H: 12 cm
Use of the bike on the coast
The marine environment (air, ocean spray) is extremely corrosive for mechanical and metallic parts, so it is strongly recommended to regularly lubricate the entire drive train of your bike and clean the positioning elements with a damp cloth from time to time (handlebar, seat post, etc) to remove any salt deposits that may accumulate.
Warranty
The frame is guaranteed for life.2-year warranty on parts, with normal use of the bike (excluding wearing parts).

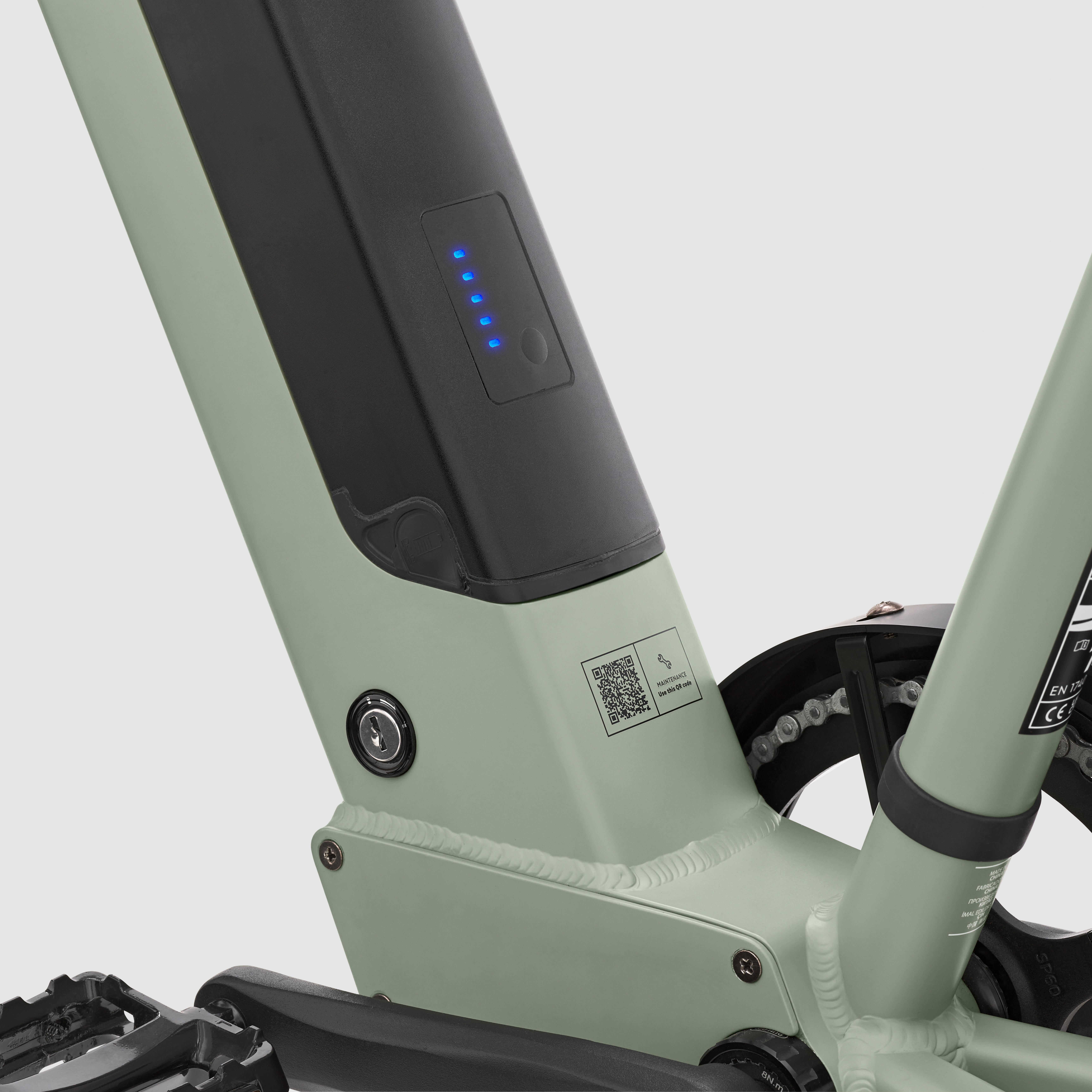

BATTERY LOCK
Locks with a key (2 keys provided with the bike).
So the battery is removable for recharging (at the office, for example).

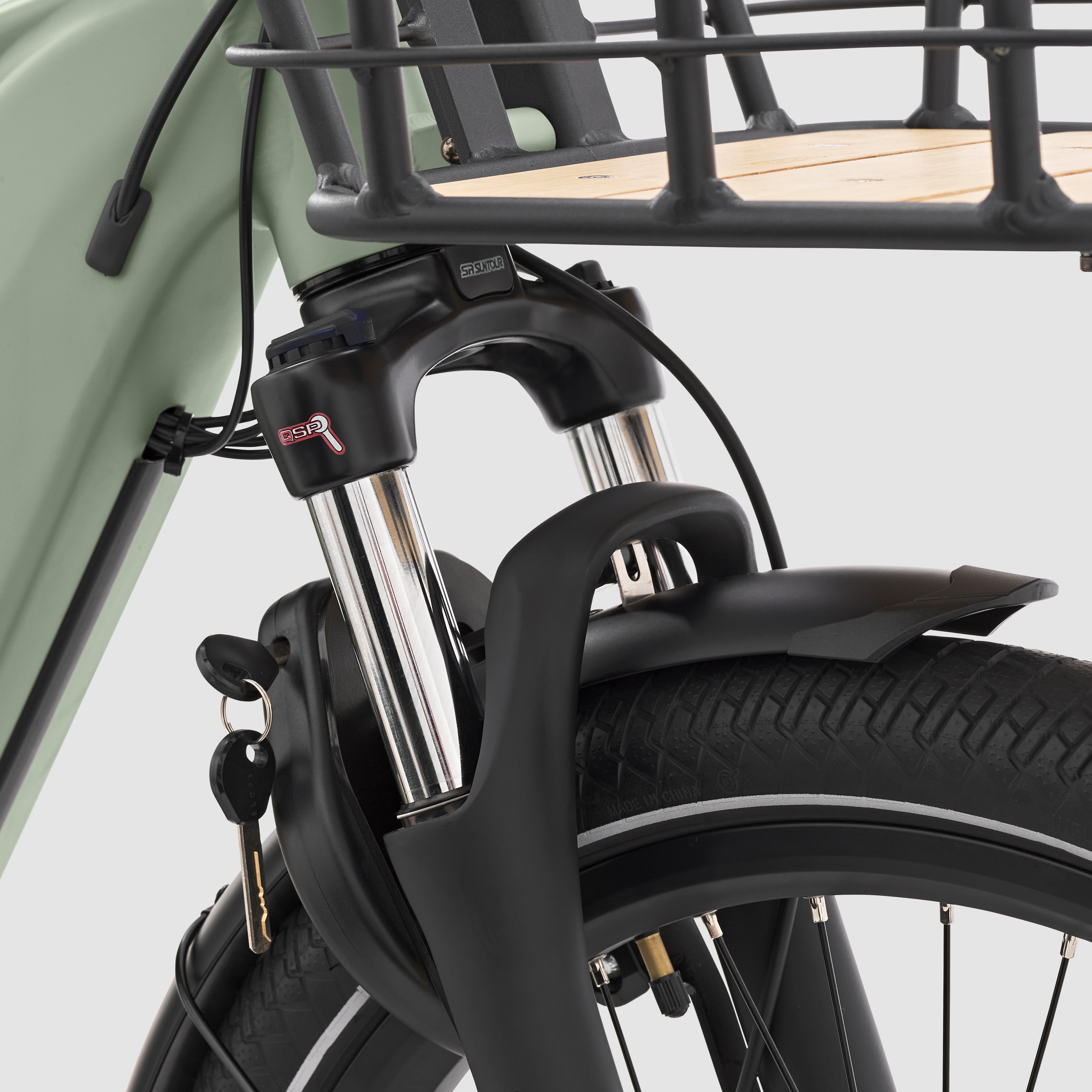

Wheel lock
There is a wheel lock on the front wheel so you can stop it turning.2 keys are provided with the bike.
It is compatible with a Decathlon plug-in chain (ref. 8767728)
Delivery information
There are 2 options:
- In-store delivery: Your bike will be fully assembled when you come to collect it. Warning! The bike is 2.2 m long. You'll either need to ride it home or come in a vehicle that can hold something of that length.
- Home delivery: Your bike will be 90% assembled. You'll get paper and video instructions, along with a tool kit to help you assemble everything else (footrests, front basket, handlebar, pedals, child retention bar).
Wooden parts maintenance
Please use a suitable product for maintenance of bamboo parts.

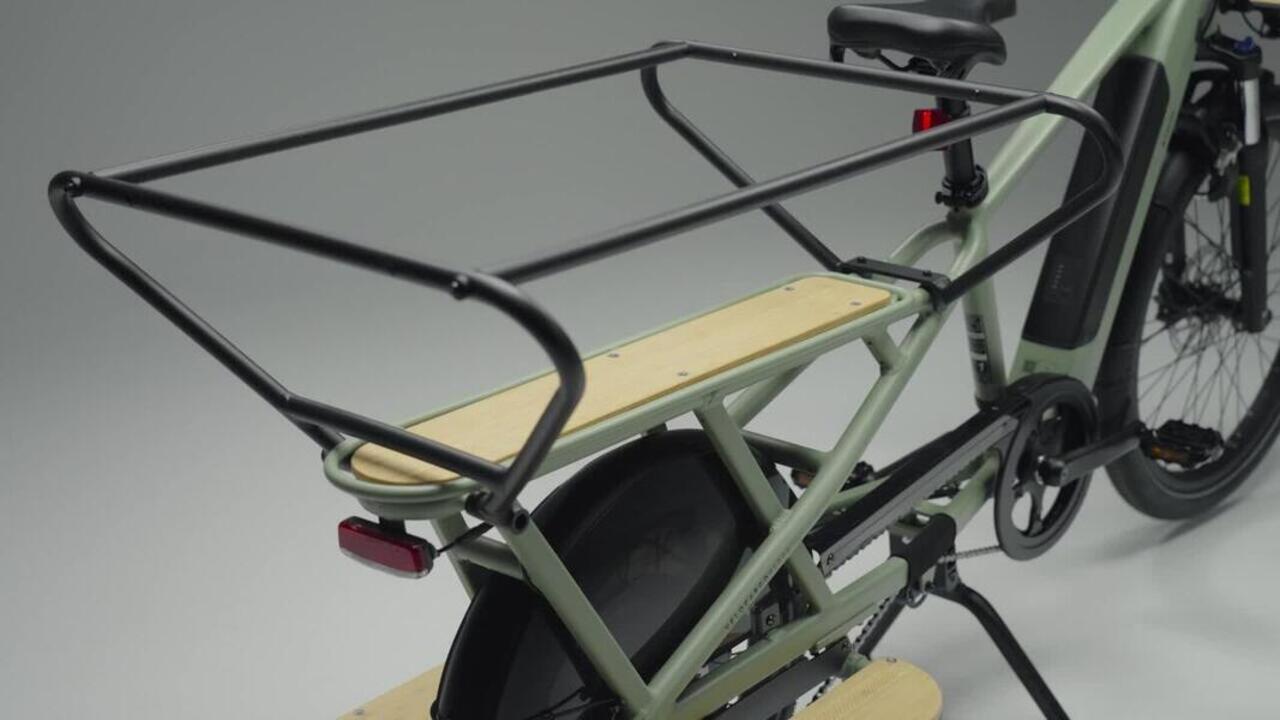

Rear retention bar
The bike is equipped with a rear retention bar. It can be used when carrying a child or goods. It can also be used to hold a box of standard dimensions (60 cm x 40 cm x 40 cm).The side bars have 2 adjustment positions.
