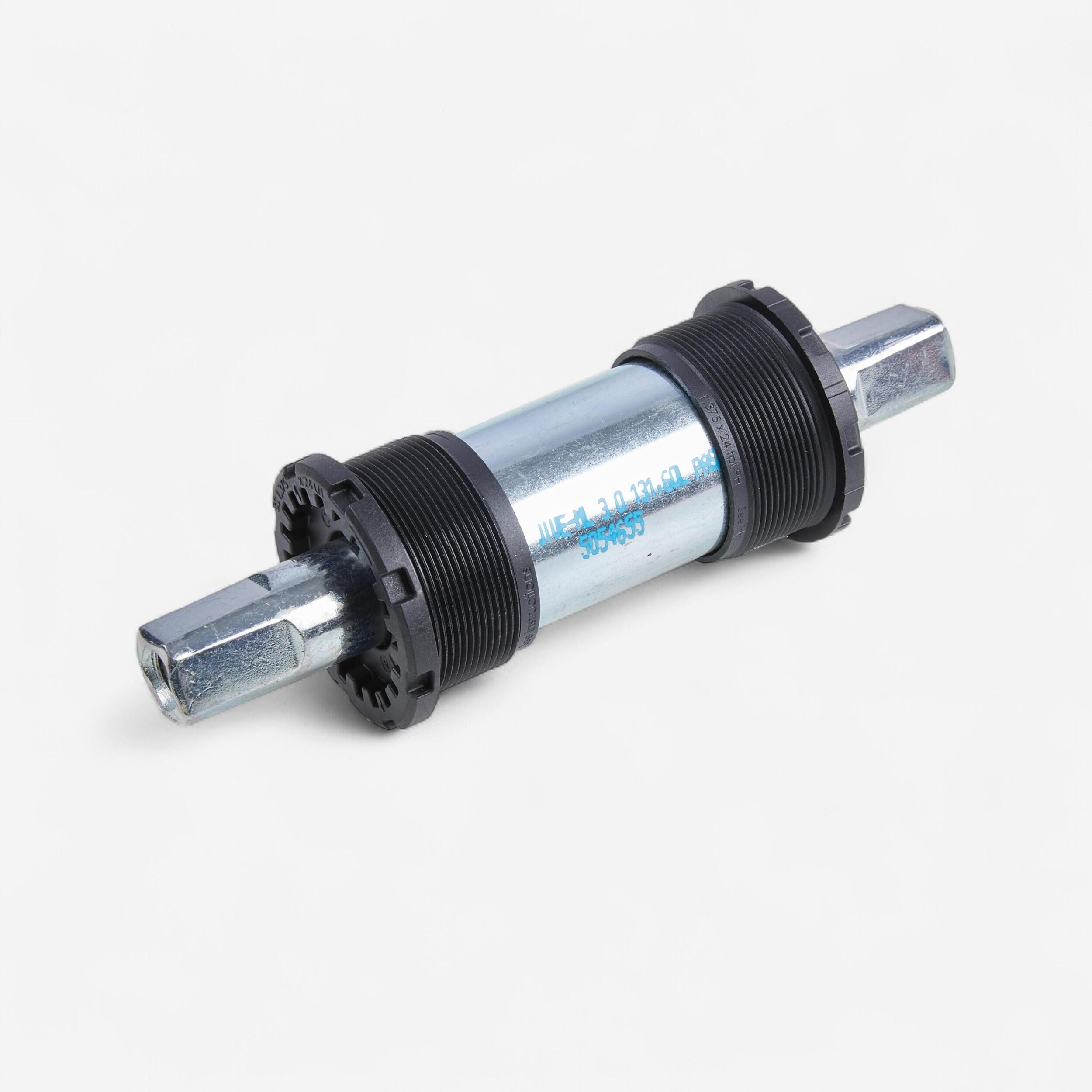

68 mm Square Bottom Bracket E-ST 100 V3 Length 122 mm
Designed for replacing the bottom bracket on your E-ST100 V2 bike
With its aluminium structure, it keeps your pedalling smooth at all times.
BENEFITS
Compatibility
For square taper bottom brackets. Original BB for the E-ST100 V2.
TECHNICAL INFORMATIONS
Compatibility
You may also need to change the pedal sensor so that these two components are compatible with one another (V2 sensor with V2 bottom bracket).Only compatible with the Mono V3 E-ST100 bottom bracket (check this with one of our technicians)
Technical features
Bottom bracket type: BSC/BSA (English, Euro)
Bottom bracket width: 68 mm
Bearing material: Steel
Type: Square
Axle length: 122 mm
Assembly tips
Bracket tightening torque: 50-70N.m
Crank tightening torque: 35-50N.m
Grease the threads of the bracket for easier installation and removal.
Maintenance advice
Do not use a high-pressure cleaner on the bearings
Need Help?
The technicians at your Decathlon store workshop are available to help you replace your bike's parts. Feel free to ask them for help!
composition
composition
Main part: 100.0% Steel
Tips for storage and maintenance
DO NOT WASH.
BLEACHING EXCLUDED.
DO NOT TUMBLE DRY.
DO NOT IRON.
DO NOT DRY CLEAN.
Storage tips
Store the bottom bracket in a warm, dry place away from corrosive products and salty air.
Restrictions on use
Get the compatibility and assembly checked by a technician
TESTS AND WARRANTY
Warranty
2 Years
