NEW

VAN RYSEL

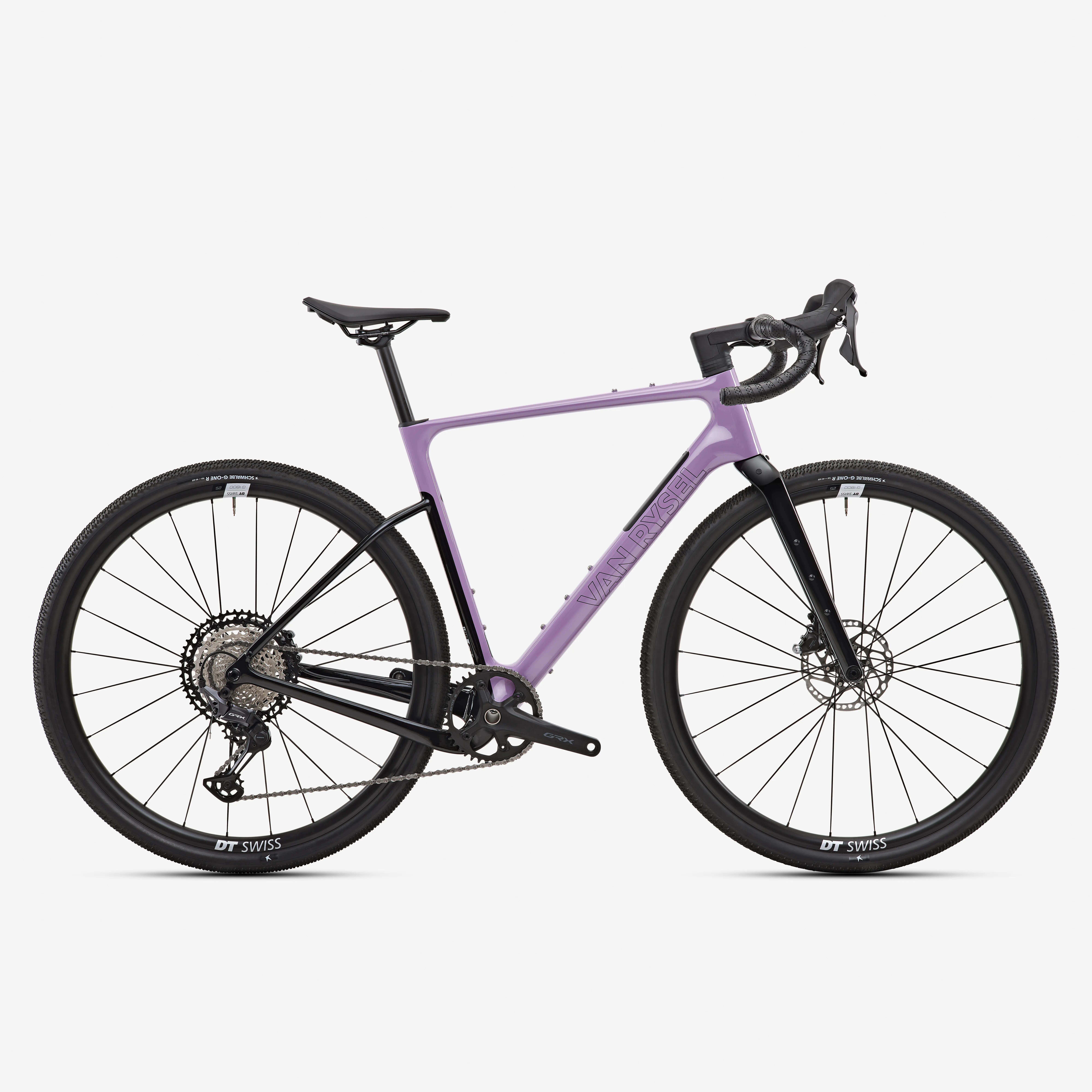

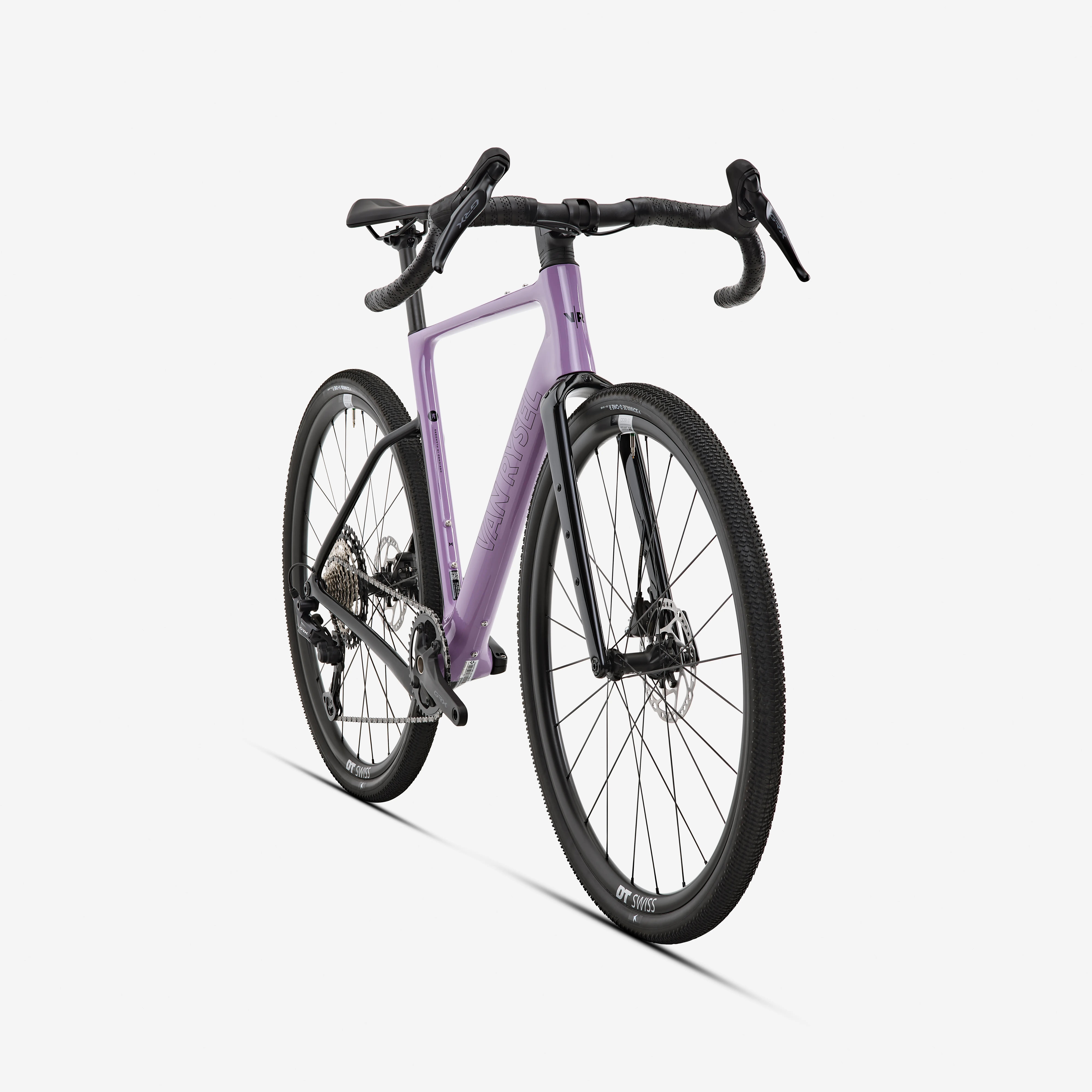

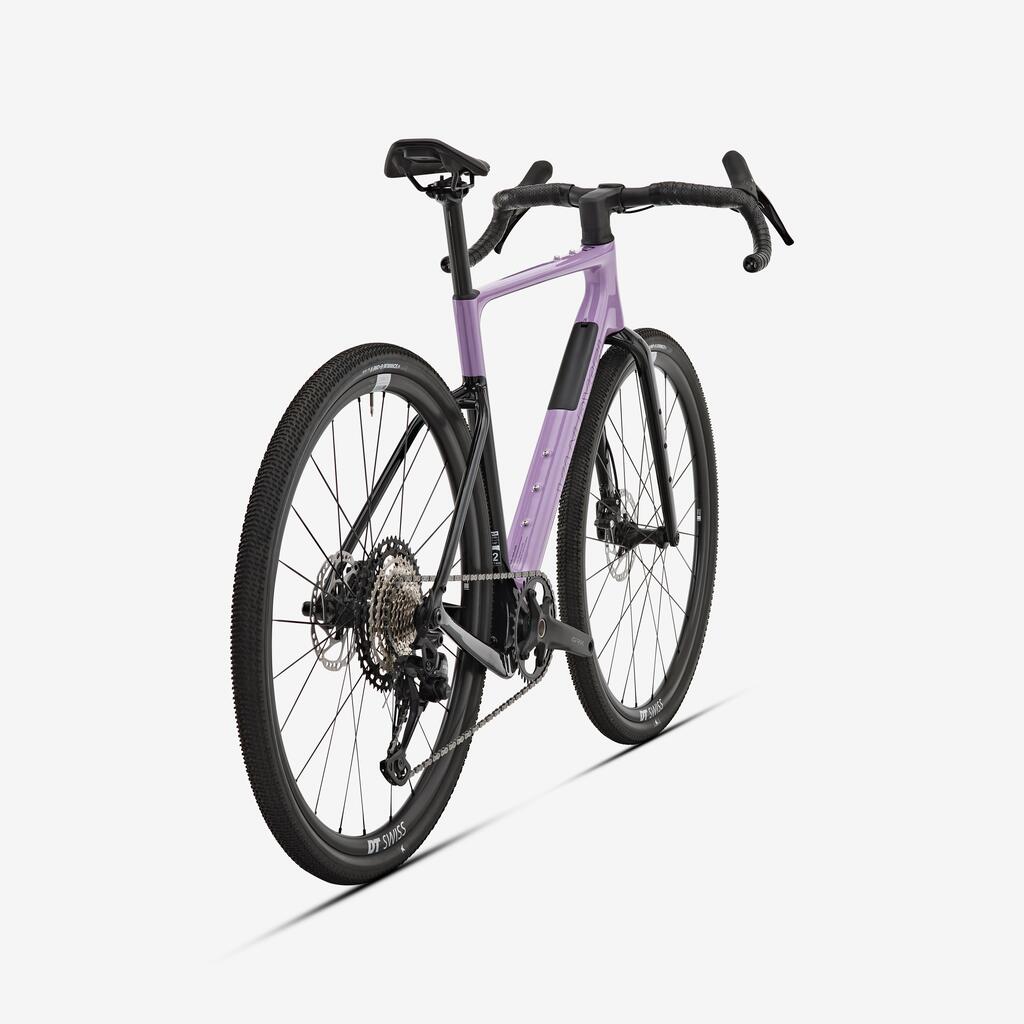

Shimano GRX 1x12-speed carbon gravel bike, EDR-G CF Purple

The EDR-G gravel bike has been designed for adventure, to get away from the roads and traffic, tackle steep trails and enjoy yourself.

We love its comfort, ease of handling and responsiveness. The carbon frame strikes the perfect balance between comfort and performance. This model is fitted with Shimano GRX and DT Swiss G1800 wheels.

ID 8902288

€2,350.00
Tax included

  • Pick up at Decathlon

    loading…

  • Pick up near you

    loading…

  • Home Delivery

    loading…

Design benefits

  • lightweight

    Weight of the bike: 9.75 kg (size M)

  • number of speeds

    SHIMANO GRX 1x12-speed drivetrain – 40T chainring – 10/51T cassette

  • efficiency

    DT Swiss G1800 aluminium wheels - SCHWALBE G ONE R PERF 700x45mm tyres

  • braking power

    SHIMANO GRX hydraulic disc brakes

  • Features

    Design details

    Technical specifications

    EDR-G CF carbon frame
    Fork: carbon
    Drive train: SHIMANO GRX 1x12-speed
    SHIMANO GRX hydraulic disc brakes
    Wheels: DT Swiss G1800 (Tubeless Ready).
    Tires: SCHWALBE G ONE PERF 700x45mm

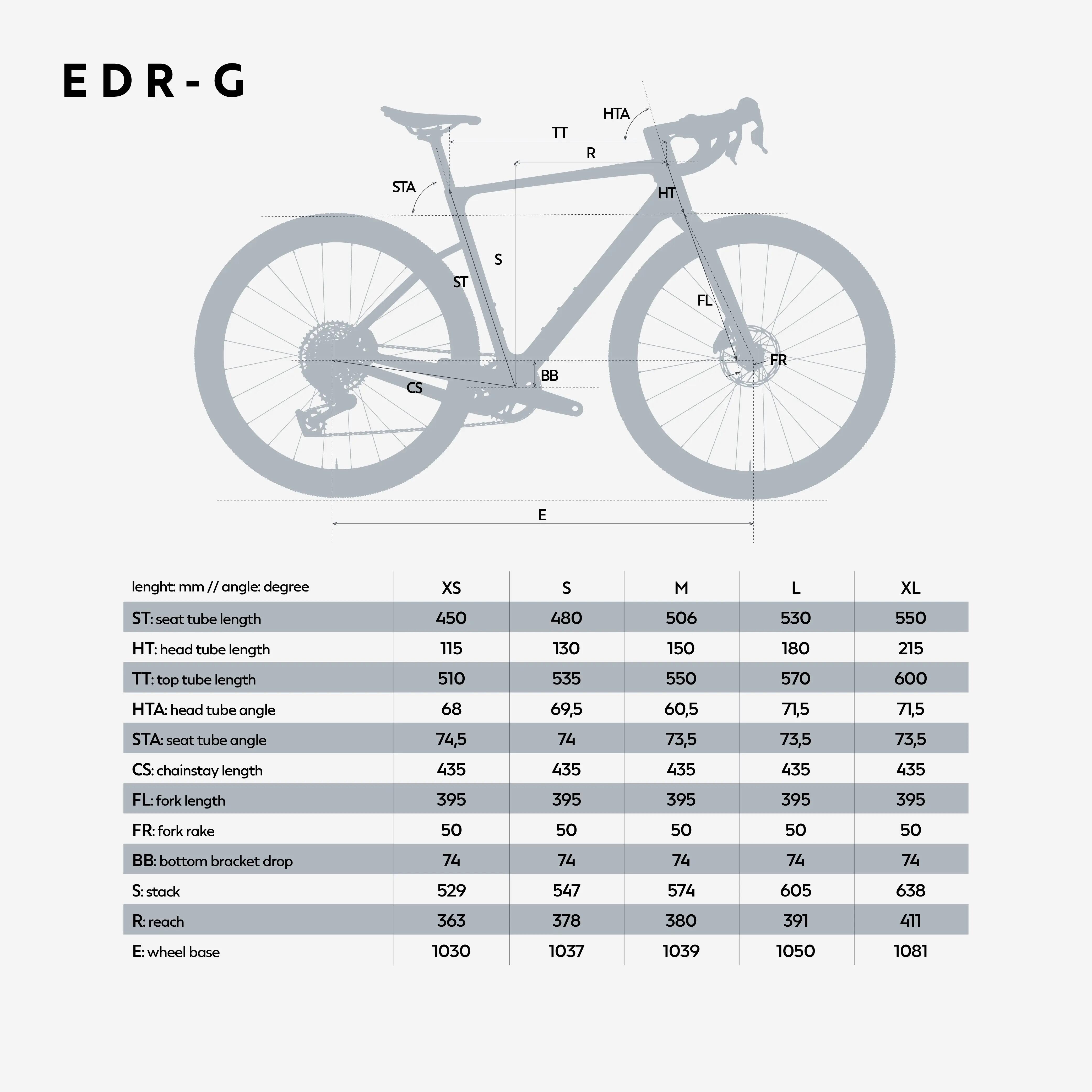

    Geometry: endurance
    Weight: 9.7 kg (size M, without pedals)

    Frame and fork

    frame: VAN RYSEL EDR-G CF

    Composition: carbon
    Maximum wheel clearance: 50 mm
    Seat tube diameter: 27.2 mm
    Bottle cage mount: 9 inserts on the frame
    Fork mount: 2x3 inserts on the fork

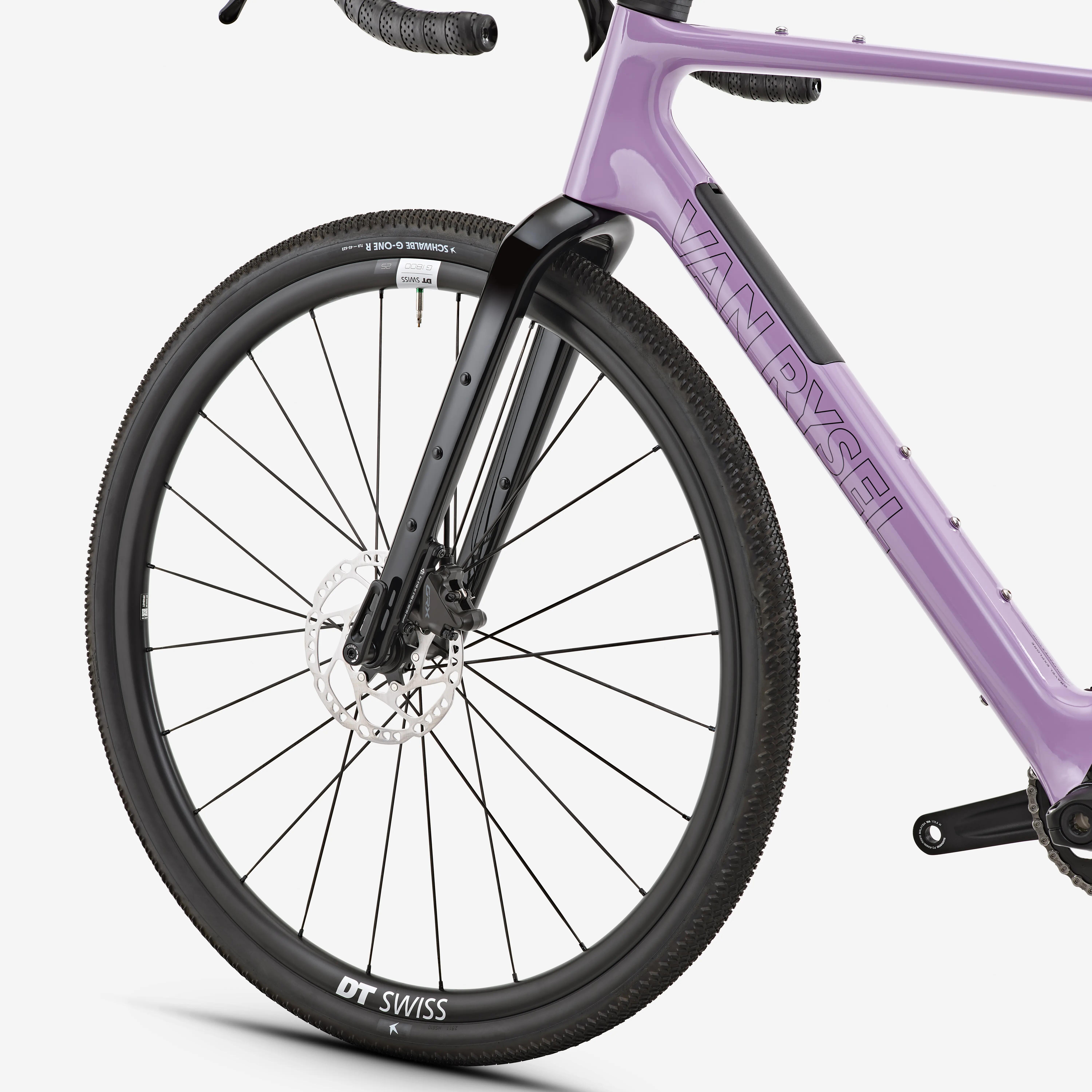

    Fork: 100% carbon
    Thru axles – front axle: 12 x 100 mm – rear: 12 x 142 mm

    Maximum load (cyclist + cargo): 110 kg

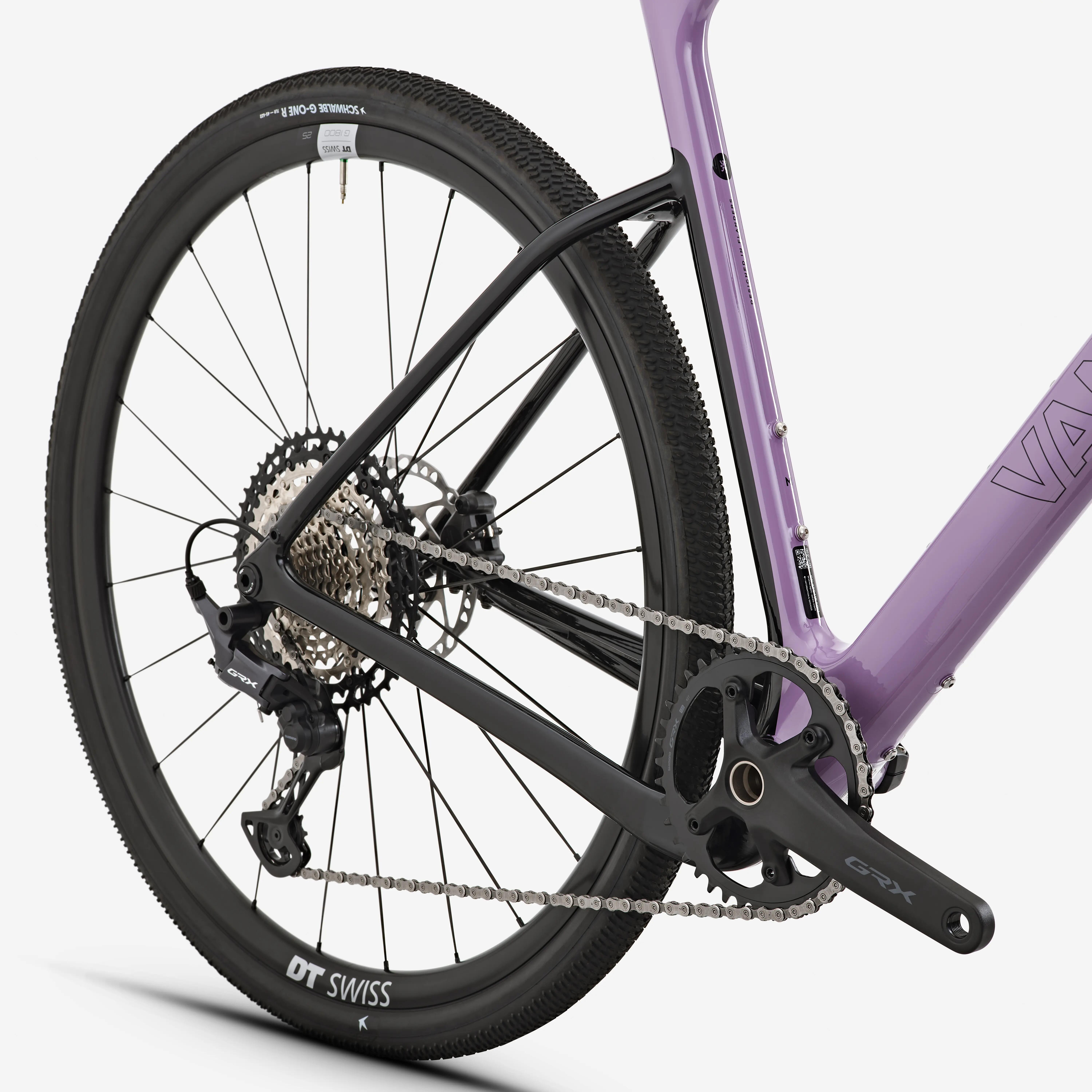

    Drivetrain

    Groupset: SHIMANO GRX 610 - 1x12-speed

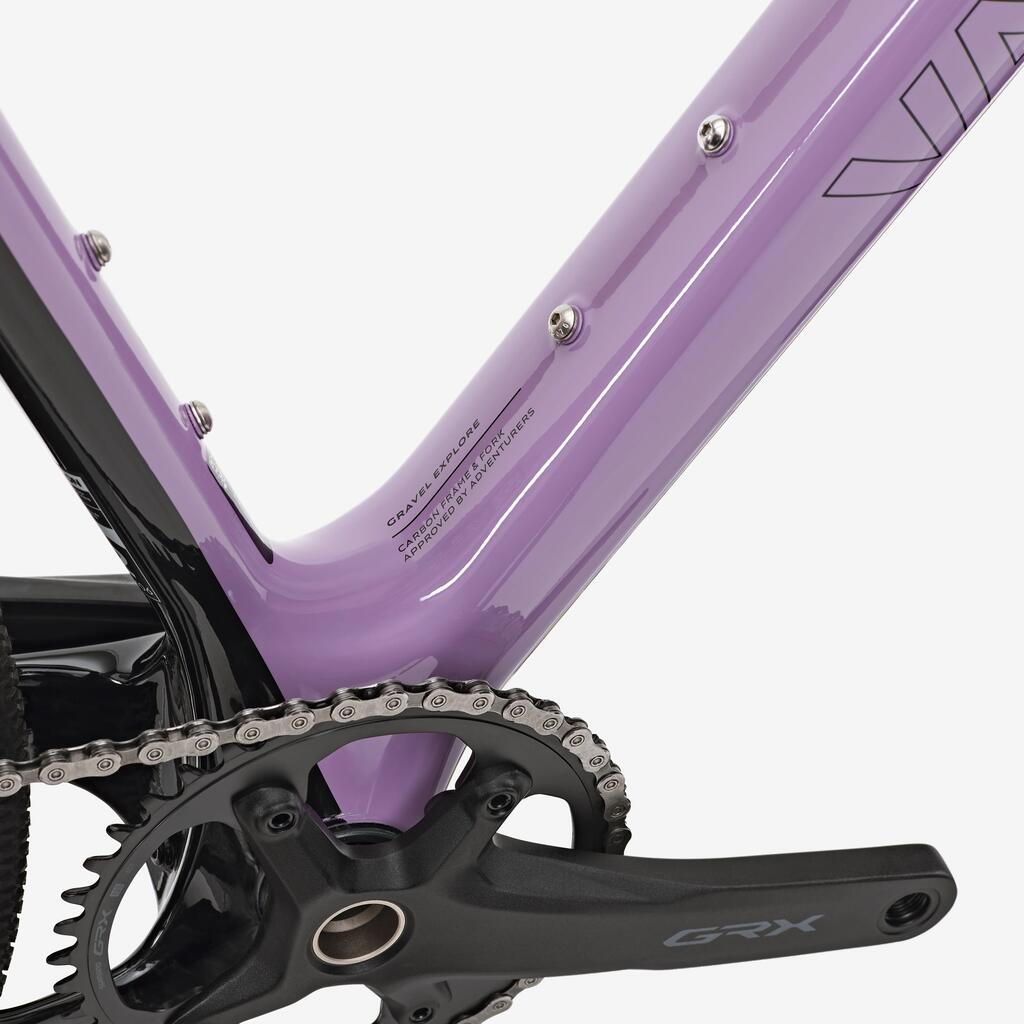

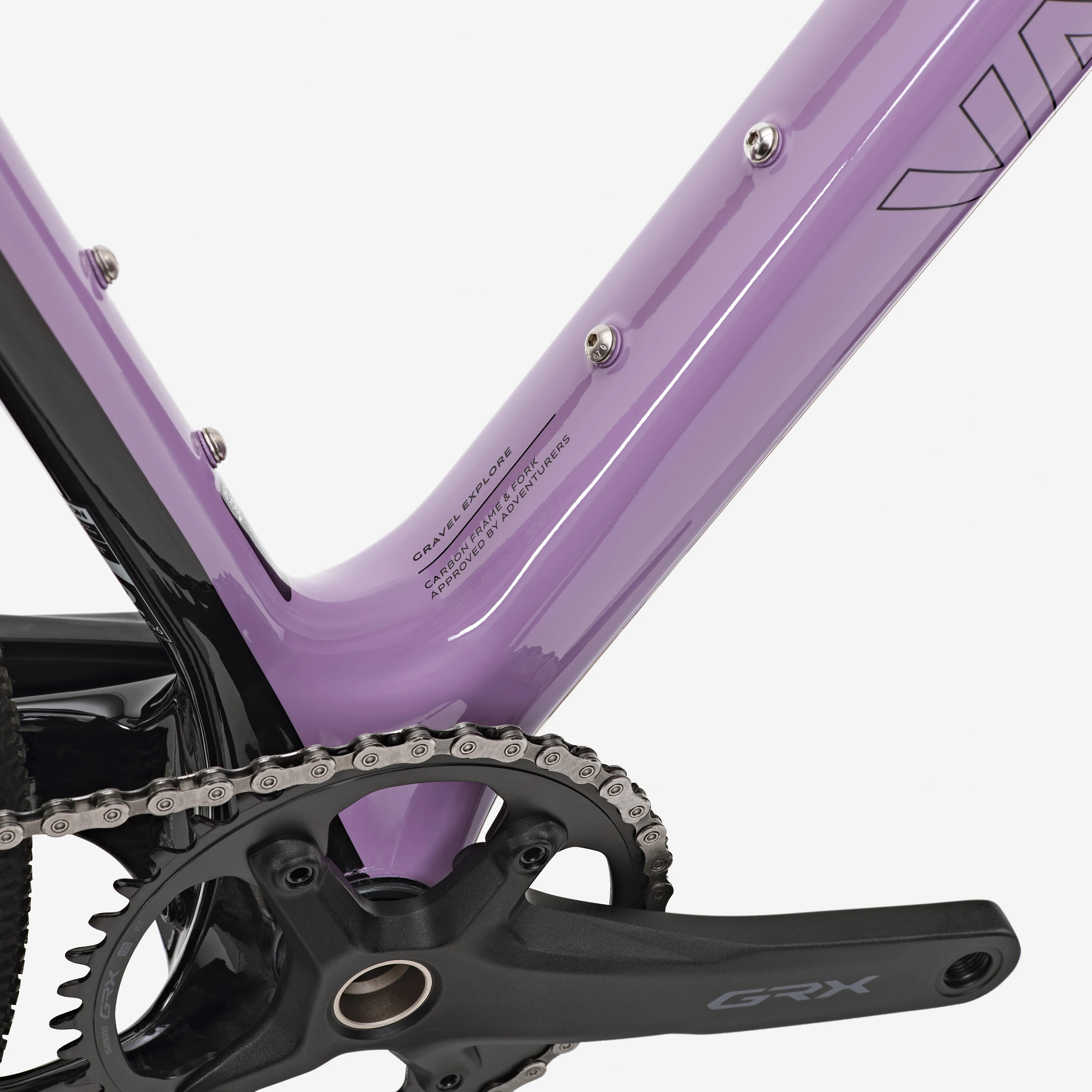

    Chainring: SHIMANO GRX 610 - 40T
    Crank arm: SHIMANO GRX 610
    Crank arm length: 165mm (XS–S), 172.5mm (M–L), 175mm (XL)

    Cassette: Shimano XT 12-speed
    (10-12-14-16-18-21-24-28-33-39-45-51)
    Chain: Shimano CN-M8100

    Rear derailleur: Shimano GRX RD RX822SGS
    Rear derailleur: Shimano GRX 610

    Wheels

    Wheels: DT Swiss G1800 MY26

    Rim material: aluminium
    Rim technology: Tubeless Ready
    Rim strip: Yes (pre-installed)
    Rim height: 20mm
    Internal width: 26 mm
    Number of spokes: 24

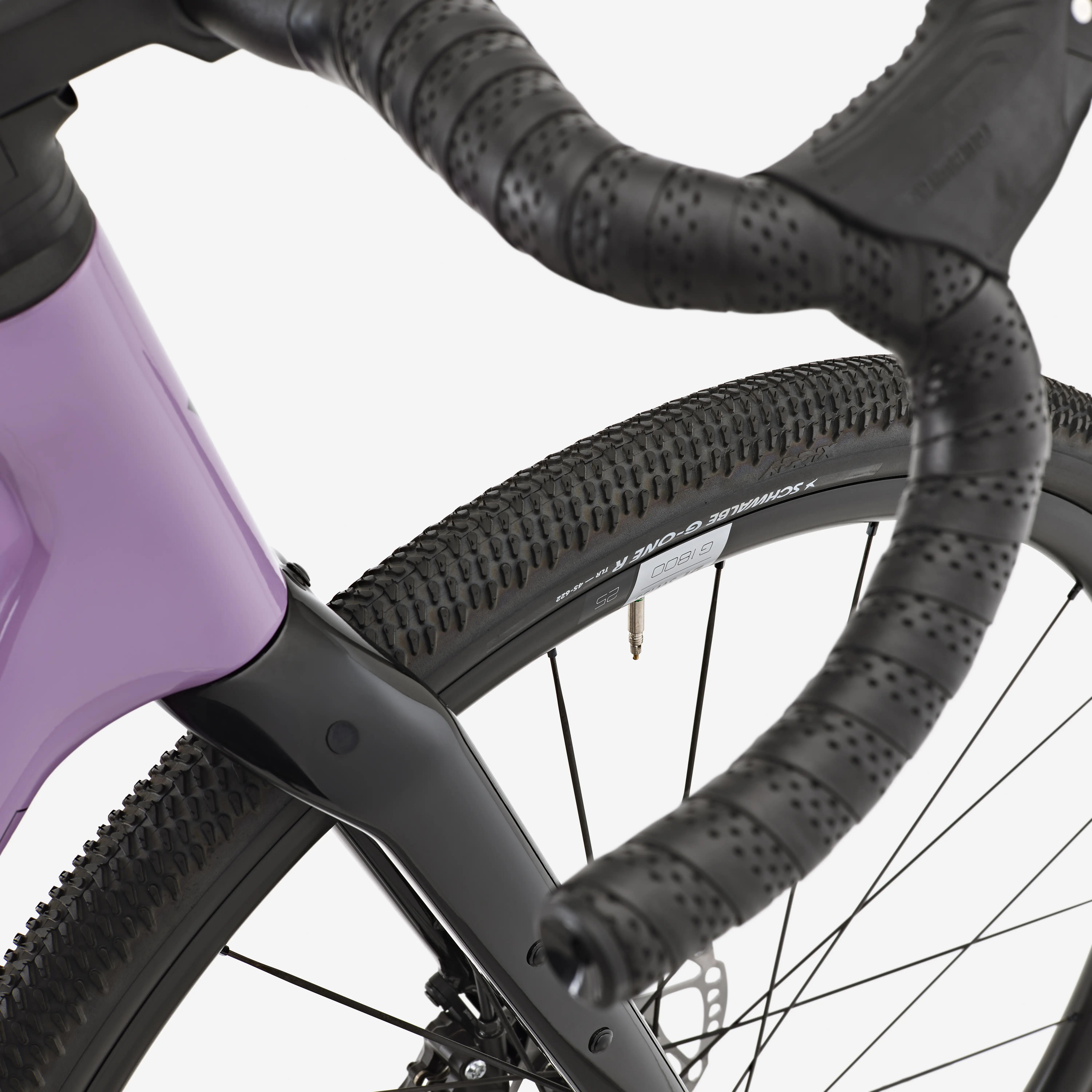

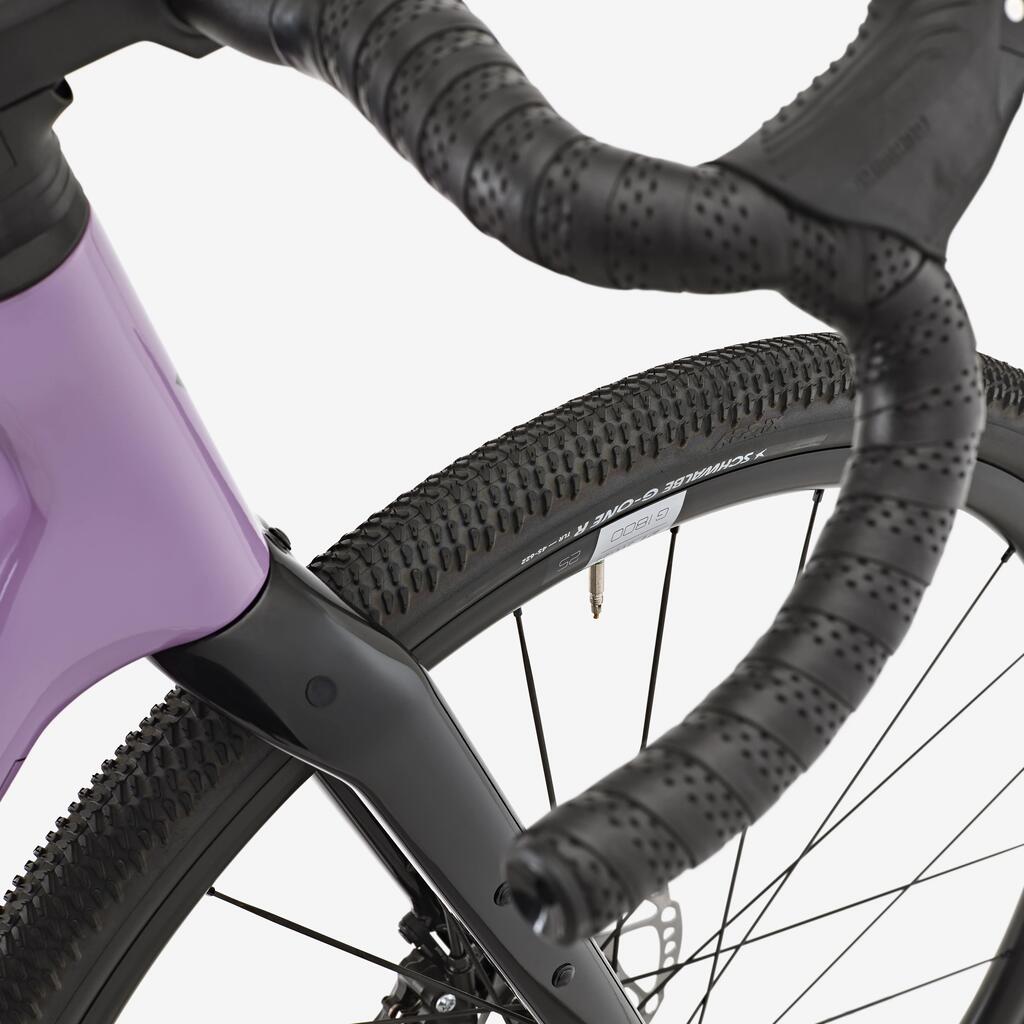

    Tyres

    Tyres: Schwalbe G-One R Perf Black

    Front tyre size: 700X45
    Rear tyre dimensions: 700x45

    Brakes

    Brakes: Shimano GRX 610

    Disc rotor model: Shimano RT64
    Front disc rotor: 160 mm
    Rear disc: 160 mm
    Disc mount: Centrelock

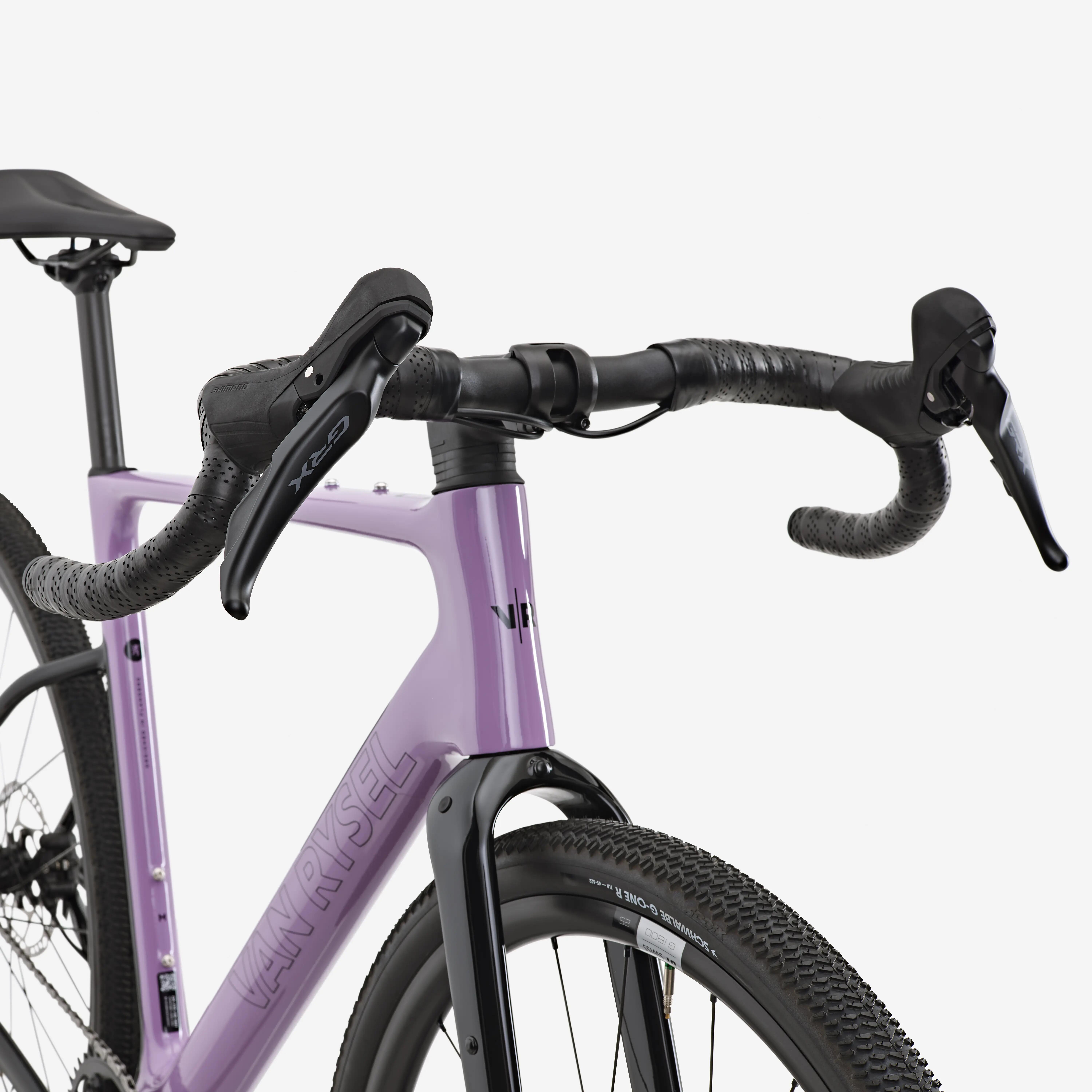

    Riding position

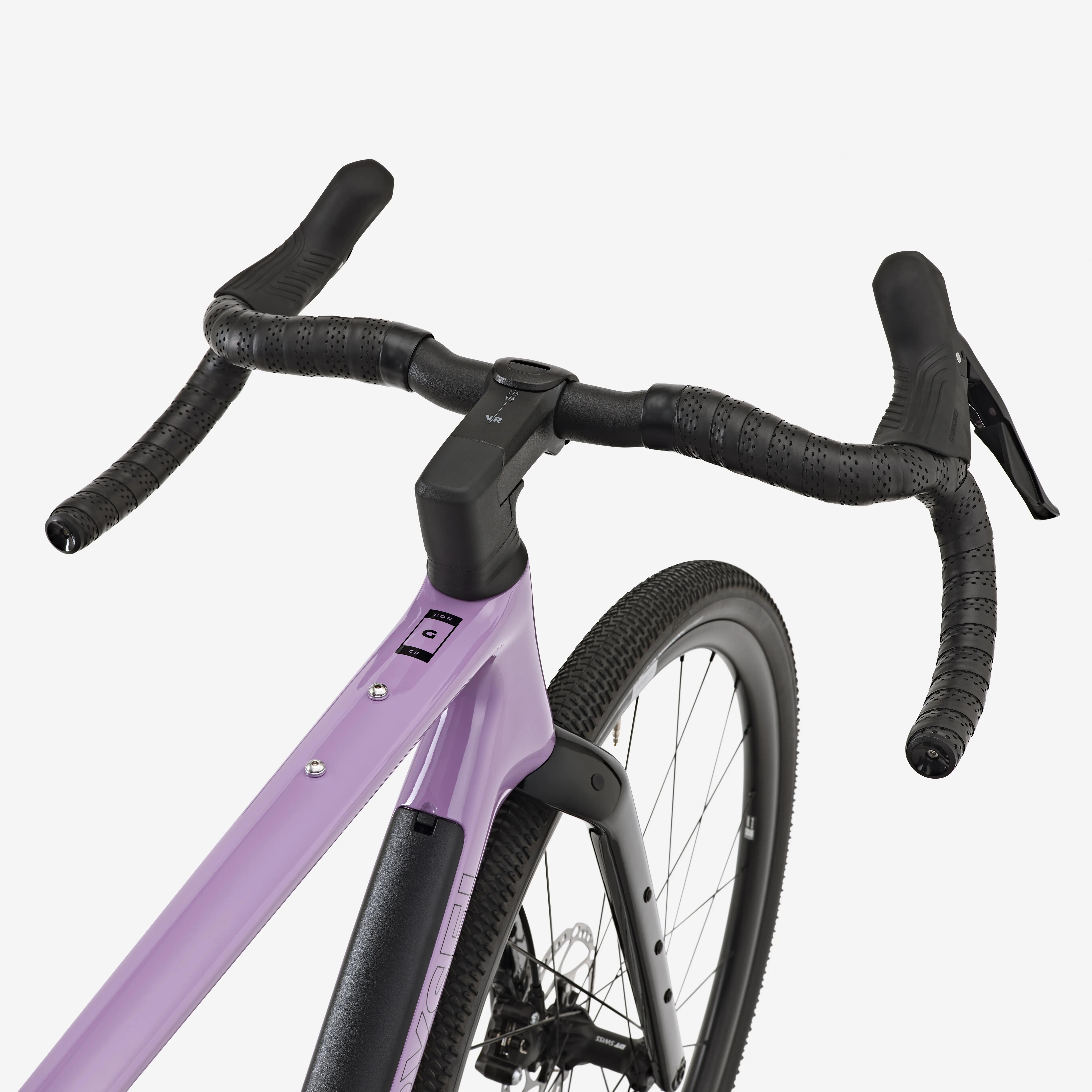

    DEDA GERA Handlebar
    Material: Aluminium
    Diameter: 31.7 mm
    Width: XS 420mm - S 440 mm - M/L 460mm - XL 480mm
    Flare : 24°
    Outsweep 3°
    Rise 10°
    Backsweep 12°
    Downsweep 5°
    Internal electrical cable routing: Yes

    VAN RYSEL ALU stem
    Material: Aluminium
    Length: XS/S 70mm - M 80mm - L 90mm - XL 100mm

    Bar tape: VAN RYSEL EDR ULTRA

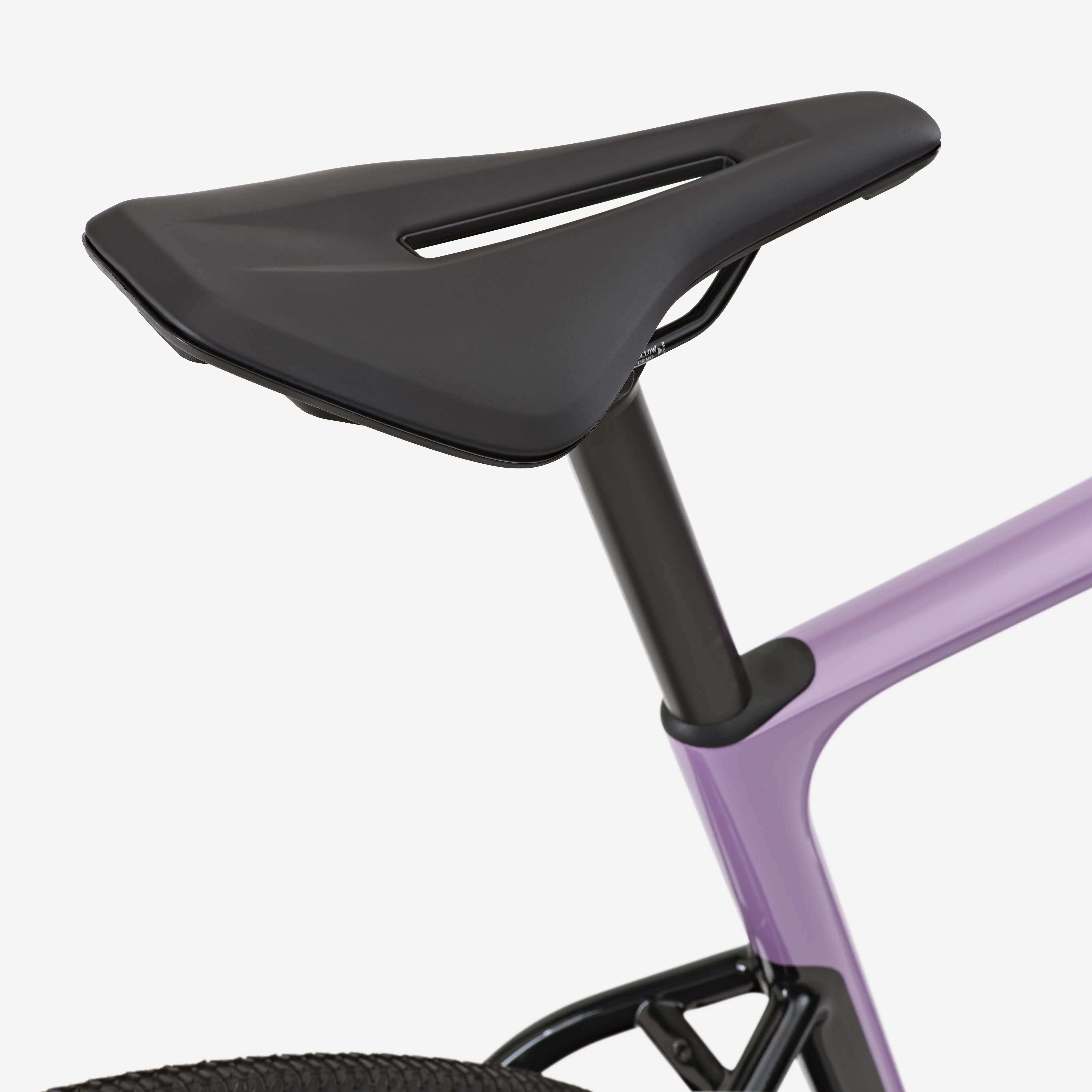

    Saddle and seat post

    Saddle: VAN RYSEL LIGHT 30°
    Width: 155 mm
    Length: 250 mm
    Aluminium rails
    Seat post: VAN RYSEL carbon
    Diameter: 27.2 mm

    ACCESSORIES INCLUDED

    Pedals: flat
    Tubeless valves: included
    Puncture-proof fluid: not included
    Repair kit: included (built into the frame)
    Torque wrench: included
    Lights: included (front and rear)
    Bell: included

    Weight

    Bike weight in size M: 9.75 kg

    Net weight including inner tubes and repair kit, excluding pedals

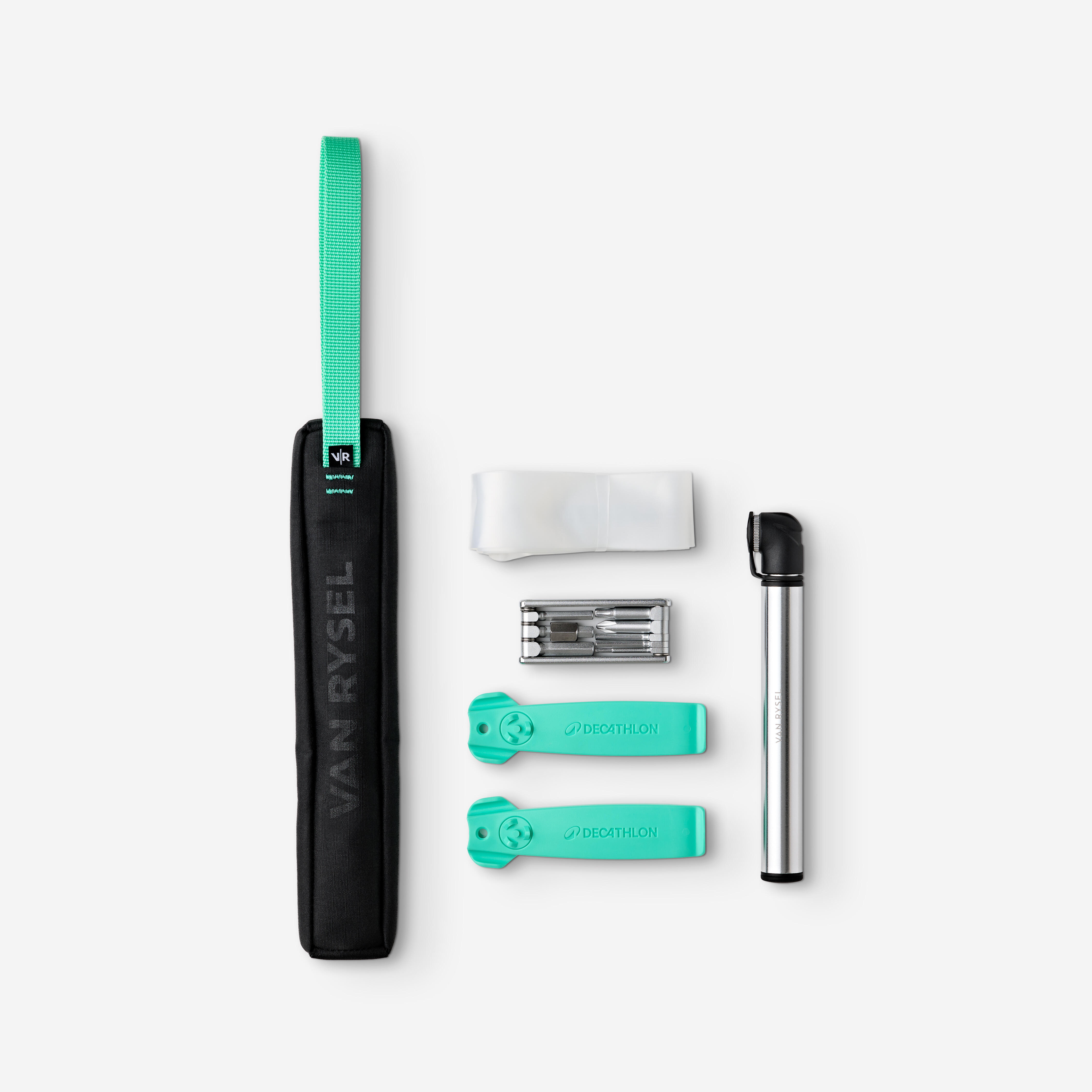

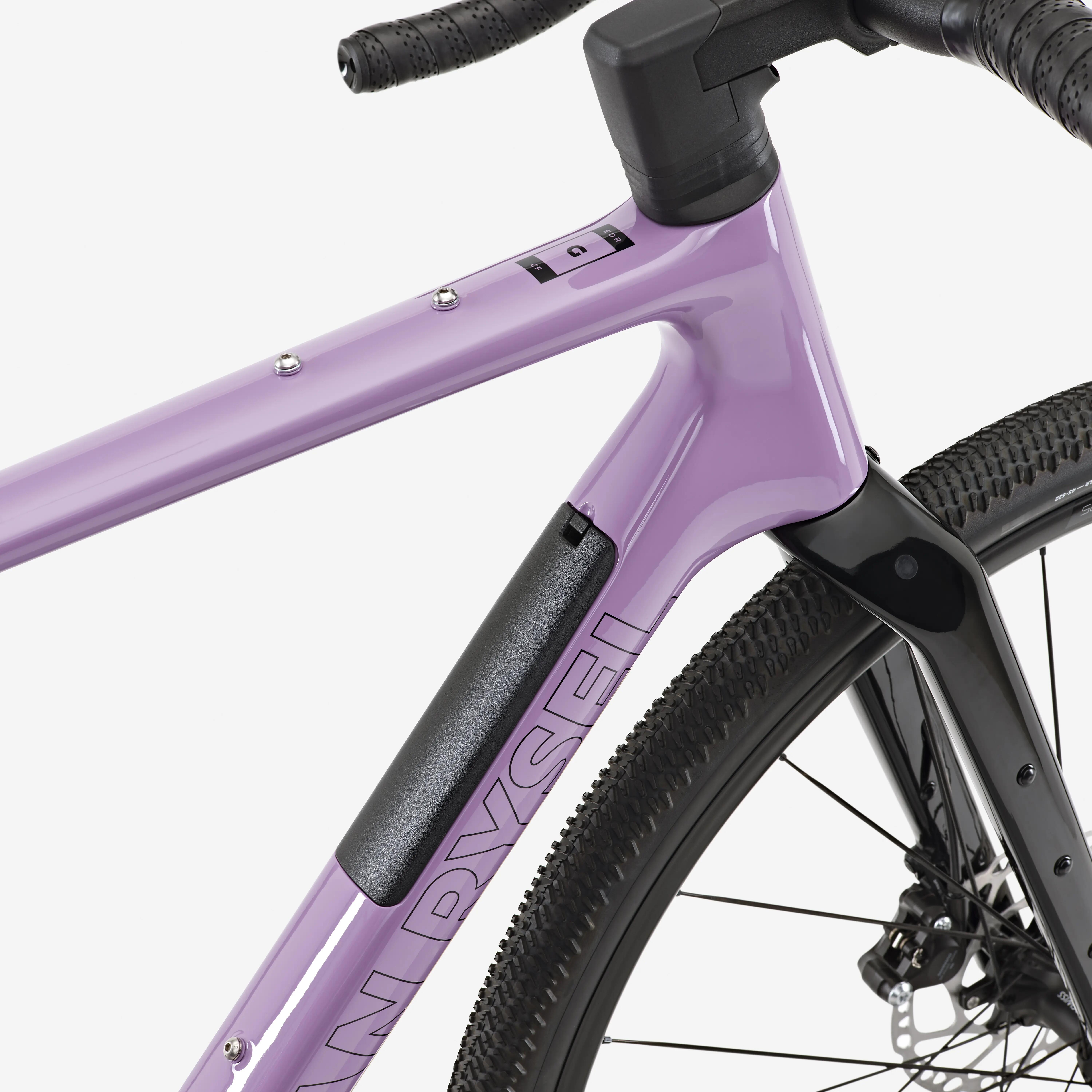

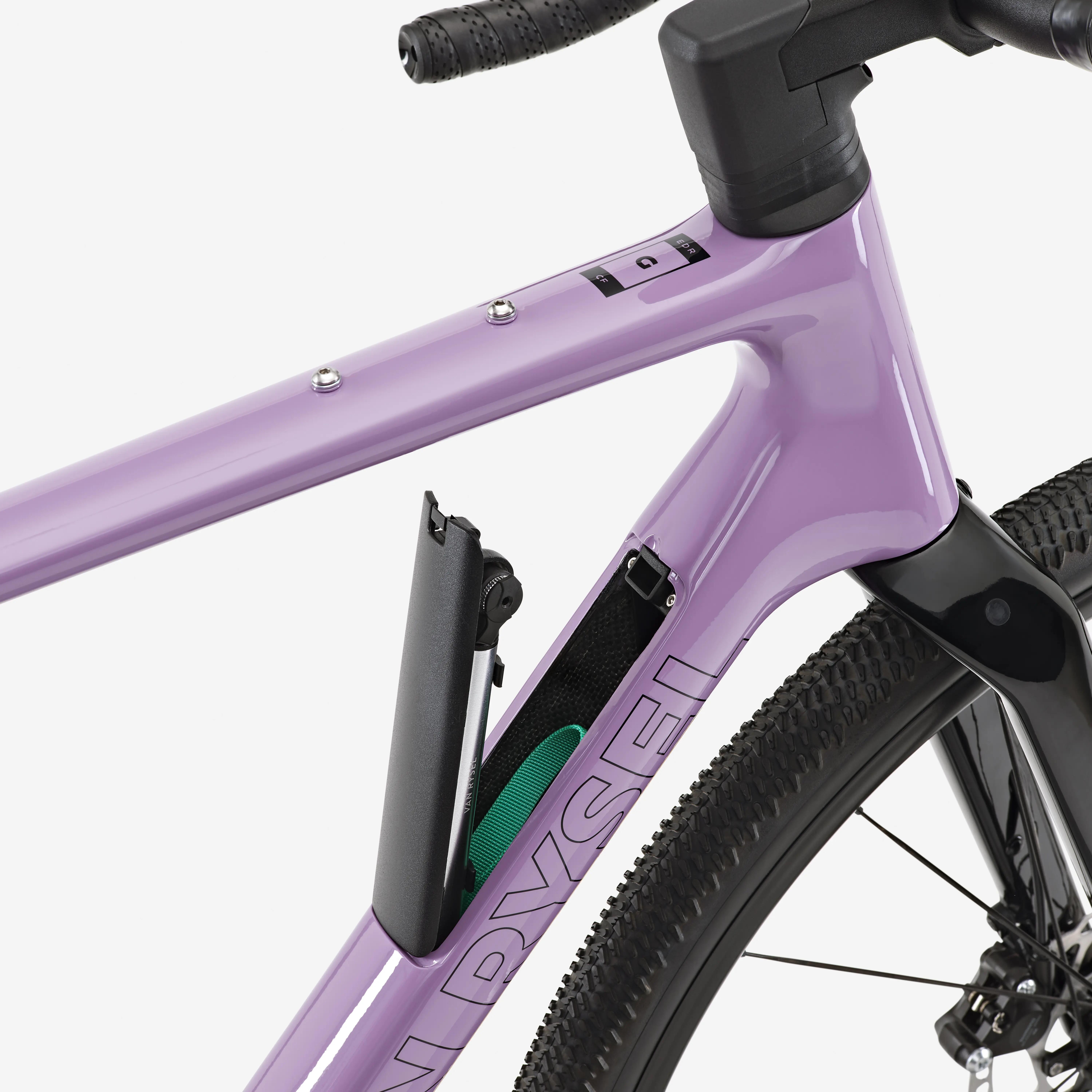

    Frame-integrated repair kit

    Cleverly built into the down tube, this allows you to carry your repair kit without needing a saddle bag, for a clean, streamlined look and complete peace of mind.

    Location: diagonal tube
    Access: hatch above the bottle cage
    Includes: 1 TPU inner tube, 1 multitool, 1 hand pump, 2 tyre levers
    Total weight of the kit: 260 g

  • Usage & care

    Warranty

    2 Years

    Care Instructions

    Storage tips

    We recommend that you clean and dry your bike after every use. Store in a dry place, away from moisture. Find all our care advice on our support website.

  • Specifications

    composition

    Bike frame: 100.0% Carbon Fiber

  • Testing

    Parts guarantee

    Carbon frames and carbon forks are covered by a 5-year warranty.
