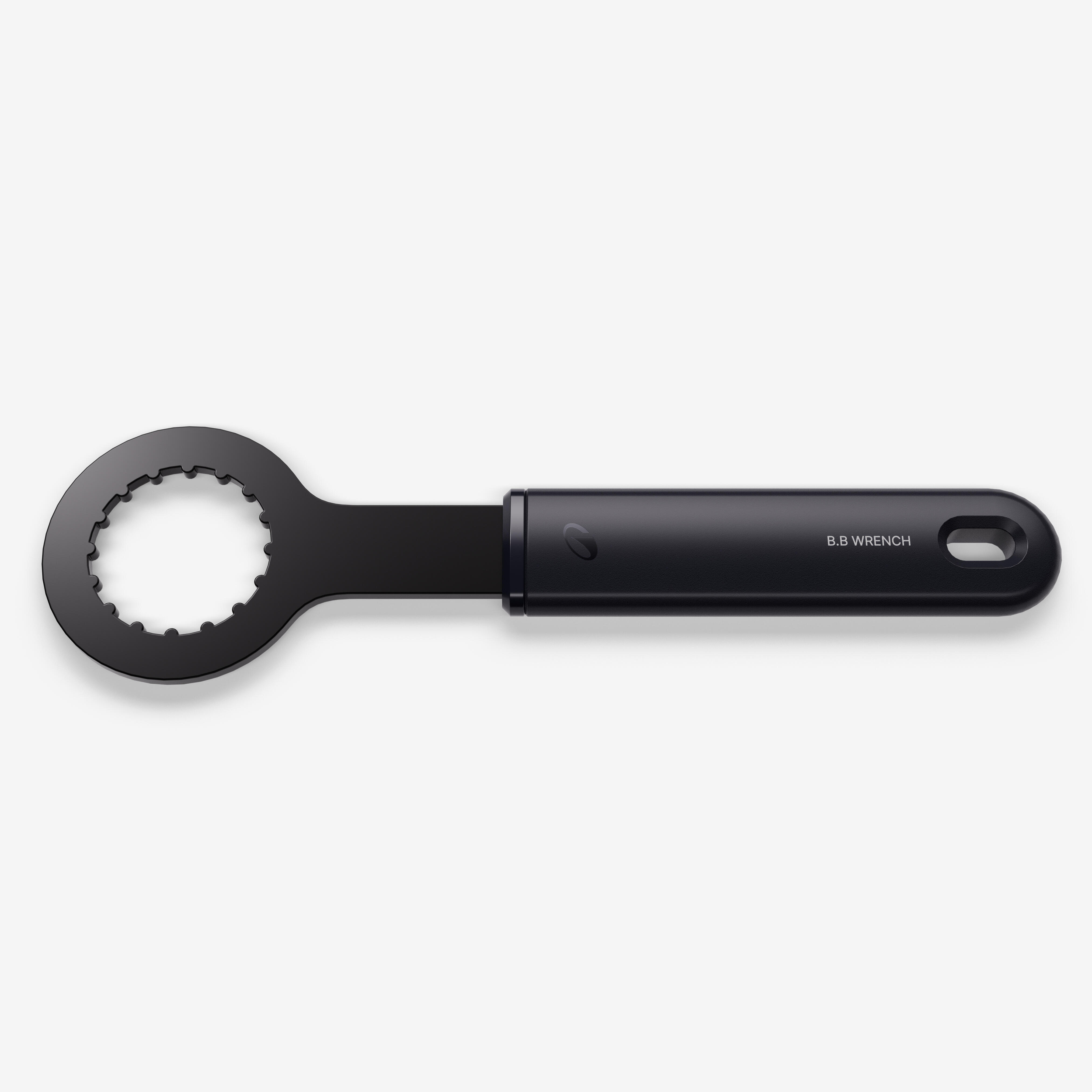

Bottom bracket wrench

4.4 out of 5 stars.
18 reviews

Designed for easy installation or removal of your bottom bracket.Compatible with Shimano and Sram splined models.

The bottom bracket tool enables smooth assembly.Robust, precise and easy to use.

ID 8938265

€14.00
Tax included

  • Pick up at Decathlon

    loading…

  • Pick up near you

    loading…

  • Home Delivery

    loading…

  • Features

    Design benefits

    • compatibility

      For Shimano® Hollowtech II-type bottom brackets.

    • ease of use

      28 cm crank.

    Design details

    Advice from our team:

    Tightening and loosening
    Pay attention to the direction of tightening and loosening, which is often reversed depending on the side of the bike.
    Alignment
    Always work with the wrench perfectly straight and parallel to the frame.Misalignment increases the risk of slipping and damaging the tool or housing.

    Which bottom bracket standards is this tool compatible with?

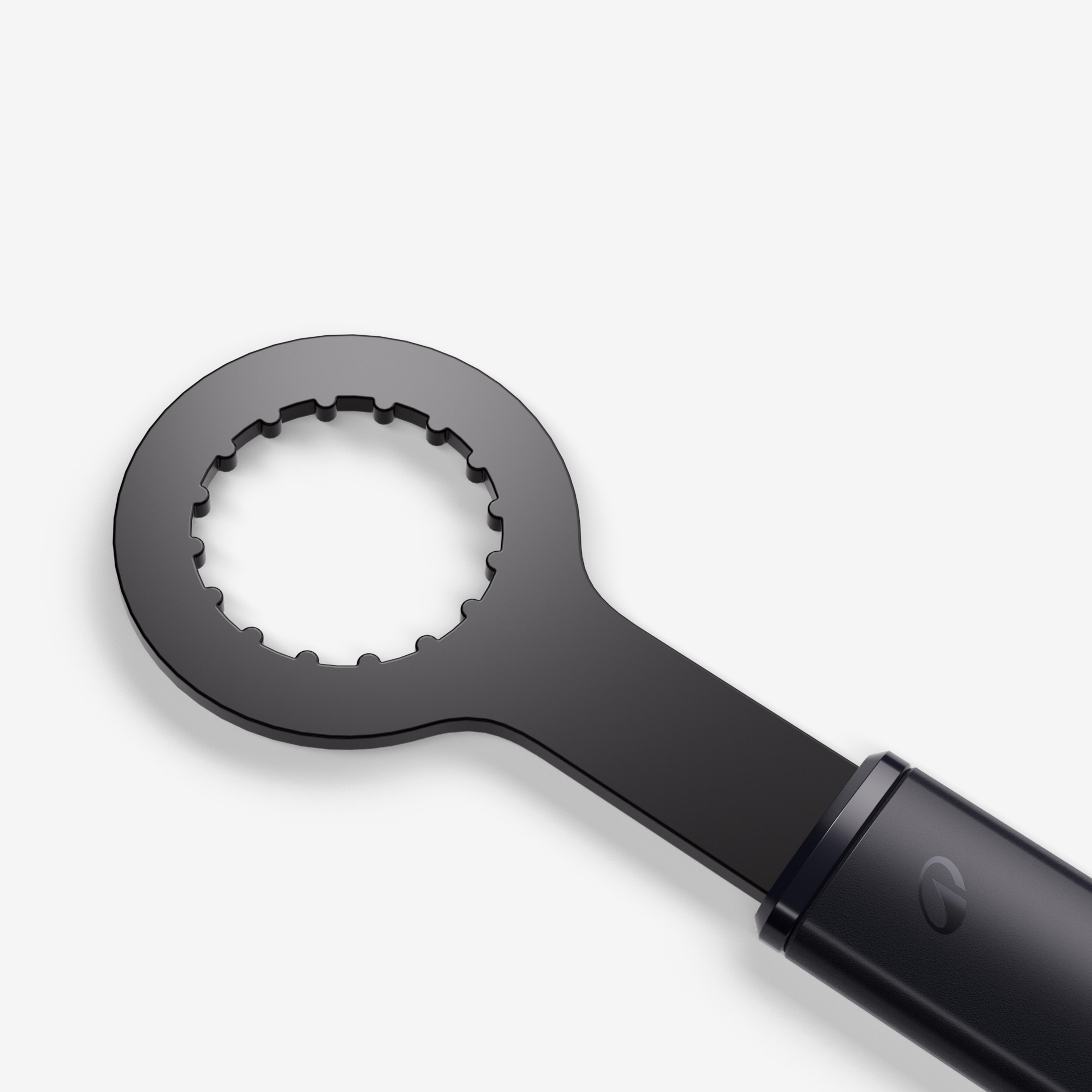

    Compatible with 16-notch threaded bottom bracket shells with an outer diameter of 44–45 mm and an inner diameter of 42.7 mm, including:Shimano Hollowtech II, Truvativ, FSA MegaExo, Campagnolo Ultra-TorqueTM, and TOKEN, GXP, SRAM, SunRace, and other similar bottom brackets.

    If the outer diameter of your 16-notch bottom bracket shell is 39 mm, 41 mm, or 48 mm, it corresponds to a different standard and is not compatible with this tool.

    What is this tool for?

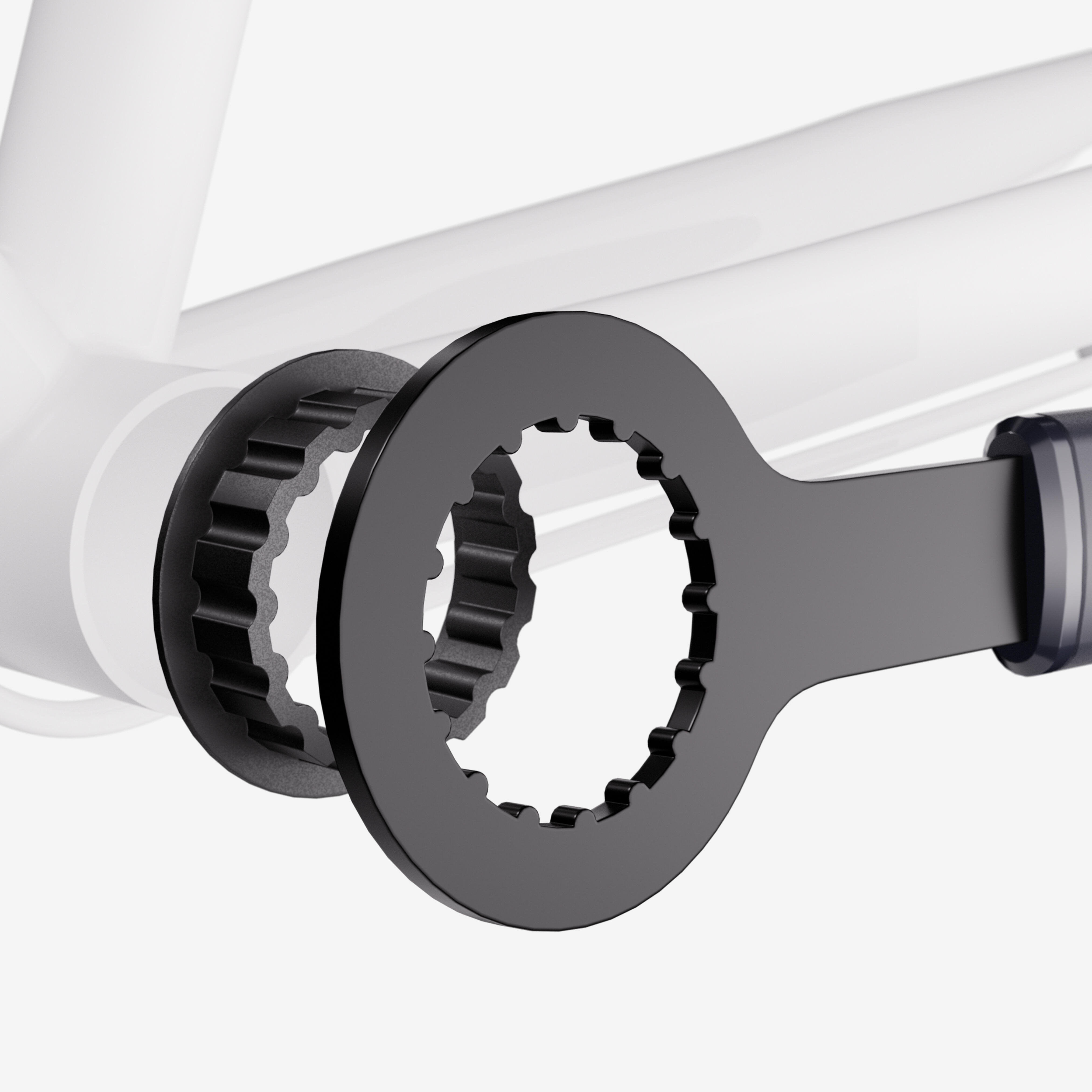

    Use the bottom bracket spanner to remove and install the bottom bracket.

    Features:

    Length: 56 mm
    Width: 32mm
    Thickness: 32mm

    Weight: 148g

  • Usage & care

    Warranty

    2 Years

  • Specifications

    composition

    Blade: 100.0% Steel;Handle: 100.0% Polypropylene

  • Environmental impact

    With ecodesign, we reduce the environmental impact of our products.

    Analysing the product's environmental footprint enabled us to identify the most impactful stages of its life cycle. Thanks to this approach, our design teams were able to develop this product while significantly reducing its environmental impact.

    Learn more about our approach
    Environmental Impact

    Designed to reduce environmental impact

    Product made with a CO2eq reduction of 18% compared to the previous or similar product

    Read more

    Our design teams are working to develop processes that will reduce the impact of a product, while preserving its technical characteristics. This reduction relates to the following indicators: climate change, air pollution, water pollution and resource depletion.
