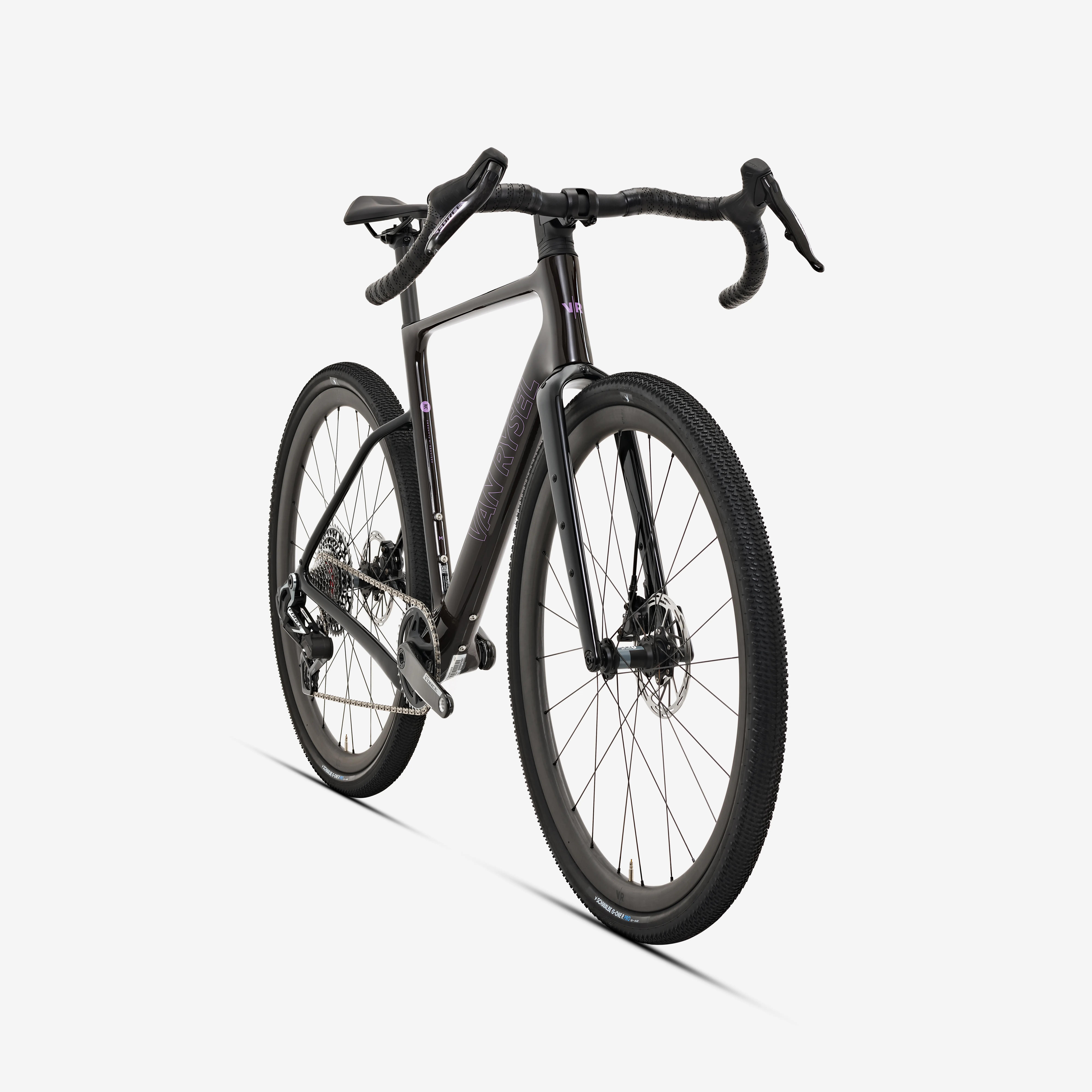

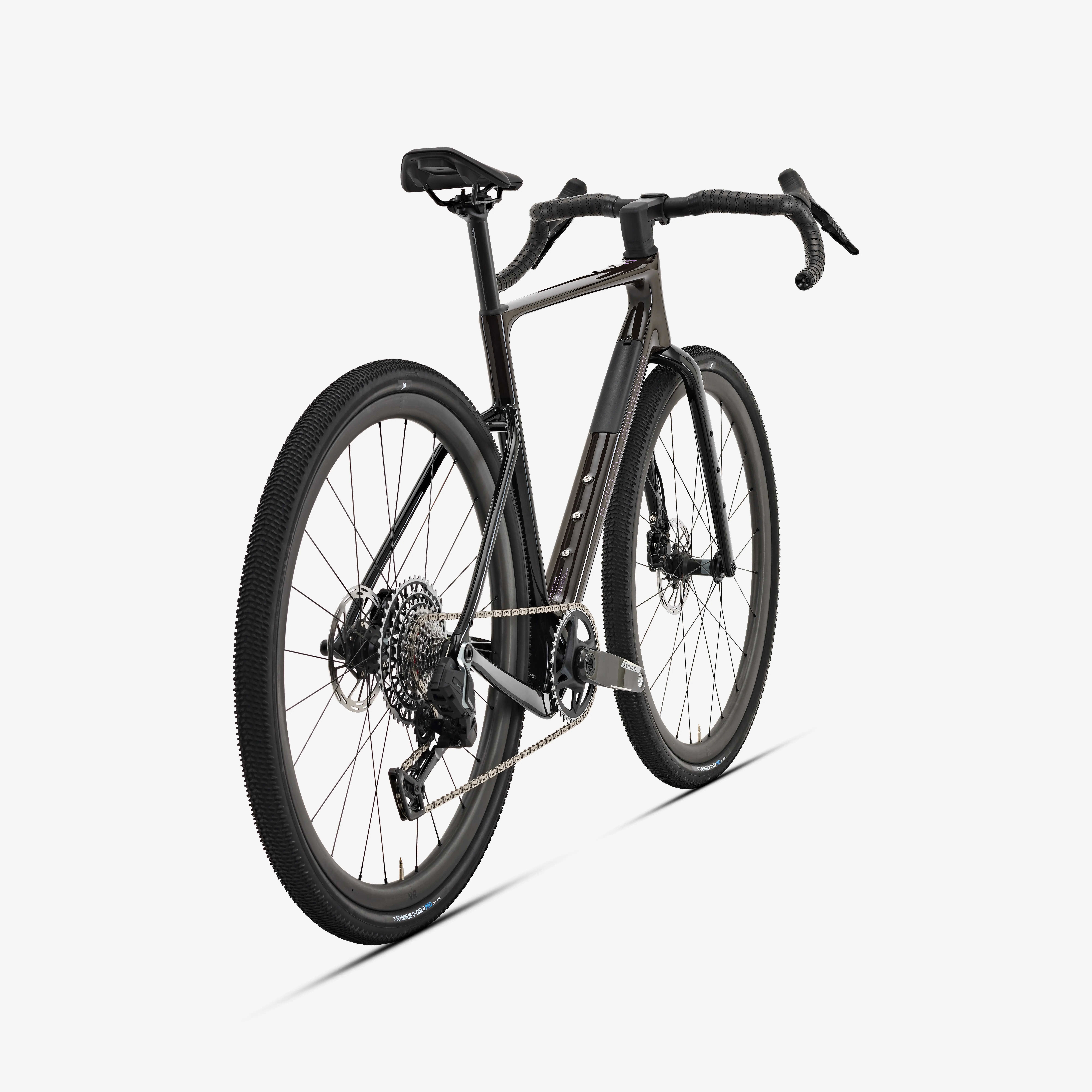

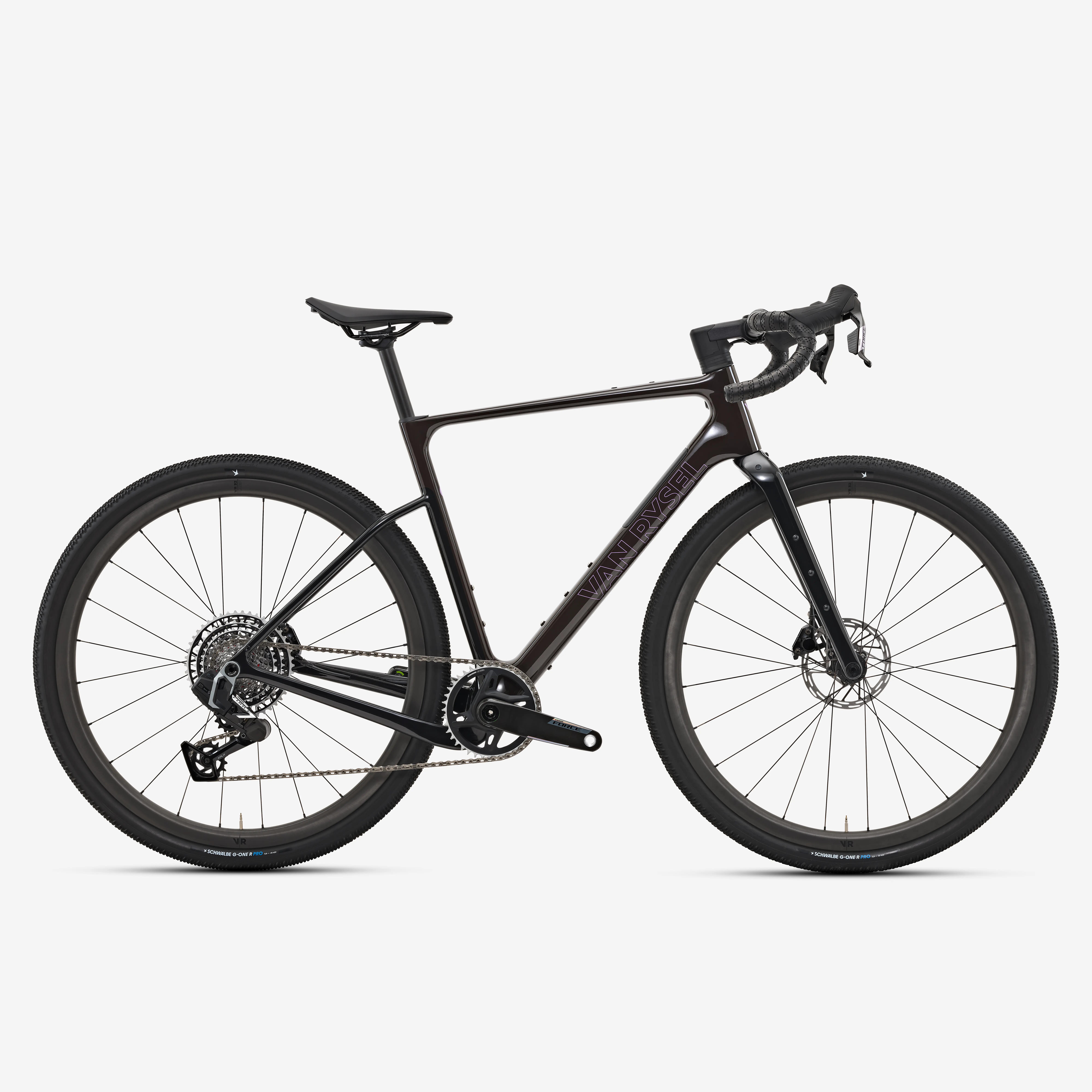

Technical specifications
EDR-G CF carbon frame
Fork: carbon
Transmission: SRAM FORCE AXS EXPLORE 13-speed
SRAM FORCE hydraulic disc brakes
Wheels: VR32 GRAVEL CARBON (Tubeless Ready).
Tires: SCHWALBE G ONE PRO 700x45mm

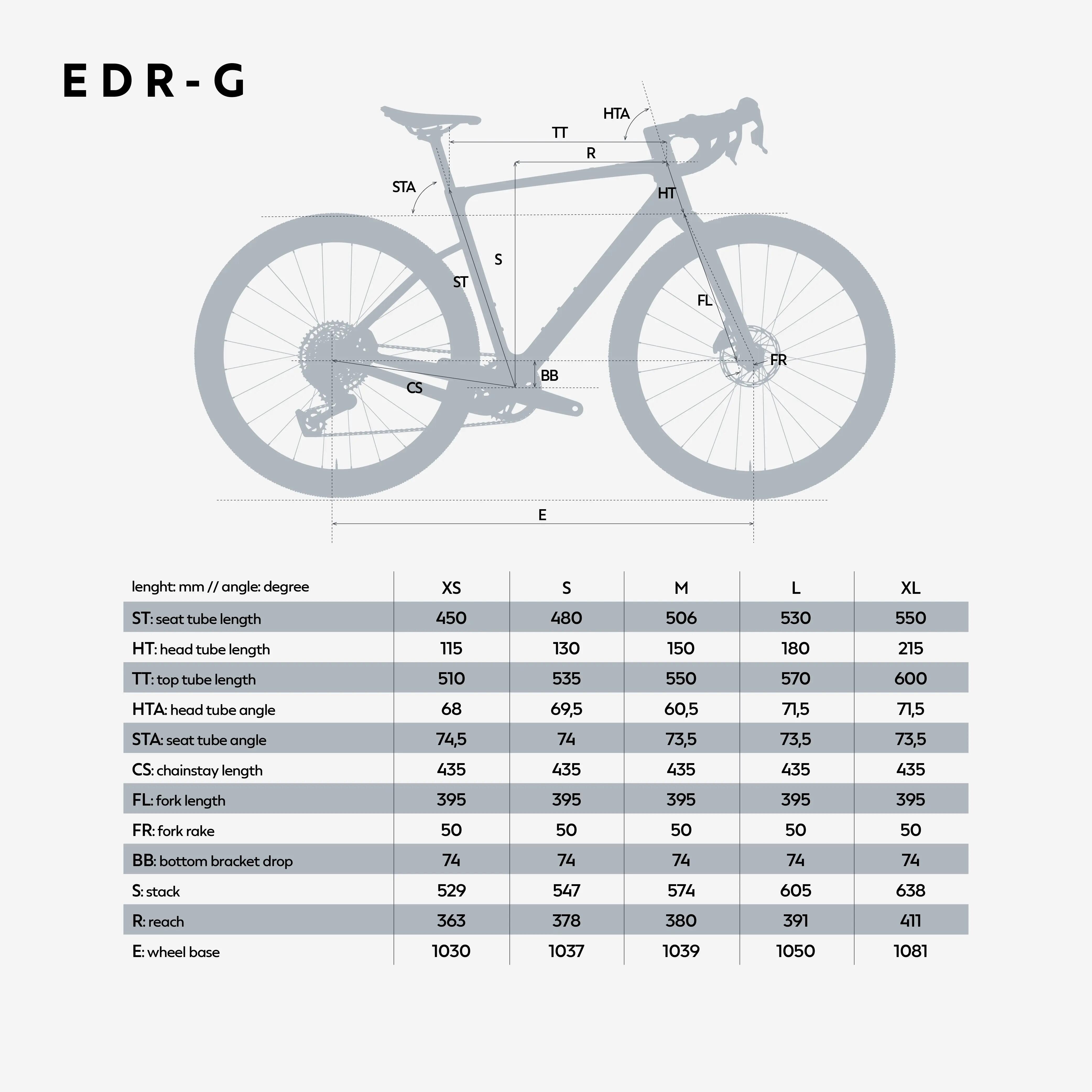

Geometry: endurance
Weight: 8.8 kg (size M, without pedals)

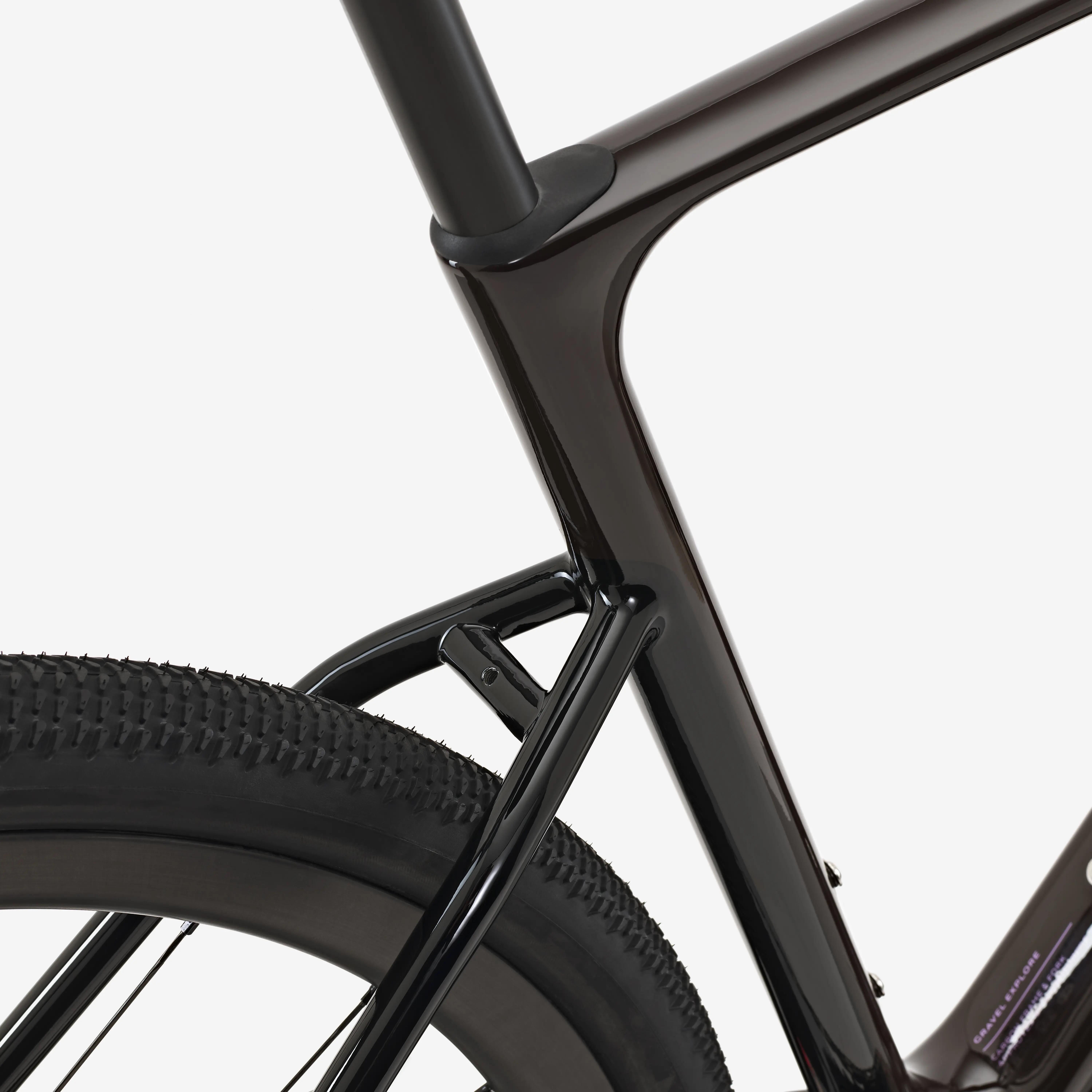

Frame and Fork
frame: VAN RYSEL EDR-G CF
Composition: carbon
Maximum wheel clearance: 50 mm
Seat tube diameter: 27.2 mm
Bottle cage mount: 9 inserts on the frame
Fork mount: 2x3 inserts on the fork
Fork: 100% carbon
Thru axles – front axle: 12 x 100 mm – rear: 12 x 142 mm
Maximum load (cyclist + cargo): 110 kg

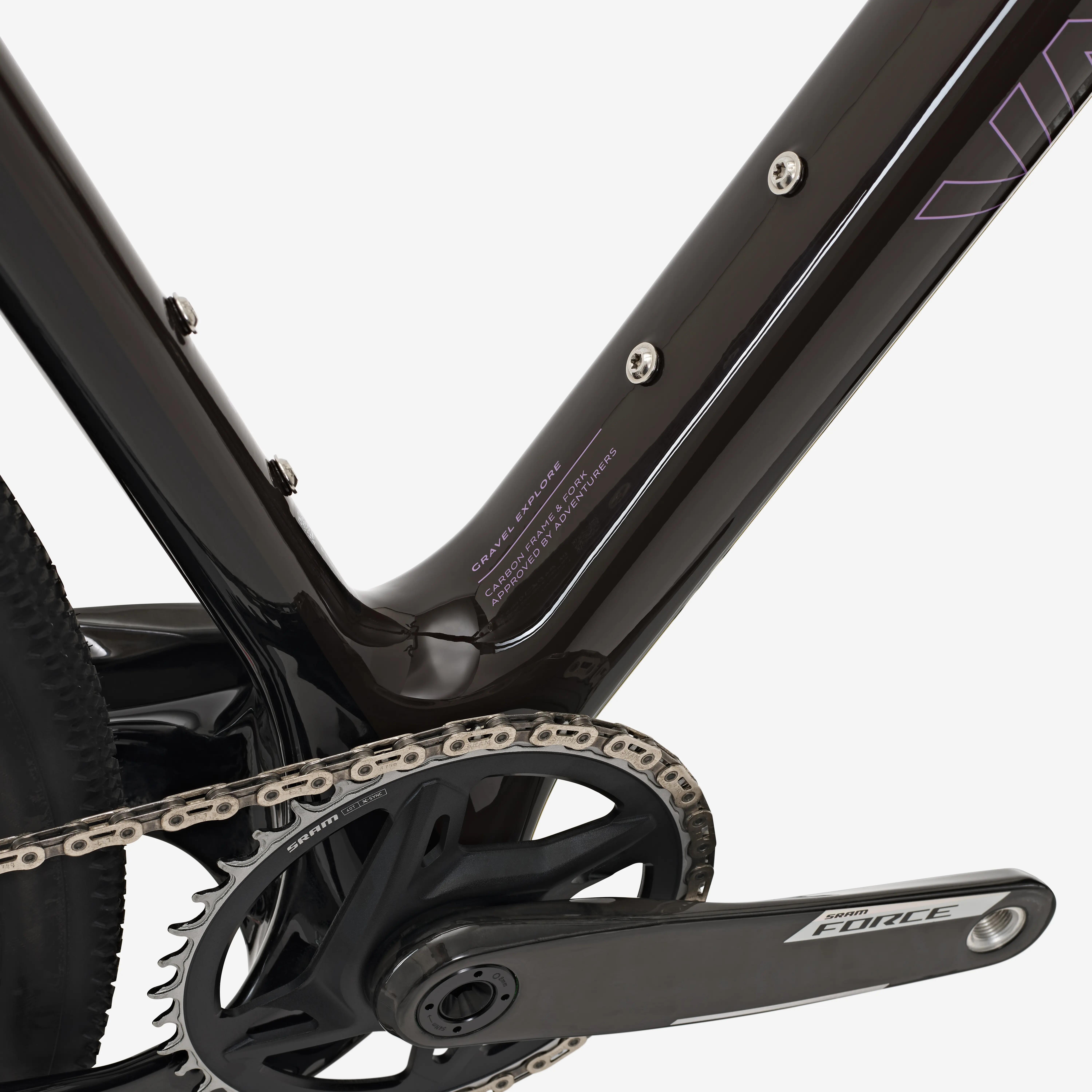

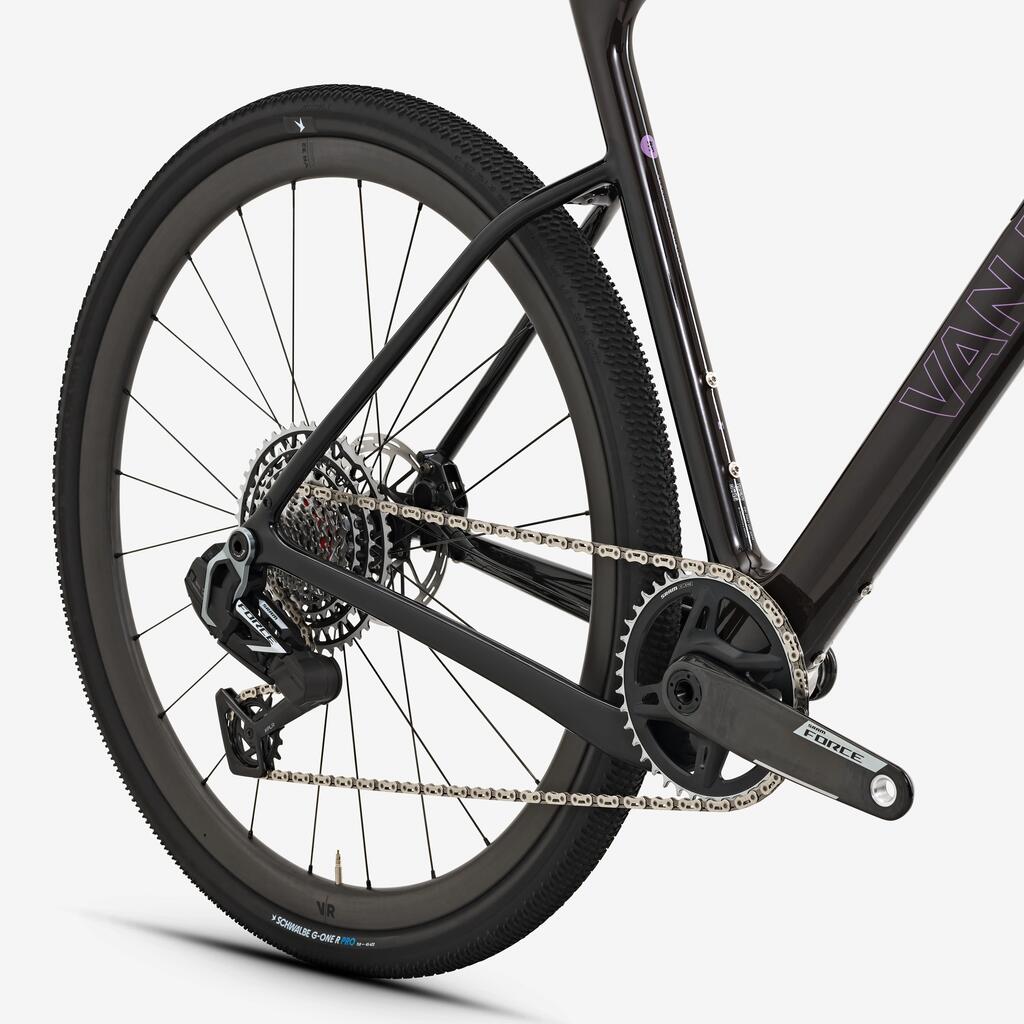

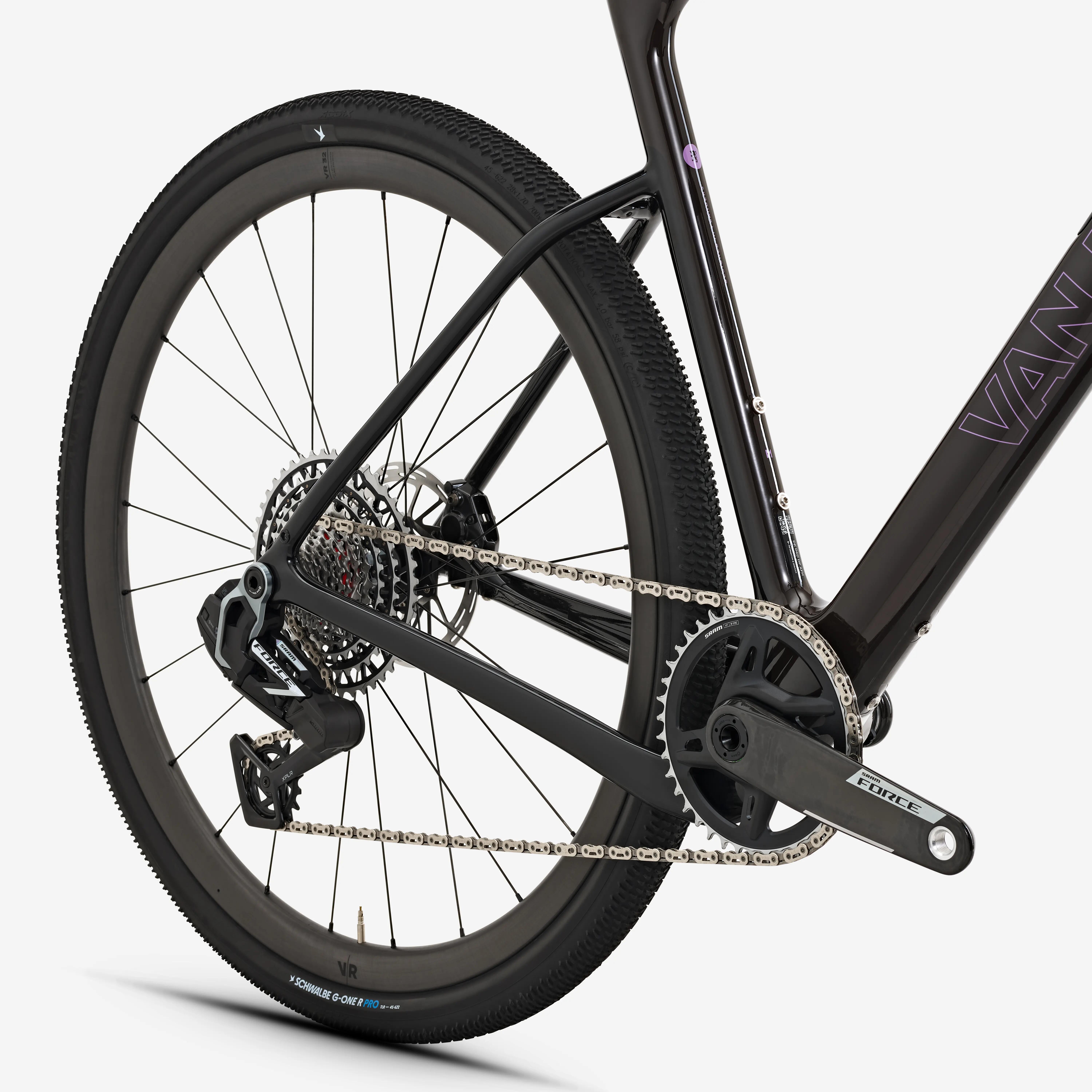

DRIVETRAIN
Groupset: SRAM FORCE AXS EXPLORE 1x13 speeds
Chainring: SRAM FORCE AXS EXPLORE E1 - 40T
Crank arm length: 165mm (XS–S), 172.5mm (M–L), 175mm (XL)
Cassette: SRAM XG 1371 – 13-speed
(10-11-12-13-15-17-19-21-24-28-32-38-46)
Chain: SRAM FORCE E1
Rear derailleur: SRAM FORCE XPLR AXS E1
Gear shifter: SRAM Force XPLR AXS E1
WHEELS

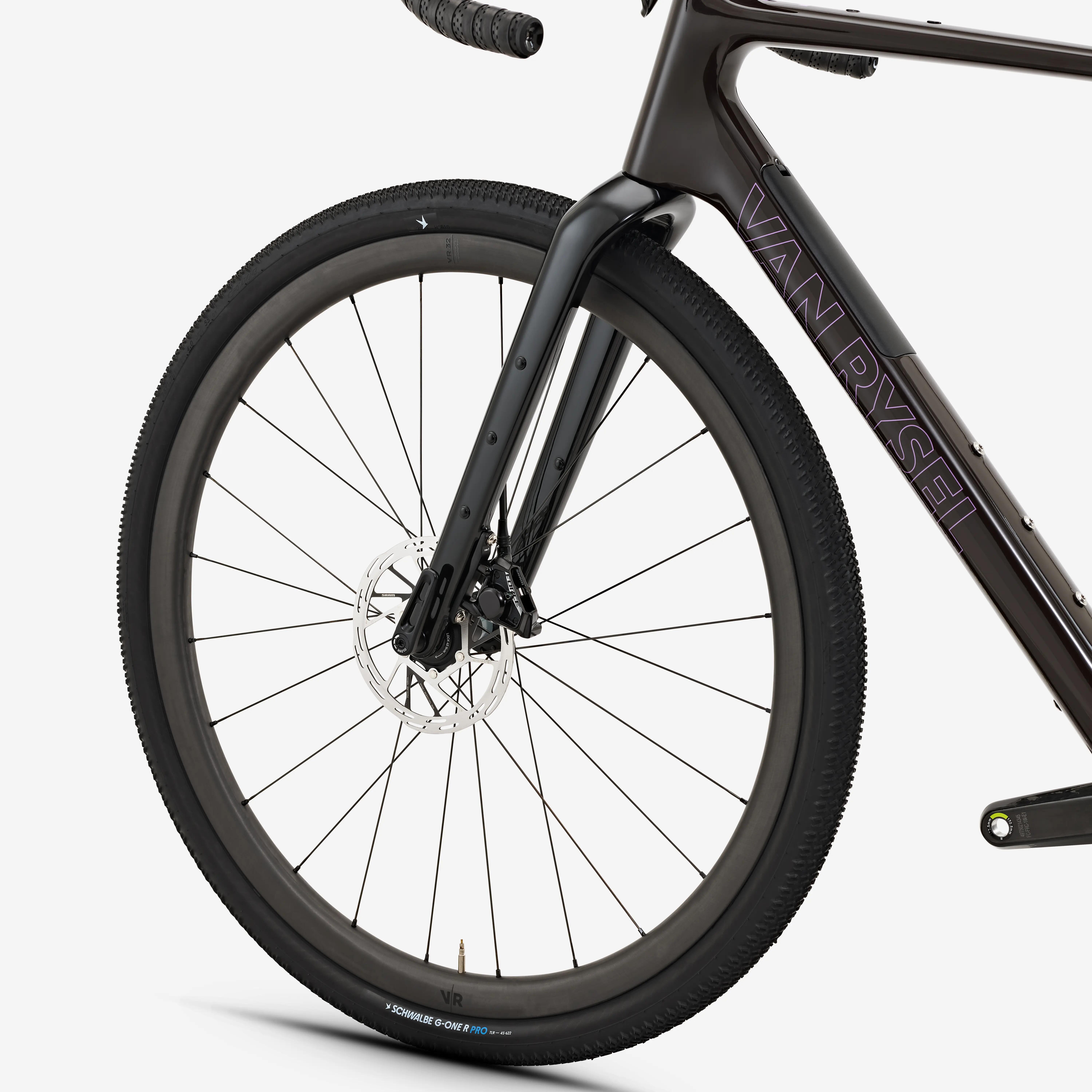

Wheels: VR32 GRAVEL CARBON
Rim material: carbon rim
Rim technology: Tubeless Ready
Rim strip: Yes (pre-installed)
Rim height: 32mm
Internal width: 25 mm
Number of spokes: 24
TYRE
Tyres: Schwalbe G-One R PRO Black
Front tyre size: 700X45
Rear tyre dimensions: 700x45
BRAKES
Brakes: SRAM FORCE AXS E1
Disc rotor model: SRAM Paceline
Front disc rotor: 160 mm
Rear disc: 160 mm
Disc mount: Centrelock

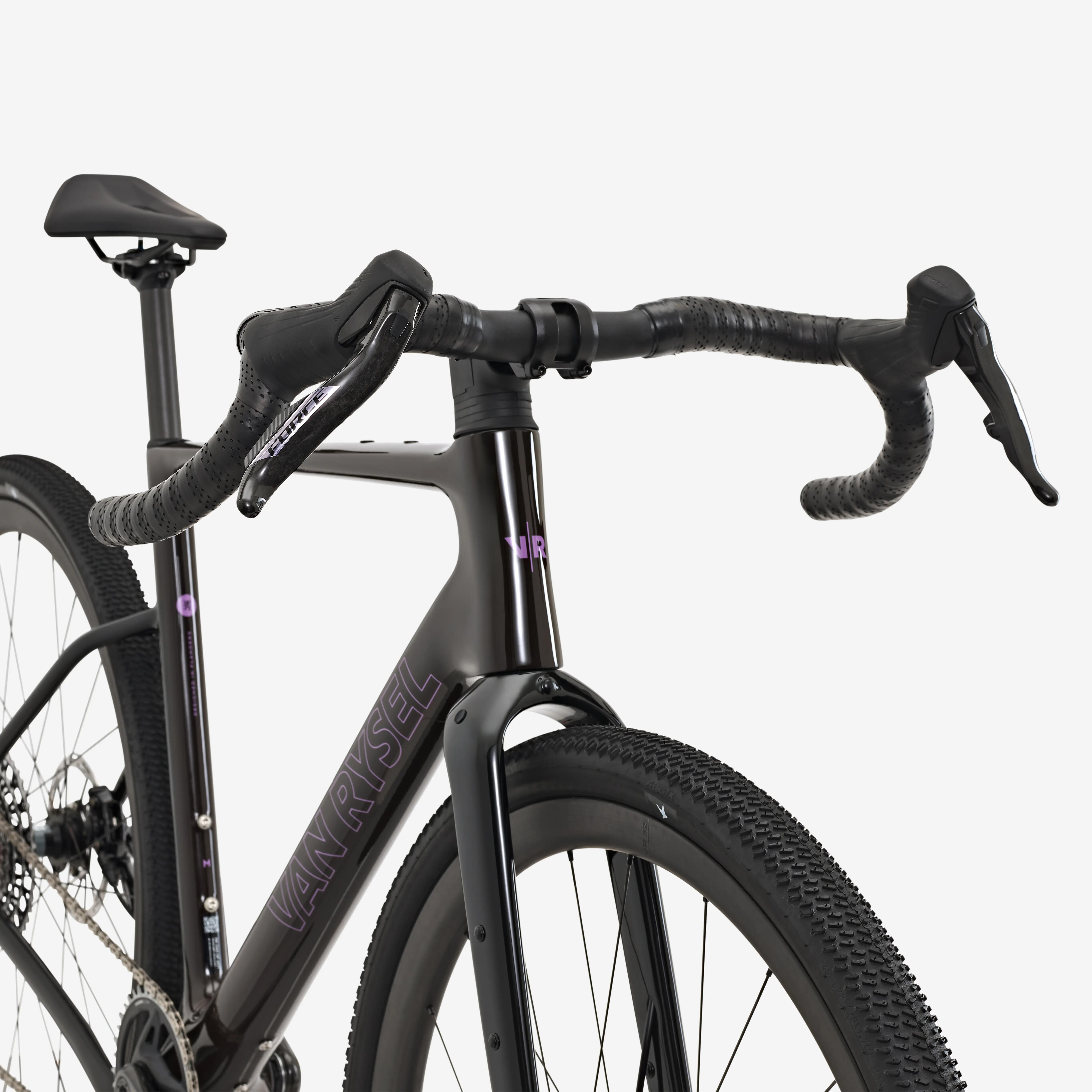

RIDING POSITION

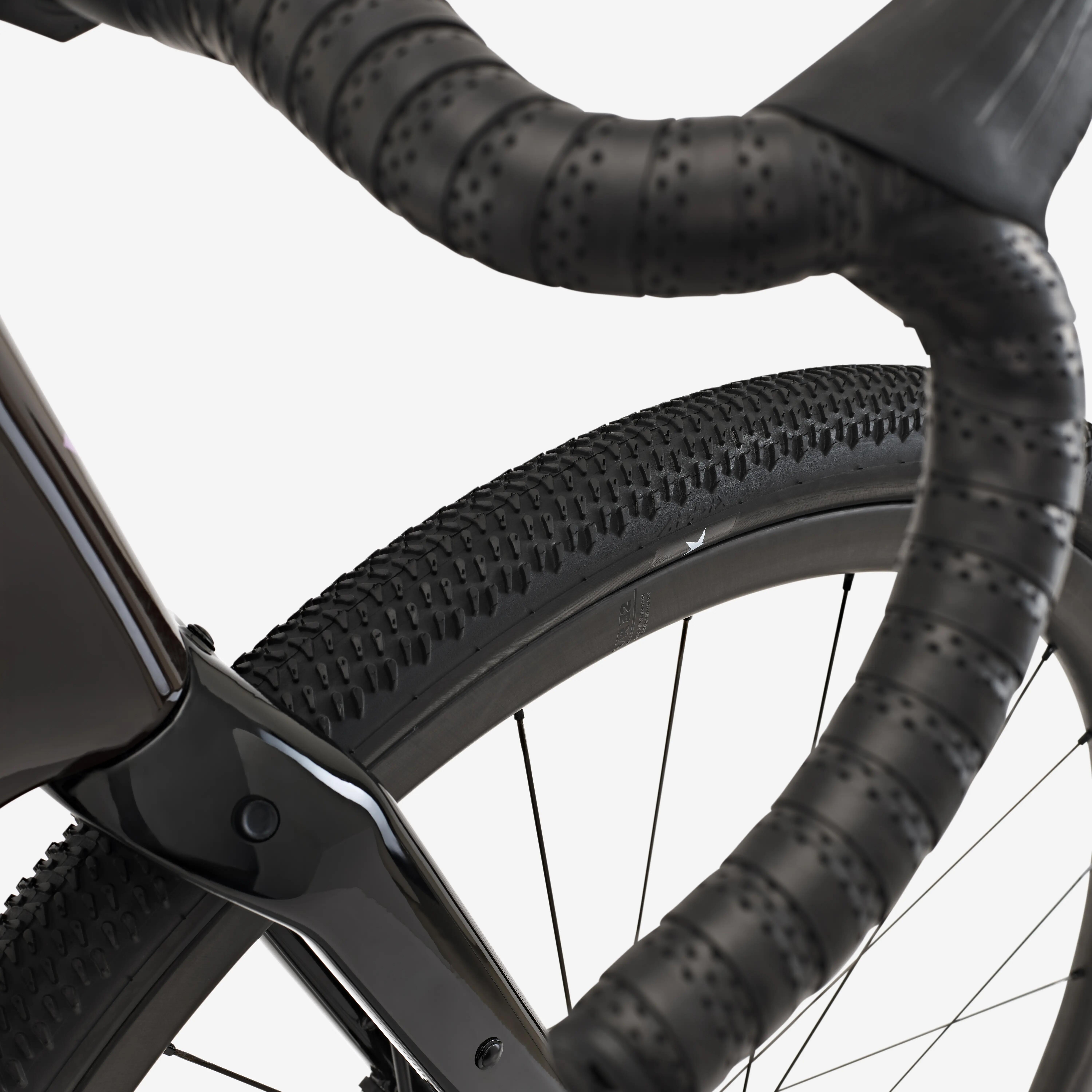

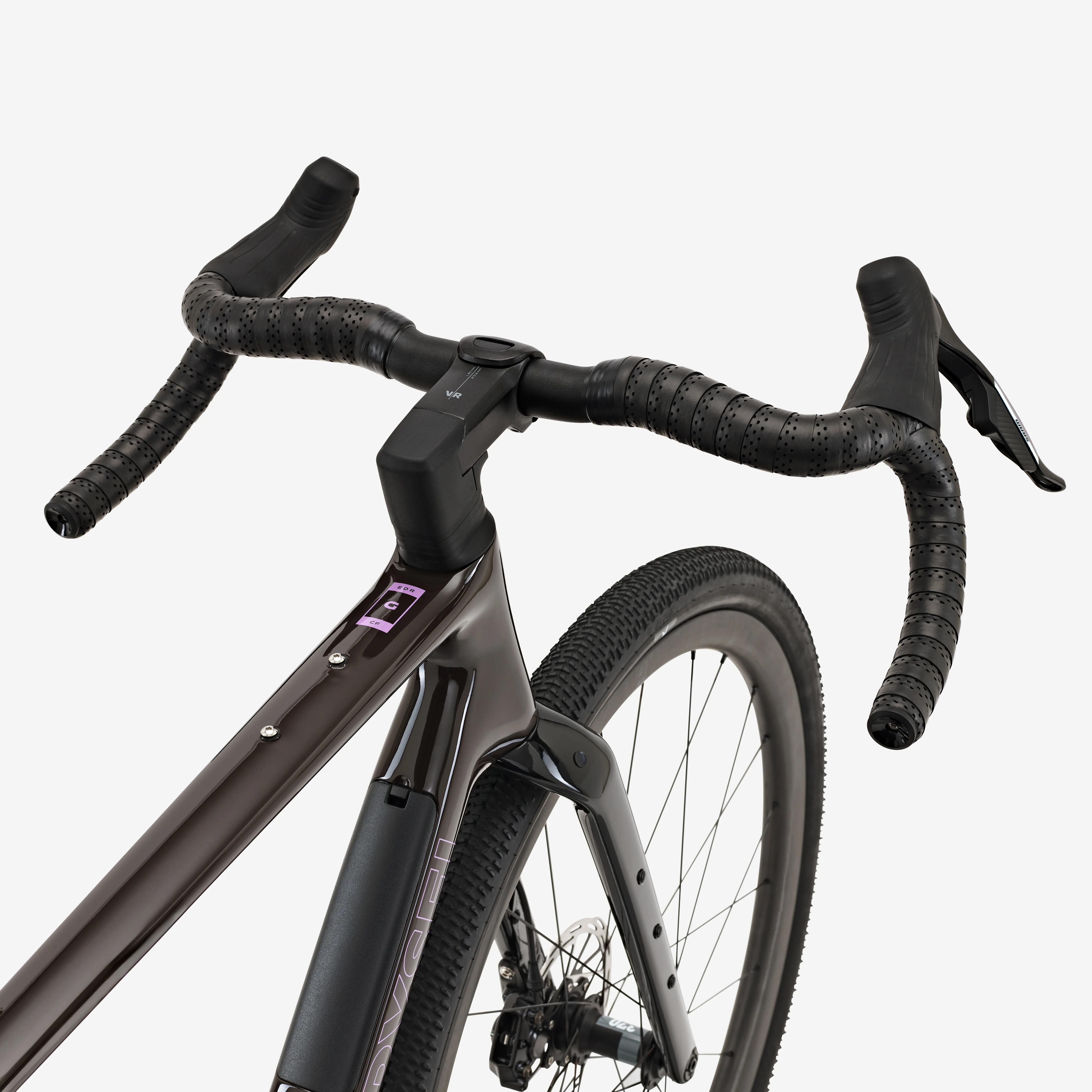

DEDA GERA Handlebar
Material: Aluminium
Diameter: 31.7 mm
Width: XS 420mm - S 440 mm - M/L 460mm - XL 480mm
Flare: 24°
Outsweep 3°
Rise 10°
Backsweep 12°
Downsweep 5°
Internal electrical cable routing: Yes

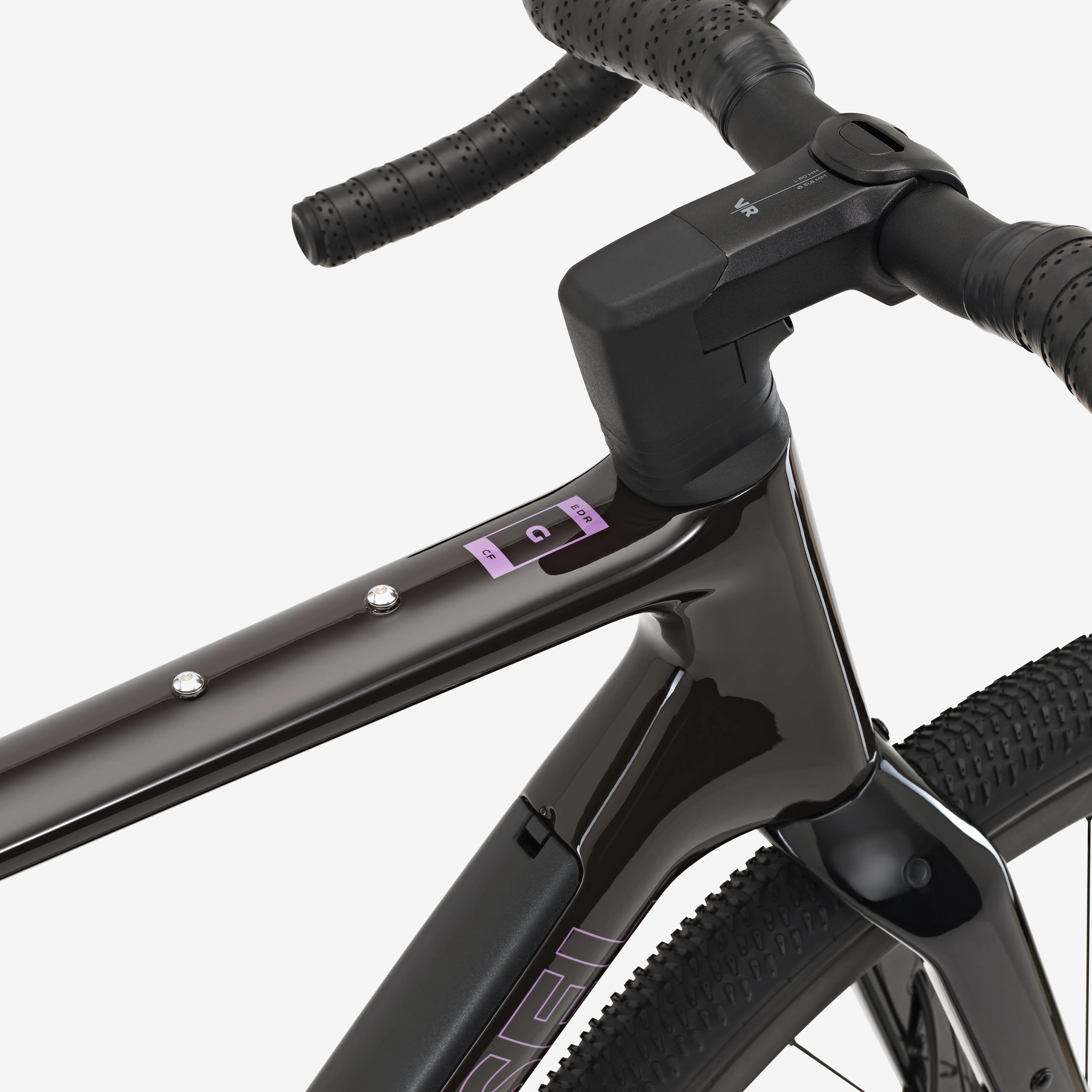

VAN RYSEL ALU stem
Material: Aluminium
Length: XS/S 70mm - M 80mm - L 90mm - XL 100mm
Bar tape: VAN RYSEL EDR ULTRA

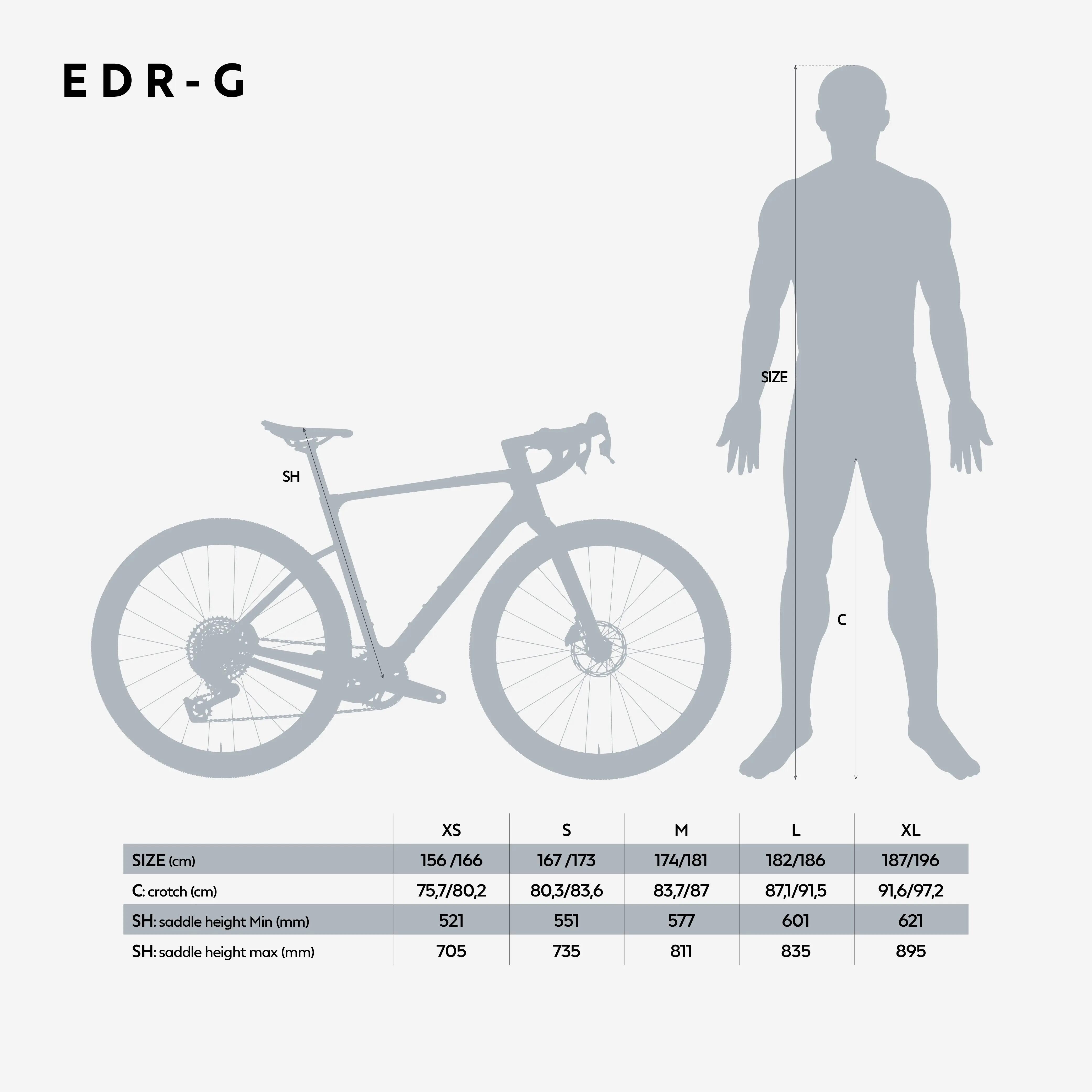

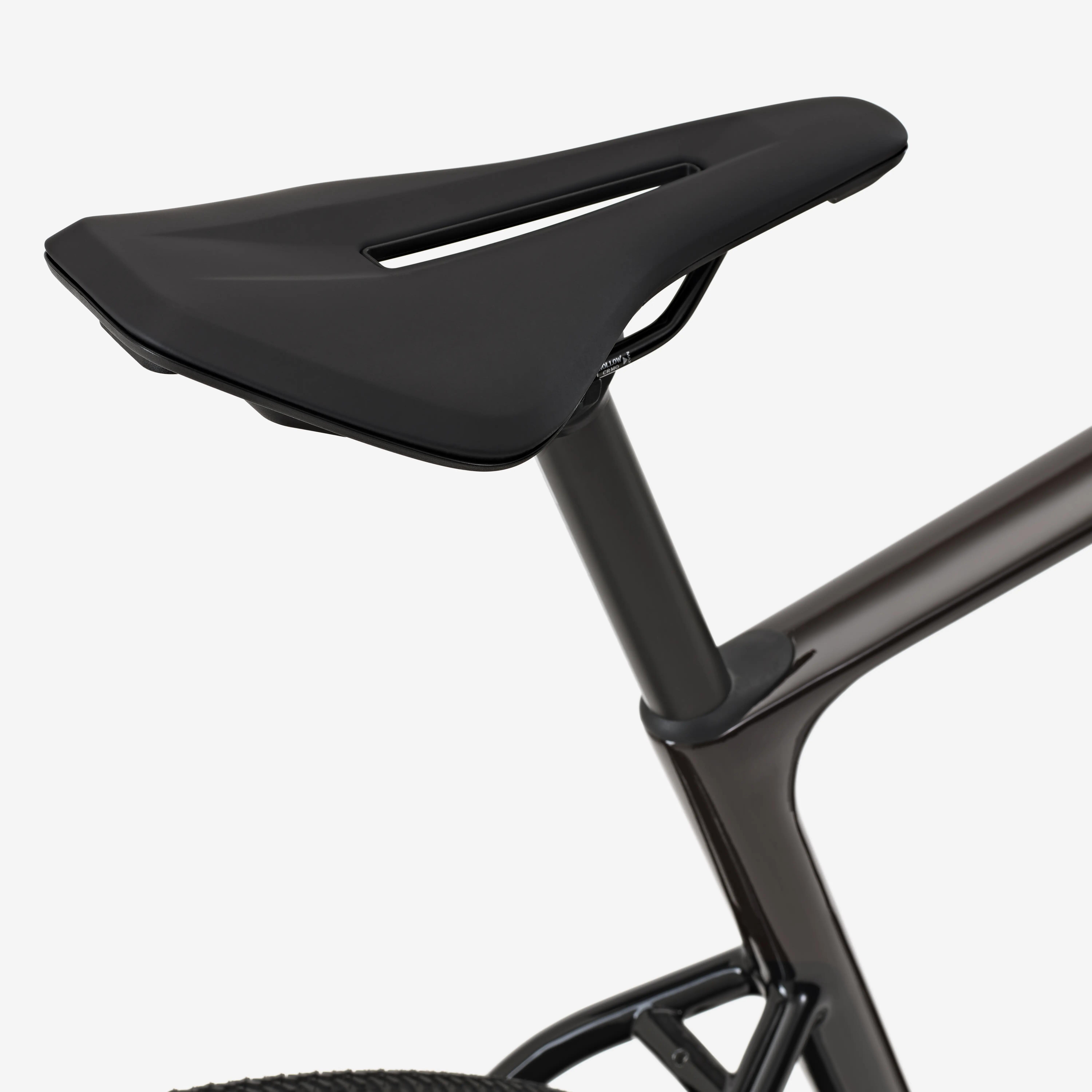

Saddle and seat post
Saddle: VAN RYSEL LIGHT 30°
Width: 155 mm
Length: 250 mm
Aluminium rails
Seat post: VAN RYSEL carbon
Diameter: 27.2 mm
Accessory included
Pedals: flat
Tubeless valves: included
Puncture-proof fluid: not included
Repair kit: included (built into the frame)
Torque wrench: included
Lights: included (front and rear)
Bell: included
Weight
Bike weight in size M: 8.8 kg
Net weight including inner tubes and repair kit, excluding pedals

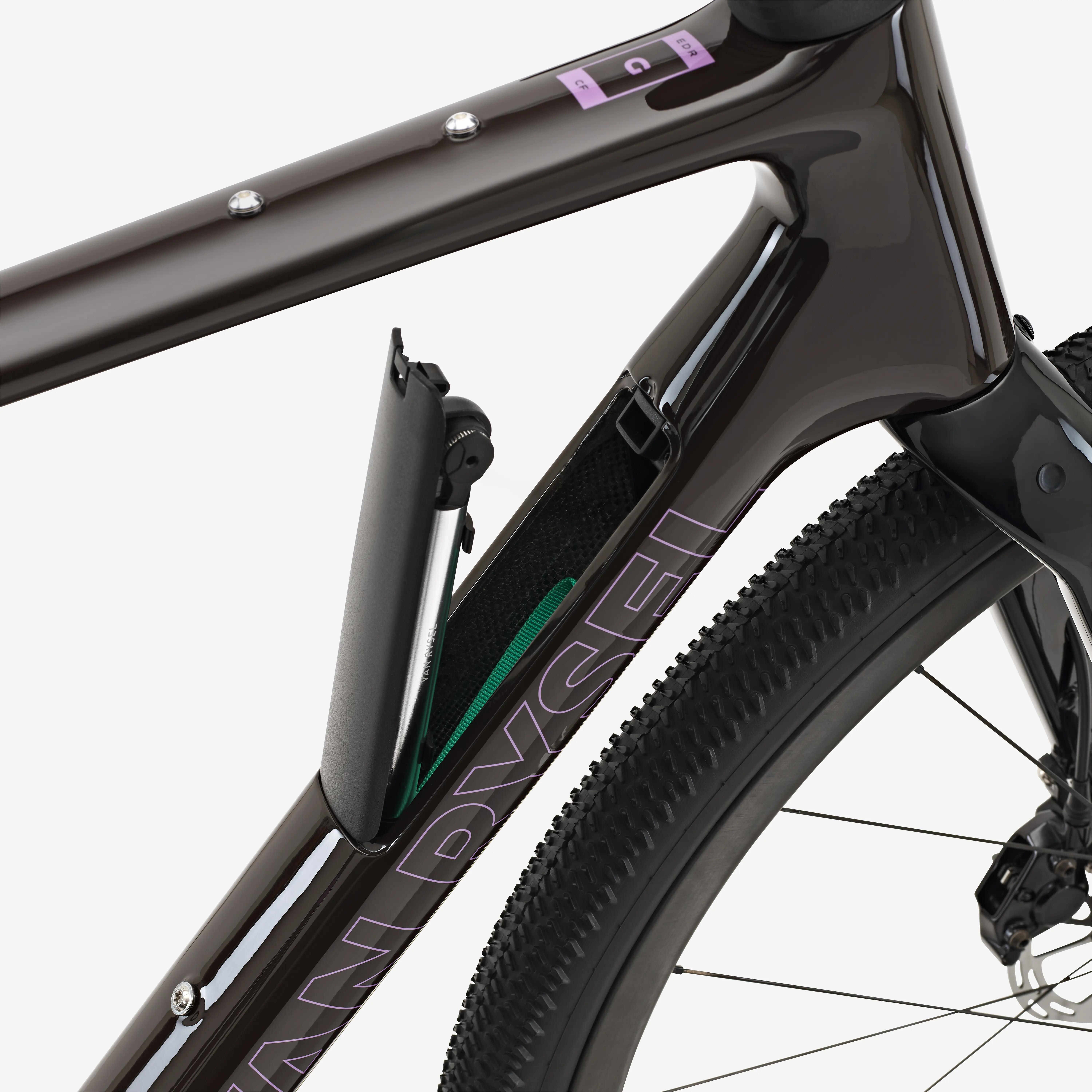

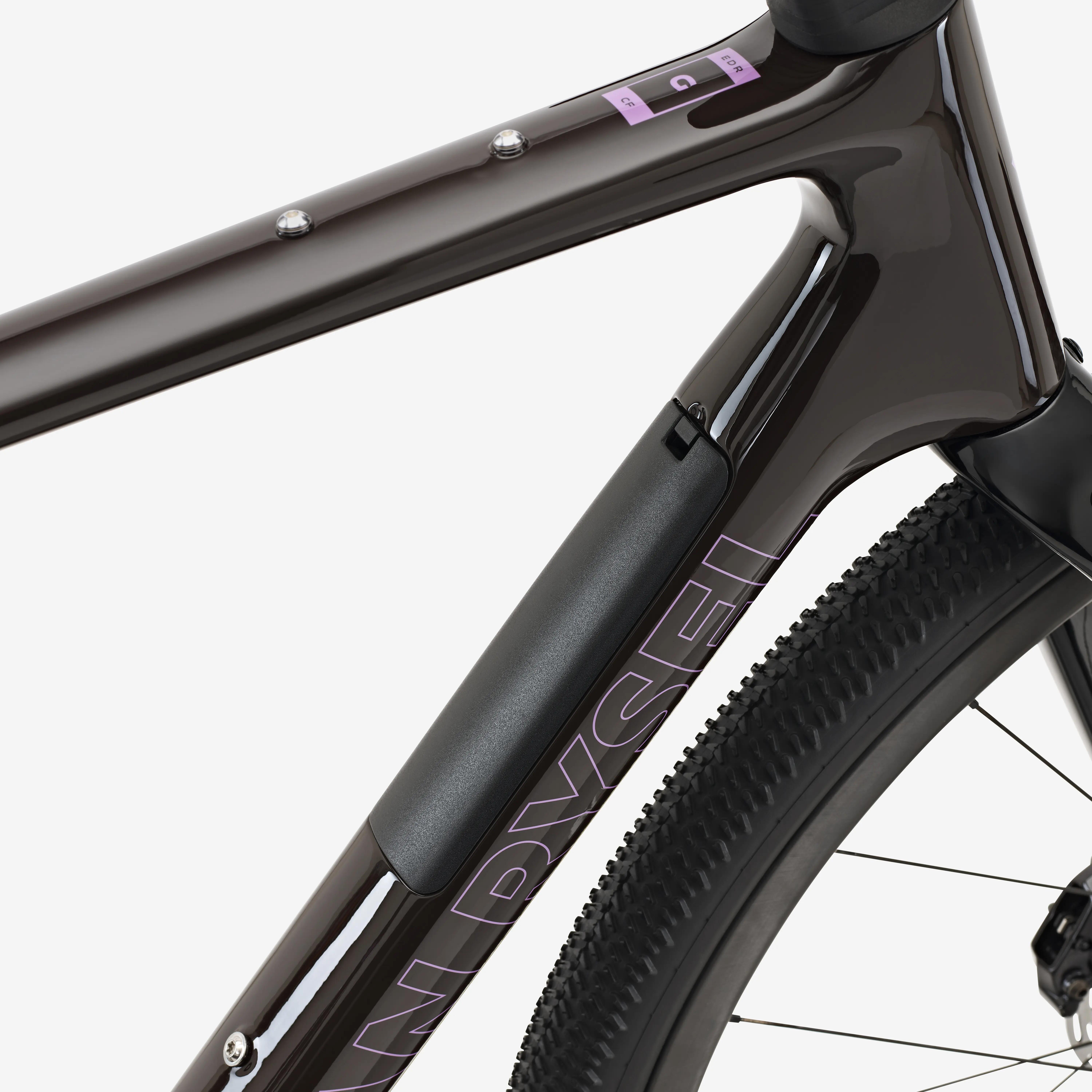

Integrated repair kit
Cleverly built into the down tube, this allows you to carry your repair kit without needing a saddle bag, for a clean, streamlined look and complete peace of mind.
Location: diagonal tube
Access: hatch above the bottle cage

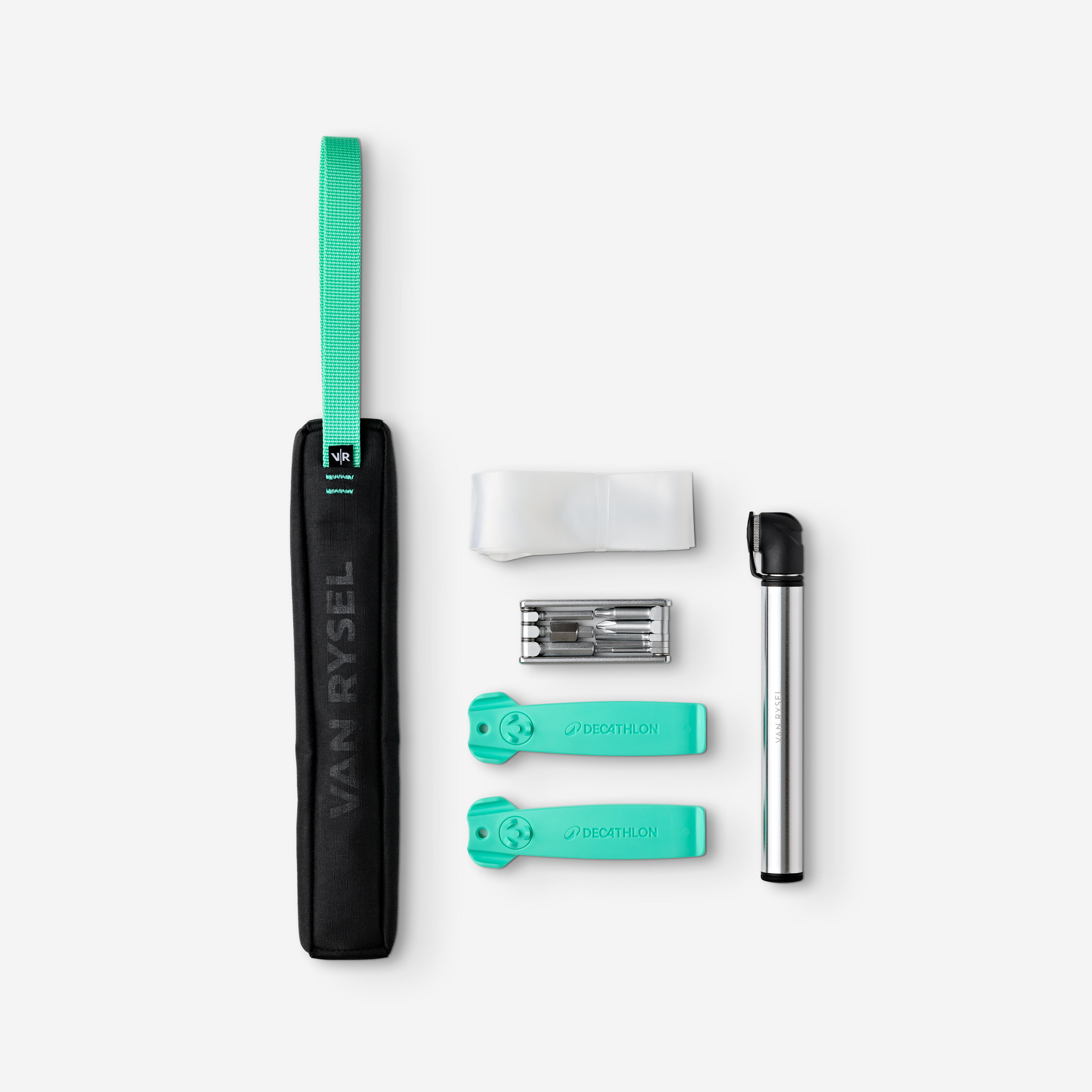

Includes: 1 TPU inner tube, 1 multitool, 1 hand pump, 2 tyre levers
Total weight of the kit: 260 g
