Features of the scope
Body: 30 mm
Zoom: 3x to 15x
Length: 340 mm
Weight: 690 g
Lens diameter: 50 mm
Field of vision at 100m: 12.4-2.4 m
Eyepiece distance: 95 - 98 mm
Illuminated 4C reticle: 11 brightness levels

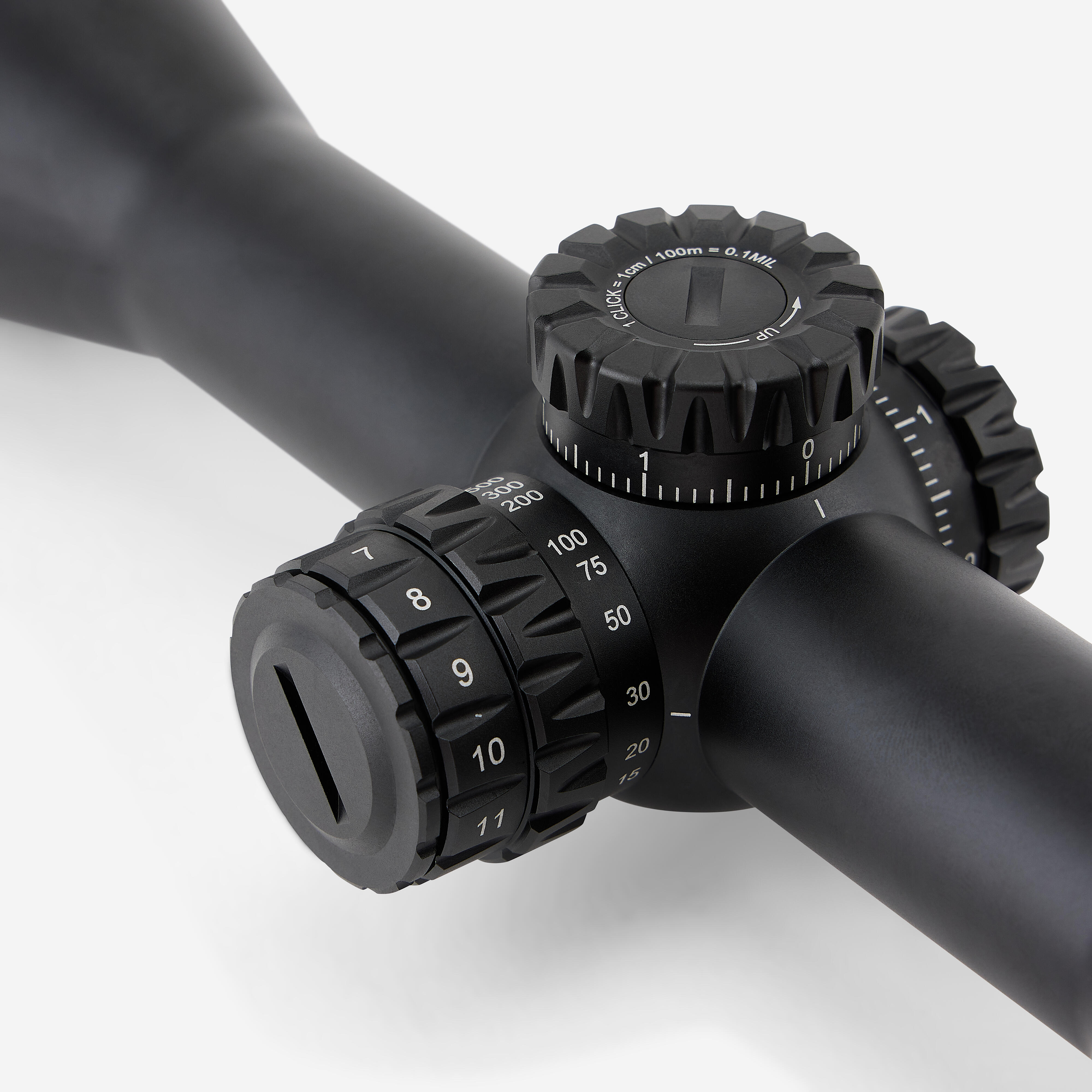

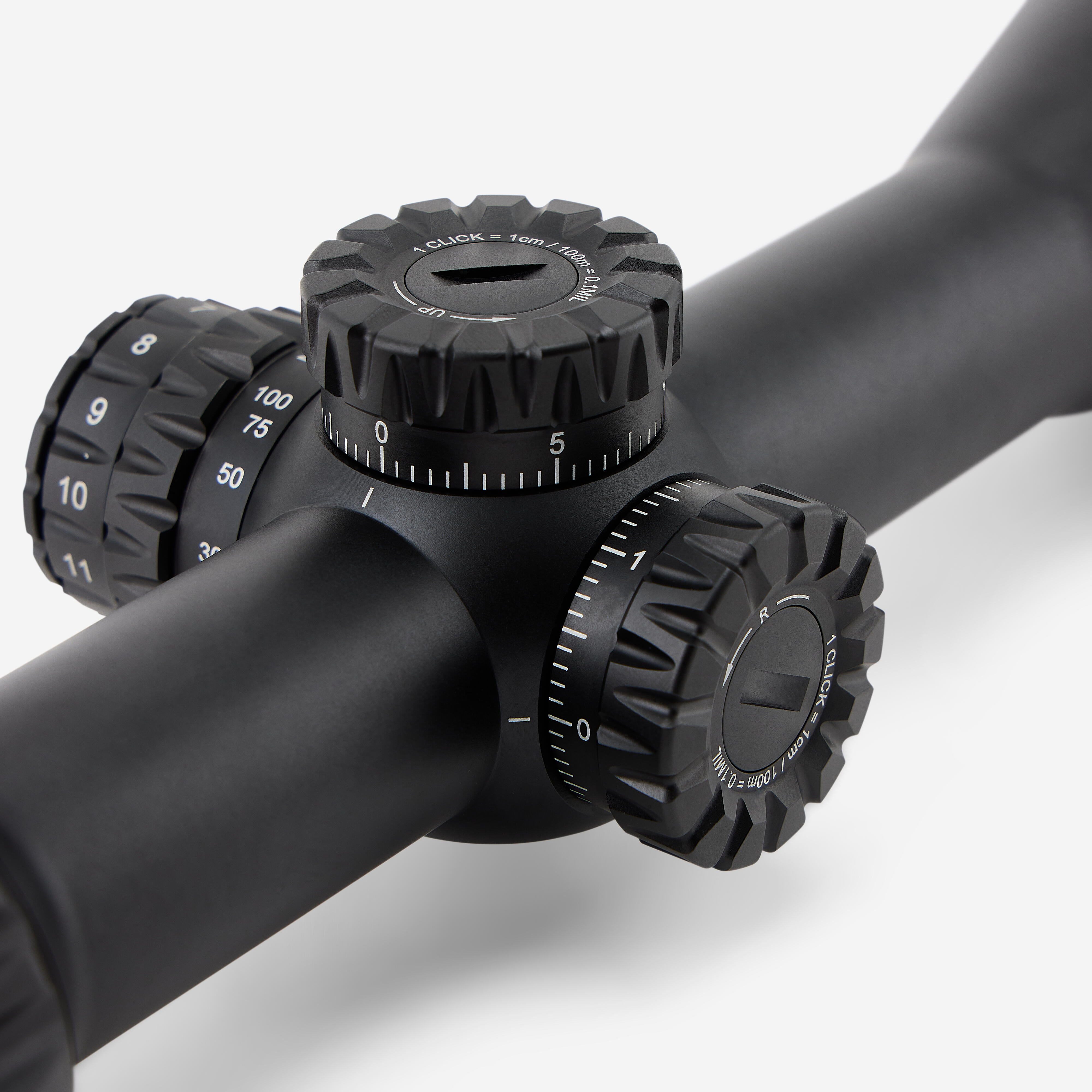

2-position locking turrets
Turret adjustment: 1 click = 0.1 MIL = 1 cm at 100 metres
Total elevation range: 26.2 MIL/90 MOA/262 cm at 100 m
Diopter adjustment: - 3.0 / +2.0D
Adjustable parallax (yards): 10 -∞
Antifog: nitrogen-filled
Surface treatment: anodised

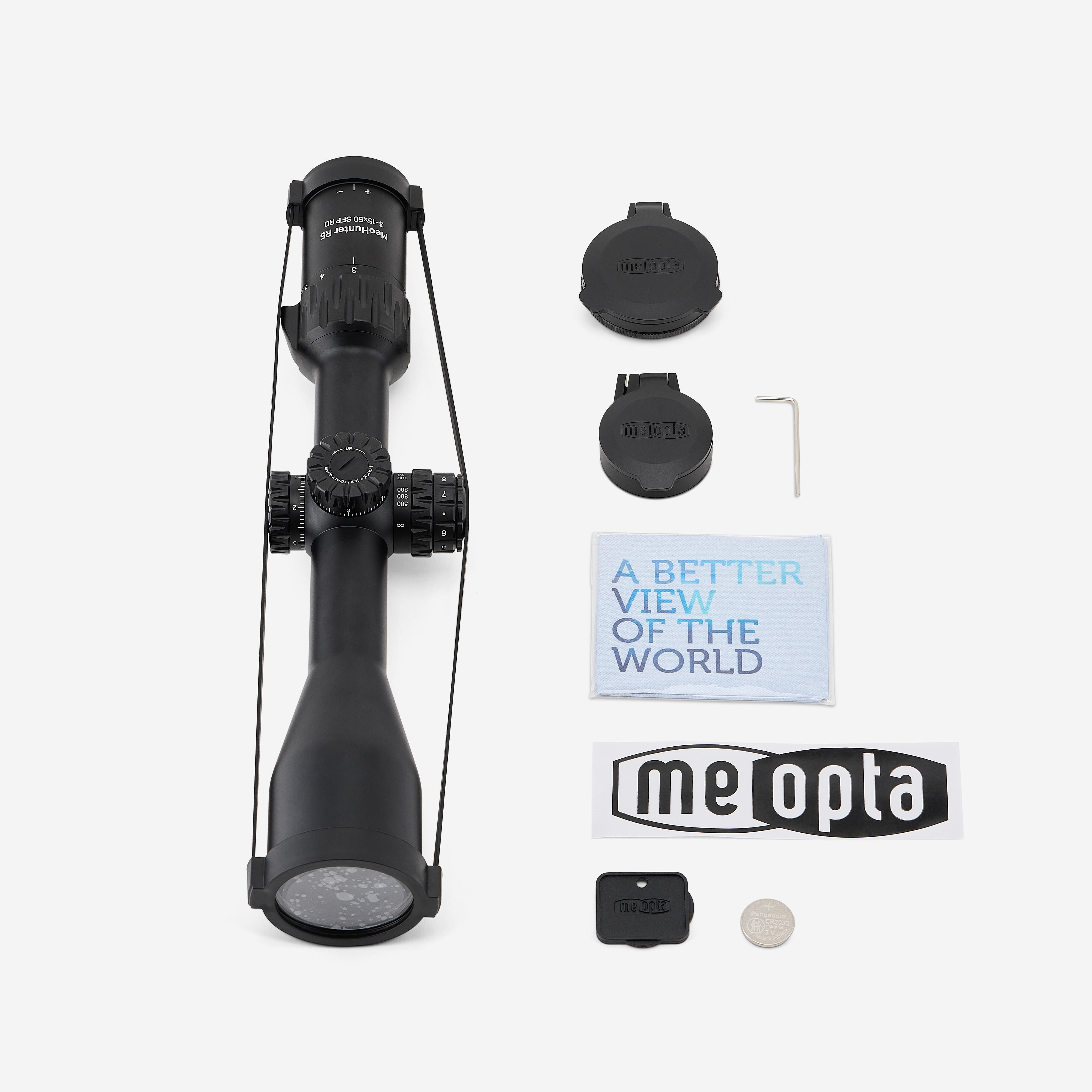

Pack contents
The scope comes with:
-an instruction leaflet
-a card setting out the warranty terms
-a sticker
-a cleaning cloth
-a CR2032 battery
-a screwdriver for tightening and loosening the battery compartment
-360-degree rotating flip caps that screw onto the lenses
Water-repellent coating
This scope features a patented water-repellent coating that repels water and dirt from the optical surfaces. When applied to the outer surface of the lenses, this microscopic coating causes raindrops and moisture to form compact droplets that roll off the surface. Lenses featuring this “MeoDrop” technology are easy to wipe clean and stay clean for longer.
Special abrasion-resistant coating
This model also features a silicon coating (using “Meoshield” technology), applied via ionisation to protect the outer surface of the lenses from scratches and abrasion, even under the most demanding conditions.
SFP reticle
The reticle is used for precise aiming. It is located either in the first focal plane (FFP) or in the second focal plane (SFP). On this MeoHunter R5 3-15x50 model, it is located in the second focal plane: this means that the size of the reticle does not change as you zoom.
Please note: the reticle's red dot switches off automatically after 2 hours.
Other things you need to know
The scope body is made of aluminium. It is watertight when submerged. It offers 11 brightness levels, with the option to switch it off between each level to save battery power. The turrets are resettable to zero and feature numbered markings for easier reading. These are locking turrets: pull out to click.
