Product Description

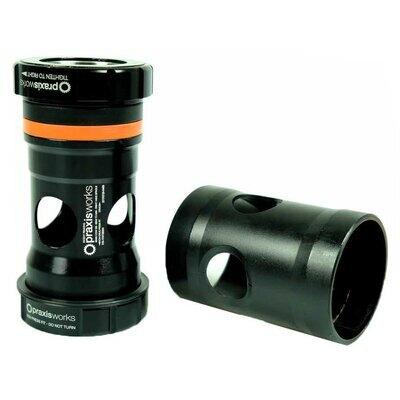

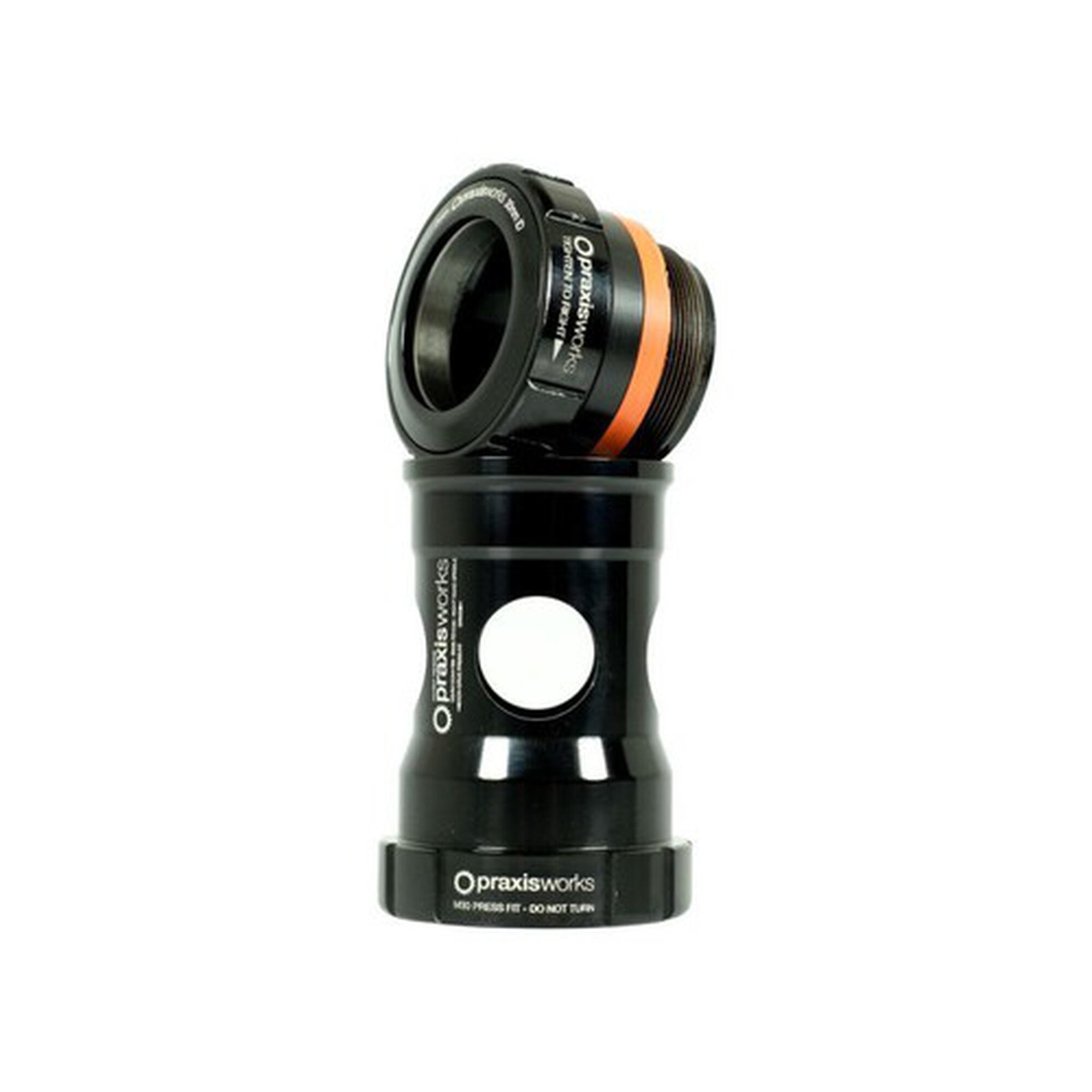

BB30/PF30 compatible bottom bracket for frame diameter 42/46 mm and width 68/73 and 61.5 mm
- Compatible with 42/46mm diameter frame
- Compatible with 68/73 and 61.5 mm crankset width (OSBB Specialized)
- Compatible with Praxis cranksets M30 axle 30-28 mm
- Additional information PDF at the bottom of the page.
- Order number: 68-4001R
Does your bike crack when you press hard on the pedals, has the crankset lost its fluidity or has it become loose? The symptoms are clear: it is time to change your bottom bracket. Like all the parts that make up your bike, the bottom bracket and especially its bearings are subject to wear.
Its replacement is a simple operation if it is well prepared, indeed the multiplication of the standards of bearings, bottom bracket and frame will discourage some. We will try to guide you through this jungle of standards. The bottom bracket is
the interface between your bottom bracket and your frame, so the first thing to do is to identify which bottom bracket you want to fit in which frame ?
Bottom bracket internal diameter*Bottom bracket width*MountingStandardRecommended bottom bracket axle**34.8 mm68 mmScrew onBSA / BSC24 mm / GXP / Dub 29 mm36 mm70 mmScrew onItalian24 mm37 mm90.5 mmPress onBB 90 (Trek)24 mm / GXP / Dub 29 mm41 mm86.5 mmPress onPF 86 (Shimano)24 mm / GXP / Dub 29 mm41 mm89,5 mmÀ PresserPF 90 (Shimano)24 mm / GXP / Dub 29 mm42 mm68 mmÀ PresserBB 3030mm / Dub 29 mm42 mm79 mmÀ PresserBB Right30mm / Dub 29 mm46 mm61 mmÀ PresserSpecialized30mm / Dub 29 mm46 mm68 mmÀ PresserPF 3030mm / Dub 29 mm46 mm79 mmÀ PresserBB Right PF 36030mm / Dub 29 mm46 mm86,5 mmÀ Presser386 EVO30mm / Dub 29 mm
We advise you to disassemble your original box to measure precisely the dimensions of the bottom bracket of your frame.** This compatibility is given as an indication, there are also boxes 'adapters' which allow to mix the standards.
Characteristics:
- Casing width 73
- 68 Standard BB30 Case
- PressFit 30 (PF30)
- Internal case diameter 42
- 46 Bearing quality Stainless steel
- Bottom bracket axle Praxis M30 30-28 mm
- Crankset Standard Praxis M30 30-28 mm
