internal cable routing kit storage model for carbon frames

Product Description

Complete internal cable routing kit for modern carbon, titanium and aluminium frames. The storage model integrates adapters inside the main magnet so everything stays organised in one compact box.

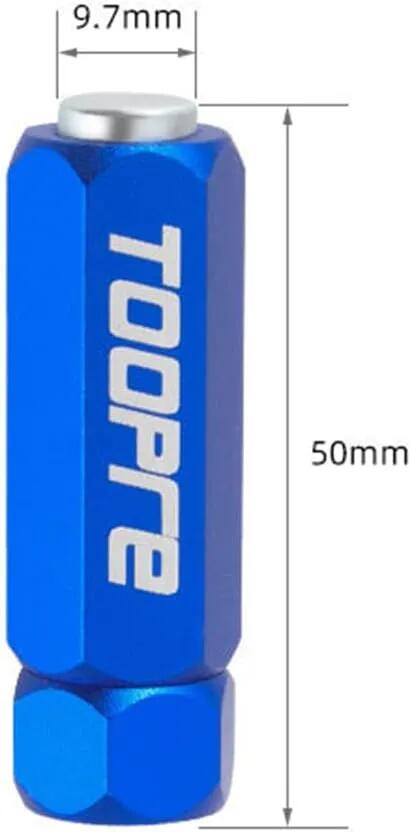

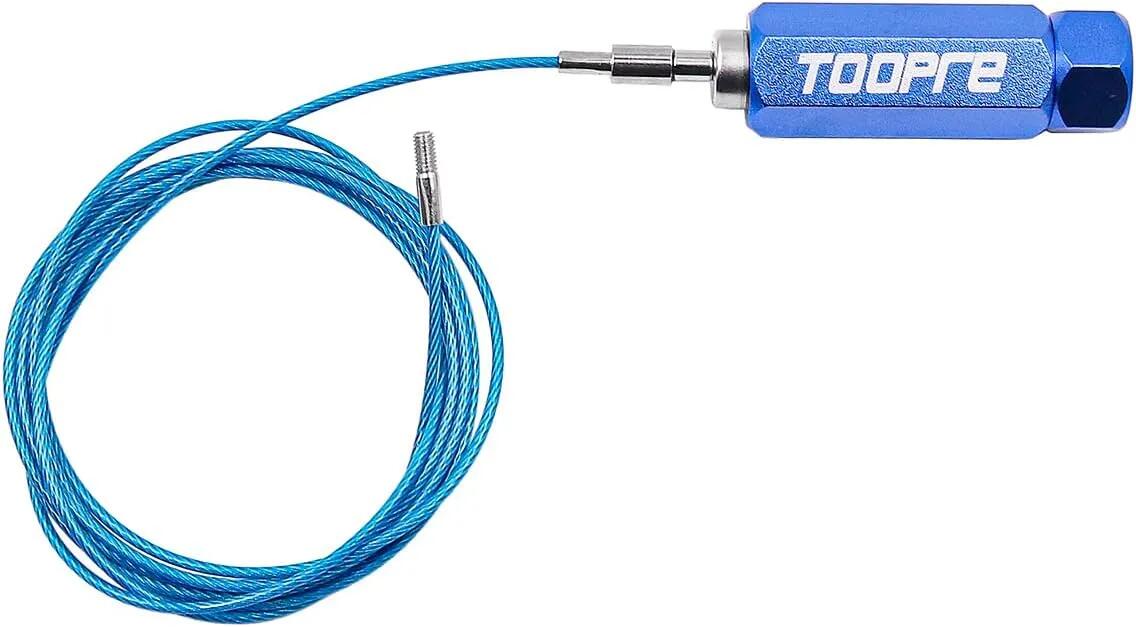

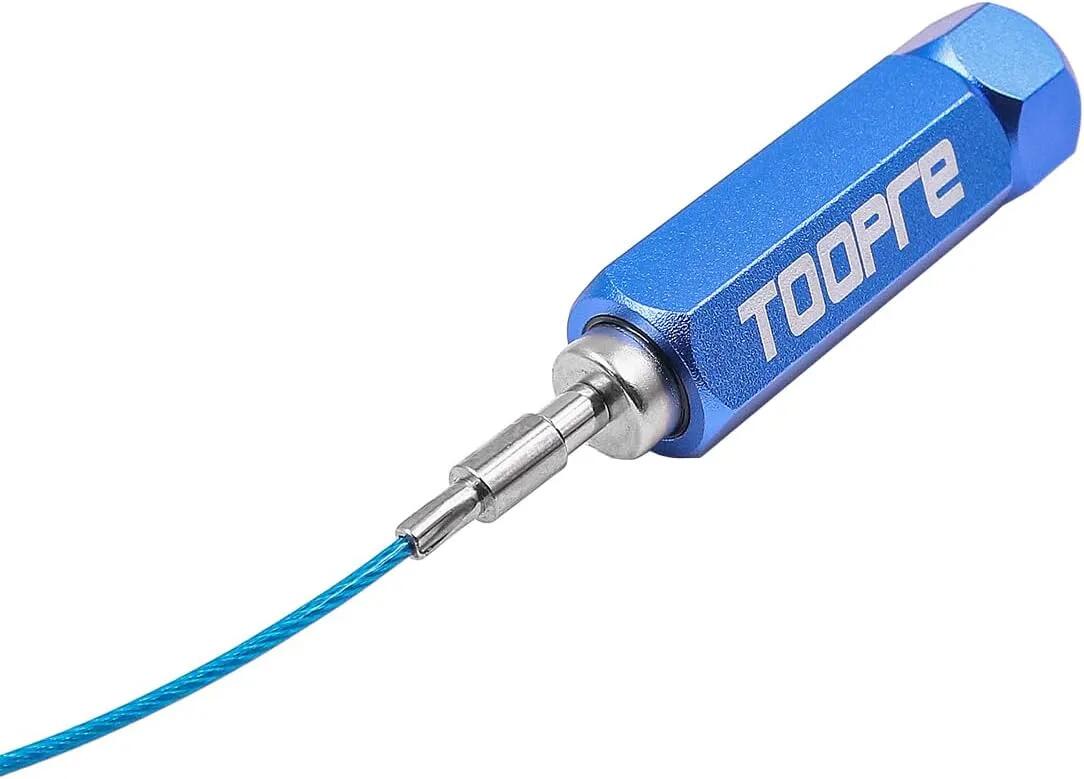

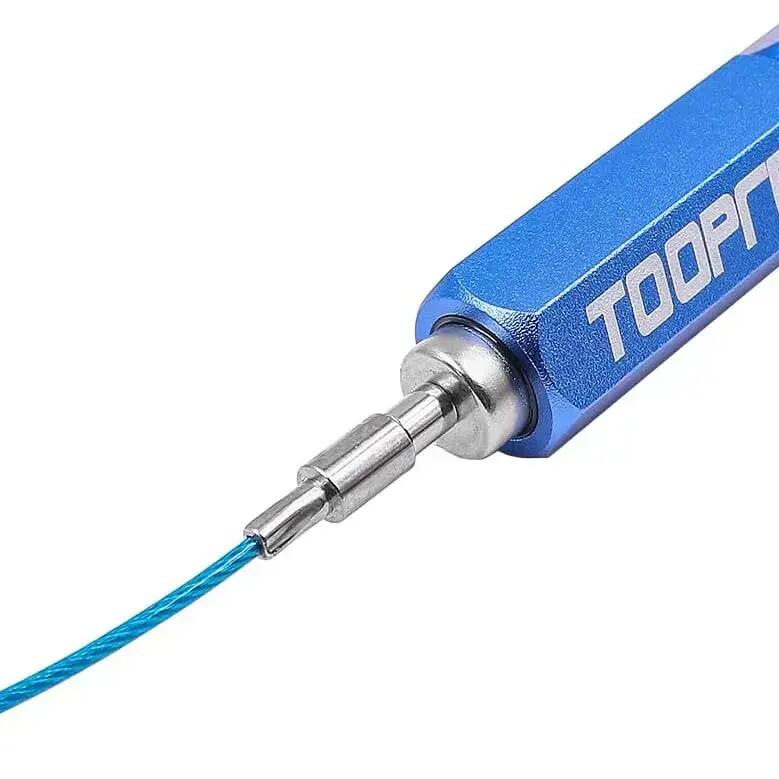

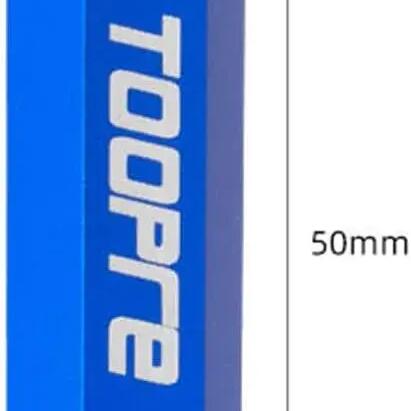

Magnetic routing with built-in storage head The aluminium storage head holds the adapters inside its compartment, while the magnetic guide and pulling cable help route hoses and cables cleanly through the frame.

Technical features

• use: internal routing of cables and hoses
• model: storage (with built-in compartment)
• frame compatibility: carbon, titanium, aluminium (Ø ≥ 6 mm)
• not suitable for steel frames
• cable length: 1.6 m magnetic guide
• box dimensions: 90 × 67 × 30 mm
• weight: ≈ 63 g (with box)
• materials: aluminium alloy, magnet, stainless steel
• colour: blue

Key benefits

• complete kit for internal routing of brake hoses, shift housing and Di2 / E-tube cables
• storage head keeps adapters and small parts directly inside the main magnet
• magnetic guide to “catch” and pull cables through internal frame passages
• rubber-coated pulling cable to protect the paint on carbon and metal frames
• rigid storage box to keep the kit tidy in the workshop or travel toolbox

Usage tips

• choose the right connector: Di2, inner cable or hydraulic hose
• insert the quick-pull sleeve into the cable or hose

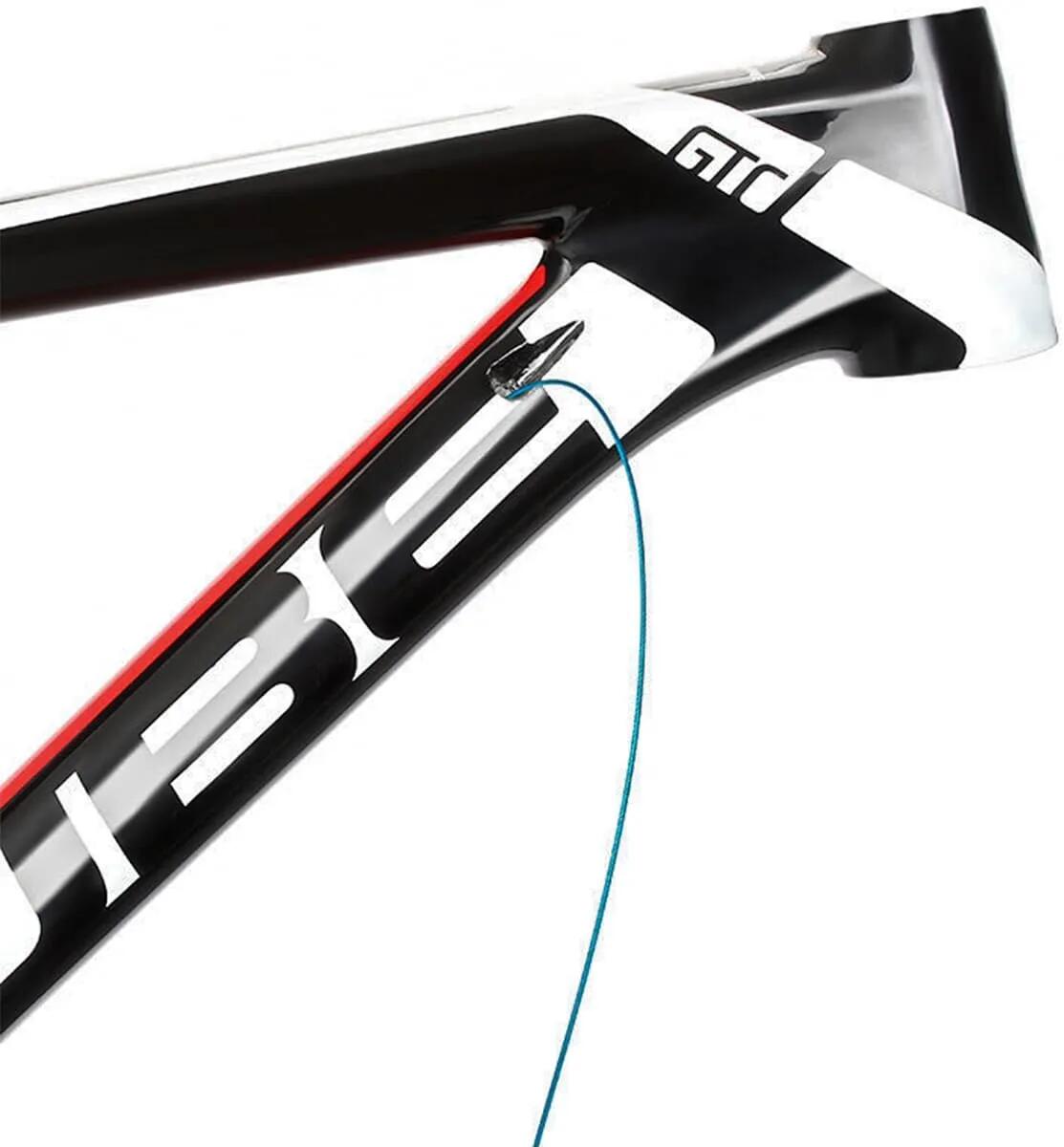

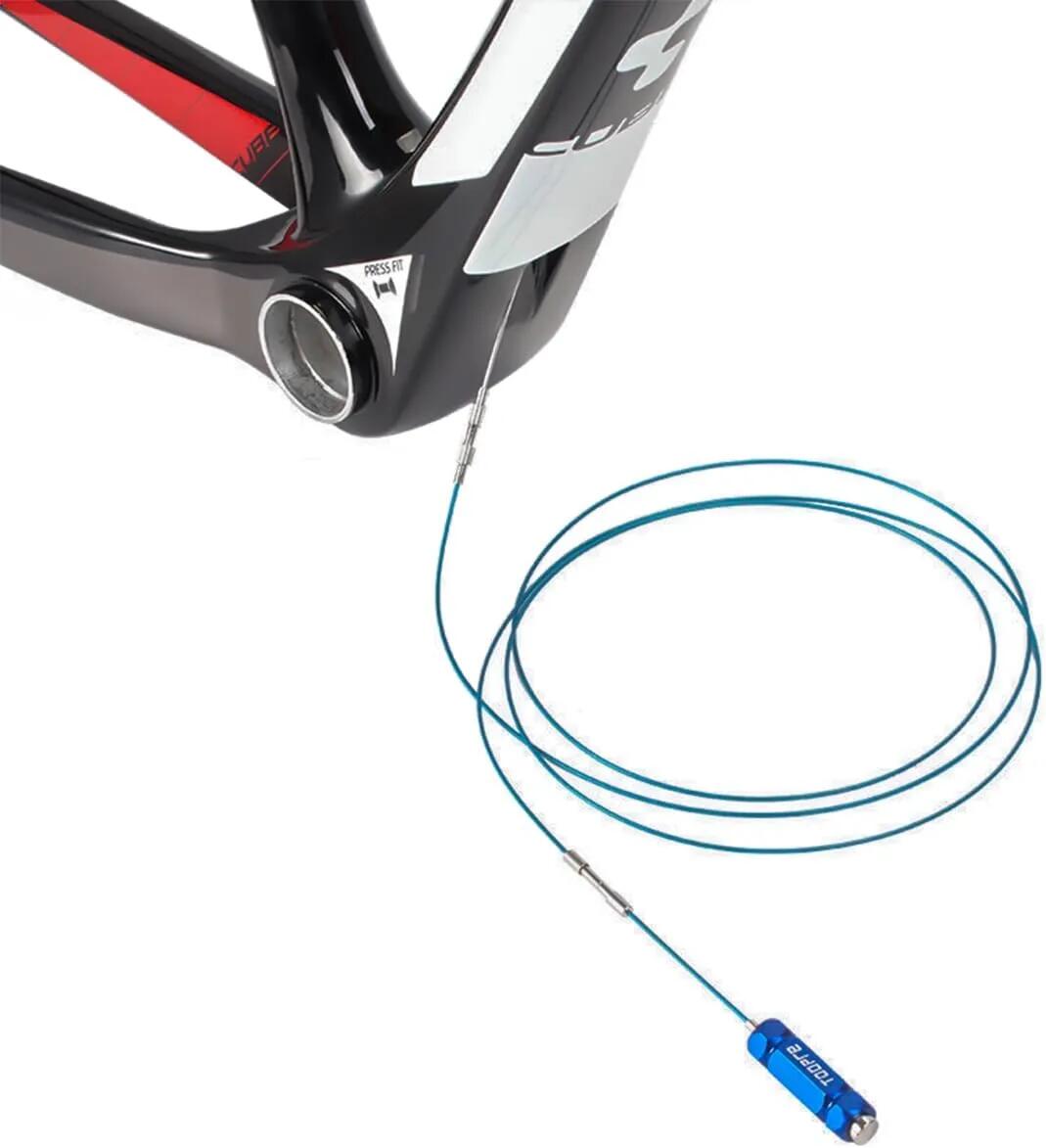

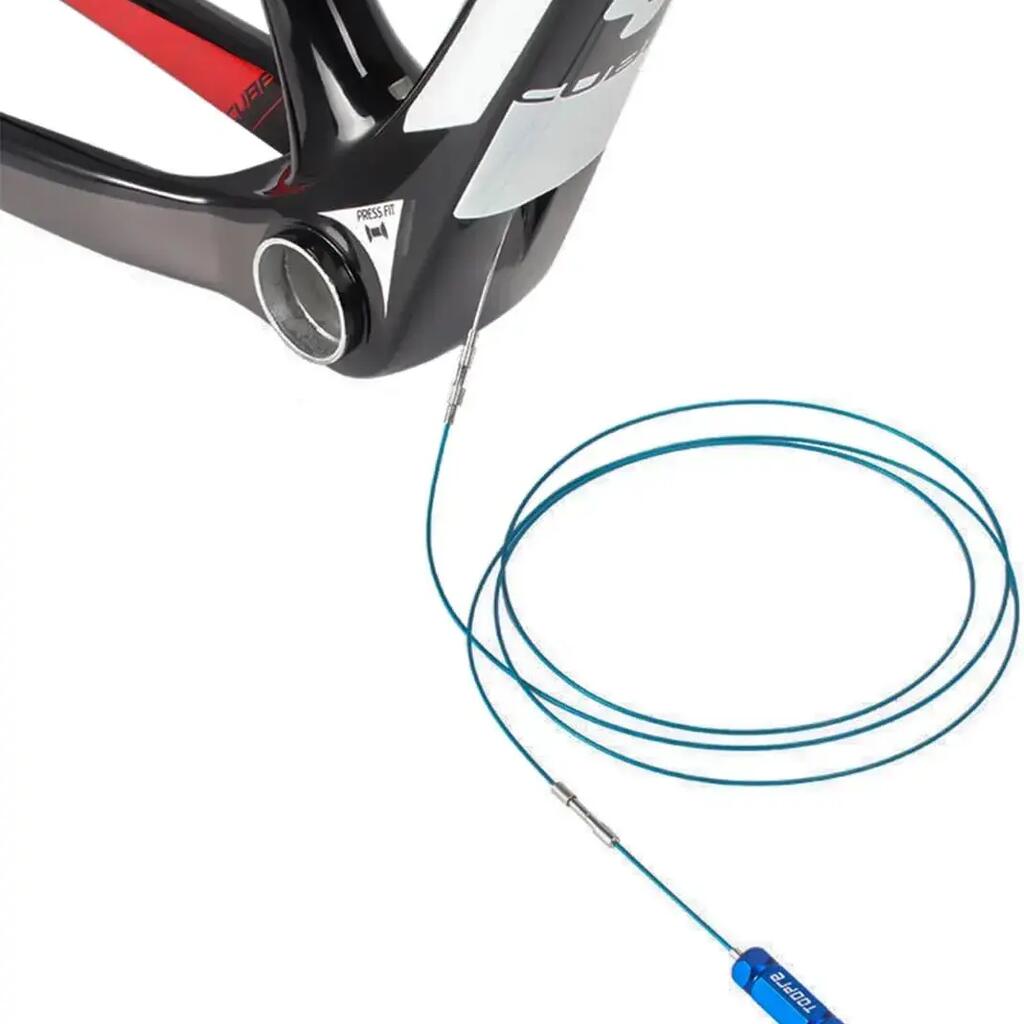

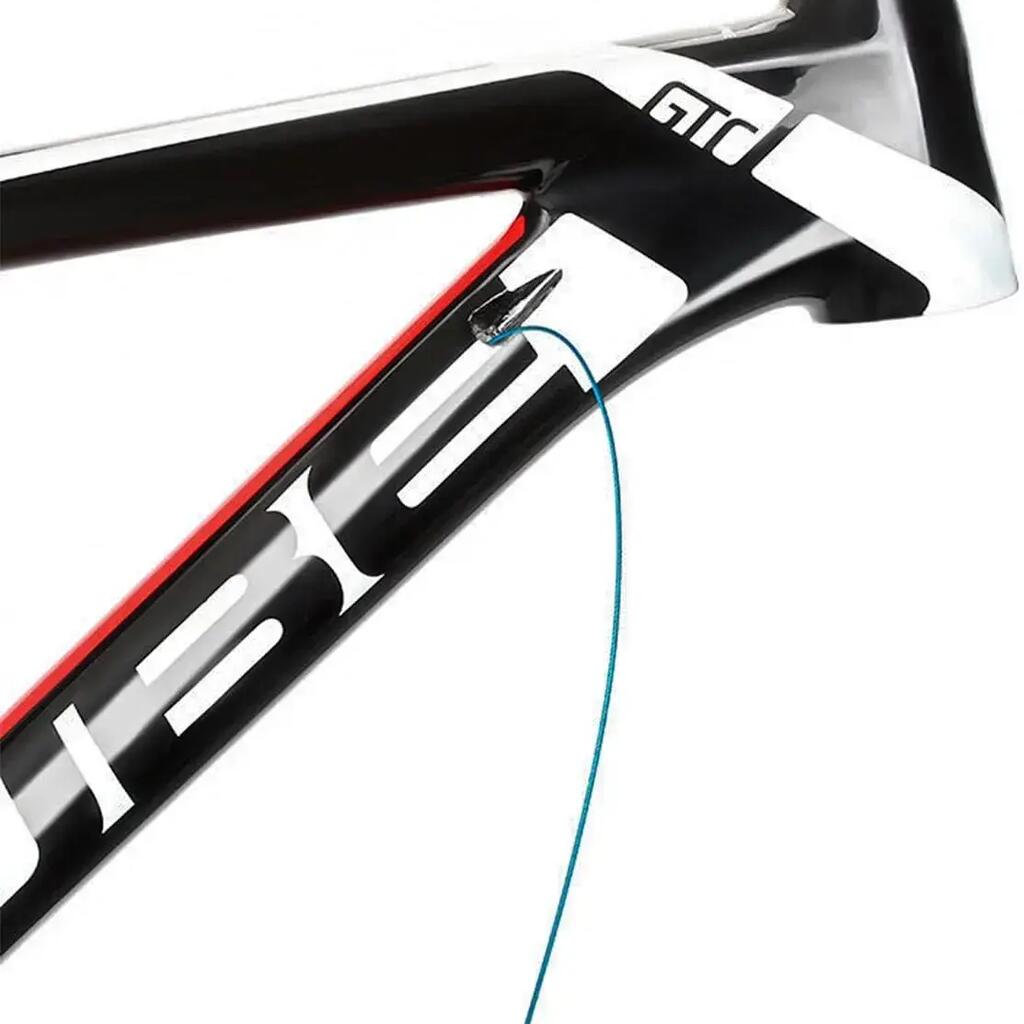

• use the main magnet to guide the cable through the frame from exit to entry
• for tight sections, combine the magnetic cable and connectors
• after installing a brake hose, cut 10 mm from the hose end to avoid oil leaks

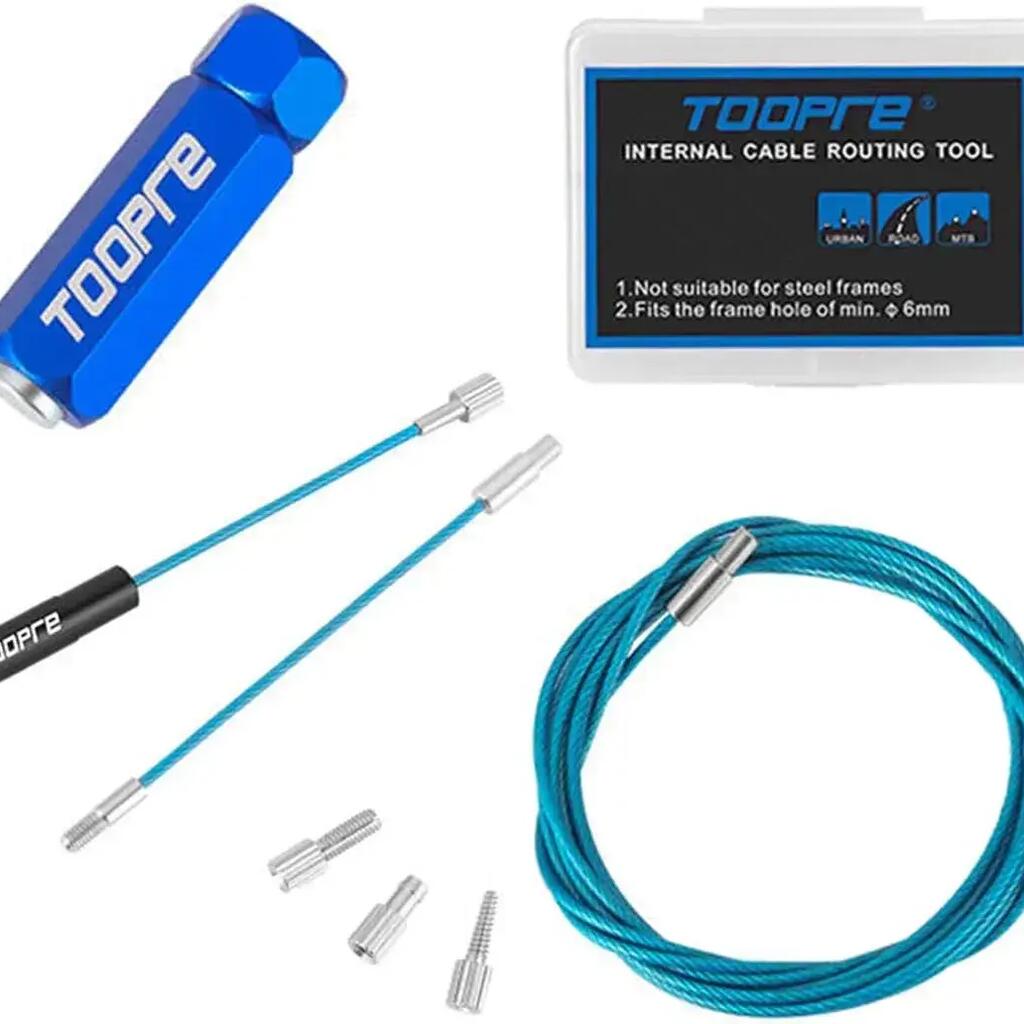

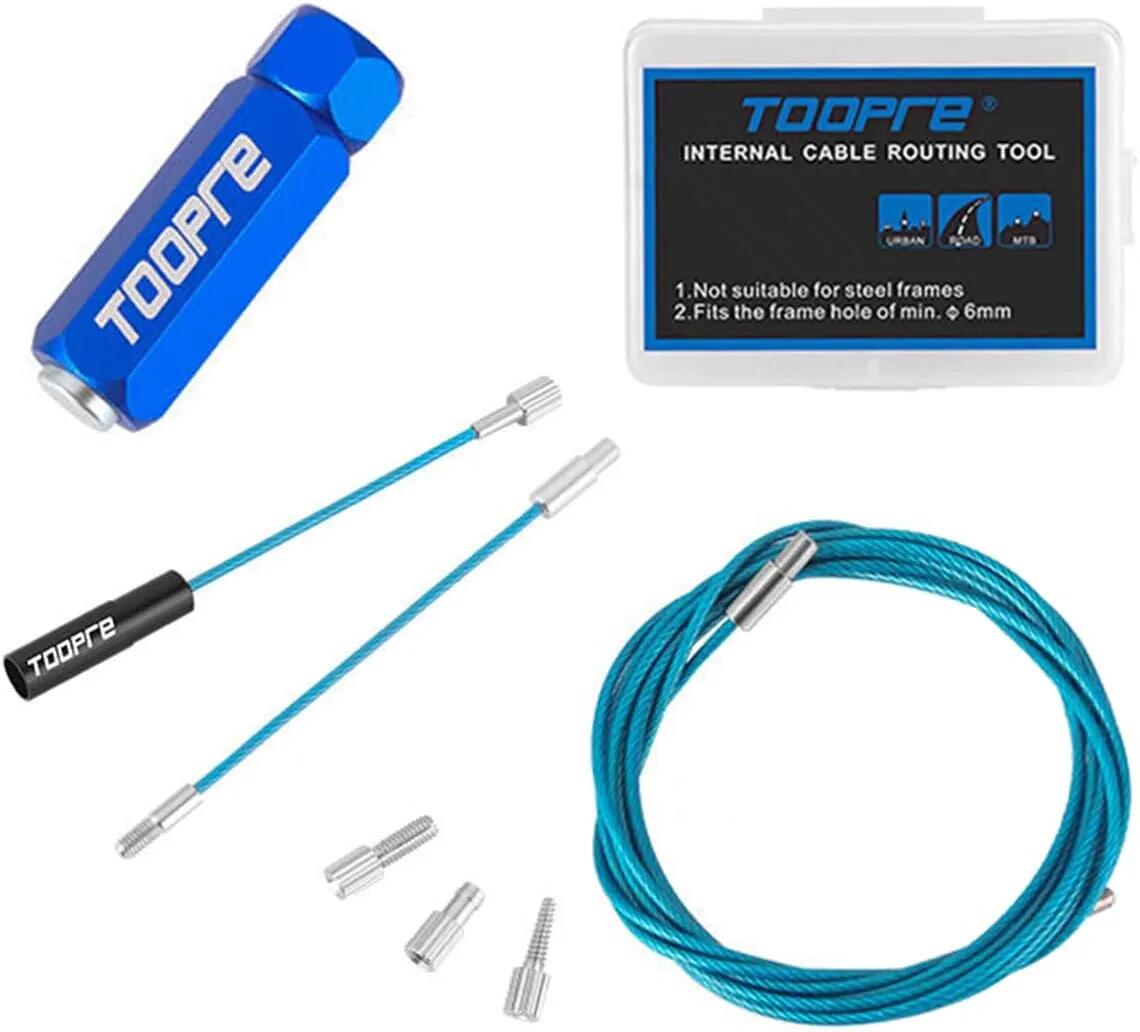

Package contents

• 1 × quick-pull sleeve

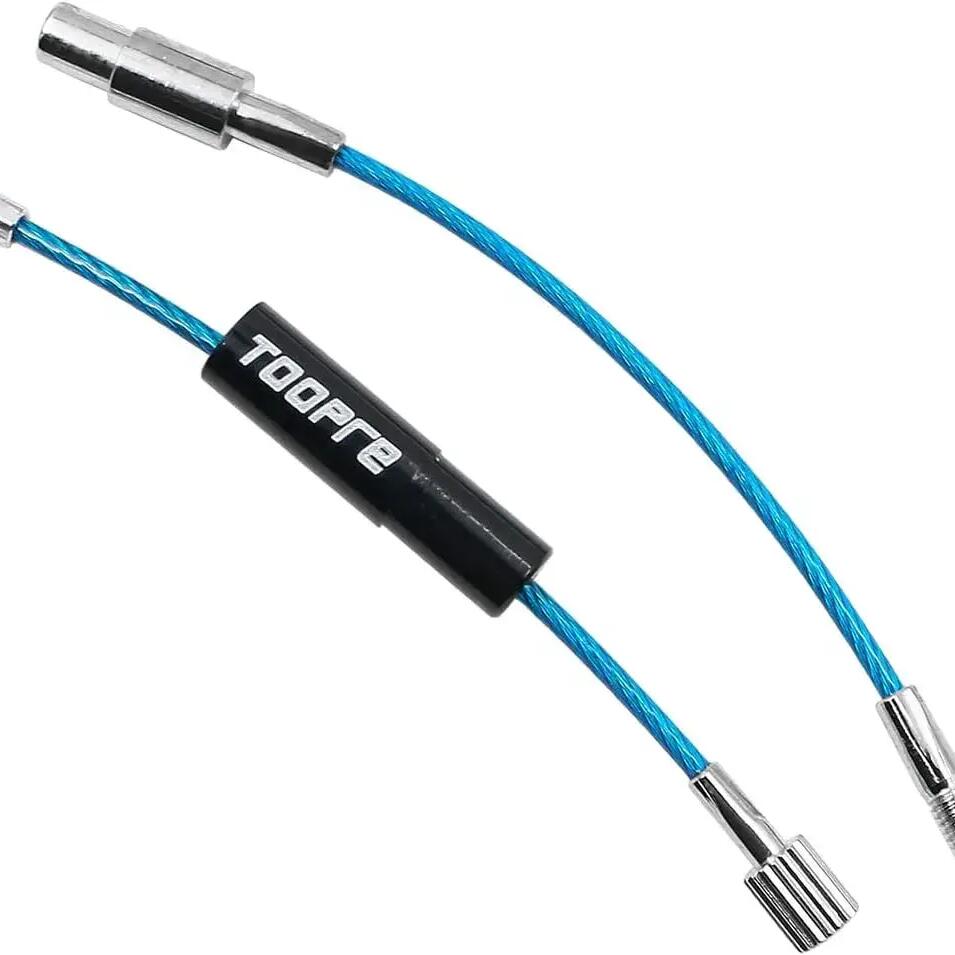

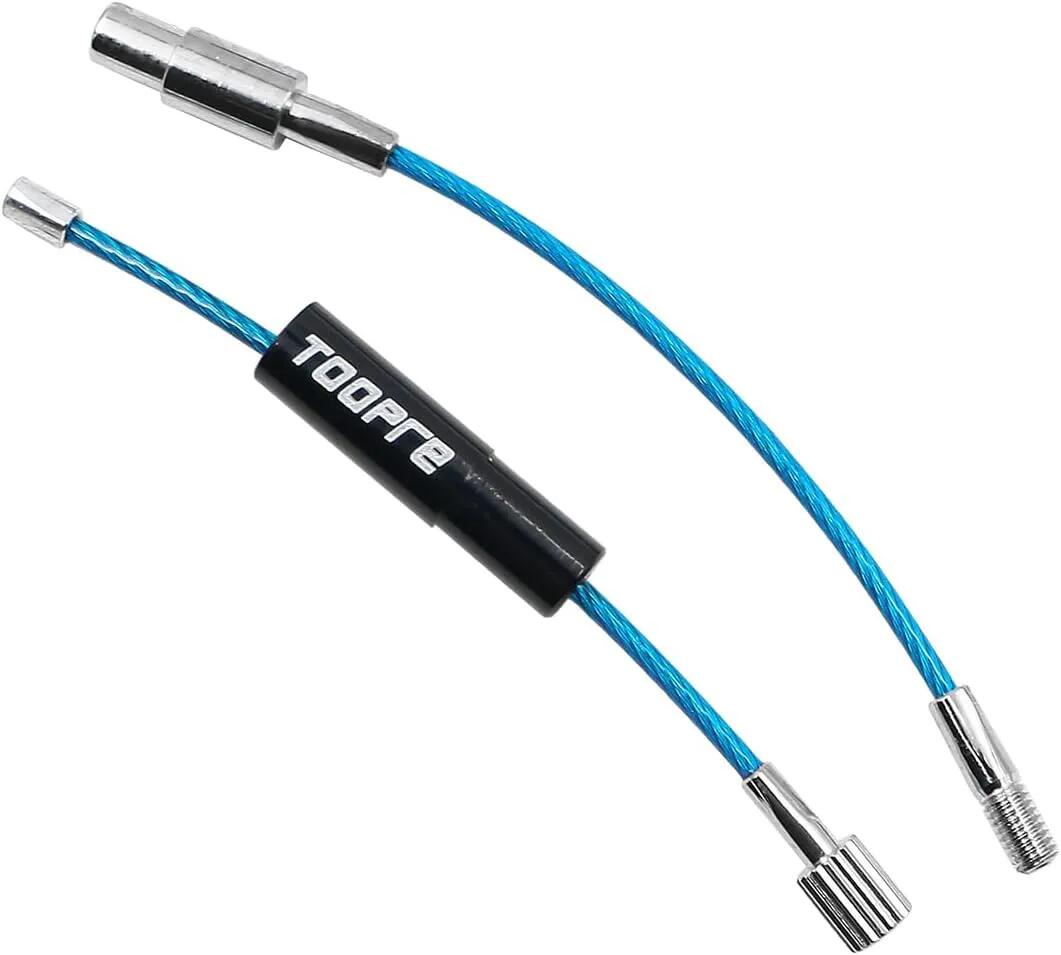

• 3 × connectors (Di2, inner cable, hydraulic hose)

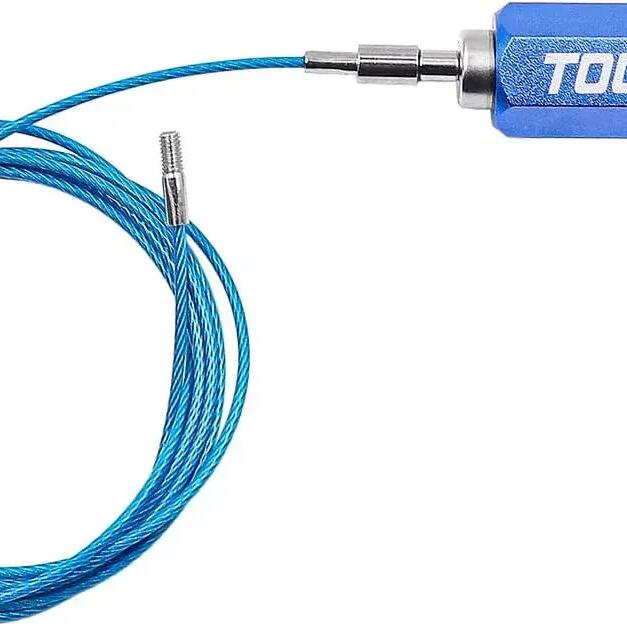

• 1 × magnetic guiding cable (1.6 m)
• 1 × rubber-coated pulling cable
• 1 × main magnet (storage model)
• 1 × user manual
• 1 × rigid storage box

A smart, compact and complete solution for fast internal cable routing without damaging your frame.
