standard bike cable routing tool aluminium with magnets

Product Description

Standard internal cable routing tool for clean and easy bike builds. It helps you route brake housing, hydraulic hoses and Di2 E-tube cables through the frame without damaging the paint.

Compact, magnetic and workshop-friendly The aluminium alloy body and strong magnets make it easy to guide cables inside frames, while the rubber-coated pulling cord protects sensitive paint finishes.

Technical features

• product: standard bike cable routing tool
• colour: blue
• materials: aluminium alloy + stainless steel + magnets
• weight: ≈ 58 g (complete box)

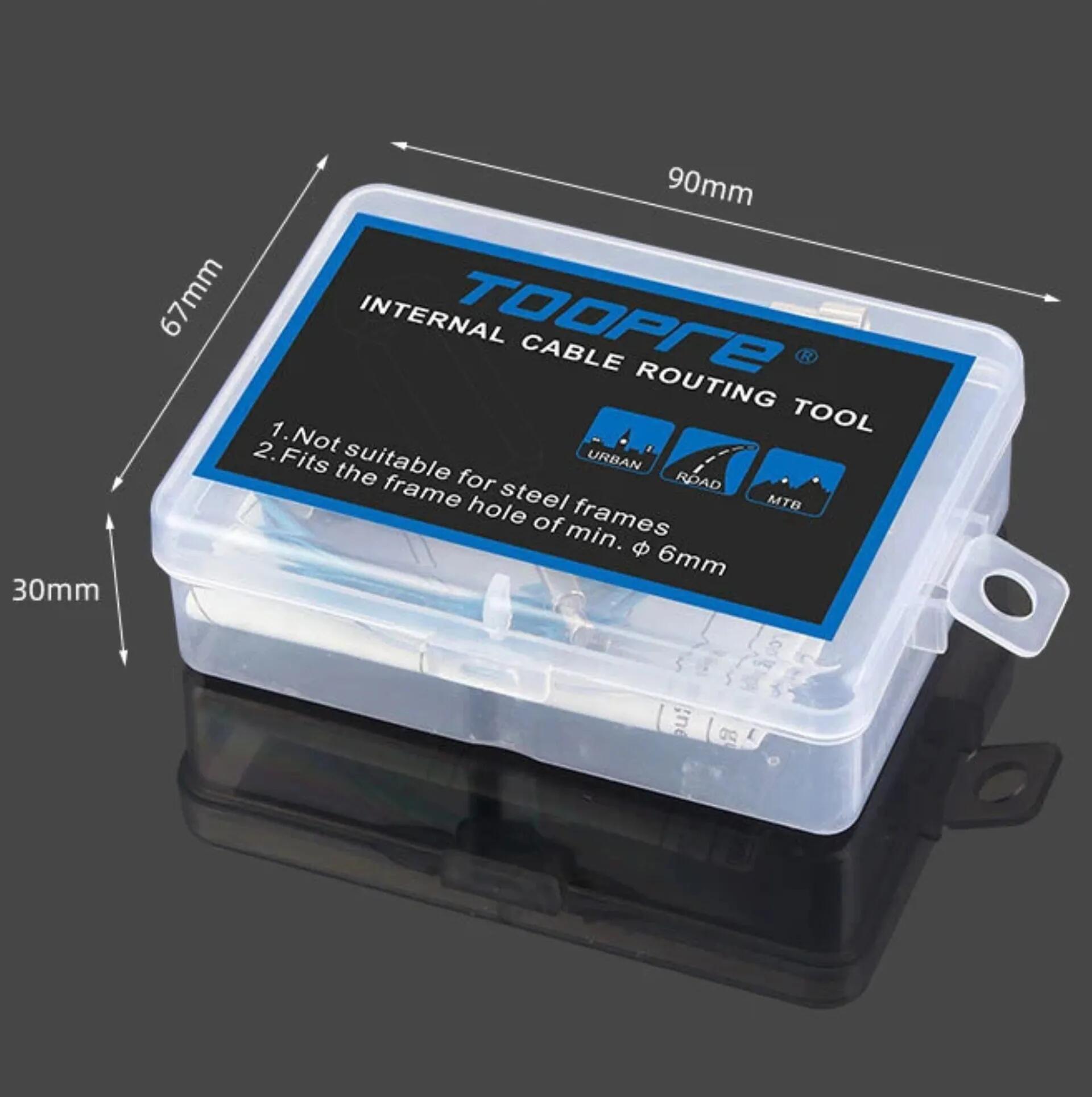

• box dimensions: 90 × 67 × 30 mm
• frame compatibility: internal diameter ≥ 6 mm

Key benefits

• simplified routing for 5 mm brake housing, hydraulic hoses and Di2 / E-tube cables
• strong magnetic system to “catch” and guide the cable inside the frame
• rubber-coated pulling cord to avoid scratching the frame

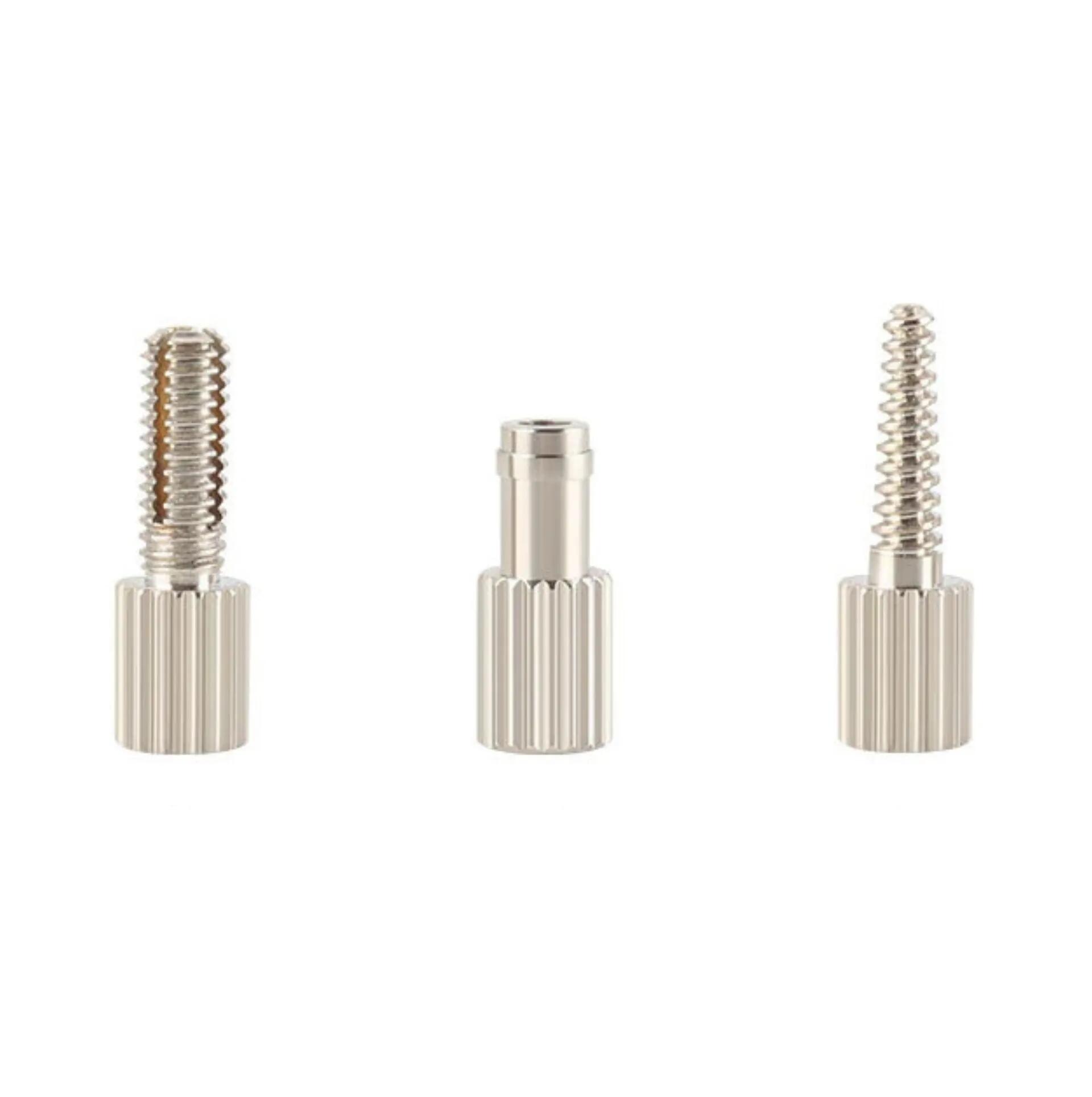

• metal connectors included for complex internal passages
• compact storage box for workshop or travel use

Usage tips

• insert the quick-pull adapter into the hose or cable

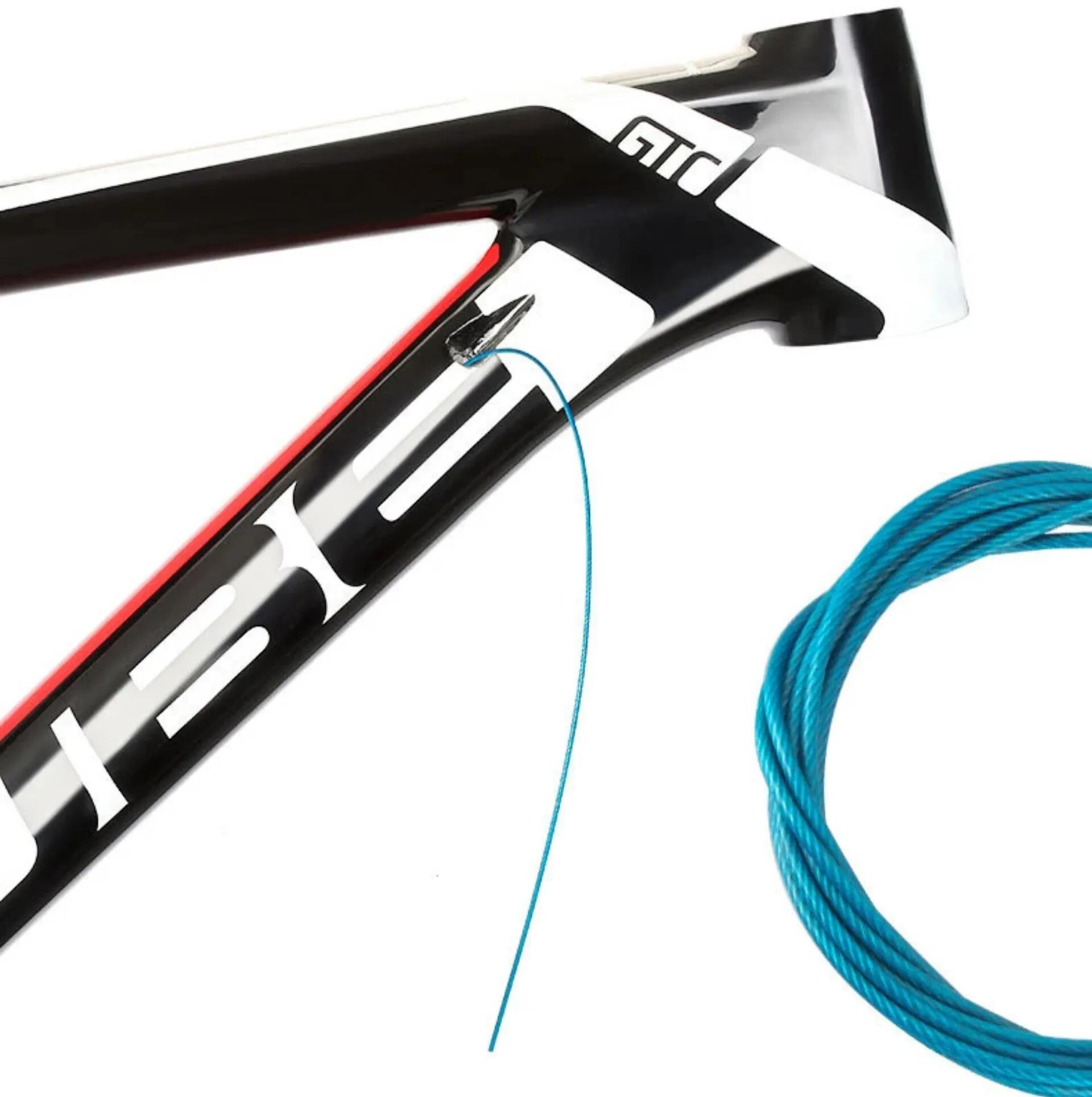

• use the main magnet to guide the cable inside the frame
• use metal connectors when the quick adapter is not enough in tight areas
• after installing a brake hose, cut 10 mm from the end fitting to avoid oil leaks

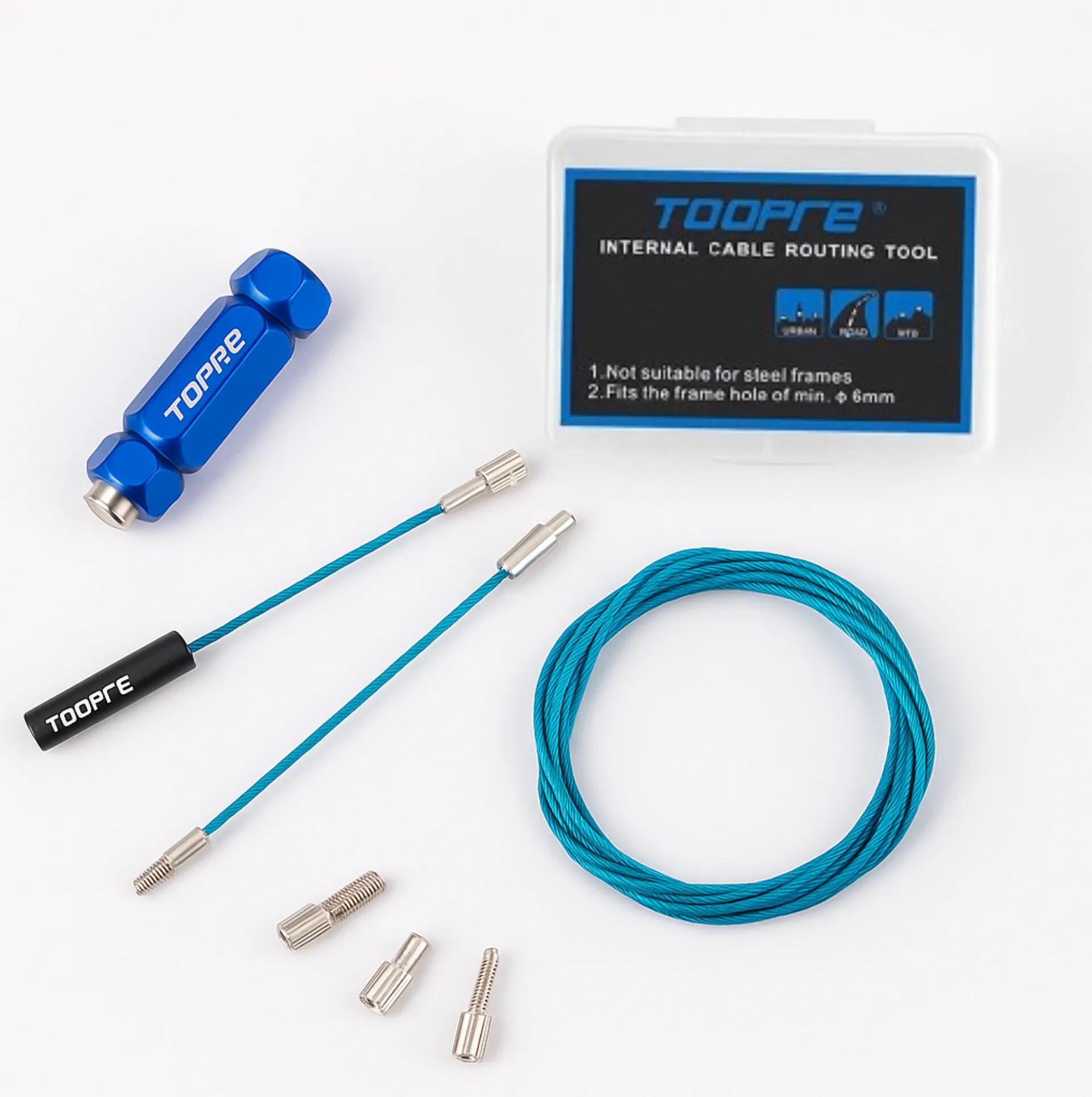

Package contents

• 1 × quick-pull adapter (aluminium alloy)
• 1 × Di2 E-tube cable connector

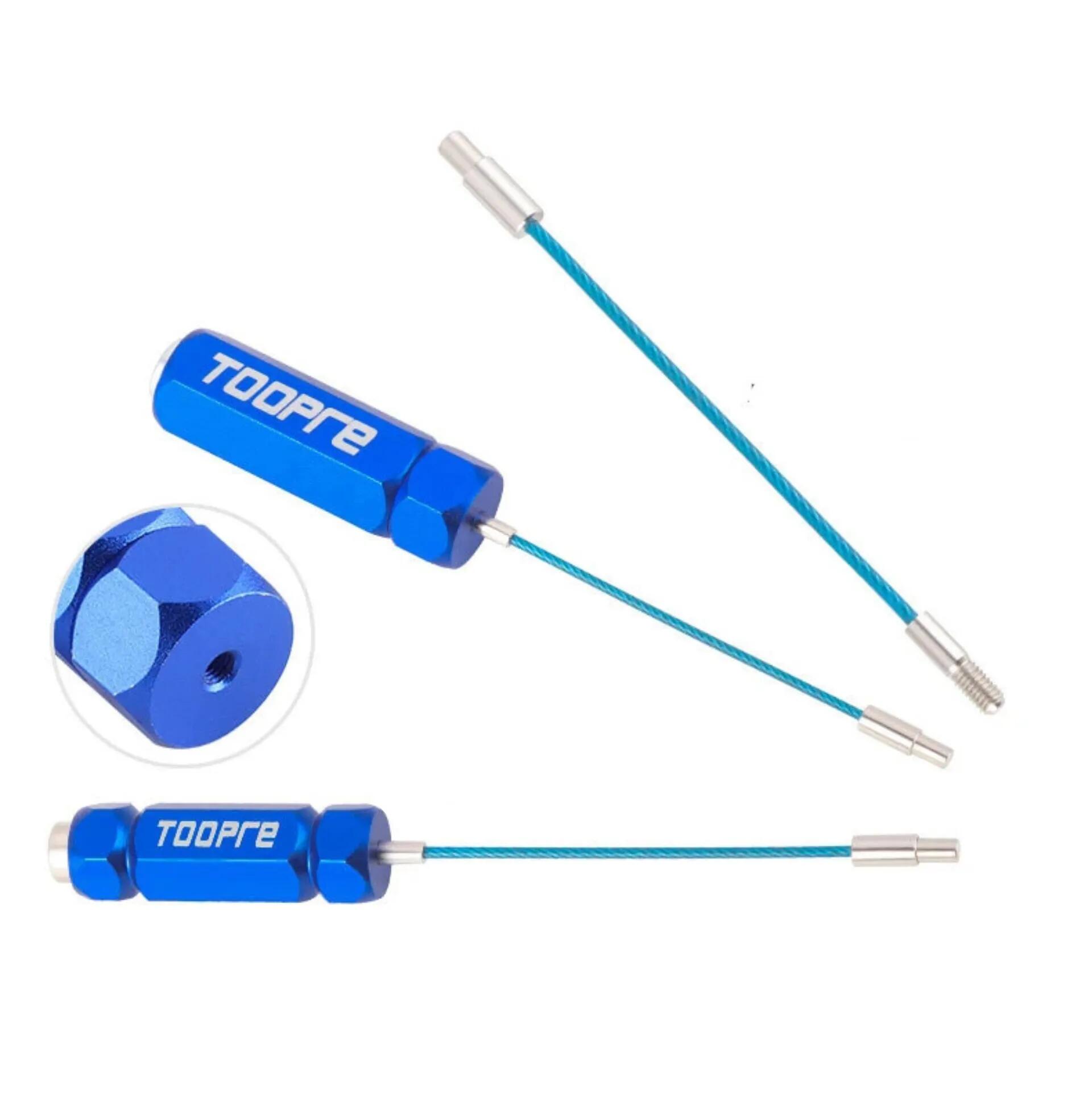

• 1 × cable with guiding magnet

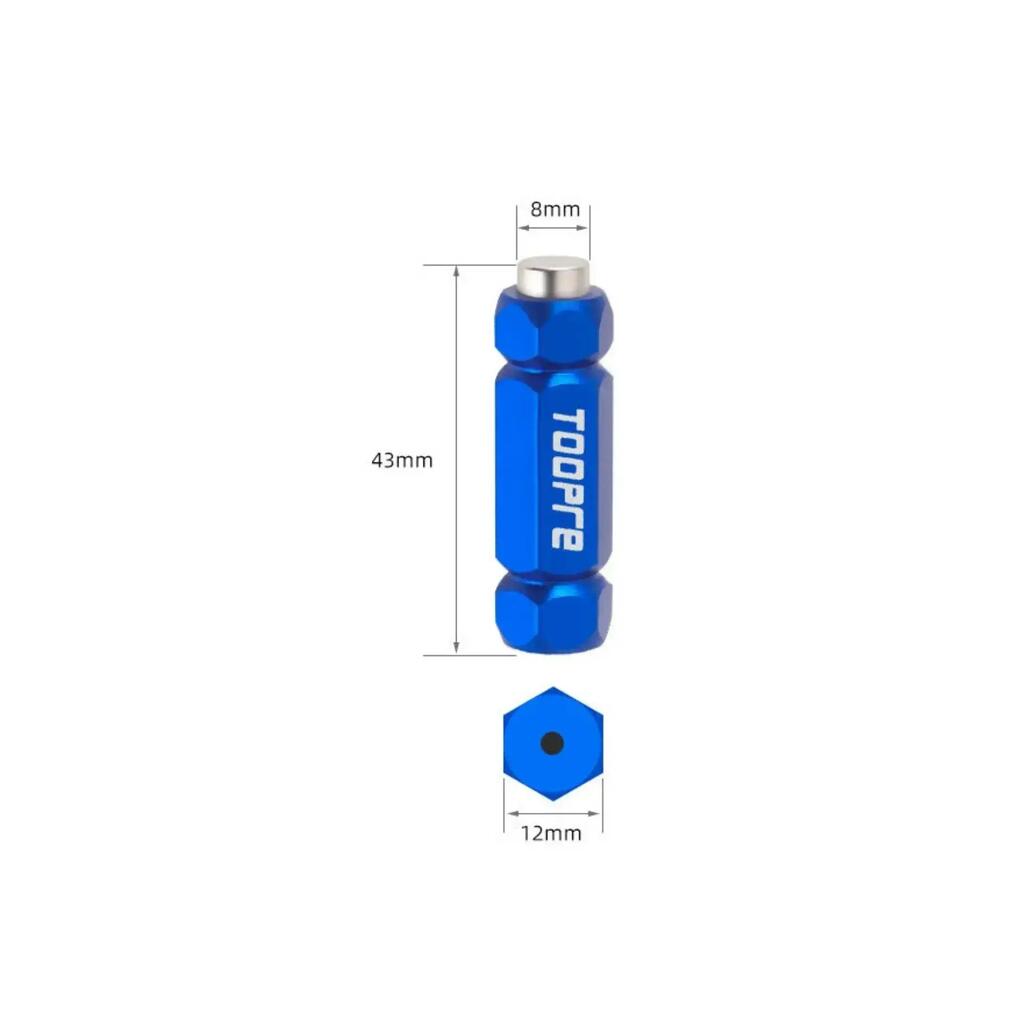

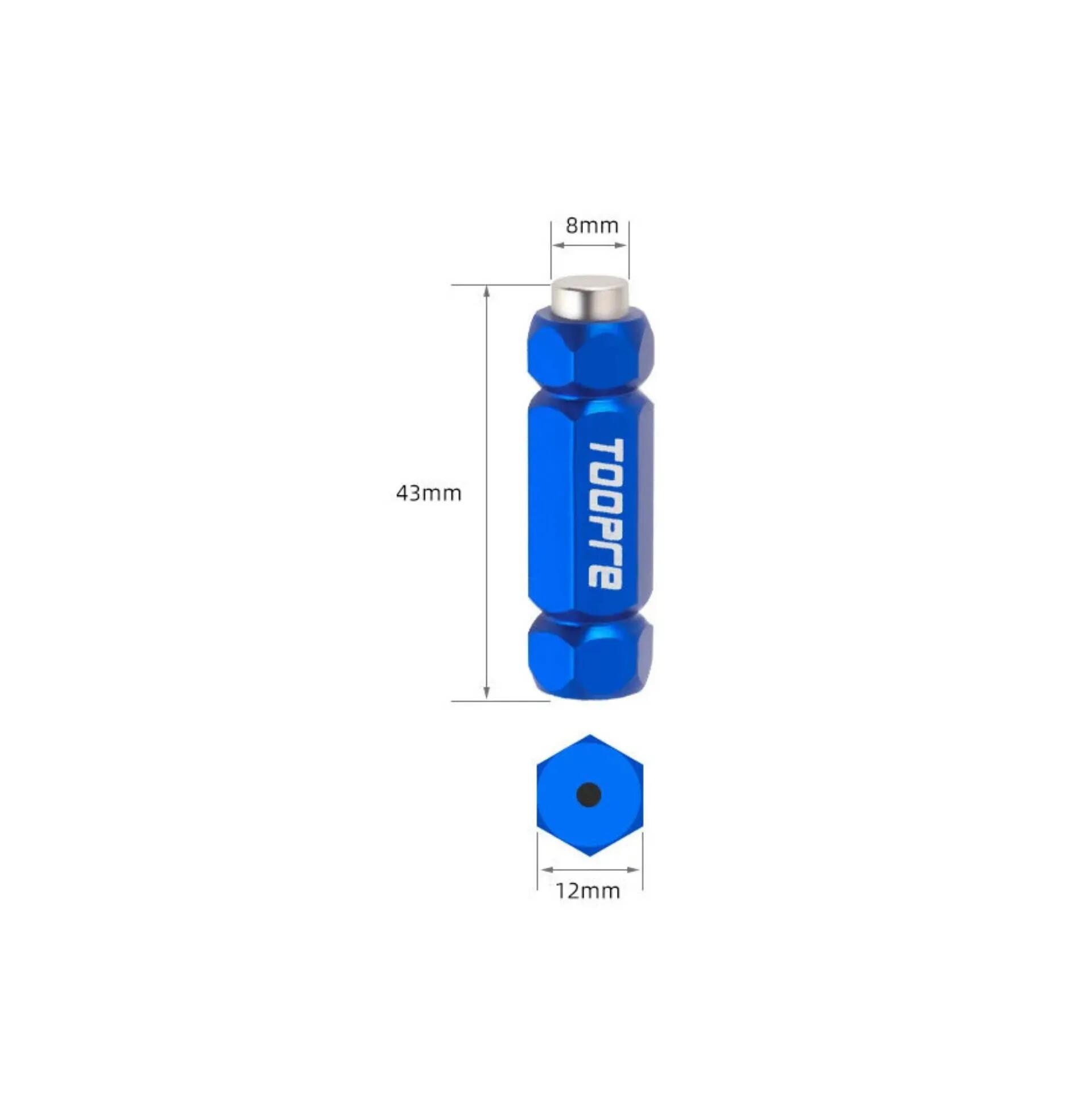

• 1 × main guiding magnet (standard model)
• 1 × main guiding magnet (storage model)

A practical and compact tool to route internal cables quickly, precisely and without damaging your frame.
