Pedalboard Box one M35

Product Description

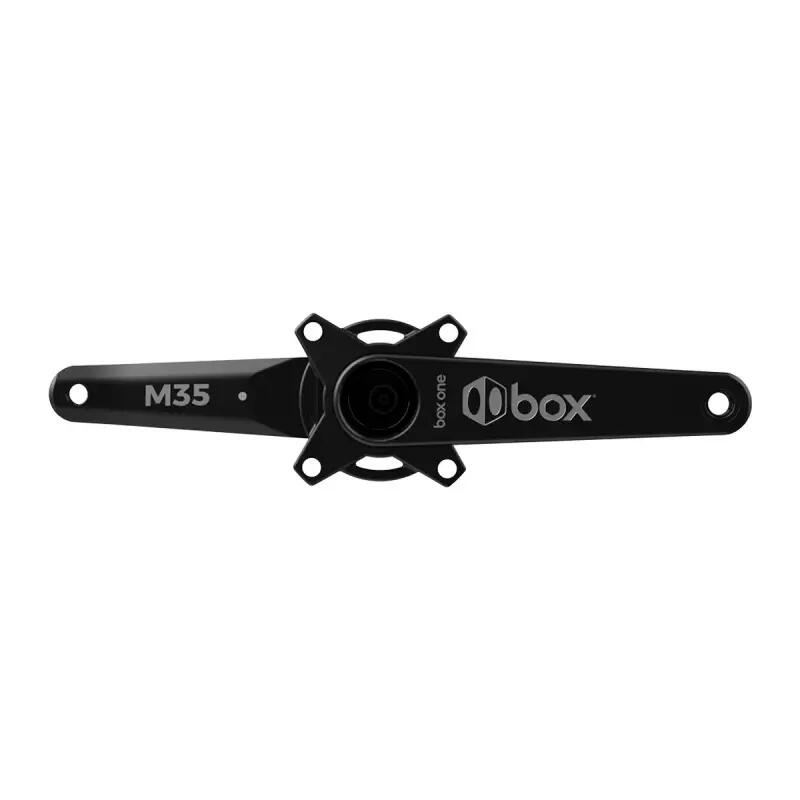

Crankset BOX one M35

Show all images

The unique BOX One M35 crankset has proven to be the essential choice for Elite riders of BMX Race. It is the premier crankset in the world to feature an external bottom bracket system with an oversized 35mm axle designed exclusively for BMX frames fitted with BB30/PF30 bottom brackets. Cold-forged from 7075 aluminum, its hollow cranks and oversized axle make it the most rigid BMX Race crankset on the market today.

CHARACTERISTICS:

• 2-piece crankset
• Hollow cranks Forged 7075-T6 aluminum

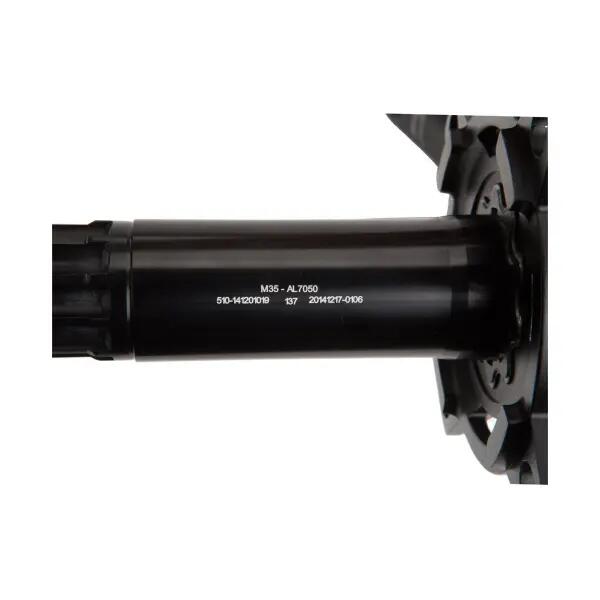

• 35mm axle Forged 7075-T6 aluminum
• CNC-machined aluminum star
• 4-point BCD attachment 104mm diameter
• Chain line: 44.5mm
• Q-factor: 168mm
• Weight: 1020g (175mm)

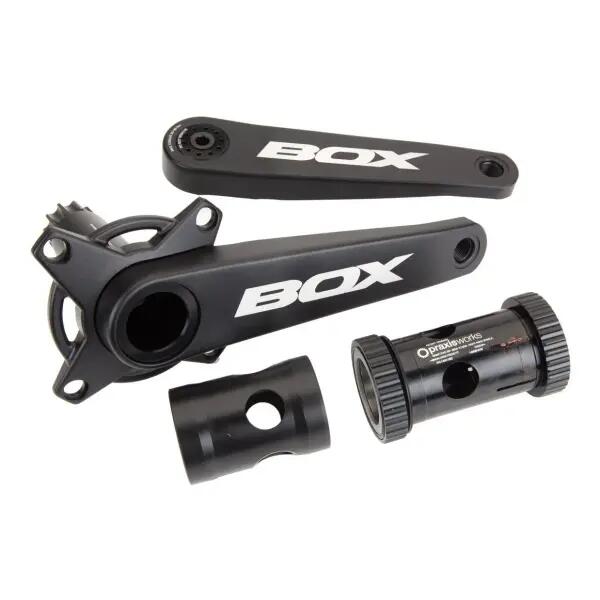

• Sold with BOX M35 housing and installation tool
• Bottom bracket gasket on crown side not included as not required

COMPATIBILITY:

• ONLY FOR FRAMES COMPATIBLE WITH PF30/BB30 HOUSING
• NOT COMPATIBLE with Euro BSA/BSC, Press Fit BB86 or T47 housings.

Do not use pedal washers when installing pedals on these cranks. M35 cranks are designed to be used without pedal washers.
